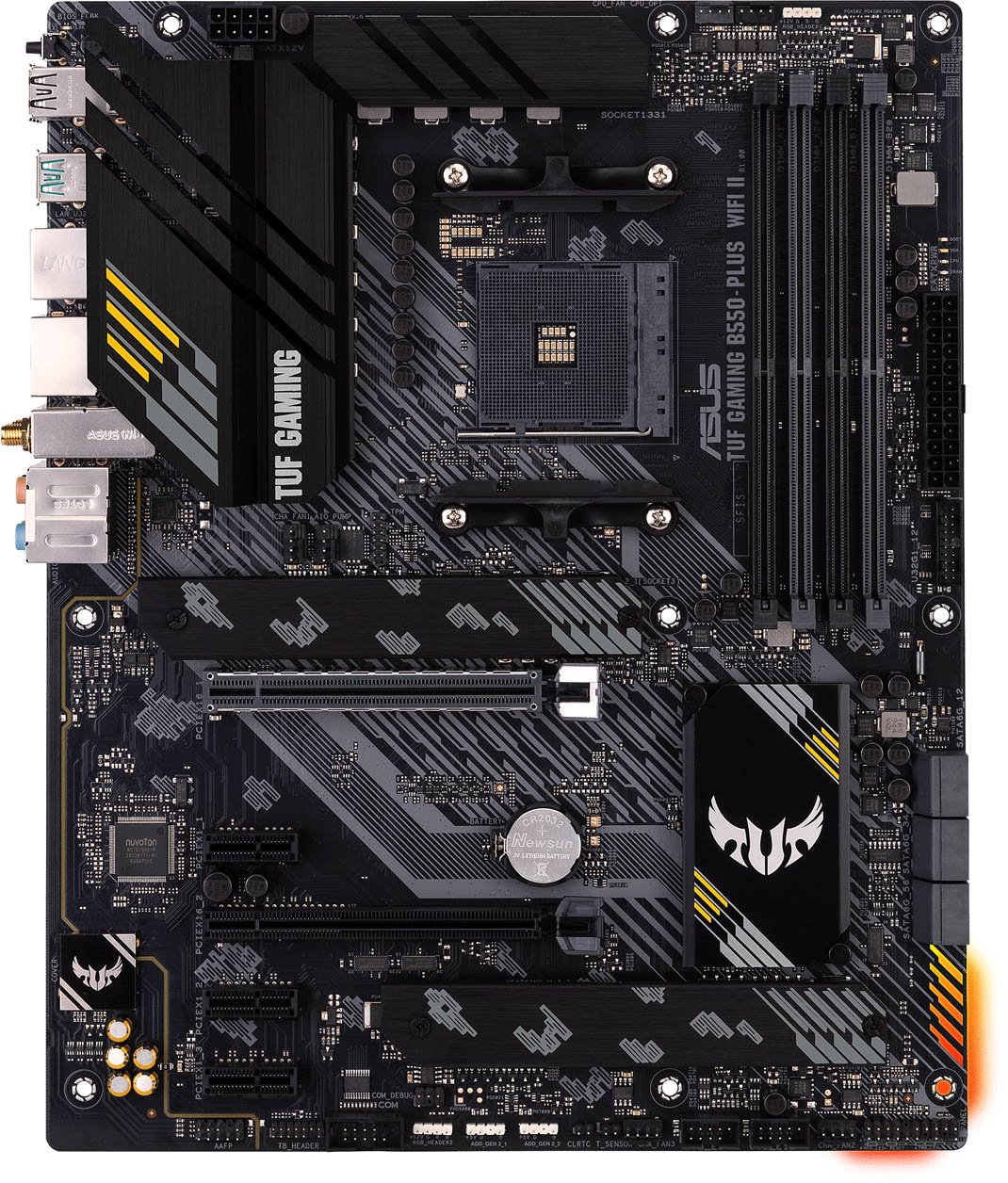

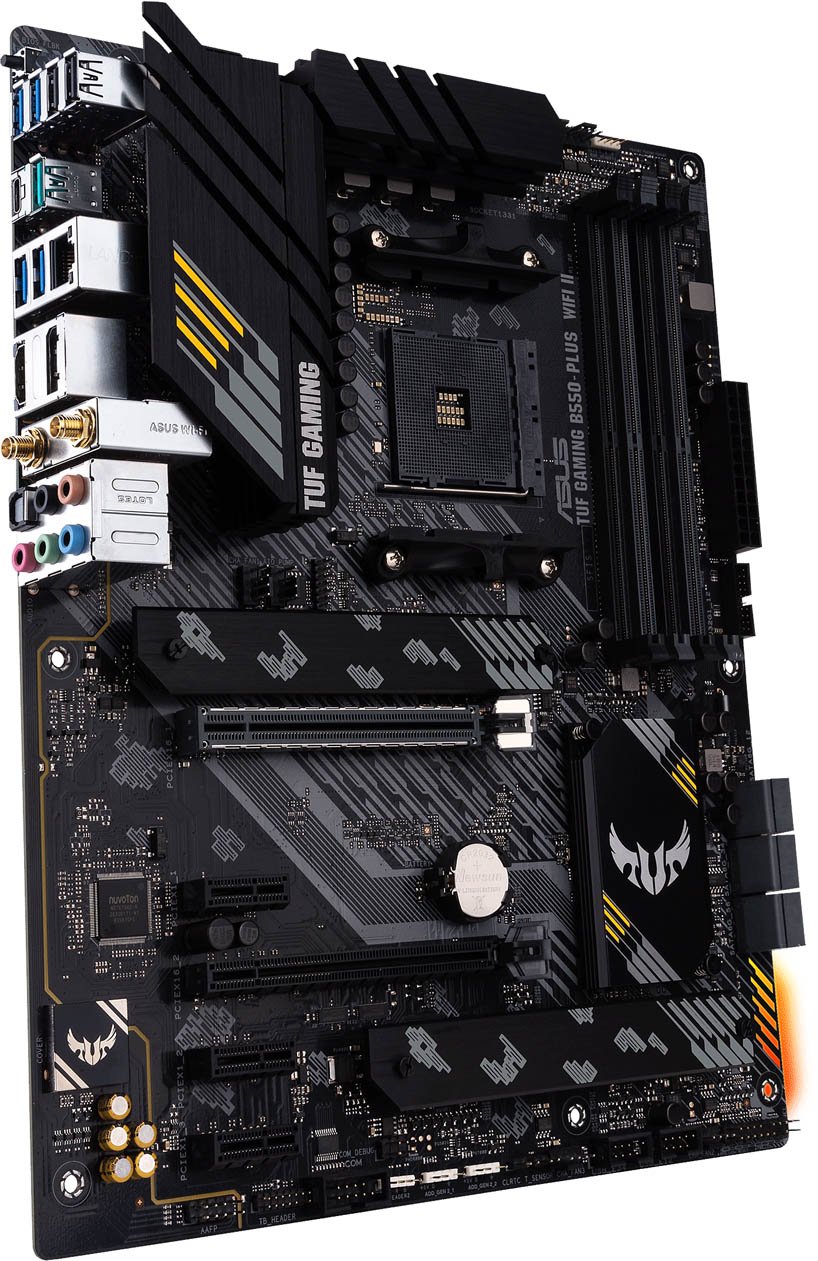

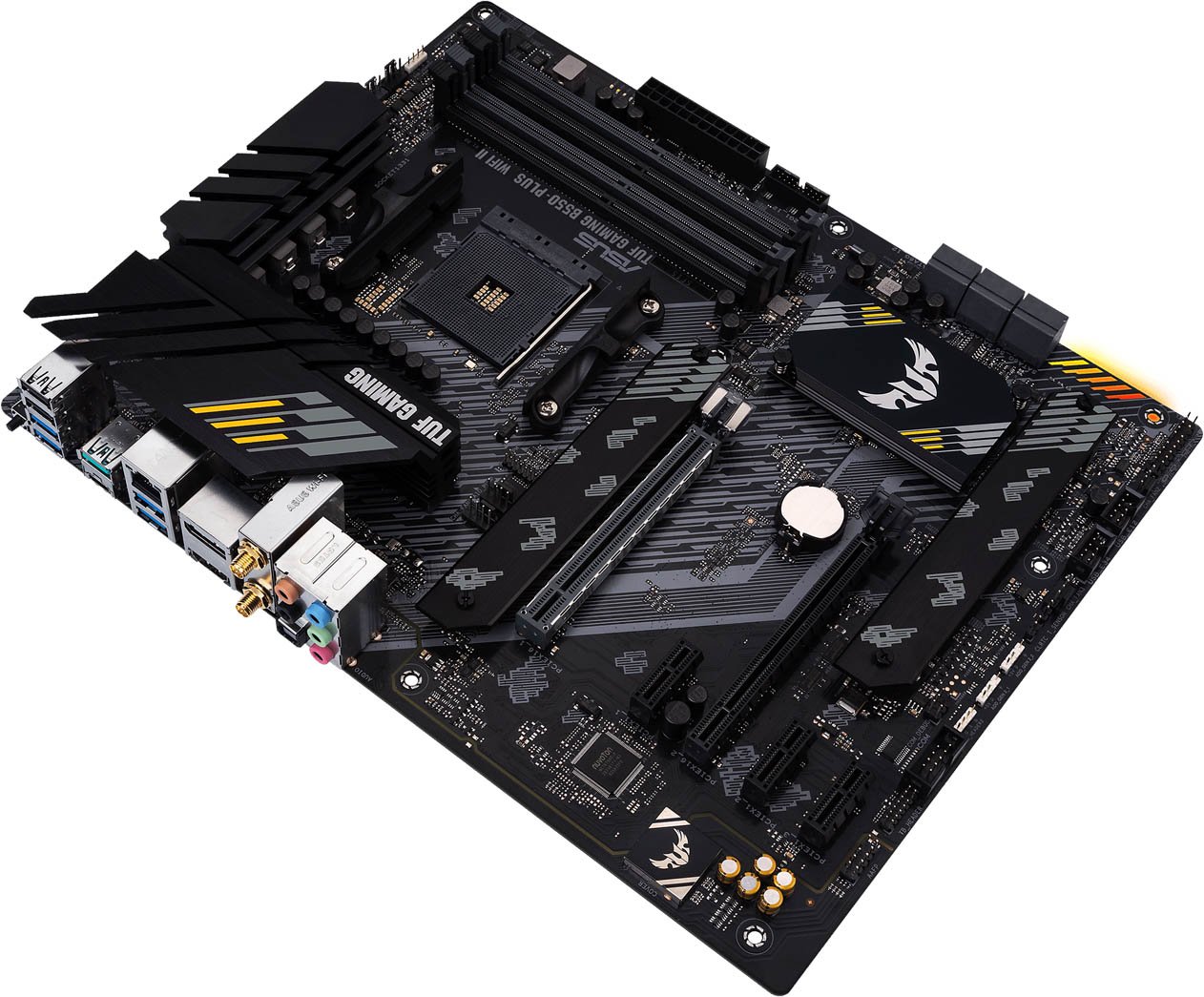

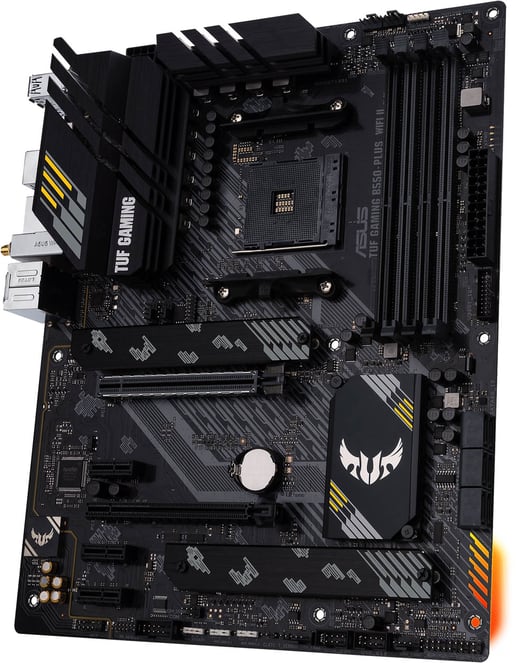

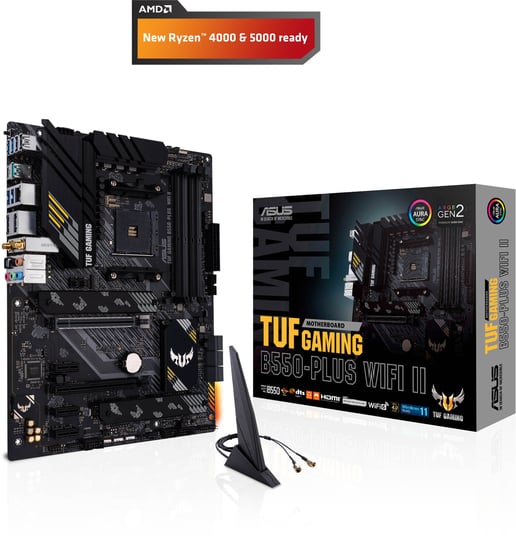

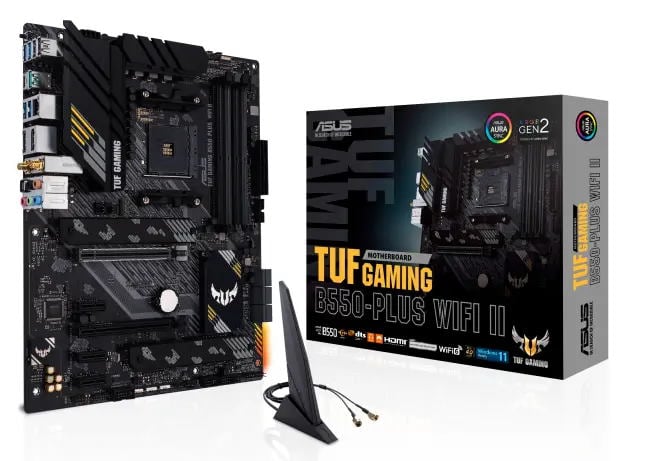

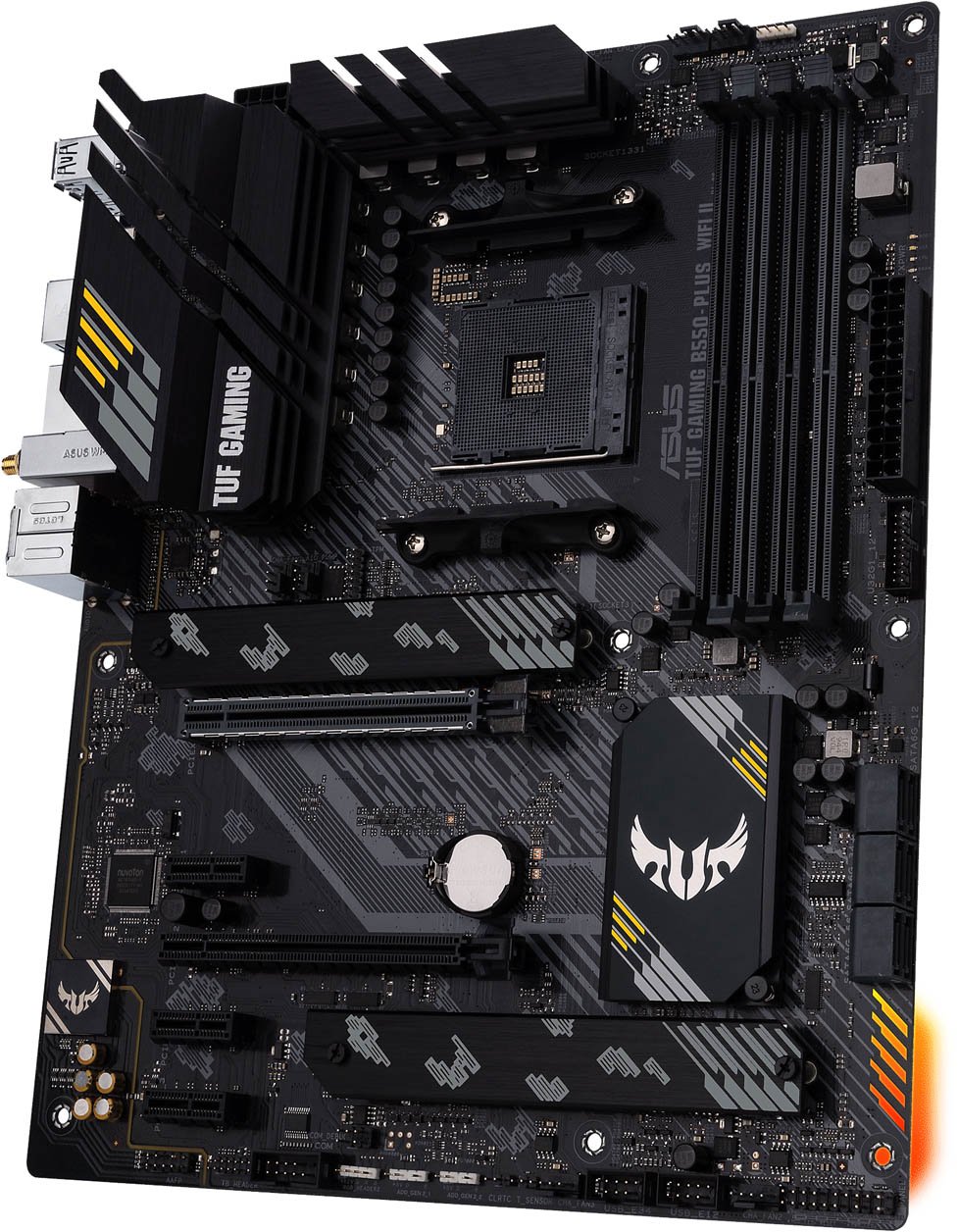

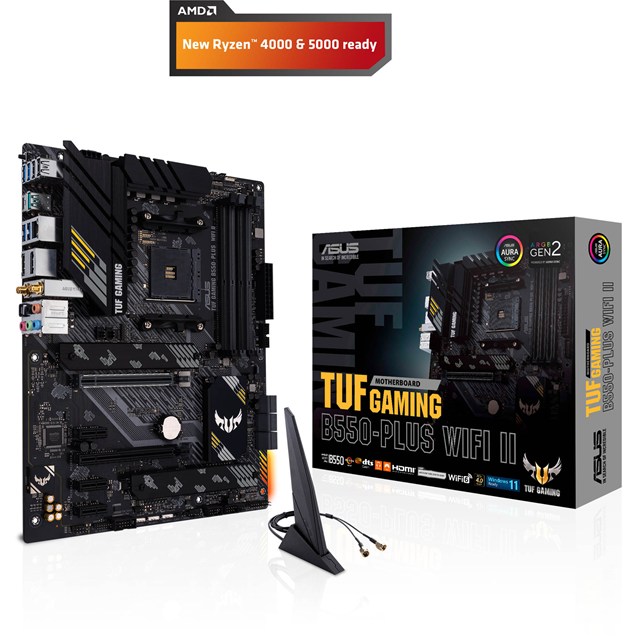

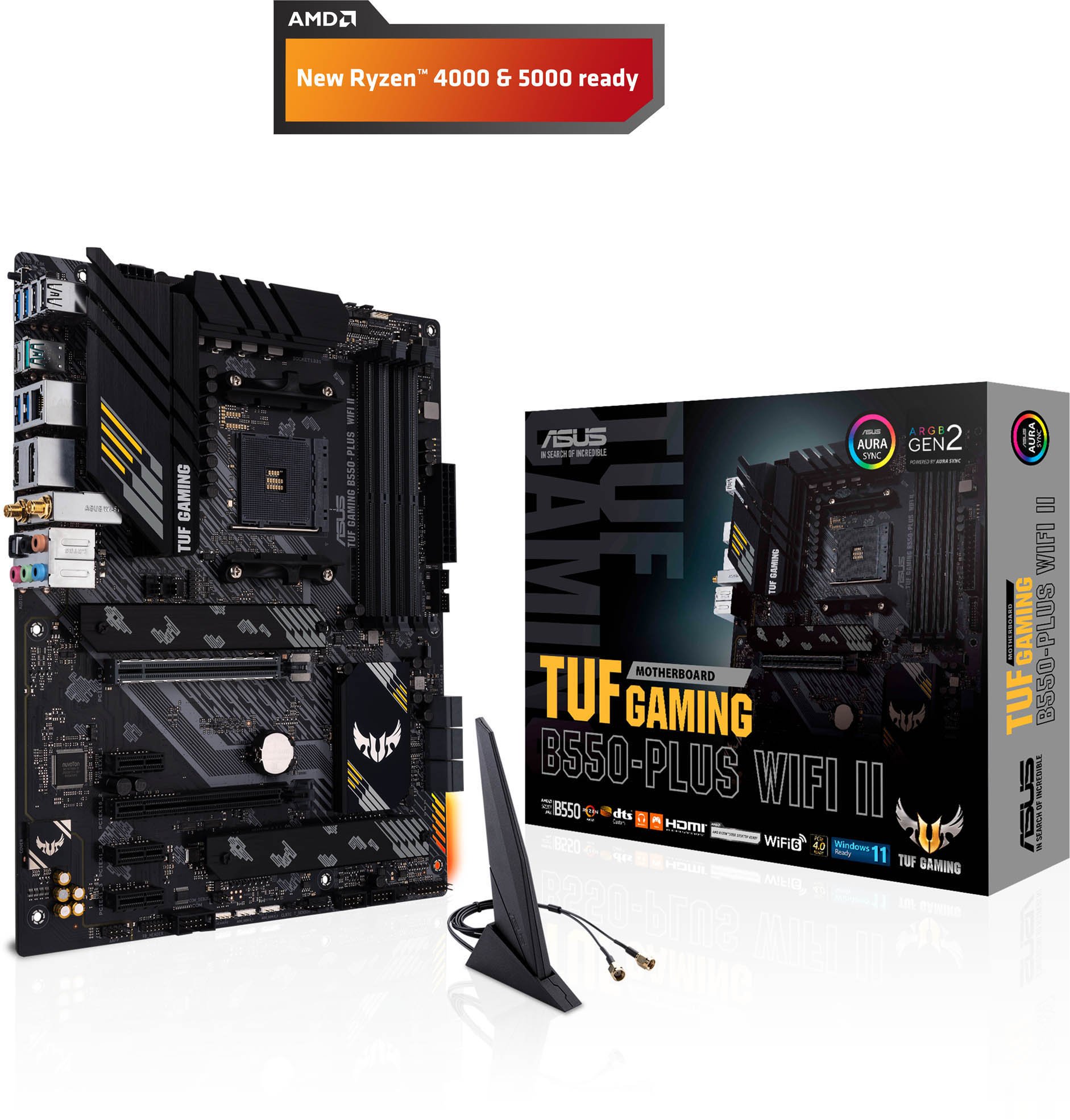

Name: ASUS TUF Gaming B550-Plus WIFI II ATX Motherboard for AMD AM4 CPUs
Brand: ASUS
SKU: MBD3249
Price: 174.99 GBP
Availability: InStock
Rating: 4.8 (8 reviews)

ASUS TUF Gaming B550-Plus WIFI II ATX Motherboard for AMD AM4 CPUs

Compare

AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header, and Aura Sync RGB lighting support

£174.99 inc VAT

Available for delivery from Tuesday 30th April

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

ATX Form Factor
AMD B550 Chipset
Socket AM4
DDR4 (Max: 128GB / 4 slots)
2 x M.2 & 8 x USB & 6 x SATA
HDMI and Display Port

CCL Code: MBD3249

Overview

DURABLE. STABLE. RELIABLE.

TUF GAMING B550-PLUS WIFI II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF GAMING B550-PLUS WIFI II is the perfect foundation for your next high-core-count battle rig.

EASY PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

IMMERSIVE GAMING

TUF GAMING B550-PLUS WIFI II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Main Features

AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt 3 header support
Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
AI noise-canceling microphone: provides crystal-clear in-game voice communication

Promotions

Get 5% off components when you buy three or more*

For a limited time, buy at least three different components worth £30 or more from different qualifying categories and get 5% off those items. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power Supplies, CPU Coolers, and Cases.

Promotional Period: From 24th April 2024 till 25th April 2024. 7pm until 8am.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Some items may not be included, such as new product launches - please check the item to ensure the promotion applies. Minimum value of each item must £30 or greater. Discount will apply to three or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. It will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the three or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period:From 8PM April 27th, 2023 till 2AM April 28th 2023.

Specifications

CPU

CPU Socket	Socket AM4
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
64-bit Support	Yes
Socket	AM4

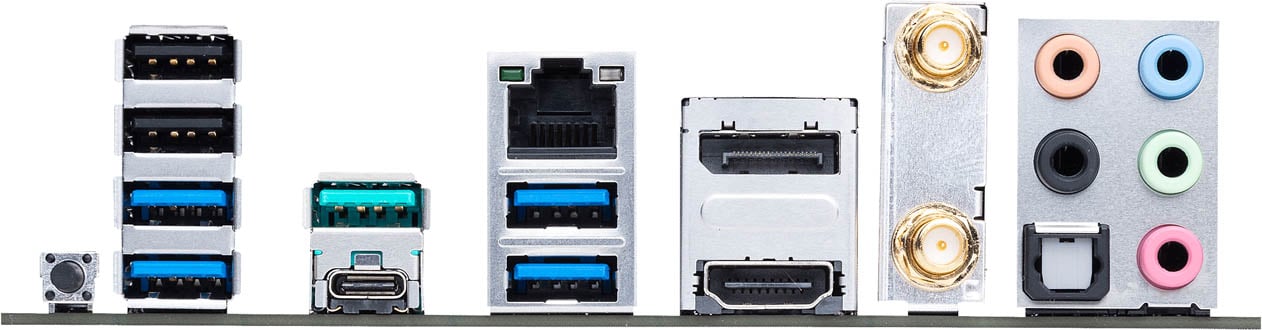

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.1 1 x USB 3.1 4 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort 1.2
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antennas

Internal I/O Connectors

SATA Connectors	6 x SATA III
USB Connectors	1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Cooling Fan Support	1 x CPU fan header 1 x CPU_OPT fan header 1 x AIO Pump header 3 x Chassis fan headers
Thunderbolt Port(s)	1 x Thunderbolt header
Serial Connectors	1 x COM header
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4, PCIe Gen3 or SATA) 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen3 or SATA) 2 x 3-pin ARGB LED headers 2 x 4-pin RGB LED headers 1 x Thermal Sensor header

Memory

Memory Bus Speed	Up to 4866 MHz (OC)
Memory Type	DDR4
Maximum RAM	128 GB
Memory Slot	DDR4

Motherboard

Chipset Manufacturer	AMD
Northbridge	B550
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
3 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Yes
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6)
Wireless Network Speed	Up to 2.4 Gbps
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard
Width	305 mm
Length	244 mm

Key Features

Firewire	No
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	6 port(s)
Number of USB Ports	8 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	8-Pin
Motherboard Chipset	AMD B550
Thunderbolt	No
WiFi Speed	2400 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
Memory Speed	4866 MHz
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	No
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	3200 MHz
Max Memory Speed Supported (overclocked)	4866 MHz
CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
Maximum SATA M.2 ports	2
SATA ports	6
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2

Item Details

Manufacturer	ASUS
Manufacturer Code	TUF GAM B550-PLUS WIFI II
Alternative Part Number	90MB19U0-M0EAY0
EAN	4711081338413
UPC	195553338417
Condition	New

Warranty

Warranty Information

Warranty

3 Years

Manufacturer Information

Manufacturer	ASUS
Manufacturer Code	TUF GAM B550-PLUS WIFI II

Reviews

4.8 / 5 8 reviews

Sam

12 months ago

Quite good, had all the slots I needed and I've had no issues

PWJ DAVIES

February 2023

easy to install works great

CJM

January 2023

Good base for a home build with functionality and the potential to update as required. Layout makes it easy to build around and gives good connectivity for the price.

Thomas

December 2022

very good motherboard. the user guide could do with larger diagrams.other than that very good

Musrat Choudhury

June 2022

Good quality, bios needed updating and could be a bit clearer

Mike Driftwood

May 2022

Very very happy. Got exactly the product I ordered at a very awesome price with a free game too. The free digital code came the day the order was despatched. The motherboard arrived in perfect condition and works a dream. Also contacted their support by Live chat to ask about my order and they replied very politely and very quickly. Will definitely buy from this site again

Adam Rosenbloom

March 2022

Well featured Mobo. Offers everything I needed at a competitive price. Not too much RGB (good thing as far as I am concerned) but with lots of options to add it if wanted.

Dan Mak

March 2022

No issues at all. Very easy to install and all working fine at a great price.
