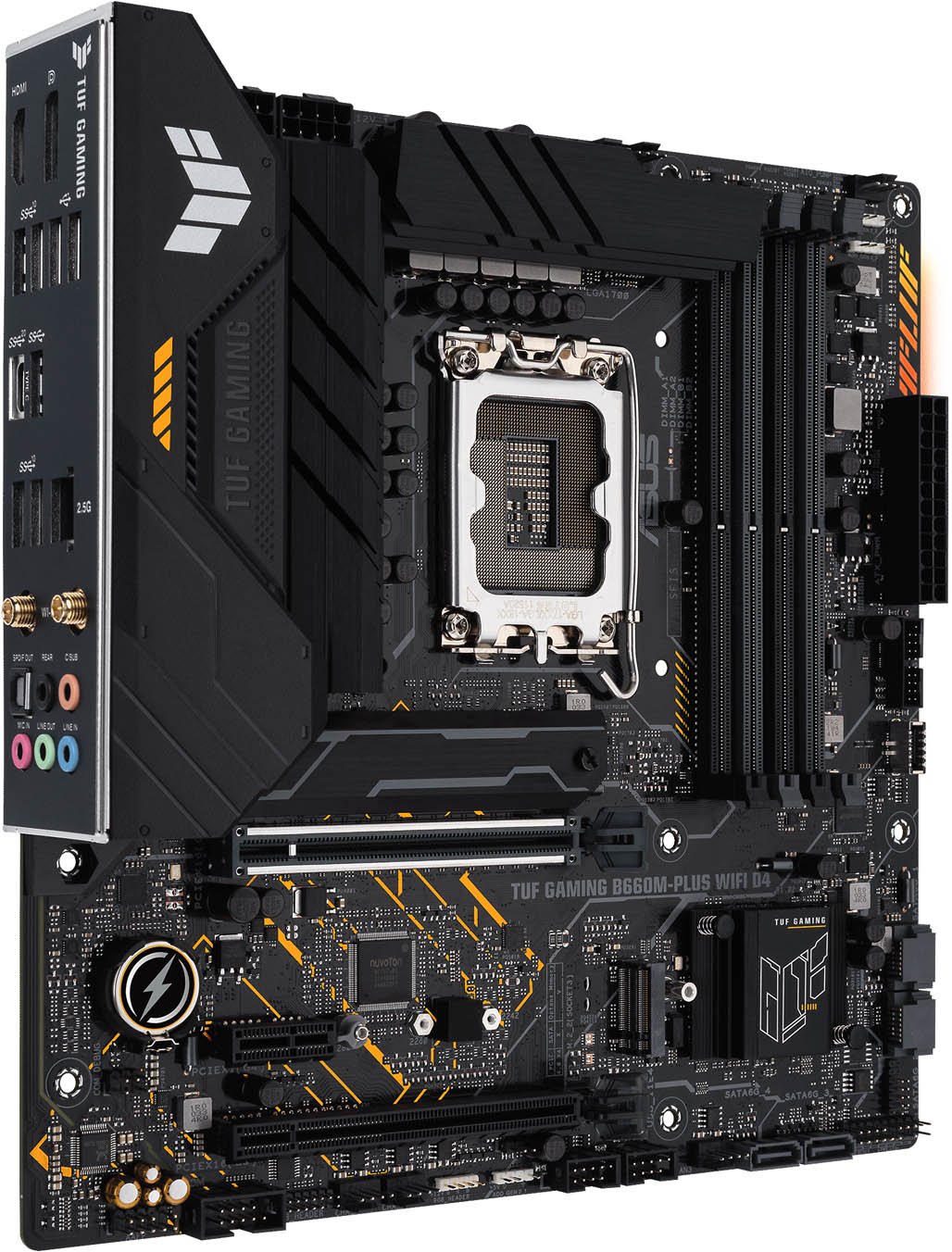

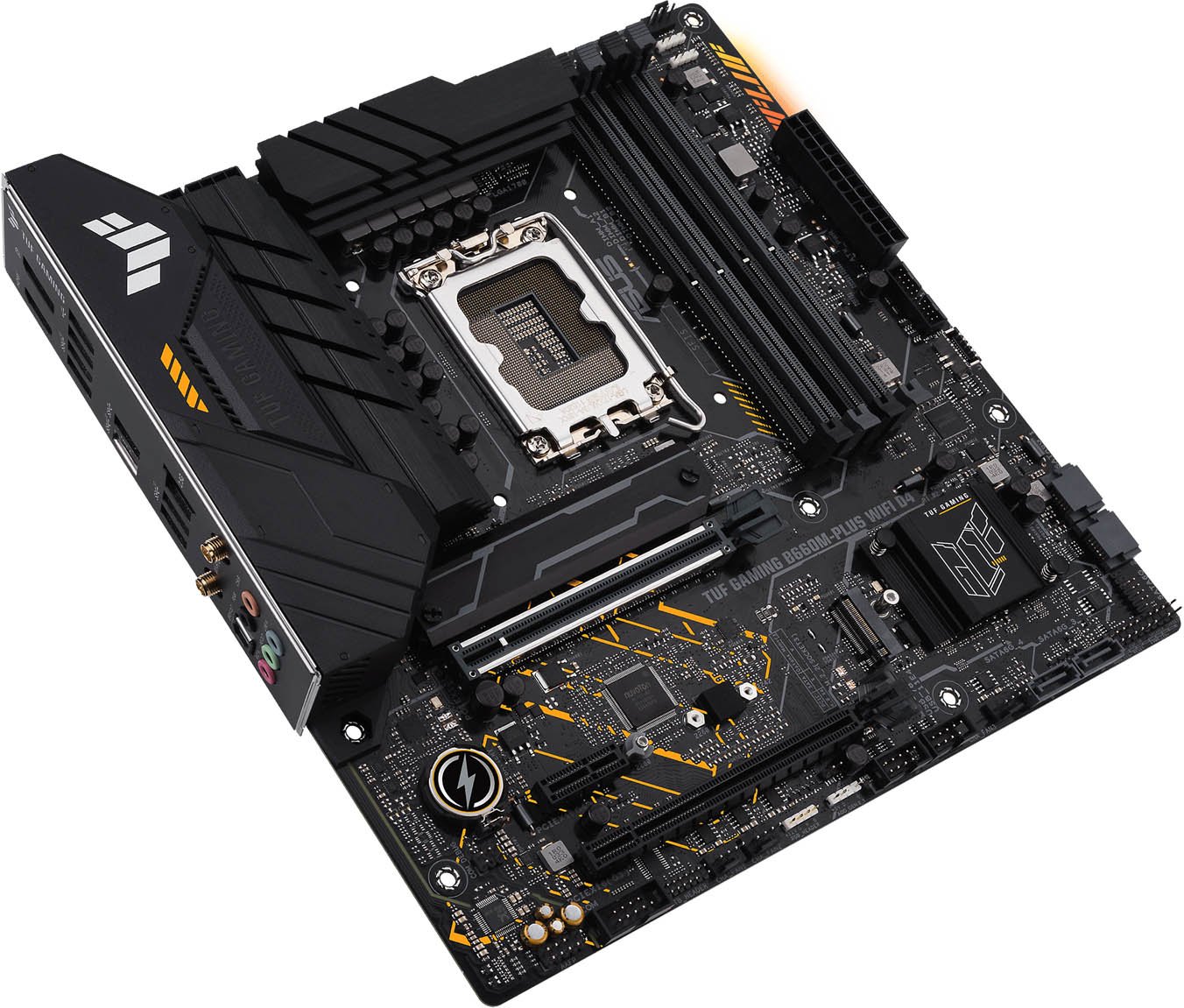

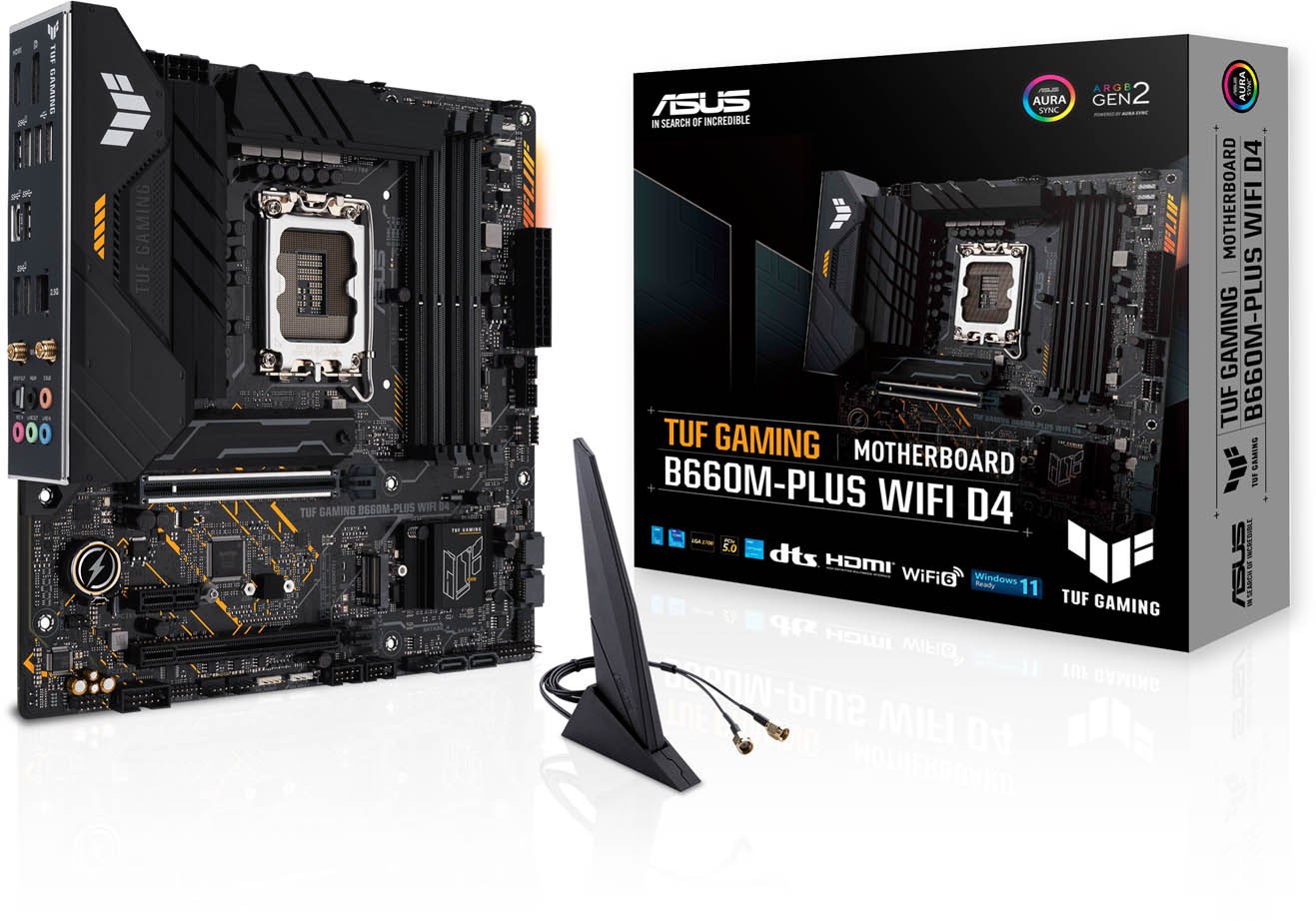

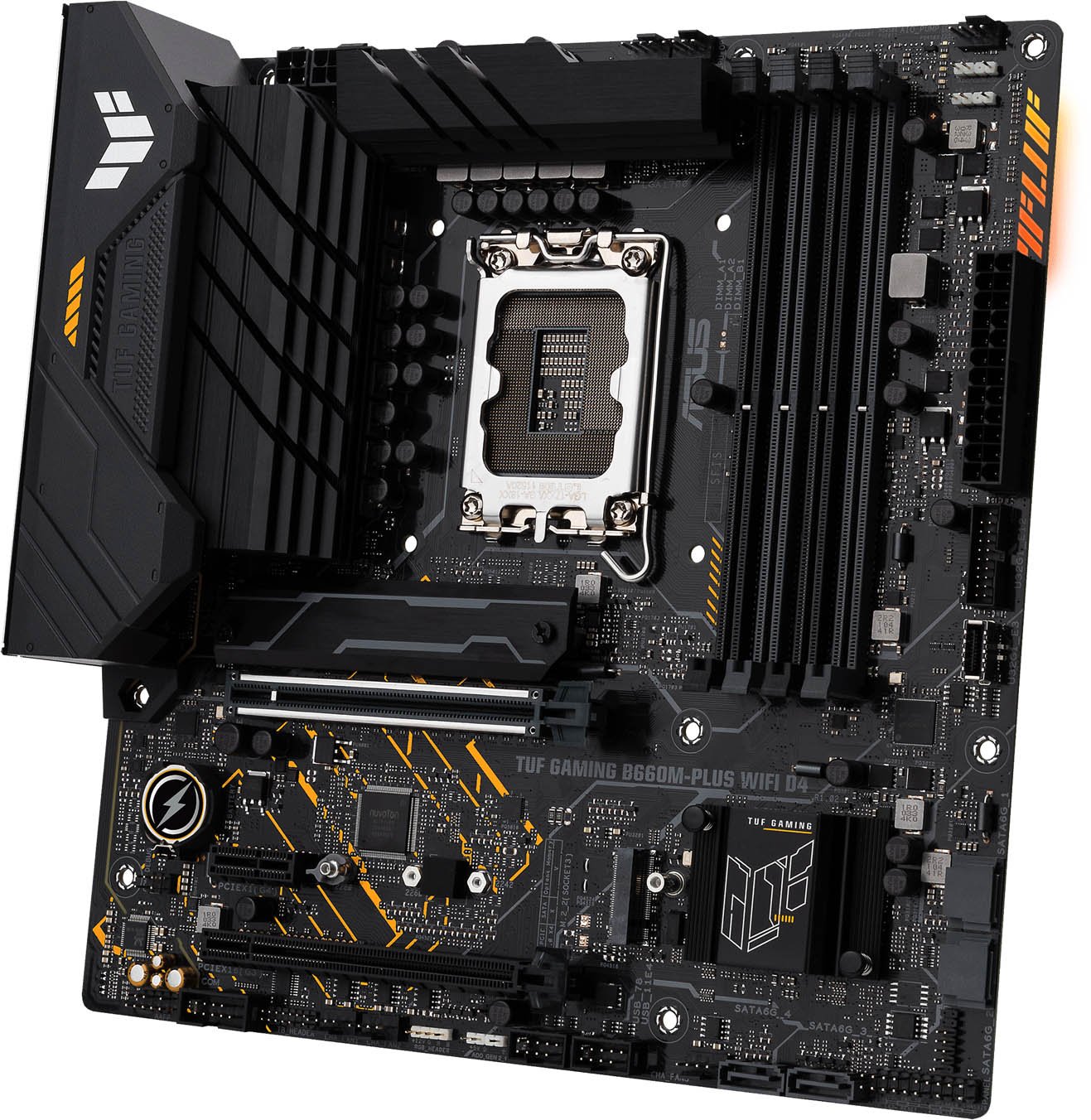

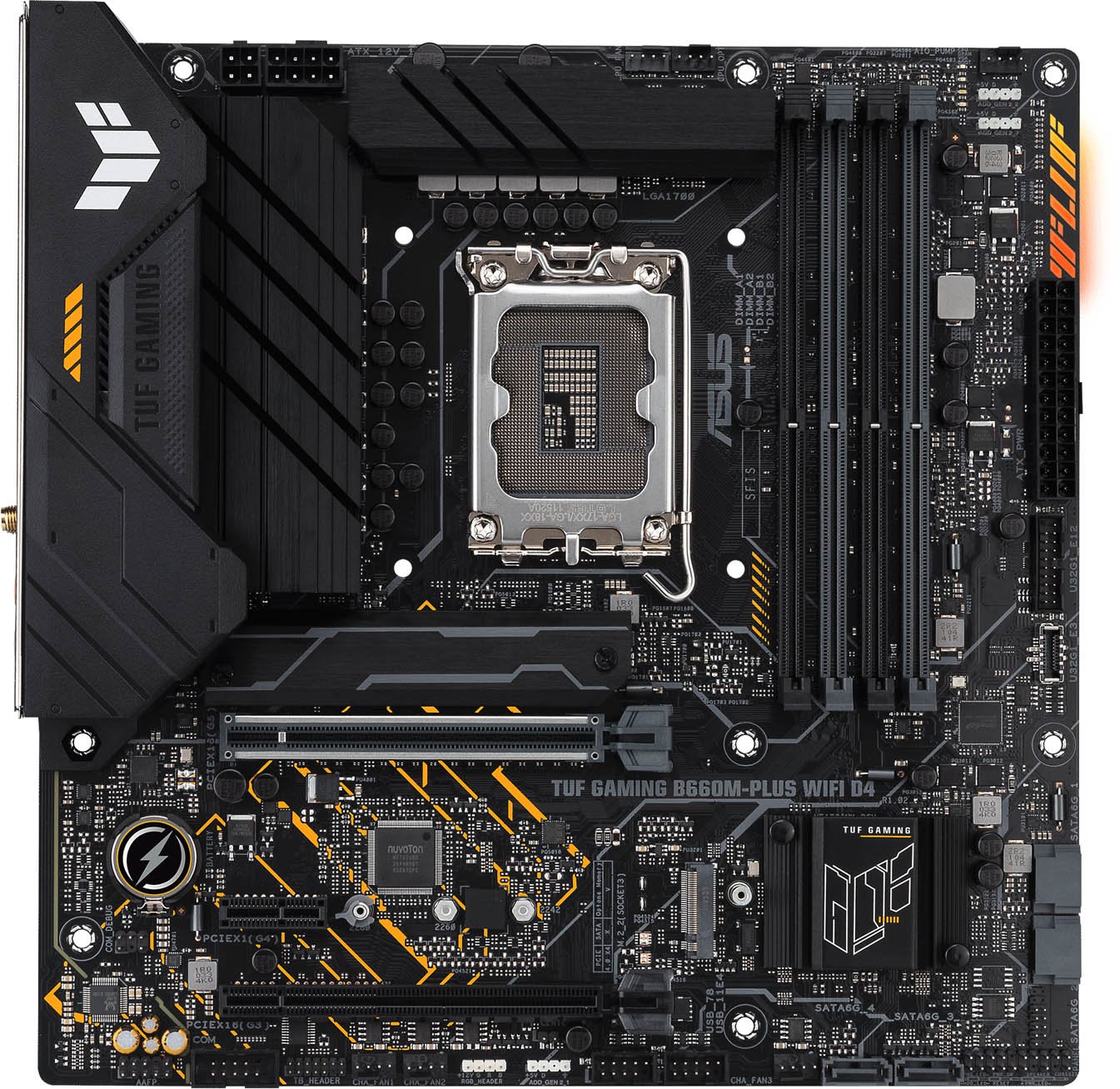

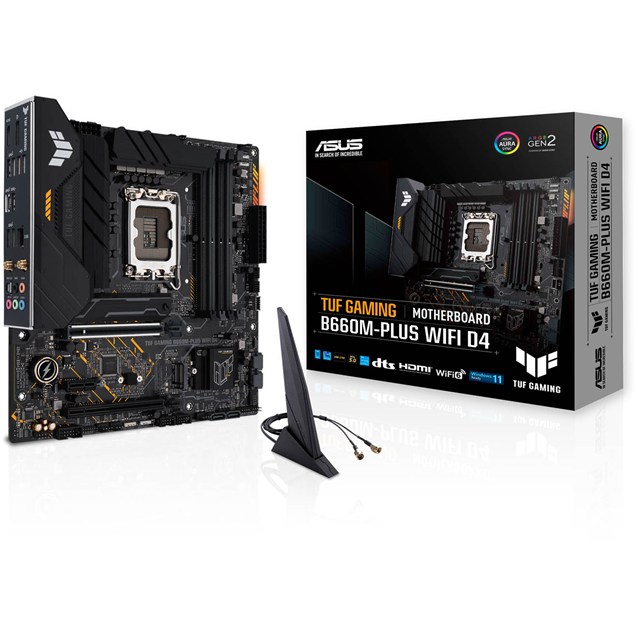

ASUS TUF Gaming B660M-Plus WIFI D4 mATX Motherboard for Intel LGA1700 CPUs

ASUS TUF Gaming B660M-Plus WIFI D4 mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3265

Sold out

Notify Me
  • ASUS TUF Gaming B660M-Plus WIFI D4 mATX Motherboard for Intel LGA1700 CPUs
  • ASUS TUF Gaming B660M-Plus WIFI D4 mATX Motherboard for Intel LGA1700 CPUs
  • ASUS TUF Gaming B660M-Plus WIFI D4 mATX Motherboard for Intel LGA1700 CPUs
  • ASUS TUF Gaming B660M-Plus WIFI D4 mATX Motherboard for Intel LGA1700 CPUs
  • ASUS TUF Gaming B660M-Plus WIFI D4 mATX Motherboard for Intel LGA1700 CPUs
  • ASUS TUF Gaming B660M-Plus WIFI D4 mATX Motherboard for Intel LGA1700 CPUs
  • ASUS TUF Gaming B660M-Plus WIFI D4 mATX Motherboard for Intel LGA1700 CPUs

Get 5% off when you buy 5 or more different components using code: BUY5GET5

Intel® B660 (LGA 1700) mATX motherboard, 10+1 DrMOS Power stages , PCIe 5.0 support, DDR4 5333 (OC), Dual PCIe 4.0 M.2 Slots with Flexible Heatsink, Intel® Wi-Fi 6, Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2x2 Type-C®, Front USB 3.2 Gen 1 Type-C®, Aura Sync, Two-way AI Noise Cancelation

ASUS TUF Gaming B660M-Plus WIFI D4 mATX Motherboard for Intel LGA1700 CPUs

TUF GAMING B660M-PLUS WIFI D4

Intel® B660 (LGA 1700) mATX motherboard, 10+1 DrMOS Power stages , PCIe 5.0 support, DDR4 5333 (OC), Dual PCIe 4.0 M.2 Slots with Flexible Heatsink, Intel® Wi-Fi 6, Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2x2 Type-C®, Front USB 3.2 Gen 1 Type-C®, Aura Sync, Two-way AI Noise Cancelation

Key Features:

  • Socket 1700
  • Intel B660 Chipset
  • 4 x SATA & 8 x USB Ports
  • DDR4 (max 128GB, 4 slots)
  • HDMI and Display Port
  • mATX Form Factor
CCL Code: MBD3265

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

Durable. Stable. Reliable.

ASUS TUF GAMING B660M-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-PLUS WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core™ processors, plus support for faster memory and storage, TUF GAMING B660M series motherboards are the perfect foundation for your next high-core-count battle rig.

Easy PC DIY

TUF GAMING motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software provides Fan Xpert 2+ and hardware information and offers full full control of Two-Way AI Noise Cancellation, RGB lighting and peripheral settings. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity.

Immersive Gaming

TUF GAMING B660M series motherboards provide a high-performance gaming package with a long list of features to improve your experiences, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Main Features

  • Intel LGA 1700 socket: Ready for 12th Gen Intel processors
  • Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
  • Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4 support
  • Made for online gaming: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard
  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Promotions

**BUY5GET5**

Get 5% off components when you buy five or more*

For a limited time, buy at least five different components from different qualifying categories and get 5% off those items using the code above at checkout.  *Terms & Conditions apply.

Qualifying categories are Graphic Cards,  Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power Supplies, CPU Coolers, and Cases.

Promotional Period: From 8th of June, 2023 till 22nd of June, 2023.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to five or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. If will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the five or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 8th of June, 2023 till 22nd of June 023.

Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 12th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

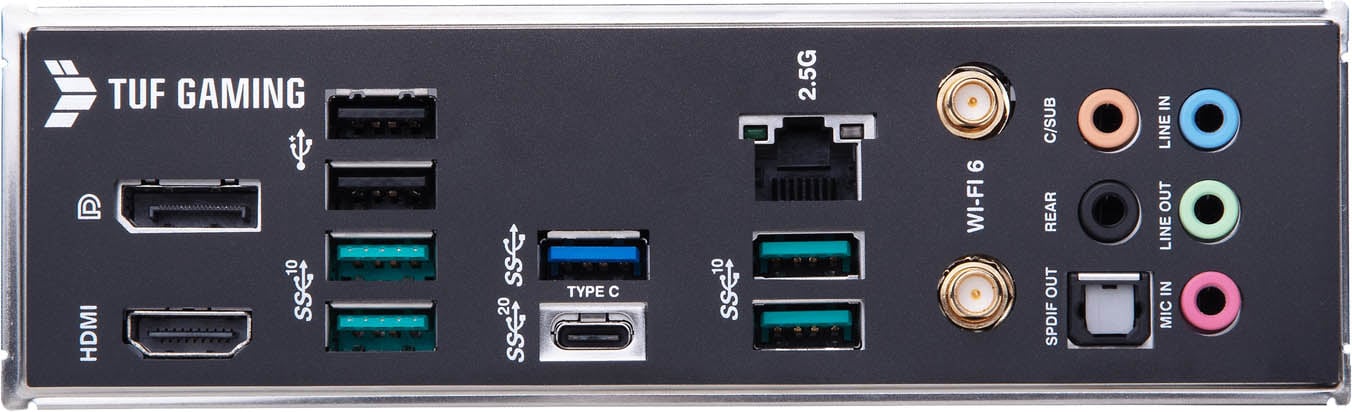

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
4 x USB 3.1
1 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5m Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5m Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU_OPT fan header
1 x AIO Pump header
3 x Chassis fan headers
Thunderbolt Port(s) 1 x Thunderbolt header
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen4)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header

Memory

Memory Bus Speed 5333 MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer Intel
Northbridge B660
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 3.0 x16 slot (@ x4)
1 x PCI Express 4.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 11 / 10 64-bit

System

BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor MicroATX Motherboard

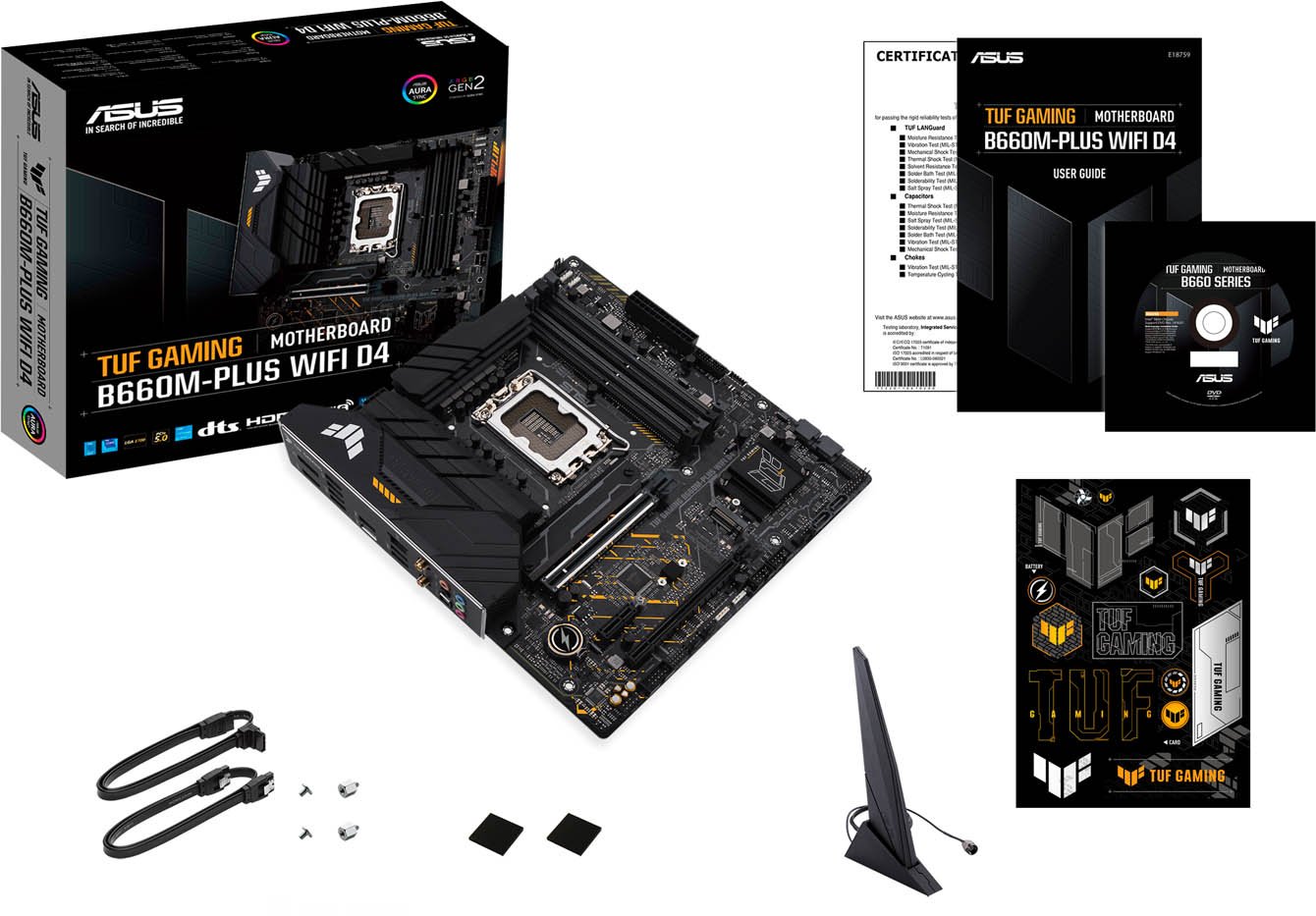

In The Box ASUS TUF Gaming B660M-Plus WIFI D4
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
1 x Support DVD
1 x TUF Certification card
1 x User guide
Width 244 mm
Length 244 mm

Key Features

USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 5333 MHz
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 3200 MHz
Max Memory Speed Supported (overclocked) 5333 MHz
CPU Power Pins (female) 12
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Firewire No
Wireless Network Yes
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard Power Connectors 4 + 8-Pin
Motherboard Chipset Intel B660
Thunderbolt No
Motherboard Model ASUS TUF Gaming B660M-Plus WIFI D4
WiFi Speed 2400 Mbps

Item Details

Manufacturer ASUS
Manufacturer Code TUF GAMING B660M-PLUS WIFI D4
Alternative Part Number 90MB1930-M0EAY0
EAN 4711081516859
UPC 195553516853
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code TUF GAMING B660M-PLUS WIFI D4
