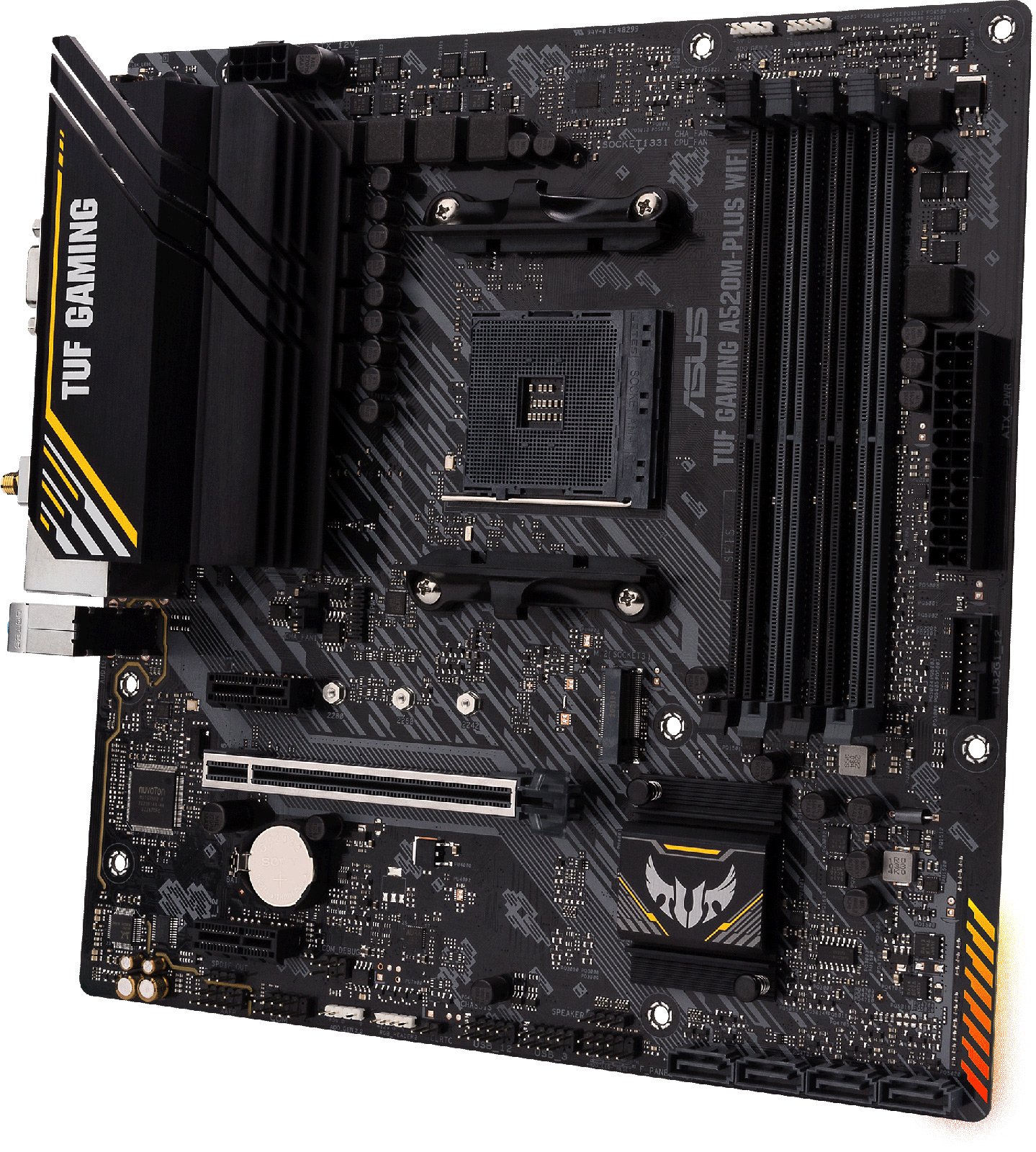

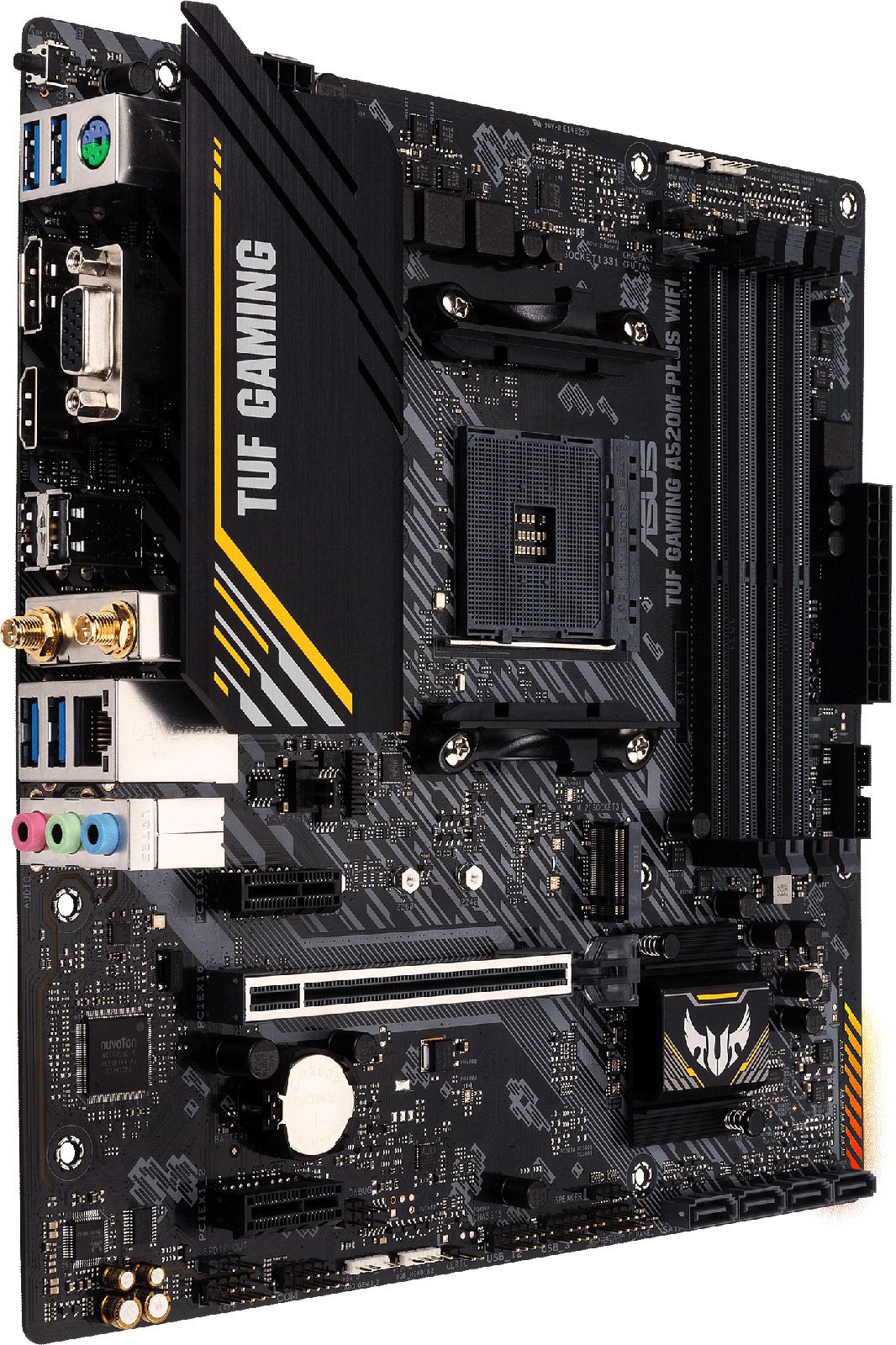

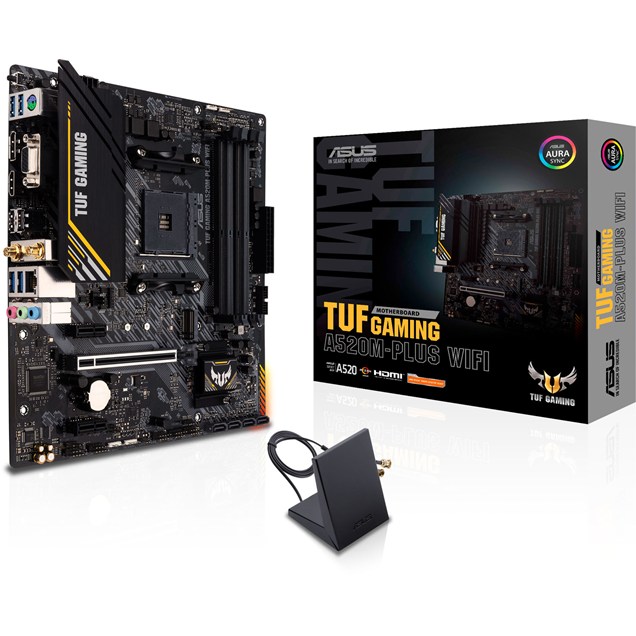

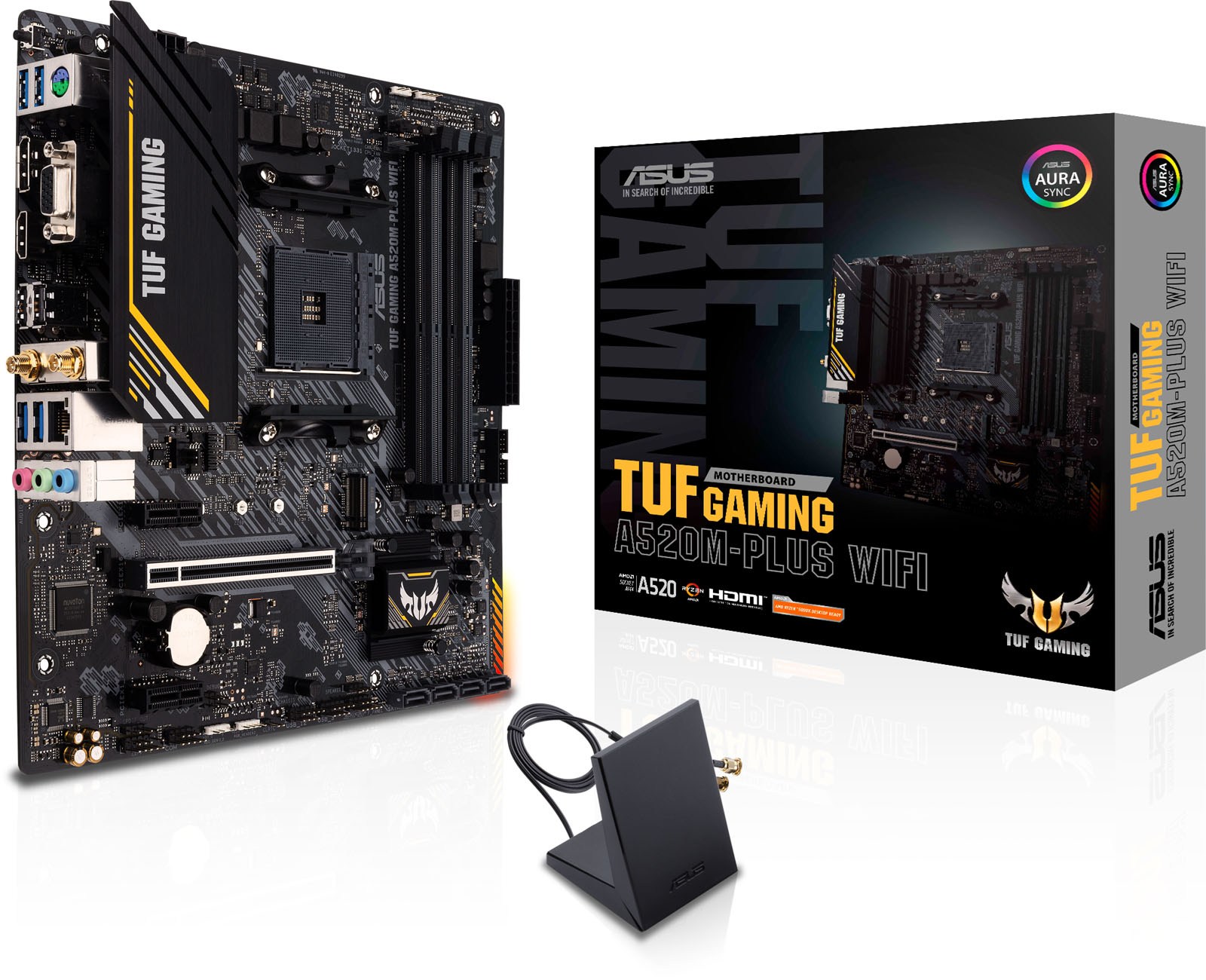

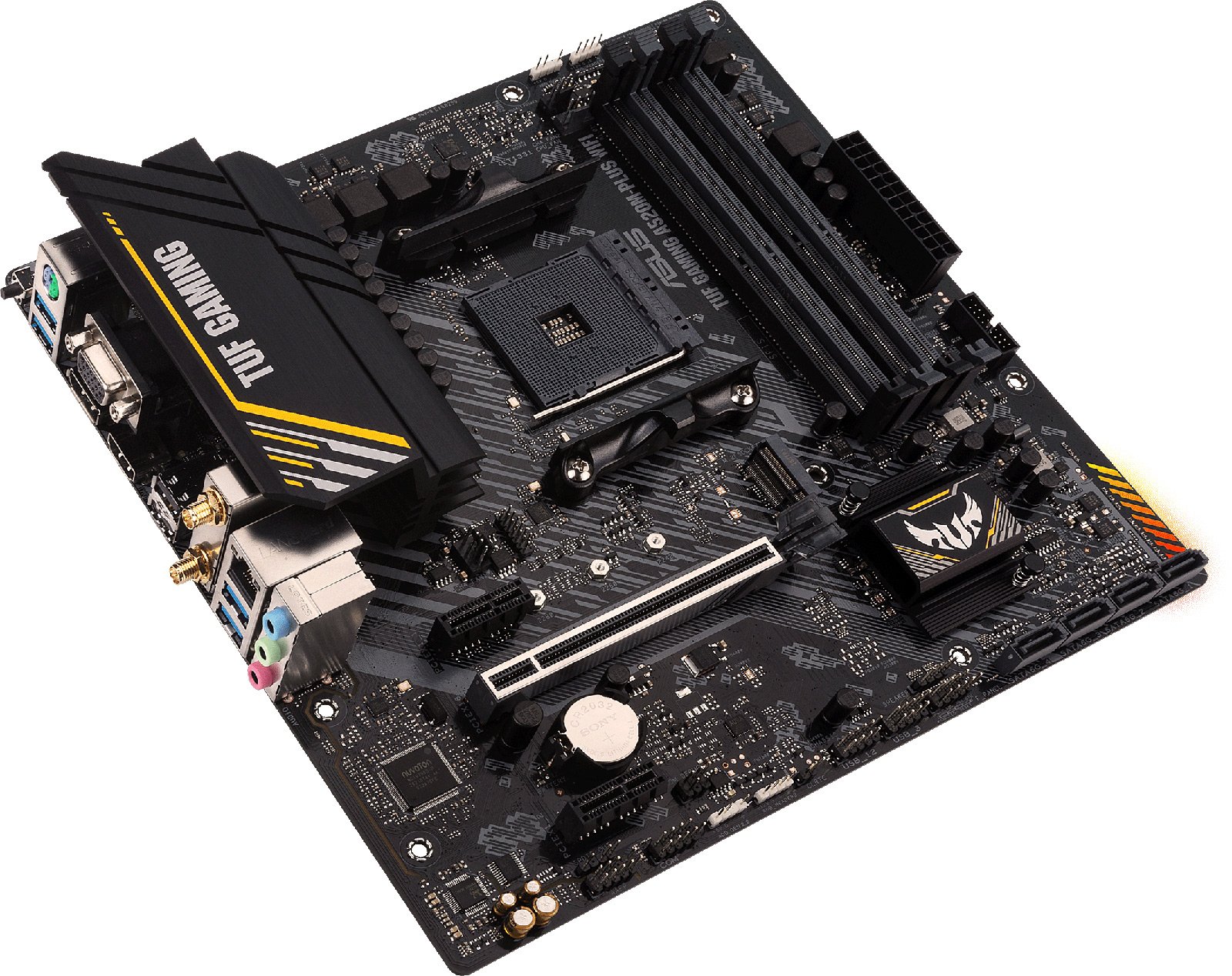

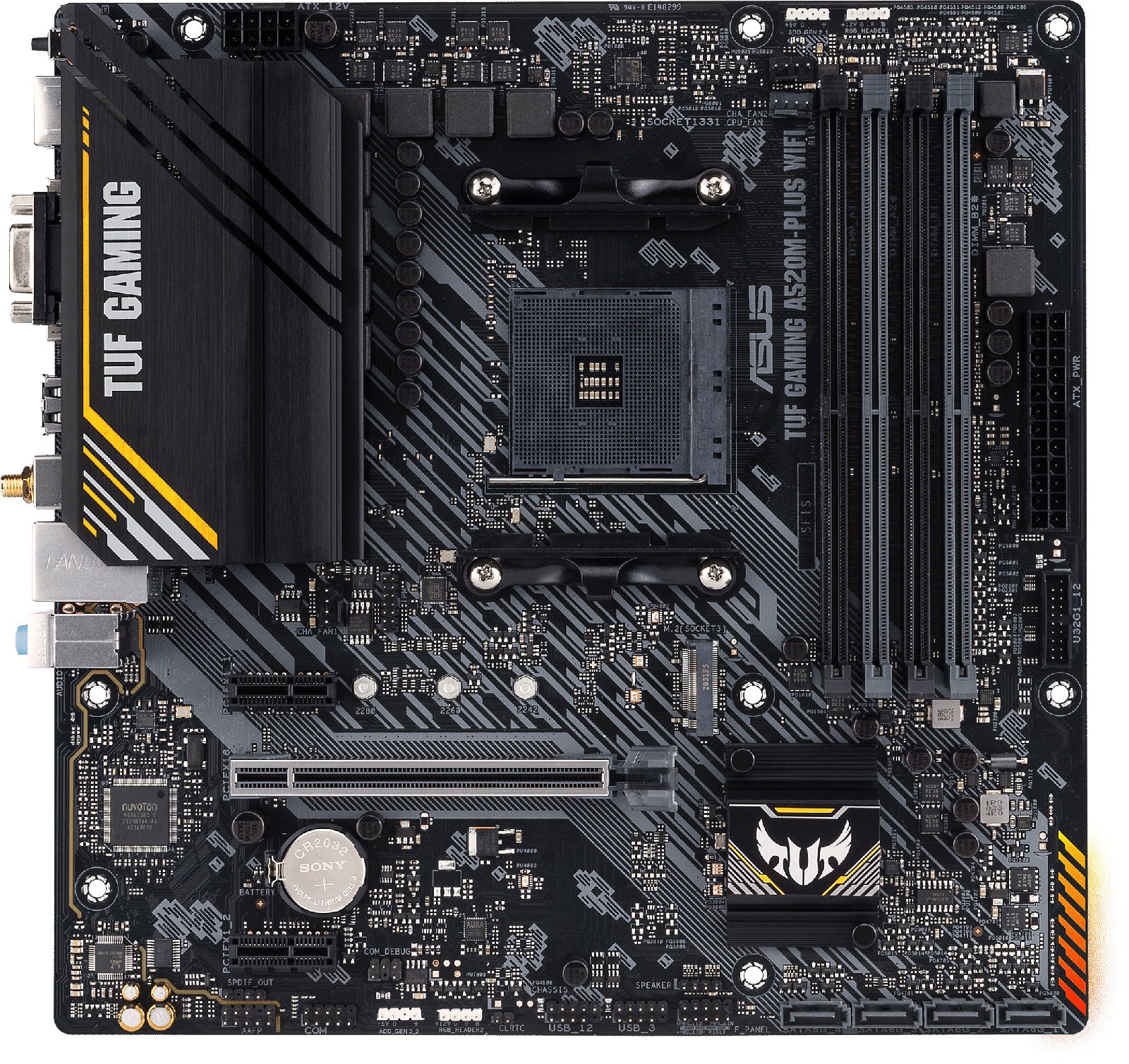

ASUS TUF Gaming A520M-Plus WIFI mATX Motherboard for AMD Socket AM4 CPUs
Available for delivery from Tomorrow
Click & Collect from Today
Low stock - don't miss out
Order within
You have 0 of these in your basket
Please note that this is a C Grade clearance item. C Grade items may have missing accessories or show signs of cosmetic wear. See below for details of this specific item. The price has been reduced to reflect this.
All C Grade items are working and have been fully tested.
This item is supplied with a Warranty: 6 Month warranty.
TUF Gaming A520M-Plus WIFI distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM4

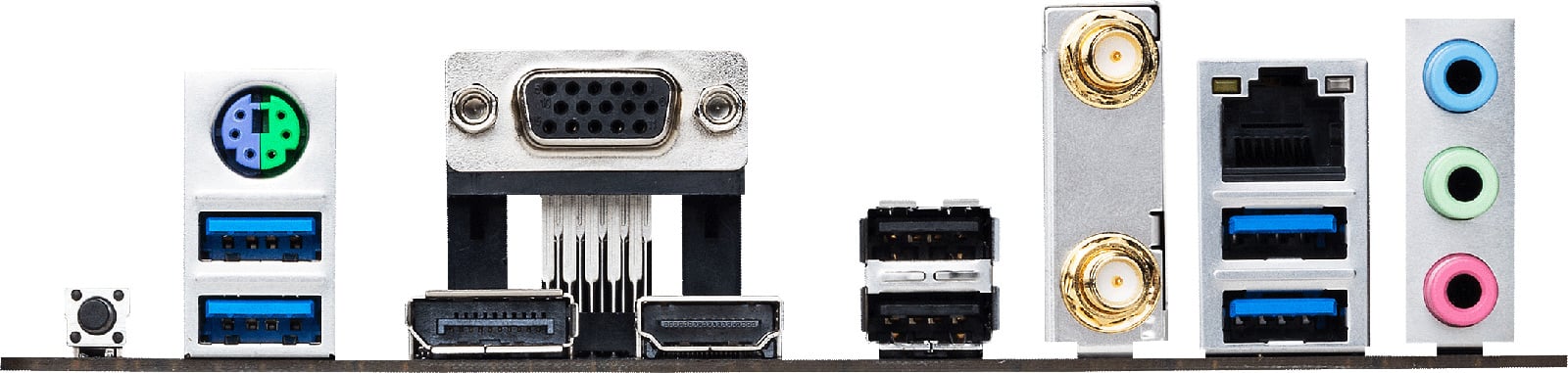

Rear Panel I/O Ports
- USB Ports: 4 x USB 3.0
- 2 x USB 2.0
- DisplayPorts: 1 x DisplayPort 1.2
- HDMI Port: 1 x HDMI 2.1
- VGA Port: 1 x D-Sub
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 3 ports) - Speaker: 1 x Speaker header
Memory
- Memory Bus Speed: Up to 4800 MHz
- Memory Type: DDR4
Motherboard
- Northbridge: AMD A520
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 2 x Chassis fan headers
- S/PDIF Connectors: 1 x S/PDIF Out header
- Serial Connectors: 1 x COM header
- TPM Header: 1 x SPI TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3 or SATA)
- 2 x 3-pin ARGB LED headers
- 2 x 4-pin RGB LED headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 3.0 x16 slot
- 2 x PCI Express 3.0 x1 slots
Memory
- Maximum RAM: 128 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 6 Month
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: Yes - Wi-Fi 5
- Bluetooth: Yes
- Bluetooth Version: 5.0
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard

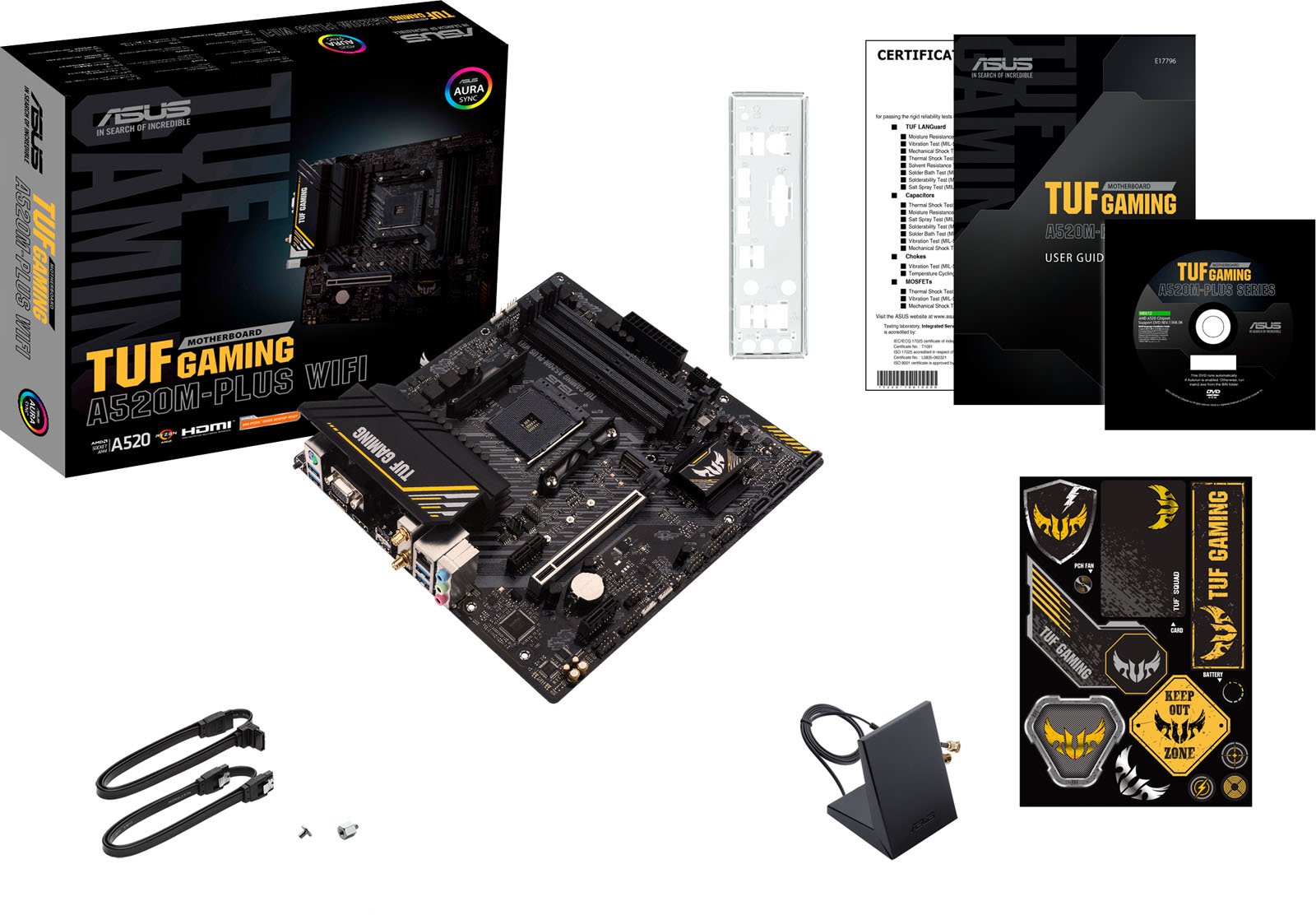

- In The Box: Motherboard
- 2 x SATA 6Gb/s cables
- I/O Shield
- M.2 SSD screw package
- ASUS Wi-Fi moving antenna
- TUF Gaming sticker
- Support DVD
- TUF Certification card
- User manual
- Width: 244 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3626XC2
- Mfg Code: 90MB17F0-M0EAY0
Warranty
- Warranty: 6 Month
