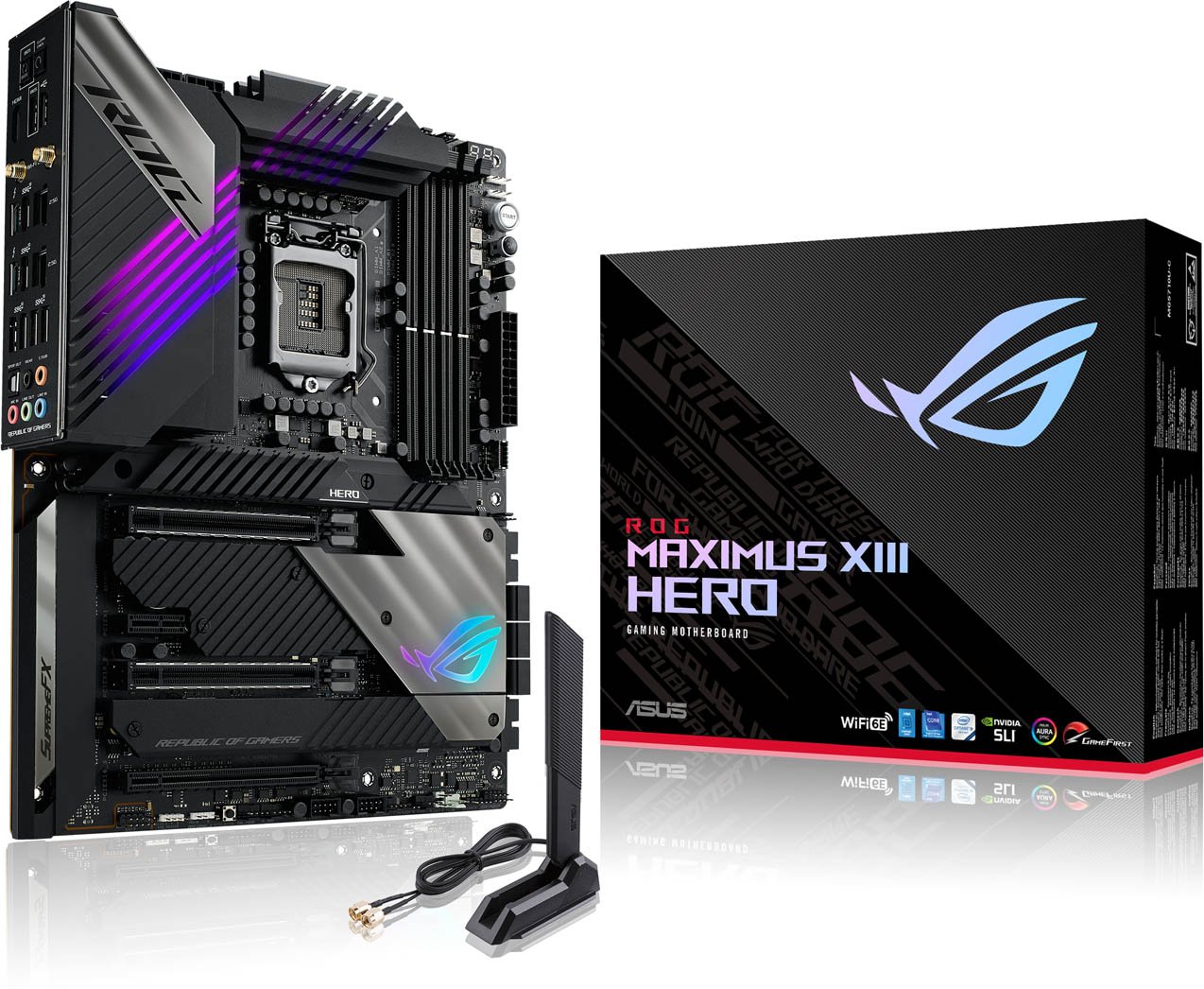

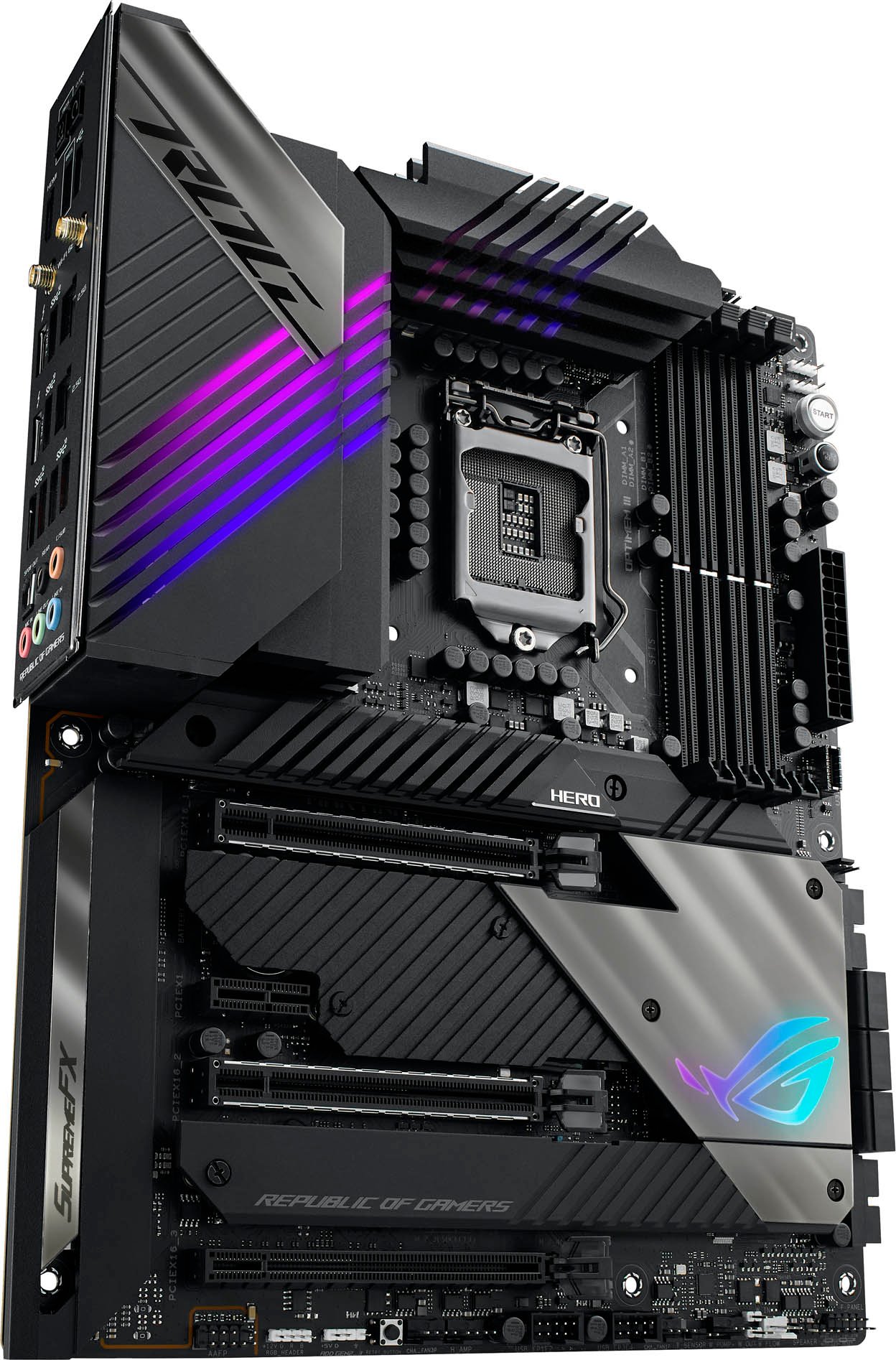

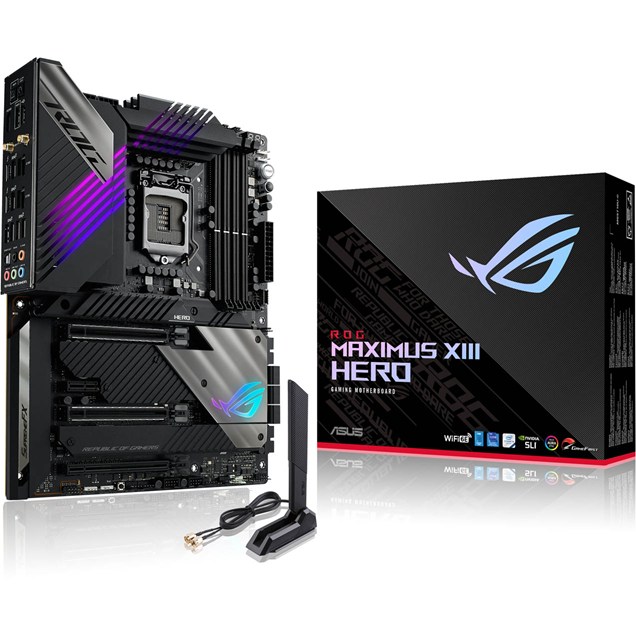

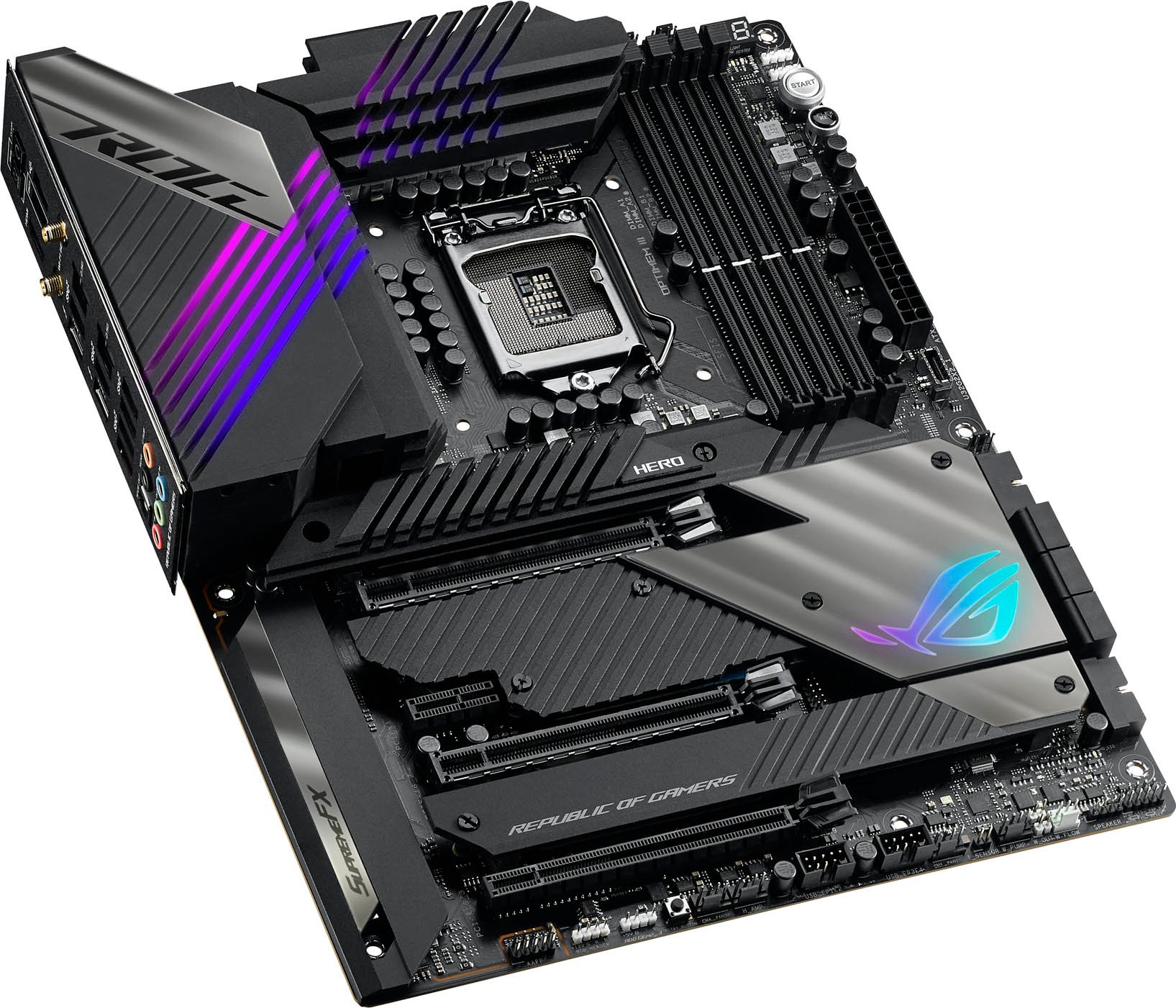

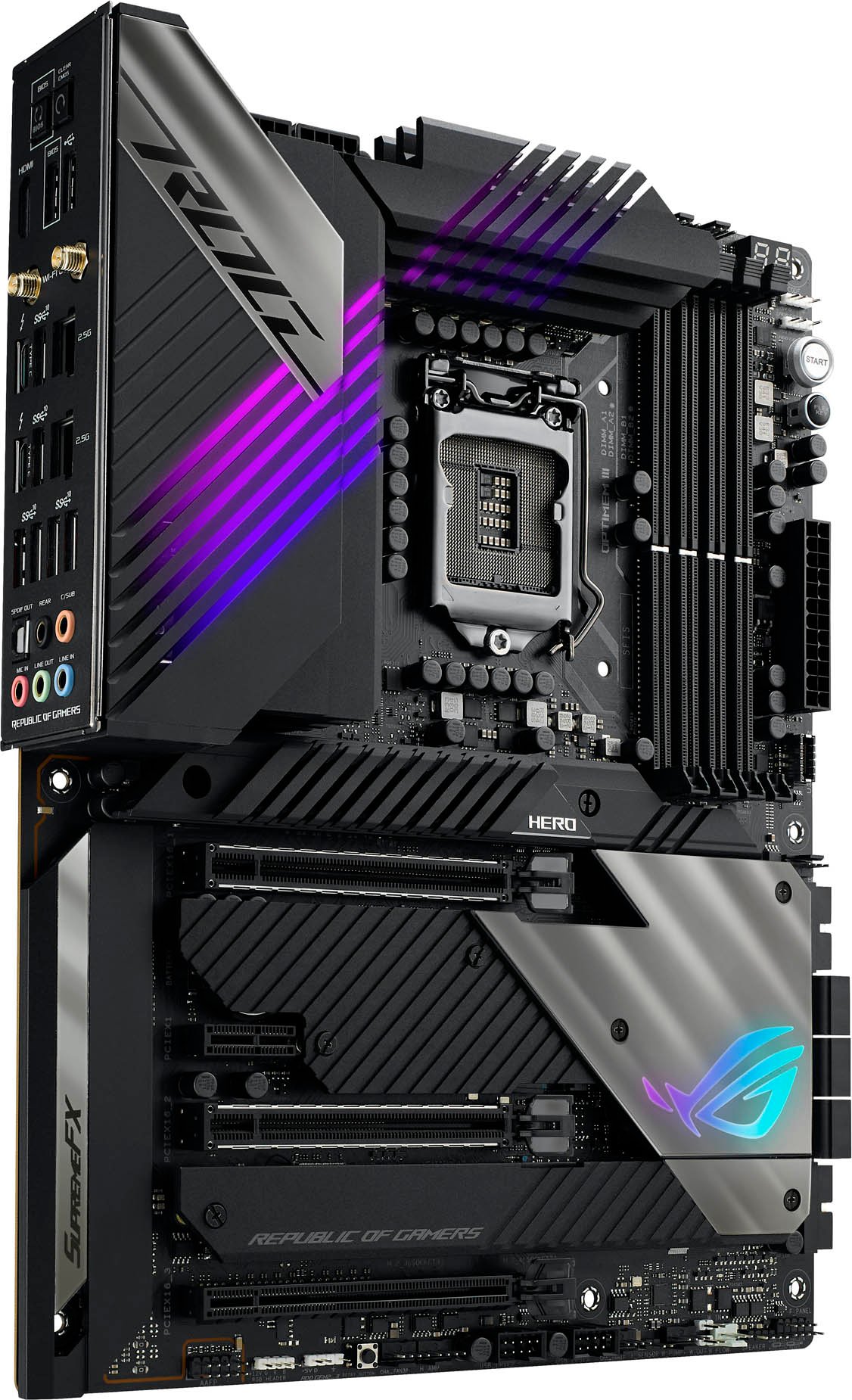

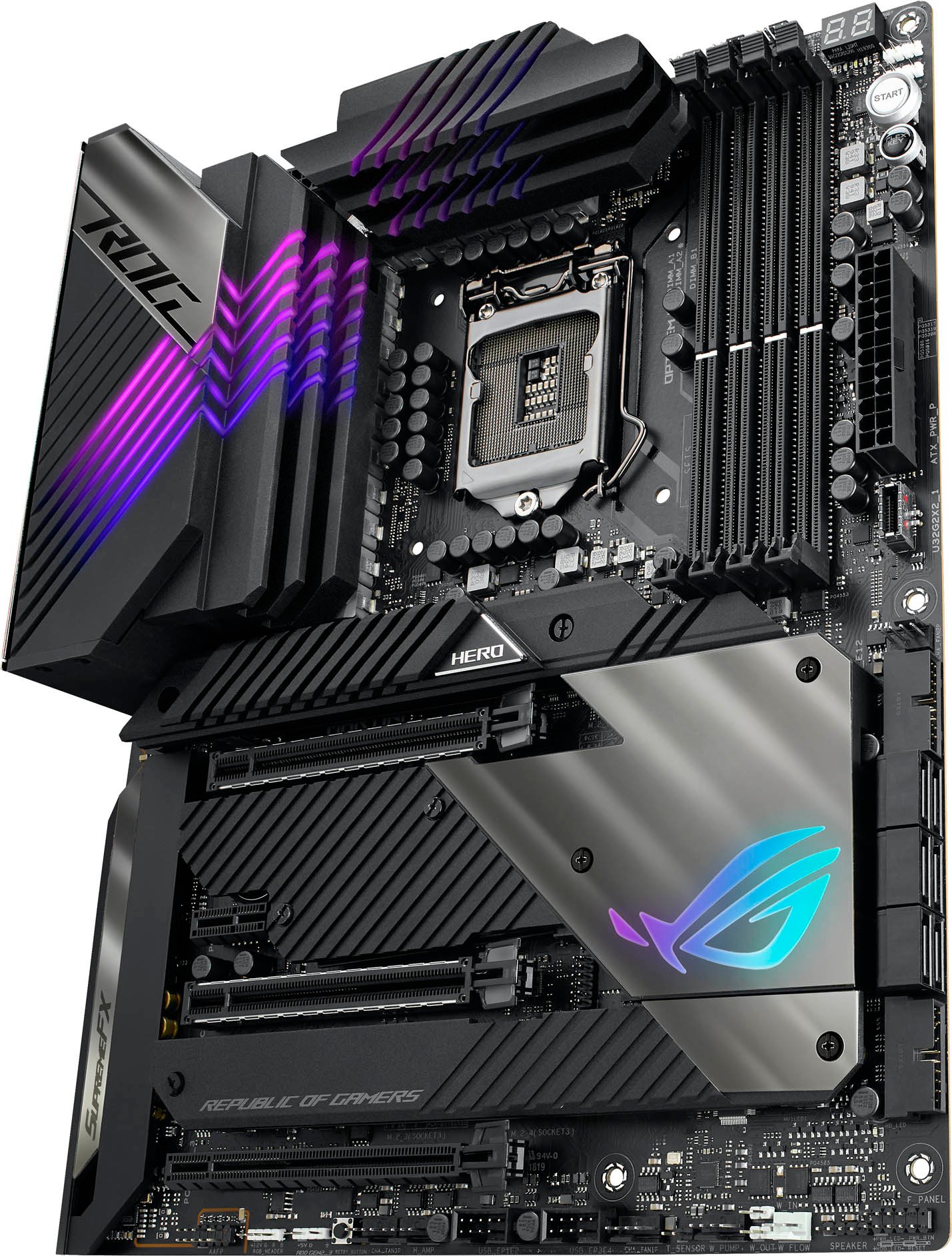

ASUS ROG Maximus XIII Hero Intel Motherboard

CCL Code: MBD2986
|
Manufacturer Code: 90MB15X0-M0EAY0
| Manufacturer: ASUS
|
  • ASUS ROG Maximus XIII Hero Intel Motherboard
  • ASUS ROG Maximus XIII Hero Intel Motherboard
  • ASUS ROG Maximus XIII Hero Intel Motherboard
  • ASUS ROG Maximus XIII Hero Intel Motherboard
  • ASUS ROG Maximus XIII Hero Intel Motherboard
  • ASUS ROG Maximus XIII Hero Intel Motherboard

Key Features:

Socket 1200
6 x SATA & 8 x USB Ports
HDMI
Intel Z590 Chipset
DDR4 (max 128GB, 4 slots)
ATX Form Factor

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Related Products

Overview

ASUS ROG Maximus XIII Hero Intel Socket 1200 Z590 Chipset ATX Motherboard

Main Features

  • Intel Socket LGA 1200 for 11th Gen Intel Core processors and 10th Gen Intel Core, Pentium Gold and Celeron Processors
  • Intelligent Control: ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation
  • Robust Power Solution: 14+2 teamed power stages rated for 90 Amps, ProCool II power connectors, MicroFine alloy chokes and 10K Japanese-made black metallic capacitors
  • Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, quad M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone
  • High-performance Networking: Onboard WiFi 6E (802.11ax), dual Intel 2.5 Gb Ethernet and ASUS LANGuard.
  • Fastest Gaming Connectivity: PCIe 4.0, quad M.2, USB 3.2 Gen 2x2 front-panel connector, dual USB Type-C ports with Thunderbolt 4 USB-C
  • Industry-leading Gaming Audio: ROG SupremeFX ALC4082 with ESS ES9018Q2C DAC for high-fidelity audio
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
  • DIY-friendly Design: Pre-mounted I/O shield, BIOS FlashBack, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder
  • Renowned Software: Bundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Specifications

CPU

CPU Brand Intel
CPU Socket Socket 1200
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1200

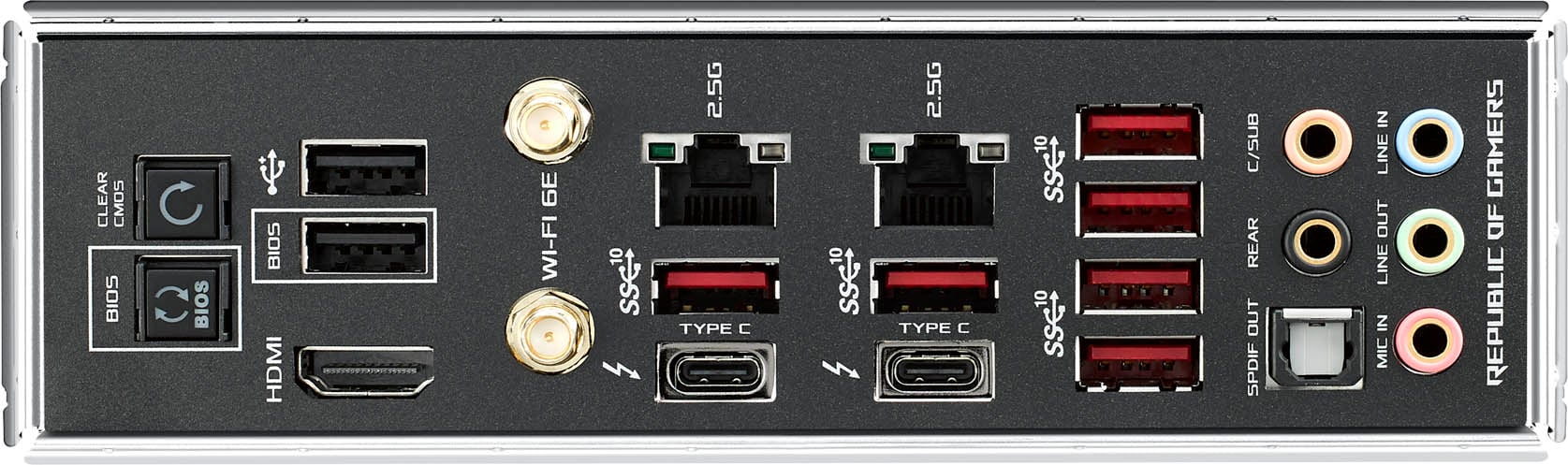

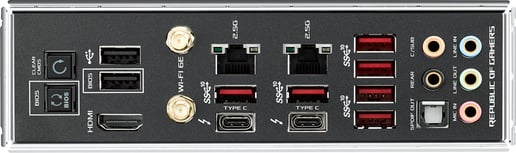

Rear Panel I/O Ports

USB Ports 2 x Thunderbolt 4
6 x USB 3.1
2 x USB 2.0
HDMI Port 1 x HDMI 2.0
RJ-45 Ports 2 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antennas

Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB 3.2 Type-C header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU OPT fan header
1 x AIO Pump header
3 x Chassis fan headers
1 x H_AMP fan header
1 x W_PUMP+ header
1 x Water In header
1 x Water Out header
1 x Water Flow header
TPM Header 1 x SPI TPM header (14-1 pin)
Power Connector Port 1 x 20+4-pin ATX
2 x 8-pin EPS
Other Connectors 2 x M.2 slots, Key M, Type 2242/2260/2280/22110
2 x M.2 slots, Key M, Type 2242/2260/2280
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header
1 x Thermal Sensor header

Memory

Memory Bus Speed 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer Intel
Northbridge Z590
RAID Supported Yes
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 4.0 x16 (@ x16 or x8/x8)
1 x PCI Express 3.0 x16 (@ x4)
1 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound ROG SupremeFX ALC 4082

Warranty

Warranty 3 Years

Network

Integrated Network 2 x Intel I225-V
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Software Included (may be trial or restricted) Yes
Drivers Yes
SLi/Crossfire Features Supports NVIDIA 2-Way SLI Technology

Physical

Form Factor ATX Motherboard
In The Box ROG Maximus XIII Hero Motherboard
1 x ARGB Extension Cable
1 x RGB Extension Cable
4 x SATA Cables
1 x ASUS Wi-Fi Moving Antennas
1 x M.2 Screw Package
1 x Q-Connector
ROG Key Chain
ROG Logo Plate Stickers
ROG Graphics Card Holder
ROG Stickers
ROG Thank You Card
Support DVD
User Manual
Width 305 mm
Length 244 mm

Key Features

DisplayPort Connection No
Motherboard Form Factor ATX
Wake on LAN
Motherboard Power Connectors 8 + 8-Pin
Motherboard Chipset Intel Z590
Thunderbolt Yes
Motherboard Model ASUS ROG Maximus XIII Hero
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Memory Speed 5333 MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Length mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 3200 MHz
Max Memory Speed Supported (overclocked) 5333 MHz
CPU Power Pins (female) 16
PCI Express Power Pins (female)
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
Maximum SATA M.2 ports 1
PCI-e slots 4
SATA ports 6
No. of front USB2.0 ports supported 2
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Firewire No
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 8 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support nVIDIA SLi
VGA Connection No
DVI Connection No
HDMI Connection Yes

Graphics

Graphics Chipset

Item Details

Manufacturer ASUS
Manufacturer Code 90MB15X0-M0EAY0
Alternative Part Number ROG MAXIMUS XIII HERO
EAN 4711081089353
UPC 195553089357
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB15X0-M0EAY0
