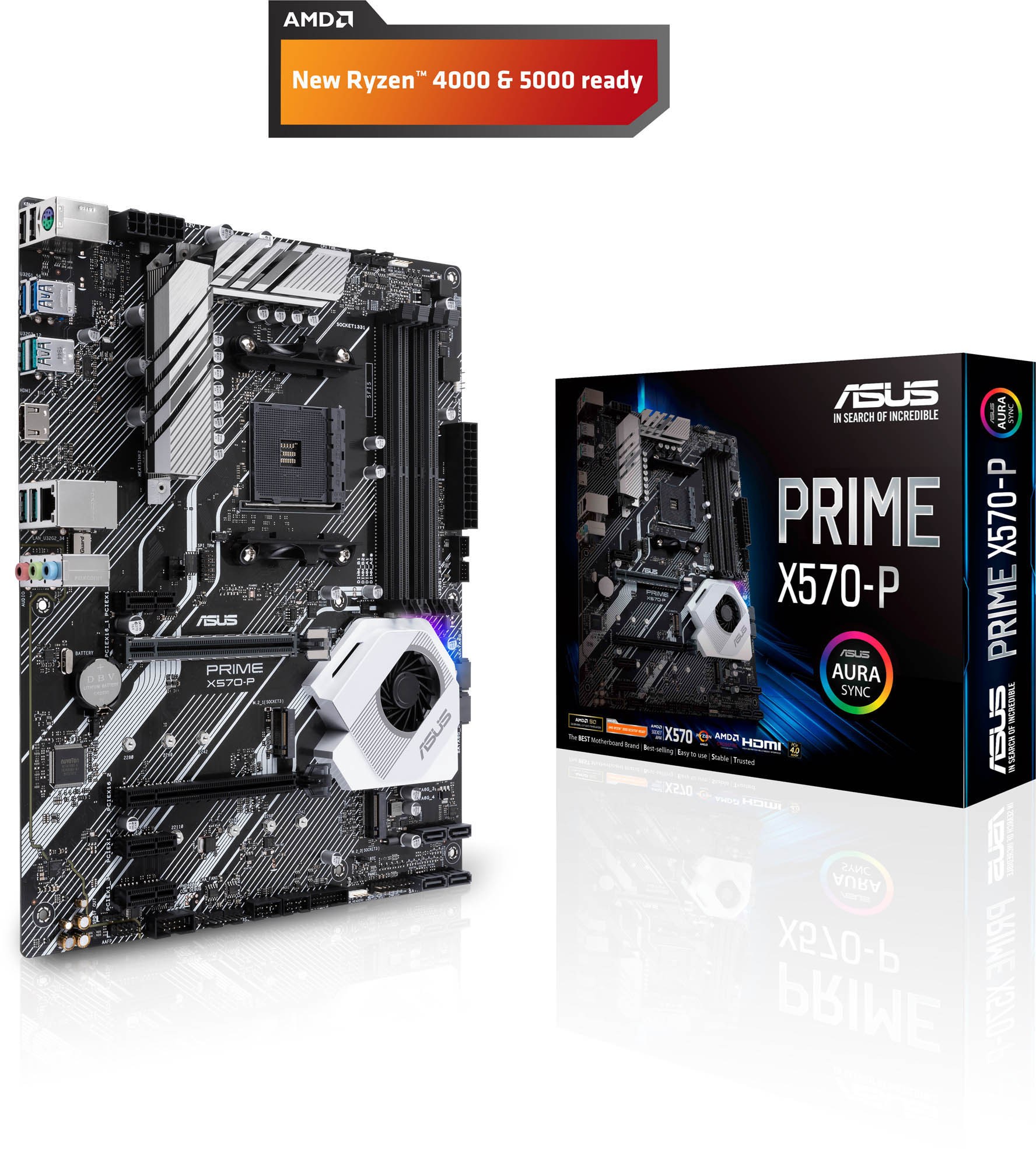

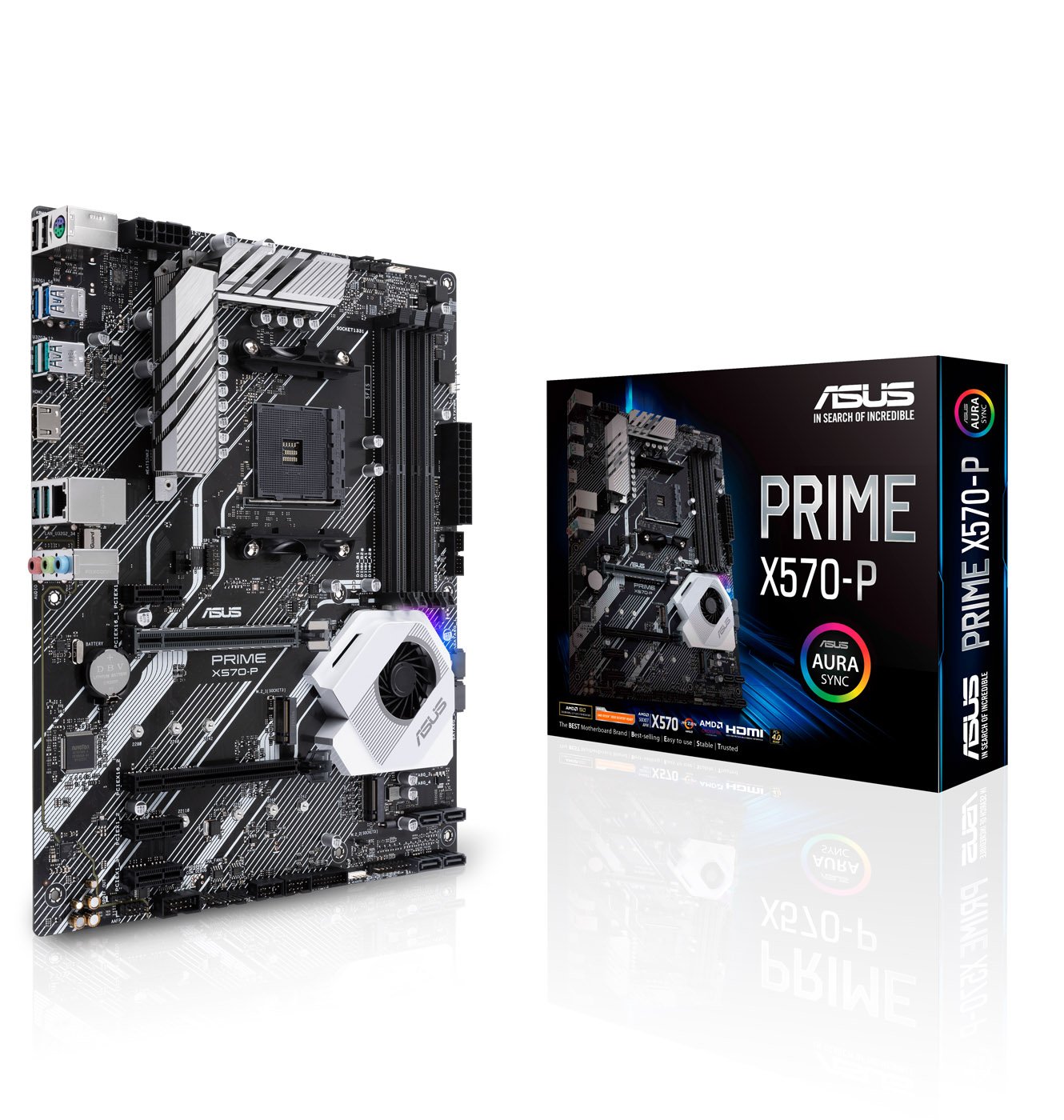

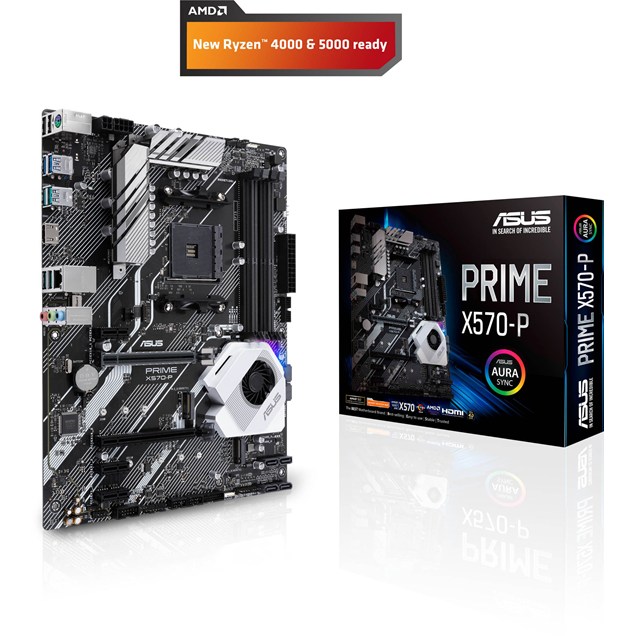

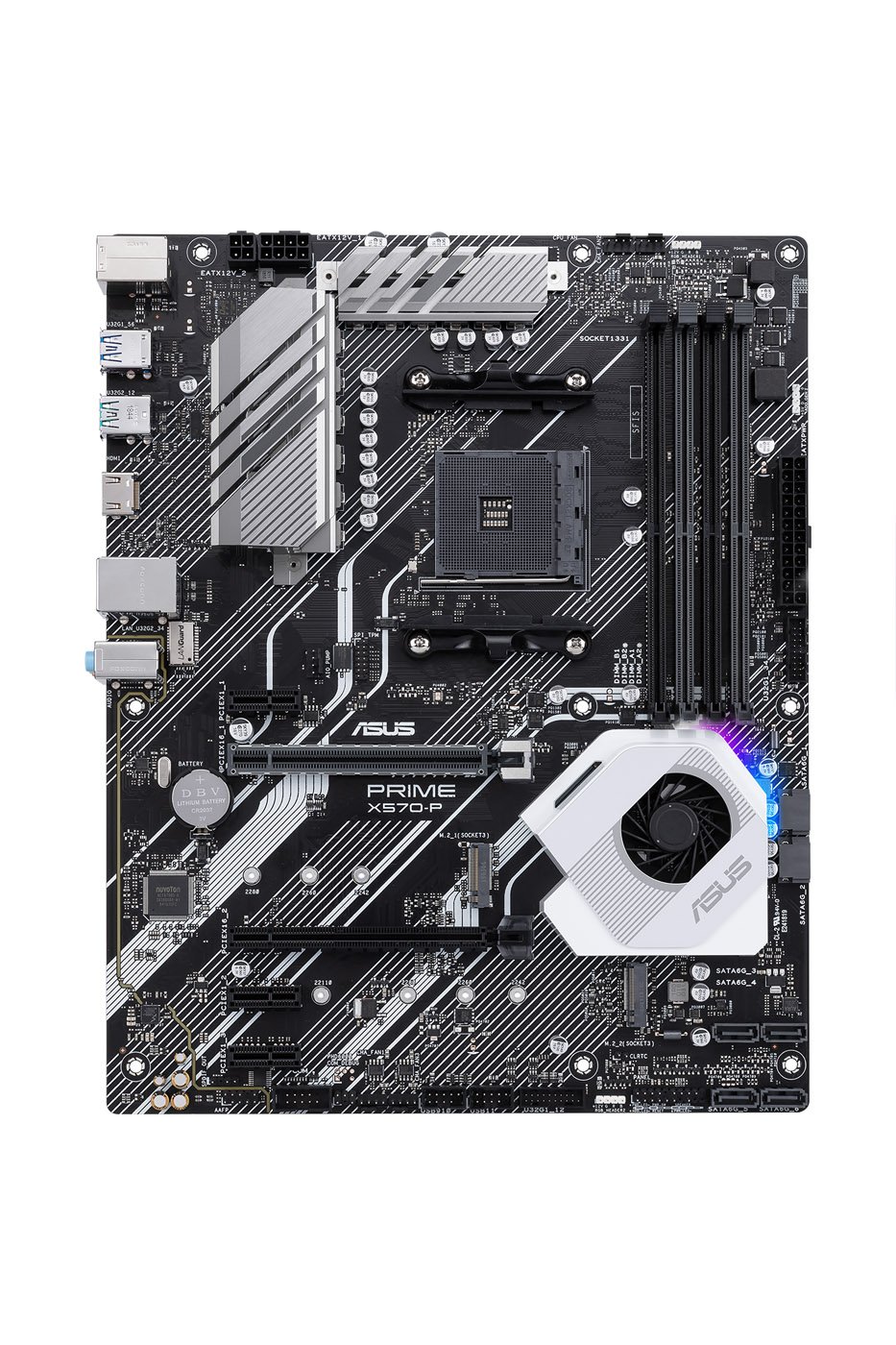

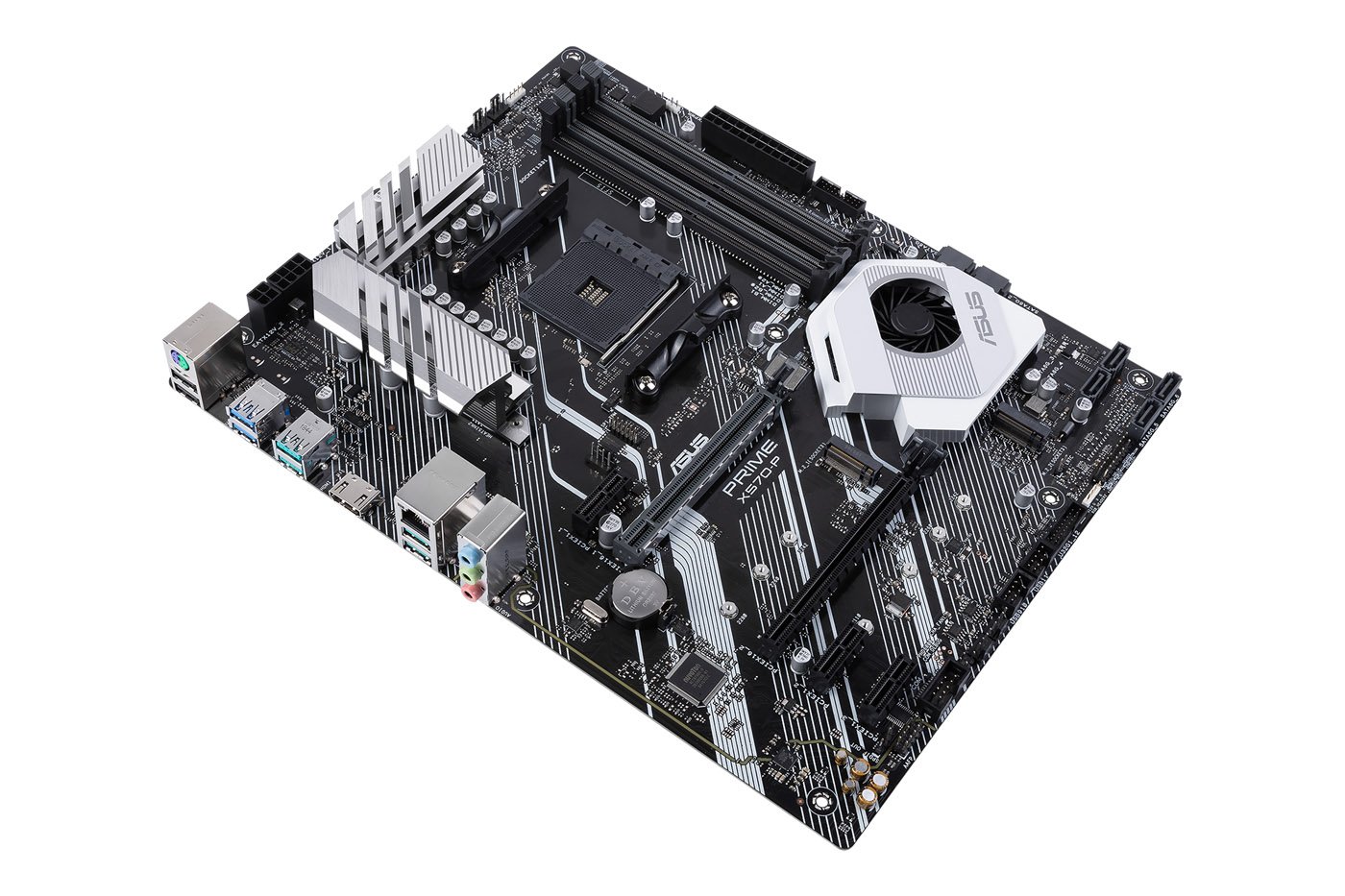

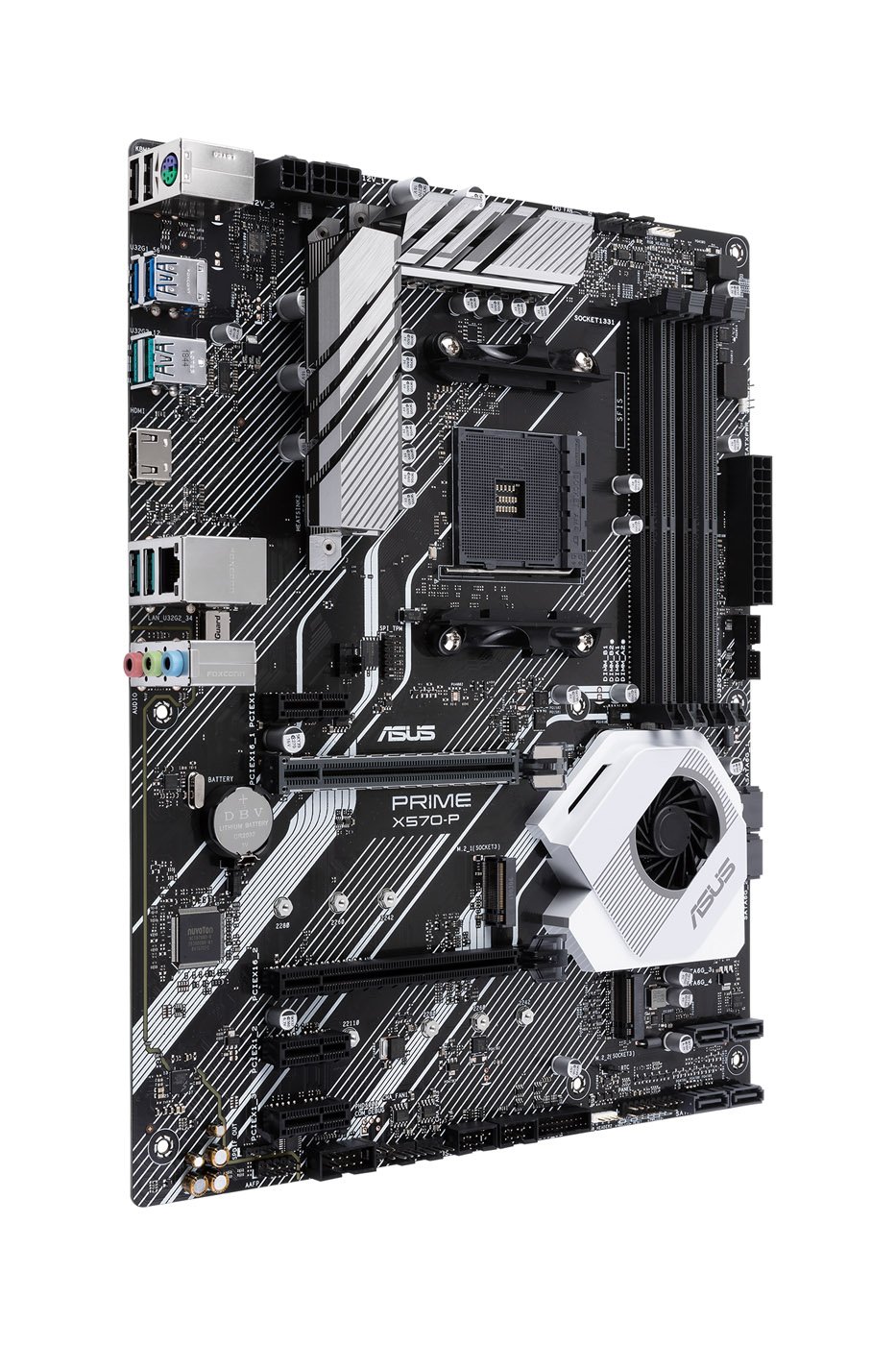

Dressed in a professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen™ processors to more productive use. Prime X570, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance.

Foundation of your build

Hosting the latest Ryzen processor with increased number of cores and bandwidth, the Prime X570 series is ready for action with stable power, intuitive cooling and flexible transfer options. It provides all the fundamentals to increase your everyday productivity.

Power delivery enhancements and ProCool connector

The latest AMD Ryzen 3rd Gen processors boosts more core and bandwidth, demanding more juice than typical desktop CPUs. Prime X570-P offers stable power. It augments the motherboard's link to the PSU with eight plus four-pin connectors that pass 12V power directly to the processors. Based on our ProCool design, these jacks use solid pins that can handle more current than hollow-pin connectors.

Dual PCIe 4.0 M.2 slots

Achieve speed with onboard M.2

With PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.

SafeSlot

Protect your Graphics Card Investment

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is firmly anchored to the PCB through additional solder points.

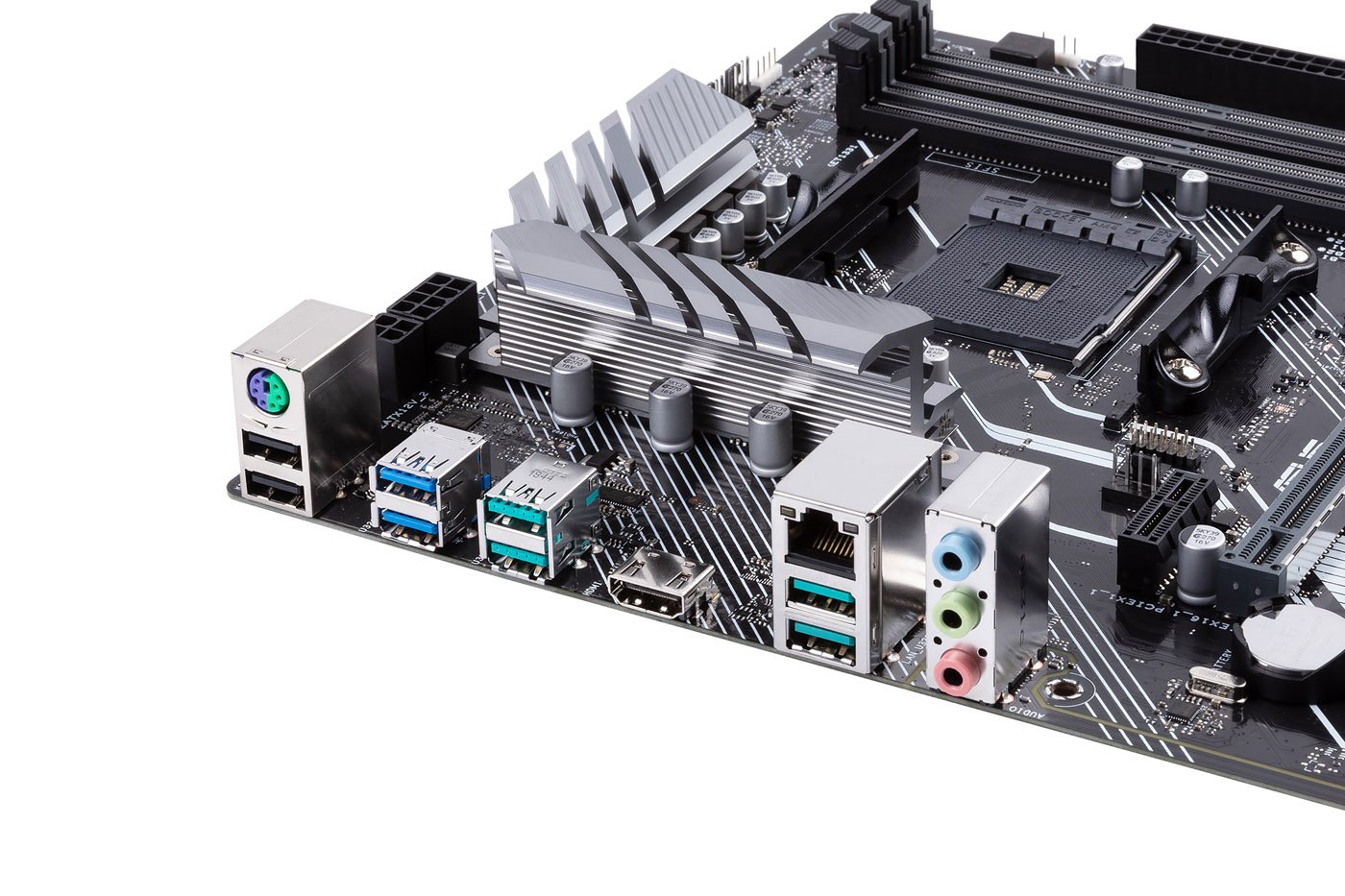

USB 3.2 Gen 2

Ultimate-speed 10Gbps with USB 3.2 Gen 2 onboard

With backward-compatible USB 3.2 Gen 2 Type-A™, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.

*The USB ports under the LAN port require a 3rd Gen AMD Ryzen processor for USB 3.2 Gen 2 speeds.

LANGuard

Pumped-up throughput, 2.5X higher surge tolerance

ASUS LANGuard is a hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput.

Active PCH heatsink

Dedicated cooling for unthrottled transfers

With double the bandwidth via PCIe 4.0, the X570 platform poses greater thermal challenges than its X470 predecessor. The Active PCH heatsink has a dedicated fan to efficiently combat temperature-induced throttling that can slow performance during sustained transfers.

Outstanding audio

Realtek codec and unique design features for pristine, powerful audio

Prime X570-P utilise a unique audio codec designed in close collaboration with Realtek — the Realtek S1200A. It also features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality.

Tune it your way

The Prime X570 series feature software and firmware controls that make performance accessible to anyone. Prime X570 series also include options allowing you to personalise your build, and helping you to tune your rig to perform the way you want it.

All-round energy efficiency

With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimises power consumption and maximises savings with Away mode.

Flexibile cooling controls for air or liquid

With Prime X570-P, you have comprehensive control over fans via Fan Xpert 4 or our media-acclaimed UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum – keeping your system whisper-quiet when performing light tasks.

Armoury Crate

Armoury Crate is a new software utility designed to give you centralised control of supported products. From a single intuitive interface, Armoury Crate allows you easily customise RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community.

Aura Sync RGB headers

Outshine the competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB headers, with a variety of functional presets for external LED strips.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.

* The Aura RGB-strip header supports 5050 RGB LED strips with a max power rating of 3A (12V). For maximum brightness, strip length should not exceed 3m.
** RGB LED Extension cables are included. LED Strips and Aura-compatible devices are sold separately.

Addressable RGB LED strip Gen 2 header

Control every LED

The Prime X570-P now has the upgraded, addressable RGB header that allows intuitive software to control individual LEDs for more advanced effects and plenty of personalisation. The header is also ready for next-generation lighting devices, which can detect how many addressable LEDs are on an attached device, simplifying the setup process and allowing for automatically configured lighting effects.

Brighten Up Your Build

LED-illuminated control for PCH

Built-in LED lighting options illuminate your build in a variety of eye-catching styles.
