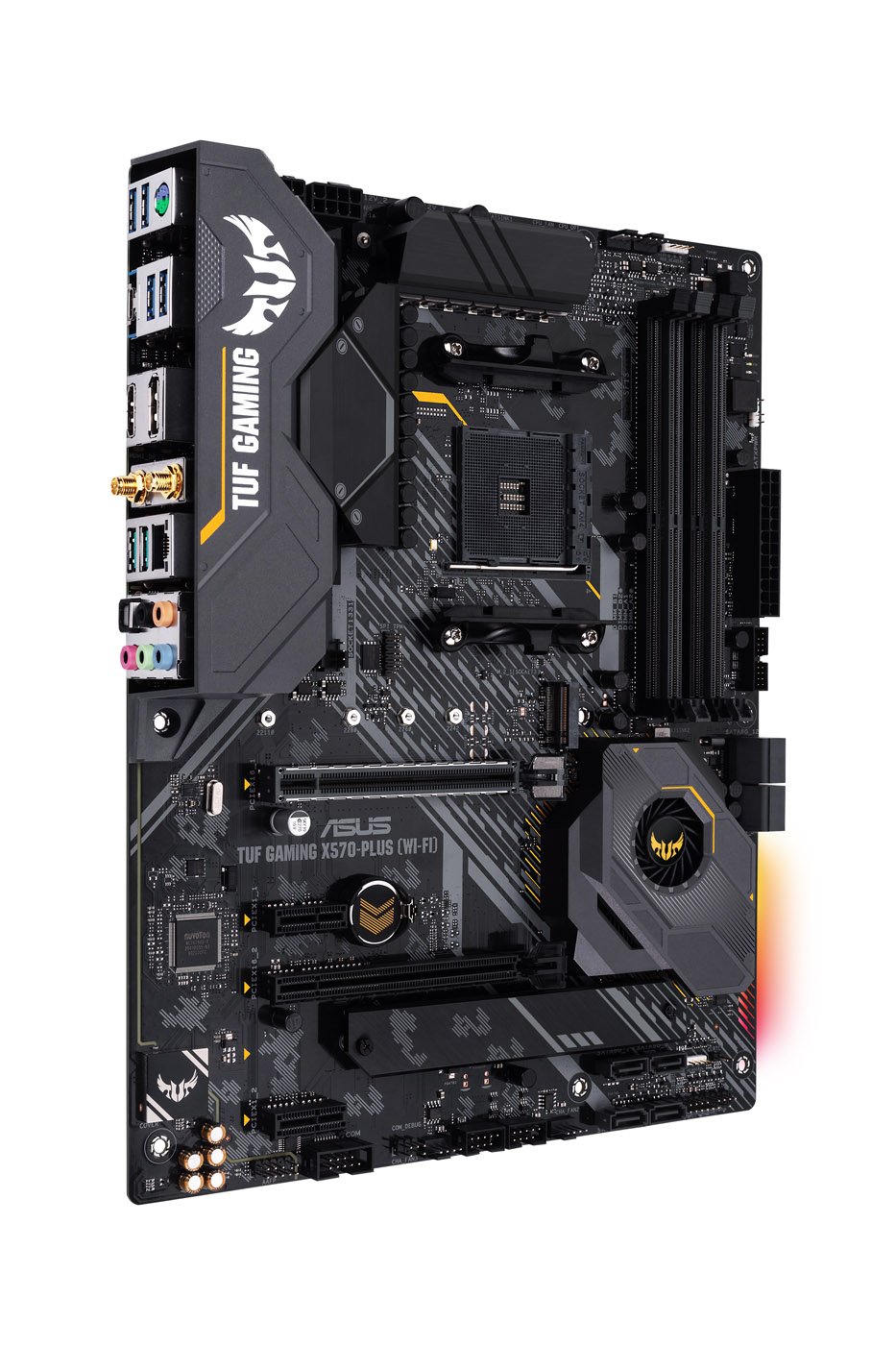

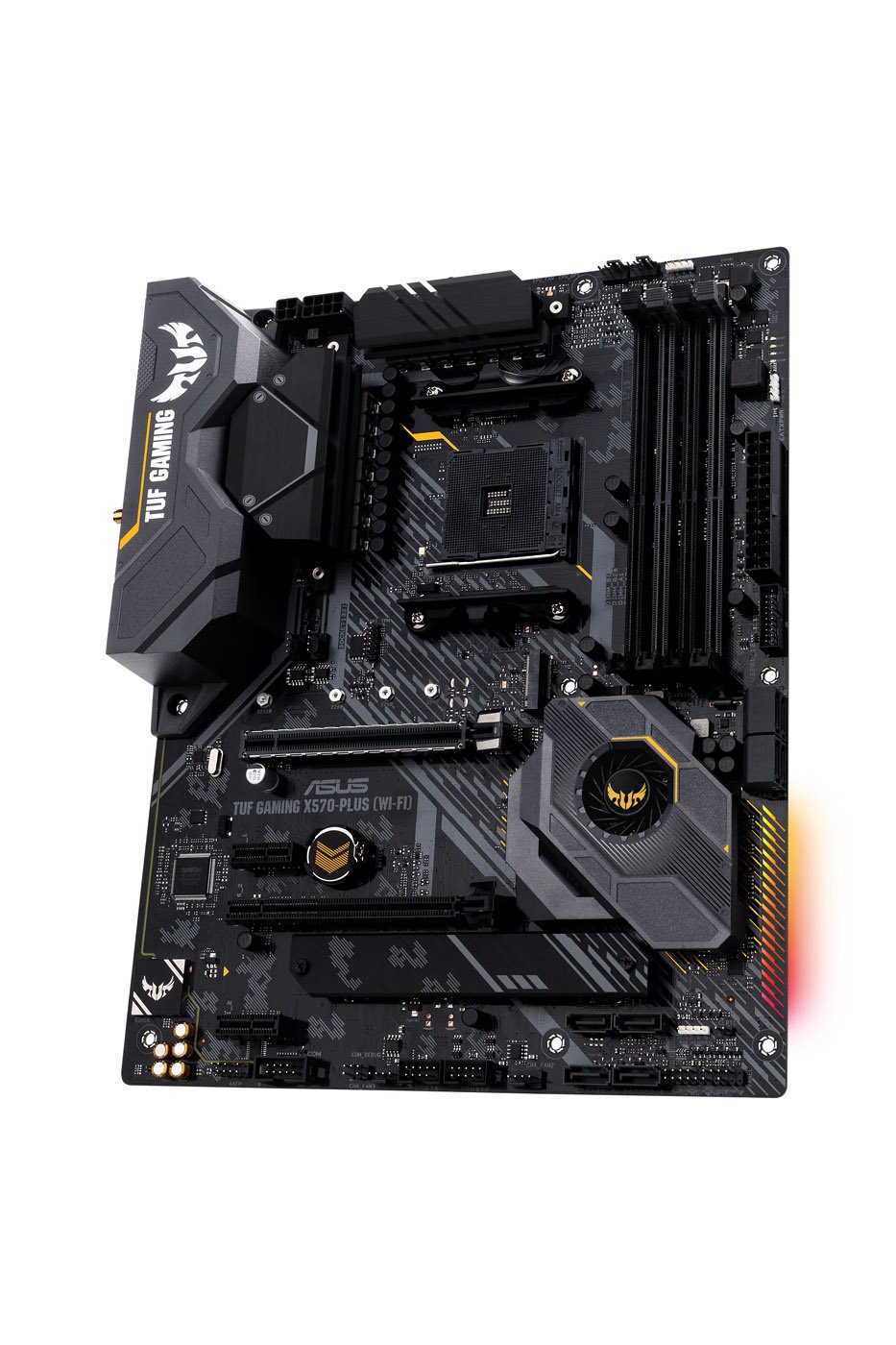

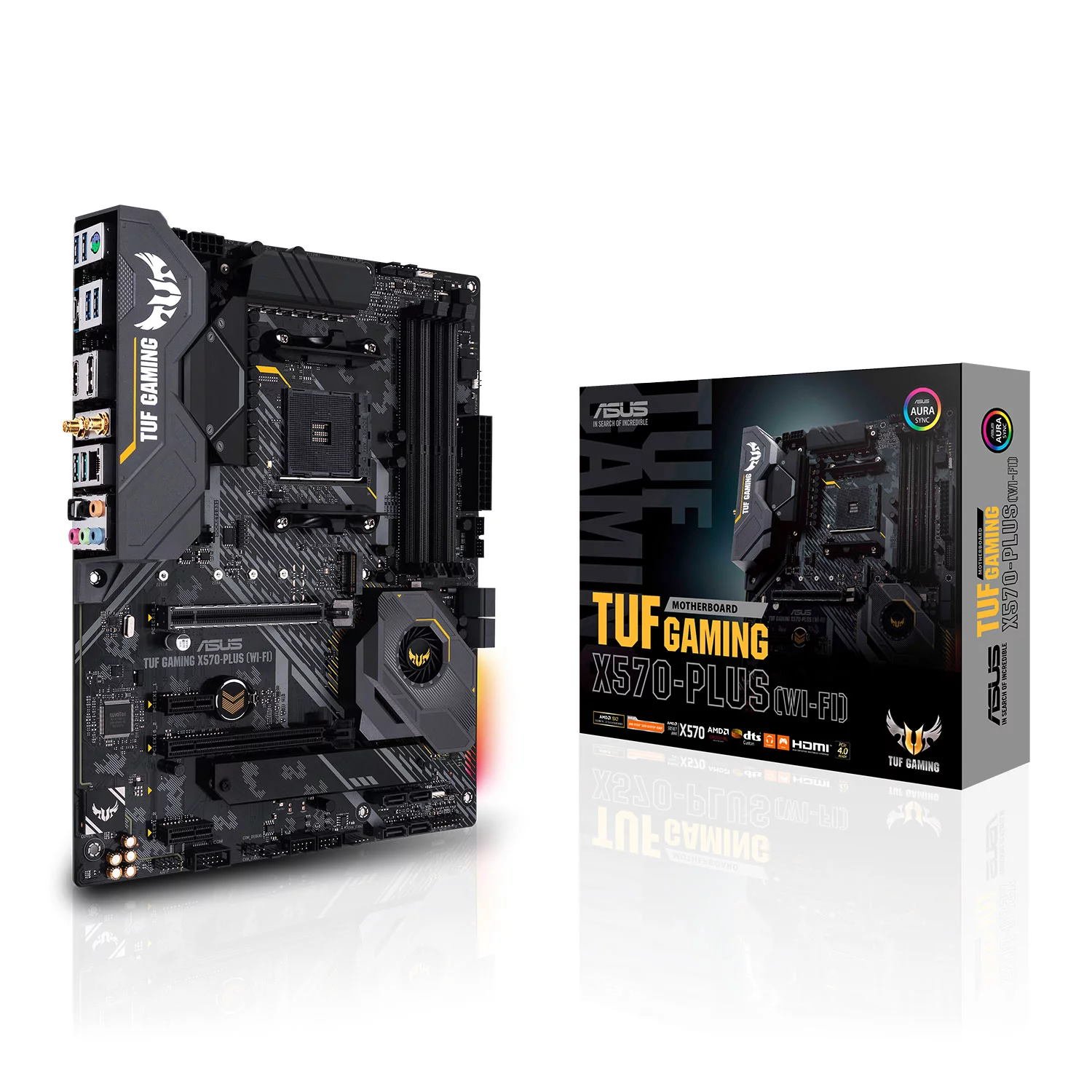

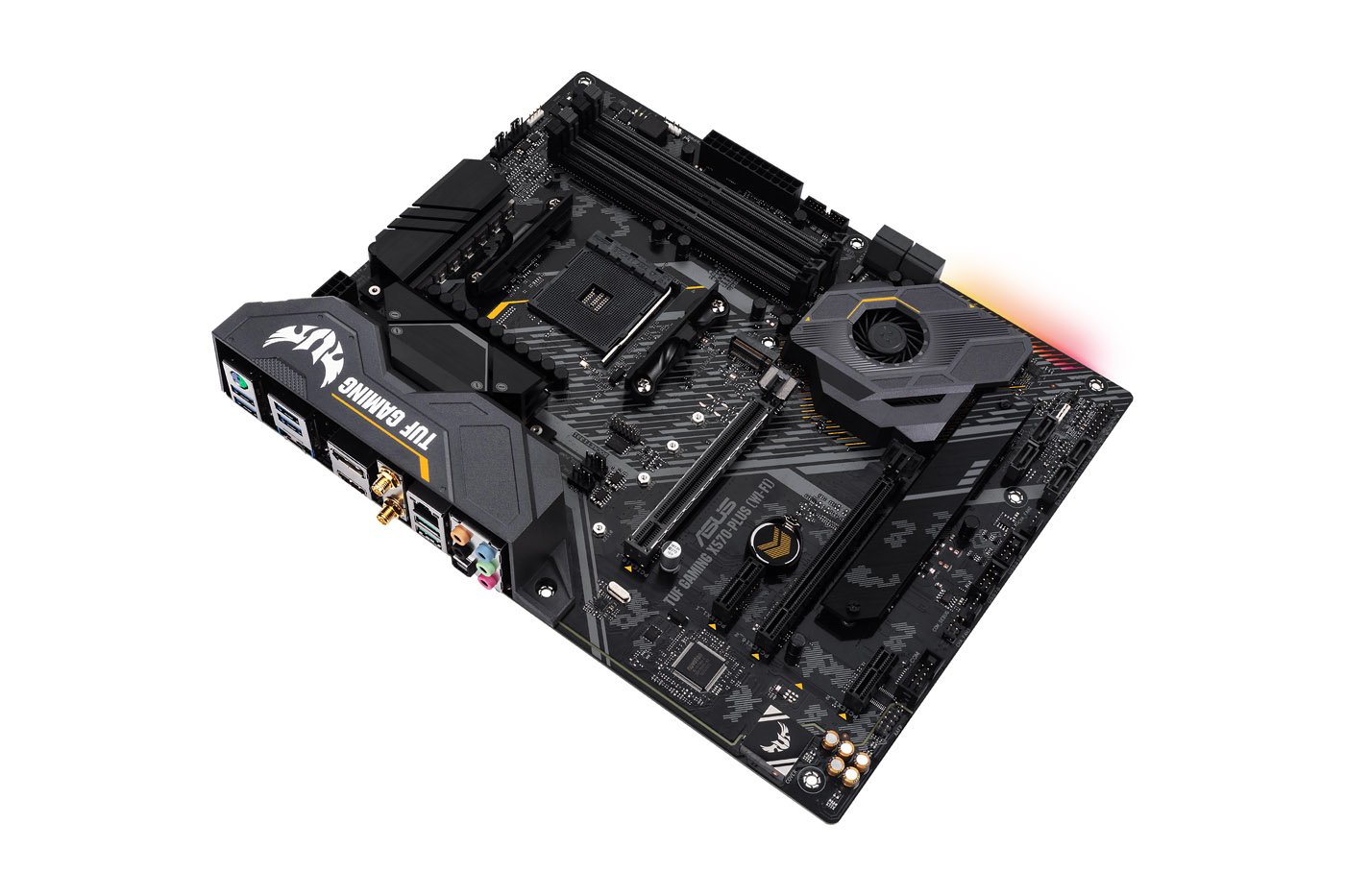

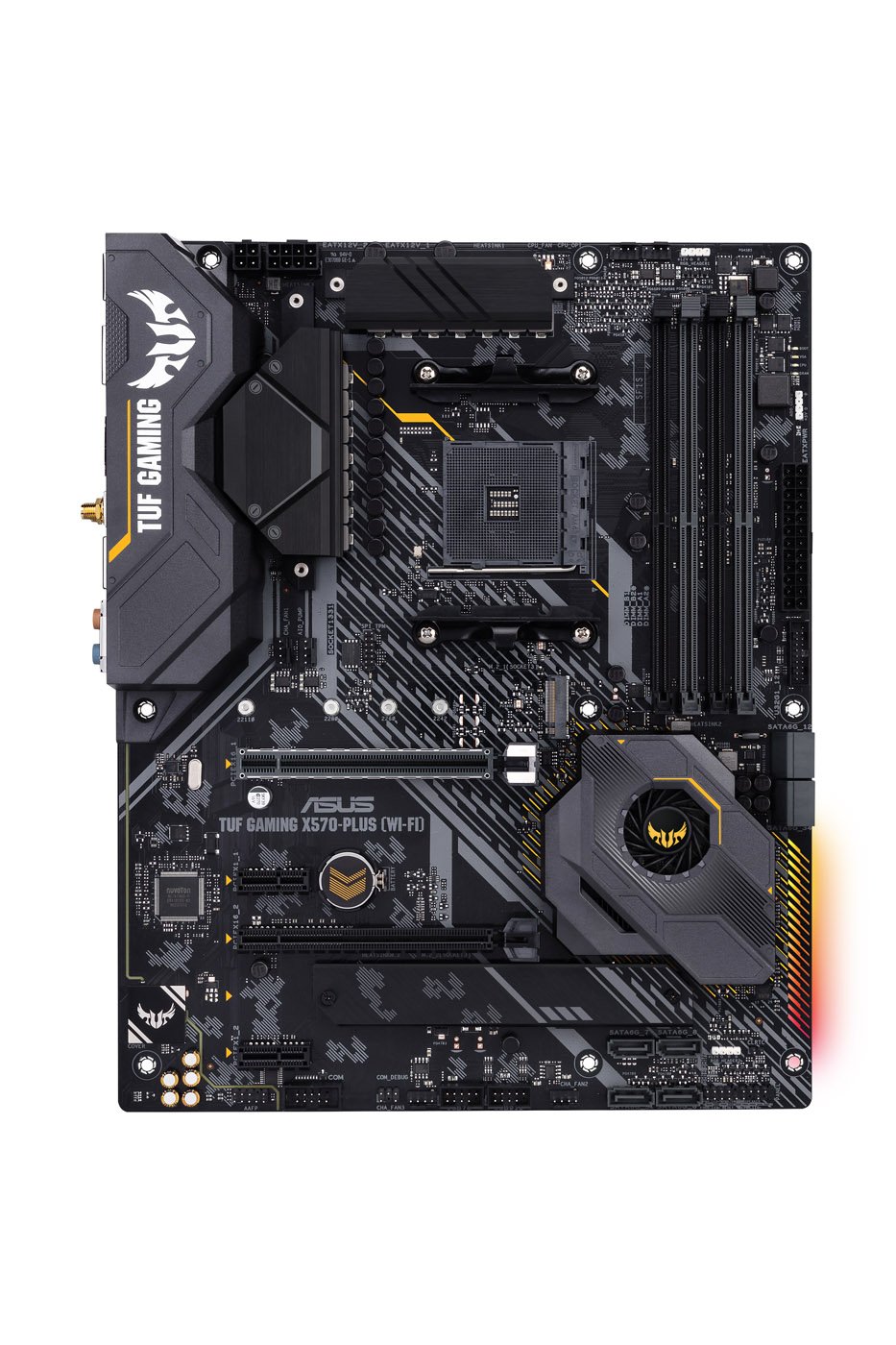

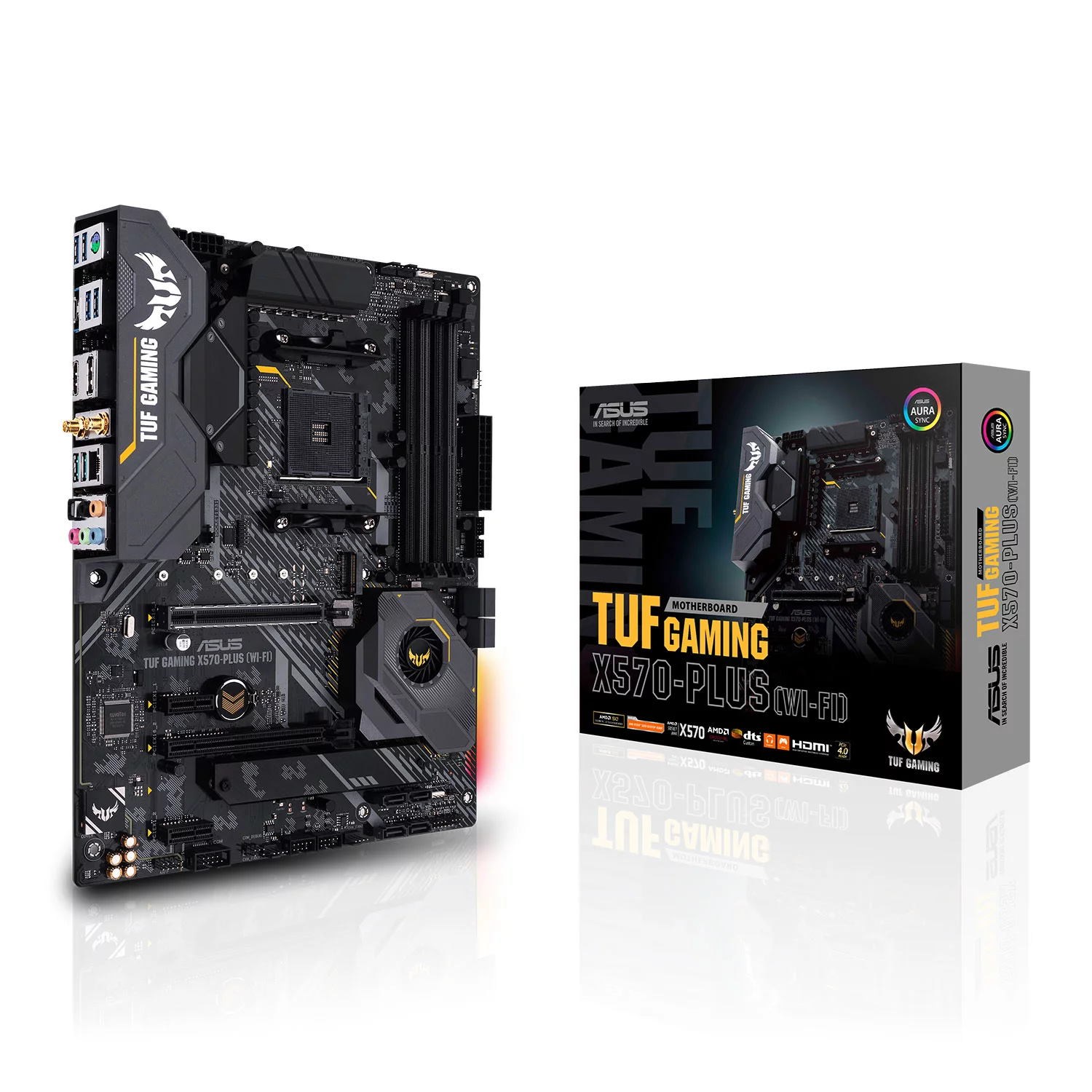

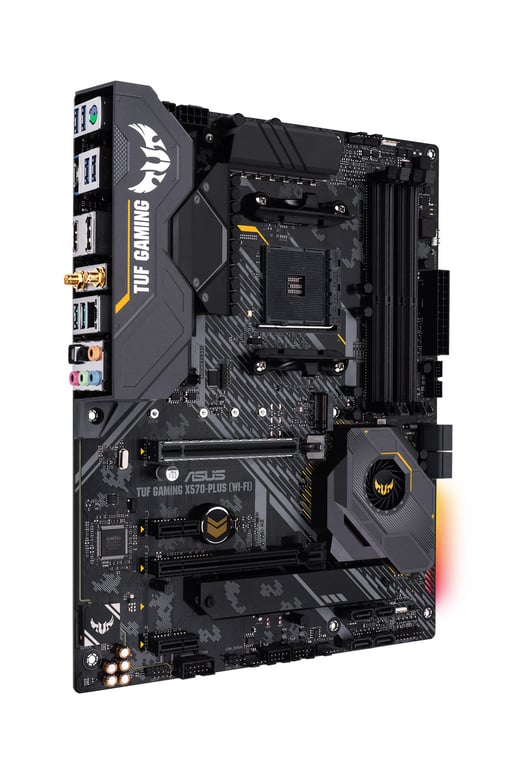

Name: ASUS TUF Gaming X570-Plus (WI-FI) ATX Motherboard for AMD AM4 CPUs
Brand: ASUS
SKU: MBD2675
Price: 273.19 GBP
Availability: OutOfStock
Rating: 5.0 (3 reviews)

ASUS TUF Gaming X570-Plus (WI-FI) ATX Motherboard for AMD AM4 CPUs

Compare

AMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, Wi-Fi, 12+2 with Dr. MOS power stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting

Key Features:

Socket AM4
AMD X570 Chipset
8 x SATA & 7 x USB Ports
DDR4 (max 128GB, 4 slots)
HDMI and Display Port
ATX Form Factor

CCL Code: MBD2675

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Overview

TUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.

EASY PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

Immersive Gaming

TUF Gaming X570-Plus (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

Main Features

AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors
Enhanced Power Solution: Military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability
Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology
Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
Aura Sync RGB: Synchronise LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case

Specifications

CPU

CPU Socket	Socket AM4
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/AMD Ryzen™ 2nd Generation/3rd Gen AMD Ryzen™ Processors
64-bit Support	Yes
Socket	AM4

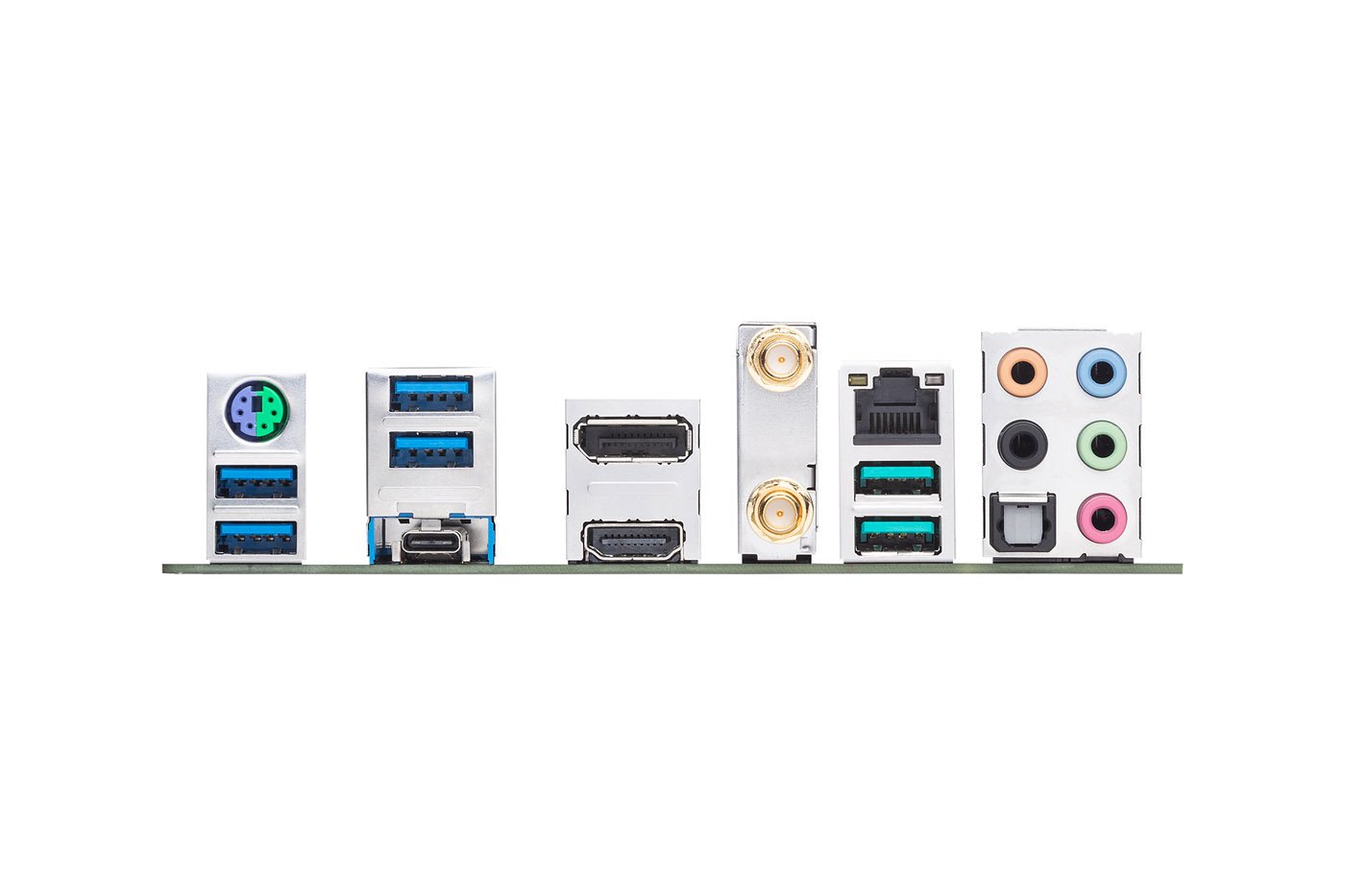

Rear Panel I/O Ports

USB Ports	1 x USB 3.1 Type-C 2 x USB 3.1 Type-A 4 x USB 3.0
DisplayPorts	1 x DisplayPort
HDMI Port	1 x HDMI
Antenna Connectors	2 x Antenna
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out

Internal I/O Connectors

SATA Connectors	8 x SATA III
USB Connectors	1 x USB 3.0 2 x USB 2.0
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan 1 x CPU OPT fan 3 x Chassis fans 1 x AIO_PUMP
Serial Connectors	1 x COM
TPM Header	1 x SPI TPM
Power Connector Port	1 x 20+4-pin ATX 1 x 4+4-pin EPS 1 x 4-pin EPS
Other Connectors	2 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110) 2 x Aura RGB Strip headers 1 x Addressable Gen2 header

Memory

Memory Bus Speed	4400(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz
Memory Type	DDR4
Maximum RAM	128 GB
Memory Slot	4 x DIMM

Motherboard

Chipset Manufacturer	AMD
Northbridge	X570
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots	2 x PCI Express 4.0 x16 (@ x16/x4) 2 x PCI Express 4.0 x1
PCI Express Slot Type	PCI Express slots are Gen 4.0 when using a Ryzen 3000 series processor, else they are Gen 3.0

Graphics Device

Integrated Graphics Supported

Yes

Sound

Integrated Sound

Realtek® ALC S1200A

Network

Integrated Network	Realtek® L8200A
Network Speeds Supported	10/100/1000 Mbps
Wireless LAN	Yes
Wireless Network Speed	Up to 1.73 Gbps
Bluetooth	Yes
Bluetooth Version	5.0

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

BIOS	256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Jumpers	1 x Clear CMOS
SLi/Crossfire Features	Supports AMD CrossFireX™ Technology

Physical

Form Factor	ATX Motherboard
In The Box	Motherboard User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x TUF GAMING Sticker 1 x TUF Certification card(s)
Width	305 mm
Length	244 mm

Key Features

Firewire	No
Wireless Network	Yes
Socket(s)	AM4
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	8 port(s)
Number of USB Ports	7 port(s)
SATA III Support	Yes
USB 3.0 Support	Yes
Multi GPU Support	ATi CrossFire
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard Power Connectors	4 + 8-Pin
Motherboard Chipset	AMD X570
Thunderbolt	No
Motherboard Model	ASUS TUF Gaming X570-Plus (WI-FI)
WiFi Speed	1733 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
Skip Audio Test	No
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	2933 MHz
Max Memory Speed Supported (overclocked)	5100 MHz
CPU Power Pins (female)	12
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
Maximum SATA M.2 ports	2
SATA ports	8
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2

Warranty

1 Year

Item Details

Manufacturer	ASUS
Manufacturer Code	90MB1170-M0EAY0
Alternative Part Number	TUF GAMING X570-PLUS (WI-FI)
EAN	4718017388498
UPC	192876388495
Condition	New

Warranty

Warranty Information

Warranty

1 Year

Manufacturer Information

Manufacturer	ASUS
Manufacturer Code	90MB1170-M0EAY0

Q&A

Do you have you a question about the ASUS TUF Gaming X570-Plus (WI-FI) AMD Socket AM4 X570 Chipset ATX Motherboard?

Q: Hi will this board support a Ryzen 5 5600X out of the box. I plan to get a 5600 to go with this board.

Answer by Website User on 16th April 2021

This will need a bios update to work correctly - Kristian N

0 customers found this answer helpful.

Post Answer

Q: Can this motherboard be overclocked

Answer by Matthew on 7th October 2019

The motherboard cannot, no, but it does support overclocking of a supported processor.

0 customers found this answer helpful.

Post Answer

Reviews

5.0 / 5 3 reviews

Garry

November 2020

Great motherboard for mid range Ryzen CPUs

Stephen Harrogate

July 2020

Working as expected

Andy B

April 2020

Nice looking motherboard with everything I was looking for, and far more on top. Mainly bought this to future proof my pc a bit, but the value was better as I found it cheaper than some 'older specced' boards. Easy to install into my case (phantom p400a rgb). Board seated well on the standoffs and I had no issue with installation. I'd recommend you look at the board before installing it to learn where cables go. This will make it easier to route you cables around afterwards. I can't give you a technical review... but I've not had any issue with this board, under general use. One thing to note however, I did have to update the board's firmware before it would recognise my m.2 ssd (WD SN550 500gb). Recommended!
