ASUS PRIME X370-PRO ATX Motherboard for AMD AM4 CPUs

ASUS PRIME X370-PRO ATX Motherboard for AMD AM4 CPUs

CCL Code: MBD2097

Sold out

Notify Me
  • ASUS PRIME X370-PRO ATX Motherboard for AMD AM4 CPUs
  • ASUS PRIME X370-PRO ATX Motherboard for AMD AM4 CPUs
  • ASUS PRIME X370-PRO ATX Motherboard for AMD AM4 CPUs
  • ASUS PRIME X370-PRO ATX Motherboard for AMD AM4 CPUs
  • ASUS PRIME X370-PRO ATX Motherboard for AMD AM4 CPUs

Get 5% off when you buy 5 or more different components using code: BUY5GET5

ASUS PRIME X370-PRO ATX Motherboard for AMD AM4 CPUs

90MB0TD0-M0EAY0

Key Features:

  • Socket AM4
  • AMD X370 Chipset
  • 8 x SATA & 8 x USB Ports
  • DDR4 (max 64GB, 4 slots)
  • HDMI and Display Port
  • ATX Form Factor
CCL Code: MBD2097

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

PRIME X370-PRO supports 5 Way Optimization and NVIDIA SLI to present you the huge performance experience. Lighting fast storage speed is elevated by NVME 32Gb/s M.2, 10Gb/s USB 3.1. ASUS SafeSlot for enhanced PCIe retention and shearing resistance. While AURA RGB lighting and synchronization brighten up your PC built!

Superb performance

  • 5-Way Optimization: One click overclock and cooling, done!
  • FAN Xpert 4: Advanced fan and liquid controls for ultimate cooling and quietness.
  • Ultra-fast transfer speed: M.2 onboard speed up to 32Gbps.
  • Ultimate-Speed 10Gbps With USB 3.1 Onboard: Enjoy the 10Gbit/s speed!

Seamless Entertainment

  • AURA SYNC: Full for onboard RGB LED illumination and perfect synchronization with Aura gear.
  • Refined Audio: Realtek S1220A codec provides pristine and powerful audio quality.
  • Turbo LAN: More throughput, less CPU usage and great gaming experiences!

Proven Quality

  • SafeSlot Core: Fortified PCIe Slot prevents damage
  • LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  • Overvoltage Protection: World-class circuit-protecting power design
  • DIGI+ VRM: Precision control for stable power!
  • Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

Main Features

  • 5-Way Optimisation
  • ASUS Aura Sync
  • Realtek ALC1220 codec provides pristine and powerful audio quality
  • Patent-pending PCIe with enhanced retention and shearing resistance
  • 5X Protection III
Promotions



Get 5% off components when you buy 5 or more*

For a limited time, buy at least 5 different components from different qualifying categories and get 5% off those items at checkout.

 *Terms & Conditions apply.







Promotional Period: From 2023-09-25 till stocks last.

Terms and Conditions

It can't be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to five or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. If will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the five or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 25th of September, 2023 till 9th of October, 2023.

Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
64-bit Support Yes
Socket AM4

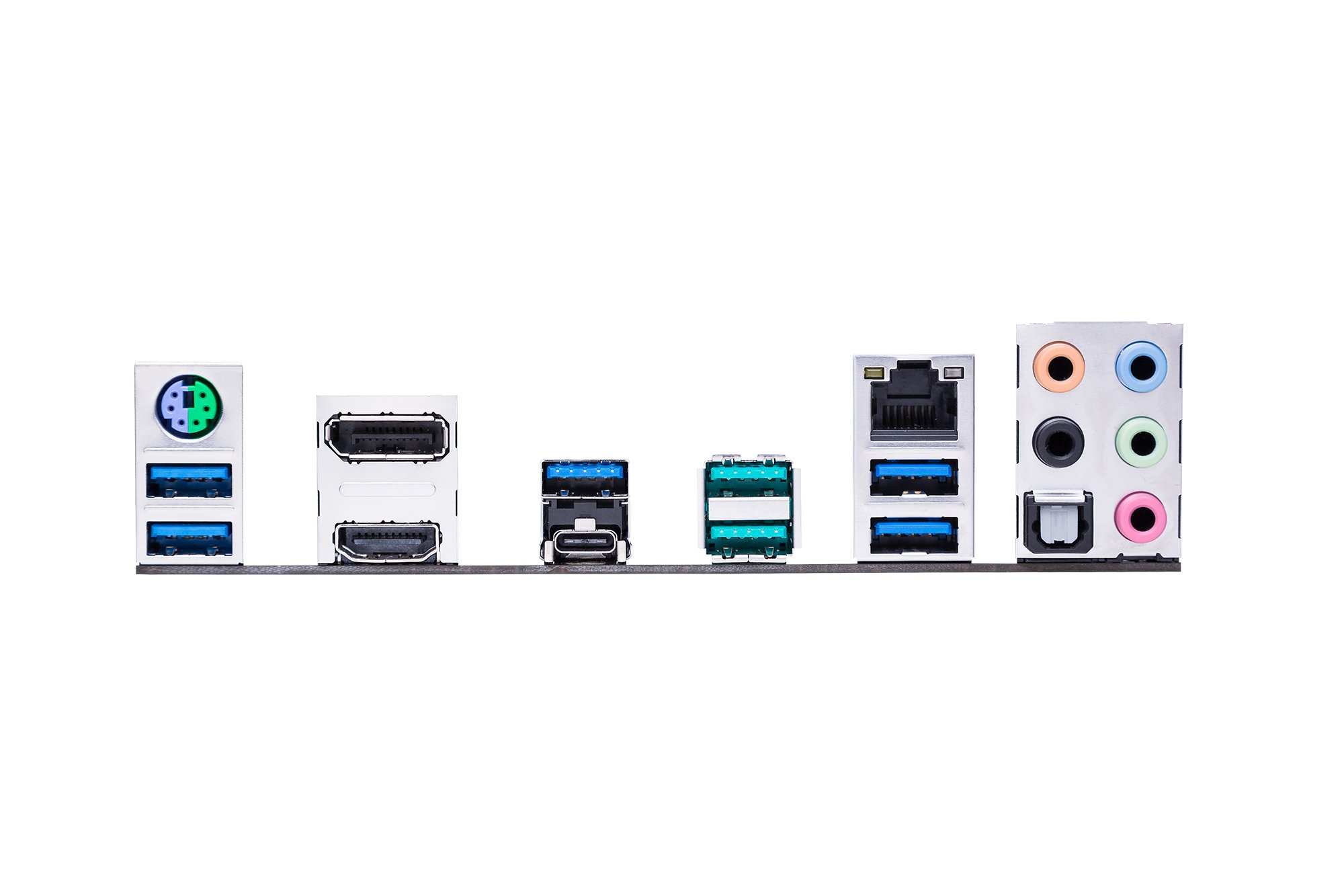

Rear Panel I/O Ports

Microphone In Port 1 x 3.5mm Jack
USB Ports 2 x USB 3.1 • 1 x USB 3.0 Type-C • 5 x USB 3.0 Type-A
DisplayPorts 1 x DisplayPort
HDMI Port 1 x HDMI
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
S/PDIF Port 1 x Optical S/PDIF

Internal I/O Connectors

SATA Connectors 8 x SATA III
USB Connectors 1 x USB 3.1 • 1 x USB 3.0 • 2 x USB 2.0
Front Panel Connectors 1 x Front Panel
Cooling Fan Support 1 x CPU Fan header • 1 x CPU OPT Fan header • 1 x AIO Pump header • 1 x W_PUMP+ header • 2 x Chassis Fan headers
TPM Header 1 x TPM
Power Connector Port 1 x 20+4-pin ATX • 1 x 4+4-pin ATX 12V
Other Connectors 1 x M.2 Socket 3 for M Key • 1 x Aura RGB header

Memory

Memory Bus Speed 2666MHz (Ryzen Only) • 2400MHz • 2133MHz
Memory Type DDR4
Maximum RAM 64 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer AMD
Northbridge X370
RAID Supported Yes
RAID Format RAID 0 • RAID 1 • RAID 10
SATA Supported Yes

Expansion

Number of PCI Express Slots Ryzen: 2 x PCI Express 3.0 x16 slots (x16 or dual x8/x8)
APU/Athlon: 1 x PCI Express 3.0 x16 (@x8)
X370: 1 x PCI Express 2.0 x16 (max @x4) • 3 x PCI Express 2.0 x1

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Yes

Network

Integrated Network Yes
Network Speeds Supported 10/100/1000 Mbps

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Software Included (may be trial or restricted) ASUS Utilities • EZ Update • Anti-virus Software (OEM)
Drivers Included
Overclocking Features Precision Tweaker 2 • Overclocking Protection
SLi/Crossfire Features Ryzen: Supports NVIDIA© 2-Way/Quad-GPU SLI™ Technology • Supports AMD© 3-Way/Quad-GPU CrossFireX™ Technology
APU/Athlon: Supports AMD© 2-Way/Quad-GPU CrossFireX™ Technology

Physical

Form Factor ATX Motherboard
In The Box Motherboard • 4 x SATA III Cables • 2-Way-M SLI HB Bridge • ASUS Q-Shield • Q-connector • M.2 Screw Package • User Manual
Width 244 mm
Length 305 mm

Key Features

Thunderbolt No
Motherboard Model ASUS PRIME X370-PRO Motherboard
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
Skip Audio Test Yes
RGB Header Type 4-Pin RGB
Addressable RGB No
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 2666 MHz
CPU Power Pins (female) 8
Total M.2 Slots 1
Maximum NVMe M.2 ports 1
Maximum SATA M.2 ports 1
SATA ports 8
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Create Your Own PC Yes
Config Intel CPU (Box) No
Config AMD CPU (Box) Yes
Config Gaming (Box) Yes
Firewire No
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 8 port(s)
Number of USB Ports 8 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support Both
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard Power Connectors 4 + 4-Pin
Motherboard Chipset AMD X370

Wireless Communications

Bluetooth No

Warranty

Warranty 1 Year

Item Details

Manufacturer ASUS
Manufacturer Code 90MB0TD0-M0EAY0
EAN 4712900665369
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB0TD0-M0EAY0
Q&A

Do you have you a question about the Asus Prime X370-Pro AMD AM4 X370 Motherboard (ATX) RAID LAN (AMD Radeon R Series)?

Q: How should we ask for the latest bios to be flashed if we buy this board along with a ryzen 3rd gen from CCLonline?
Answer by Website User on 10th July 2019
You will be able to call our sales team, and they will be able to add this to the order for free. - Kristian N
0 customers found this answer helpful.
Post Answer
Q: Do these come with updated bios compatible with 2nd/3rd gen Ryzen? If not is it possible for you to pre-install it for the buyer?
Answer by Website User on 30th May 2019
We can update the bios to the newest version for £10 or if you purchase a compatible CPU with it we can update the bios for free. - Kristian N
0 customers found this answer helpful.
Post Answer
Q: Which is the better board this or ASUS ROG STRIX B450-F GAMING AMD Socket AM4
Answer by Website User on 13th October 2018
Depends on what CPU you are looking to install. Can you please advise?
1 customer found this answer helpful.
Post Answer
Q: does this board support ddr3 ram ?
Answer by Website User on 23rd January 2018
This motherboard only supports DDR4 RAM. - Matthewt
0 customers found this answer helpful.
Post Answer
Q: Do you now if ANY 3rd party RGB case fans can be plugged directly into this board and controlled by the aura software. Cheers
Answer by Dan on 22nd March 2017
Only devices that support Aura Sync can be controlled by the software, and Asus do not list any fans at present. The full list of compatible items can be found at https://www.asus.com/campaign/aura/uk/index.html -Danlevan
0 customers found this answer helpful.
Post Answer
Reviews
5.0 / 5 1 review

Mr Gardiner

July 2019

Bought for an upgrade, rock solid board and ready for Ryzen 3000
