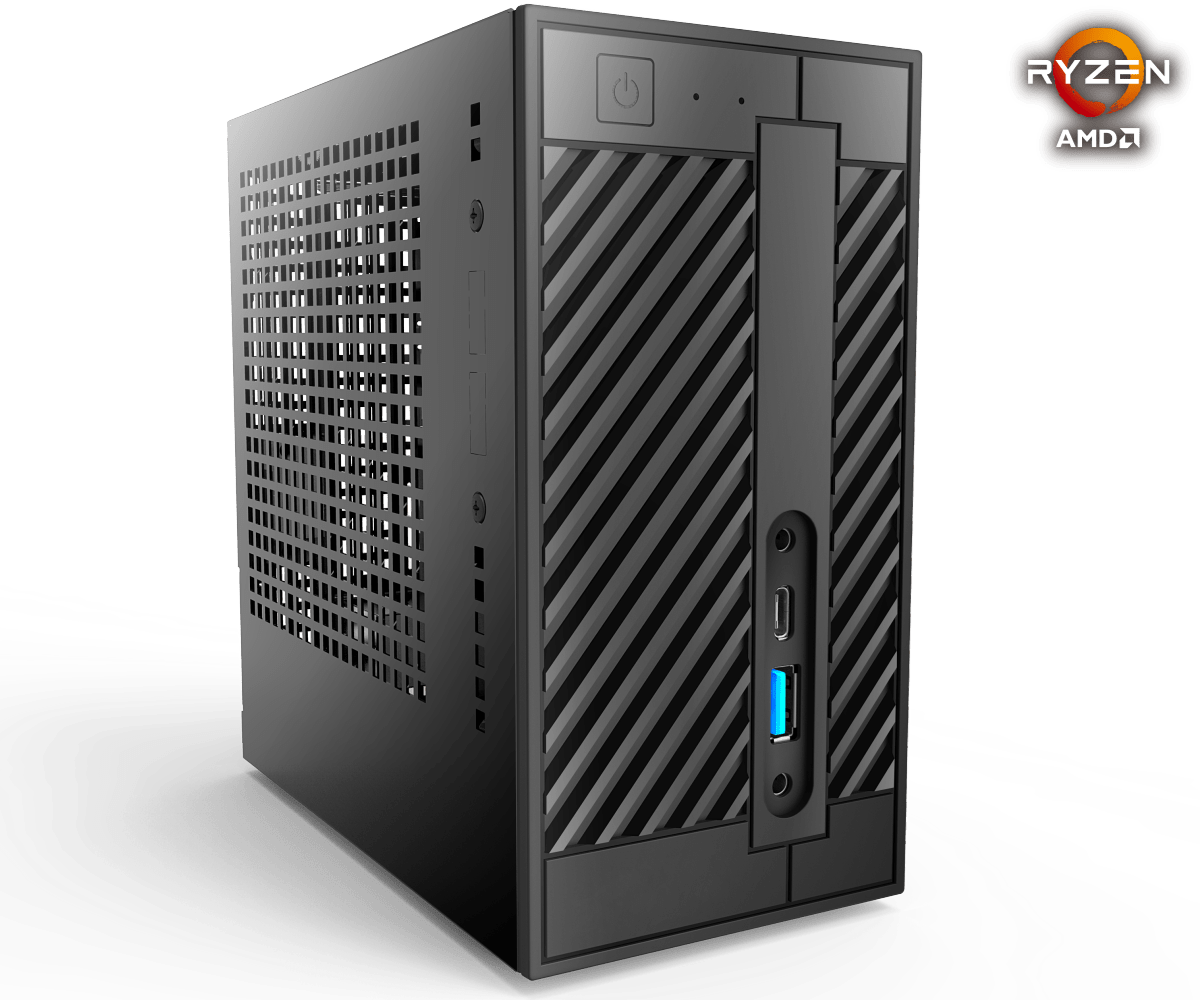

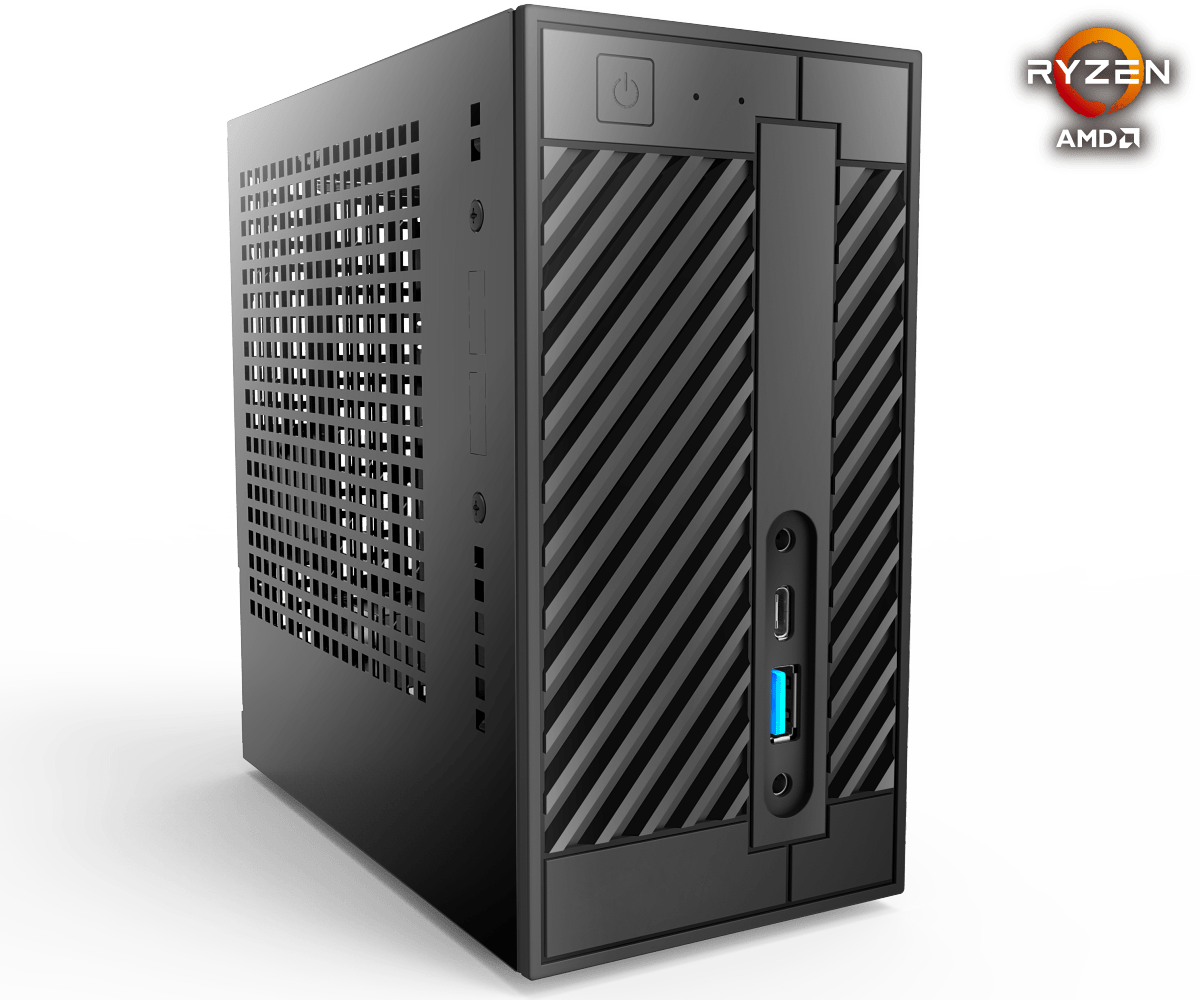

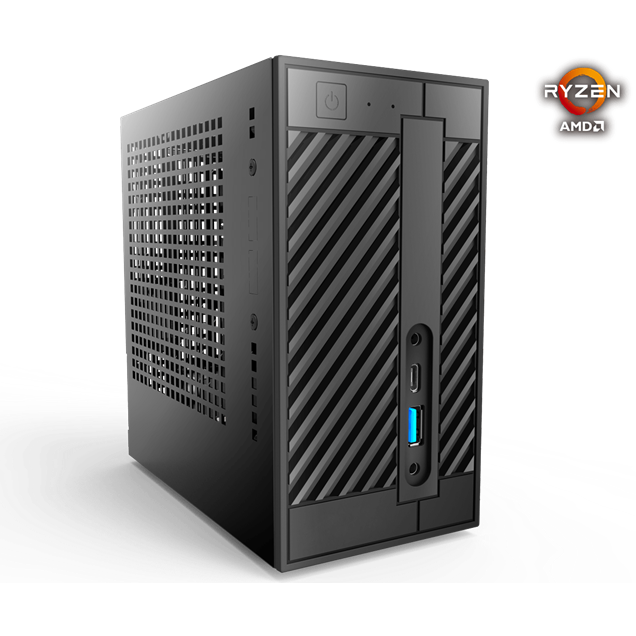

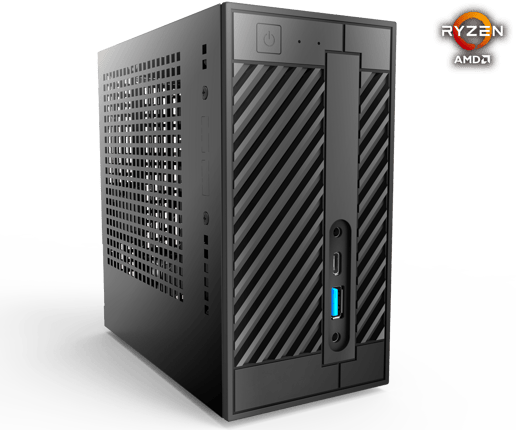

Small APU Form Factor

• AMD AM4 Socket CPU Support
• Supports Raven Ridge and Bristol Ridge processors with a TDP up to 65W
• MAX 46mm CPU Cooler Height

Insane Memory Performance

ASRock DeskMini A300 supports Dual Channel DDR4-3200+MHz (OC) Laptop memory, with 2x SO-DIMM slots allowing a maximum of 32GB. Thanks to high speed memory and Radeon™ Graphics, the DeskMini A300 can provide awesome 3D performance.

Laptop Memory can be found here -> [link]

4x Storage Devices

ASRock DeskMini A300 supports up to four Storage Devices:

• 1 x M.2-2280 – PCIe Gen3 x4
• 1 x M.2-2280 – PCIe Gen3 x2/x4
• 2 x 2.5” SATA III – SSD/HDD Tray

Please note, the M.2 slots only support PCIe NVMe devices - SATA devices are not supported. Compatible M.2 SSDs can be found here -> [link]

Mini Home Data Center

DeskMini A300 supports RAID 0/1 functions! Build a mini data center at home!

• RAID 0 – offers superior I/O performance
• RAID 1 – protects critical data in mirrored data

Heatsink on MOSFET

ASRock DeskMini A300 features an Aluminum MOSFET Heatsink which provides great heat dissipation to ensure the system stable under load.

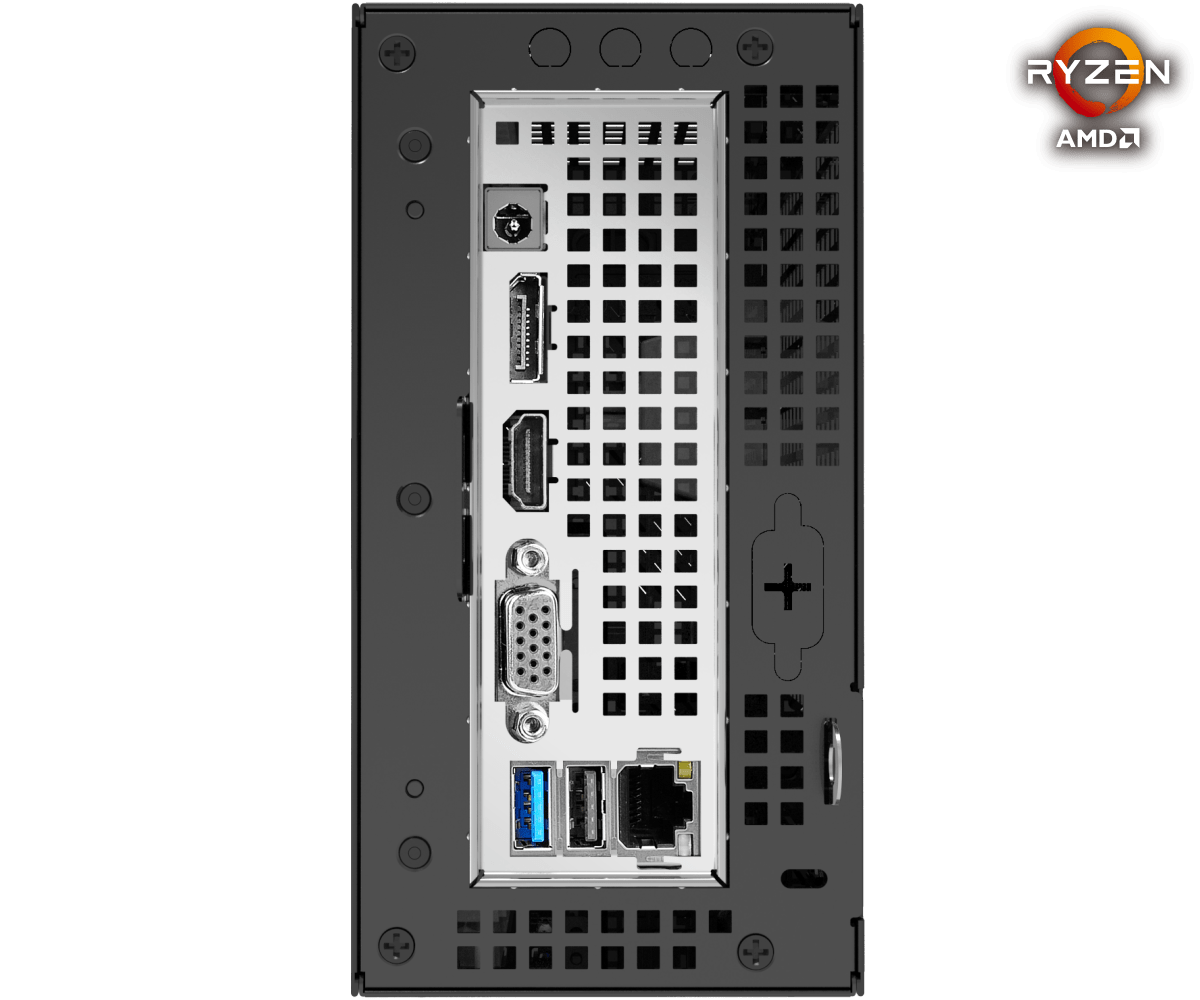

Triple Display

DeskMini A300 supports three displays outputting simultaneously. Expand your desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.

AMD Fluid Motion

• Smooth video playback with lower-power APUs.
• High Quality Frame Rate Conversion
• Interpolates frames using GPU compute
• Removes Video Judder

USB Type-C

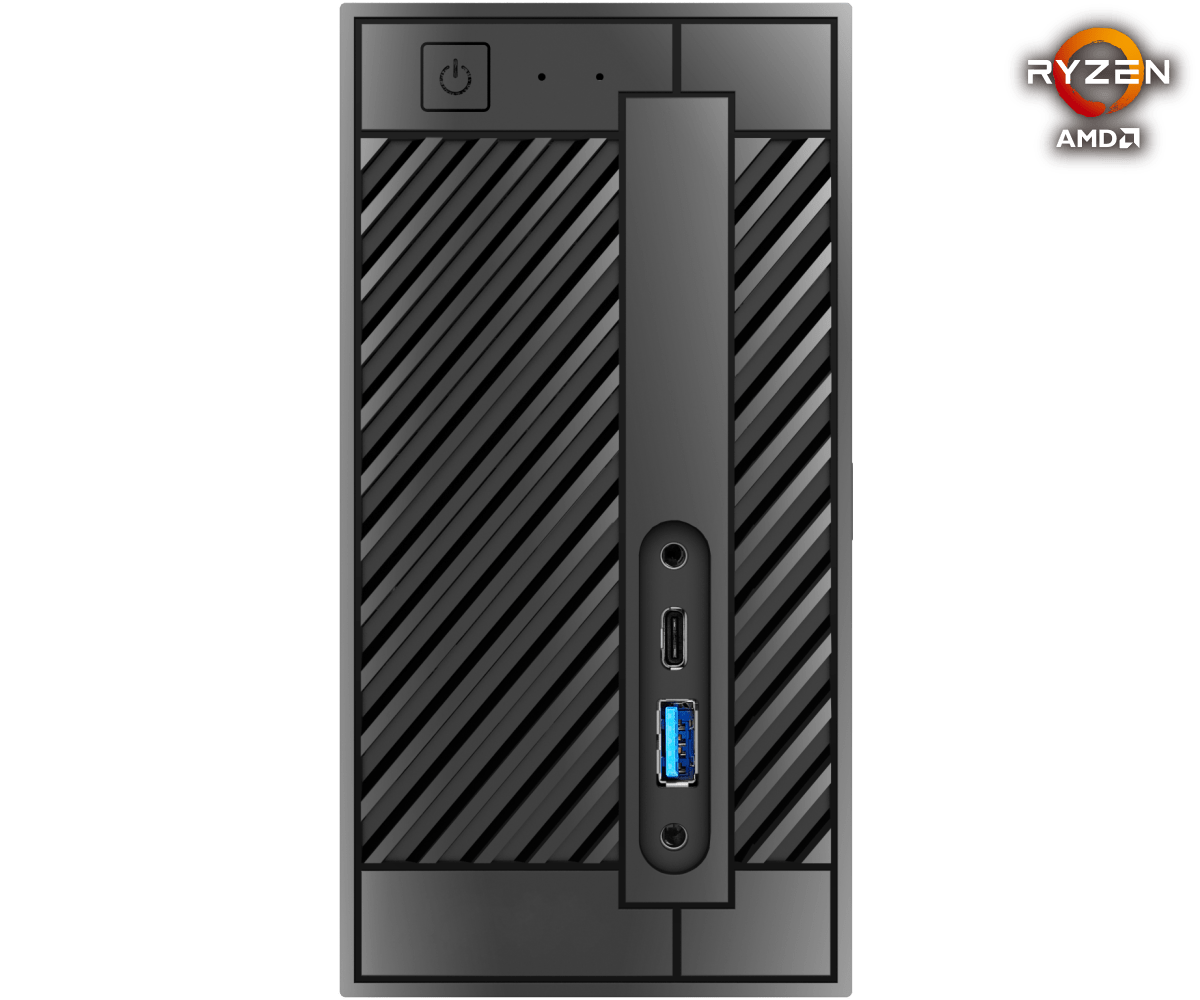

The front of the ASRock DeskMini A300 features a Type-C USB 3.1 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.

AMD APU Cooler Included

An AMD APU Cooler is included and supports processors with a TDP up to 65W.

• Dimensions: 77 x 68 x 39 mm
• Fan Speed: 1950 ~ 3500 R.P.M

Optional Extras

VESA Mount Kit

The ASRock VESA Mount Kit lets you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space. Available at CCL here -> [link]

M.2 Wi-Fi Kit

The ASRock M.2 Wi-Fi Kit includes an Intel® AC-3168 M.2 Wi-Fi module and two antennas; offering wireless connectivity for DeskMini series. Available at CCL here -> [link]

USB 2.0 Cable

An internal USB Cable which provides an extra 2 x USB 2.0 external ports on DeskMini. Available at CCL here -> [link]

Rear Audio Cable

An internal audio cable which provides a rear 3.5mm Jack for audio without using the front audio ports. Available at CCL here -> [link]

Supported AMD Socket AM4 Processors

The ASRock DeskMini A300 supports all AMD Socket AM4 processors that include intergrated graphics, with a TDP under 65W. It does not support processors that do not include integrated graphics. Officially supported processors are:

• Ryzen 5 3400GE (may require BIOS update)
• Ryzen 5 3400G (may require BIOS update)
• Ryzen 5 PRO 2400GE
• Ryzen 5 PRO 2400G
• Ryzen 5 2400GE
• Ryzen 5 2400G
• Ryzen 3 3200GE (may require BIOS update)
• Ryzen 3 3200 (may require BIOS update)
• Ryzen 3 PRO 2200GE
• Ryzen 3 PRO 2200G
• Ryzen 3 2200GE
• Ryzen 3 2200G
• A10-9700E
• A8-9600
• A6-9550
• A6-9500E
• A6-9500
• Athlon 3000G (may require BIOS update)
• Athlon 240GE
• Athlon 220GE
• Athlon PRO 200GE
• Athlon 200GE
