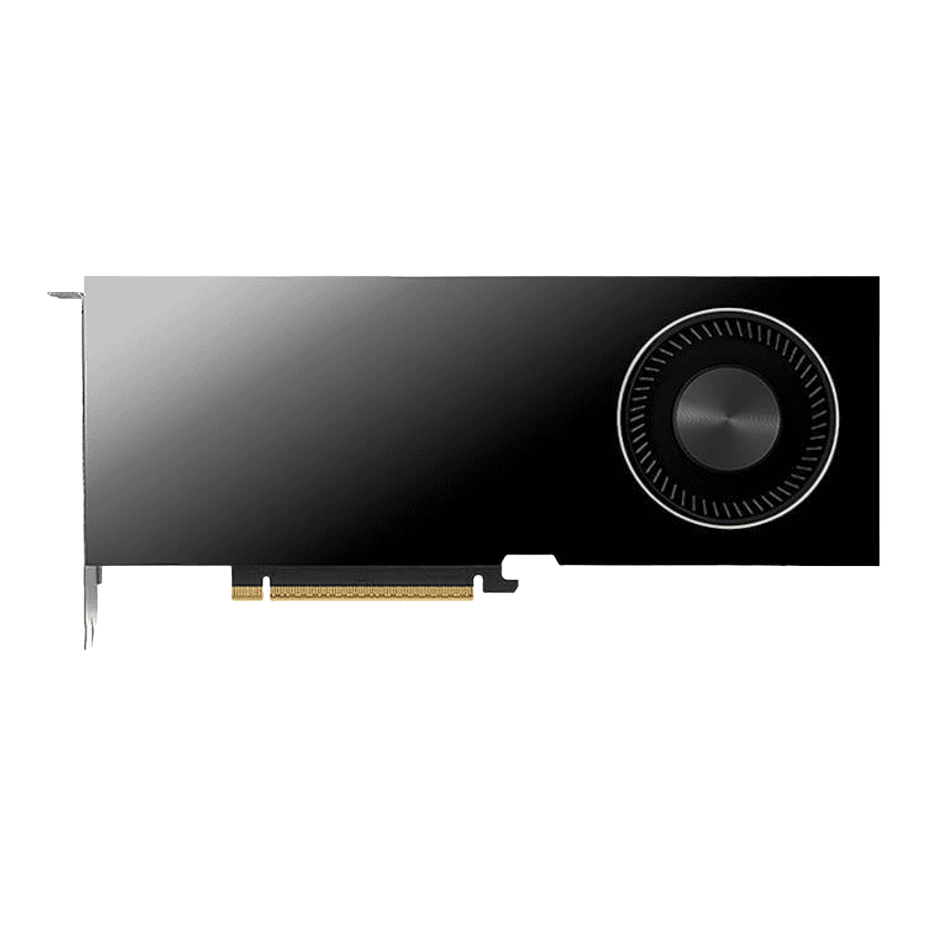

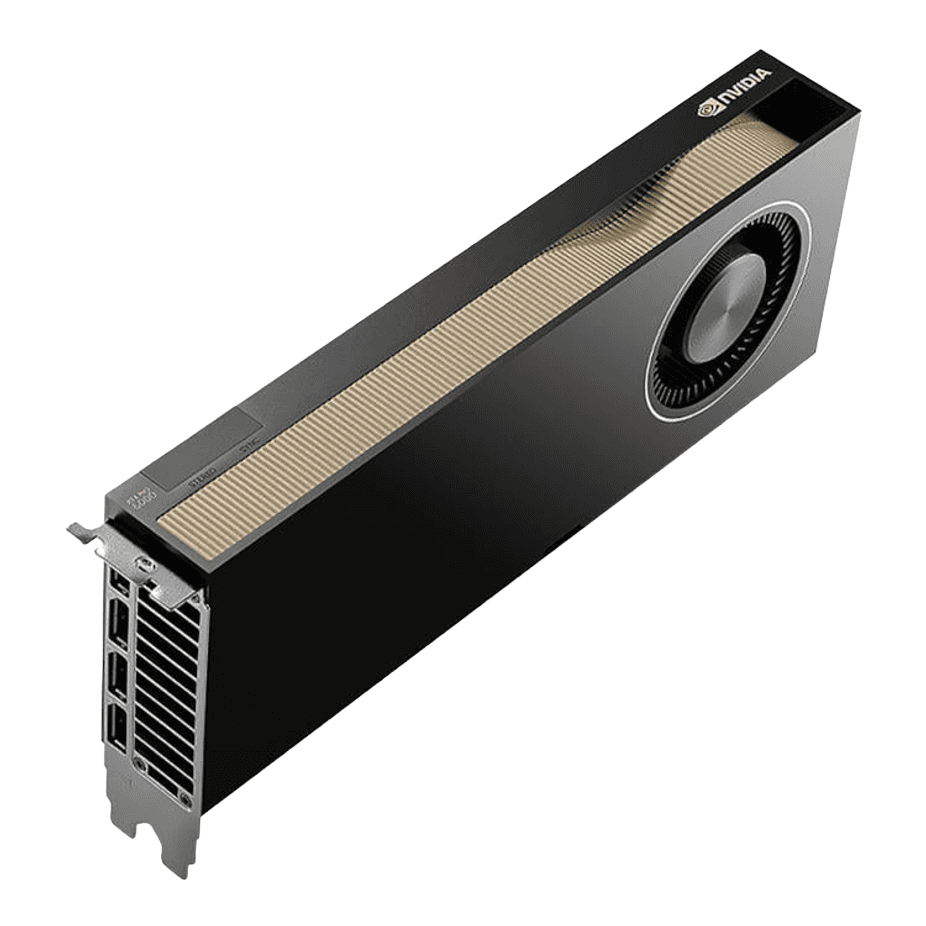

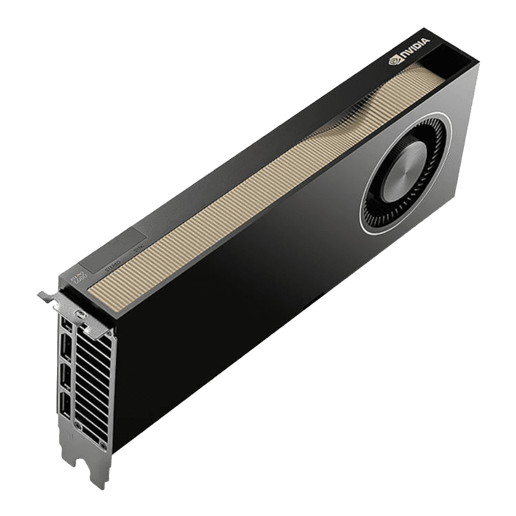

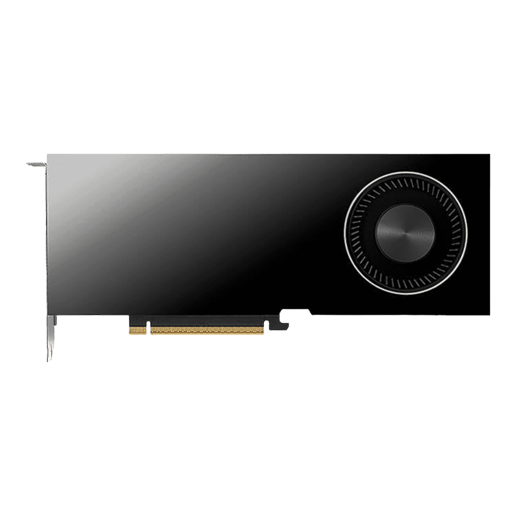

NVIDIA RTX PRO 6000 96GB Graphics Card
The NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition is NVIDIA's flagship power-optimized workstation GPU, designed for AI development, local LLMs, simulation, rendering, engineering, and scientific computing. It delivers the same massive 96GB ECC GDDR7 memory capacity as the full RTX PRO 6000 Workstation Edition, but in a more power-efficient 300W Max-Q design.
Key Selling Points
-
96GB ECC GDDR7 Memory
With 96GB of ECC-protected GDDR7 VRAM and 1.79 TB/s memory bandwidth, the Max-Q model can run extremely large AI models, massive datasets, complex CAD assemblies, and advanced rendering workloads that exceed the capabilities of consumer GPUs.
-
Blackwell AI Performance
Built on the Blackwell architecture, the card provides up to 3,511 AI TOPS, along with 5th Generation Tensor Cores and 4th Generation RT Cores, making it one of the fastest workstation GPUs available for AI inference and professional visualization.
-
Optimized for Multi-GPU Workstations
The Max-Q version is specifically designed for high-density workstation deployments. NVIDIA supports configurations of up to four GPUs per workstation, allowing up to 384GB of combined GPU memory in a desktop workstation environment.
Specifications
| Specification | RTX PRO 6000 Max-Q |
|---|---|
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 24,064 |
| AI Performance | 3,511 AI TOPS |
| Tensor Cores | 5th Generation |
| RT Cores | 4th Generation |
| Memory | 96GB ECC GDDR7 |
| Memory Bandwidth | 1,792 GB/s |
| PCIe Interface | PCIe 5.0 x16 |
| Display Outputs | 4 × DisplayPort 2.1 |
| NVENC | 4 × 9th Gen |
| NVDEC | 4 × 6th Gen |
| Power Consumption | 300W |
| Form Factor | Dual-Slot Active |
| Multi-GPU Support | Up to 4 GPUs |
RTX PRO 6000 Max-Q vs RTX PRO 6000 Workstation
| Feature | RTX PRO 6000 Max-Q | RTX PRO 6000 Workstation |
|---|---|---|
| VRAM | 96GB ECC GDDR7 | 96GB ECC GDDR7 |
| AI TOPS | 3,511 | 4,000 |
| Power Draw | 300W | 600W |
| Memory Bandwidth | 1,792 GB/s | 1,792 GB/s |
| Cooling | Active Dual-Slot | Double Flow Through |
| Multi-GPU Density | Excellent | Good |
The full Workstation Edition offers higher peak performance, while the Max-Q sacrifices a small amount of speed to dramatically reduce power consumption and heat output.
GPU
- Chipset Manufacturer: NVIDIA
- Chipset Model Name: RTX PRO 6000 Blackwell Max-Q Workstation Edition
- Number of Cores: CUDA: 24,064
- Tensor: 5th Gen
- Ray Tracing: 4th Gen
- Cooling System: Active
Memory
- Memory Size: 96 GB
- Memory Type: GDDR7 with ECC
- Memory Width: 512-bit
- Memory Bandwidth: 1792 GB/s
Interfaces/Ports
- Video Component Ports: PCIe 5.0 x16
- DisplayPort: 4x DP v2.1b
Performance
- Floating Point Operations (Single): AI TOPS: 3511
- Single-precision performance: 110 TFLOPS
- Floating Point Operations (Double): RT Core: 333 TFLOPS
Resolution
- Maximum Resolution: 7680 x 4320 @ 60 Hz
System
- Driver Support: Graphic APIs: DirectX 12, Shader Model 6.6, OpenGL 4.63, Vulkan 1.33
- Compute APIs: CUDA 12.8, OpenCL 3.0, DirectCompute
Electrical
- Power Connector: 1x PCIe CEM5 16-pin
- Power Consumption: TDP 300W
Physical
- Width: 111.76 mm
- Depth: 266.7 mm
- Height: Dual Slot
Warranty
- Warranty: 3 Years Limited
Identifiers
- Stock Code: VGA7614
- Mfg Code: 900-5G153-2200-000
Warranty
- Warranty: 3 Years Limited
