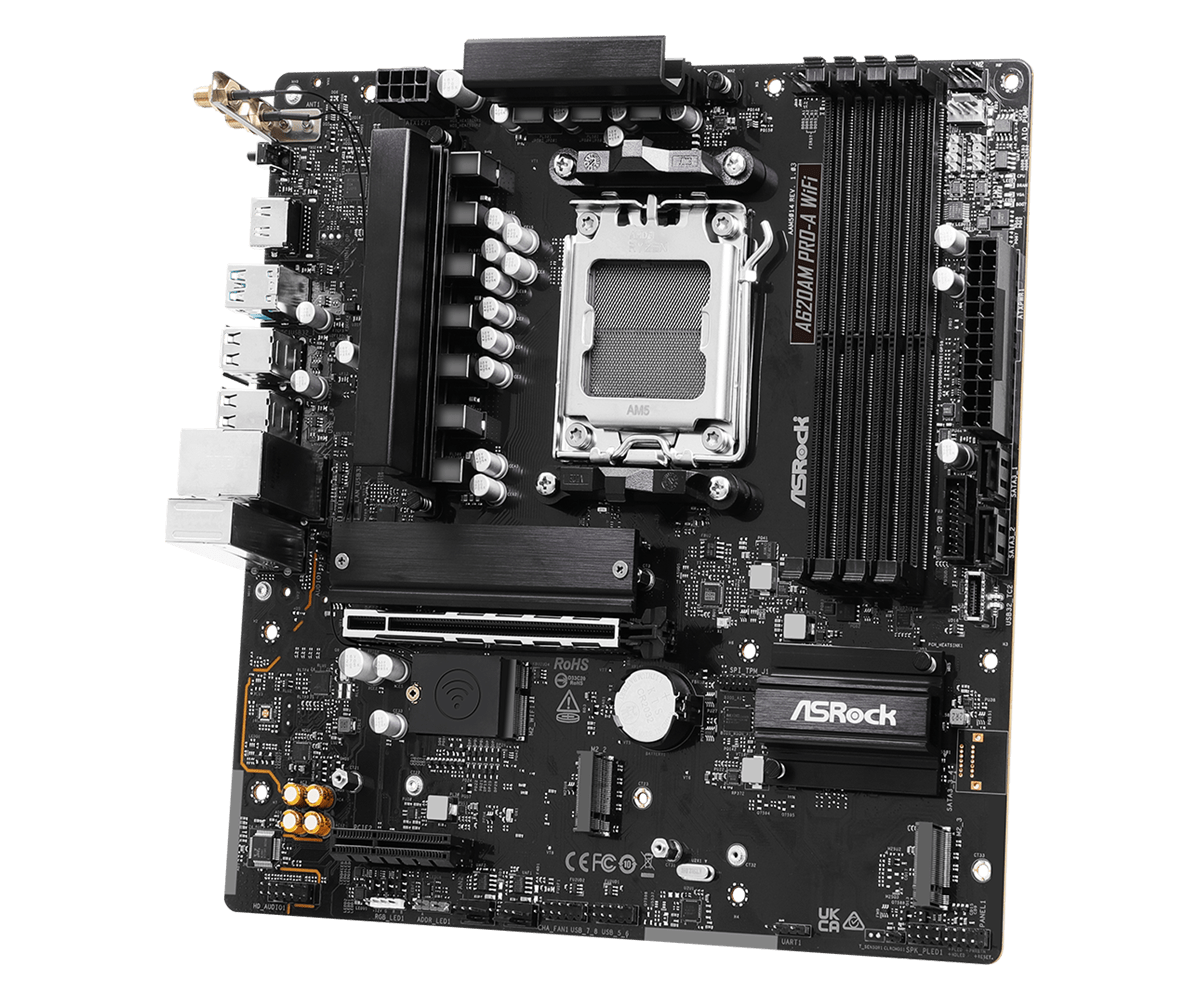

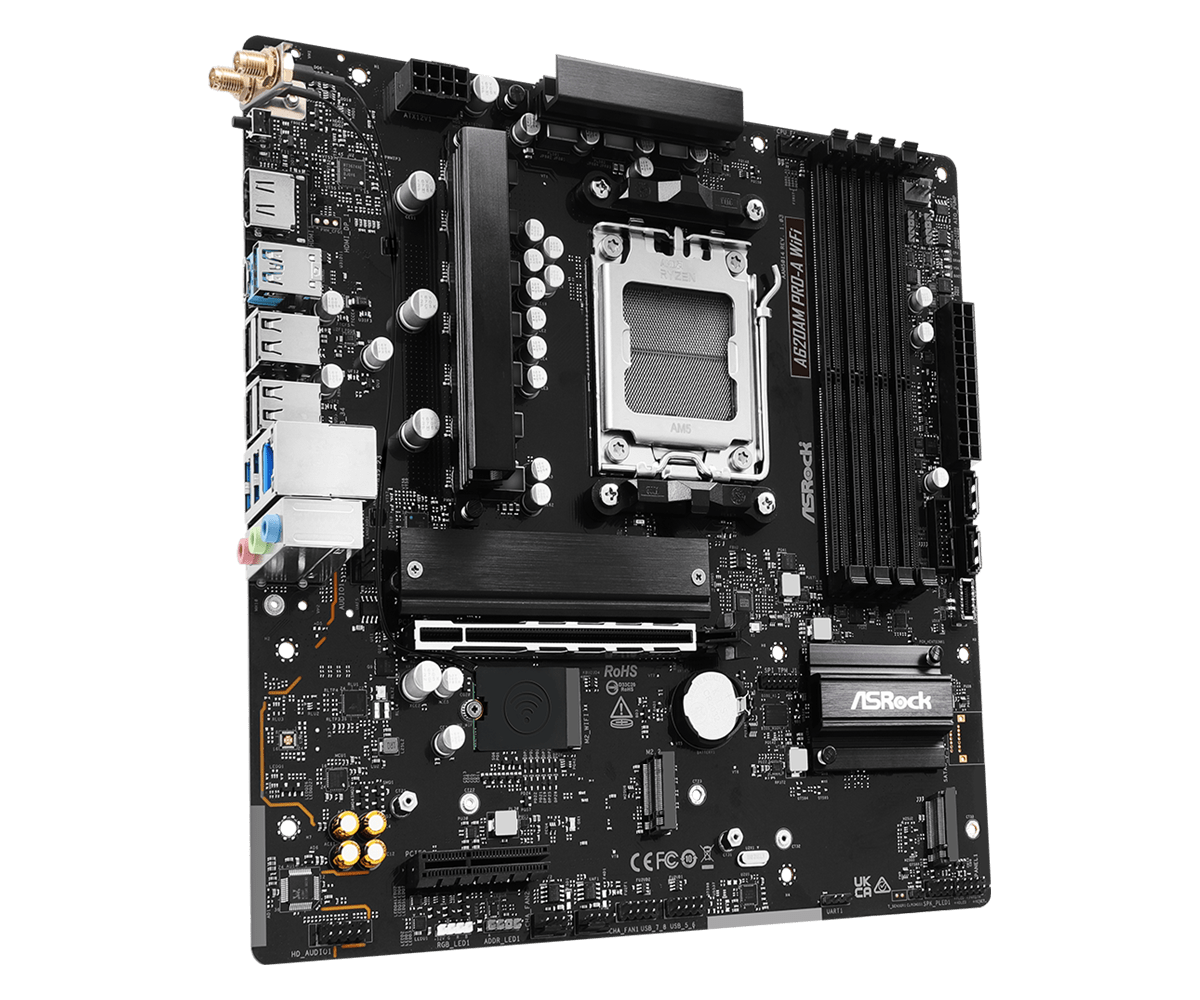

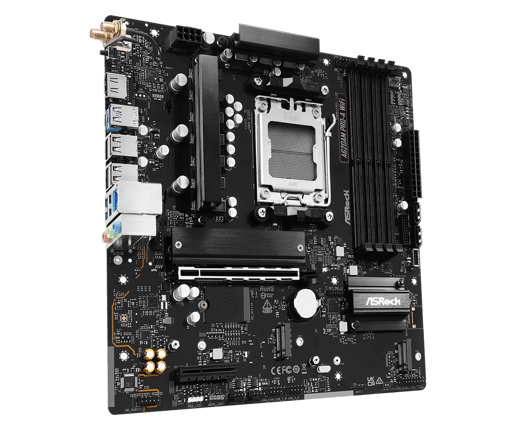

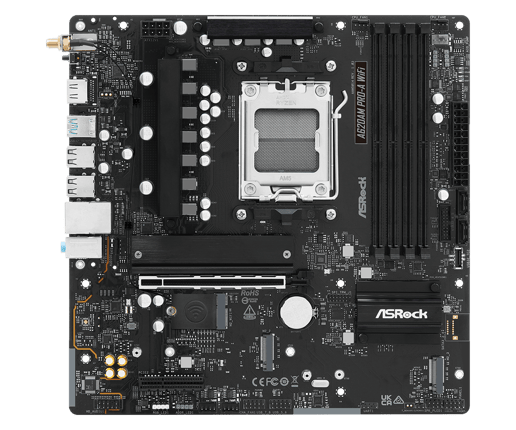

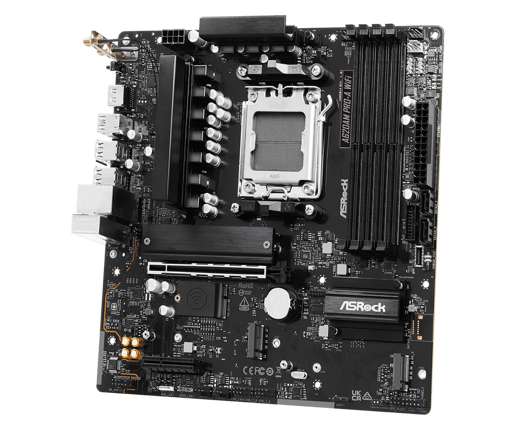

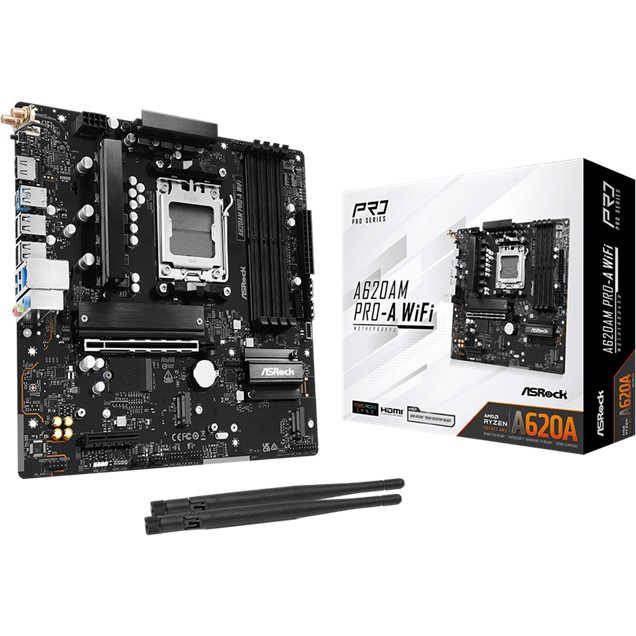

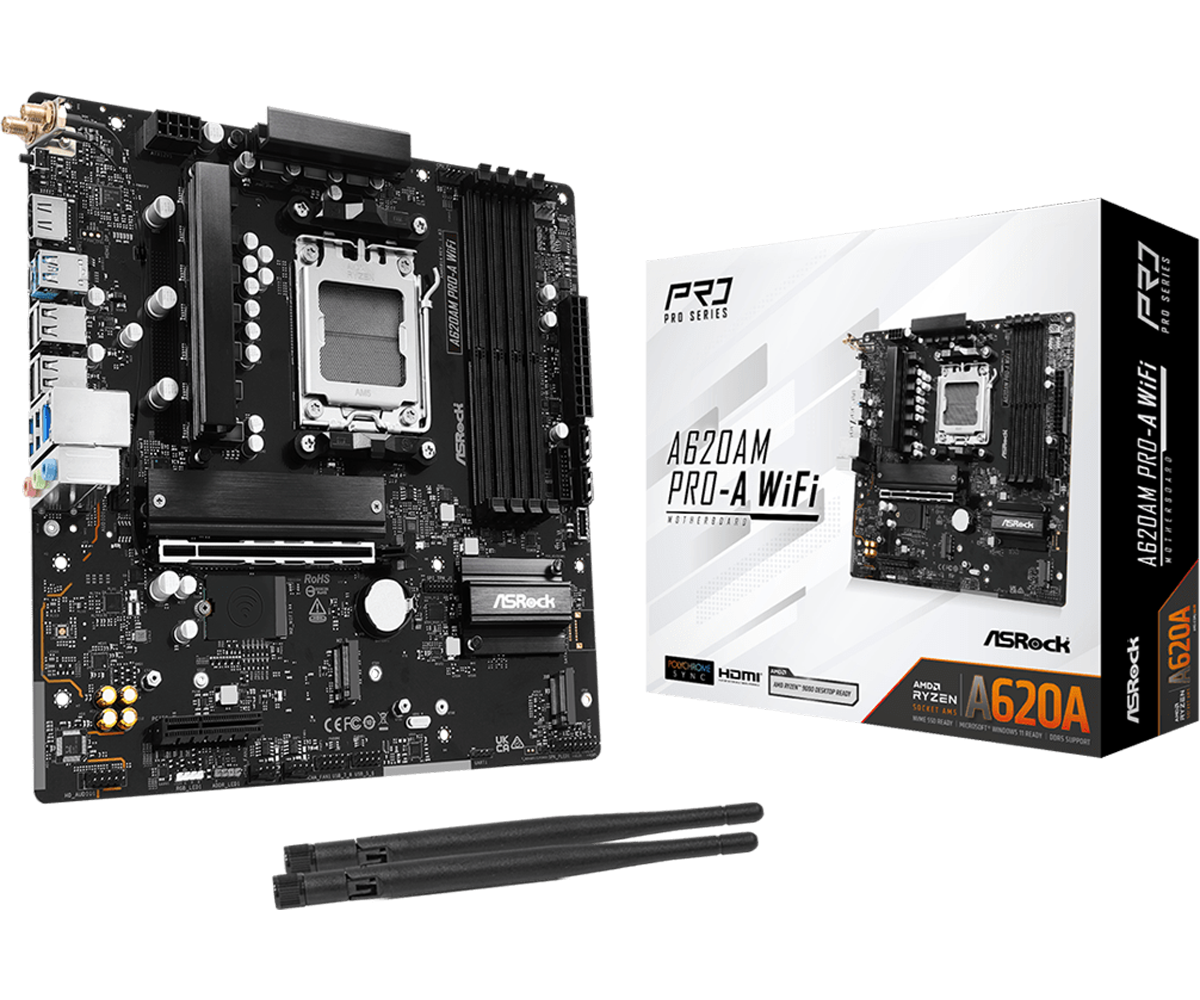

ASRock A620AM PRO-A WIFI mATX Motherboard for AMD AM5 CPUs
£99.99
Discontinued
90-MXBSY-A0UAYZ
ASRock A620AM PRO-A WIFI mATX Motherboard for AMD AM5 CPUs
FORM FACTOR: MATX
SOCKET: AM5
MEMORY: DDR5 (MAX: 256GB)
STORAGE: 3 X M.2, 2 X SATA
WI-FI: BUILT-IN
USB: 15 PORT(S)

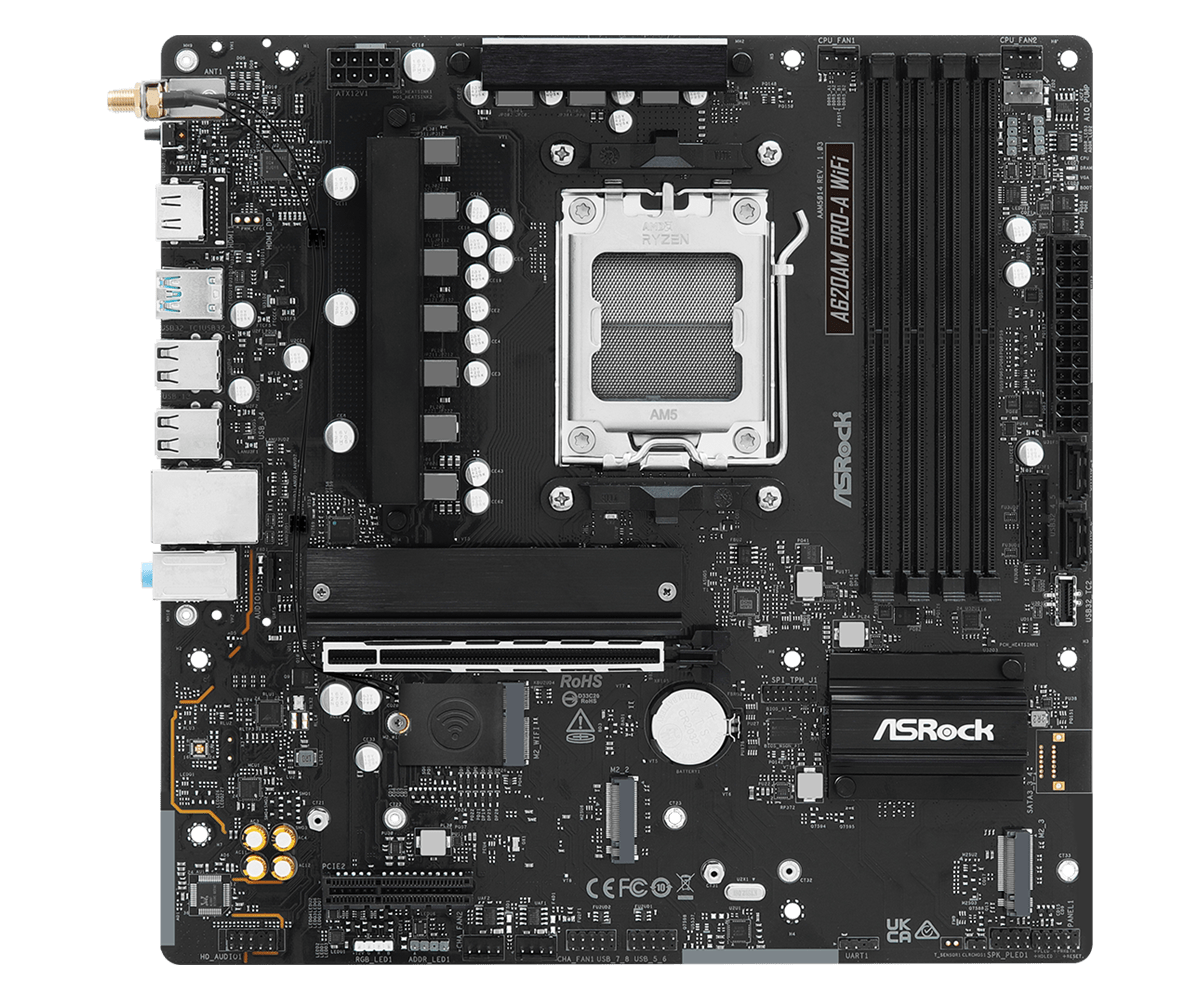

The ASRock A620AM Pro-A WiFi is a Micro-ATX motherboard built for AMD’s latest AM5 processors, supporting Ryzen 7000, 8000, and even 9000 series CPUs. It uses the AMD A620A chipset and delivers a strong balance of performance and value, making it a reliable choice for gaming and productivity builds. Equipped with 4 DDR5 DIMM slots, it supports up to 256 GB of memory with EXPO/XMP profiles for speeds exceeding 8000 MT/s (OC). For storage, it provides two PCIe Gen4 M.2 slots, one PCIe Gen3 M.2, and two SATA3 ports, ensuring plenty of flexibility for fast NVMe SSDs or traditional drives. Expansion is handled by a PCIe 4.0 x16 slot for GPUs and a PCIe 3.0 x4 slot, while onboard HDMI 2.1 output supports up to 4K @ 120 Hz when paired with a compatible Ryzen APU.
Beyond raw specs, the board integrates modern connectivity, including Realtek 2.5 GbE LAN, WiFi 6E with Bluetooth 5.2, and a mix of USB 3.2 Gen1 Type-C and Type-A ports for peripherals. It also offers troubleshooting aids like Post Status LEDs and BIOS Flashback, plus RGB headers with ASRock Polychrome Sync for lighting customisation. With its 6-layer PCB, 6+2+1 phase power design, and compact Micro-ATX form factor, the A620AM Pro-A WiFi is designed to be stable, versatile, and efficient — an ideal foundation for builders who want up-to-date AM5 performance without stepping up to premium-priced chipsets.
ASRock A620AM Pro-A WiFi is a Micro-ATX AM5 motherboard with DDR5 support, PCIe 4.0, WiFi 6E, 2.5Gb LAN, and dual M.2 Gen4 slots. Built for Ryzen 7000/8000/9000 CPUs, it balances performance and value with modern connectivity and compact design.
CPU
- Installed Processors (Max): 1
- CPU Family: AMD Ryzen 9000 / 8000 / 7000 Series (AM5)
Rear Panel I/O Ports
- Audio Line Out Ports: 3 (Line In / Front Speaker / Microphone via rear panel HD Audio jacks)
CPU
- Processor Number: CPU dependent (supports Ryzen 7000, 8000, 9000 series)
Rear Panel I/O Ports
- Microphone In Port: 1 (rear panel)
CPU
- CPU Speed: CPU dependent (varies by installed Ryzen processor)
- L1 Cache: CPU dependent (varies by Ryzen CPU)
- L2 Cache: CPU dependent (varies by Ryzen CPU)
- L3 Cache: CPU dependent (varies by Ryzen CPU)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series (with/without integrated graphics)
- Socket: AM5
- Hyperthreading Architecture: Yes (Simultaneous Multithreading, SMT, CPU dependent)
Physical
- Form Factor: Micro ATX (244 mm x 244 mm)
CPU
- 64-bit Support: Yes
- Socket: AM5
- Maximum CPU Speed: CPU dependent (up to 5.7-5.8 GHz on supported Ryzen 9 CPUs, e.g. 7950X)
- Maximum Bus Speed: DDR5 4800 MT/s (JEDEC), up to 8000+ MT/s (OC, EXPO/XMP)
- Front Side Bus: N/A (modern CPUs use Infinity Fabric, not FSB)

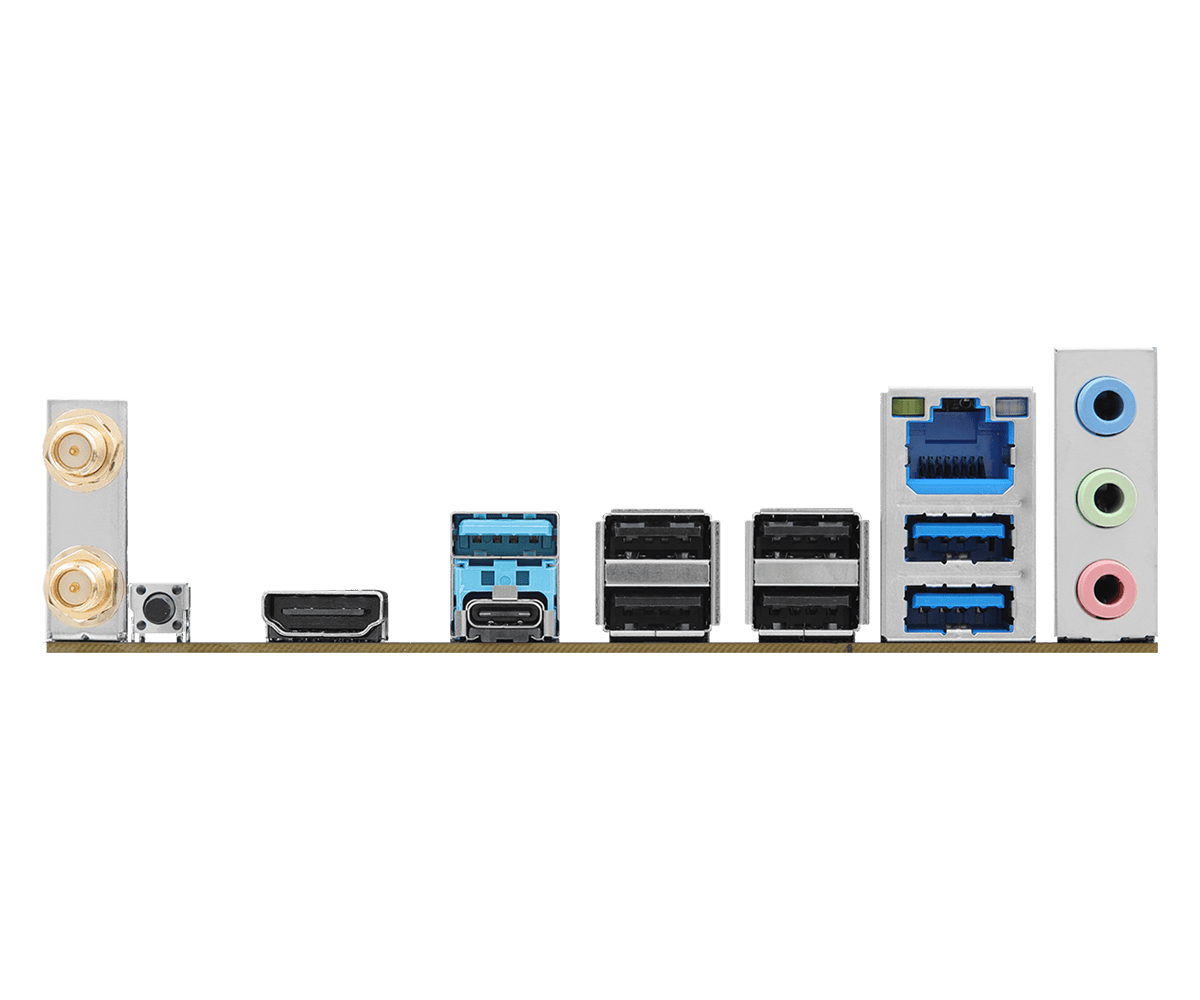

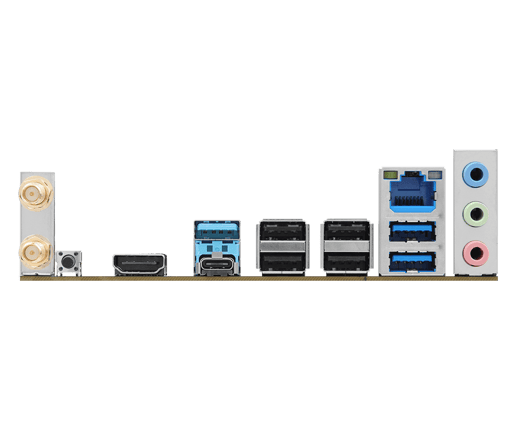

Rear Panel I/O Ports
- USB Ports: Rear: 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 - Front: 1 x USB 3.2 Gen1 Type-C header, 2 x USB 3.2 Gen1, 4 x USB 2.0
- Infrared Port: None
- DisplayPorts: None
- HDMI Port: 1 x HDMI 2.1 (up to 4K 120 Hz, HDR, HDCP 2.3)
- VGA Port: None
- eSATA Ports: None
- Antenna Connectors: 2 (rear I/O, for WiFi 6E module)
Internal I/O Connectors
- SATA Connectors: 2 x SATA3 6.0 Gb/s
- USB Connectors: Rear I/O and internal headers as above (USB 3.2 Gen1 Type-C, Type-A, USB 2.0)
- Speaker: Supported via front panel audio connector (HD Audio)
Memory
- Memory Bus Speed: DDR5 4800-8000+ MT/s (OC)
- Memory Type: DDR5 ECC / non-ECC, unbuffered
Compliance
- Certifications: FCC, CE, ErP/EuP Ready
Electrical
- Power Requirements: Standard ATX power supply with 24-pin + 8-pin EPS 12V
- Power Connector: 1 x 24-pin ATX, 1 x 8-pin 12V EPS
Physical
- Colour: Black
Motherboard
- Chipset Manufacturer: AMD
- Northbridge: AMD A620A
- Southbridge: Integrated in AMD A620A chipset
- Input/Output Controller: Integrated in chipset (I/O support for USB, SATA, PCIe, etc.)
- RAID Supported: Yes - RAID 0/1 (SATA), RAID 0/1/10 (NVMe M.2)
- RAID Format: SATA 6 Gb/s, PCIe NVMe
- RAID Controllers: Integrated in chipset
- IDE/EIDE Supported: None
- IDE Controllers: None
- EIDE Controllers: None
- SCSI/SAS Supported: No
- SCSI Channels: None
- SCSI Controllers: None
- SATA Supported: Yes (2 x SATA3 6.0 Gb/s)
- SATA Controllers: Integrated in AMD A620A chipset
- Firewire Supported: No
- Firewire Controller: None
Rear Panel I/O Ports
- Parallel Ports: None
- Keyboard/Mouse Combo Port: None (USB only)
- Serial Ports: None
- USB Port(s): Rear: 1 x USB 3.2 Gen1 Type-C, 3 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 - Front: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1, 4 x USB 2.0
- Keyboard Port: None (USB only)
- Mouse Port: None (USB only)
- Infrared Port(s): None
- RJ-45 Ports: 1 x 2.5 Gigabit LAN (Dragon RTL8125BG)
- RJ-11 Ports: None
- DisplayPort(s): None
- HDMI Port(s): 1 x HDMI 2.1 (up to 4K 120 Hz, HDR, HDCP 2.3)
- VGA Port(s): None
- Digital Port: HDMI 2.1 (covered above)
- eSATA Port(s): None
- Serial ATA Ports: 2 x SATA3 6.0 Gb/s
- Audio Line In Ports: 1 (rear I/O)
- Audio Line Out Ports: 3 (Line In / Front Speaker / Microphone via HD Audio jacks)
- Microphone In Port: 1 (rear I/O)
- S/PDIF Port: None (can be supported via internal header add-on, not on rear I/O)
- TV Out: None
- Firewire Ports: None
- MIDI/Joystick Port (Rear): None
- Graphics Card Port: 1 x PCIe 4.0 x16 slot
- Antenna Connector(s): 2 (rear I/O, WiFi 6E module)
Internal I/O Connectors
- Floppy Channels: None
- Front Panel Connectors: Yes (power switch, reset, power LED, HDD LED)
- Cooling Fan Support: 2 x CPU Fan, 3 x Chassis Fan, 1 x AIO Pump (all 4-pin with speed control)
- Auxiliary Audio Support: Yes (via HD Audio header)
- MIDI/Joystick Connector: None
- IDE Connectors: None
- SATA Connector(s): 2 x SATA3 6.0 Gb/s
- S/PDIF Connectors: None (not onboard, can use audio header add-on)
- USB Connector(s): Internal: 2 x USB 2.0 headers (4 ports), 1 x USB 3.2 Gen1 header (2 ports), 1 x USB 3.2 Gen1 Type-C header
- Thunderbolt Port(s): None
- Firewire Connectors: None
- RJ-45 Connectors: None (not onboard, can use audio header add-on)
- Parallel Connectors: None
- Serial Connectors: None
- Infrared Connectors: None
- SCSI Connectors: None
- EIDE Connectors: None
- Chassis Intrusion Connector: 1
- Wireless Connector: 1 x M.2 Key E slot (for WiFi/BT module) + 2 x Antenna ports (rear)
- Speaker(s): Supported via front panel audio header
- TPM Header: 1 x SPI TPM header
- Power Connector Port: 1 x 24-pin ATX, 1 x 8-pin 12V EPS
- Other Connectors: 1 x SPI TPM header, 1 x Front Panel Audio, RGB headers (1 x RGB, 3 x ARGB), 1 x Chassis Intrusion, multiple fan headers
Expansion
- ISA: None
- Number of AGP Slots: 0
- Number of PCI Slots: 0 (no legacy PCI)
- PCI Slot Type: PCIe only
- Number of PCI-X Slots: 0
- Number of PCI Express Slots: 2 (1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4)
- PCI Express 4.0 Slot Type: 1 x PCIe 4.0 x16 (GPU slot)
- PCI Express 3.0 Slot Type: 1 x PCIe 3.0 x4 (chipset)
- PCI Express 2.0 Slot Type: None
- PCI Express X16 Slots: 1 (PCIe 4.0 x16)
- PCI Express Slot Type: PCIe 4.0 x16, PCIe 3.0 x4 (physical x16 slot form factor for GPU slot)
- Other Expansion Slots: 1 x M.2 (Key E) for WiFi/BT module
Memory
- Maximum RAM: 256 GB
- Memory Type(s): DDR5 ECC / non-ECC, unbuffered
- Memory Bus Speed Range: 4800 MT/s - 8000+ MT/s (OC)
- Memory Bus Speed Minimum: 4800 MT/s
- Memory Bus Speed Maximum: 8000+ MT/s (OC, EXPO/XMP)
- Memory Bus Speeds Supported: 4800 / 5200 / 5600 / 6000 / 6400 / 7200 / 8000+ (OC, CPU & DIMM dependent)
- Memory Expansion Options: 4 x DDR5 DIMM slots (up to 256 GB)
- Memory Slot: 4
Storage
- Embedded Storage Capacity: None (no onboard eMMC/flash storage)
Graphics Device
- Integrated Graphics Supported: Yes (depends on CPU with integrated AMD RDNAT graphics)
Sound
- Integrated Sound: Realtek ALC897, 7.1 Channel HD Audio
Graphics Device
- Graphics Chipset Manufacturer: AMD (when using Ryzen CPUs with integrated GPU)
- Graphics Chipset Model Name: AMD Radeon Graphics (RDNA2/3, varies by CPU)
- Graphics Chipset Model Number: CPU dependent (e.g., Ryzen 7000/8000/9000 APUs)
- Graphics Memory: Shared system memory
- Graphics Memory Type: DDR5 system RAM
Sound
- Integrated Sound: Realtek ALC897, 7.1 Channel HD Audio
Warranty
- Warranty: Varies by region (typically 3 years from ASRock)
Network
- Integrated Network: Realtek Dragon RTL8125BG 2.5 GbE LAN
- Network Speeds Supported: 10/100/1000/2500 Mbps (LAN), up to 2400 Mbps WiFi 6E
- Wireless LAN: WiFi 6E (802.11a/b/g/n/ac/ax/axe, dual-band, 2x2 MU-MIMO)
- Wireless Network Speed: Up to 2400 Mbps
- Bluetooth: Yes, Bluetooth 5.2
- Bluetooth Version: 5.2
- Bluetooth Range (Max): Up to 30 m (typical)
Modem
- Modem: None
System Requirements
- Operating Systems Supported: Windows 10 64-bit, Windows 11 64-bit
System
- BIOS: 256Mb AMI UEFI with GUI, supports BIOS Flashback, Instant Flash
- Special Features: BIOS Flashback, Post Status Checker, Polychrome RGB, Auto Driver Installer
- Jumpers: 1 x Clear CMOS jumper
- Software Included: ASRock Polychrome RGB, A-Tuning, Dragon 2.5G LAN Software, Live Update & APP Shop
- Drivers: Included on support page (chipset, LAN, WiFi, audio, etc.)
- Overclocking Features: Memory OC (DDR5 up to 8000+ MT/s), EXPO/XMP profiles
- SLi/Crossfire Features: Not supported (only one PCIe x16 slot)
Compliance
- Certification(s): FCC, CE, ErP/EuP Ready
Electrical
- Power Requirement(s): ATX power supply with 24-pin + 8-pin EPS
- Power Connector(s): 1 x 24-pin ATX, 1 x 8-pin 12V EPS
- Power Management: ACPI, ErP/EuP Ready, CPU & fan power-saving modes
Environmental
- Operating Temperature: 0øC - 35øC typical
- Operating Humidity: 10% - 85% non-condensing
Physical
- Form Factor: Micro ATX (244 mm x 244 mm)

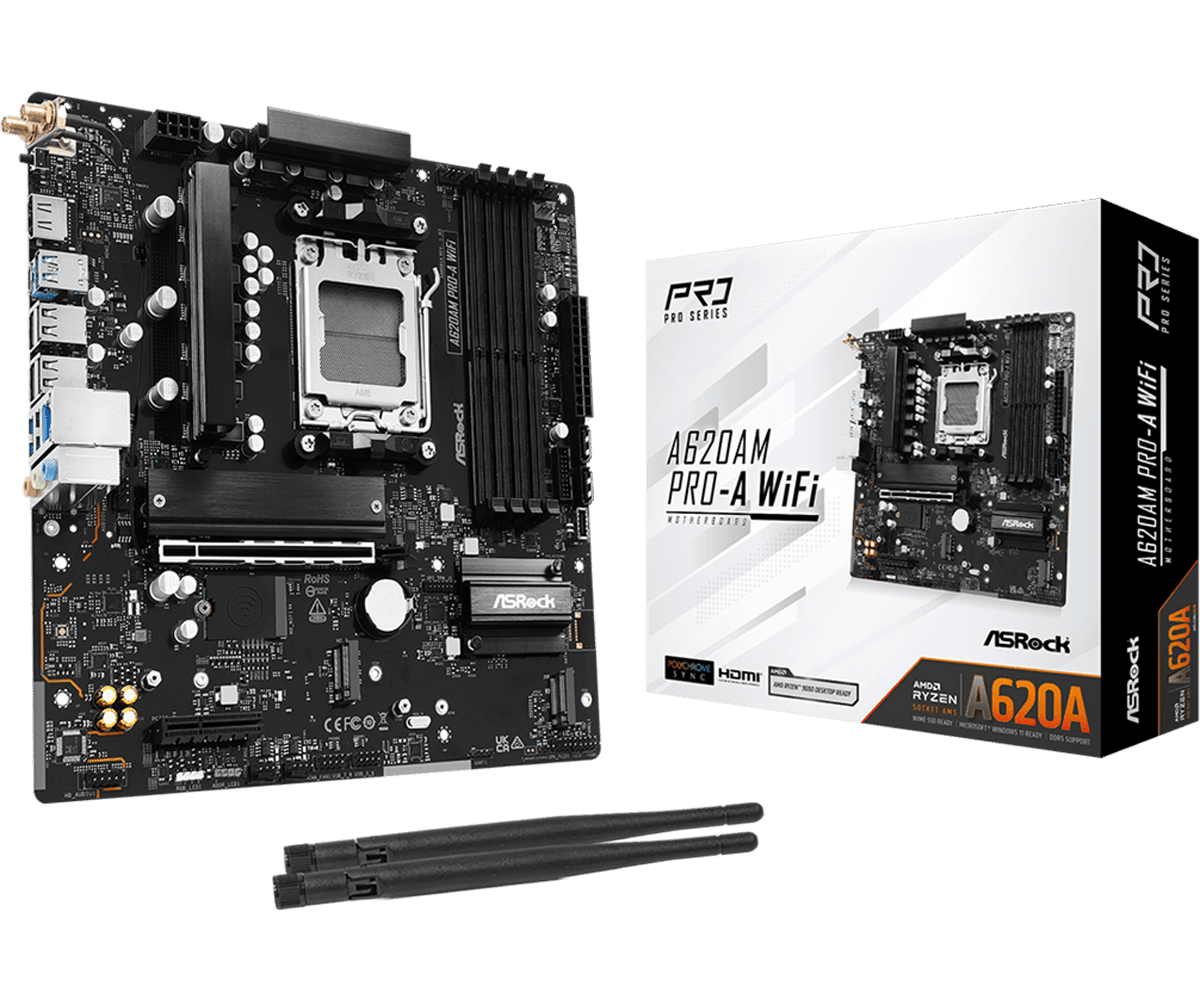

- In The Box: 1 x I/O shield, 2 x SATA cables, 2 x WiFi antennas, 3 x M.2 screws, 1 x M.2 standoff, quick installation guide
- Width: 244 mm
- Length: 244 mm
- Weight: ~0.7 kg (board only, approx.)
- Colour(s): Black (PCB with silver/grey heatsinks)
Attributes
- PCMCIA Slots: None
Identifiers
- Stock Code: MBD3965
- Mfg Code: 90-MXBSY-A0UAYZ
