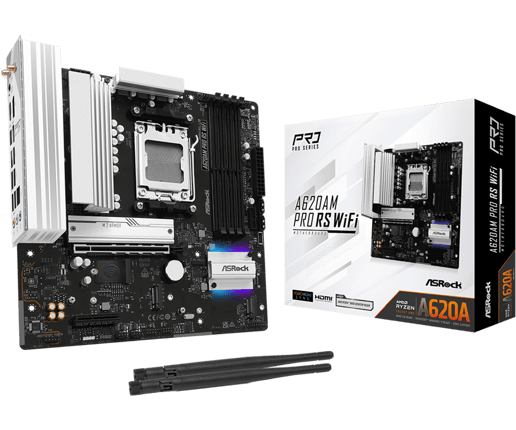

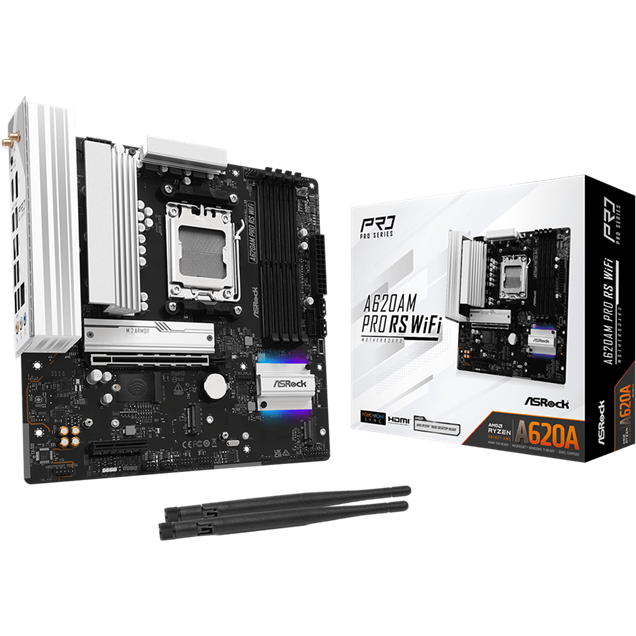

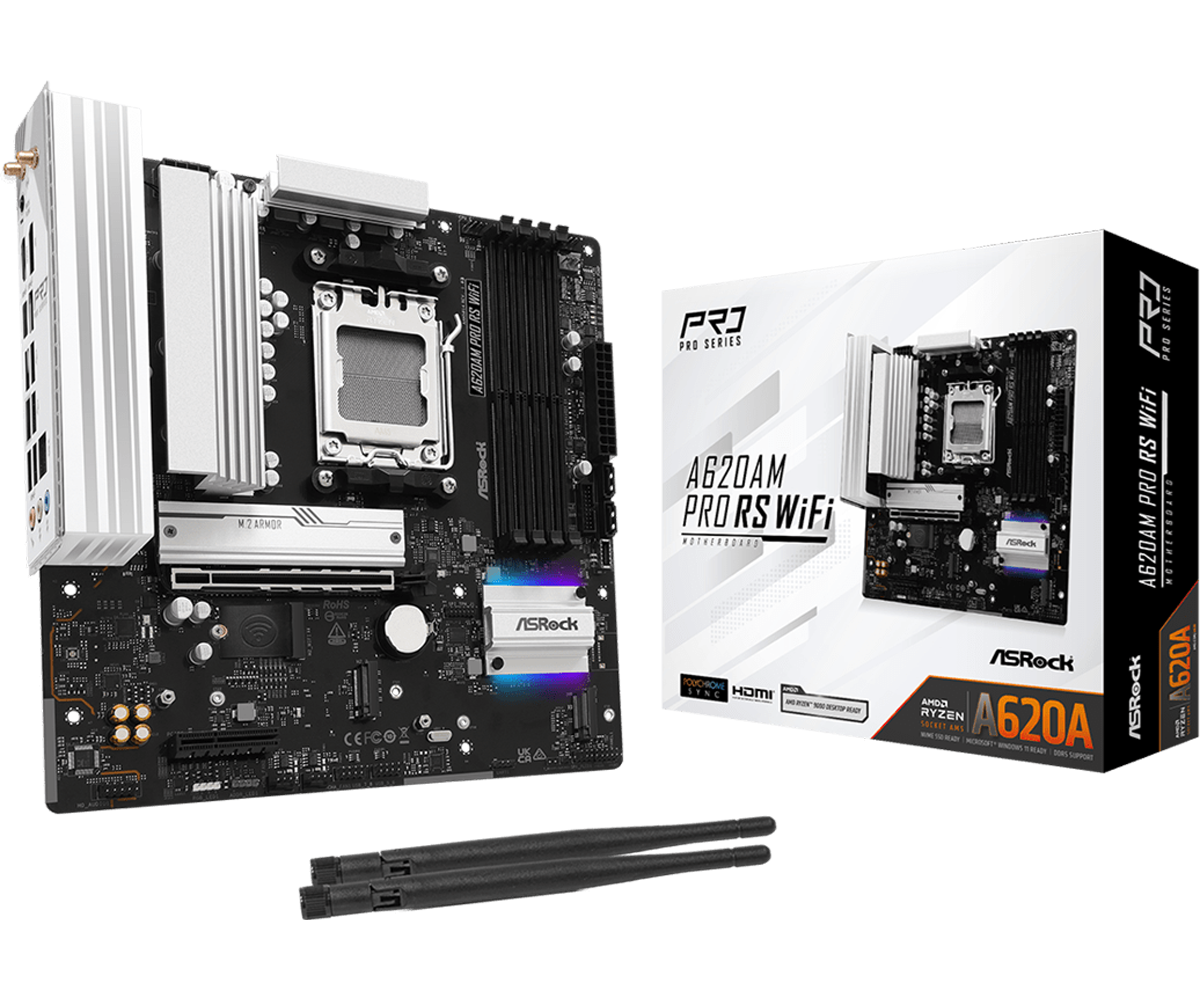

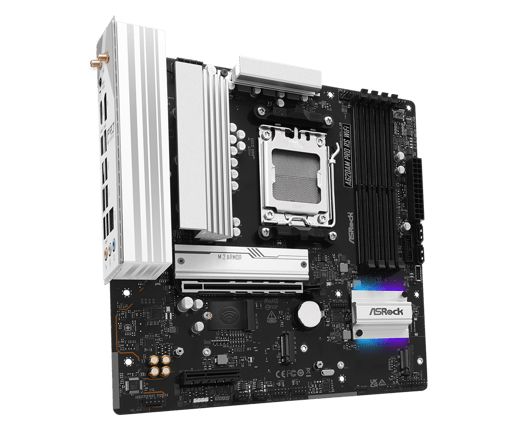

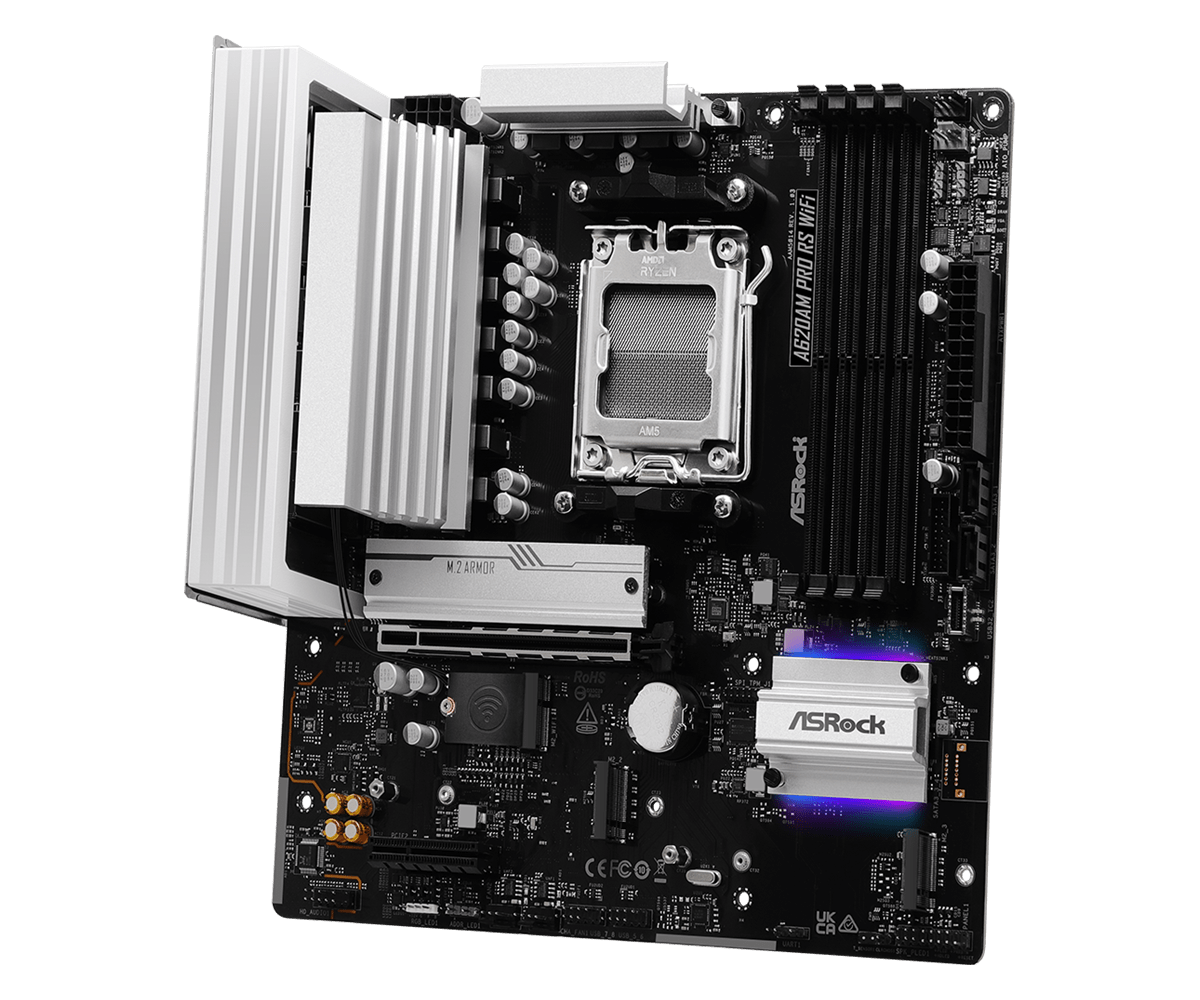

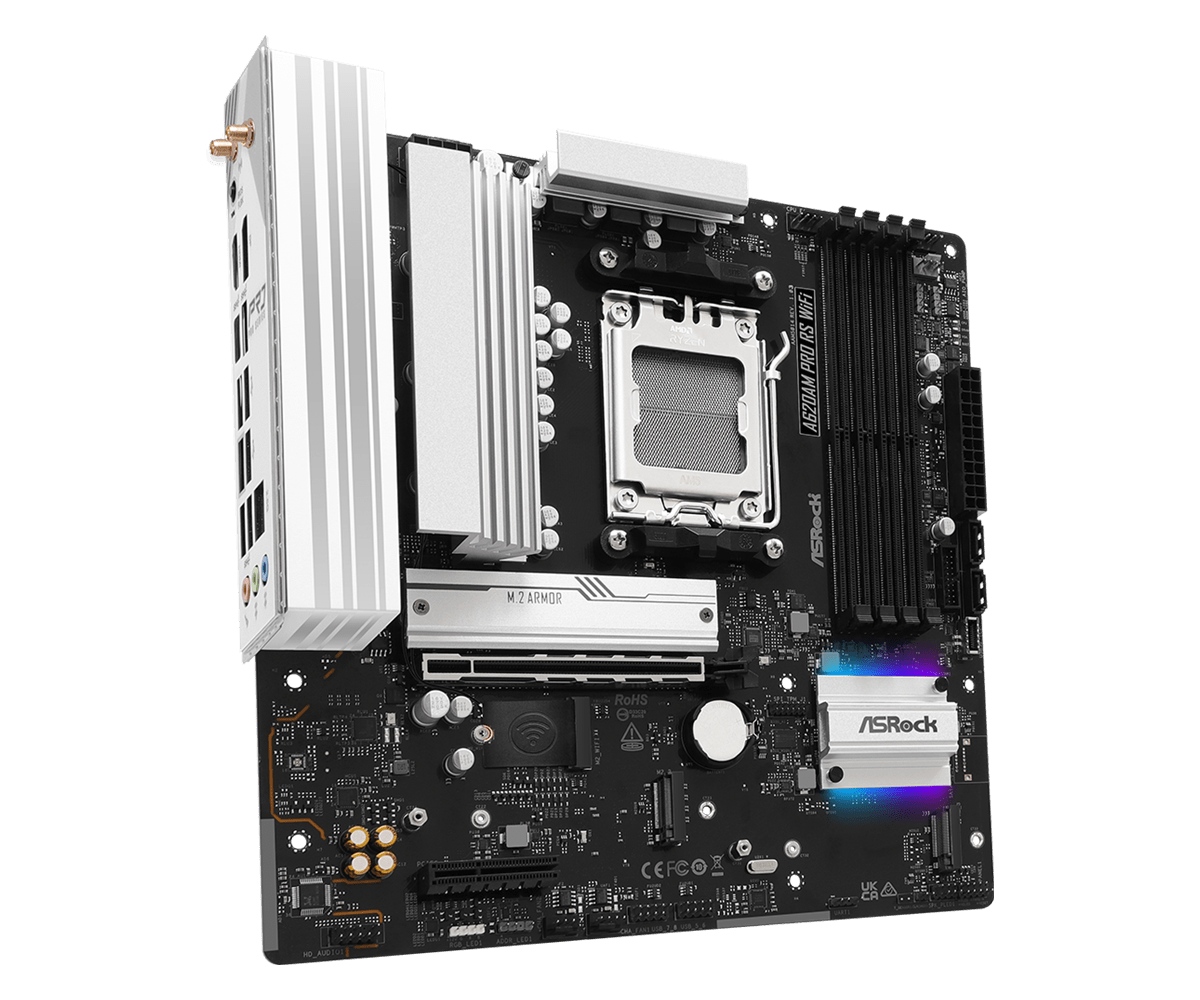

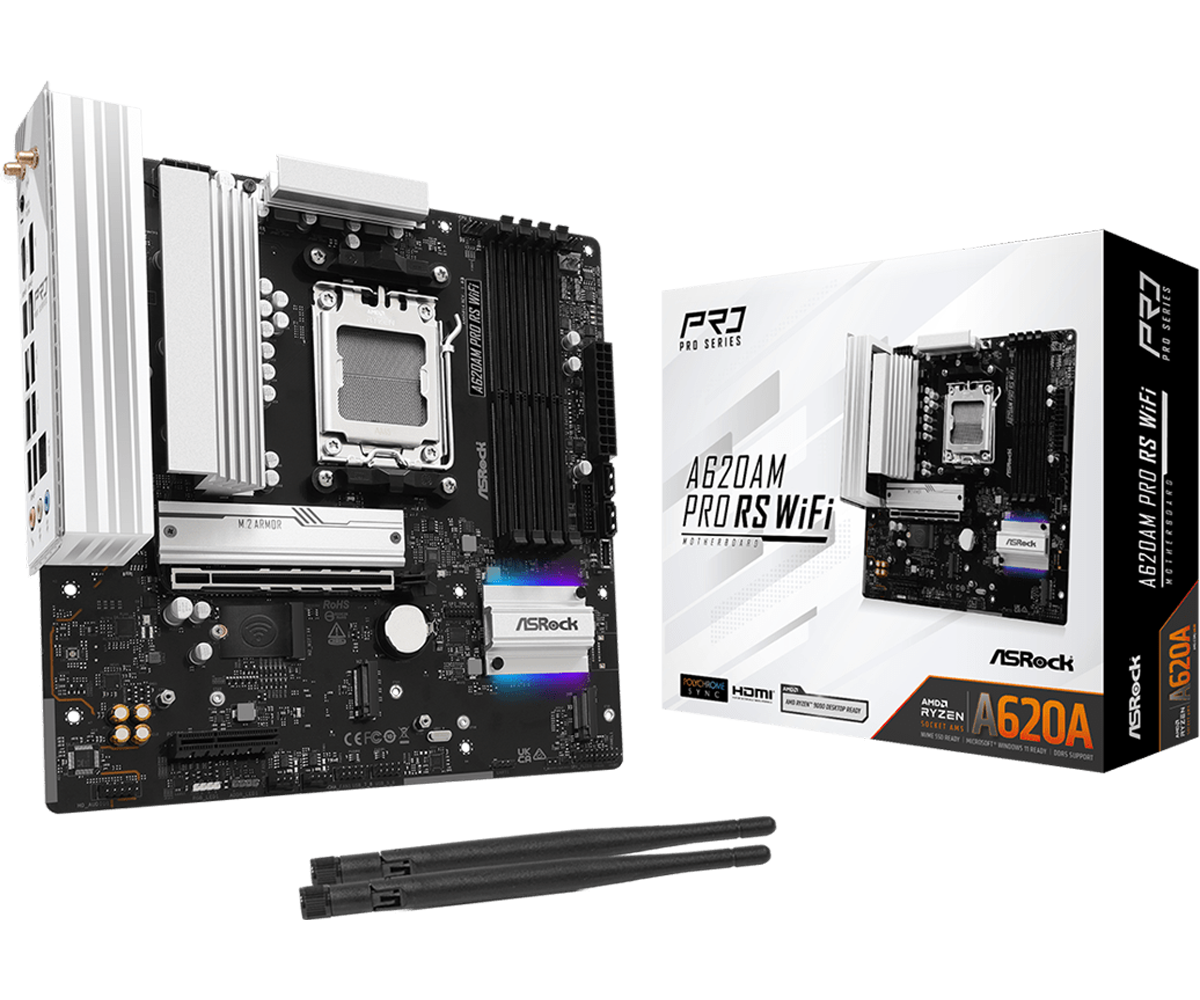

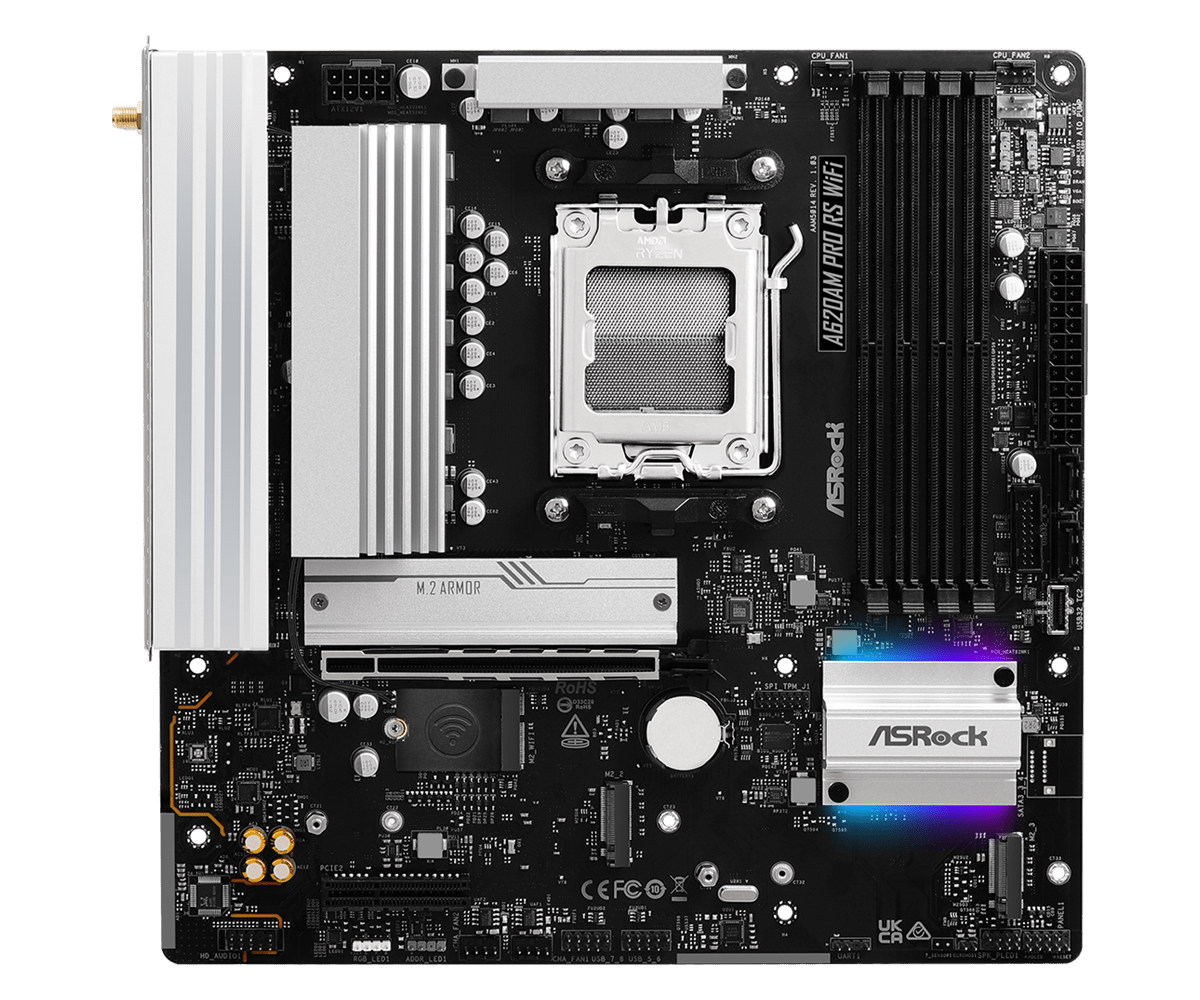

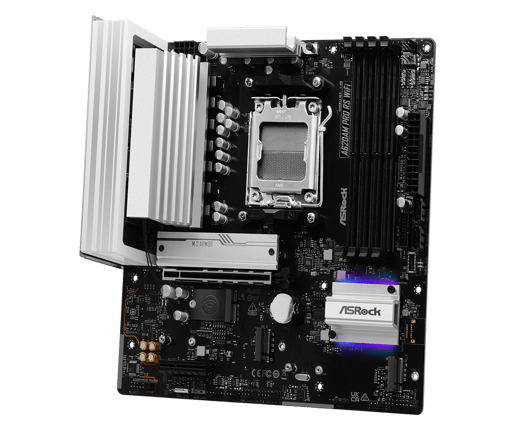

ASRock A620AM PRO RS WIFI mATX Motherboard for AMD AM5 CPUs
£99.99
Discontinued
90-MXBSW-A0UAYZ
ASRock A620AM PRO RS WIFI mATX Motherboard for AMD AM5 CPUs
FORM FACTOR: MATX
SOCKET: AM5
MEMORY: DDR5 (MAX: 256GB)
STORAGE: 3 X M.2, 3 X SATA
WI-FI: BUILT-IN
USB: 15 PORT(S)
The ASRock A620AM Pro RS WiFi is built for those who want the latest performance without breaking the bank. Designed around AMD’s AM5 platform, it’s ready for Ryzen 7000, 8000, and even 9000 series processors, giving you a rock-solid foundation for years of upgrades. With support for DDR5 memory up to blazing 7200+ MHz (OC), your system will run faster, smoother, and more responsive whether you’re gaming, creating, or multitasking.
Connectivity is a strong point here — you get both 2.5Gb/s LAN for ultra-fast wired networking and WiFi 6E + Bluetooth 5.2 for next-gen wireless freedom. Storage won’t hold you back either: three M.2 slots (two PCIe Gen4 x4) and SATA support mean you can enjoy lightning-fast NVMe drives alongside your bulk storage.
ASRock has also packed in thoughtful extras: a pre-installed I/O shield for easy setup, BIOS Flashback so you can update without a CPU, and diagnostic LEDs to make troubleshooting painless. Add in Nahimic-powered audio, customizable RGB headers, and HDMI/DisplayPort outputs for modern displays, and you’ve got a feature-rich board in a compact micro-ATX form factor.
In short, the A620AM Pro RS WiFi is a smart choice for builders who want premium features at a mid-range price — whether you’re upgrading your gaming rig, putting together a productivity powerhouse, or just want a reliable AM5 motherboard that’s ready for the future.
The ASRock A620AM Pro RS WiFi is a micro-ATX AM5 motherboard built for Ryzen 7000–9000 CPUs. It supports DDR5, features dual Gen4 M.2 slots, 2.5Gb LAN, WiFi 6E, and Bluetooth 5.2. With BIOS Flashback, RGB headers, and a pre-installed I/O shield, it’s a future-ready, feature-rich choice.
CPU
- Installed Processors (Max): Supports 1 processor (AMD Ryzen 9000 / 8000 / 7000 Series)
- CPU Family: AMD Ryzen 9000 / 8000 / 7000 Series
Rear Panel I/O Ports
- Audio Line Out Ports: 3 x Audio jacks (Line In, Front Speaker, Microphone)
CPU
- Processor Number: Depends on installed CPU (supports Ryzen 9000 / 8000 / 7000 series)
Rear Panel I/O Ports
- Microphone In Port: Yes (via rear audio jacks)
CPU
- CPU Speed: Depends on CPU installed (supports full AMD specs incl. boost speeds)
- L1 Cache: Depends on CPU installed
- L2 Cache: Depends on CPU installed
- L3 Cache: Depends on CPU installed
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series (AM5 socket)
- Socket: AM5
- Hyperthreading Architecture: Supported (depends on CPU)
Physical
- Form Factor: Micro-ATX (24.4 cm x 24.4 cm / 9.6 in x 9.6 in)
CPU
- 64-bit Support: Yes
- Socket: 1 x AM5
- Maximum CPU Speed: Depends on installed CPU (supports full AMD boost frequencies)
- Maximum Bus Speed: PCIe Gen4 (64 Gb/s for M.2)
- Front Side Bus: N/A (modern CPUs use Infinity Fabric, not FSB)

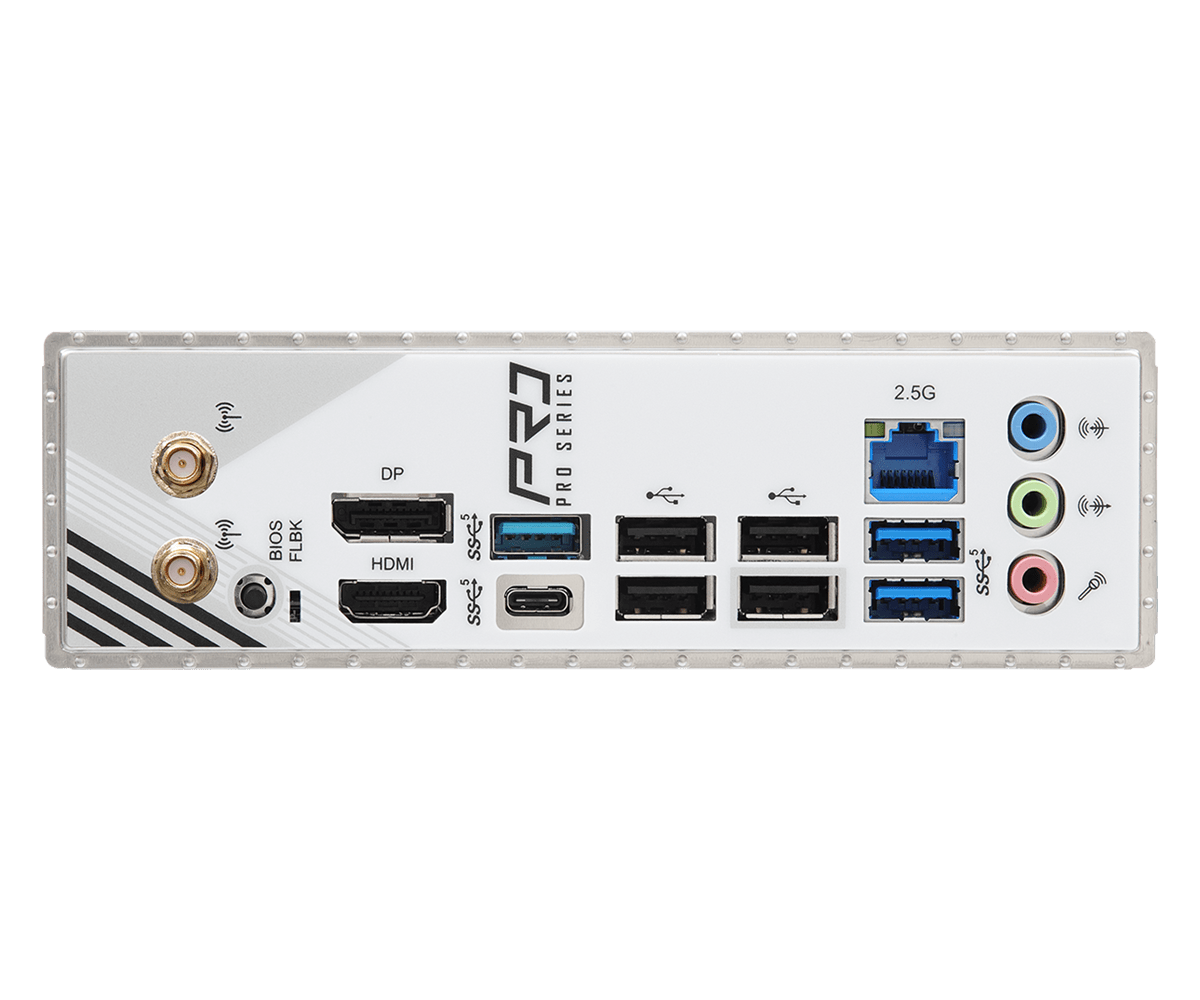

Rear Panel I/O Ports
- USB Ports: Rear: 4 x USB 2.0, 3 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen1 Type-C
- Infrared Port: None
- DisplayPorts: 1 x DisplayPort 1.4 (max 4K @ 120Hz, HDCP 2.3, DSC)
- HDMI Port: 1 x HDMI 2.1 (max 4K @ 120Hz, HDR, HDCP 2.3)
- VGA Port: None
- eSATA Ports: None
- Antenna Connectors: 2 x Antenna ports (for WiFi 6E / BT 5.2)
Internal I/O Connectors
- SATA Connectors: 2 x SATA3 6Gb/s
- USB Connectors: Internal headers: 2 x USB 2.0 (support 4 ports), 1 x USB 3.2 Gen1 (2 ports), 1 x USB 3.2 Gen1 Type-C
- Speaker: HD Audio jacks (Line in, Front Speaker, Mic) via Realtek ALC897 codec
Memory
- Memory Bus Speed: DDR5 up to 7200+ (OC)
- Memory Type: DDR5 ECC / non-ECC, un-buffered
Compliance
- Certifications: FCC, CE, ErP/EuP ready
Electrical
- Power Requirements: Standard ATX power supply with 24-pin + 8-pin 12V
- Power Connector: 1 x 24-pin ATX, 1 x 8-pin 12V
Physical
- Colour: Black / Grey
Motherboard
- Chipset Manufacturer: AMD
- Northbridge: AMD A620A
- Southbridge: Integrated into AMD A620A chipset
- Input/Output Controller: Integrated in chipset
- RAID Supported: Yes (RAID 0, 1, 10 for SATA and NVMe*)
- RAID Format: RAID 0, 1, 10
- RAID Controllers: AMD A620A chipset integrated
- IDE/EIDE Supported: None
- IDE Controllers: None
- EIDE Controllers: None
- SCSI/SAS Supported: None
- SCSI Channels: None
- SCSI Controllers: None
- SATA Supported: Yes (SATA3 6Gb/s)
- SATA Controllers: 2 x SATA3 6Gb/s (AMD A620A chipset)
- Firewire Supported: None
- Firewire Controller: None
Rear Panel I/O Ports
- Parallel Ports: None
- Keyboard/Mouse Combo Port: None (uses USB)
- Serial Ports: None
- USB Port(s): Rear: 4 x USB 2.0, 3 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen1 Type-C - Front: 4 x USB 2.0, 2 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen1 Type-C
- Keyboard Port: None (uses USB)
- Mouse Port: None (uses USB)
- Infrared Port(s): None
- RJ-45 Ports: 1 x 2.5 Gigabit LAN (Dragon RTL8125BG)
- RJ-11 Ports: None
- DisplayPort(s): 1 x DisplayPort 1.4 (max 4K @ 120Hz, HDCP 2.3, DSC)
- HDMI Port(s): 1 x HDMI 2.1 (max 4K @ 120Hz, HDR, HDCP 2.3)
- VGA Port(s): None
- Digital Port: HDMI 2.1, DisplayPort 1.4
- eSATA Port(s): None
- Serial ATA Ports: 2 x SATA3 6Gb/s
- Audio Line In Ports: 1 x Line In (via rear audio jacks)
- Audio Line Out Ports: 3 x Audio jacks (Line In, Front Speaker, Microphone)
- Microphone In Port: 1 x Microphone In (via rear audio jacks)
- S/PDIF Port: None
- TV Out: None
- Firewire Ports: None
- MIDI/Joystick Port (Rear): None
- Graphics Card Port: 1 x PCIe 4.0 x16 (for GPU)
- Antenna Connector(s): 2 x Antenna ports (for WiFi 6E / BT 5.2)
Internal I/O Connectors
- Floppy Channels: None
- Front Panel Connectors: 1 x Front Panel Header (power, reset, LED), 1 x Front Audio, 1 x USB 3.2 Gen1, 1 x USB 3.2 Gen1 Type-C, 2 x USB 2.0
- Cooling Fan Support: 1 x CPU Fan, 1 x CPU/Water Pump, 3 x Chassis/Water Pump (all 4-pin, Smart Fan Control)
- Auxiliary Audio Support: Nahimic Audio Software
- MIDI/Joystick Connector: None
- IDE Connectors: None
- SATA Connector(s): 2 x SATA3 6Gb/s
- S/PDIF Connectors: None
- USB Connector(s): Internal: 2 x USB 2.0 (supports 4 ports), 1 x USB 3.2 Gen1 (2 ports), 1 x USB 3.2 Gen1 Type-C
- Thunderbolt Port(s): None
- Firewire Connectors: None
- RJ-45 Connectors: 1 x RJ-45 LAN port
- Parallel Connectors: None
- Serial Connectors: None
- Infrared Connectors: None
- SCSI Connectors: None
- EIDE Connectors: None
- Chassis Intrusion Connector: 1 x Chassis Intrusion Connector
- Wireless Connector: 1 x M.2 Key E slot (for WiFi/BT module, includes WiFi 6E + BT 5.2 card)
- Speaker(s): HD Audio jacks (Line In, Front Speaker, Microphone) via Realtek ALC897 codec
- TPM Header: 1 x SPI TPM Header
- Power Connector Port: 1 x 24-pin ATX, 1 x 8-pin 12V (Hi-Density Power Connector)
- Other Connectors: 1 x Front Panel Audio, 1 x Chassis Intrusion, multiple RGB/ARGB headers
Expansion
- ISA: None
- Number of AGP Slots: None
- AGP Slot Type: None
- Number of PCI Slots: 0
- PCI Slot Type: None
- Number of PCI-X Slots: None
- PCI-X Slot Type: None
- Number of PCI Express Slots: 2 (1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x2 mode))
- PCI Express 4.0 Slot Type: 1 x PCIe 4.0 x16 (GPU), 2 x M.2 Gen4 x4 (NVMe SSDs)
- PCI Express 3.0 Slot Type: 1 x PCIe 3.0 x16 (x2 mode), 1 x M.2 Gen3 x4 (NVMe SSD)
- PCI Express 2.0 Slot Type: None
- PCI Express X16 Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x2 mode)
- PCI Express Slot Type: PCI Express 4.0 / 3.0
- Other Expansion Slots: 1 x M.2 Key E slot (for WiFi/BT module)
Memory
- Maximum RAM: 256 GB
- Memory Type(s): DDR5 ECC / non-ECC, un-buffered
- Memory Bus Speed Range: 4800 MHz - 7200+ MHz (OC)
- Memory Bus Speed Minimum: 4800 MHz
- Memory Bus Speed Maximum: 7200+ MHz (OC)
- Memory Bus Speeds Supported: 4800, 5200, 5600, 6000, 6400, 6800, 7200+ (OC)
- Memory Expansion Options: 4 x DDR5 DIMM slots, up to 256 GB
- Memory Slot: 4 x DDR5 DIMM
Storage
- Embedded Storage Capacity: None (storage via M.2 and SATA ports)
Graphics Device
- Integrated Graphics Supported: Yes (depends on CPU, AMD Ryzen APUs with RDNA2 graphics)
Sound
- Integrated Sound: Realtek ALC897, 7.1 CH HD Audio with Nahimic software
Graphics Device
- Graphics Chipset Manufacturer: AMD
- Graphics Chipset Model Name: AMD RDNA2 (integrated in supported Ryzen APUs)
- Graphics Chipset Model Number: Varies by CPU (e.g., Ryzen 7000/8000G with iGPU)
- Graphics Memory: Shared system memory
- Graphics Memory Type: DDR5 (shared with system memory)
Sound
- Integrated Sound: Realtek ALC897, 7.1 CH HD Audio with Nahimic software
Warranty
- Warranty: 3 years (varies by region/vendor)
Network
- Integrated Network: 2.5 Gigabit LAN (Realtek RTL8125BG)
- Network Speeds Supported: 10/100/1000/2500 Mb/s
- Wireless LAN: Yes, Intel/ASRock WiFi 6E 802.11axe module
- Wireless Network Speed: Up to 2.4 Gbps (WiFi 6E, dual-band + 6GHz band)
- Bluetooth: Yes, Bluetooth 5.2
- Bluetooth Version: 5.2
- Bluetooth Range (Max): Up to 30 ft / 10 m (typical)
Modem
- Modem: None
System Requirements
- Operating Systems Supported: Windows 10 64-bit, Windows 11 64-bit
System
- BIOS: 256Mb AMI UEFI Legal BIOS with GUI support, BIOS Flashback, Instant Flash
- Special Features: BIOS Flashback, Post Status Checker LEDs, Pre-installed I/O shield, Polychrome SYNC RGB, Dragon 2.5G LAN software
- Jumpers: 1 x Clear CMOS Jumper
- Software Included: ASRock Motherboard Utility (A-Tuning), Dragon 2.5G LAN Software, Polychrome SYNC, Live Update & APP Shop
- Drivers: Included drivers for LAN, WiFi, Audio, Chipset, and available via ASRock website
- Overclocking Features: Memory OC supported (DDR5 EXPO/XMP up to 7200+ MHz); CPU OC limited on A620 chipset
- SLi/Crossfire Features: Not supported
Compliance
- Certification(s): FCC, CE, ErP/EuP Ready
Electrical
- Power Requirement(s): Requires ATX power supply with 24-pin + 8-pin 12V connector
- Power Connector(s): 1 x 24-pin ATX, 1 x 8-pin 12V
- Power Management: ACPI power states, Energy Efficient Ethernet, ErP/EuP Ready
Environmental
- Operating Temperature: 0øC - 35øC (typical operating range)
- Operating Humidity: 10% - 85% non-condensing (typical)
Physical
- Form Factor: Micro-ATX (24.4 cm x 24.4 cm / 9.6 in x 9.6 in)
- In The Box: Motherboard, 2 x SATA cables, 2 x WiFi antennas, 3 x M.2 screws, 1 x M.2 standoff, user manual
- Width: 24.4 cm (9.6 in)
- Length: 24.4 cm (9.6 in)
- Weight: ~1.25 kg (gross weight up to ~2.3 kg with packaging)
- Colour(s): Black / Grey
Attributes
- PCMCIA Slots: None
Identifiers
- Stock Code: MBD3963
- Mfg Code: 90-MXBSW-A0UAYZ
Warranty
- Warranty: 3 years (varies by region/vendor)
