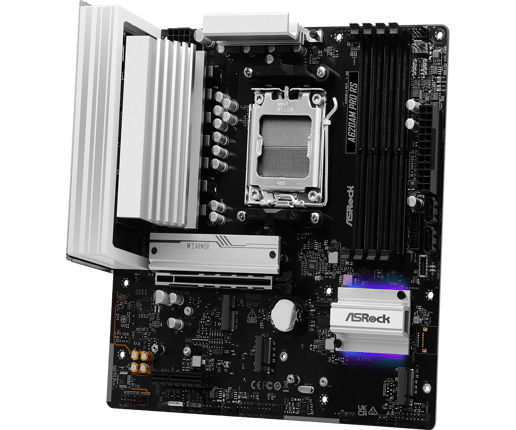

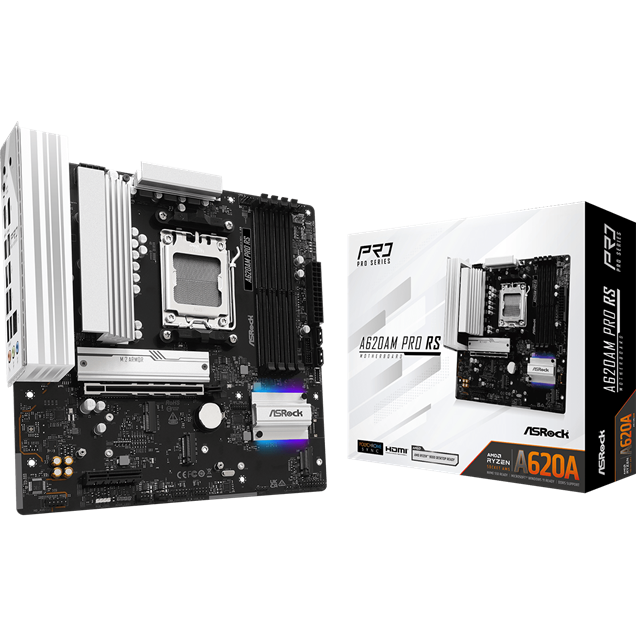

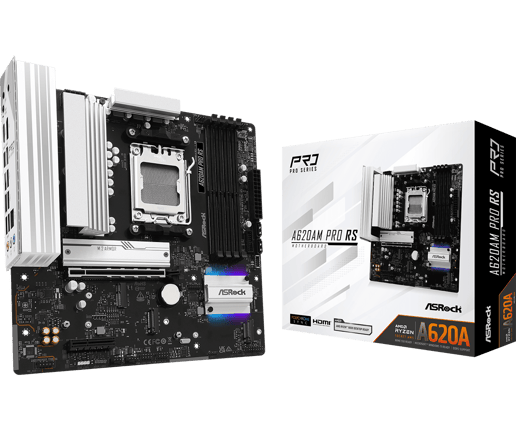

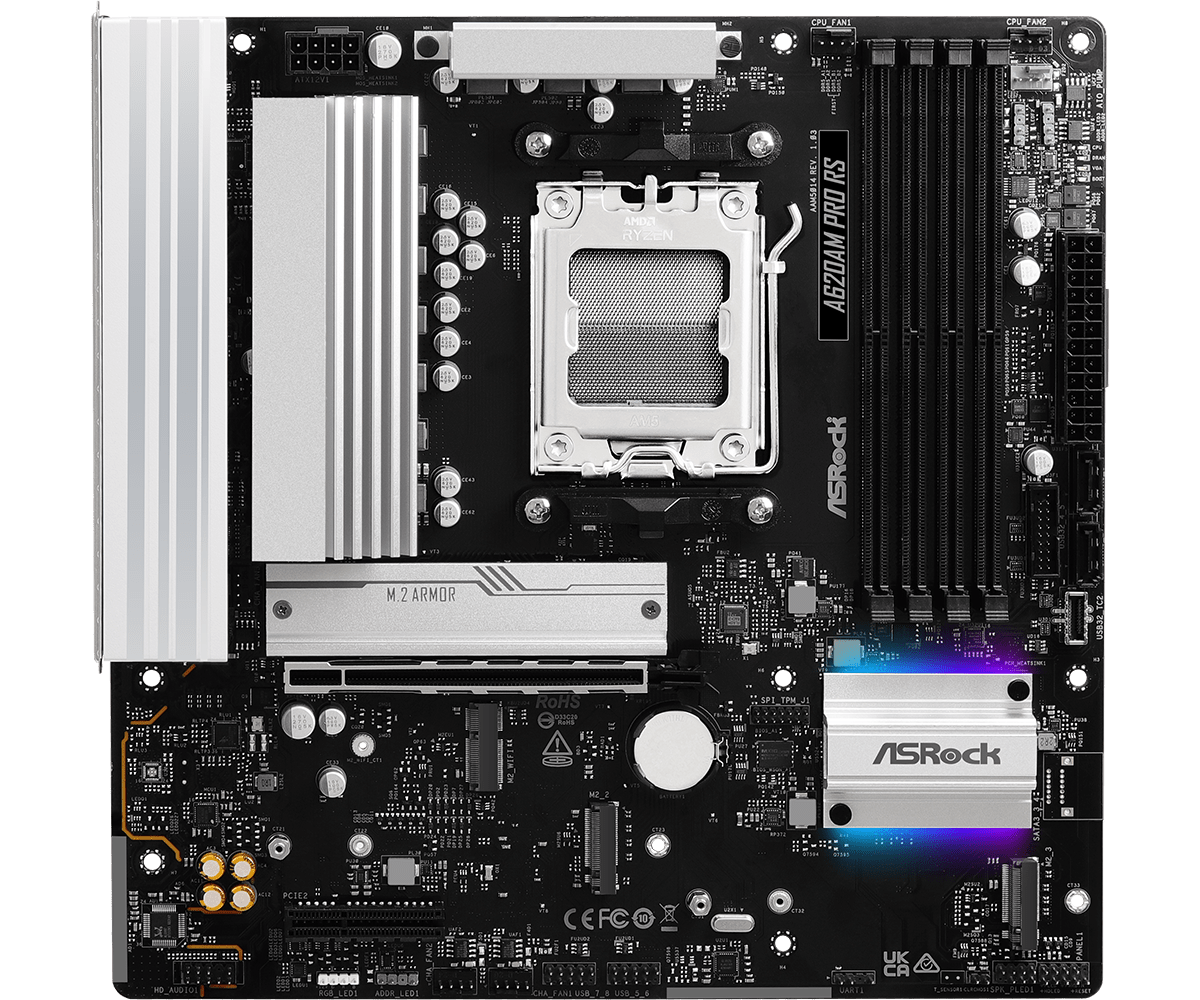

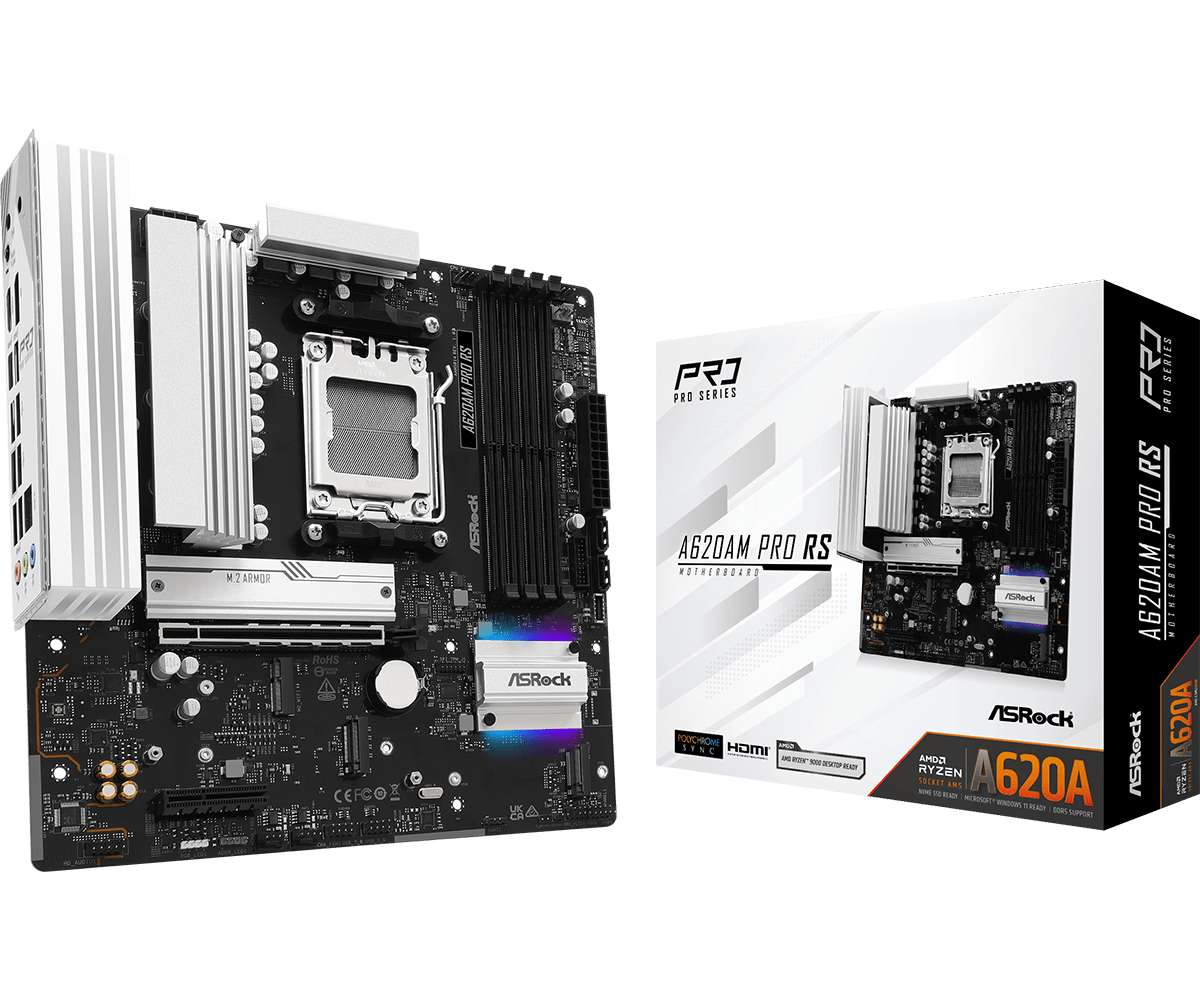

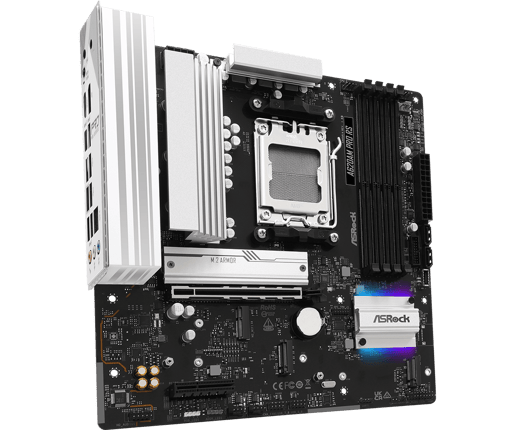

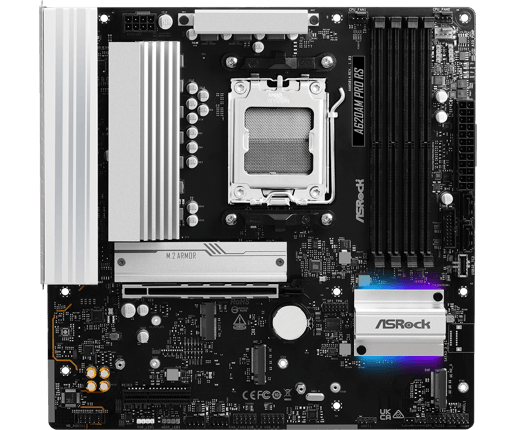

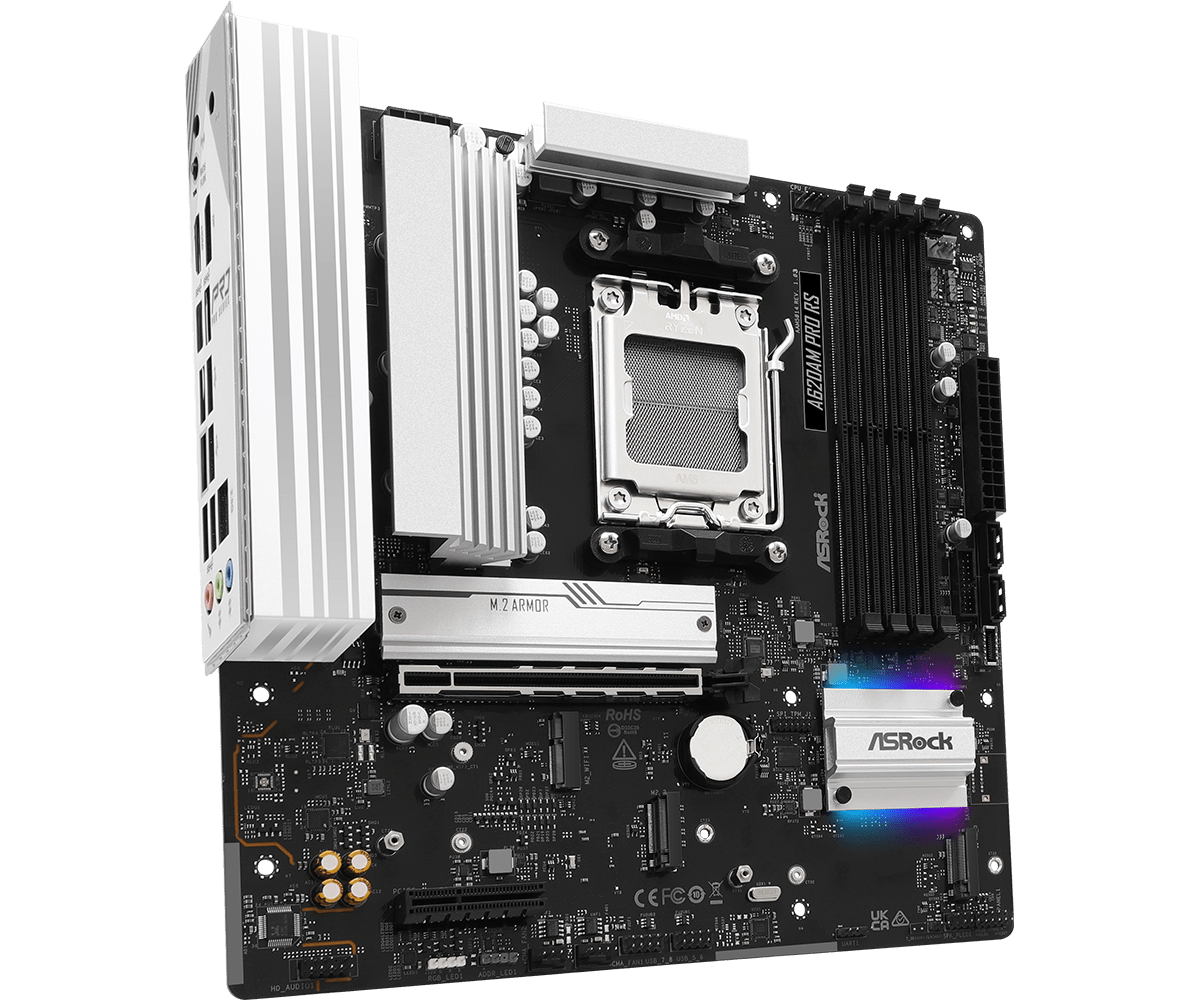

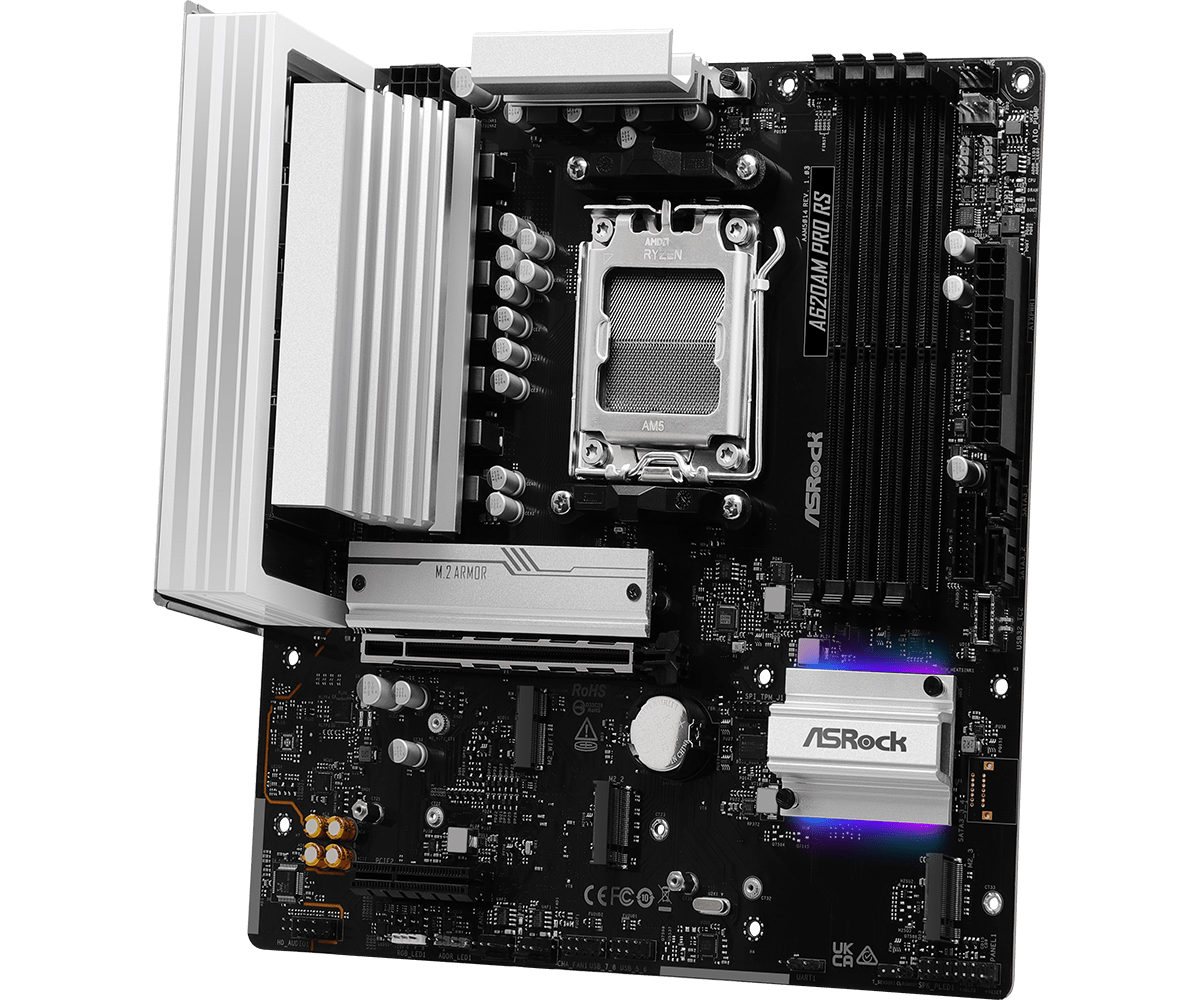

ASRock A620AM Pro RS mATX Motherboard for AMD AM5 CPUs
£120.99
Discontinued
90-MXBSV-A0UAYZ
ASRock A620AM Pro RS mATX Motherboard for AMD AM5 CPUs
FORM FACTOR: MATX
SOCKET: AM5
MEMORY: DDR5 (MAX: 256GB)
STORAGE: 3 X M.2, 2 X SATA
USB: 16 PORT(S)
The ASRock A620AM Pro RS delivers modern performance and reliability for builders who want the latest AMD platform without overspending. Designed around the AM5 socket and AMD’s A620 chipset, it supports Ryzen 7000, 8000, and even next-gen 9000 series processors, giving you a strong base for gaming, productivity, or everyday use.
With support for DDR5 memory up to 7200+ MHz (OC) and a maximum capacity of 256 GB, this board ensures smooth multitasking and fast performance. For storage, you get two PCIe Gen4 M.2 slots plus an additional Gen3 M.2 and two SATA ports, perfect for combining high-speed NVMe drives with bulk storage.
Connectivity is handled by 2.5Gb LAN for fast and stable networking, alongside plenty of USB options including USB 3.2 Gen1 Type-C for modern peripherals. HDMI 2.1 and DisplayPort 1.4 provide crisp, high-refresh output for integrated graphics, while thoughtful extras like a pre-installed I/O shield, BIOS Flashback button, and diagnostic LEDs make building and troubleshooting easier.
The ASRock A620AM Pro RS packs essential features, durability, and upgrade flexibility into a compact micro-ATX form factor — the perfect choice for anyone building a dependable AM5 system without unnecessary extras.
The ASRock A620AM Pro RS is a micro-ATX AM5 motherboard for Ryzen 7000/8000/9000 CPUs. It supports DDR5 up to 7200+ MHz, offers dual Gen4 M.2 slots plus SATA, 2.5Gb LAN, HDMI 2.1, and DisplayPort 1.4. With BIOS Flashback and a pre-installed I/O shield, it’s a solid, future-ready choice.
CPU
- Installed Processors (Max): 1 (AMD Ryzen 9000 / 8000 / 7000 Series)
- CPU Family: AMD Ryzen 9000 / 8000 / 7000 Series

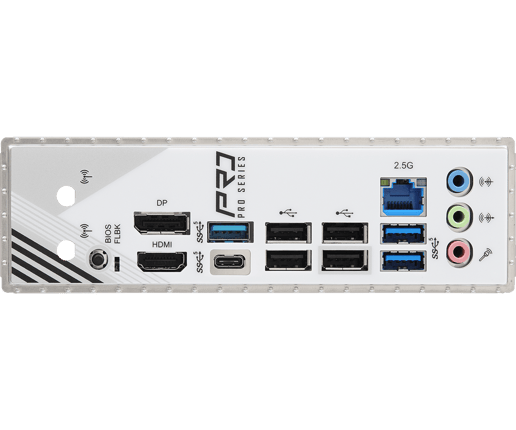

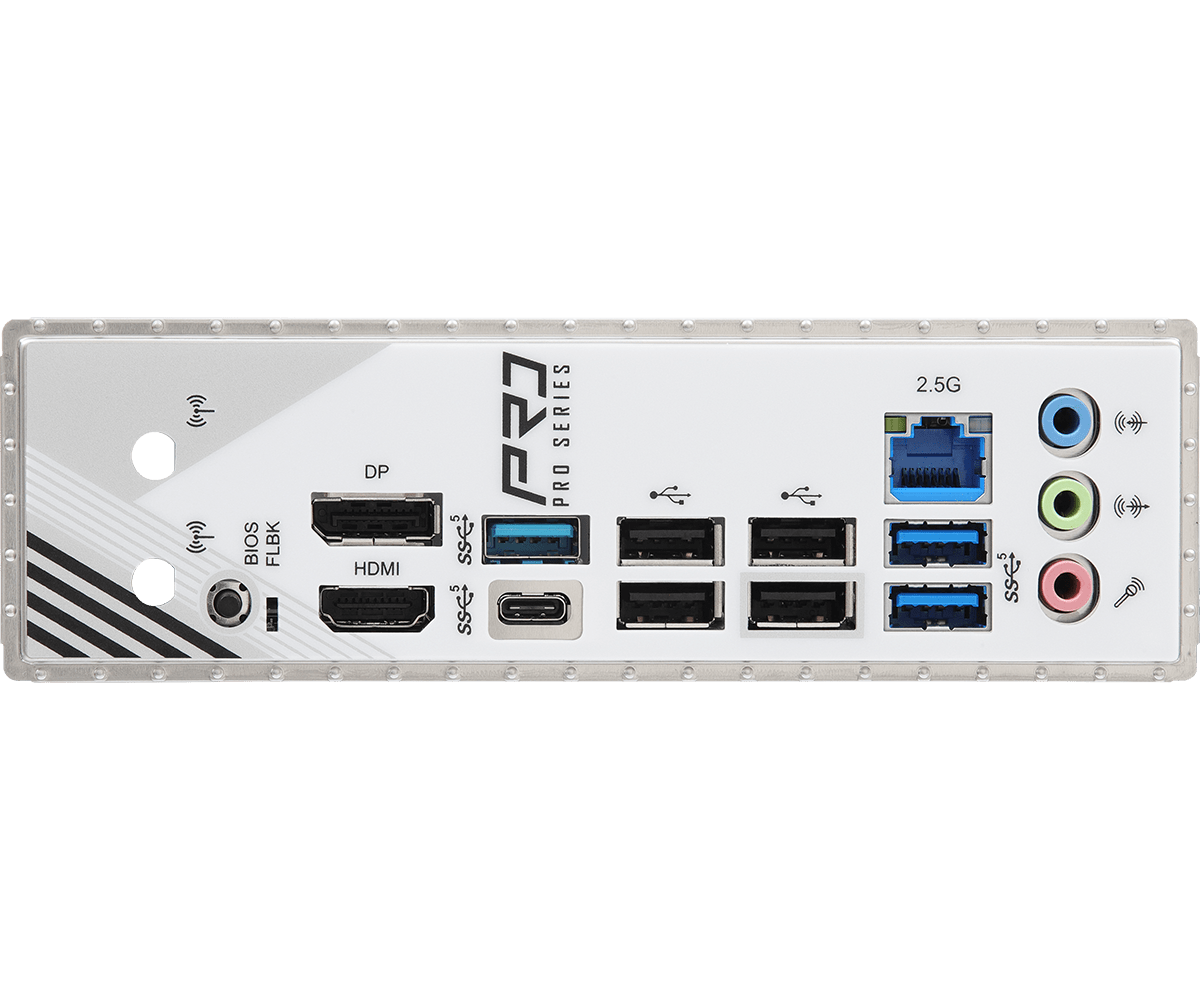

Rear Panel I/O Ports
- Audio Line Out Ports: 3 x Audio jacks (Line In, Front Speaker, Microphone)
CPU
- Processor Number: Varies by installed CPU (Ryzen 7000/8000/9000 Series supported)
Rear Panel I/O Ports
- Microphone In Port: Yes (via rear audio jacks)
CPU
- CPU Speed: Varies by installed CPU (supports AMD base and boost frequencies)
- L1 Cache: Depends on CPU installed
- L2 Cache: Depends on CPU installed
- L3 Cache: Depends on CPU installed
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series (AM5 socket)
- Socket: AM5
- Hyperthreading Architecture: Yes (depends on CPU)
Physical
- Form Factor: Micro-ATX (24.4 cm x 24.4 cm / 9.6 in x 9.6 in)
CPU
- 64-bit Support: Yes
- Socket: 1 x AM5
- Maximum CPU Speed: Varies by CPU (supports full AMD boost speeds)
- Maximum Bus Speed: PCIe Gen4 (64 Gb/s for M.2)
- Front Side Bus: N/A (modern AMD CPUs use Infinity Fabric)
Rear Panel I/O Ports
- USB Ports: Rear: 4 x USB 2.0, 3 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen1 Type-C - Type-C; Front: 4 x USB 2.0, 2 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 - Gen1 Type-C
- Infrared Port: None
- DisplayPorts: 1 x DisplayPort 1.4 (max 4K @ 120Hz, HDCP 2.3, DSC)
- HDMI Port: 1 x HDMI 2.1 (max 4K @ 120Hz, HDR, HDCP 2.3)
- VGA Port: None
- eSATA Ports: None
- Antenna Connectors: None (no WiFi module included)
Internal I/O Connectors
- SATA Connectors: 2 x SATA3 6Gb/s
- USB Connectors: Internal headers: 2 x USB 2.0 (support 4 ports), 1 x USB 3.2 Gen1 (2 ports), 1 x USB 3.2 Gen1 Type-C
- Speaker: HD Audio jacks (Line in, Front Speaker, Microphone) via Realtek ALC897 codec
Memory
- Memory Bus Speed: DDR5 up to 7200+ (OC)
- Memory Type: DDR5 ECC / non-ECC, un-buffered
Compliance
- Certifications: None (no WiFi module included)
Electrical
- Power Requirements: Standard ATX power supply with 24-pin + 8-pin 12V
- Power Connector: 1 x 24-pin ATX, 1 x 8-pin 12V
Physical
- Colour: Black / Grey
Motherboard
- Chipset Manufacturer: AMD
- Northbridge: AMD A620A
- Southbridge: Integrated into AMD A620A chipset
- Input/Output Controller: Integrated in chipset
- RAID Supported: Yes (RAID 0, 1, 10 for SATA and NVMe*)
- RAID Format: RAID 0, RAID 1, RAID 10
- RAID Controllers: AMD A620A chipset integrated
- IDE/EIDE Supported: None
- IDE Controllers: None
- EIDE Controllers: None
- SCSI/SAS Supported: None
- SCSI Channels: None
- SCSI Controllers: None
- SATA Supported: Yes (SATA3 6Gb/s)
- SATA Controllers: 2 x SATA3 6Gb/s (AMD A620A chipset)
- Firewire Supported: None
- Firewire Controller: None
Rear Panel I/O Ports
- Parallel Ports: None
- Keyboard/Mouse Combo Port: None (uses USB)
- Serial Ports: None
- USB Port(s): Rear: 4 x USB 2.0, 3 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen1 Type-C - Front: 4 x USB 2.0, 2 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen1 Type-C
- Keyboard Port: None (uses USB)
- Mouse Port: None (uses USB)
- Infrared Port(s): None
- RJ-45 Ports: 1 x 2.5 Gigabit LAN (Realtek RTL8125BG)
- RJ-11 Ports: None
- DisplayPort(s): 1 x DisplayPort 1.4 (max 4K @ 120Hz, HDCP 2.3, DSC)
- HDMI Port(s): 1 x HDMI 2.1 (max 4K @ 120Hz, HDR, HDCP 2.3)
- VGA Port(s): None
- Digital Port: HDMI 2.1, DisplayPort 1.4
- eSATA Port(s): None
- Serial ATA Ports: 2 x SATA3 6Gb/s
- Audio Line In Ports: 1 x Line In (rear audio jack)
- Audio Line Out Ports: 3 x Audio jacks (Line In, Front Speaker, Microphone)
- Microphone In Port: 1 x Microphone In (rear audio jack)
- S/PDIF Port: None
- TV Out: None
- Firewire Ports: None
- MIDI/Joystick Port (Rear): None
- Graphics Card Port: 1 x PCIe 4.0 x16 slot
- Antenna Connector(s): None (no WiFi module in non-WiFi version)
Internal I/O Connectors
- Floppy Channels: None
- Front Panel Connectors: 1 x Front Panel Header (power, reset, LED)
- Cooling Fan Support: 1 x CPU Fan, 1 x CPU/Water Pump, 3 x Chassis/Water Pump (all 4-pin, Smart Fan Control)
- Auxiliary Audio Support: Nahimic Audio Software
- MIDI/Joystick Connector: None
- IDE Connectors: None
- SATA Connector(s): 2 x SATA3 6Gb/s
- S/PDIF Connectors: None
- USB Connector(s): 2 x USB 2.0 headers (4 ports), 1 x USB 3.2 Gen1 header (2 ports), 1 x USB 3.2 Gen1 Type-C header
- Thunderbolt Port(s): None
- Firewire Connectors: None
- RJ-45 Connectors: 1 x RJ-45 LAN port
- Parallel Connectors: None
- Serial Connectors: None
- Infrared Connectors: None
- SCSI Connectors: None
- EIDE Connectors: None
- Chassis Intrusion Connector: 1 x Chassis Intrusion Connector
- Wireless Connector: 1 x M.2 Key E slot (empty - no WiFi/BT module in non-WiFi version)
- Speaker(s): HD Audio (Line In, Line Out, Microphone) via Realtek ALC897 codec
- TPM Header: 1 x SPI TPM Header
- Power Connector Port: 1 x 24-pin ATX, 1 x 8-pin 12V (Hi-Density Power Connector)
- Other Connectors: 1 x Front Panel Audio, 1 x Chassis Intrusion, RGB/ARGB headers
Expansion
- ISA: None
- Number of AGP Slots: None
- AGP Slot Type: None
- Number of PCI Slots: 0
- PCI Slot Type: None
- Number of PCI-X Slots: None
- PCI-X Slot Type: None
- Number of PCI Express Slots: 2 (1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x2 mode))
- PCI Express 4.0 Slot Type: 1 x PCIe 4.0 x16 (GPU), 2 x M.2 Gen4 x4 (NVMe SSDs)
- PCI Express 3.0 Slot Type: 1 x PCIe 3.0 x16 (x2 mode), 1 x M.2 Gen3 x4 (NVMe SSD)
- PCI Express 2.0 Slot Type: None
- PCI Express X16 Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x2 mode)
- PCI Express Slot Type: PCIe 4.0 / 3.0
- Other Expansion Slots: 1 x M.2 Key E slot (for optional WiFi/BT module)
Memory
- Maximum RAM: 256 GB
- Memory Type(s): DDR5 ECC / non-ECC, un-buffered
- Memory Bus Speed Range: 4800 MHz - 7200+ MHz (OC)
- Memory Bus Speed Minimum: 4800 MHz
- Memory Bus Speed Maximum: 7200+ MHz (OC)
- Memory Bus Speeds Supported: 4800, 5200, 5600, 6000, 6400, 6800, 7200+ (OC)
- Memory Expansion Options: 4 x DDR5 DIMM slots, up to 256 GB
- Memory Slot: 4 x DDR5 DIMM
Storage
- Embedded Storage Capacity: None
Graphics Device
- Integrated Graphics Supported: Yes (via supported AMD Ryzen CPUs with RDNA2 iGPU)
Sound
- Integrated Sound: Realtek ALC897, 7.1 CH HD Audio with Nahimic software
Graphics Device
- Graphics Chipset Manufacturer: AMD (integrated in Ryzen processors)
- Graphics Chipset Model Name: AMD RDNA2 (depends on CPU)
- Graphics Chipset Model Number: Varies by CPU (Ryzen 7000/8000/9000 Series with integrated graphics)
- Graphics Memory: Shared system memory
- Graphics Memory Type: DDR5 (shared from system RAM)
Sound
- Integrated Sound: Realtek ALC897, 7.1 CH HD Audio with Nahimic software
Warranty
- Warranty: 3 Years (manufacturer warranty, region dependent)
Network
- Integrated Network: Realtek RTL8125BG 2.5 Gigabit LAN
- Network Speeds Supported: 10/100/1000/2500 Mb/s
- Wireless LAN: None (no WiFi module in non-WiFi version)
- Bluetooth: None
- Bluetooth Version: None (WiFi/BT module not included in non-WiFi version)
Modem
- Modem: None
System Requirements
- Operating Systems Supported: Windows 10 64-bit, Windows 11 64-bit
System
- BIOS: 256Mb AMI UEFI Legal BIOS with GUI support, BIOS Flashback, Instant Flash
- Special Features: BIOS Flashback, Pre-installed I/O shield, Dragon 2.5G LAN software, Polychrome SYNC, Auto Driver Installer
- Jumpers: 1 x Clear CMOS Jumper
- Software Included: ASRock Motherboard Utility (A-Tuning), Polychrome SYNC, Dragon 2.5G LAN
- Drivers: ASRock Auto Driver Installer, downloadable drivers from ASRock website
- Overclocking Features: Supports DDR5 EXPO/XMP profiles, CPU OC support (limited by A620 chipset)
- SLi/Crossfire Features: None (single GPU support only)
Compliance
- Certification(s): FCC, CE, ErP/EuP Ready
Electrical
- Power Requirement(s): Standard ATX power supply (24-pin + 8-pin 12V)
- Power Connector(s): 1 x 24-pin ATX, 1 x 8-pin 12V
- Power Management: ACPI 6.0 compliant, power-saving features
Environmental
- Operating Temperature: 0øC - 50øC
- Operating Humidity: 10% - 90% non-condensing
Physical
- Form Factor: Micro-ATX (24.4 cm x 24.4 cm / 9.6 in x 9.6 in)
- In The Box: Motherboard, User Manual, 2 x SATA cables, 3 x M.2 screws, 1 x M.2 standoff, I/O shield (pre-installed)
- Width: 24.4 cm (9.6 in)
- Length: 24.4 cm (9.6 in)
- Weight: 1.01 kg (Gross)
- Colour(s): Black / Grey
Attributes
- PCMCIA Slots: None
Identifiers
- Stock Code: MBD3964
- Mfg Code: 90-MXBSV-A0UAYZ
Warranty
- Warranty: 3 Years (manufacturer warranty, region dependent)
