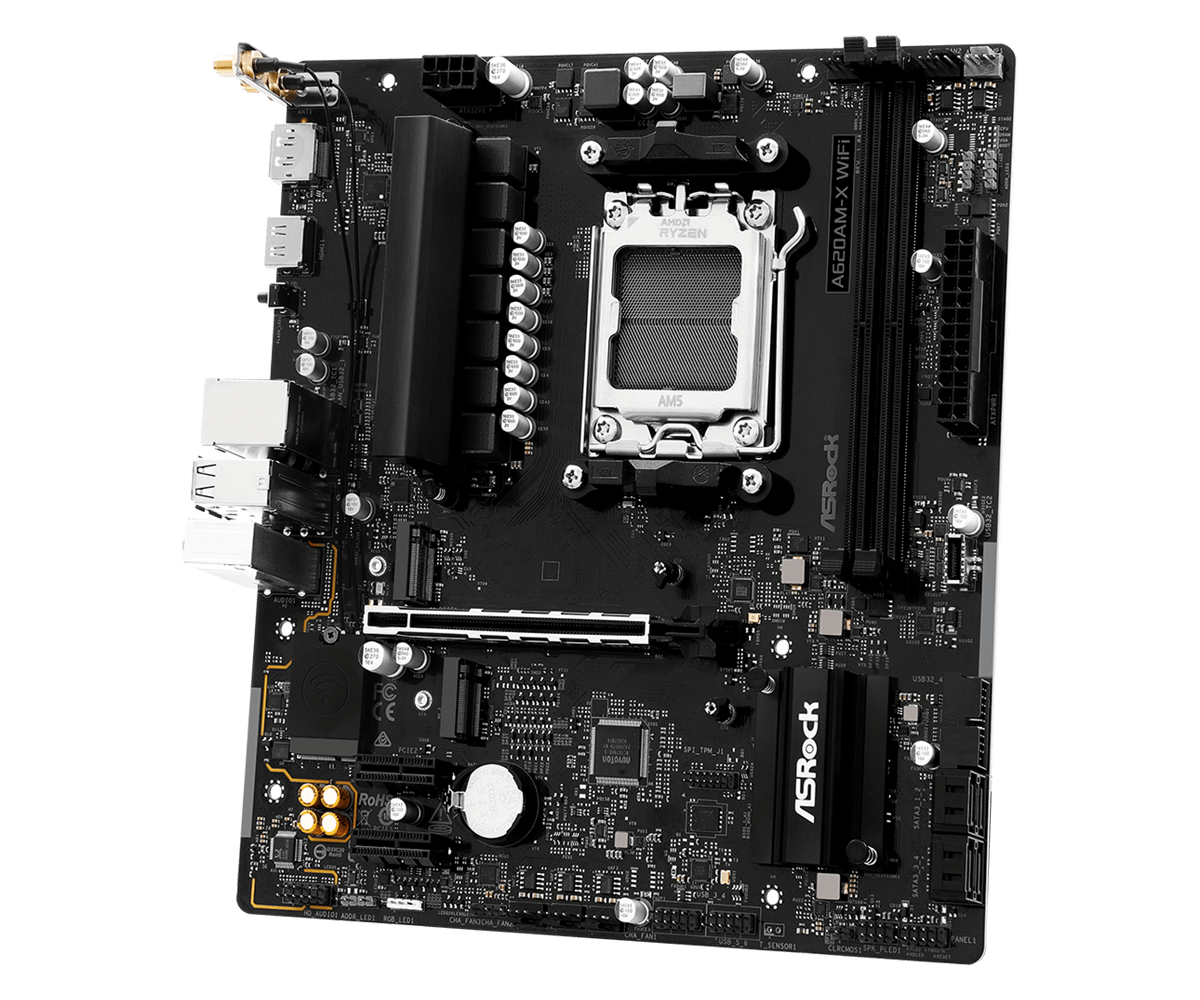

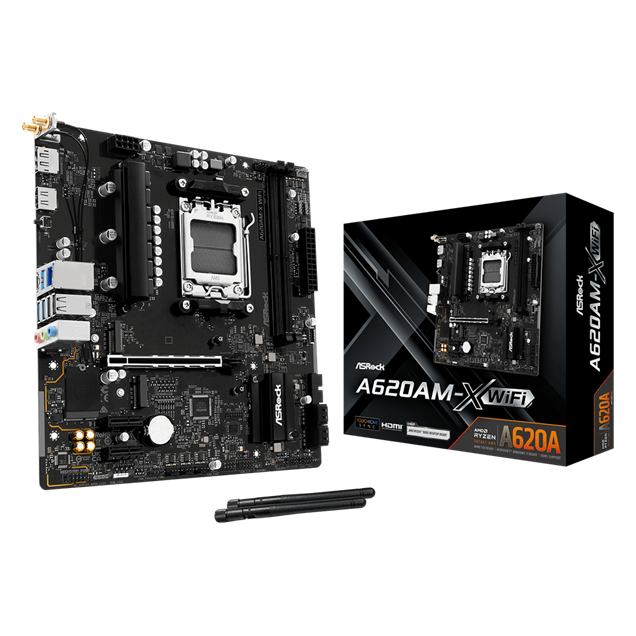

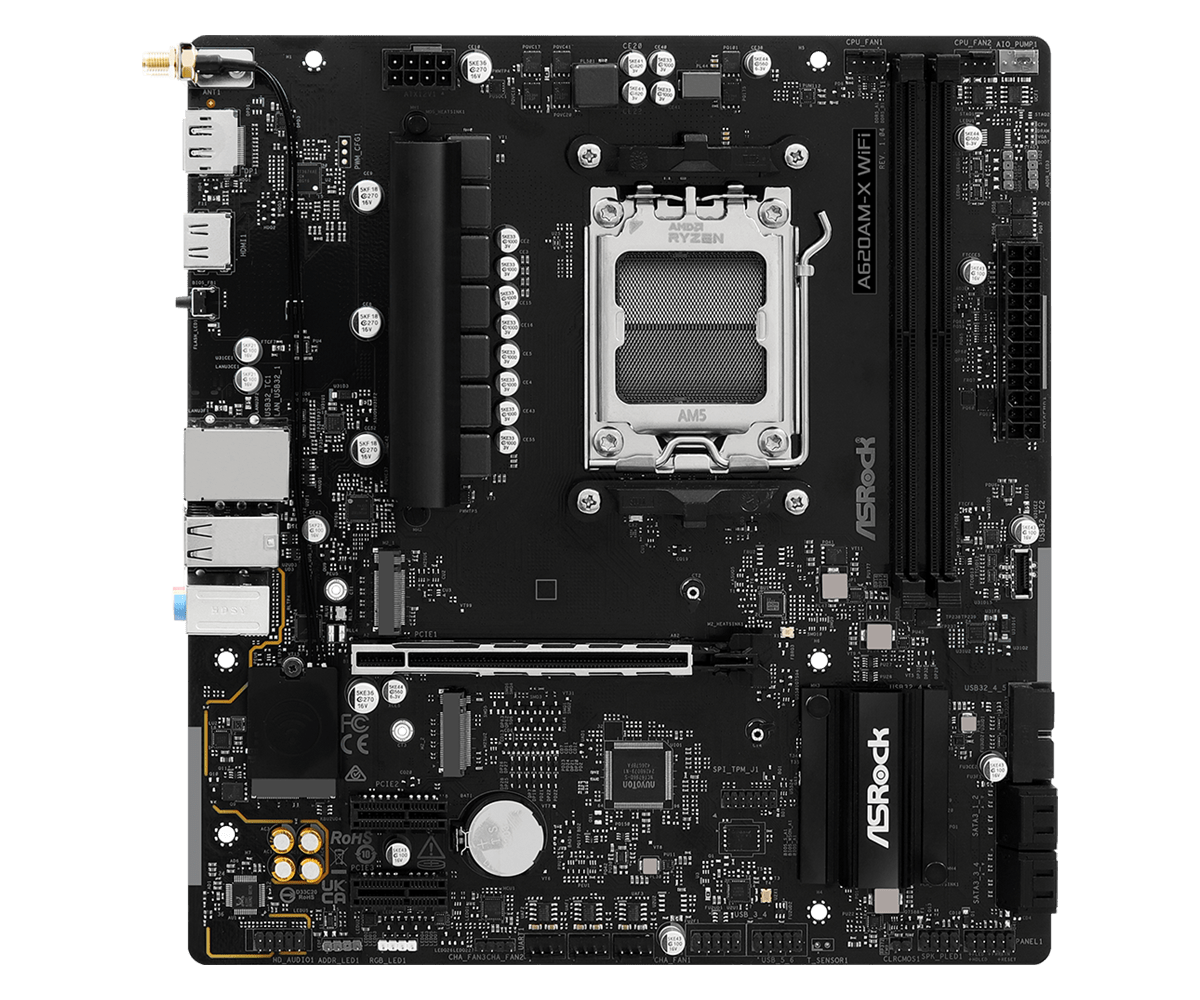

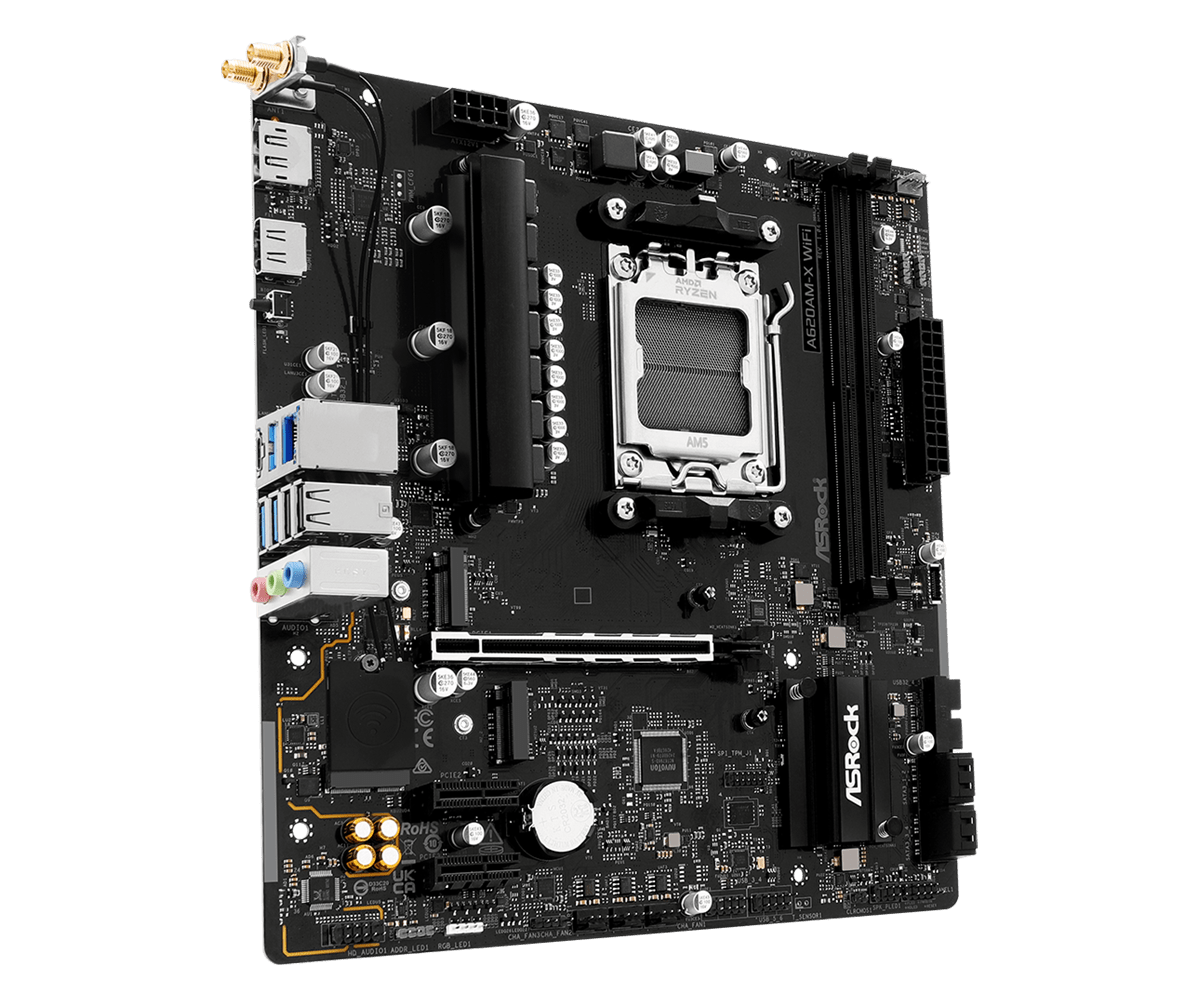

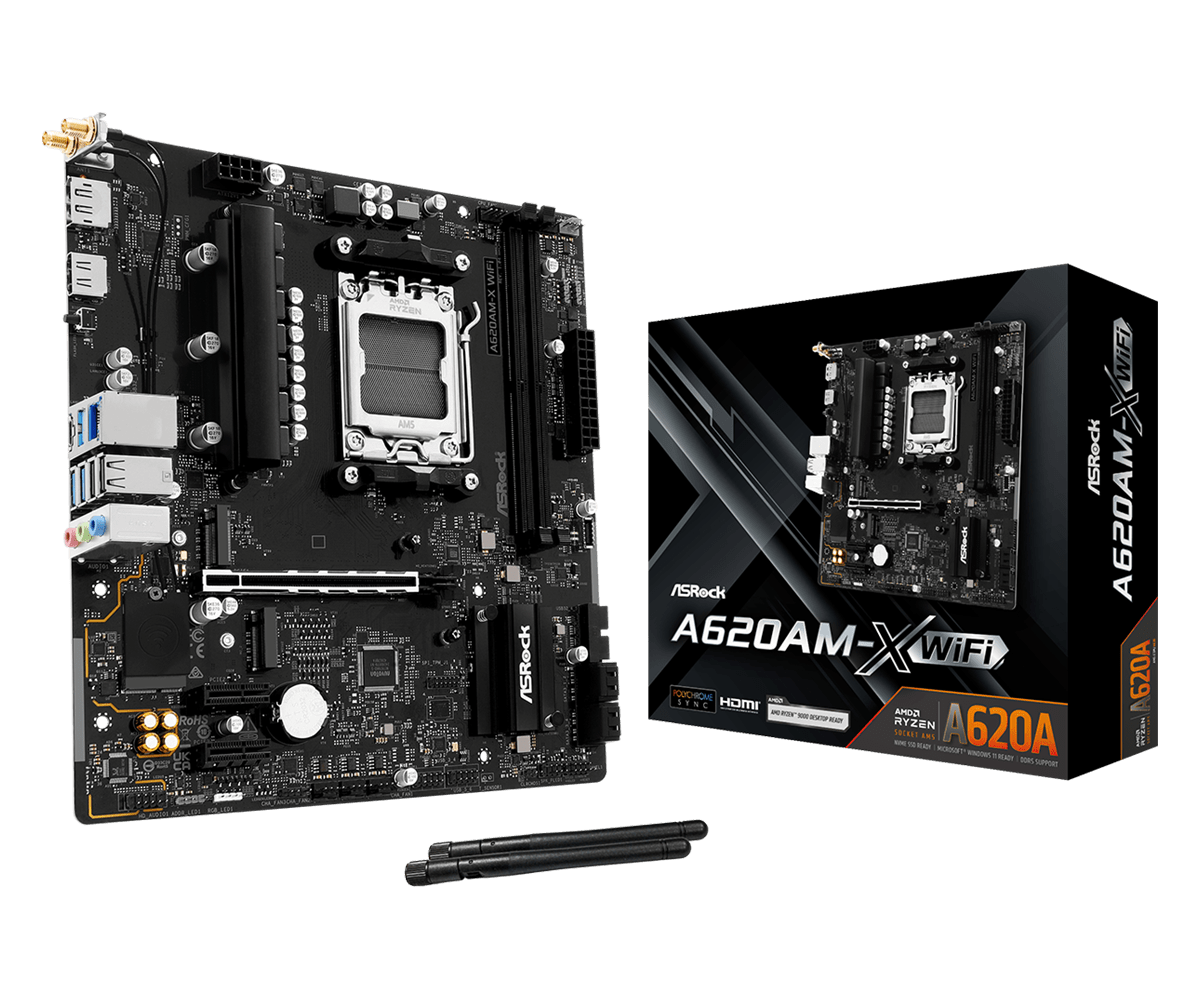

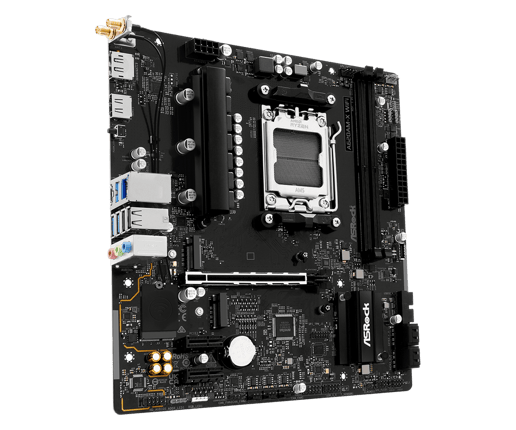

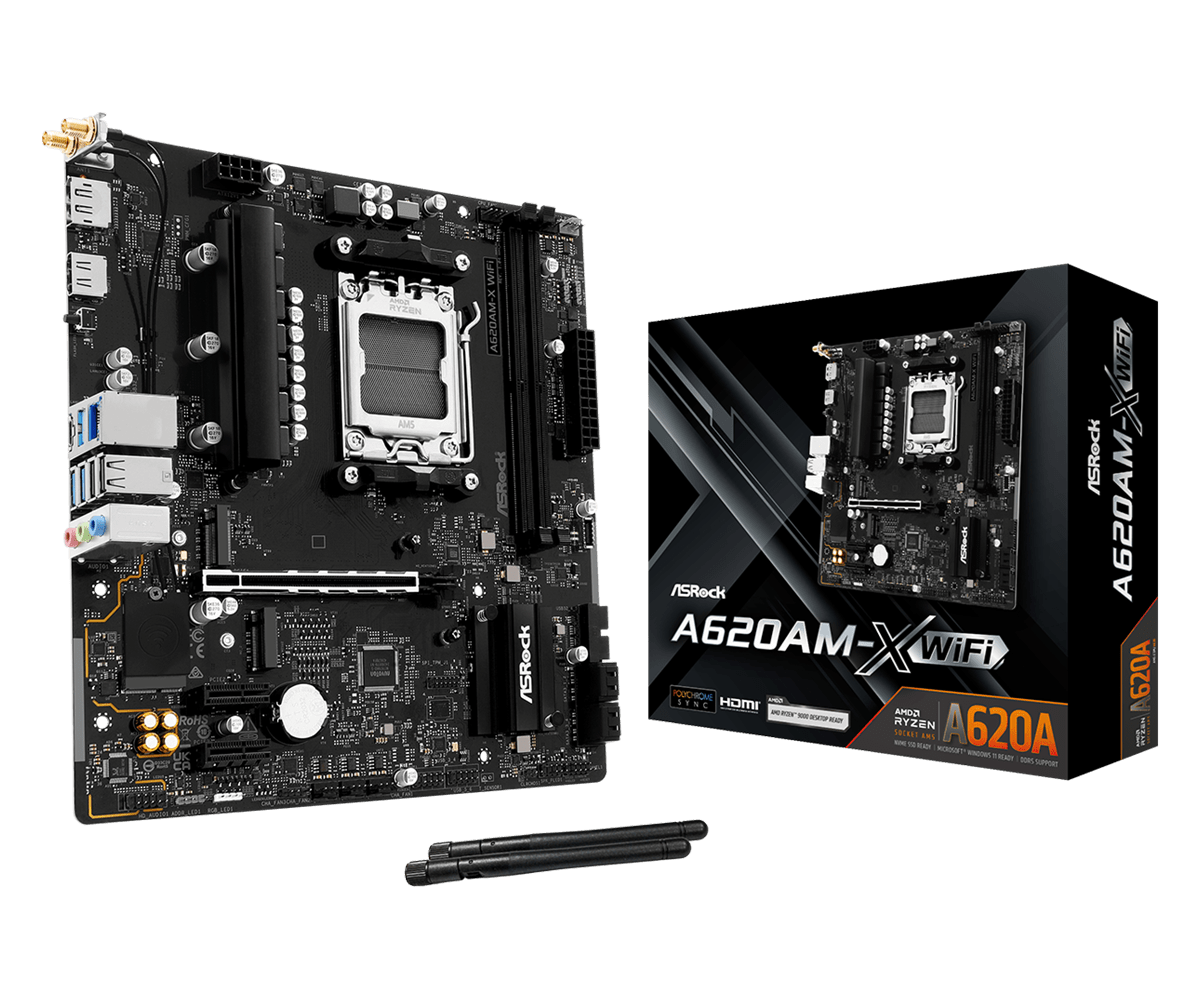

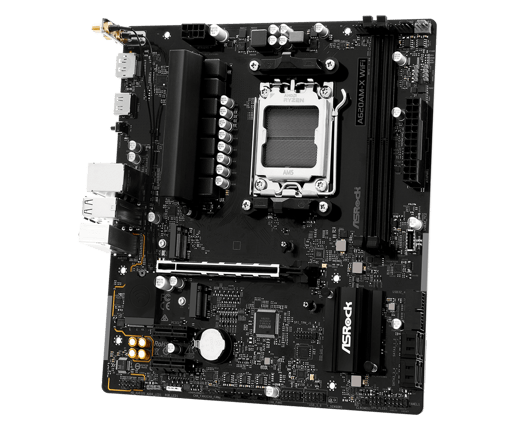

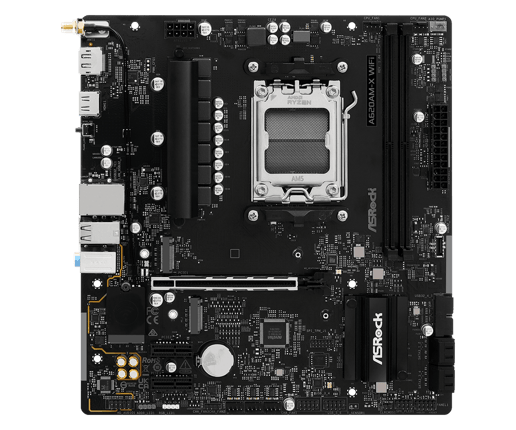

ASRock A620AM-X mATX Motherboard for AMD AM5 CPUs
The ASRock A620AM-X WiFi is a compact micro-ATX motherboard designed for AMD’s latest AM5 socket processors, supporting Ryzen 7000, 8000, and 9000 series CPUs. Built on the AMD A620A chipset, it delivers a reliable foundation for gaming, productivity, and everyday computing at an affordable price point. Despite being positioned as a budget-friendly option, it comes equipped with many modern features, including DDR5 memory support, PCIe 4.0 for high-speed NVMe storage, and integrated wireless connectivity.
With two DDR5 DIMM slots supporting up to 128 GB of dual-channel memory, the board allows for fast performance and future-ready memory upgrades. Storage options include two PCIe Gen4×4 M.2 slots and four SATA3 ports, ensuring compatibility with both the latest NVMe SSDs and traditional drives. For graphics, it offers a full-length PCIe 4.0 x16 slot, along with HDMI 2.1 and DisplayPort 1.4 outputs when paired with a CPU featuring integrated graphics.
Networking is another highlight: users get a Realtek 2.5 Gigabit LAN port alongside built-in WiFi 5 and Bluetooth 5.0, offering both wired and wireless flexibility. Additional conveniences include BIOS Flashback for CPU-less firmware updates, onboard RGB headers for lighting customization, and diagnostic LEDs for easier troubleshooting. Altogether, the A620AM-X WiFi strikes a strong balance between value and functionality, making it an appealing choice for compact builds that don’t compromise on essential modern features.
CPU
- Installed Processors (Max): Supports AMD Ryzen 9000, 8000, 7000 Series (AM5 socket)
- CPU Family: AMD Ryzen 9000, 8000, 7000 Series

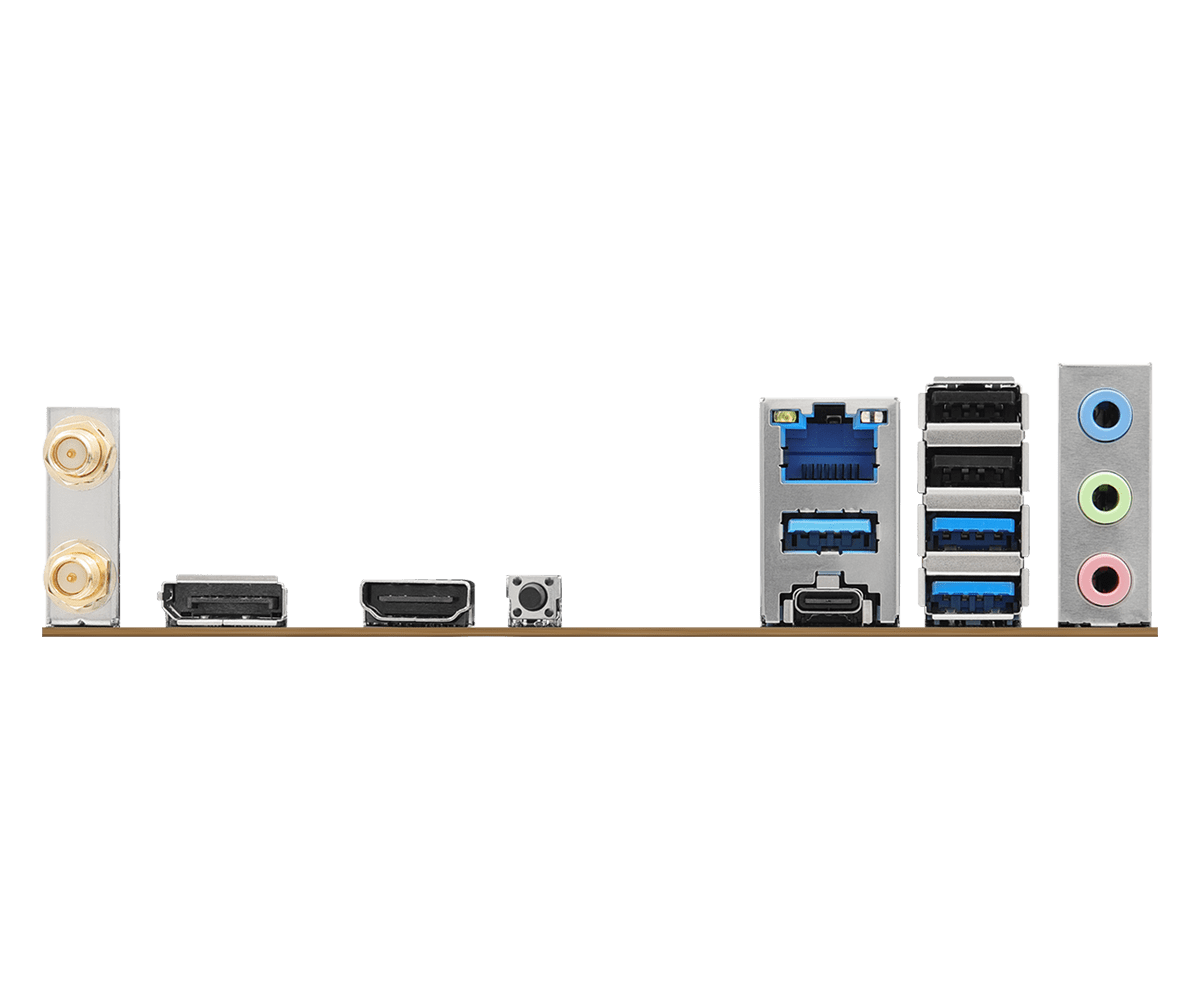

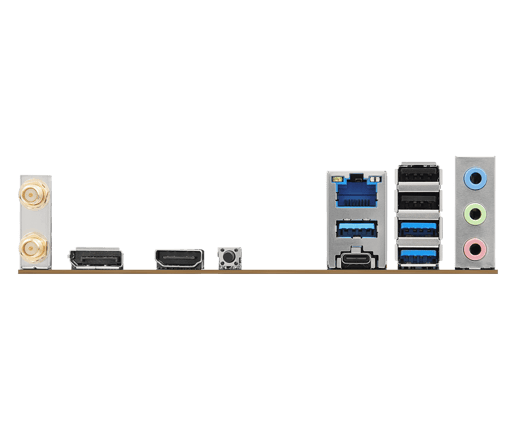

Rear Panel I/O Ports
- Audio Line Out Ports: 3 x Audio Jacks (Line In, Front Speaker, Microphone)
CPU
- Processor Number: Dependent on installed AMD Ryzen CPU (AM5 socket)
Rear Panel I/O Ports
- Microphone In Port: Yes (via HD Audio Jack)
CPU
- CPU Speed: Dependent on installed CPU
- L1 Cache: Dependent on CPU
- L2 Cache: Dependent on CPU
- L3 Cache: Dependent on CPU
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series (AM5 socket)
- Socket: AMD Socket AM5
- Hyperthreading Architecture: Supported (depends on CPU model)
Physical
- Form Factor: Micro ATX (24.4 cm x 22.6 cm)
CPU
- 64-bit Support: Yes
- Socket: AM5
- Maximum CPU Speed: Depends on installed CPU (supports up to latest Ryzen 9000 Series)
- Maximum Bus Speed: Supports up to DDR5 8000+(OC)
- Front Side Bus: N/A (Modern motherboards use a different architecture)
Rear Panel I/O Ports
- USB Ports: 13 total (5 x USB 3.2 Gen1 Type-A, 2 x USB 3.2 Gen1 Type-C, 6 x USB 2.0)
- Infrared Port: None
- DisplayPorts: 1 x DisplayPort 1.4 (up to 4K @ 120Hz, HDCP 2.3)
- HDMI Port: 1 x HDMI 2.1 (up to 4K @ 120Hz, HDR, HDCP 2.3)
- VGA Port: None
- eSATA Ports: None
- Antenna Connectors: 2
Internal I/O Connectors
- SATA Connectors: 4 x SATA3 (6 Gb/s), RAID 0/1/10 supported
- Speaker: Yes (via front panel header)
Memory
- Memory Bus Speed: DDR5 5200 (non-OC), up to 8000+ (OC) MT/s
- Memory Type: DDR5
Compliance
- Certifications: FCC, CE, ErP/EuP Ready
Electrical
- Power Requirements: 24-pin ATX, 8-pin 12V
- Power Connector: 24-pin ATX, 8-pin 12V
Physical
- Colour: Black / Dark
Motherboard
- Chipset Manufacturer: AMD
- Northbridge: AMD A620A
- Southbridge: N/A (AMD A620A Chipset)
- Input/Output Controller: Realtek Dragon RTL8125BG (LAN), Realtek ALC897 (Audio
- RAID Supported: Yes (RAID 0, 1, 10 for SATA & M.2)
- RAID Format: RAID 0, 1, 10
- RAID Controllers: AMD Chipset
- IDE/EIDE Supported: No
- IDE Controllers: No
- EIDE Controllers: No
- SCSI/SAS Supported: No
- SCSI Channels: N/A
- SCSI Controllers: N/A
- SATA Supported: Yes
- SATA Controllers: AMD Chipset
- Firewire Supported: No
- Firewire Controller: N/A
Rear Panel I/O Ports
- Parallel Ports: None
- Keyboard/Mouse Combo Port: 1 x PS/2 Combo Port
- Serial Ports: None
- USB Port(s): 2 USB 2.0 (rear), 3 USB 3.2 Gen1 Type-A (rear), 1 USB 3.2 Gen1 Type-C (rear)
- Keyboard Port: None
- Mouse Port: None
- Infrared Port(s): No
- RJ-45 Ports: 1 x 2.5 Gigabit LAN (Realtek Dragon RTL8125BG)
- RJ-11 Ports: None
- DisplayPort(s): 1
- HDMI Port(s): 1
- VGA Port(s): No
- Digital Port: N/A
- eSATA Port(s): No
- Serial ATA Ports: 4
- Audio Line In Ports: 1 (via HD Audio Jacks)
- Audio Line Out Ports: 3 x Audio Jacks (Line In, Front Speaker, Microphone)
- Microphone In Port: 1 (via HD Audio Jacks)
- S/PDIF Port: No
- TV Out: No
- Firewire Ports: None
- MIDI/Joystick Port (Rear): No
- Graphics Card Port: 1 x PCIe 4.0 x16
- Antenna Connector(s): 2
Internal I/O Connectors
- Floppy Channels: No
- Front Panel Connectors: Yes
- Cooling Fan Support: 2 x CPU Fan (4-pin), 3 x Chassis Fan (4-pin), 1 x AIO Pump Fan (4-pin)
- Auxiliary Audio Support: Yes (7.1 CH HD Audio, Realtek ALC897 codec)
- MIDI/Joystick Connector: None
- IDE Connectors: No
- SATA Connector(s): 4
- S/PDIF Connectors: None (no optical S/PDIF)
- USB Connector(s): Headers for 2 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen1 Type-C, and 4 x USB 2.0
- Thunderbolt Port(s): No
- Firewire Connectors: None
- RJ-45 Connectors: 1 x RJ-45 LAN port
- Parallel Connectors: None
- Serial Connectors: None
- Infrared Connectors: None
- SCSI Connectors: None
- EIDE Connectors: No
- Chassis Intrusion Connector: 1 x Chassis Intrusion Header
- Wireless Connector: 2 x Antenna Ports (for 802.11ac Wi-Fi module)
- Speaker(s): 1 (Header)
- TPM Header: 1 x SPI TPM Header
- Power Connector Port: 1 x 24-pin ATX, 1 x 8-pin 12V (Hi-Density Power Connector)
- Other Connectors: 1 x Front Panel Audio, 1 x RGB Header, 3 x Addressable RGB Headers, 1 x SPI TPM Header, 1 x Chassis Intrusion Header
Expansion
- ISA: No
- Number of AGP Slots: 0
- AGP Slot Type: N/A
- Number of PCI Slots: 0 (no legacy PCI slots)
- PCI Slot Type: No
- Number of PCI-X Slots: 0
- PCI-X Slot Type: N/A
- Number of PCI Express Slots: 3 total (1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1)
- PCI Express 4.0 Slot Type: x16
- PCI Express 3.0 Slot Type: x1
- PCI Express 2.0 Slot Type: N/A
- PCI Express X16 Slots: 1 x PCIe 4.0 x16 (bandwidth depends on CPU)
- PCI Express Slot Type: 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1
- Other Expansion Slots: N/A
Memory
- Maximum RAM: 128 GB
- Memory Type(s): DDR5
- Memory Bus Speed Range: Up to 8000+ (OC)
- Memory Bus Speed Minimum: DDR5-4800 (JEDEC)
- Memory Bus Speed Maximum: DDR5-8000+ (OC)
- Memory Bus Speeds Supported: DDR5 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 8000+ (OC)
- Memory Expansion Options: Dual Channel, Supports EXPO & XMP Profiles
- Memory Slot: 2 x DDR5 DIMM slots
Storage
- Embedded Storage Capacity: N/A
Graphics Device
- Integrated Graphics Supported: Yes, AMD RDNAT graphics (CPU Dependent)
Sound
- Integrated Sound: Yes
Graphics Device
- Graphics Chipset Manufacturer: AMD
- Graphics Chipset Model Name: RDNAT (integrated in CPU)
- Graphics Chipset Model Number: N/A
- Graphics Memory: Shared system memory
- Graphics Memory Type: Shared system memory
Sound
- Integrated Sound: 7.1 CH HD Audio (Realtek ALC897 codec)
Warranty
- Warranty: Manufacturer's Standard Warranty
Network
- Integrated Network: Realtek Dragon RTL8125BG 2.5G LAN
- Network Speeds Supported: 10/100/1000/2500 Mbps
- Wireless LAN: Yes (802.11ac)
- Wireless Network Speed: Up to 433Mbps
- Bluetooth: Yes, Bluetooth 5.0
- Bluetooth Version: Bluetooth 5.0
- Bluetooth Range (Max): Standard range (approx. 10m/33ft)
Modem
- Modem: No
System Requirements
- Operating Systems Supported: Windows 10 64-bit, Windows 11 64-bit
System
- BIOS: 256Mb AMI UEFI Legal BIOS with GUI, BIOS Flashback support
- Special Features: BIOS Flashback, ASRock Auto Driver Installer, Polychrome SYNC
- Jumpers: Yes
- Software Included: ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC
- Drivers: ASRock Auto Driver Installer, ASRock Instant Flash
- Overclocking Features: Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
- SLi/Crossfire Features: No (Not officially supported)
Compliance
- Certification(s): FCC, CE, ErP/EuP ready
Electrical
- Power Requirement(s): ErP/EuP ready power supply is required for ErP/EuP ready feature
- Power Connector(s): 24-pin ATX Power Connector, 8-pin 12V Power Connector
- Power Management: N/A
Environmental
- Operating Temperature: N/A (Standard for PC components)
- Operating Humidity: N/A (Standard for PC components)
Physical
- Form Factor: Micro ATX (24.4 cm x 22.6 cm)
- In The Box: 1 x I/O Shield, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5 GHz Antennas
- Width: 9.6-in (24.4 cm)
- Length: 8.9-in (22.6 cm)
- Weight: N/A
- Colour(s): Black / Dark
Attributes
- PCMCIA Slots: No
Identifiers
- Stock Code: MBD3967
- Mfg Code: 90-MXBSU-A0UAYZ
