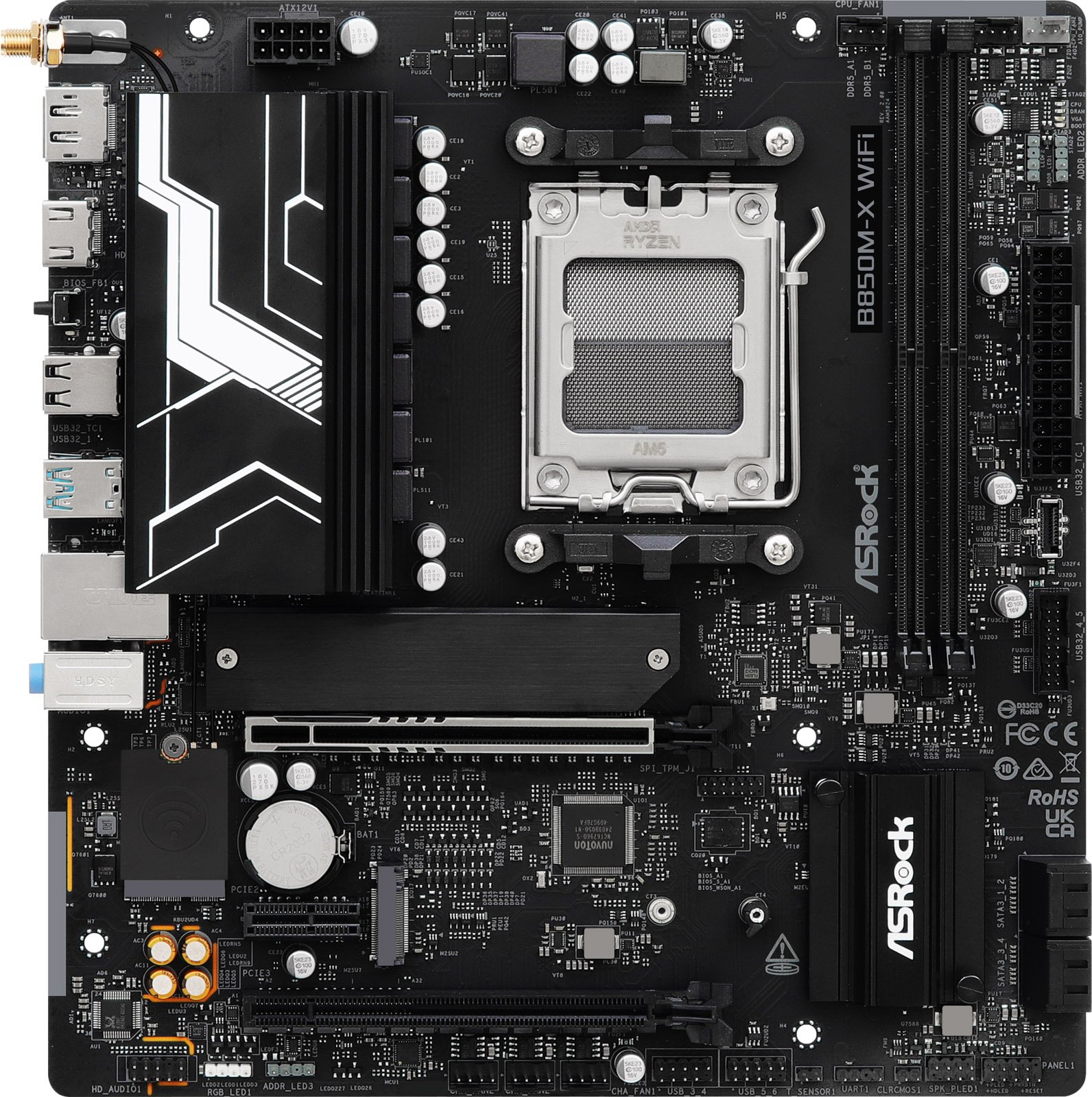

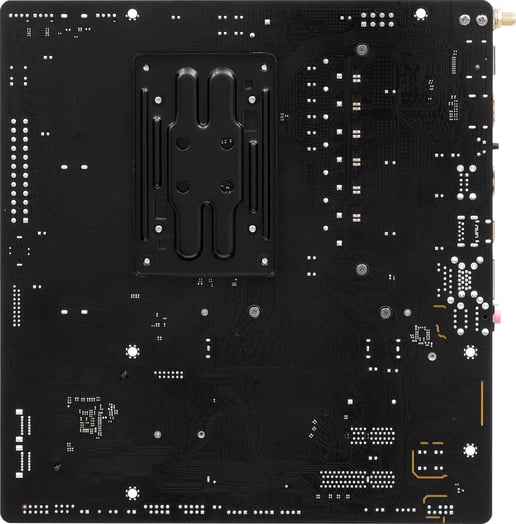

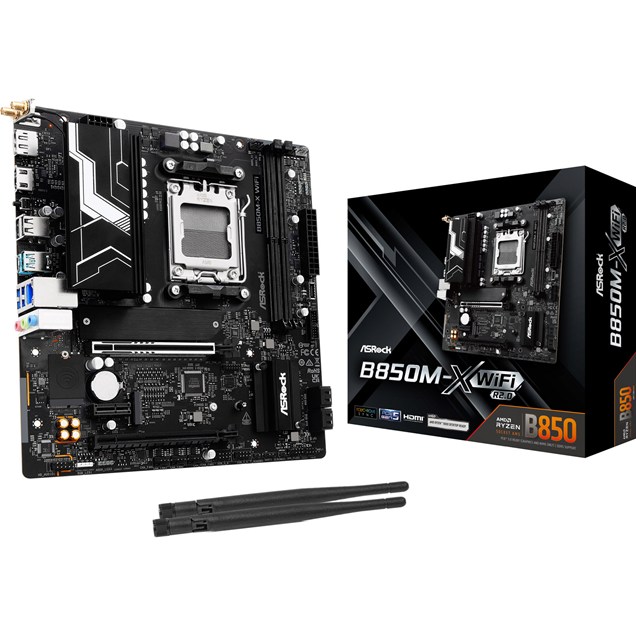

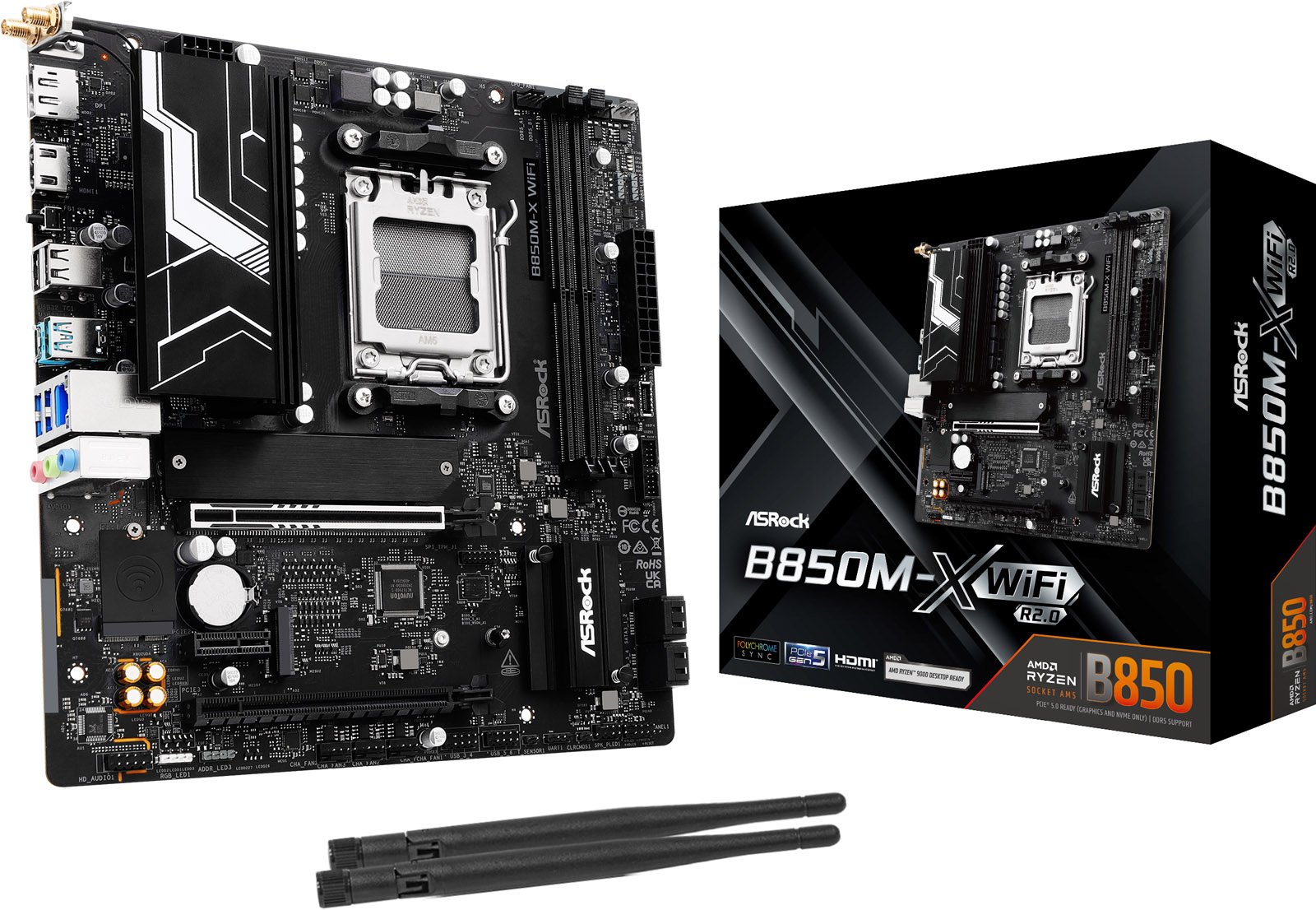

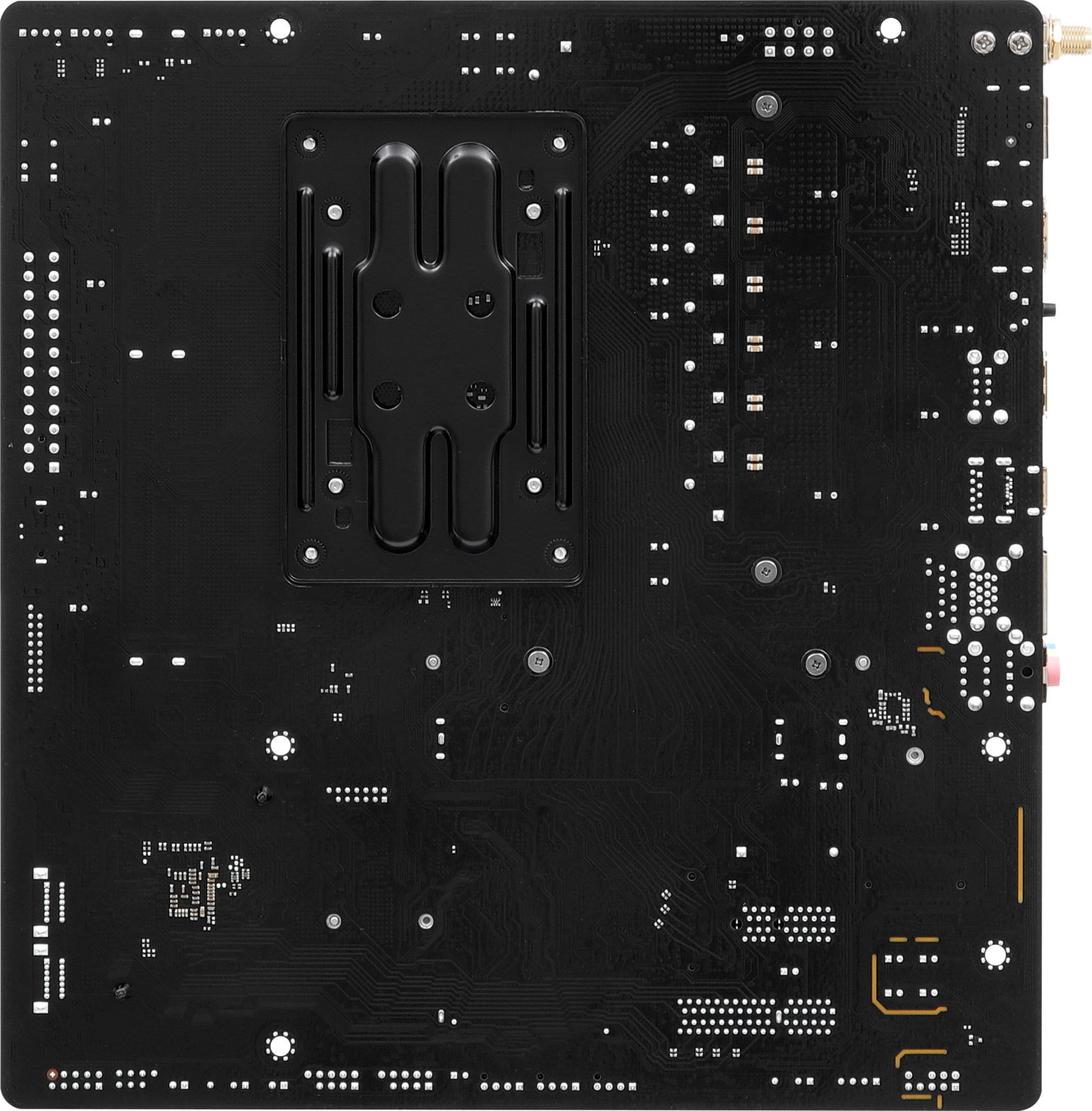

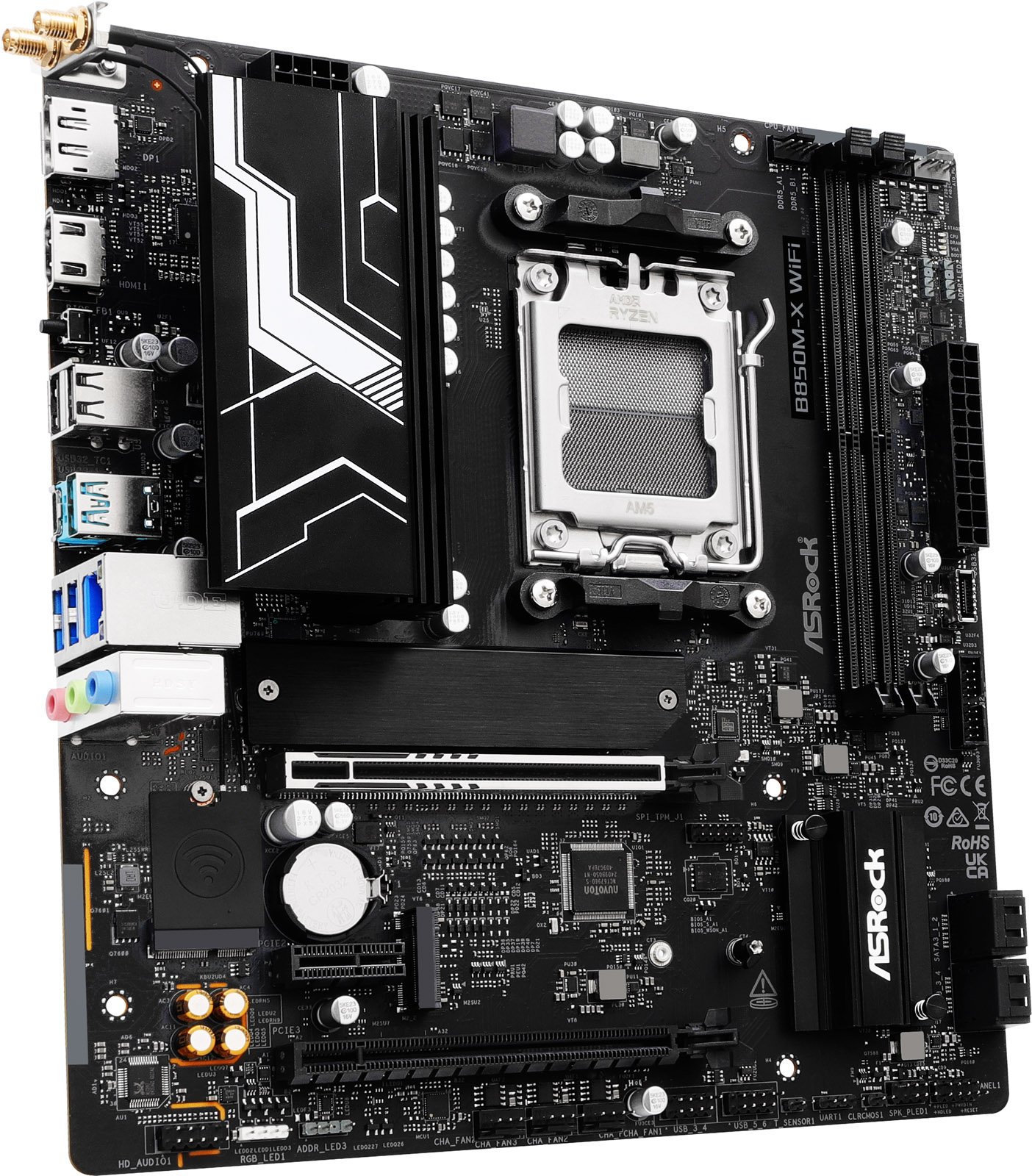

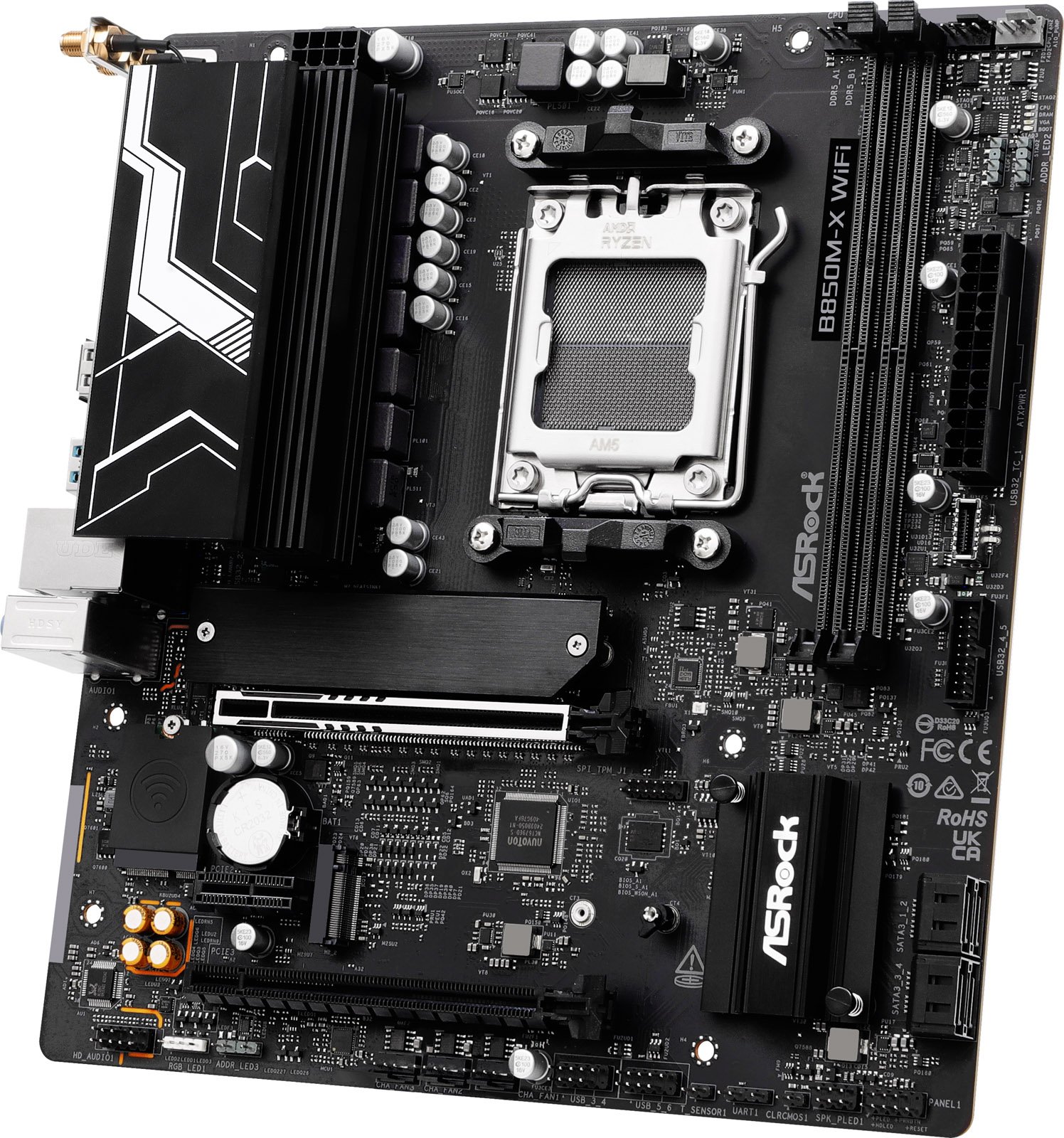

ASRock B850M-X WIFI R2.0 mATX Motherboard for AMD AM5 CPUs
SAVE £22
Available for delivery from Tomorrow
Click & Collect from Today
4 In Stock Now
Order within
You have 0 of these in your basket
Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.
Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Wi-Fi 6E 802.11axe
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- 64-bit Support: Yes
- Socket: AM5

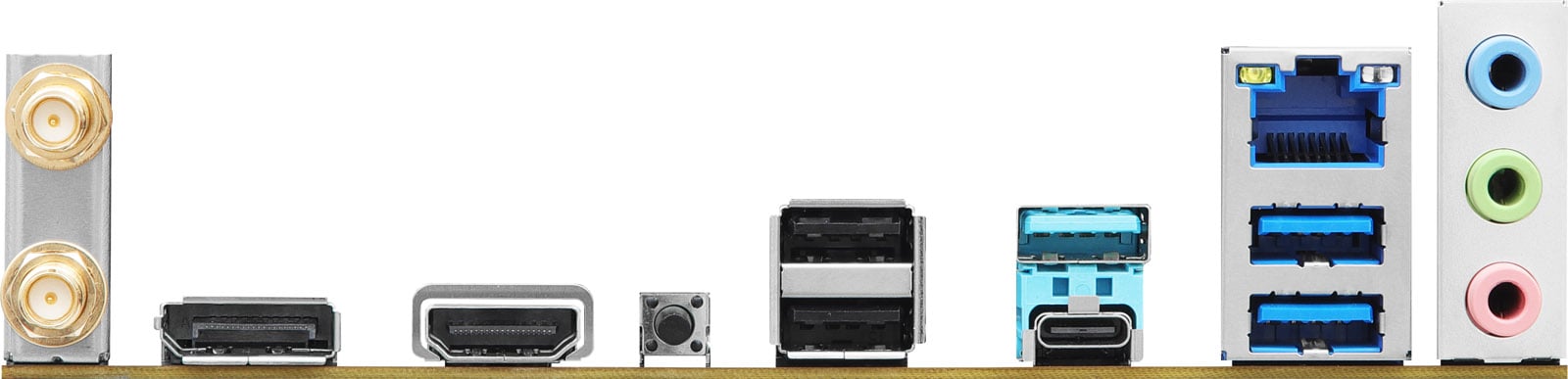

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.0
- 3 x USB 3.0
- 2 x USB 20.0
- DisplayPorts: 1 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
- Speaker: 1 x Speaker header
Memory
- Memory Bus Speed: Up to 8200 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD B850
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 2 x CPU fan headers
- 3 x Chassis fan/Water pump headers
- 1 x AIO pump header
- TPM Header: 1 x SPI TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
- 1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4)
- 3 x 3-pin ARGB headers
- 1 x 4-pin RGB header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x16 slot (@ x4)
- 1 x PCI Express 4.0 x1 slot
Memory
- Maximum RAM: 128 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Dragon RTL8125BG
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes - Wi-Fi 6E
- Bluetooth: Yes
- Bluetooth Version: 5.2
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard

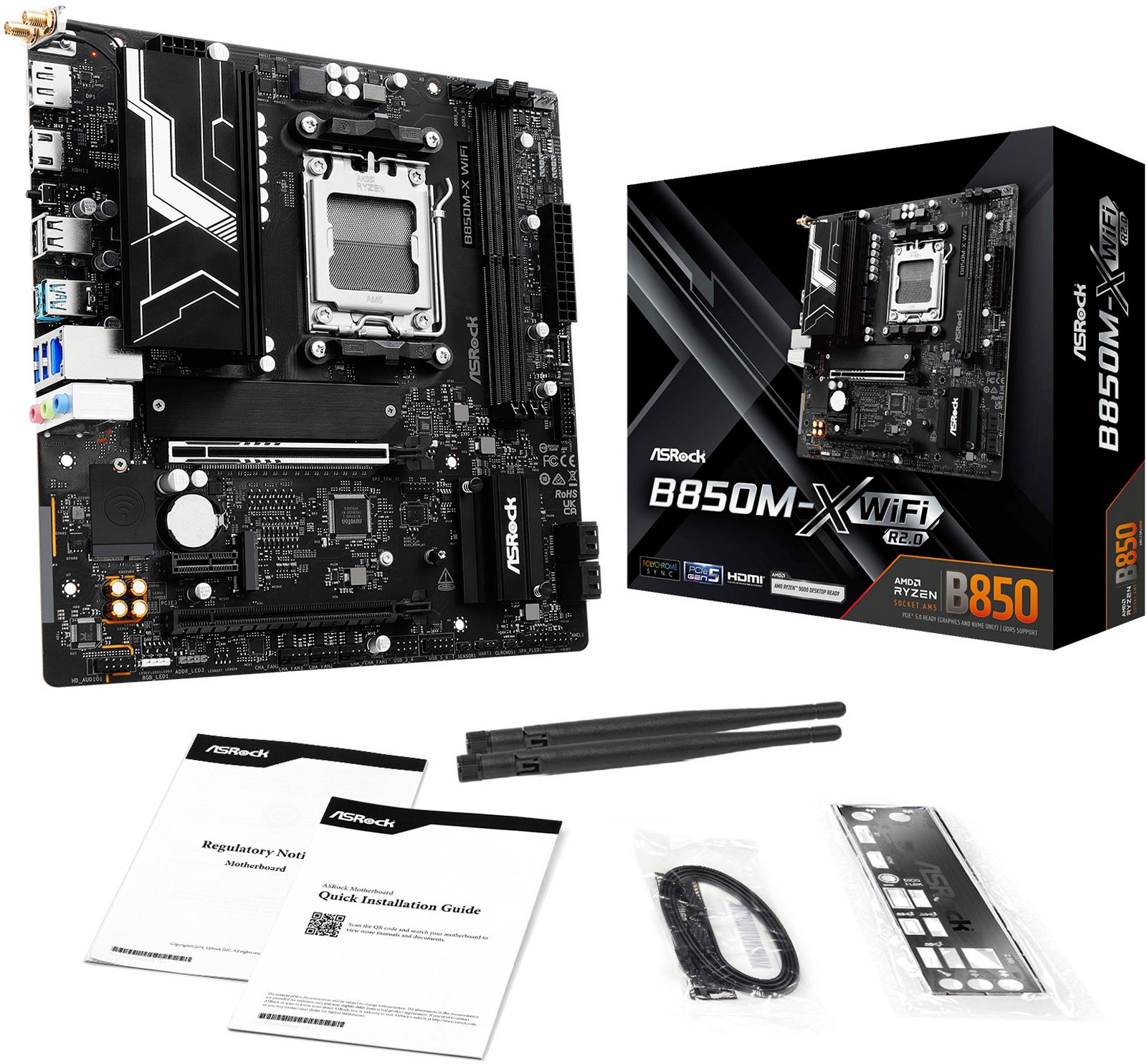

- In The Box: Motherboard
- I/O Shield
- 2 x SATA Cables
- Wi-Fi Antennas
- Width: 226 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3951
- Mfg Code: 90-MXBSH-A0UAYZ
Warranty
- Warranty: 3 Years
