CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: Intel
• Supported Processors: Intel Core Ultra Processors (Series 2)
• 64-bit Support: Yes
• Socket: LGA1851

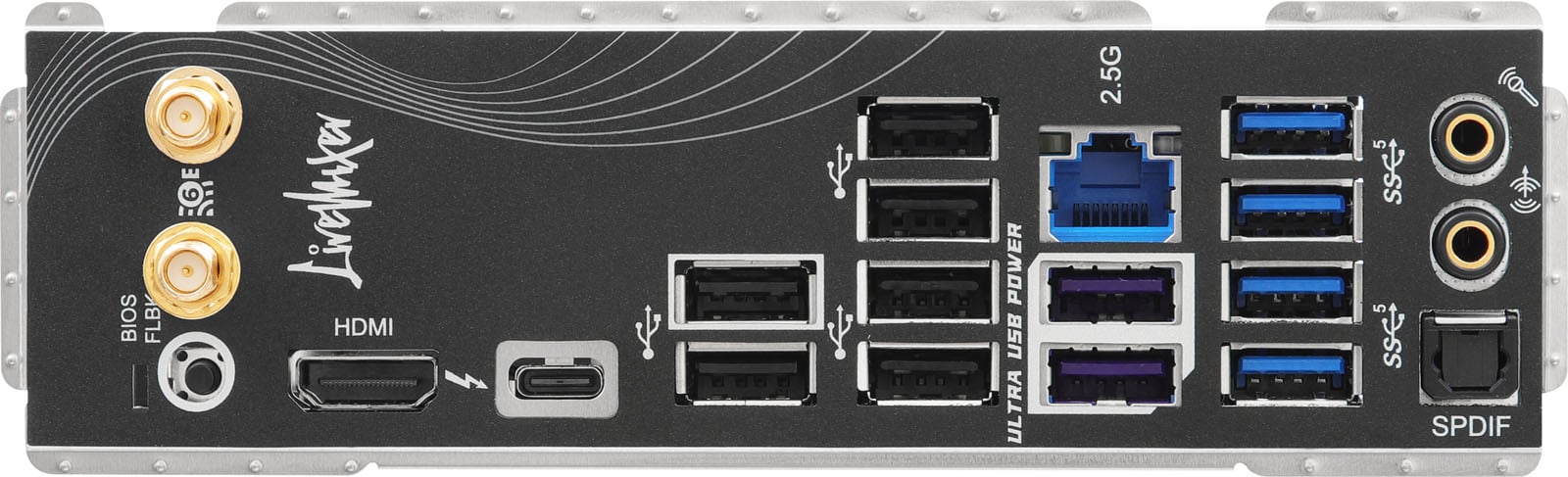

Rear Panel I/O Ports

• USB Ports: 1 x Thunderbolt 4 (USB-C 4)
• 6 x USB 3.0
• 6 x USB 2.0
• HDMI Port: 1 x HDMI 2.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA
• USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
  2 x USB 3.0 headers (supports 4 ports)
  2 x USB 2.0 headers (supports 4 ports)
• Speaker: 1 x Speaker header

Memory

• Memory Bus Speed: Up to 8666 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: Intel B860
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 5, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line Out Ports: 1 x 3.5mm JAck
• Microphone In Port: 1 x 3.5mm Jack
• S/PDIF Port: 1 x S/PDIF Optical Out
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 2 x CPU fan headers
• 1 x AIO pump header
• 5 x Chassis fan headers
• TPM Header: 1 x SPI TPM header
• Power Connector Port: 1 x 24-pin ATX
  2 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
• 1 x M.2 slot, Key M, Type 2230/2242/2260/2280 (PCIe Gen4)
• 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
  3 x 3-pin ARGB headers
• 1 x 4-pin RGB header
• 1 x Thermistor Cable header

Expansion

• Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
• 1 x PCI Express 4.0 x16 slot (@ x4)

Memory

• Maximum RAM: 256 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek ALC1220

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Dragon RTL8125BG
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes - Wi-Fi 6E
• Bluetooth: Yes
• Bluetooth Version: 5.3

System Requirements

• Operating Systems Supported: Microsoft Windows 11

System

• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard

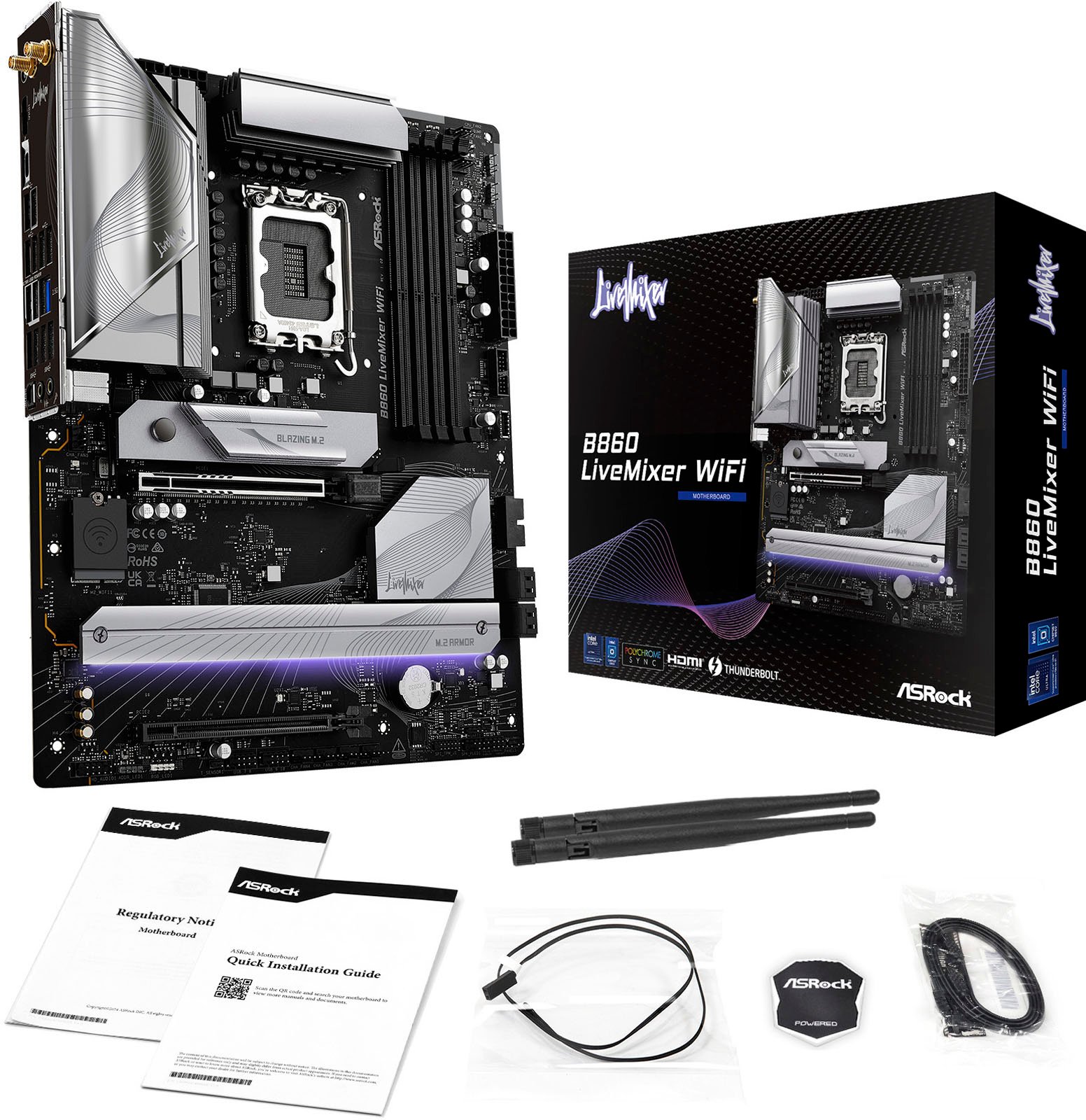

• In The Box: Motherboard
• 2 x SATA Data Cables
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• 1 x Thermistor Cable
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3863
• Mfg Code: 90-MXBQV0-A0UAYZ
