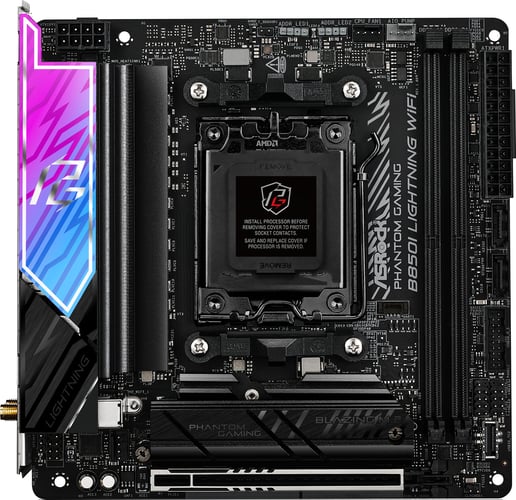

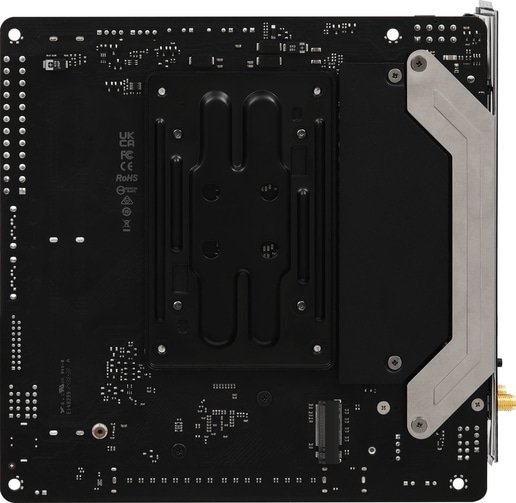

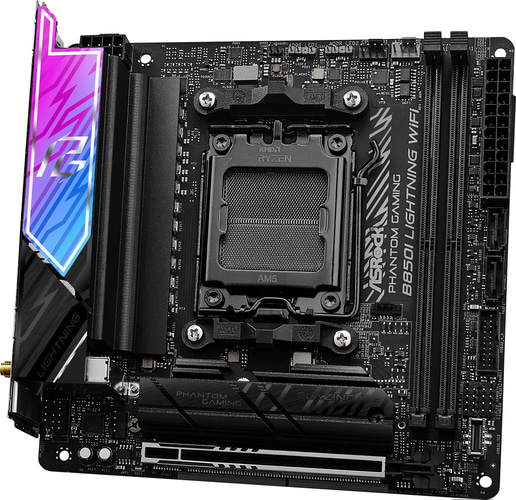

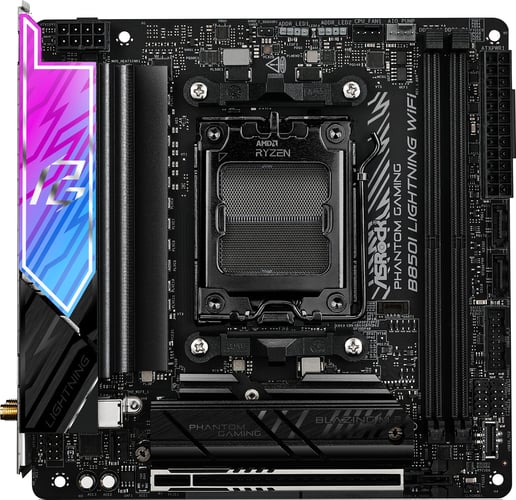

ASRock B850I Lightning WiFi ITX Motherboard for AMD AM5 CPUs

Name: ASRock B850I Lightning WiFi ITX Motherboard for AMD AM5 CPUs
Brand: ASRock
SKU: MBD3854
Price: 241.99 GBP
Availability: InStock

90-MXBQR0-A0UAYZ

£241.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Monday 19th May

7 In Stock Now

Order within

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

ITX Form Factor
AMD B850 Chipset
Socket AM5
DDR5 (Max: 128GB / 2 slots)
2 x M.2 & 8 x USB & 2 x SATA
HDMI

CCL Code: MBD3854

Overview

Lightning series stands as a symbol of both speed and power. The design employs linear and angular elements, evoking the imagery of lightning – a spectacle of raw energy and breathtaking speed.

Specifications

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AM5
Supported Processors	Ryzen 9000, 8000 and 7000 Series Processors
64-bit Support	Yes
Socket	AM5

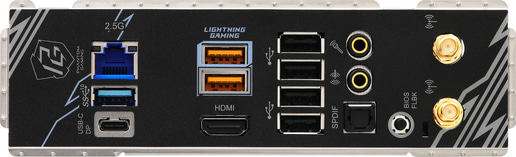

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.1 2 x USB 3.1 1 x USB 3.0 4 x USB 2.0
DisplayPorts	Yes via USB-C
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Chassis fan header 1 x AIO pump header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2280 (PCIe Gen5) 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4) 2 x 3-pin ARGB headers 1 x Thermistor Cable header

Memory

Memory Bus Speed	Up to 8200 MT/s
Memory Type	DDR5
Maximum RAM	128 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	AMD B850
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 x Years

Sound

Integrated Sound

Realtek ALC1220

Network

Integrated Network	Killer E3100G
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 6E)
Bluetooth	Yes
Bluetooth Version	5.2

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	Mini-ITX Motherboard

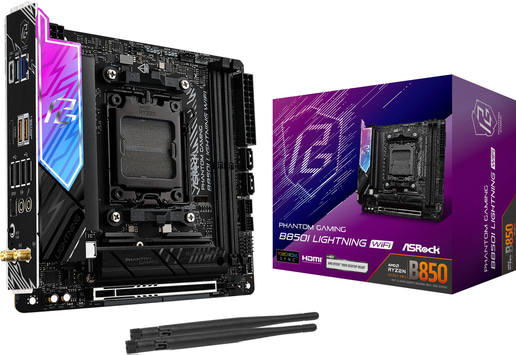

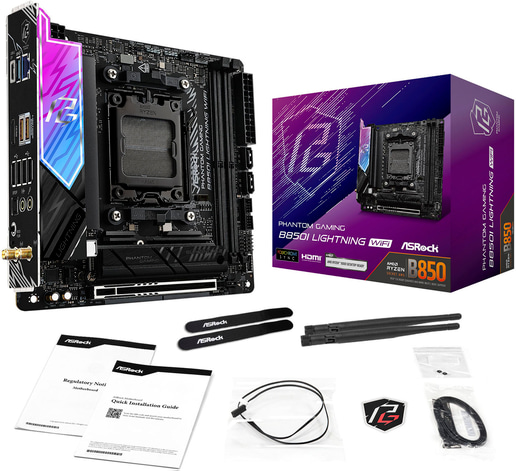

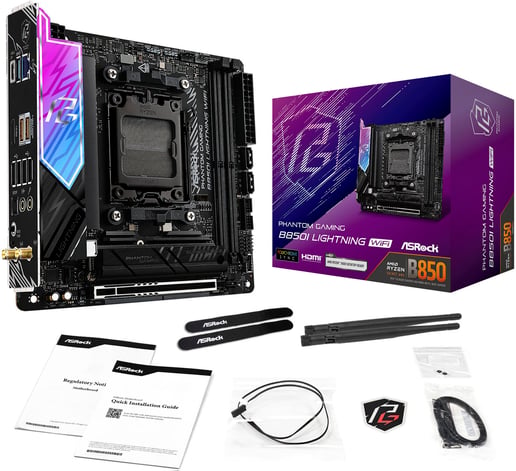

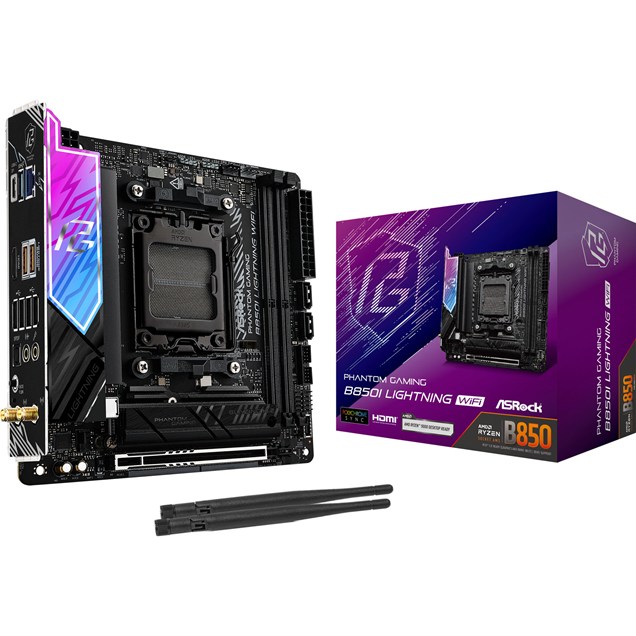

In The Box	Motherboard 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 2 x Screws for M.2 Sockets 1 x Thermistor Cable
Width	170 mm
Length	170 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	170 mm
Motherboard Height	170 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	2 port(s)
Number of USB Ports	8 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	ITX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD B850
Thunderbolt	No
Motherboard Model	ASRock B850I Lightning WiFi
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASRock RGB LED
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	30 W
Max Memory Speed Supported (overclocked)	8200 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	2
Maximum NVMe M.2 ports	2
SATA ports	2
No. of front USB2.0 ports supported	2
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
