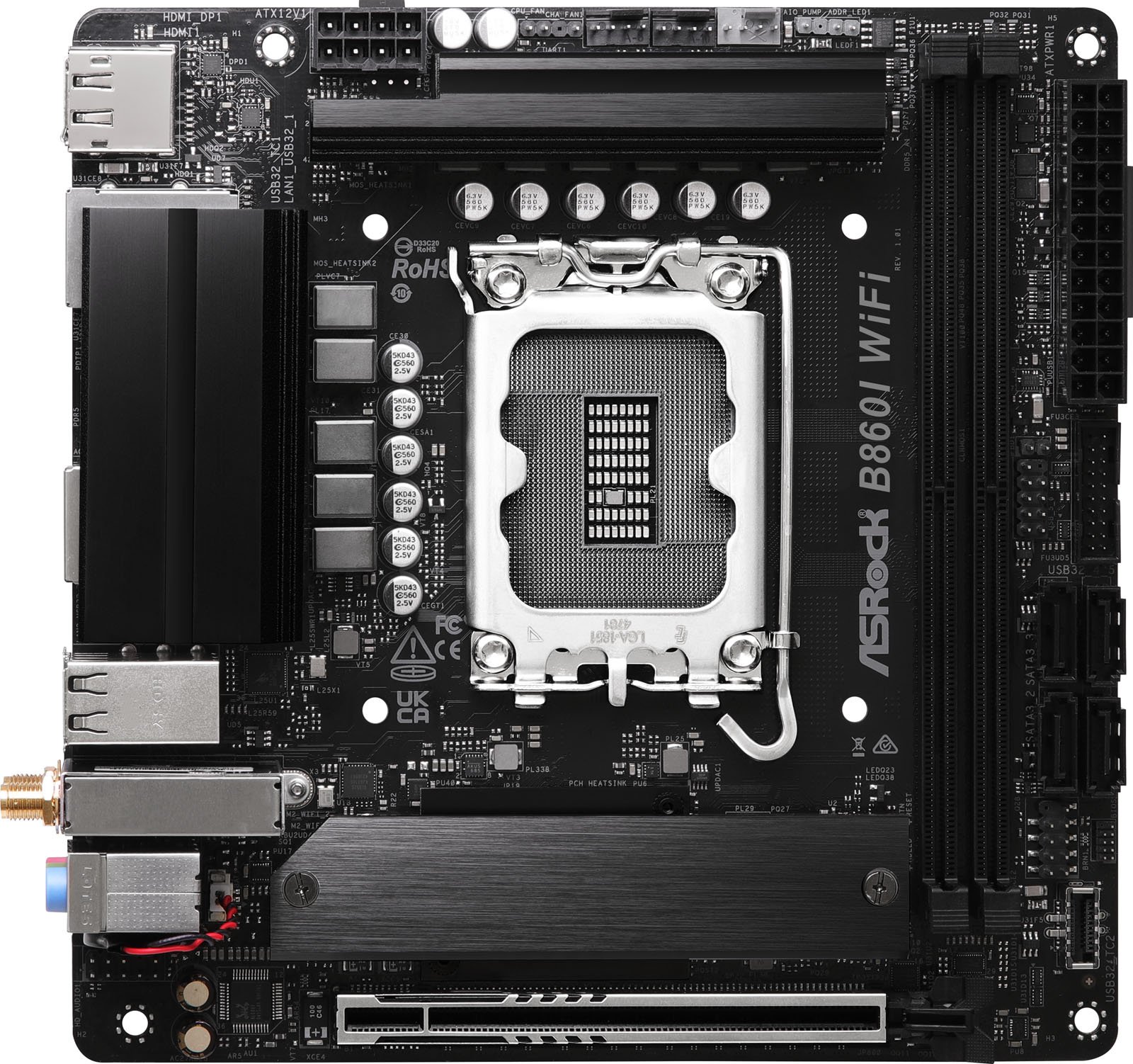

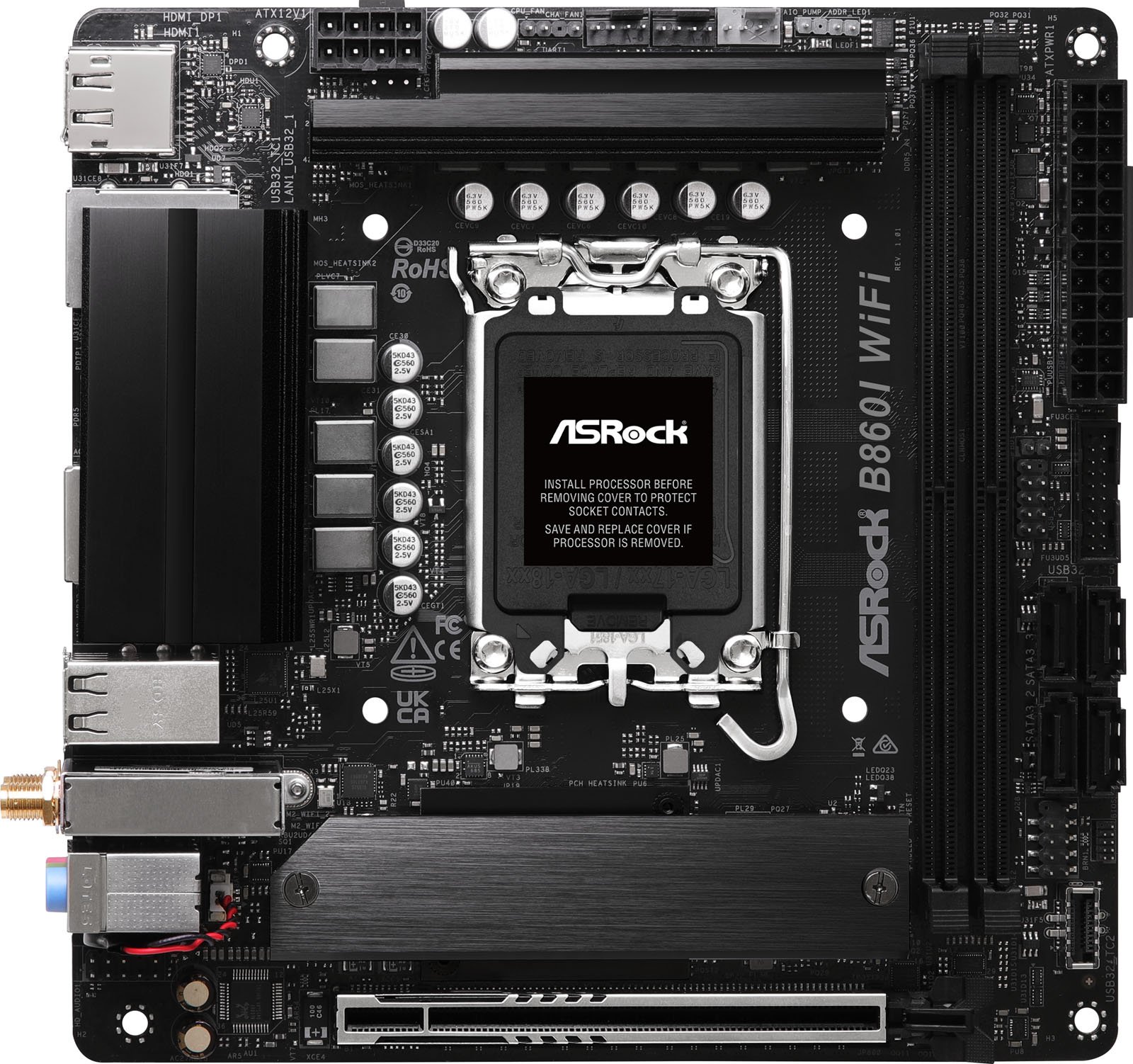

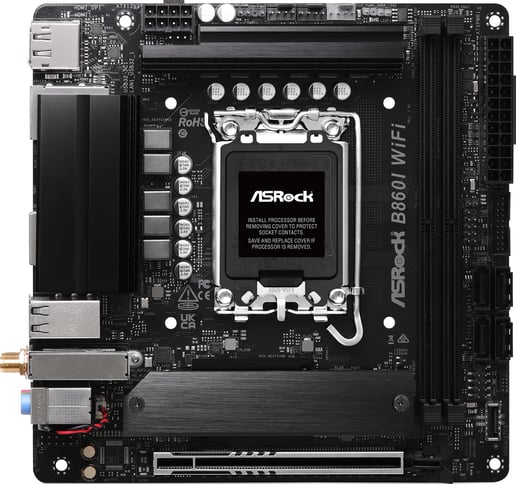

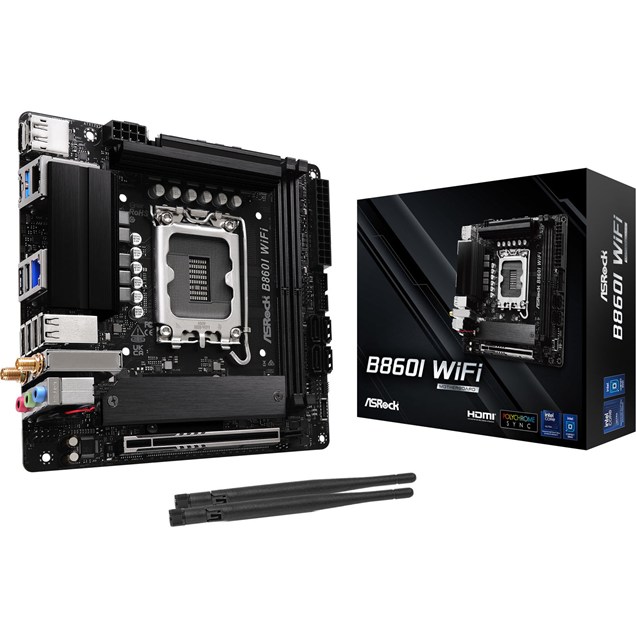

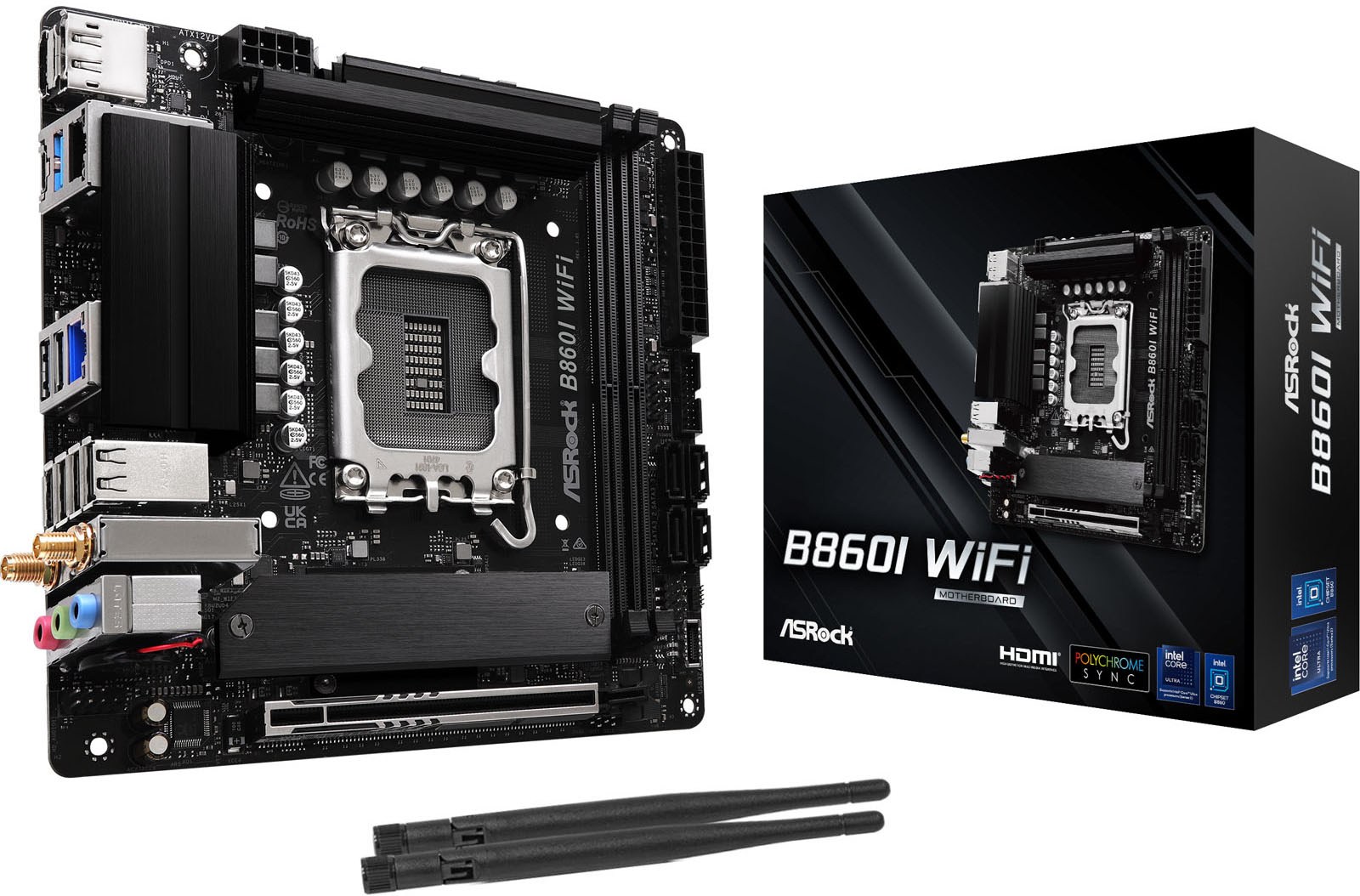

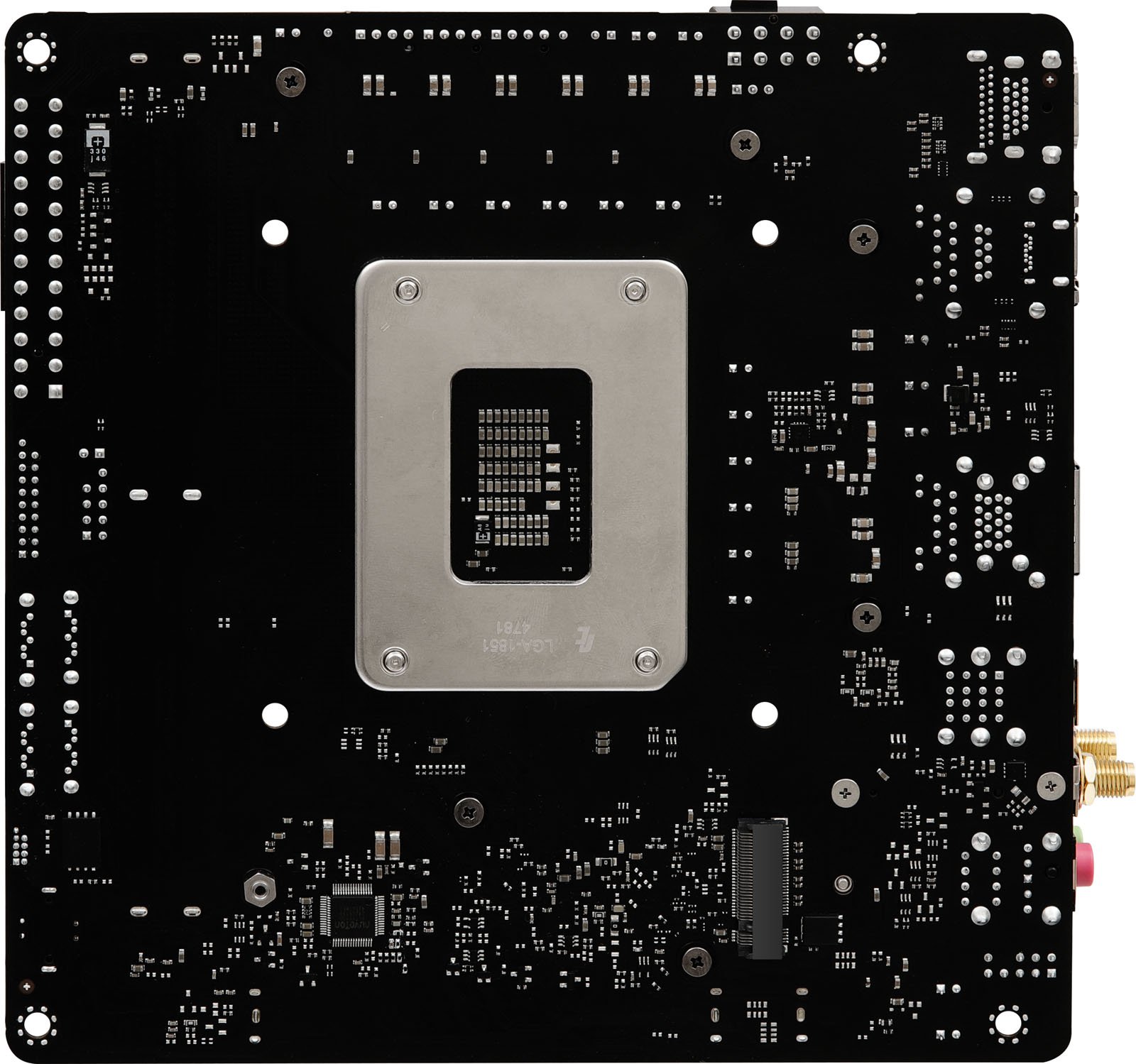

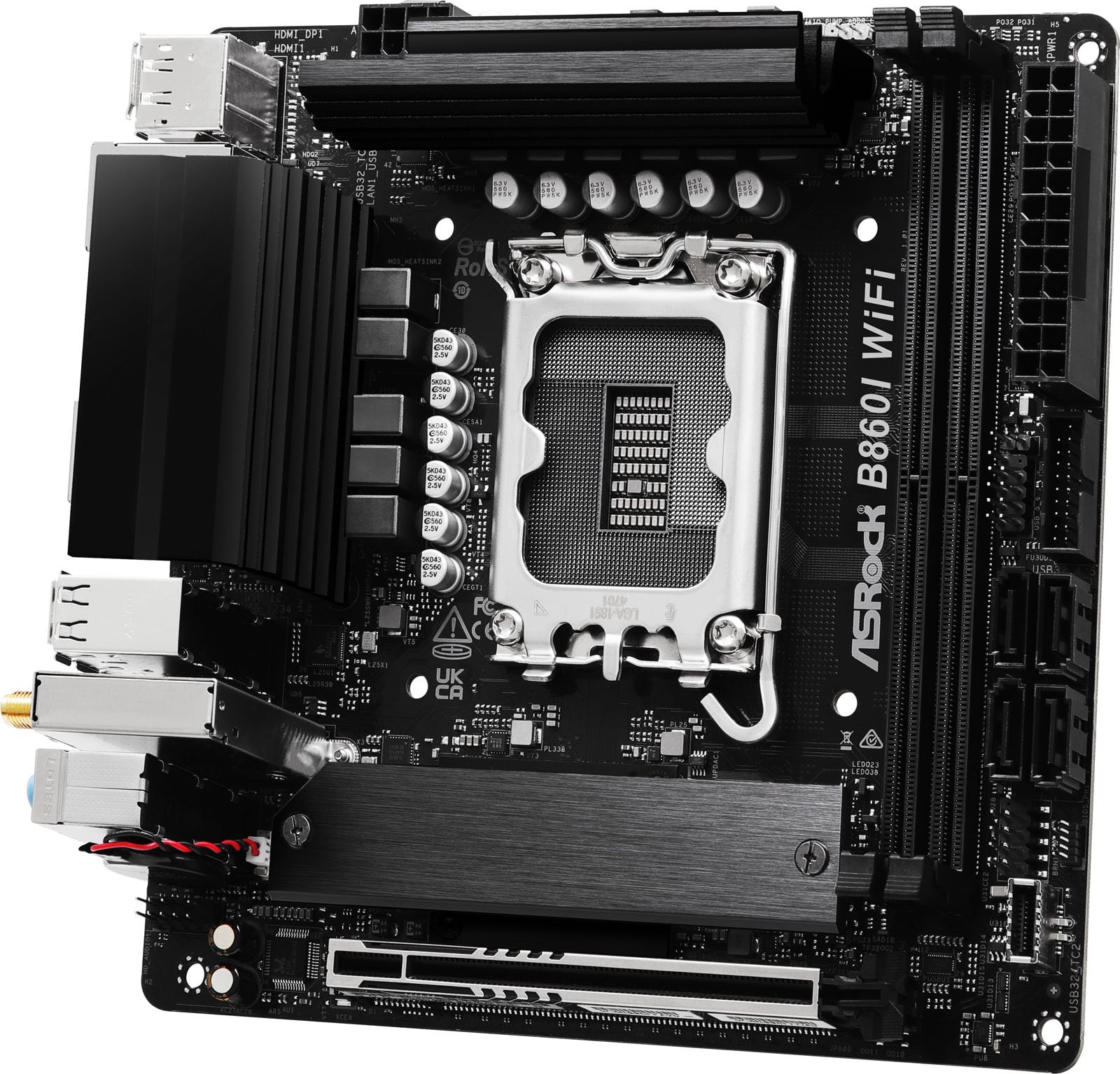

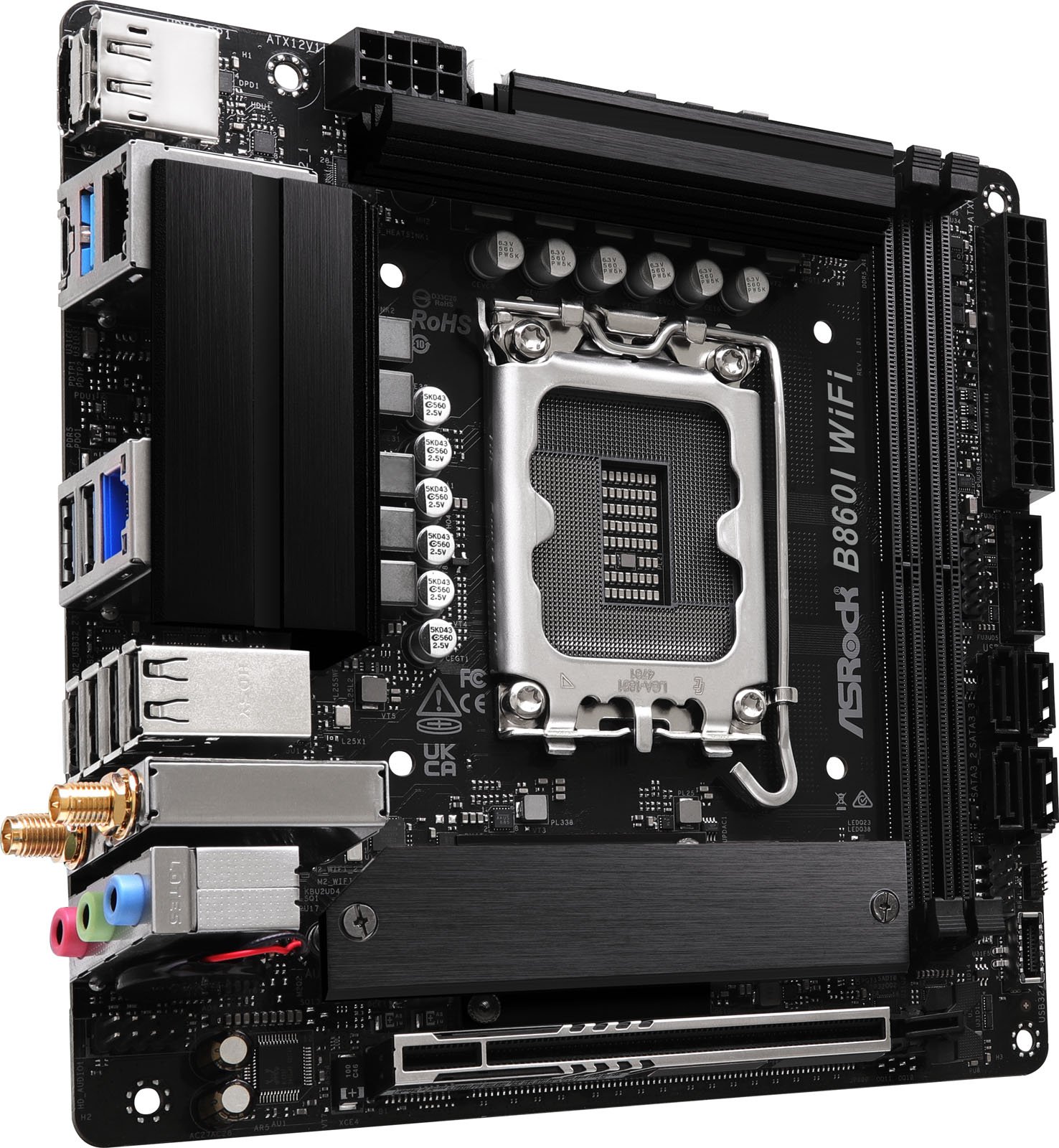

ASRock B860I WiFi ITX Motherboard for Intel LGA1851 CPUs

ASRock B860I WiFi ITX Motherboard for Intel LGA1851 CPUs

CCL Code: MBD3879

Discontinued

ASRock B860I WiFi ITX Motherboard for Intel LGA1851 CPUs

90-MXBQQ0-A0UAYZ

Key Features:

  • ITX Form Factor
  • Intel B860 Chipset
  • Socket 1851
  • DDR5 (Max: 128GB / 2 slots)
  • 2 x M.2 & 8 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3879

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

Built to deliver reliable performance with versatile features, perfect for daily tasks.

Specifications

CPU

CPU Socket Socket 1851
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors Intel Core Ultra Processors (Series 2)
64-bit Support Yes
Socket LGA1851

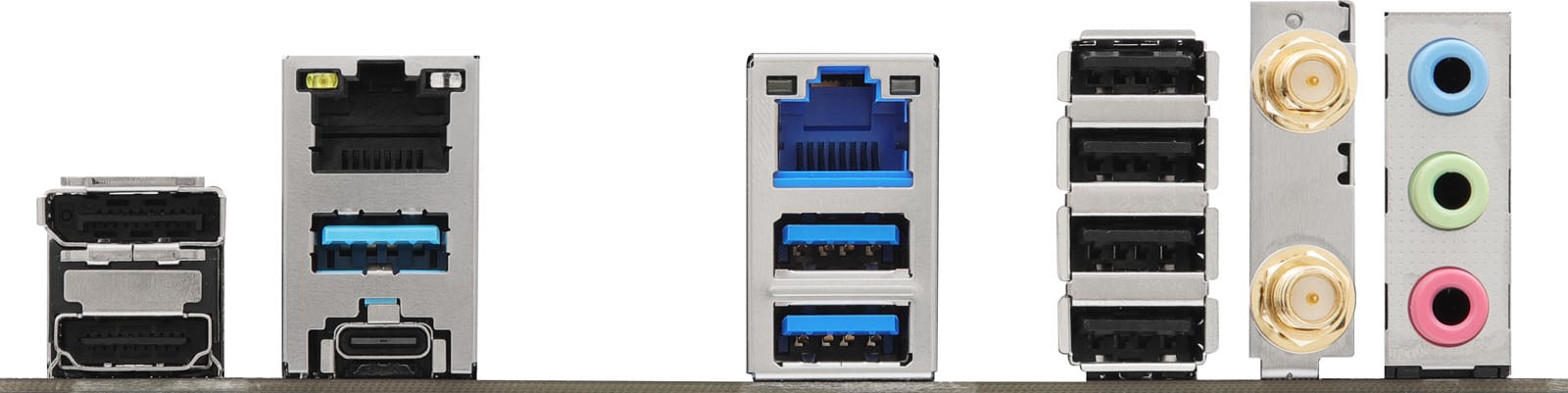

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB 3.1
2 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 2 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Chassis fan header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
1 x 3-pin ARGB header

Memory

Memory Bus Speed Up to 8933 MT/s
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 2 x DIMM

Motherboard

Northbridge Intel B860
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek ALC897

Network

Integrated Network Dragon RTL8125BG
Intel I219V
Network Speeds Supported Dragon: Up to 2.5 Gbps
Intel: Up to 1 Gbps
Wireless LAN Yes - Wi-Fi 6E
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor Mini-ITX Motherboard

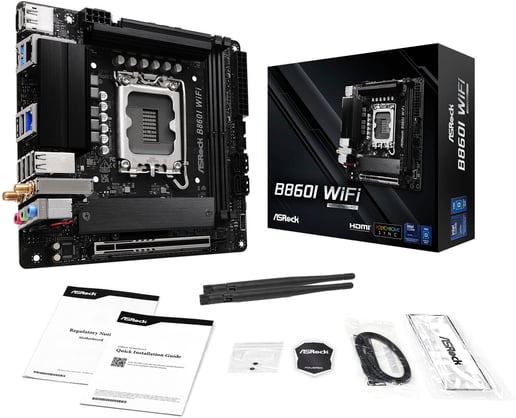

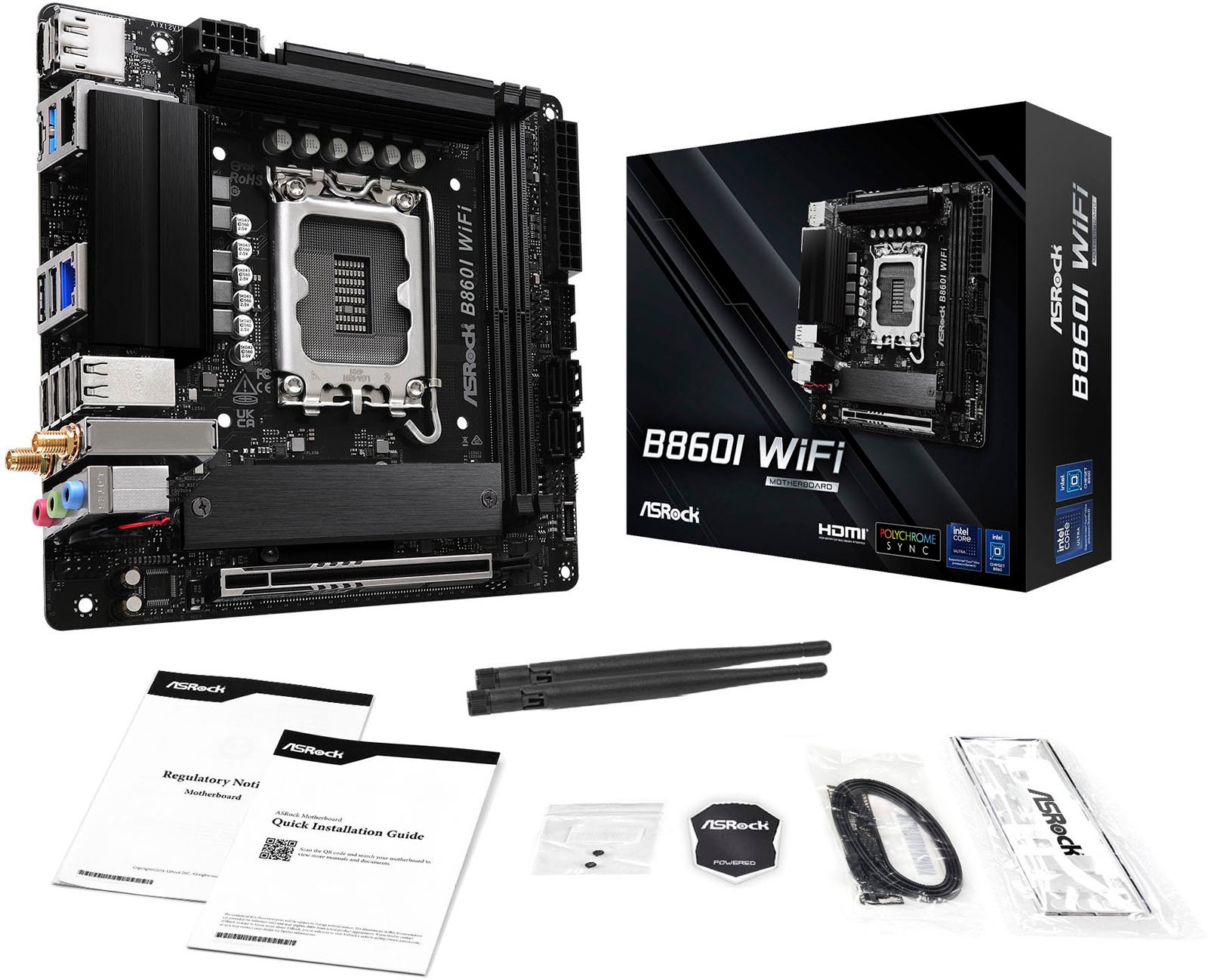

In The Box Motherboard
1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
Width 170 mm
Length 170 mm

Key Features

RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 170 mm
Motherboard Height 170 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ITX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset Intel B860
Thunderbolt No
Motherboard Model ASRock B860I WiFi
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 30 W
Max Memory Speed Supported (overclocked) 8933 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 2
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBQQ0-A0UAYZ
Alternative Part Numbers 90-MXBQQ-A0UAYZ, B860I WIFI
EAN 4711581490321
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBQQ0-A0UAYZ
