ASRock X870 Pro RS WiFi ATX Motherboard for AMD Socket AM5 CPUs
£109.99
Discontinued
90-MXBQ00-A0UAYZ
ASRock X870 Pro RS WiFi ATX Motherboard for AMD Socket AM5 CPUs
C Grade
FORM FACTOR: ATX
SOCKET: SOCKET AM5
MEMORY: DDR5 (MAX: 256GB)
STORAGE: 3 X M.2, 4 X SATA
WI-FI: BUILT-IN
USB: 12 PORT(S)
Please note that this is a C Grade clearance item. C Grade items may have missing accessories or show signs of cosmetic wear. See below for details of this specific item. The price has been reduced to reflect this.
Board and antenna only
All C Grade items are working and have been fully tested.
This item is supplied with a Warranty: 3 Years warranty.
ASRock X870 Pro RS WiFi AMD Socket AM5 ATX Motherboard
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
- 64-bit Support: Yes
- Socket: AM5

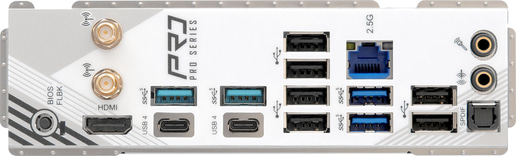

Rear Panel I/O Ports
- USB Ports: 2 x USB-C 4
- 4 x USB 3.0
- 6 x USB 2.0
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
- Speaker: 1 x Speaker header
Memory
- Memory Bus Speed: Up to 8000 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD X870
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 2 x CPU fan headers
- 4 x Chassis fan headers
- 1 x AIO pump header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
- 1 x M.2 slot, Key M, Type 2230/2242/2260/2280 (PCIe Gen4)
- 1 x M.2 slot, Key M, Type 2280 (PCIe Gen3 or SATA)
- 3 x 3-pin ARGB headers
- 1 x 4-pin RGB header
- 1 x Thermistor Cable header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x16 slot (@ x4)
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC1220
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Dragon RTL8125BG
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes - Wi-Fi 7
- Bluetooth: Yes
- Bluetooth Version: 5.4
System Requirements
- Operating Systems Supported: Windows 11
- Windows 10 64-bit
System
- BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard

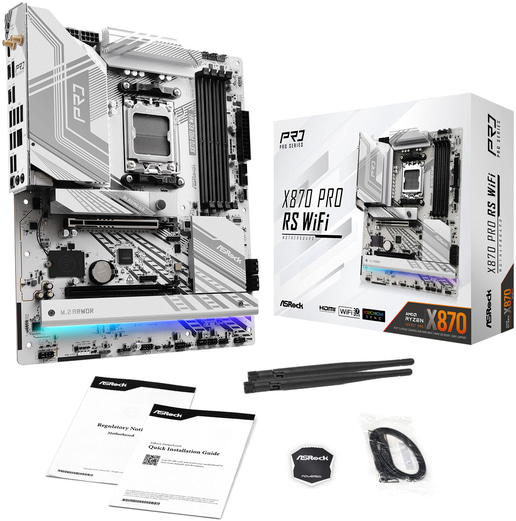

- In The Box: Motherboard
- 2 x SATA Cables
- Wi-Fi Antenna
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3713XC1
- Mfg Code: 90-MXBQ00-A0UAYZ
Warranty
- Warranty: 3 Years
