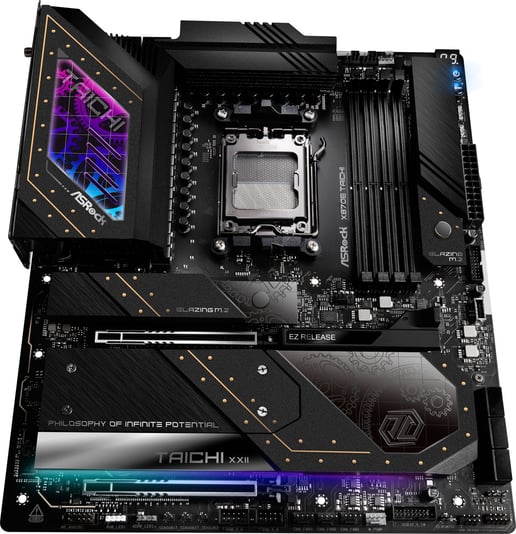

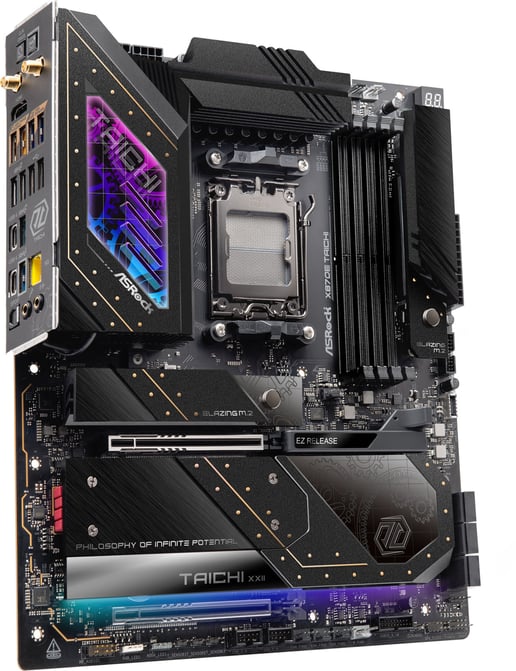

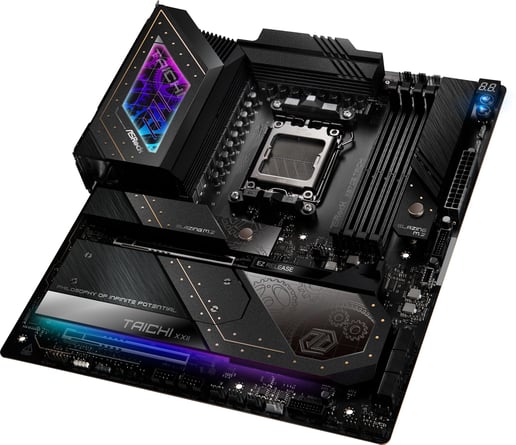

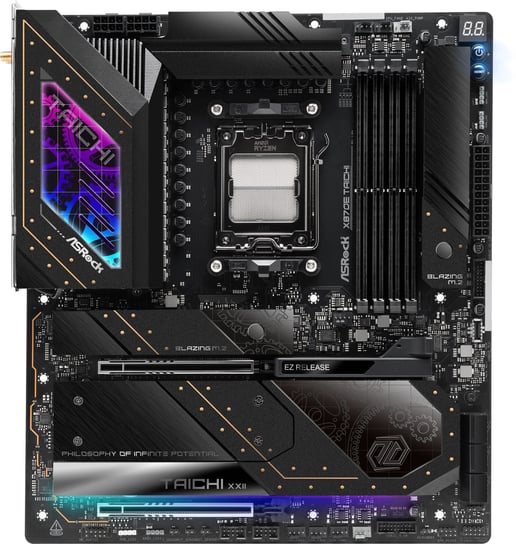

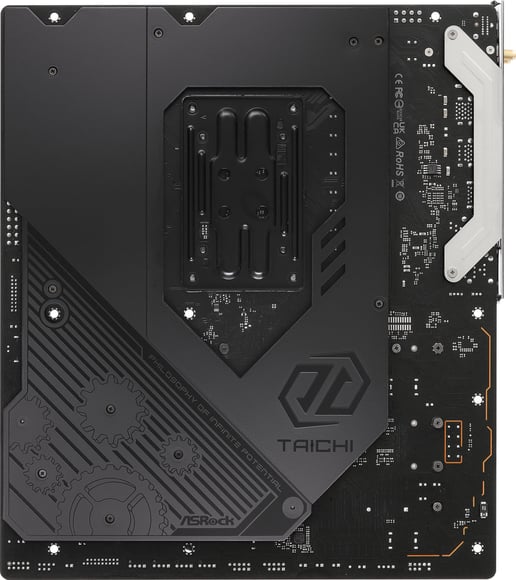

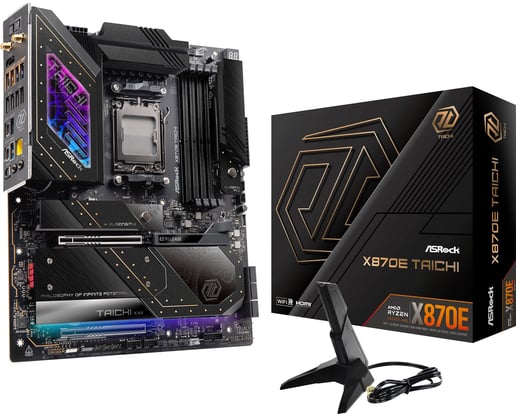

ASRock X870E Taichi EATX Motherboard for AMD AM5 CPUs

ASRock X870E Taichi EATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3708

Discontinued

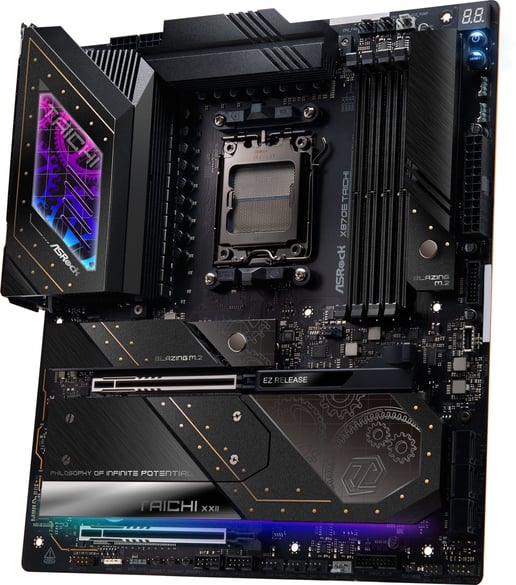

ASRock X870E Taichi EATX Motherboard for AMD AM5 CPUs

90-MXBP90-A0UAYZ

Key Features:

  • EATX Form Factor
  • AMD X870E Chipset
  • Socket AM5
  • DDR5 (Max: 256GB / 4 slots)
  • 4 x M.2 & 12 x USB & 6 x SATA
  • HDMI
CCL Code: MBD3708

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

ASRock X870E Taichi Motherboard

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
64-bit Support Yes
Socket AM5

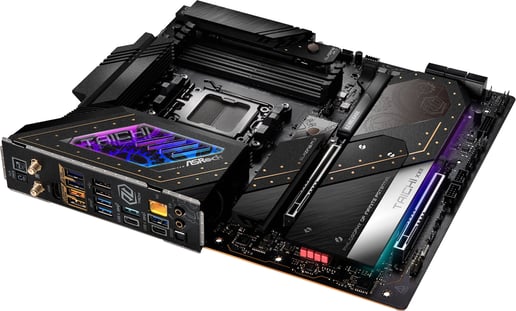

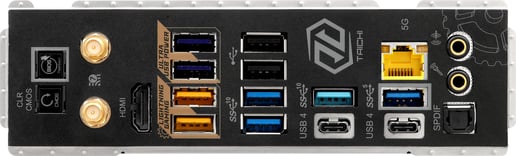

Rear Panel I/O Ports

USB Ports 2 x USB-C 4
5 x USB 3.1
3 x USB 3.0
2 x USB 2.0
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 2 x CPU fan headers
4 x Chassis fan headers
1 x AIO pump header
1 x Water Pump fan header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
3 x M.2 slots, Key M, Type 2280 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header
3 x Thermistor Cable headers

Memory

Memory Bus Speed Up to 8200 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD X870E
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 5.0 x16 slots (@ x16/x0 or x8/x8)

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC4082

Warranty

Warranty 3 Years

Network

Integrated Network Realtek RTL8126CG
Network Speeds Supported Up to 5 Gbps
Wireless LAN Yes - Wi-Fi 7
Bluetooth Yes
Bluetooth Version 5.4

System Requirements

Operating Systems Supported Windows 11
Windows 10 64-bit

System

BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor E-ATX Motherboard

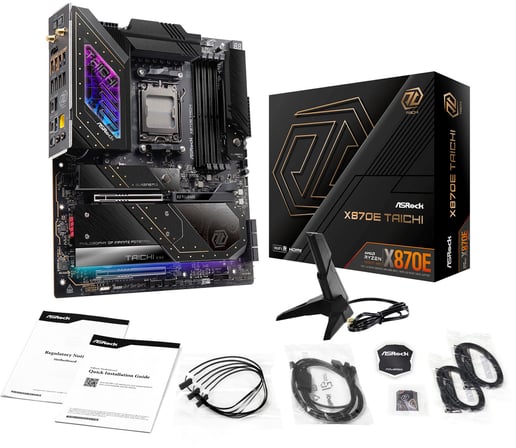

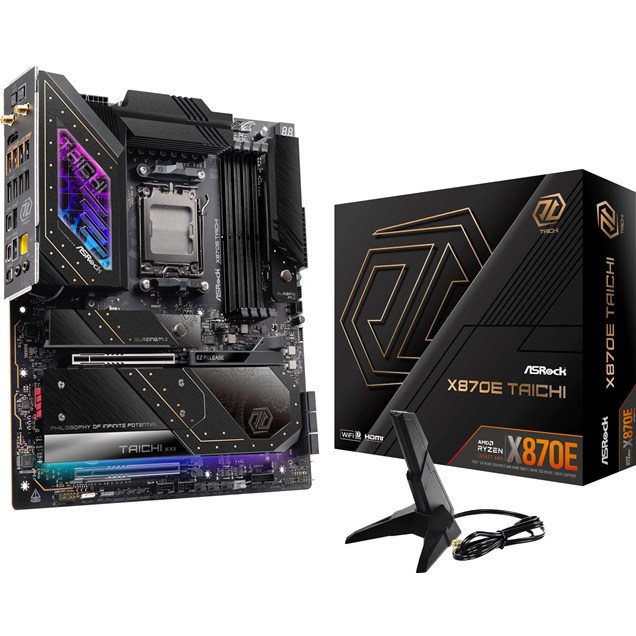

In The Box Motherboard
4 x SATA Cables
Wi-Fi Antenna
ARGB Splitter Cable
3 x Thermistor Cables
Width 267 mm
Length 305 mm

Key Features

Max Memory Speed Supported (overclocked) 8200 MT/s
CPU Power Pins (female) 16
Total M.2 Slots 4
Maximum NVMe M.2 ports 4
SATA ports 6
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1
Back Connect Support No
Wireless Network Yes
Motherboard Width 267 mm
Motherboard Height 305 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 12 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor EATX
Drive Interface Type PCIe 5.0 x4 NVMe
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset AMD X870E
Thunderbolt No
Motherboard Model ASRock X870E Taichi
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 100 W

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBP90-A0UAYZ
EAN 4710483947421
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBP90-A0UAYZ
