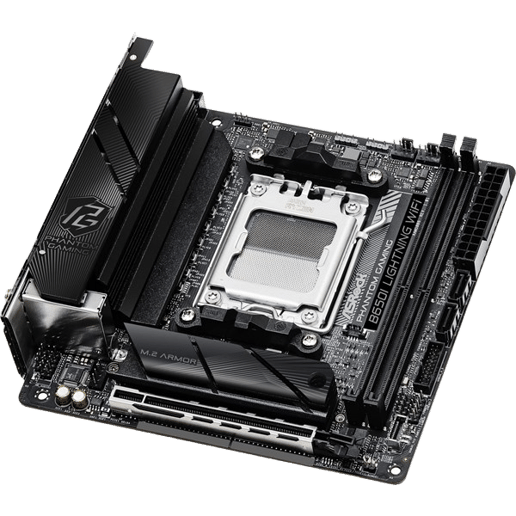

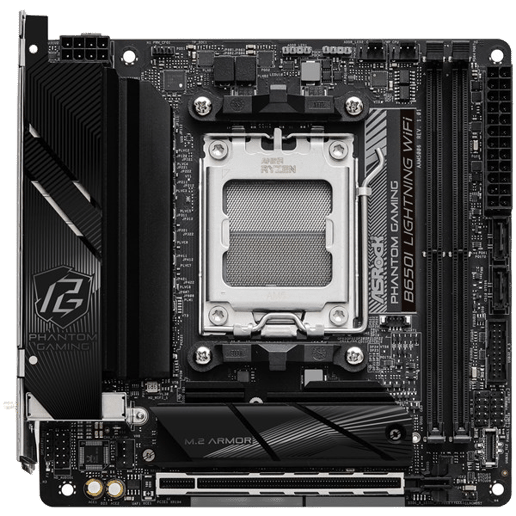

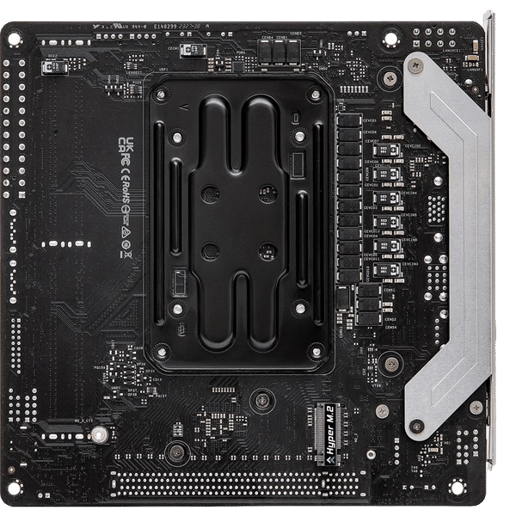

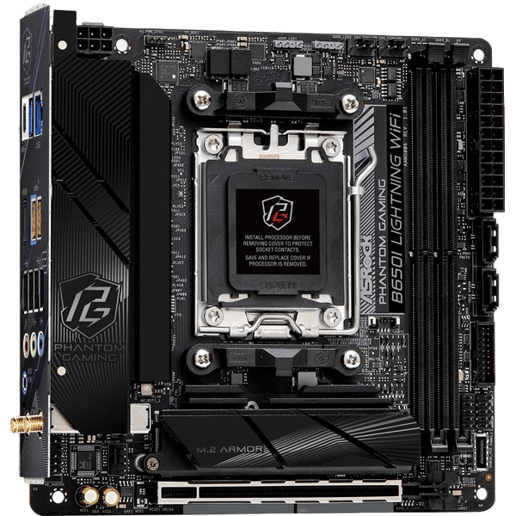

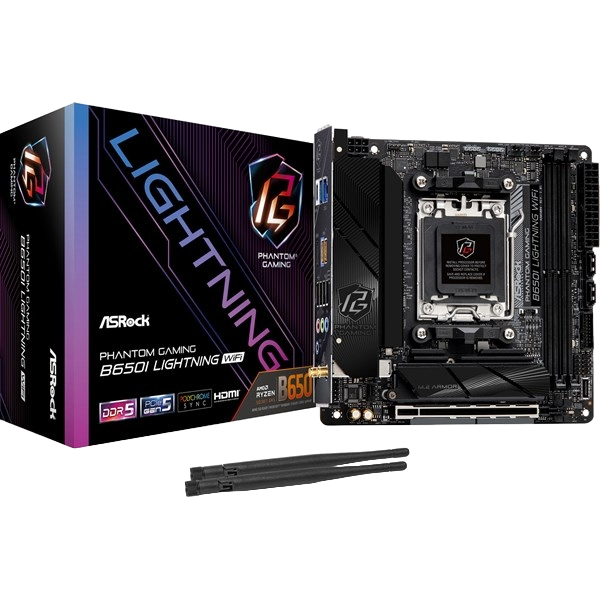

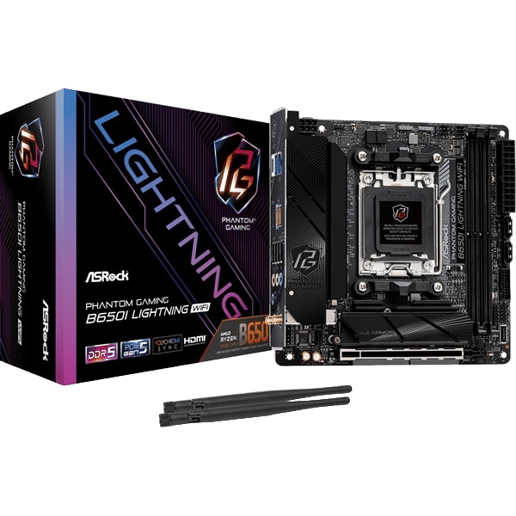

ASRock B650I Lightning WiFi ITX Motherboard for AMD Socket AM5 CPUs
SAVE £13
Available for delivery from Tuesday 9th June
Click & Collect from Wednesday 10th June
Order within
You have 0 of these in your basket
ASRock B650I Lightning WiFi Motherboard
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: Ryzen 8000 and 7000 Series Processors
- 64-bit Support: Yes
- Socket: AM5

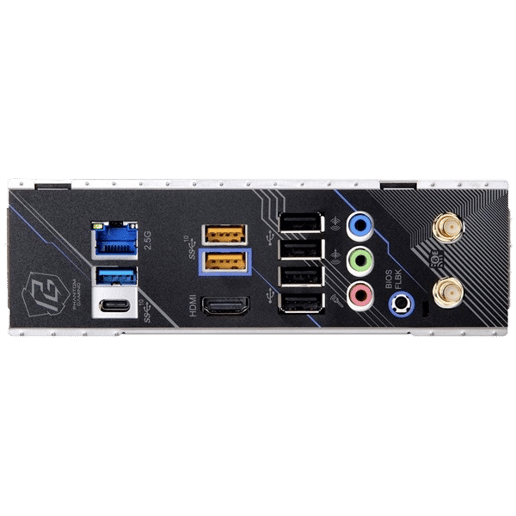

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.1
- 3 x USB 3.1
- 4 x USB 2.0
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 2 x SATA III
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Memory
- Memory Bus Speed: Up to 7200 MHz
- Memory Type: DDR5
Motherboard
- Northbridge: AMD B650
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 2 x CPU/Water Pump fan headers
- 1 x Chassis/Water Pump fan header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
- 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
- 2 x 3-pin ARGB LED headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
Memory
- Maximum RAM: 96 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Dragon RTL8125BG
- Network Speeds Supported: Up to 2.4 Gbps
- Wireless LAN: Yes - Wi-FI 6E
- Wireless Network Speed: Up to 2.4 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.2
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ITX Motherboard

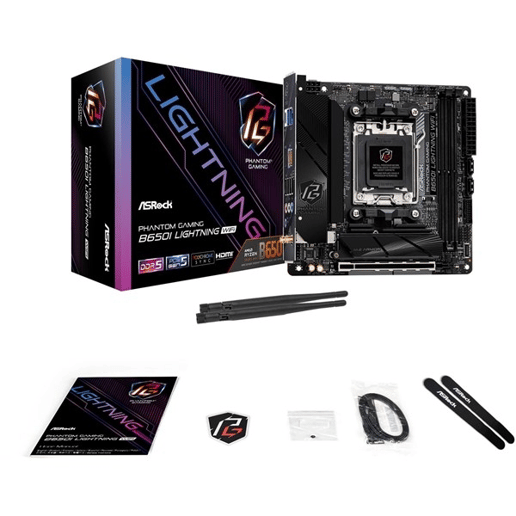

- In The Box: Motherboard
- User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- Screw for M.2 Socket
- Width: 170 mm
- Length: 170 mm
Identifiers
- Stock Code: MBD3641
- Mfg Code: 90-MXBMP0-AQUAYZ
Warranty
- Warranty: 3 Years
