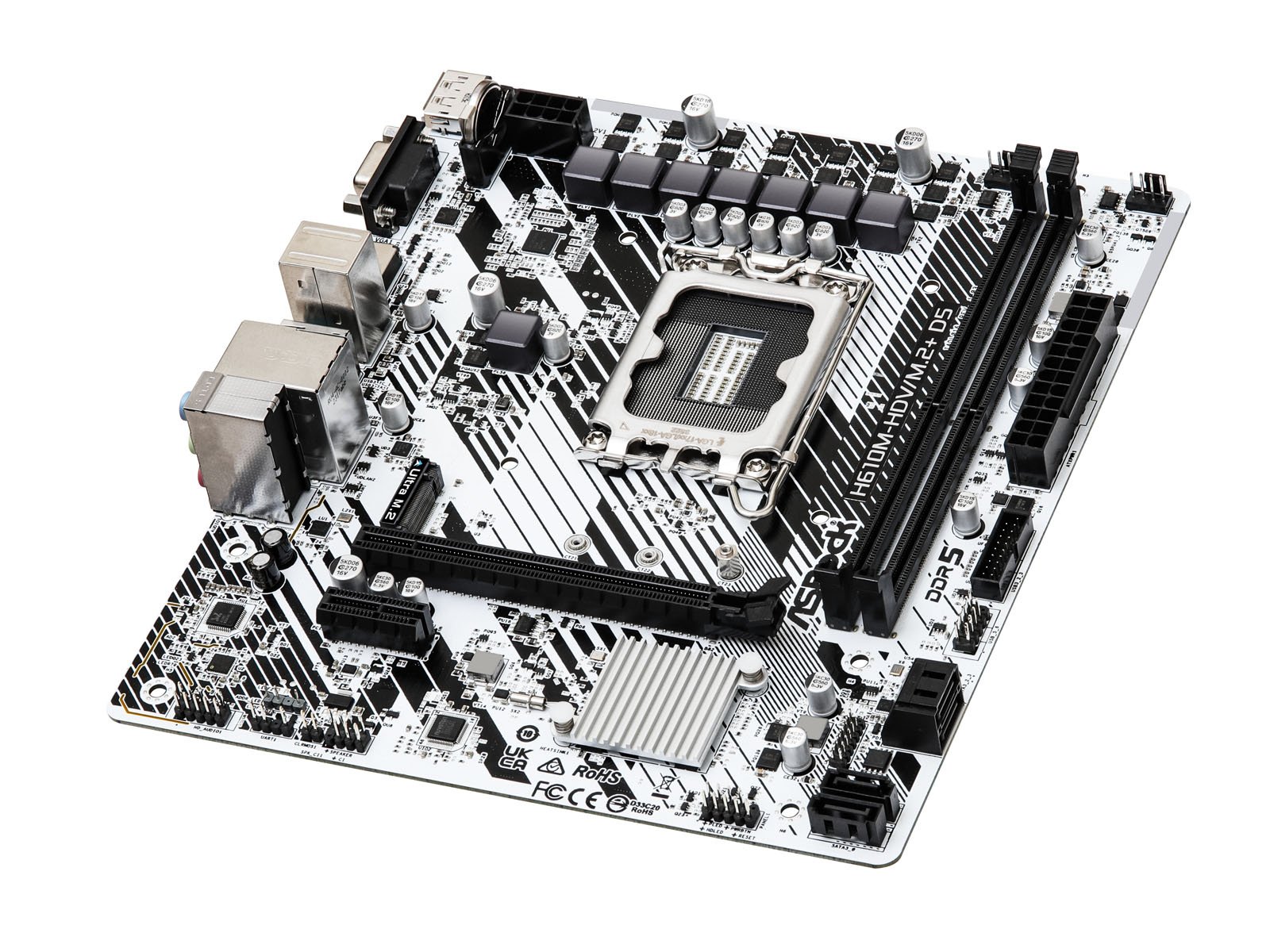

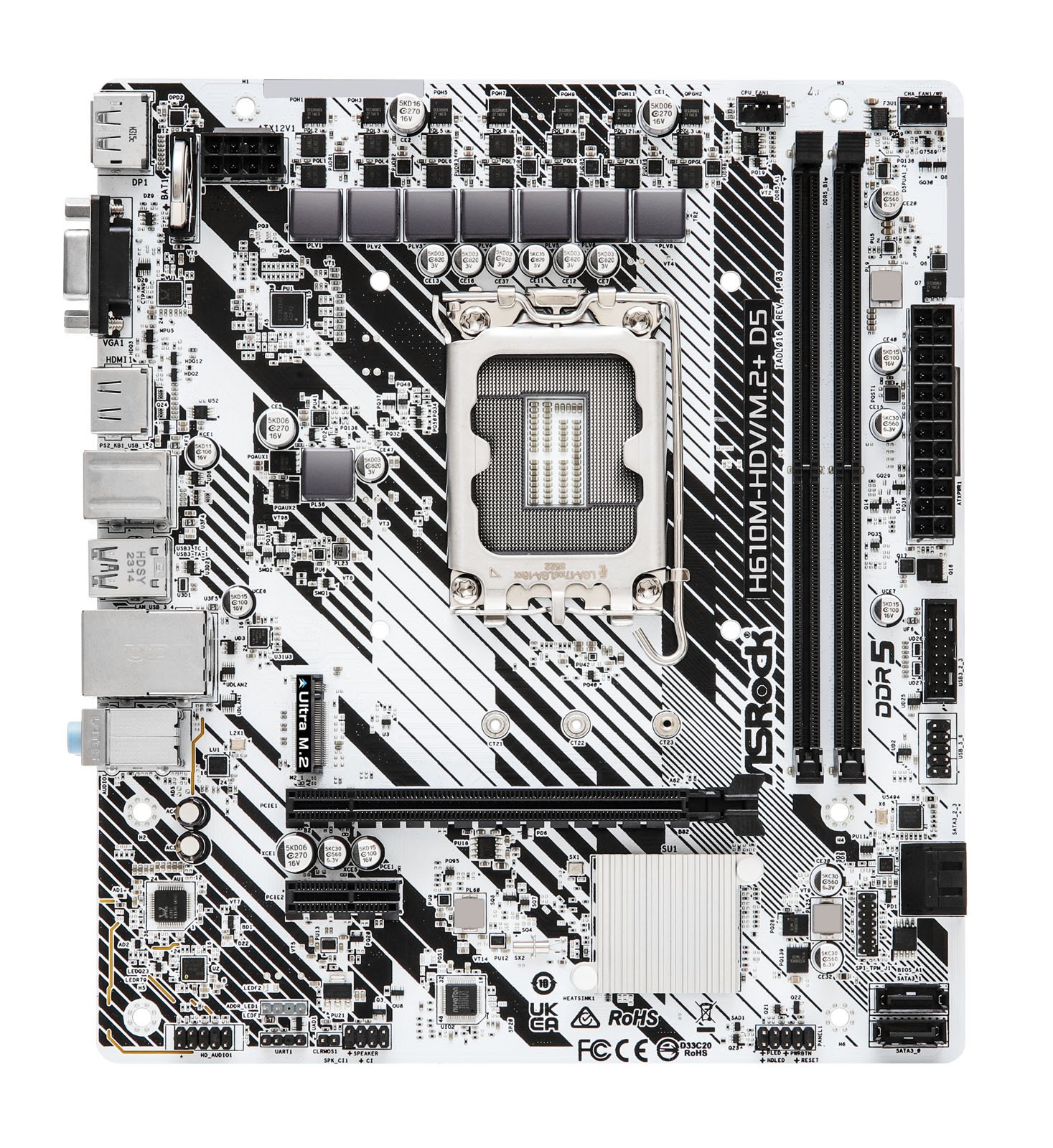

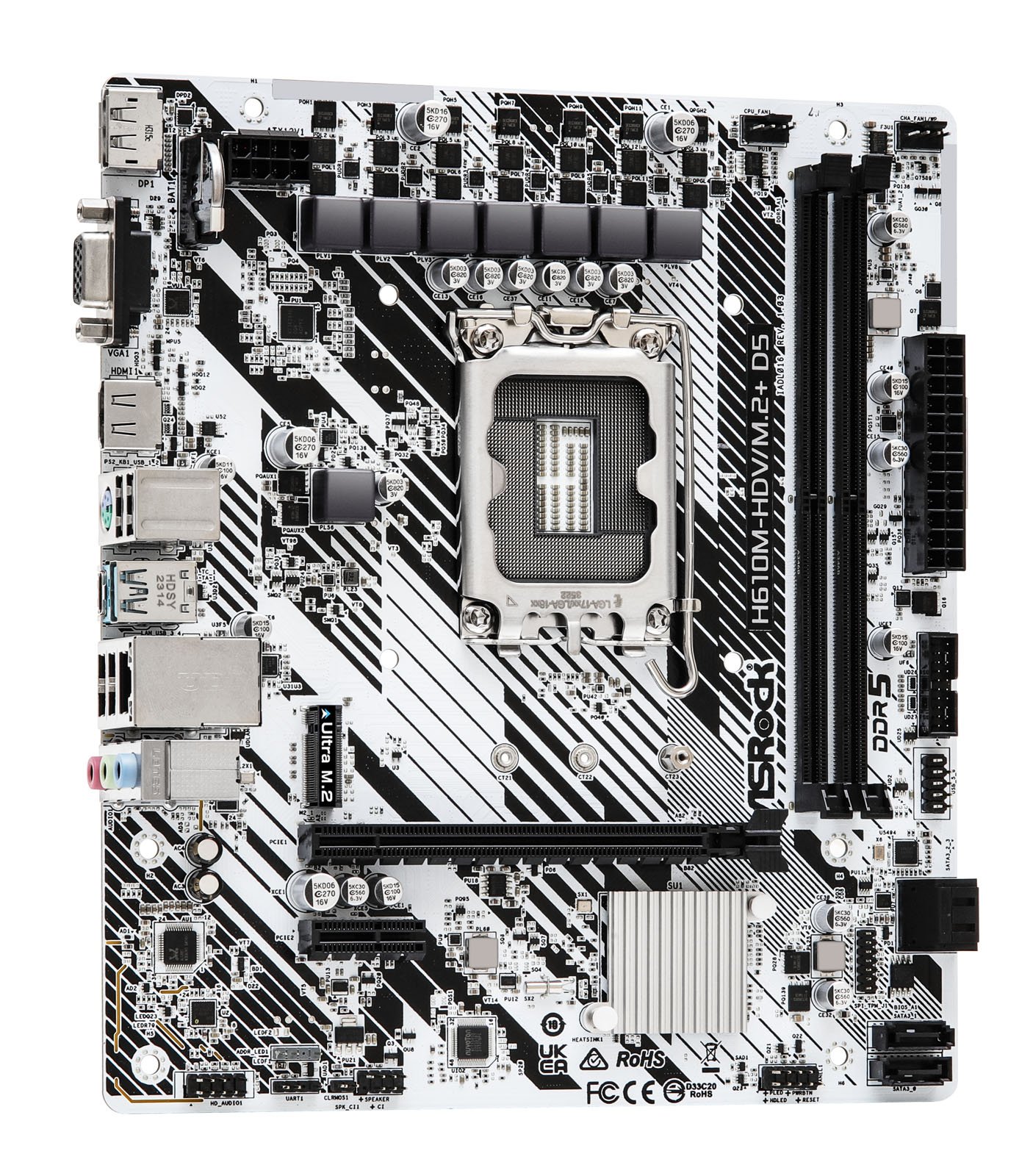

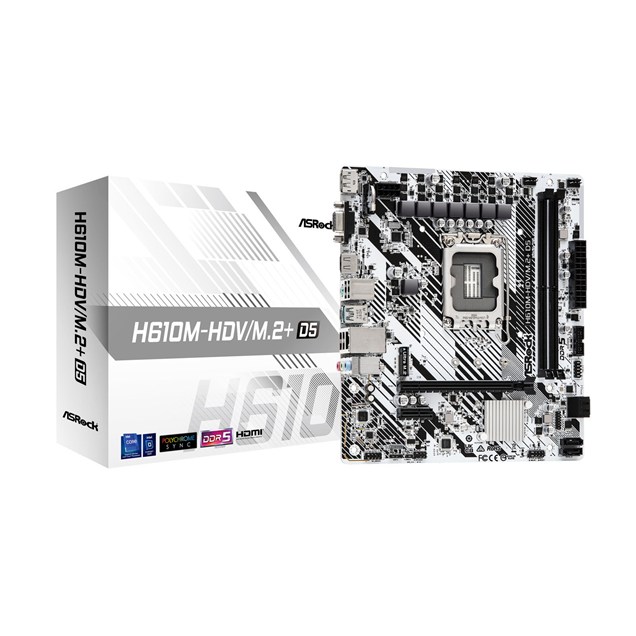

ASRock H610M-HDV/M.2+ D5 mATX Motherboard for Intel LGA1700 CPUs

ASRock H610M-HDV/M.2+ D5 mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3587

£72.99 inc VAT

ASRock H610M-HDV/M.2+ D5 mATX Motherboard for Intel LGA1700 CPUs

90-MXBM50-A0UAYZ

£72.99 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Monday 16th December

Hurry, only 3 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • Intel H610 Chipset
  • Socket 1700
  • DDR5 (Max: 96GB / 2 slots)
  • 1 x M.2 & 6 x USB & 4 x SATA
  • HDMI, Display Port and VGA
CCL Code: MBD3587
Overview

6+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

POLYCHROME RGB

This motherboard features an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects .

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

Ultra M.2 32Gb/s (PCIe Gen3 x4)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.

USB 3.2 Gen1 Type-C

USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

*Supported only with processors with integrated graphics.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Main Features

  • Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
  • 6+1+1 Power Phase
  • Supports DDR5 5600MHz
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
  • 1 USB 3.2 Gen1 Type-C (Rear), 3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front), 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 14th, 13th & 12th Gen Intel Core Processors
64-bit Support Yes
Socket LGA1700

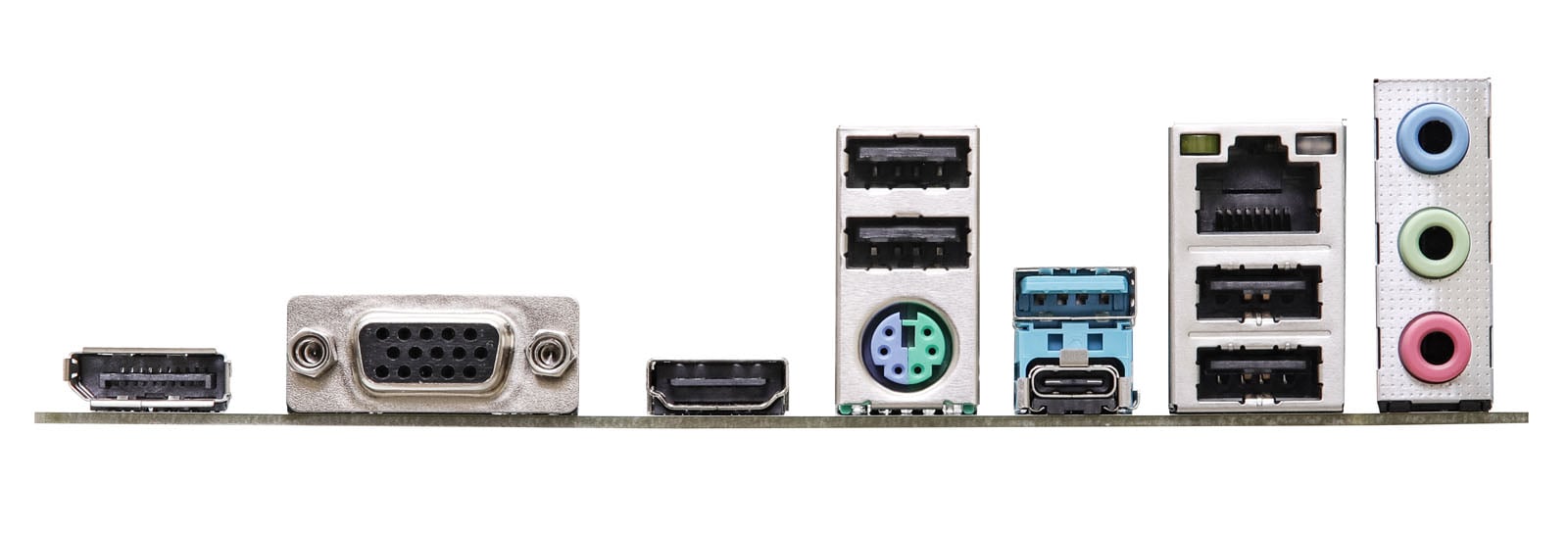

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.0
1 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Chassis/Water Pump fan header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3)
1 x 3-pin ARGB LED header

Memory

Memory Bus Speed Up to 5600 MHz
Memory Type DDR5
Maximum RAM 96 GB
Memory Slot 2 x DIMM

Motherboard

Northbridge Intel H610
RAID Supported No
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC897

Warranty

Warranty 3 Years

Network

Integrated Network Realtek 8111H
Network Speeds Supported Up to 1 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard

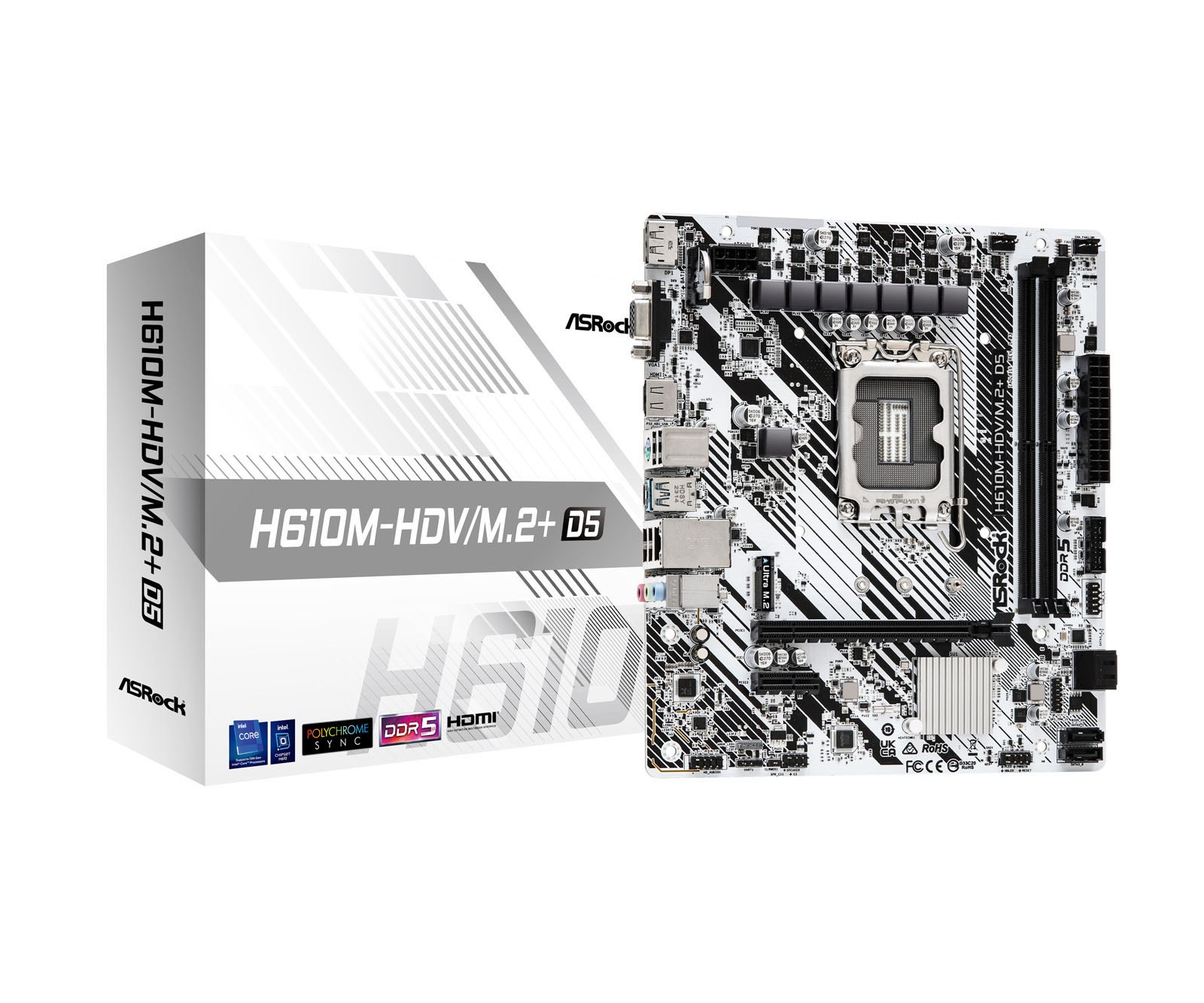

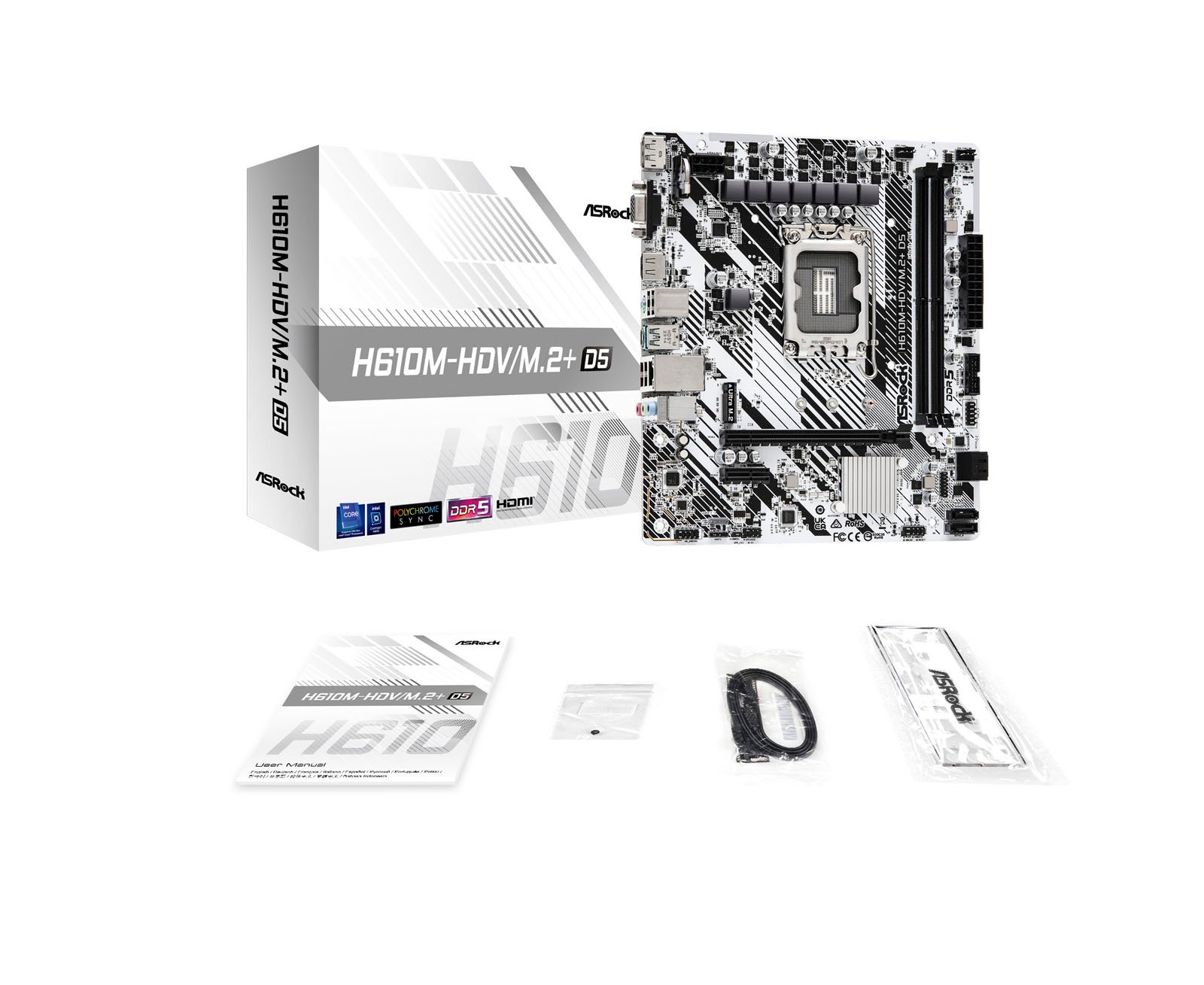

In The Box Motherboard
User Manual
I/O Shield
2 x SATA Cables
M.2 Screw
Width 193 mm
Length 220 mm

Key Features

Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 1
Maximum NVMe M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 2
No. of front USB3.0 ports supported 2
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network No
Motherboard Width 193 mm
Motherboard Height 220 mm
mSATA Supported No
U.2 Supported No
Main Colour White
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset Intel H610
Thunderbolt No
Motherboard Model ASRock H610M-HDV/M.2+ D5
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header No

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBM50-A0UAYZ
EAN 4710483943478
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBM50-A0UAYZ
