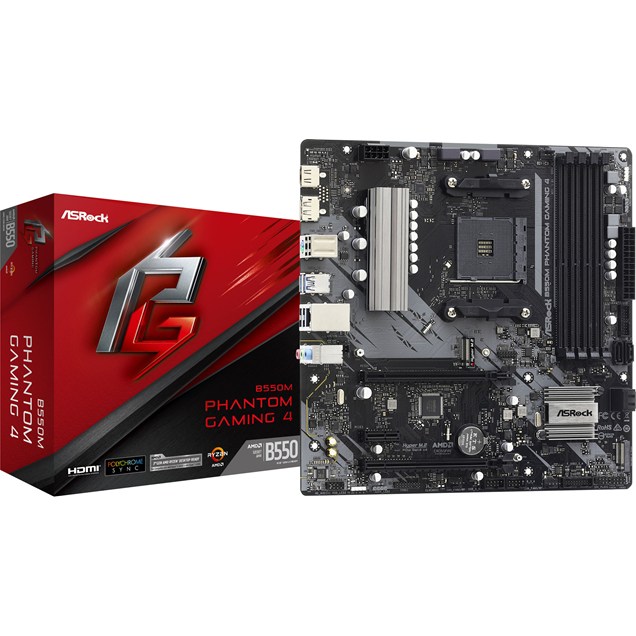

ASRock B550M Phantom Gaming 4 mATX Motherboard for AMD AM4 CPUs
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 2280 M.2
Ready for higher capacity and even faster Type 2280 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.
Super Alloy Motherboard
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM4
Rear Panel I/O Ports
- USB Ports: 4 x USB 3.0
- 2 x USB 2.0
- DisplayPorts: 1 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 2 x USB 3.0 headers (supports 4 ports)
- 2 x USB 2.0 headers (supports 4 ports)
- Speaker: 1 x Speaker header
Memory
- Memory Bus Speed: 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- Memory Type: DDR4
Motherboard
- Chipset Manufacturer: AMD
- Northbridge: B550
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Cooling Fan Support: 1 x CPU fan header
- 3 x Chassis/Water Pump fan headers
- TPM Header: 1 x SPI TPM header
- Power Connector Port: 1 x 20+4-pin ATX
- 1 x 4+4-pin EPS
- Other Connectors: 2 x M.2, Socket 3, M Key (Type 2280)
- 2 x 3-pin ARGB LED headers
- 2 x 4-pin RGB LED headers
Expansion
- Number of PCI Express Slots: 2 x PCI Express 3.0 x16 (@ x16, x4)
- 1 x PCI Express 3.0 x1
Memory
- Maximum RAM: 128 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC887/897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek RTL8111H
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: No
- Bluetooth: No
System Requirements
- Operating Systems Supported: Microsoft Windows 10 64-bit
System
- BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, Voltage Multi-adjustment
- SLi/Crossfire Features: Supports AMD Quad CrossFireX and CrossFireX
Physical
- Form Factor: MicroATX Motherboard

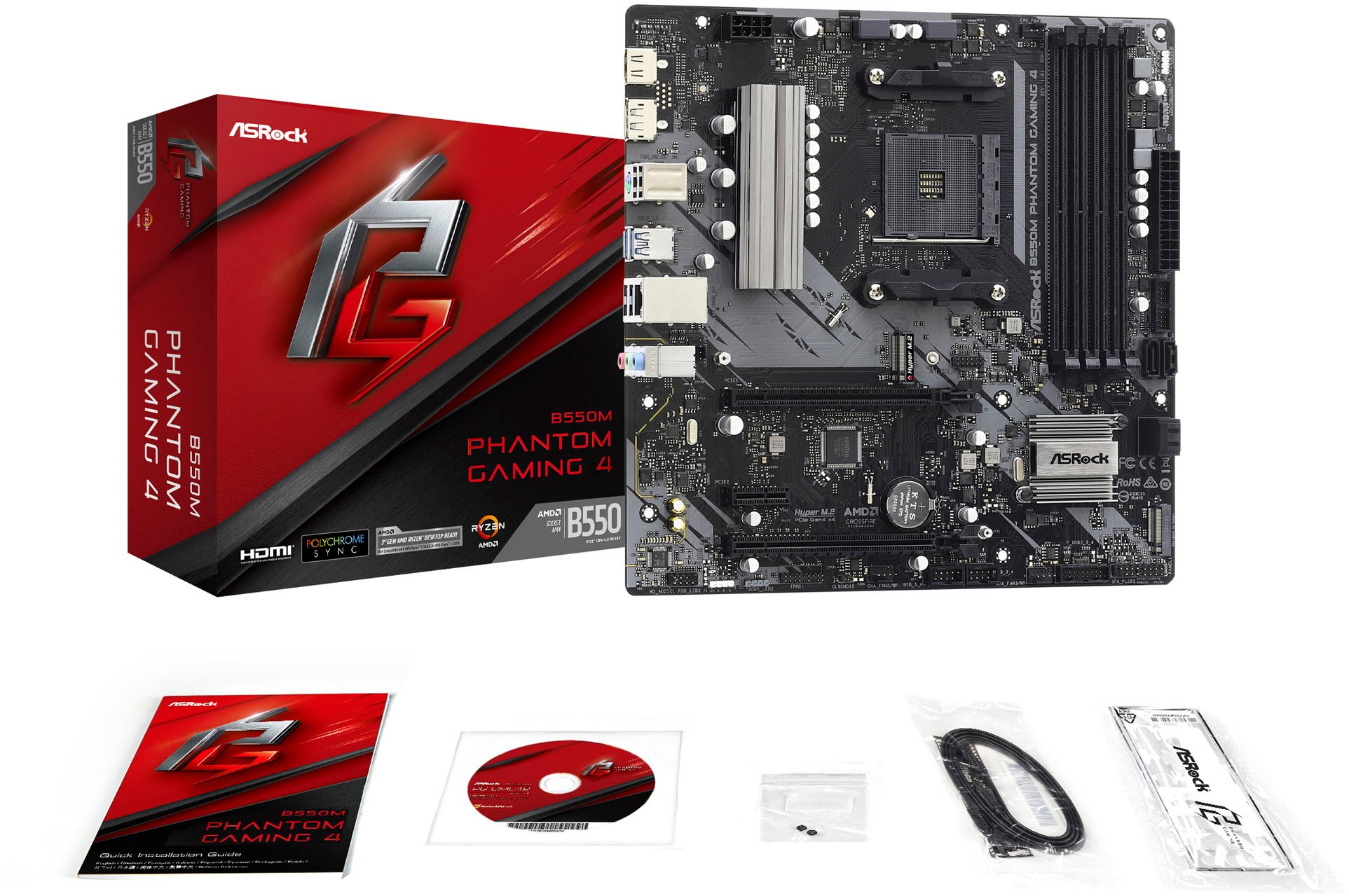

- In The Box: B550M PHANTOM GAMING 4 Motherboard
- Quick Installation Guide
- Support CD
- I/O Shield
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets
- Width: 244 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD2958
- Mfg Code: 90-MXBE90-A0UAYZ
Warranty
- Warranty: 3 Years
