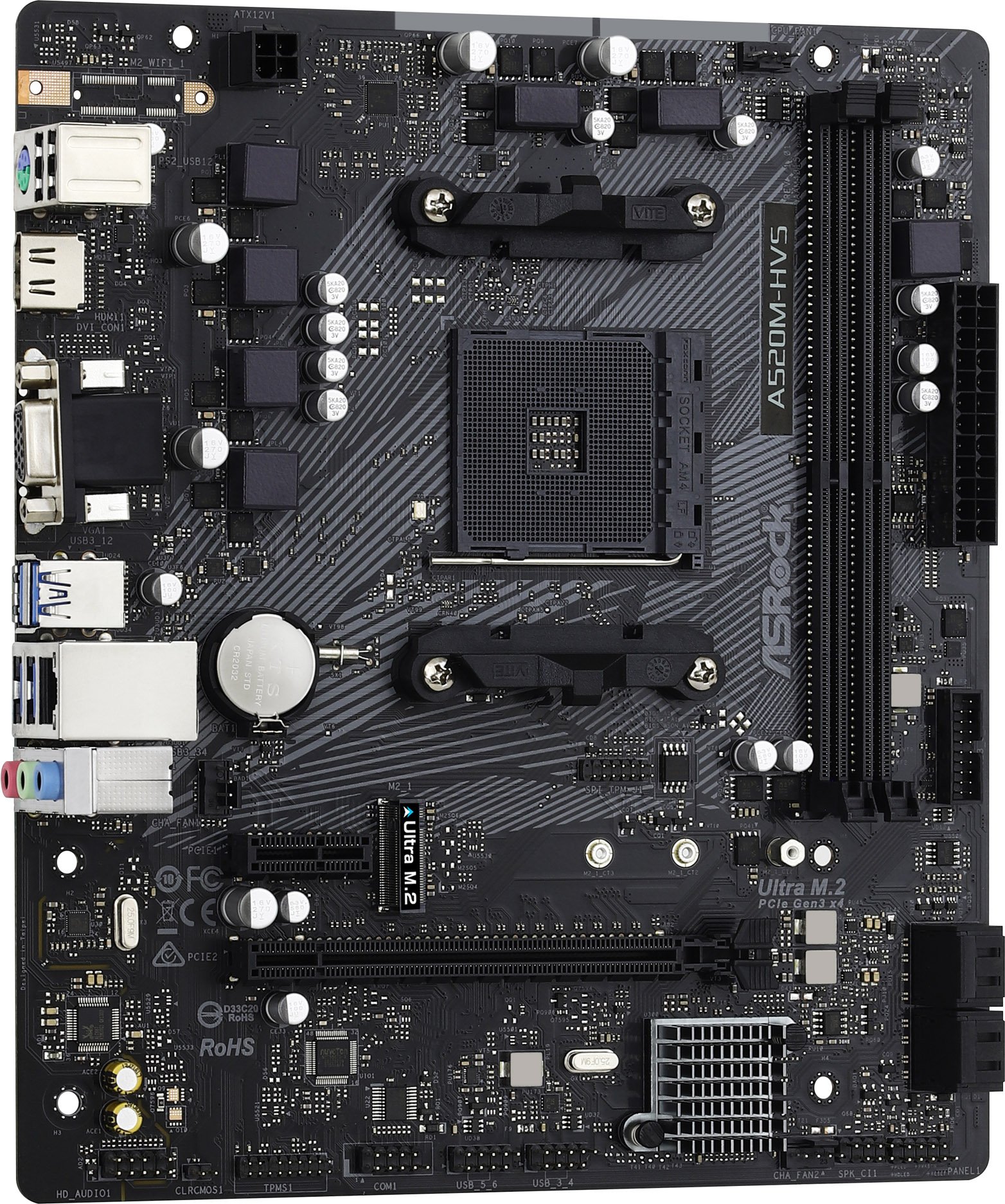

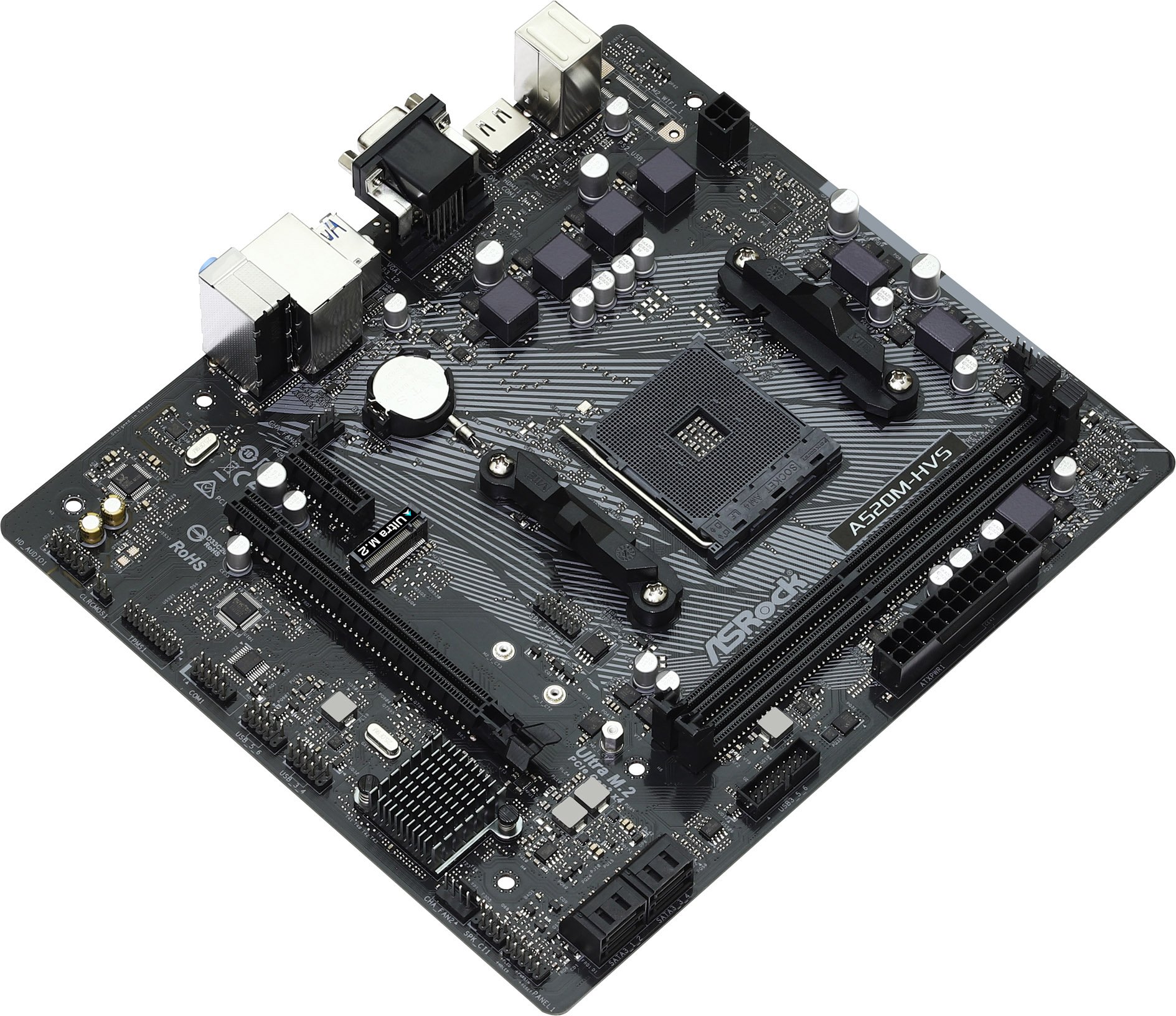

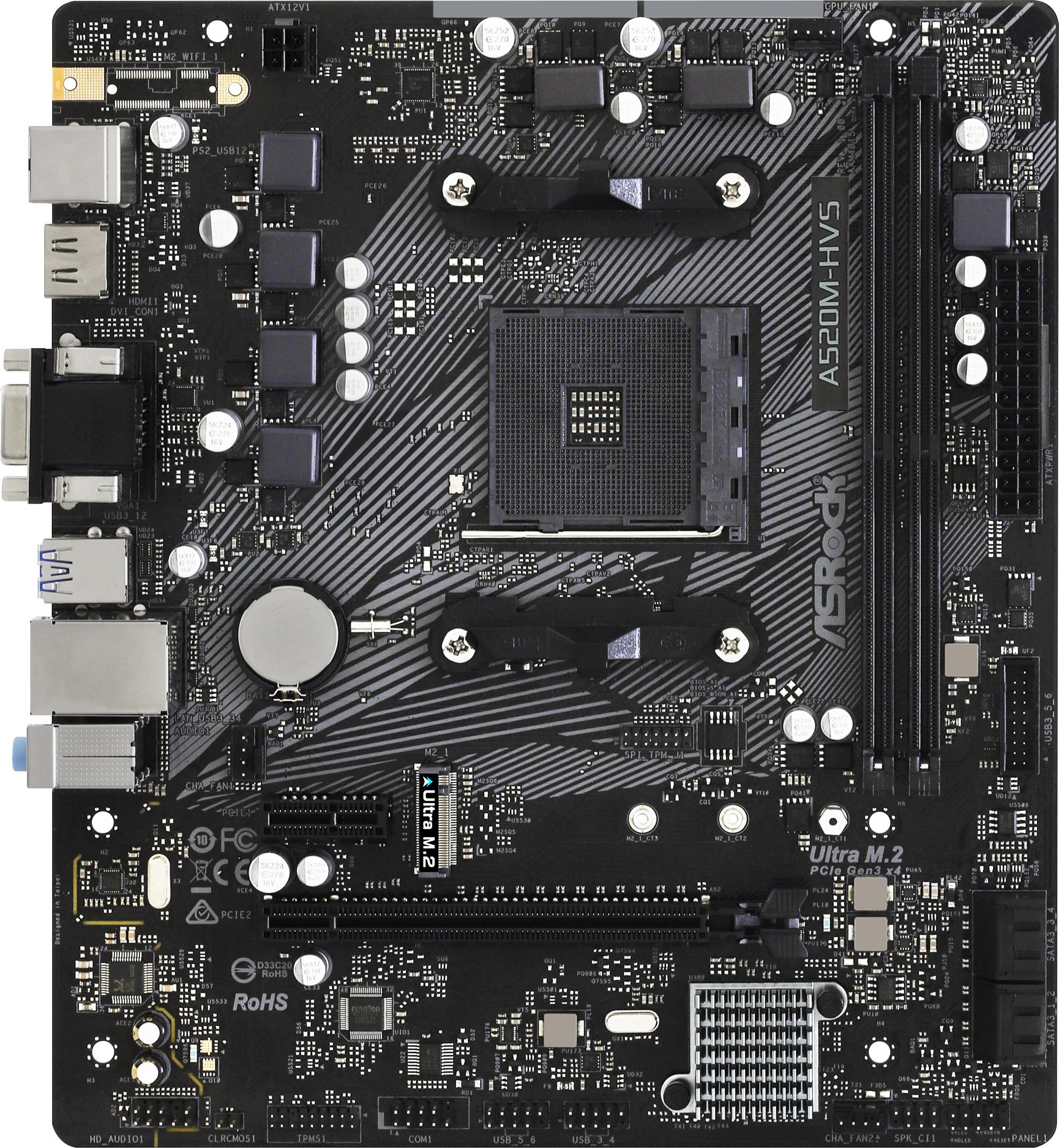

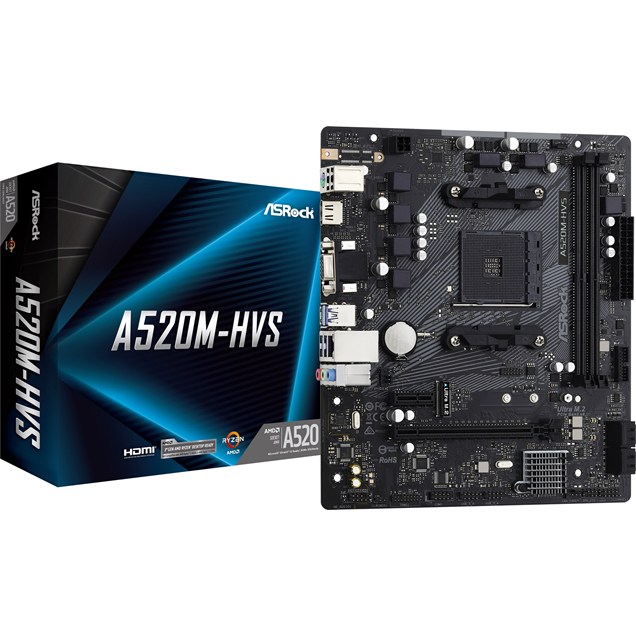

ASRock A520M-HVS mATX Motherboard for AMD AM4 CPUs

ASRock A520M-HVS mATX Motherboard for AMD AM4 CPUs

CCL Code: MBD2930

Was £56.99

SAVE 12%

Now only

£49.99 inc VAT

ASRock A520M-HVS mATX Motherboard for AMD AM4 CPUs

90-MXBE60-A0UAYZ

Was £56.99

SAVE 12%

Now only

£49.99 inc VAT

Available for delivery from Thursday 18th July

or Click & Collect from Tomorrow

Hurry, only 1 left!

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • AMD A520 Chipset
  • Socket AM4
  • DDR4 (Max: 64GB / 2 slots)
  • 1 x M.2 & 6 x USB & 4 x SATA
  • HDMI and VGA
CCL Code: MBD2930
Overview

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.

Super Alloy Motherboard

Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Main Features

  • Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors(3000 and 4000 Series Processors)
  • 6 Phase Power Design
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
  • 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
  • 6 x USB 2.0(2 x Rear, 4 x Front)
  • Realtek Gigabit LAN
Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)
64-bit Support Yes
Socket AM4

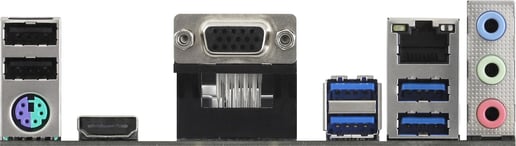

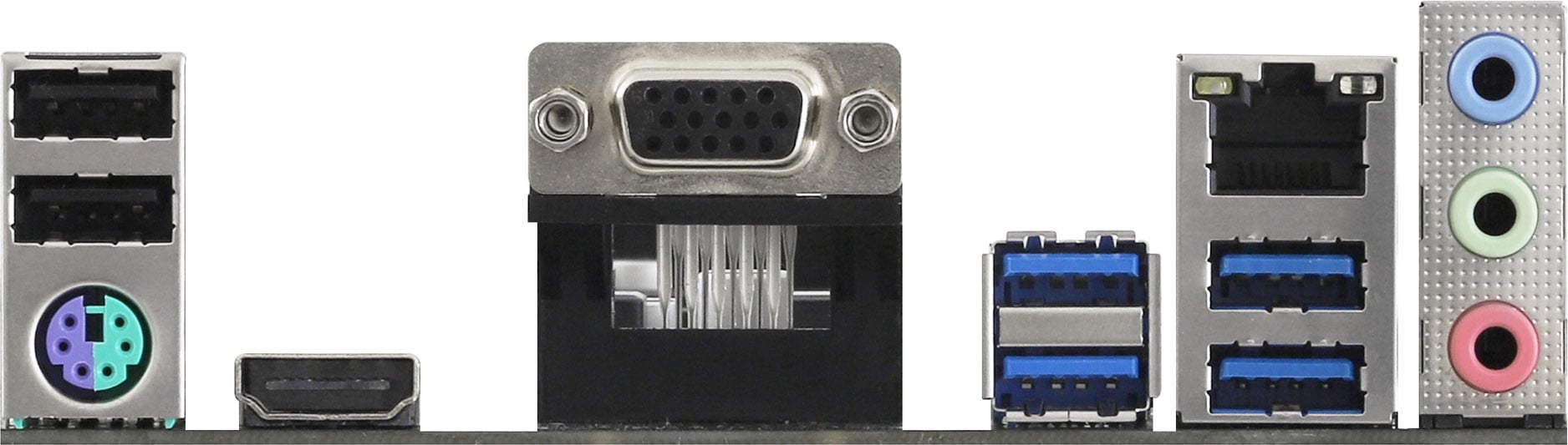

Rear Panel I/O Ports

USB Ports 4 x USB 3.0
2 x USB 2.0
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub (VGA)
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
2 x Chassis fan headers
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 20+4-pin ATX
1 x 4-pin EPS
Other Connectors 1 x M.2, Socket 3, M Key (Type 2242/2260/2280)

Memory

Memory Bus Speed 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Memory Type DDR4
Maximum RAM 64 GB
Memory Slot 2 x DIMM

Motherboard

Chipset Manufacturer AMD
Northbridge A520
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 3.0 x16
1 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek ALC887

Network

Integrated Network Realtek RTL8111H
Network Speeds Supported 10/100/1000 Mbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor MicroATX Motherboard

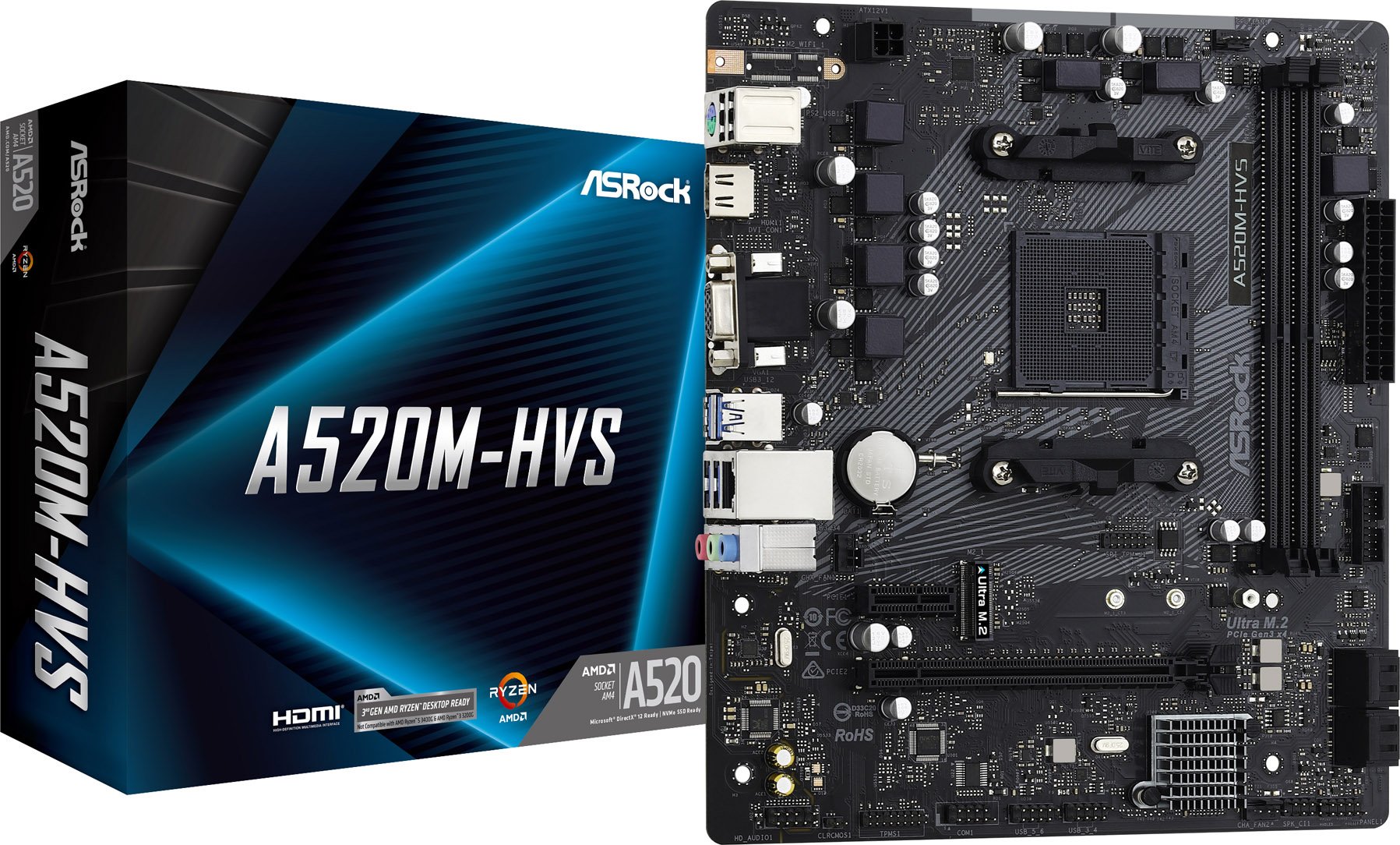

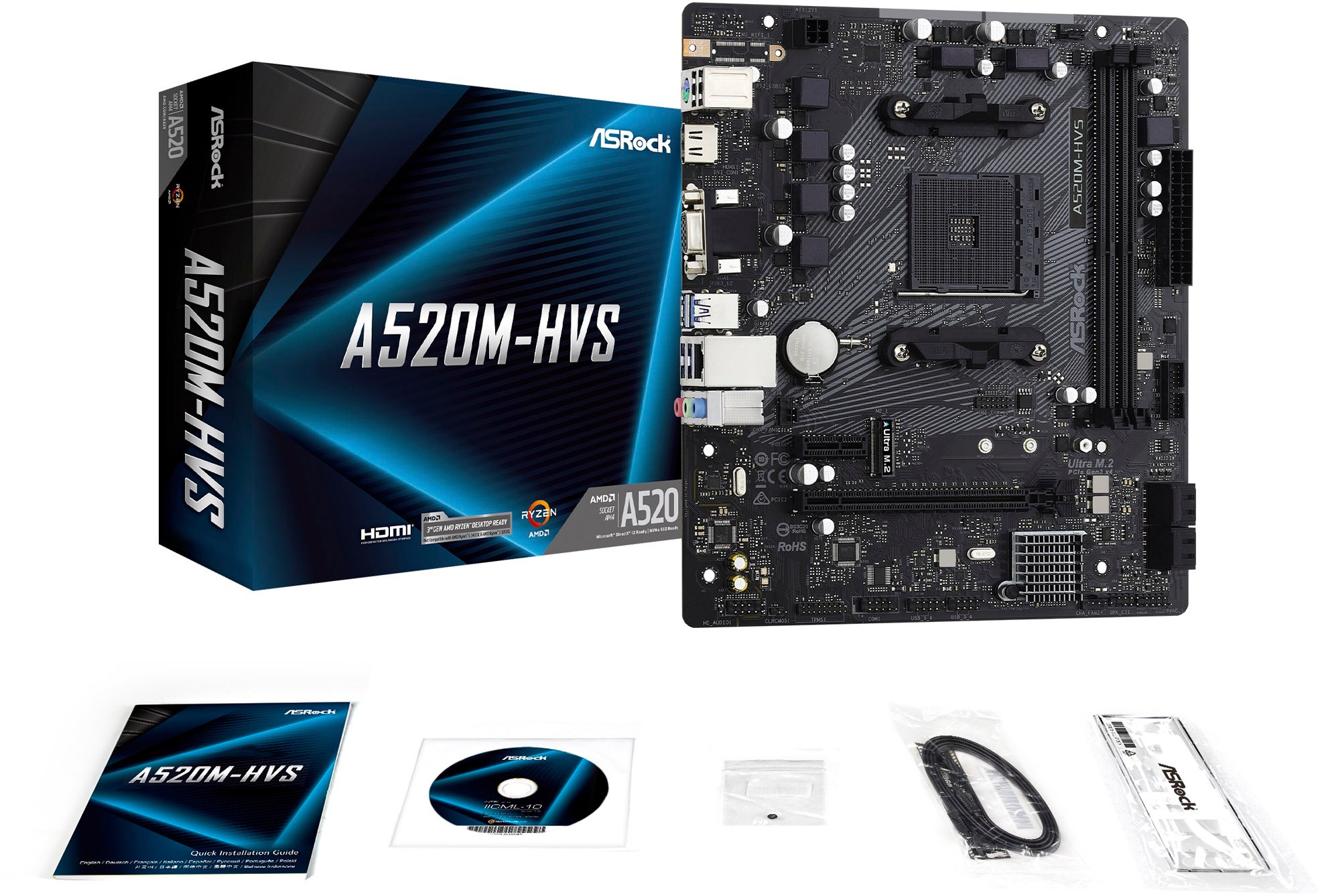

In The Box ASRock A520M-HVS Motherboard
Quick Installation Guide
Support CD
I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Width 230 mm
Length 201 mm

Key Features

Firewire No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4-Pin
Motherboard Chipset AMD A520
Thunderbolt No
Motherboard Model ASRock A520M-HVS
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control None
Memory Speed 4733 MT/s
RGB Header Type None
Addressable RGB No
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 3200 MT/s
Max Memory Speed Supported (overclocked) 4600 MT/s
CPU Power Pins (female) 4
Total M.2 Slots 1
Maximum NVMe M.2 ports 1
Maximum SATA M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBE60-A0UAYZ
Alternative Part Number A520M-HVS
EAN 4710483932311
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBE60-A0UAYZ
