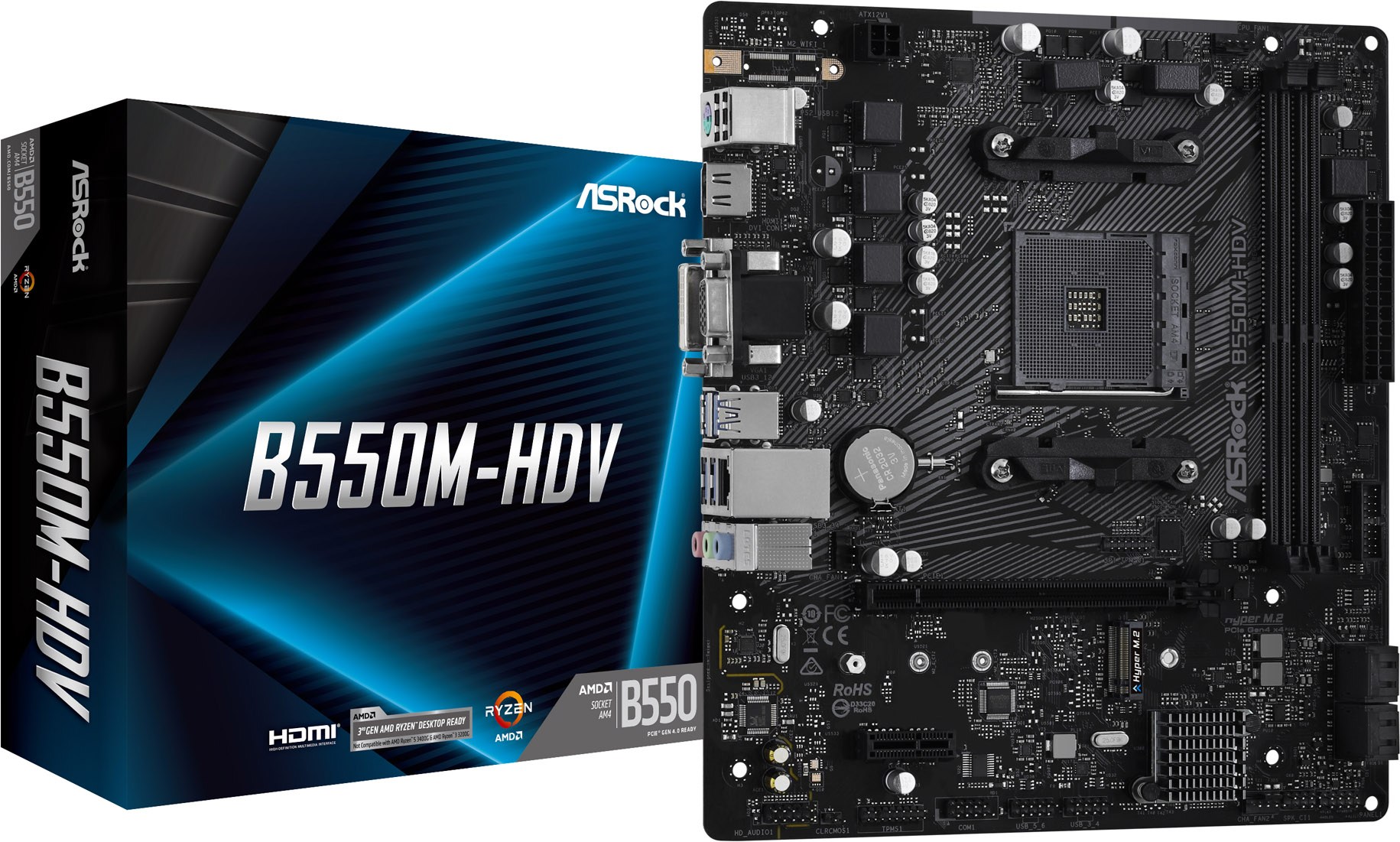

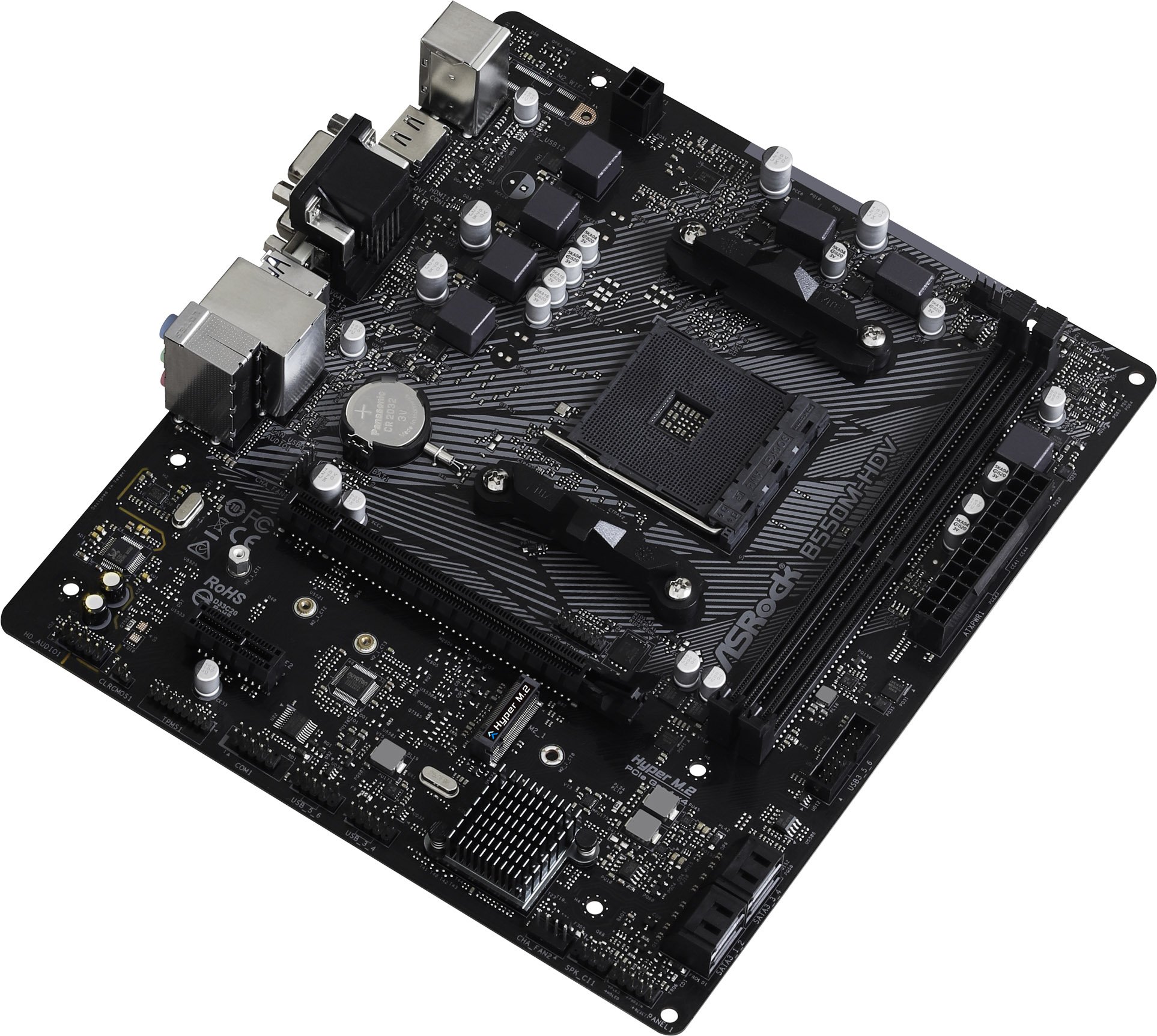

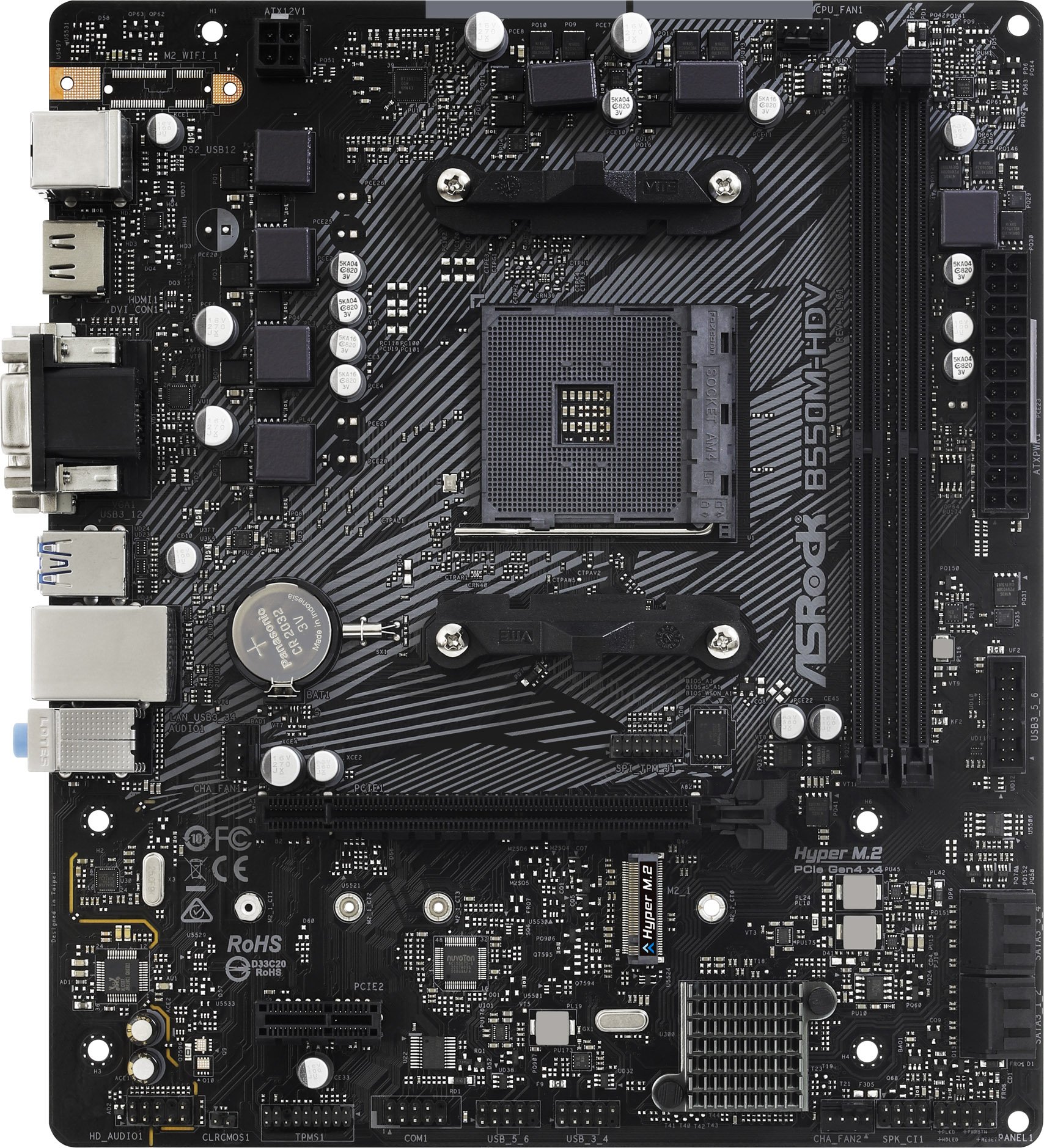

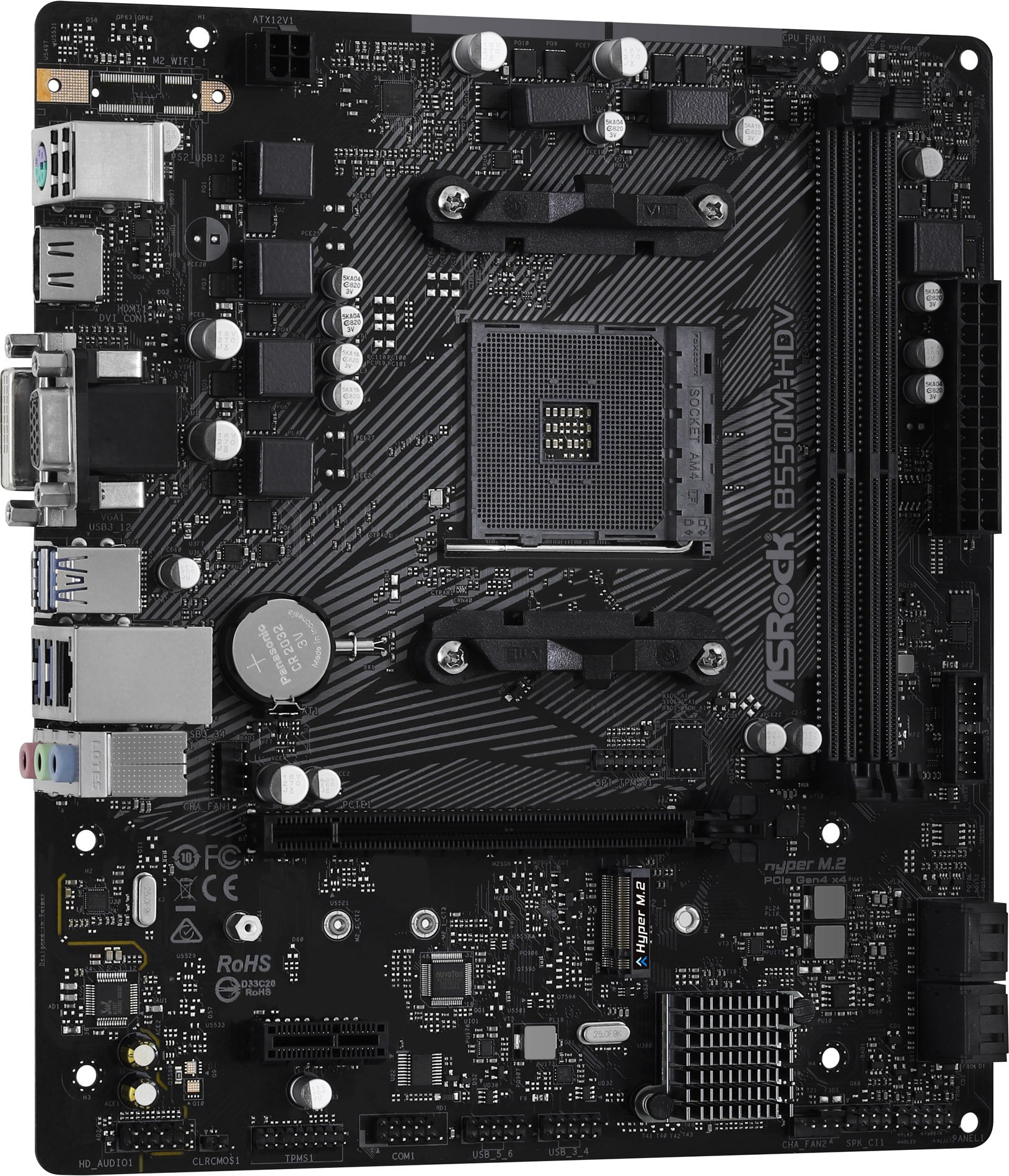

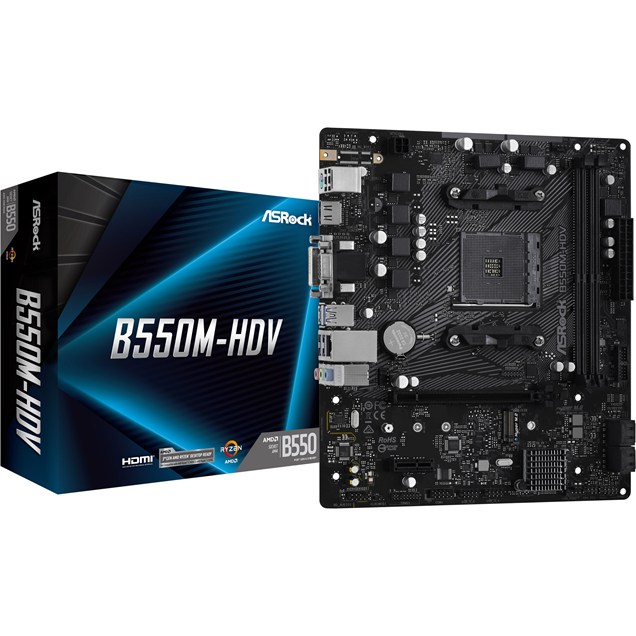

ASRock B550M-HDV mATX Motherboard for AMD AM4 CPUs
Available for delivery from Tomorrow
Click & Collect from Friday 12th June
Order within
You have 0 of these in your basket
6 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Hyper M.2 (PCIe Gen4 x4)
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Super Alloy Motherboard
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors *Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
- 64-bit Support: Yes
- Socket: AM4

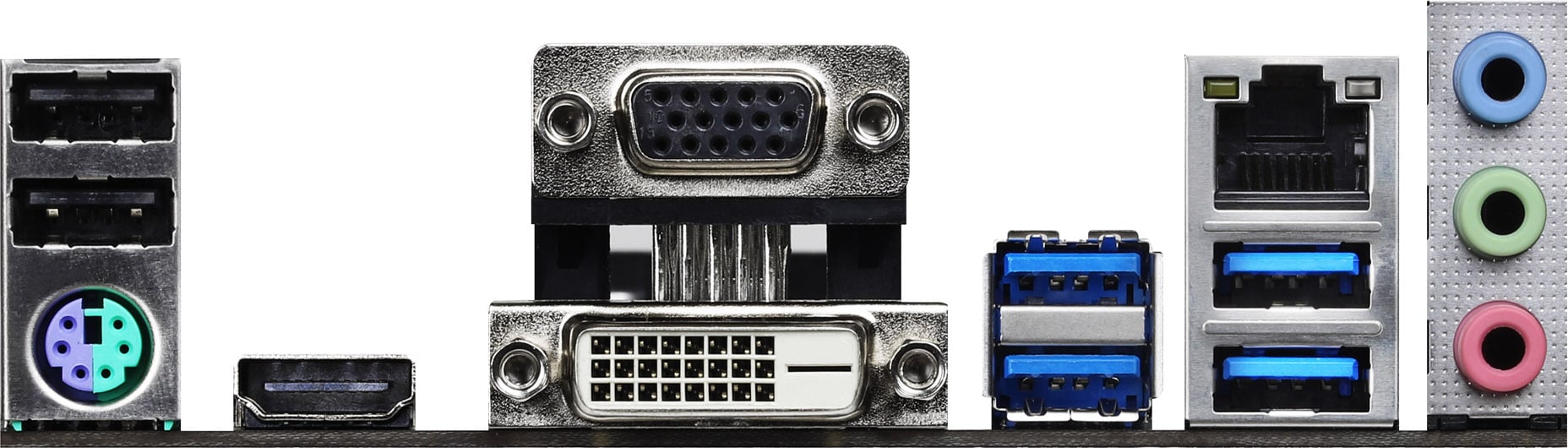

Rear Panel I/O Ports
- USB Ports: 4 x USB 3.0
- 2 x USB 2.0
- HDMI Port: 1 x HDMI 2.1
- VGA Port: 1 x D-Sub (VGA)
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
- Speaker: 1 x Speaker header
Memory
- Memory Bus Speed: 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- Memory Type: DDR4
Motherboard
- Chipset Manufacturer: AMD
- Northbridge: B550
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Digital Port: 1 x DVI-D
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 2 x Chassis fan headers
- Serial Connectors: 1 x COM header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x SPI TPM header
- Power Connector Port: 1 x 20+4-pin ATX
- 1 x 4-pin EPS
- Other Connectors: 1 x M.2, Socket 3, M Key (Type 2242/2260/2280)
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16
- 1 x PCI Express 3.0 x1
Memory
- Maximum RAM: 64 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC887
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek RTL8111H
- Network Speeds Supported: 10/100/1000 Mbps
- Wireless LAN: No
- Bluetooth: No
System Requirements
- Operating Systems Supported: Microsoft Windows 10 64-bit
System
- BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: MicroATX Motherboard

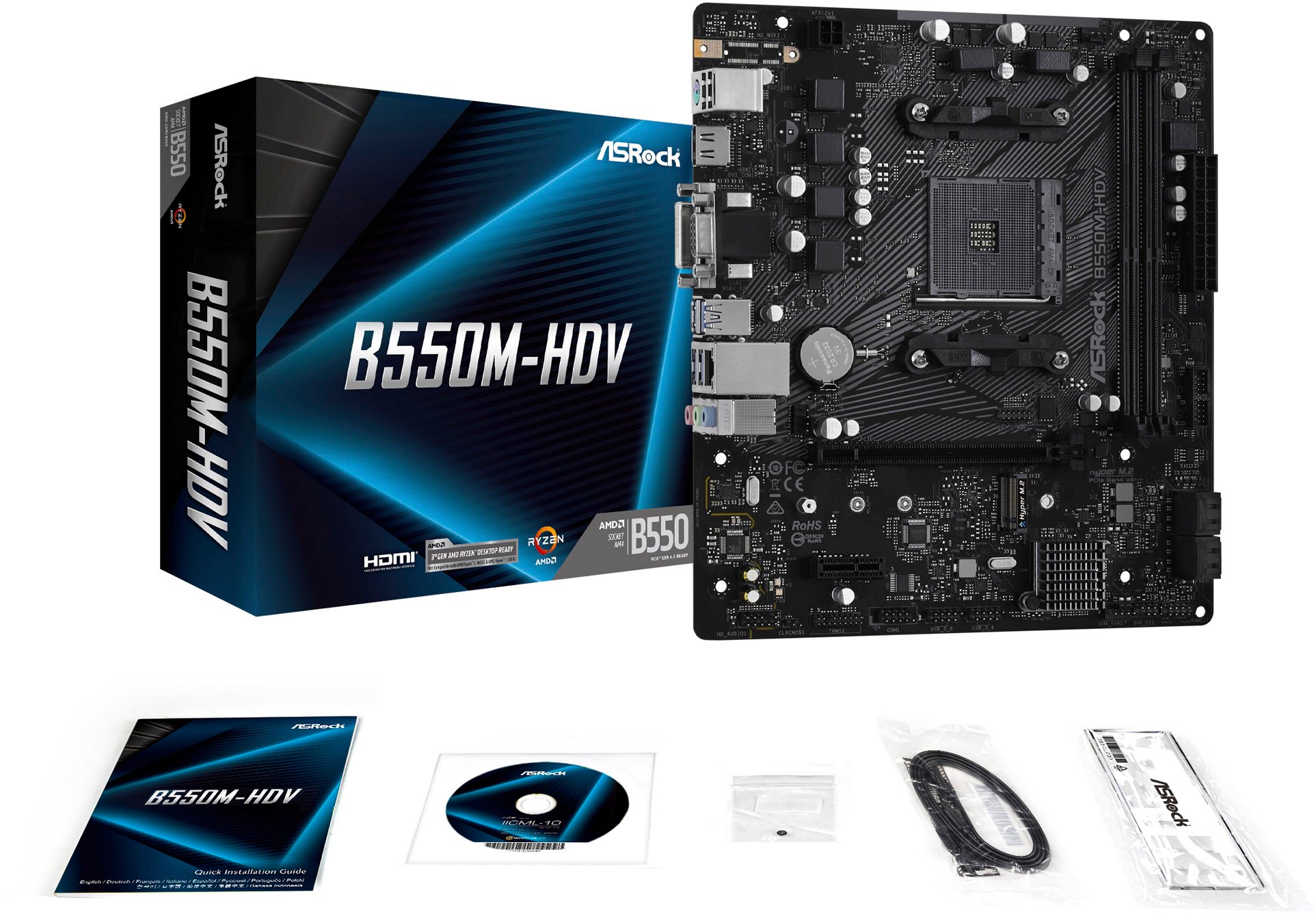

- In The Box: B550M-HDV Motherboard
- Quick Installation Guide
- Support CD
- I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
- Width: 230 mm
- Length: 201 mm
Identifiers
- Stock Code: MBD2869
- Mfg Code: 90-MXBDJ0-A0UAYZ
Warranty
- Warranty: 3 Years
