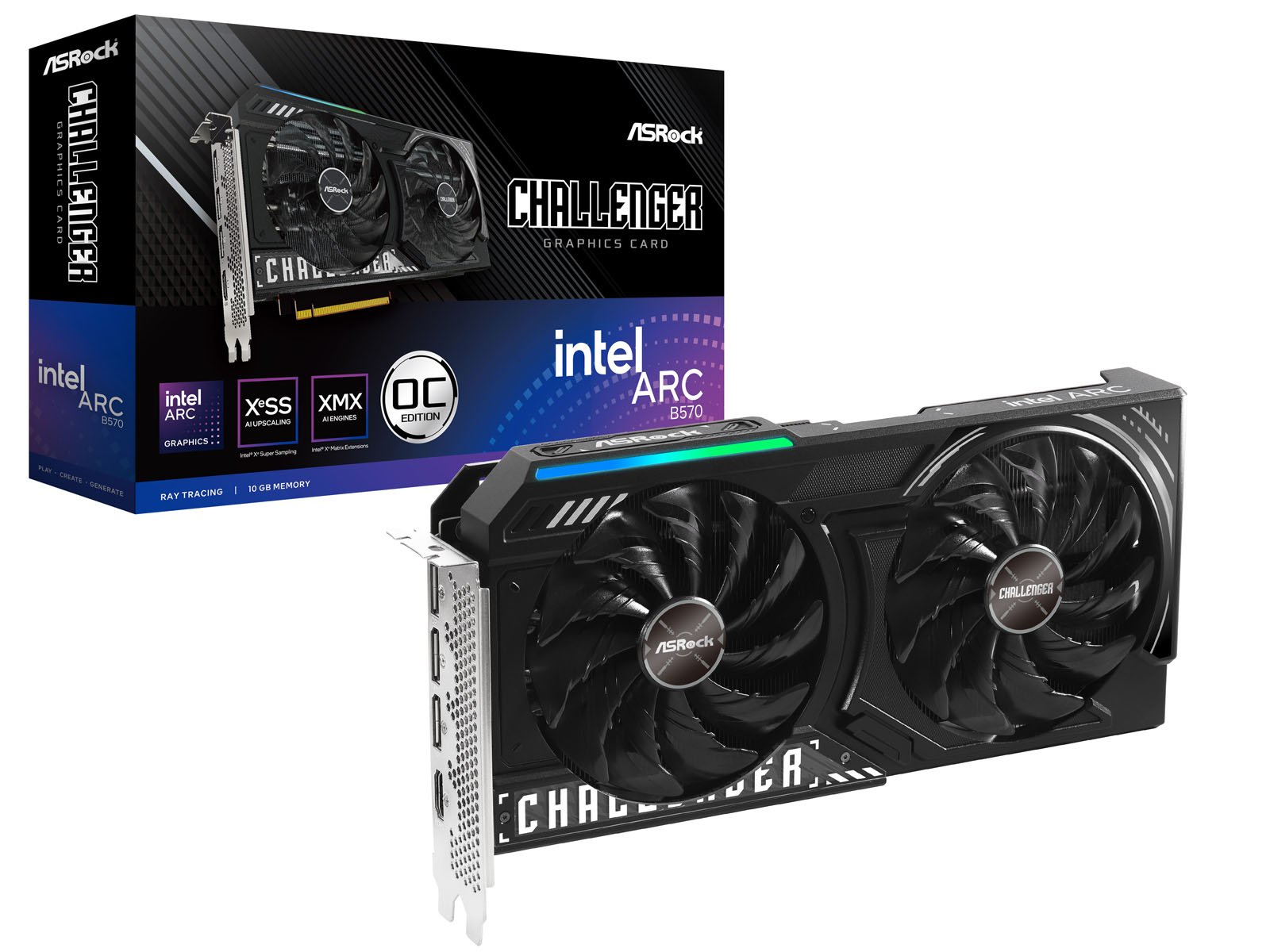

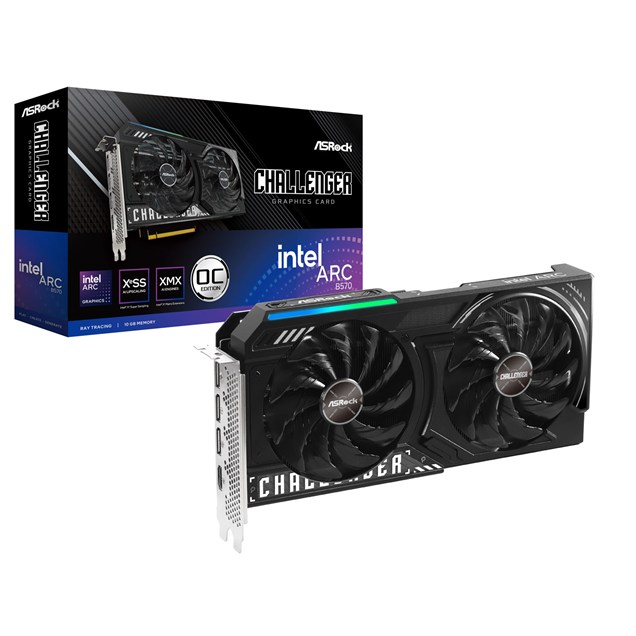

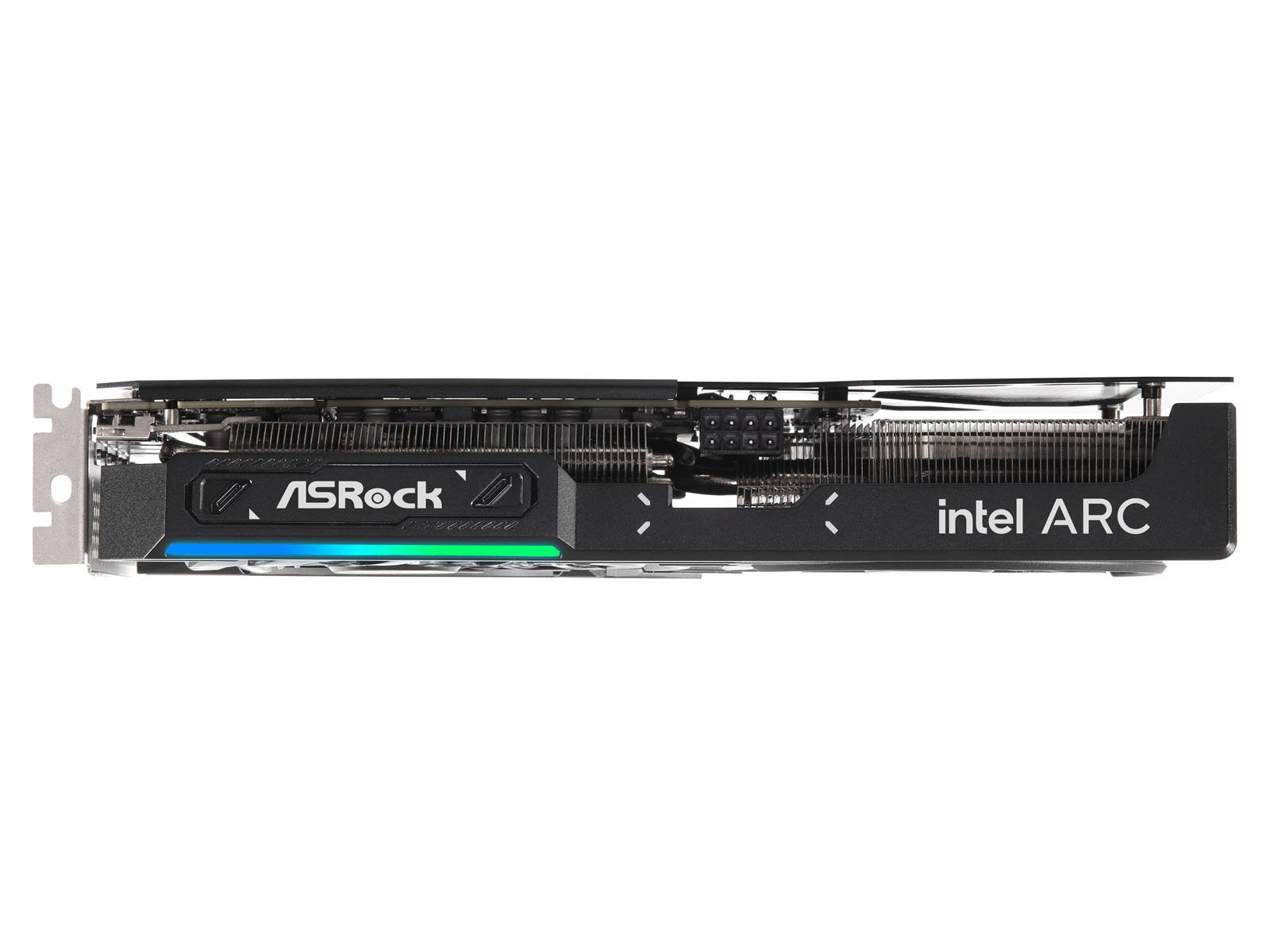

ASRock Intel Arc B570 Challenger OC 10GB GDDR6 Graphics Card

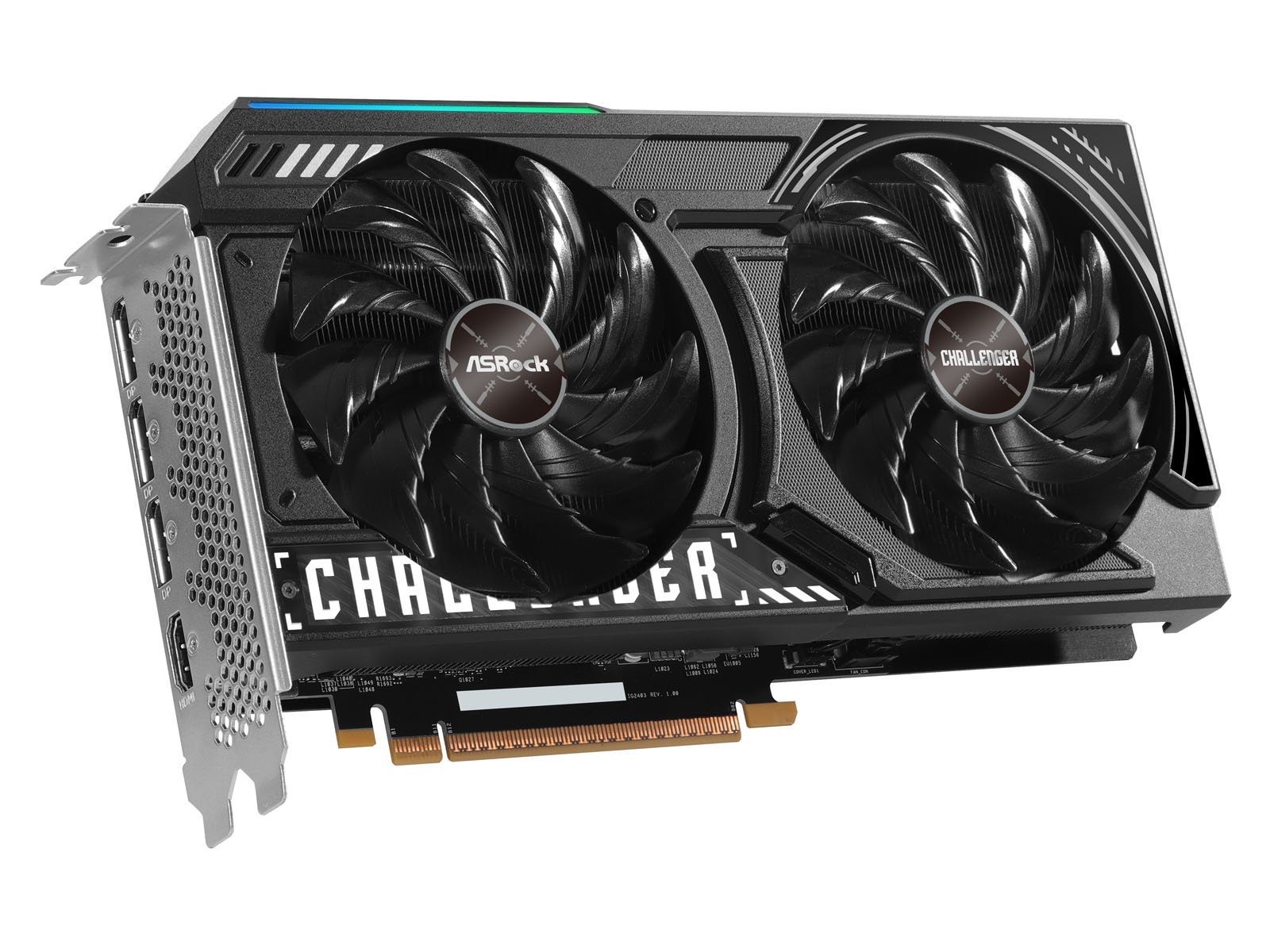

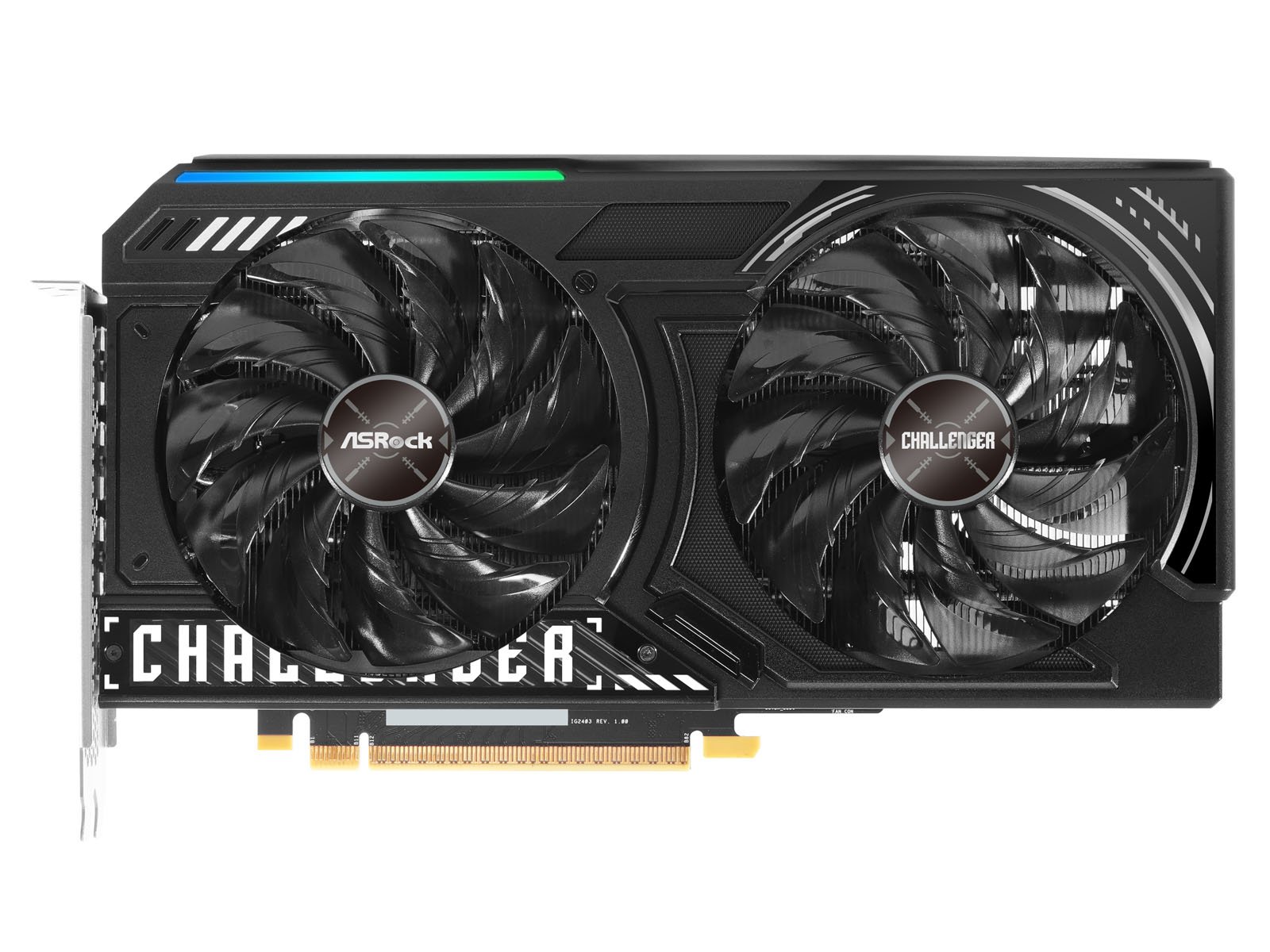

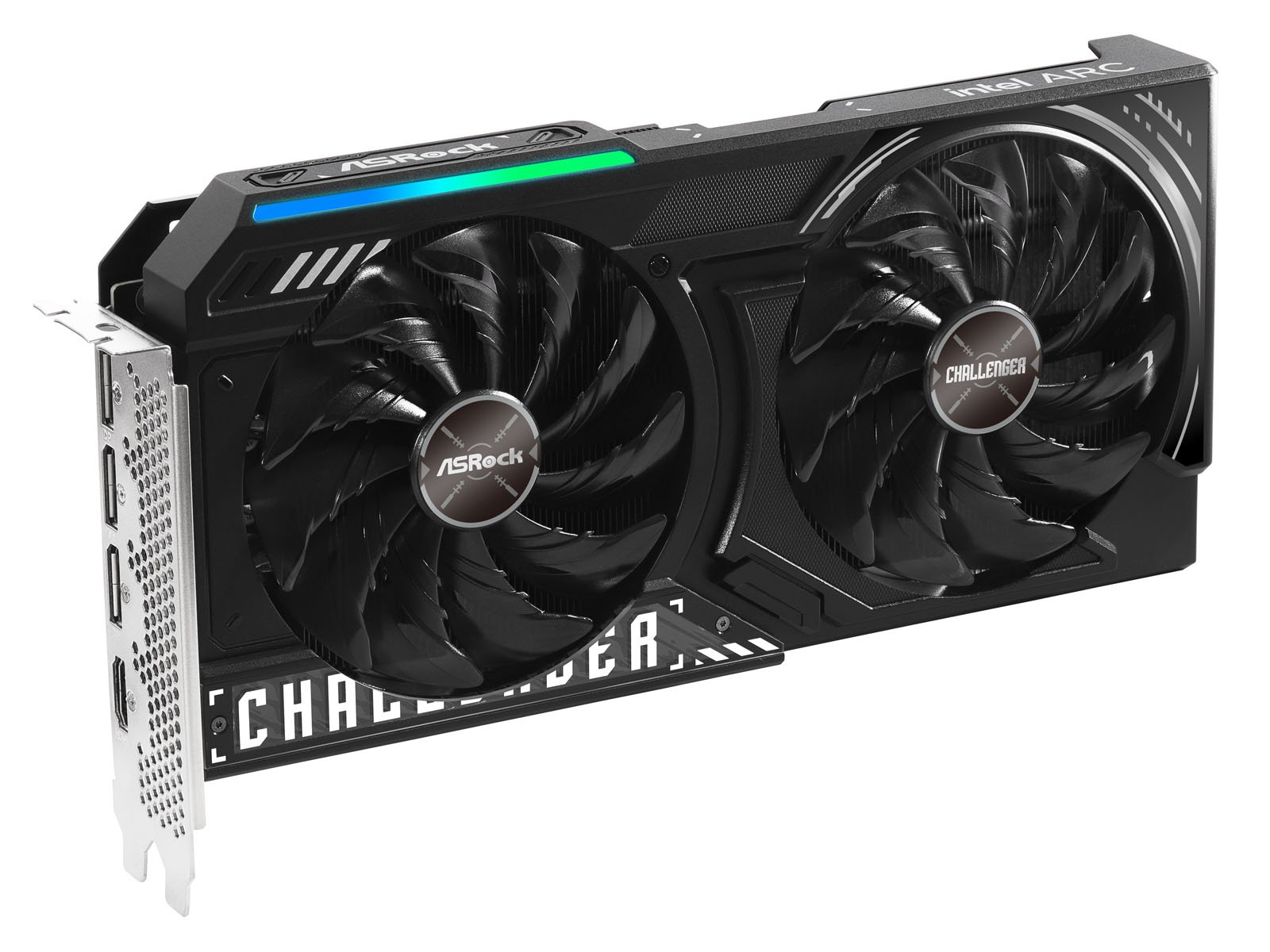

Dual Fan Design
Optimized Cooling Efficiency.
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.

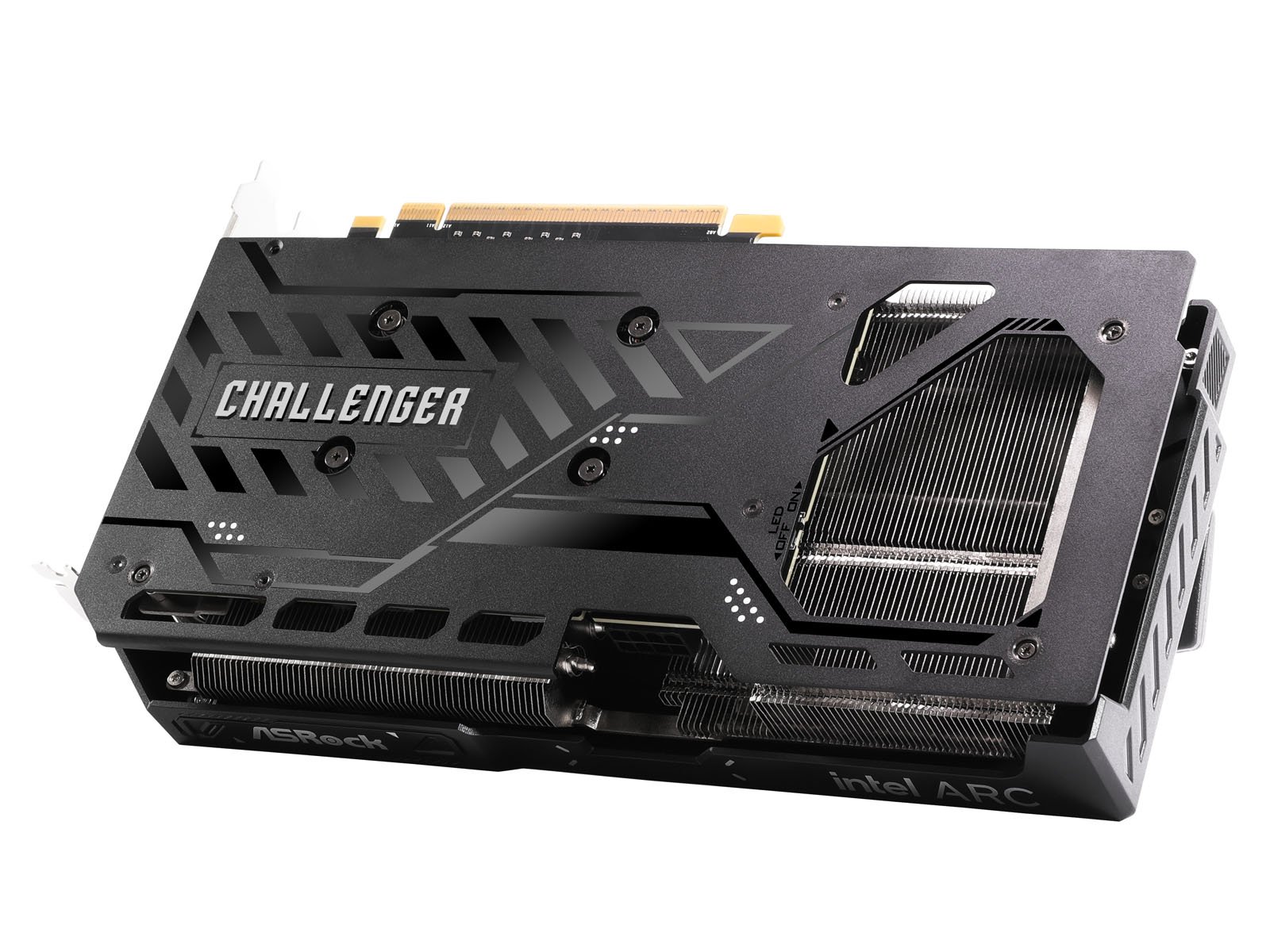

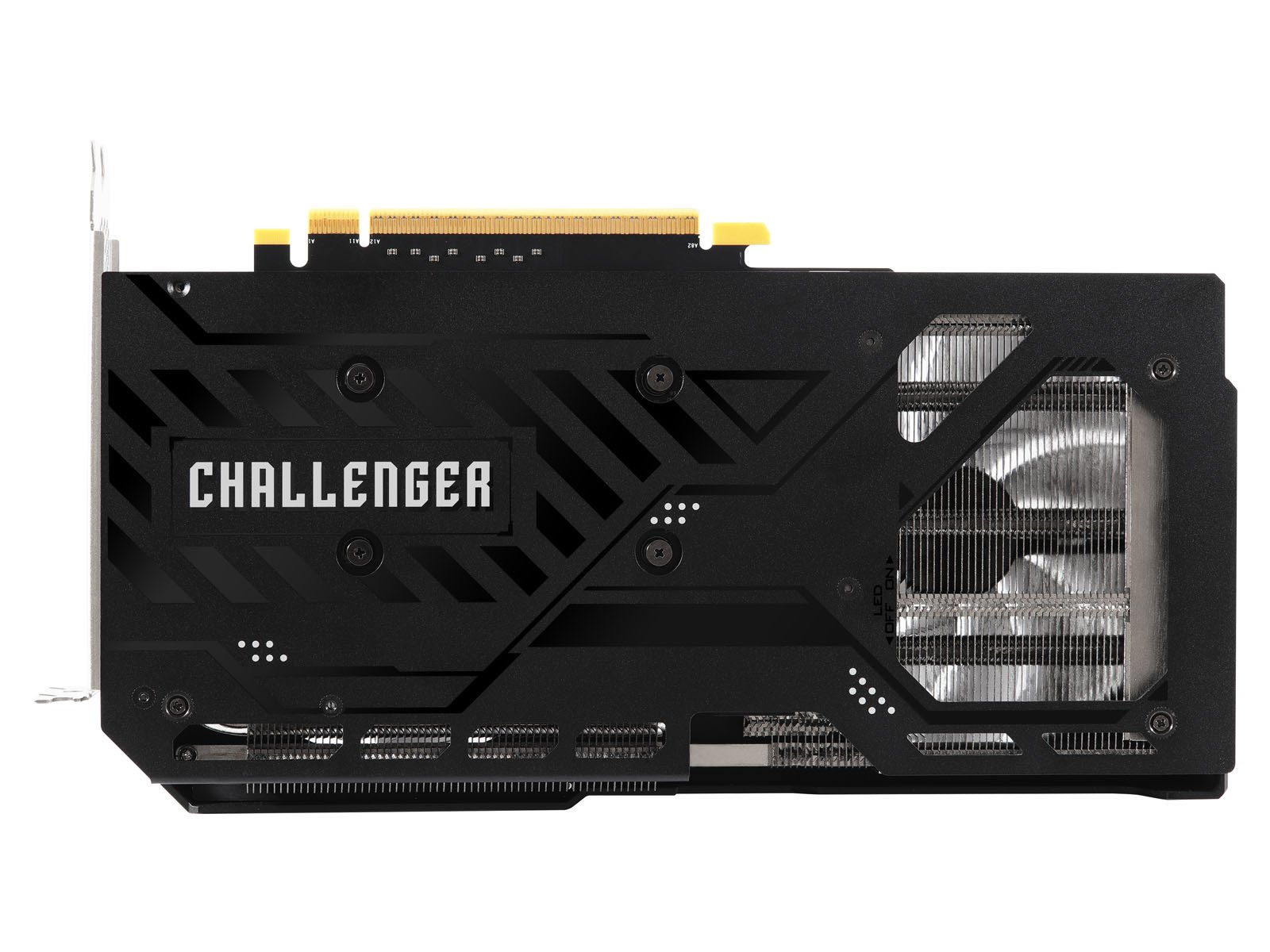

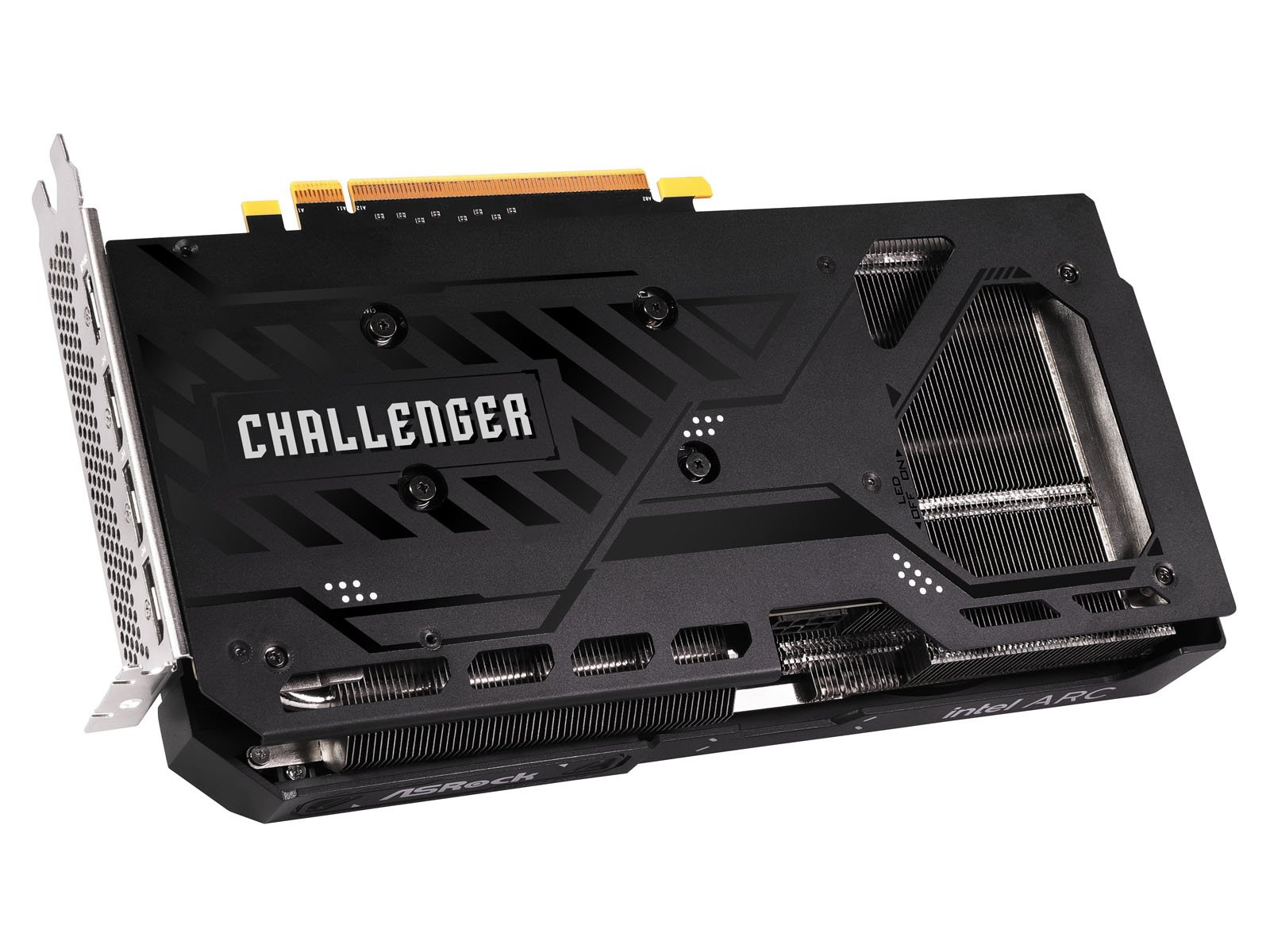

Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
LED Indicator
More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
GPU
- Chipset Manufacturer: Intel
- Chipset Model Name: Arc
- Chipset Model Number: B570
- Chipset Additional Information: Challenger OC
- Boost Chip Clock: 2600 MHz
- Graphics Core: XMX
- Number of Cores: 144
Memory
- Memory Size: 10 GB
- Memory Clock: 19 Gbps
- Memory Type: GDDR6
- Memory Width: 160 bit

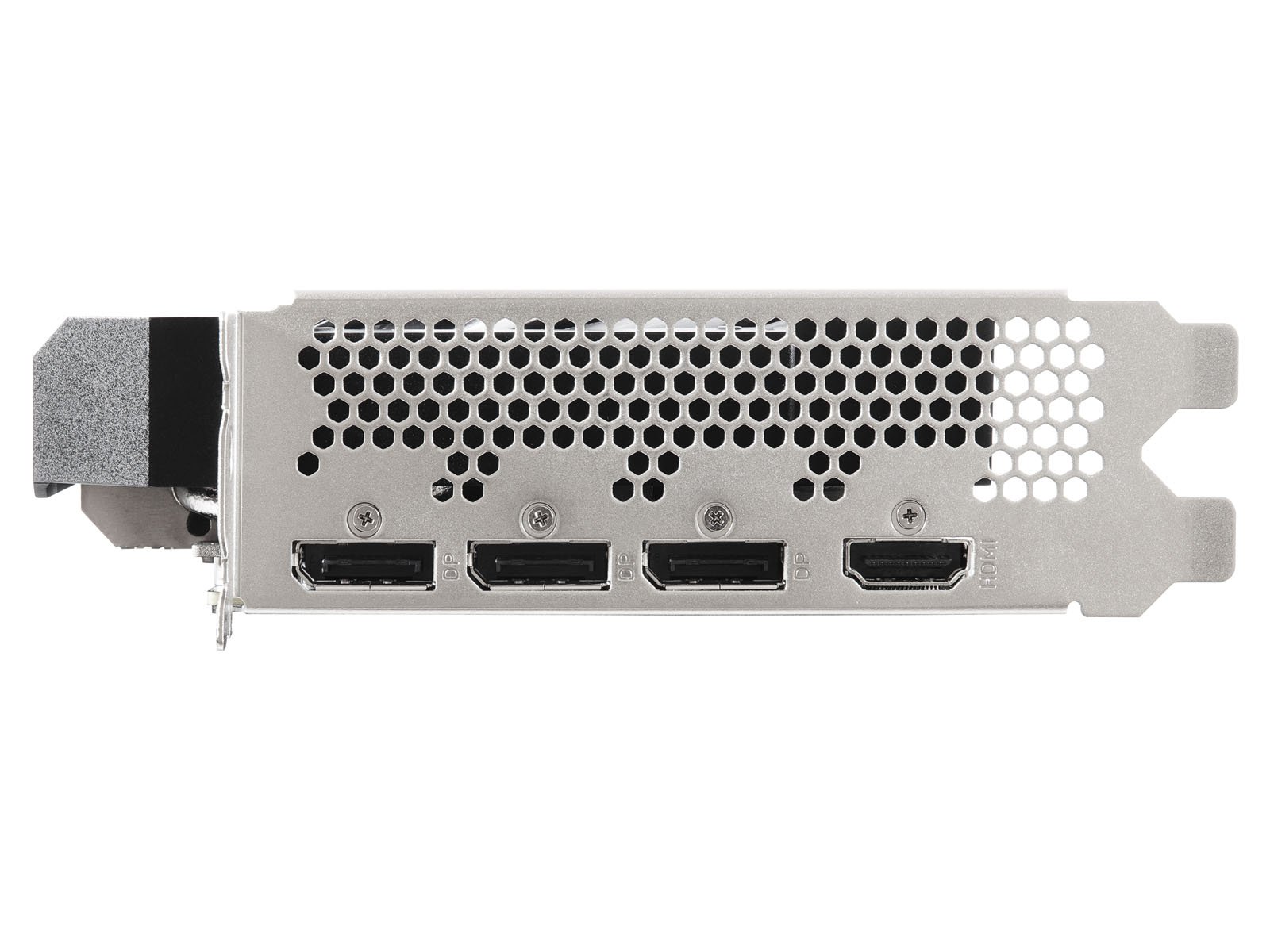

Interfaces/Ports
- Video Card Bus Type: PCI Express
- Video Card Bus Version: 4.0 x8
- HDMI Port: 1 x HDMI 2.1
- DisplayPort: 3 x DisplayPort 2.1
Resolution
- Multiple Monitor Support (Max): Yes (4)
- Maximum Resolution: 7680 x 4320
System Requirements
- System Requirements: 1 x PCI Express 4.0 x16 slot
Electrical
- Power Connector: 1 x 8-pin PCIe
- Recomended Power Supply: 600 W
Physical
- Form Factor: Graphics Card
- In The Box: Graphics Card
- Quick Installation Guide
- Width: 41 mm (Dual Slot)
- Depth: 249 mm
- Height: 132 mm
- Weight: 720 g
Warranty
- Warranty: 3 Years
Identifiers
- Stock Code: VGA7169
- Mfg Code: 90-GA5KZZ-00UANF
