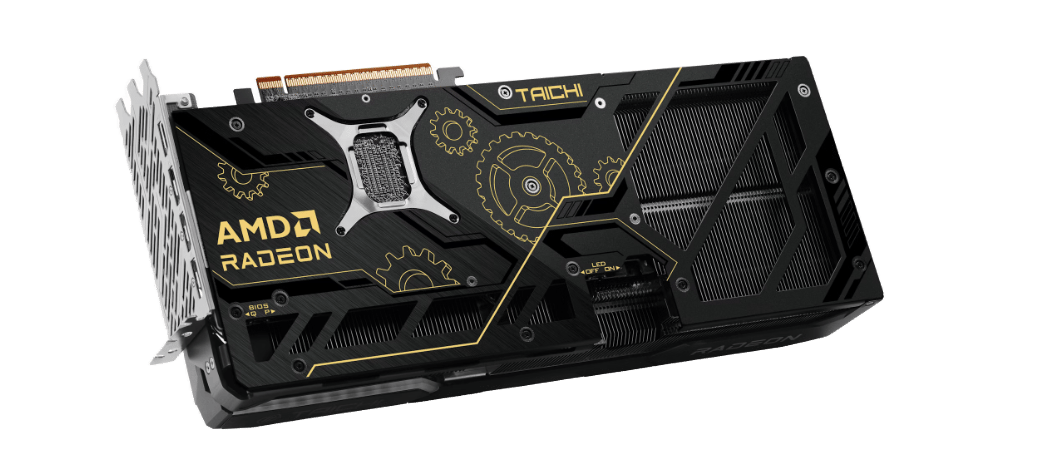

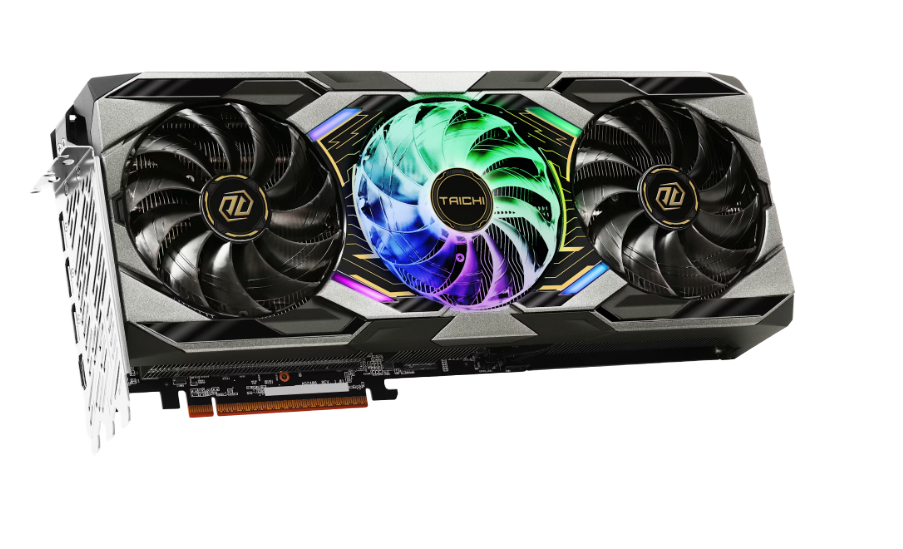

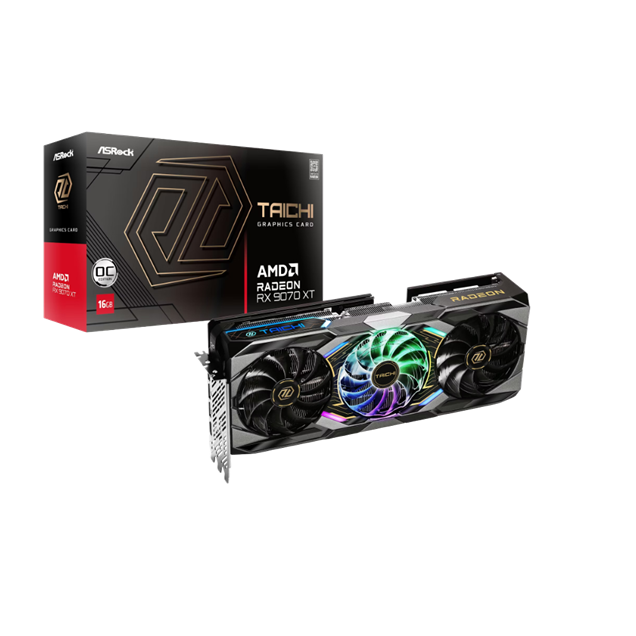

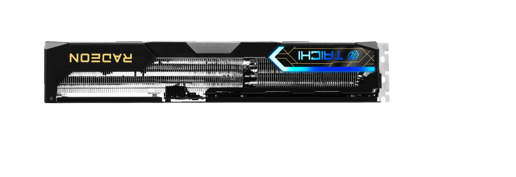

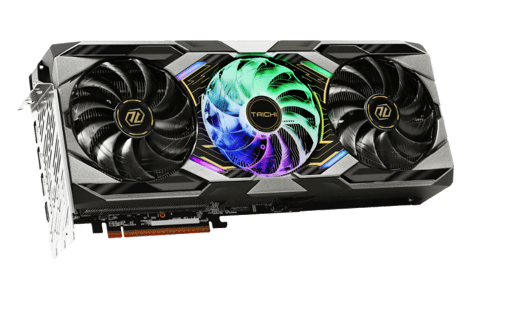

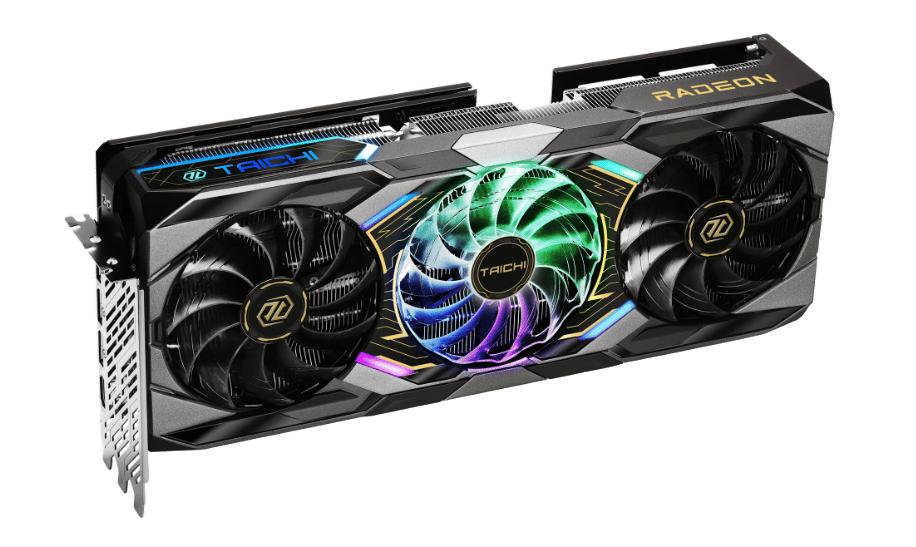

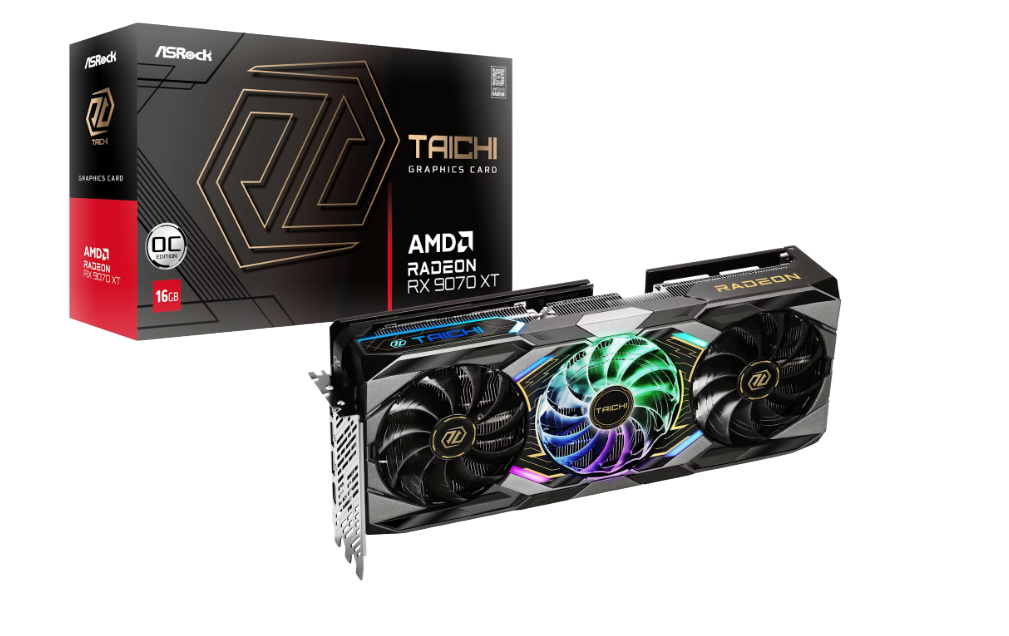

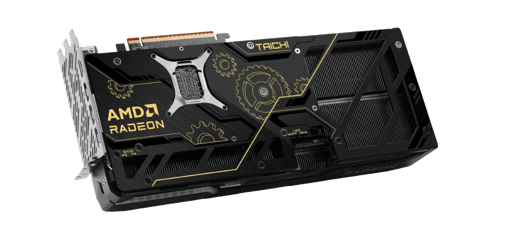

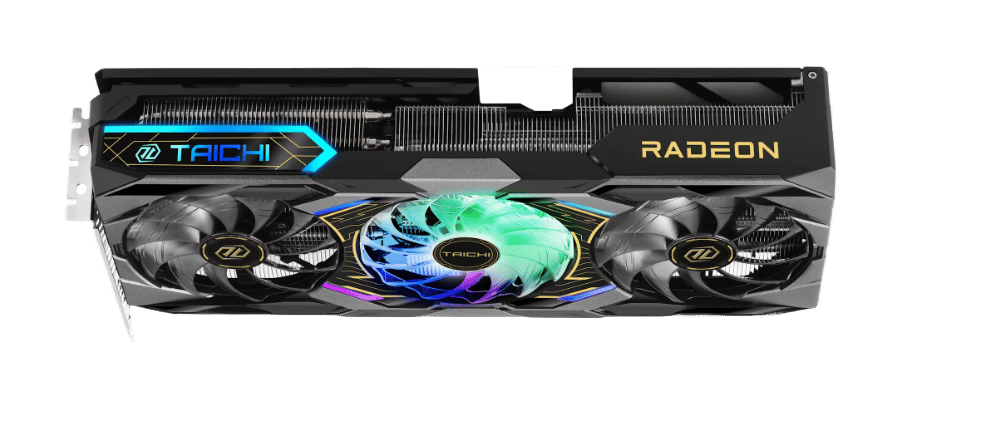

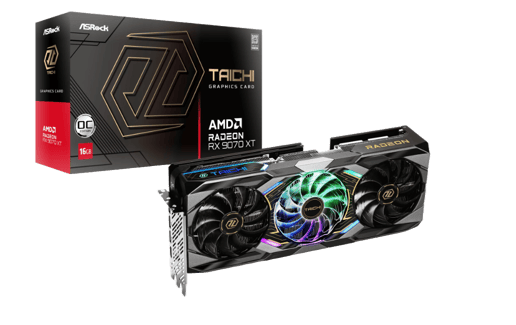

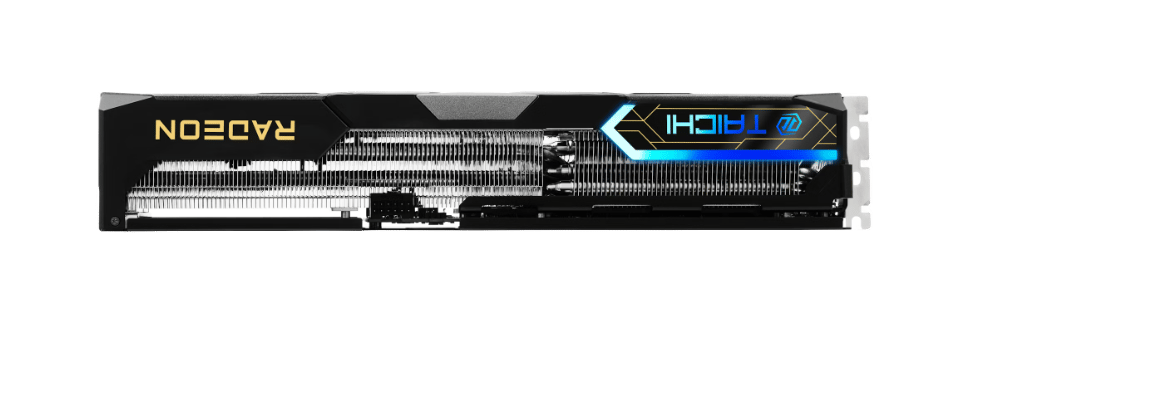

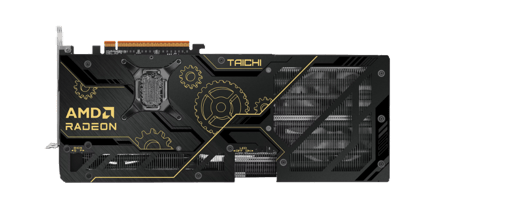

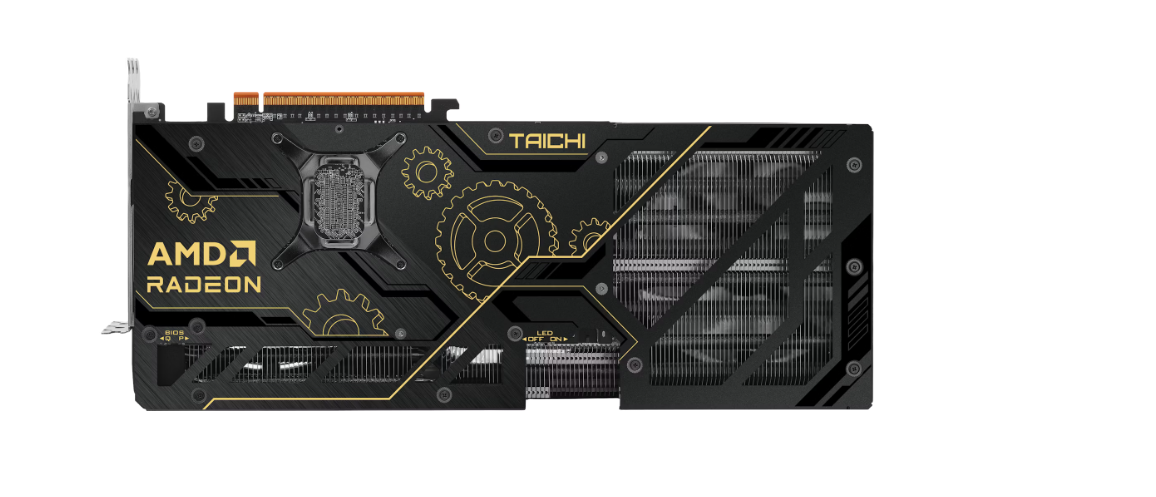

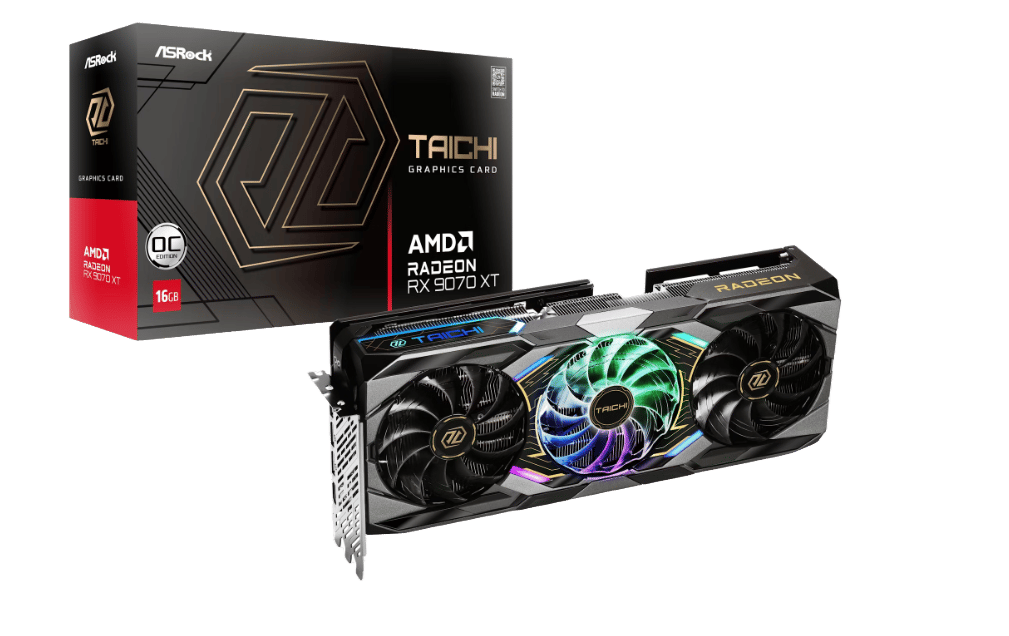

ASRock Radeon RX 9070 XT Taichi OC 16GB GDDR6 Graphics Card

ASRock Radeon RX 9070 XT Taichi OC 16GB GDDR6 Graphics Card

CCL Code: VGA7188

Discontinued

ASRock Radeon RX 9070 XT Taichi OC 16GB GDDR6 Graphics Card

90-GA5HZZ-00UANF

Key Features:

  • 16GB GDDR6 Graphics Memory
  • PCI Express 5.0 x16 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port

This item has very limited stock [more info]

CCL Code: VGA7188

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

ASRock Radeon RX 9070 XT Taichi 16GB OC Graphics Card (RX9070XT TC 16GO)

Specifications

GPU

Chipset Manufacturer AMD
Chipset Model Name Radeon RX
Chipset Model Number 9070 XT
Chipset Additional Information Taichi
Base Chip Clock 1660 MHz
Boost Chip Clock Game Clock: 2570 MHz
Boost Clock: Up to 3100 MHz
Number of Cores 4096

Memory

Memory Size 16384 MB
Memory Clock 20 Gbps
Memory Type GDDR6
Memory Width 256 bit

Interfaces/Ports

Video Card Bus Type PCI Expres
Video Card Bus Version 5.0 x16

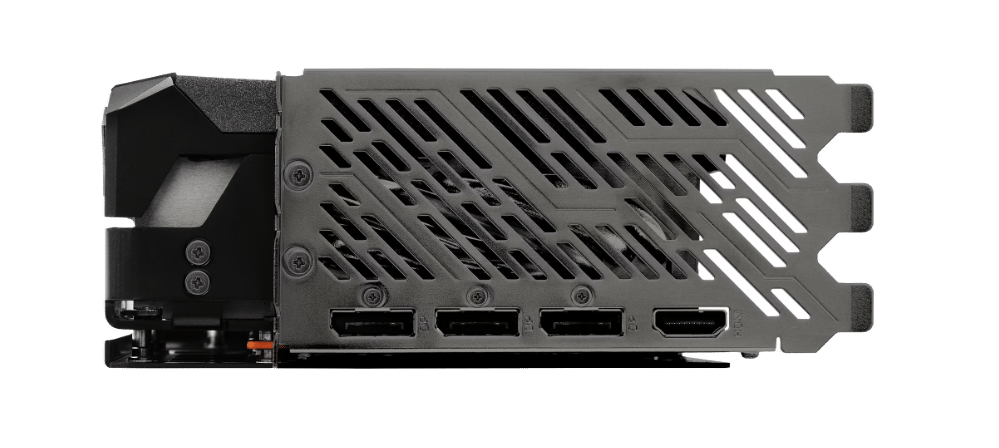

HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 12V-2x6 or 3 x 8-pin PCIe
Power Consumption 304 W
Recomended Power Supply 850 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Quick Installation Guide
1 x 12V-2x6 to 3 x 8-pin PCIe adapter
VGA Holder
Width 61 mm (3.05 slot)
Depth 330 mm
Height 140 mm
Weight 1.554 kg

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 5.0 x16
Config Gaming x8 (CB/CCL) No
Graphics Memory Type GDDR6
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
AMD Radeon RX 9070 XT
PCIe Pin Type 12+4-Pin (16-Pin)
FreeSync Yes
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready AMD
GPU Length 330 mm
Card Width 3
Power Requirement (auto) 304 W
GPU Power (TDP) 304 W
Graphics card count 1
PCI Express Power Pins (female) 24
PCIe Physical Slot required 16
12VHPWR 16-pin Connector Yes
AI Ready Yes
12V-2x6 Rating 450W

Graphics

Graphics Chipset Radeon RX 9070 XT

Item Details

Manufacturer ASRock
Manufacturer Code 90-GA5HZZ-00UANF
EAN 4711581490444
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-GA5HZZ-00UANF
