ASRock Radeon RX 7900 XTX Phantom OC 24GB GDDR6 Graphics Card

ASRock Radeon RX 7900 XTX Phantom OC 24GB GDDR6 Graphics Card

CCL Code: VGA6649

Was £1,530.12

SAVE £598

Now only

£931.99 inc VAT

ASRock Radeon RX 7900 XTX Phantom OC 24GB GDDR6 Graphics Card

90-GA3YZZ-00UANF

Was £1,530.12

SAVE £598

Now only

£931.99 inc VAT

Available for delivery from Thursday 18th July

or Click & Collect from Thursday 18th July

Buying in bulk? Contact our business team.

Key Features:

  • 24GB GDDR6 Graphics Memory
  • PCI Express 4.0 x16 Interface
  • Overclocked Edition
  • Outputs - HDMI and Display Port
CCL Code: VGA6649
Overview

Reverse Spin

The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.

Phantom Gaming 3X Cooling System

For Cool And Silent.

Crafted for the best balance between the thermal efficiency and silence by all the details.

Striped Ring Fan

Designed For Enhanced Airflow

ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

Air Deflecting Fin

Guide Airflow To Go Through Regularly & Quickly.

Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

Ultra-Fit Heatpipe

Consolidated To Maximize The Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-Plated Copper Base

Maximize GPU Contact Area.

With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-Density Metal Welding

Improve Heat Dissipation.

Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste

Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Premium Thermal Pad

Better Heat Transfer.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

Precise Screw Torque

Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Polychrome SYNC

Create Your Own Unique Colorful Light Effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED On/Off Switch

On Or Off? Switch As You Want.

You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.

ARGB Pin-Header

More ARGB, More Fancy.

With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

Reinforced Metal Frame

Enhances the structure to prevent the PCB from being bent.

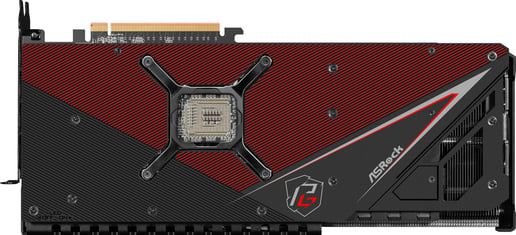

Stylish Metal Backplate

Solid, Fancy, Cool.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Main Features

  • Polychrome SYNC
  • Phantom Gaming 3X Cooling System
  • Striped Ring Fan
  • Reinforced Metal Frame
  • Stylish Metal Backplate
  • 0dB Silent Cooling
  • Super Alloy Graphics Card
Specifications

GPU

Chipset Manufacturer AMD
Chipset Model Name Radeon RX
Chipset Model Number 7900 XTX
Chipset Additional Information Phantom Gaming OC
Boost Chip Clock Up to 2615 MHz
Graphics Core Stream Processors
Number of Cores 6144

Memory

Memory Size 24576 MB
Memory Clock 20 Gbps
Memory Type GDDR6
Memory Width 384 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16
HDMI Port 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 2.1

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot
Recommended 1000W or greater PSU with 3 x 8-pin PCIe connectors

Electrical

Power Connector 3 x 8-pin PCIe
Recomended Power Supply 1000 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Quick Installation Guide
Width 57.6 mm (2.8 slot)
Depth 330 mm
Height 140 mm
Weight 1.55 kg

Warranty

Warranty 2 Years

Key Features

Interface Type PCI Express 4.0 x16
Graphics Memory Type GDDR6
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
AMD Radeon RX 7900 XTX
PCIe Pin Type 3 x 8-Pin
FreeSync Yes
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready AMD
GPU Length 330 mm
Card Width 3
Power Requirement (auto) 355 W
GPU Power (TDP) 355 W
Graphics card count 1
PCI Express Power Pins (female) 24
PCIe Physical Slot required 16
12VHPVR 16-pin Connector No

Graphics

Graphics Chipset Radeon RX 7900 XTX

Graphics Device

G-Sync No

Item Details

Manufacturer ASRock
Manufacturer Code 90-GA3YZZ-00UANF
EAN 4710483941733
Condition New
Warranty

Warranty Information

Warranty 2 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-GA3YZZ-00UANF
Reviews
5.0 / 5 1 review

Neil Spektor

April 2023

Excellent performance, reasonable value in today's climate. Occasional coil whine. Delivery was on time and excellent.
