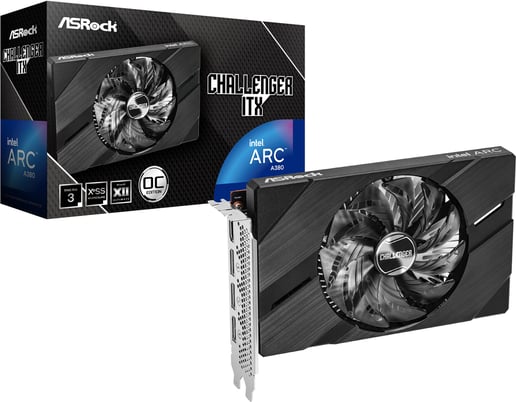

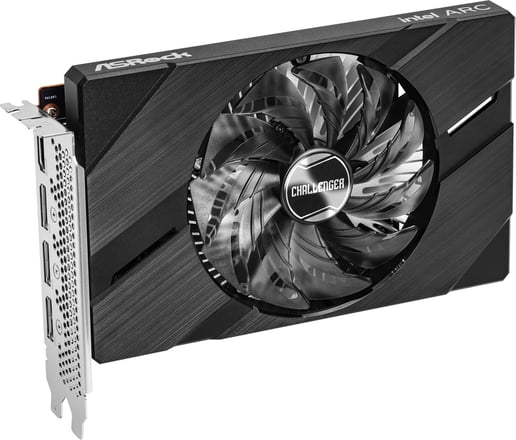

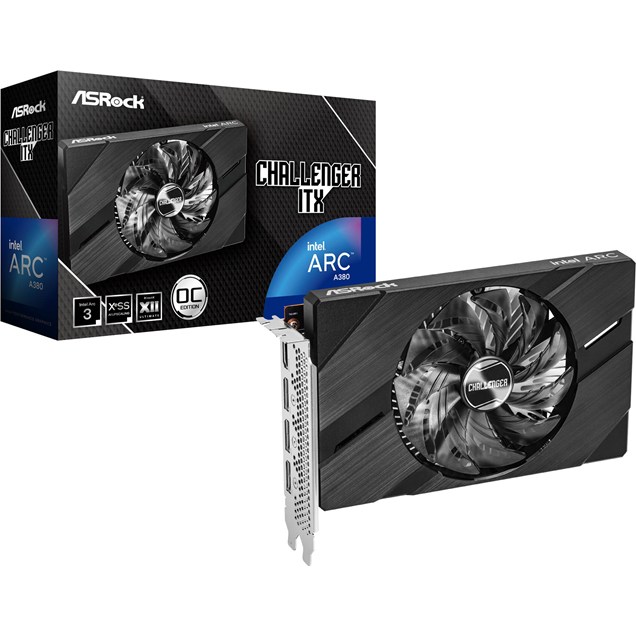

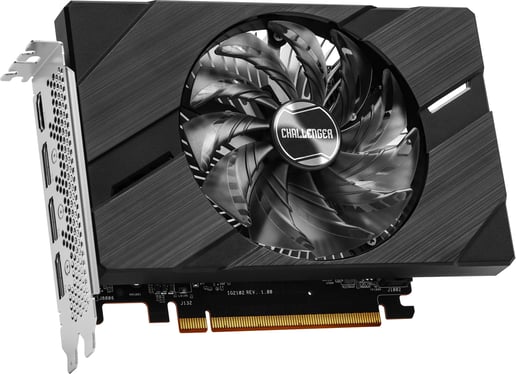

ASRock Arc A380 Challenger ITX OC 6GB Graphics Card

ASRock Arc A380 Challenger ITX OC 6GB Graphics Card

CCL Code: VGA6554

£168.99 inc VAT

ASRock Arc A380 Challenger ITX OC 6GB Graphics Card

90-GA3KZZ-00UANF

£168.99 inc VAT

Available for delivery from Saturday 4th February

Buying in bulk? Contact our business team.

Key Features:

  • 6GB Graphics Memory
  • PCI Express 4.0 x8 Interface
  • Cooler Type - Dynamic Fan
  • Pre Overclocked Edition
  • Outputs - HDMI and Display Port

Buy now, spread the cost
with PayPal Credit.

- or -

CCL Code: VGA6554
Overview

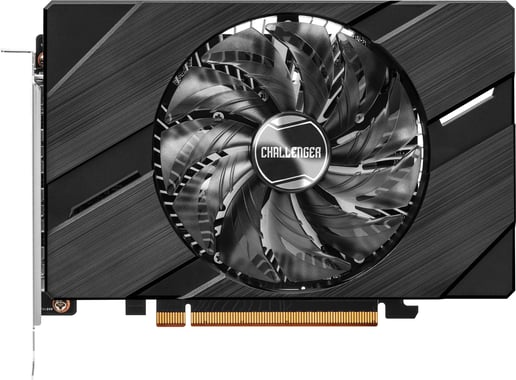

Single Fan Design

Optimized Cooling Efficiency.

Single fan that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.

Striped Axial Fan

Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Nano Thermal Paste

Perfect Thermal Teamwork.

Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Precise Screw Torque

Optimized Mounting Pressure.

ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Super Alloy Graphics Cards

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

Premium 100A Power Choke

Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

8K Resolution Support

Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

PCI® Express 4.0 Support

This graphics card features PCI® Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI® Express 3.0. Get ready for the next generation of PC gaming.

Main Features

  • Small Form Factor Design
  • Striped Axial Fan
  • 0dB Silent Cooling
  • Super Alloy Graphics Card
  • 8K Resolution Support
Specifications

GPU

Chipset Manufacturer Intel
Chipset Model Name Arc
Chipset Model Number A380
Chipset Additional Information Challenger ITX OC
Chip Clock 2250 MHz
Graphics Core Intel XMX
Number of Cores 128

Memory

Memory Size 6144 MB
Memory Clock 15.5 Gbps
Memory Type GDDR6
Memory Width 96 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x8

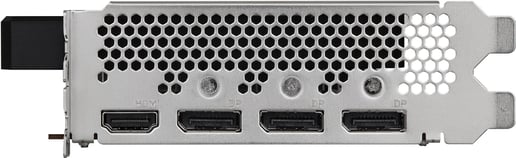

HDMI Port 1 x HDMI 2.0b
DisplayPort 3 x DisplayPort 2.0

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot
Resizeable BAR enabled
Recommended 500W PSU with 1 x 8-pin PCIe connector

Electrical

Power Connector 1 x 8-pin PCIe
Recomended Power Supply 500 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Quick Installation Guide
Width 39 mm (Dual Slot)
Depth 190 mm
Height 124 mm
Weight 400 g

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 4.0 x8
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan
Low Profile No
Interface Type
NVIDIA GeForce
AMD Radeon
PCI-E Pin Type 8-Pin
Screen Type
FreeSync
Cooling Technology Dynamic Fan
VR Ready
VR Ready PC
GPU Length 190 mm
Card Width 2
GPU Power (TDP) W
Graphics card count 1
PCIe Physical Slot required 16

Graphics

Graphics Chipset Arc A380

Graphics Device

G-Sync

Compatibility

Lite Hash Rate

Item Details

Manufacturer ASRock
Manufacturer Code 90-GA3KZZ-00UANF
Alternative Part Number A380 CLI 6GO
EAN 4710483939365
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-GA3KZZ-00UANF
