Lenovo T23d-10 23 inch IPS Monitor - IPS Panel, 1920 x 1200, 6ms Response, HDMI

Lenovo T23d-10 23 inch IPS Monitor - IPS Panel, 1920 x 1200, 6ms Response, HDMI

CCL Code: MON6442


Lenovo T23d-10 23 inch IPS Monitor - IPS Panel, 1920 x 1200, 6ms Response, HDMI


Key Features:

  • 1920 x 1200 Resolution
  • 6ms Response Time
  • IPS Panel
  • VESA Mount Support
  • 60Hz Refresh Rate
  • Inputs: VGA, HDMI and Display Port
CCL Code: MON6442


Sorry, this product has been discontinued. We have found some similar products below.


The Lenovo ThinkVision T23d-10 is a superior monitor that is meant to take your efficiency to new heights. With the vivid 22.5-inch display and versatile connectivity options, the ThinkVision T23d-10 lets you perform to your full potential. The 16:10 aspect ratio of the T23d-10 monitor makes for an extra wide display and a superior viewing experience. The borderless panel of the bright WUXGA monitor and the super narrow bezel make it ideal for multi-screen connection, adding to your productivity. With up to 4 ms response time, the anti-glare display minimises motion blur and eliminates streaking and ghosting for a smooth interaction. The ThinkVision T23d-10 has a range of ports such as VGA, DP and HDMI to boost productivity.

Main Features

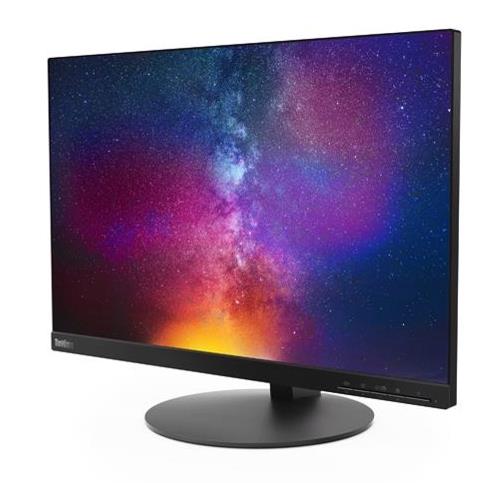

  • Lenovo ThinkVision T23d-10 LED Backlit LCD Monitor
  • 22.5 inch TFT-LCD, In-Plane Switching (IPS), White LED backlight
  • Native resolution of 1920 x 1200 pixels (WUXGA)
  • Contrast ratio: 1000:1
  • Brightness: 250 cd/m2
  • Response time: 6ms

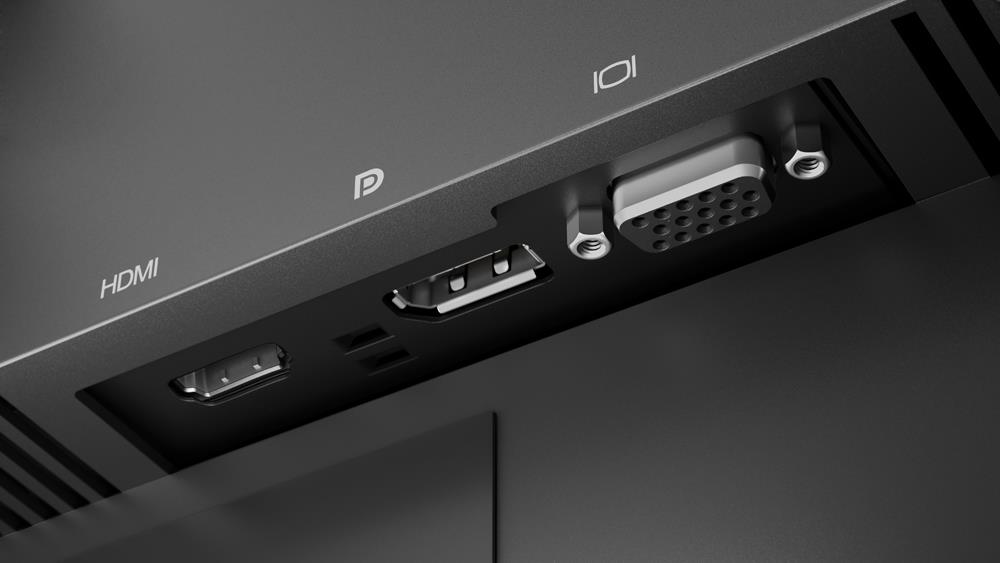

  • VGA, HDMI, DisplayPort connections
  • Tilt, swivel, pivot, and height adjustable stand
  • Supports ThinkCentre Tiny Clamp Bracket
  • Includes dual input connection for attachment to two systems concurrently (analogue and digital)

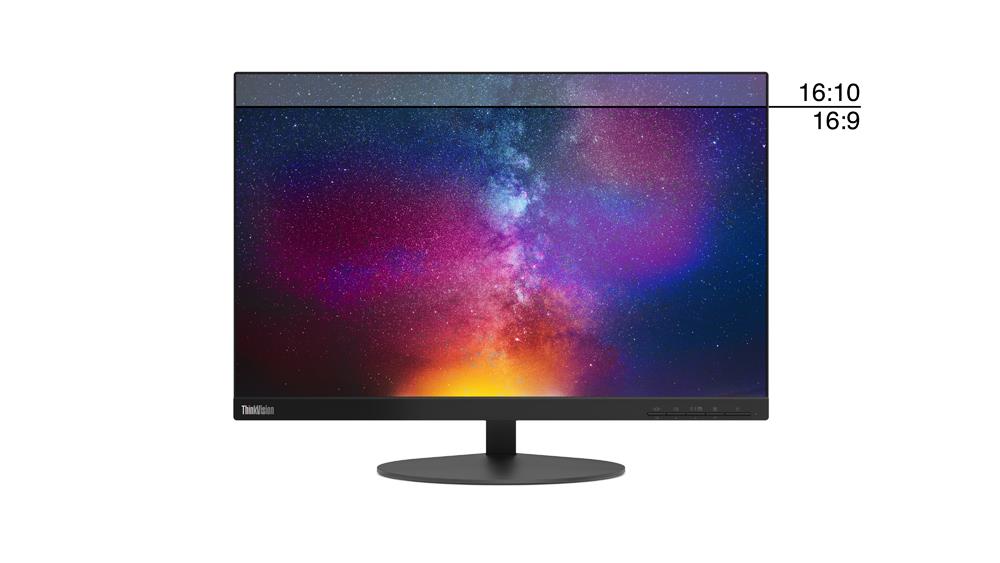

Screen Aspect Ratio 16:10
Screen Size 23 in
Screen Width 49.62 cm
Screen Height 31.39 cm
Screen Technology In-Plane Switching (IPS)
Pixel Pitch 0.250 x 0.250 mm
Brightness Lumens
View Angle (Horizontal - Max) 178 °
View Angle (Vertical - Max) 178 °
Contrast Ratio 1,000:1
Resolution (Native) 1920 x 1200 Pixels
Resolution Type (Native) WUXGA
Backlight W-LED
Colour Gamut 72 %
Aspect Ratio 16:10


Wall Mountable Yes
Wall Mount Supported - 100mm x 100mm
Tilt (Forward/Backward) Yes
Tilt Range -5 to 30 °
Swivel (Left/Right) Yes
Swivel Range ±45 °
Height Adjustable Yes
Maximum Height 11.0 cm

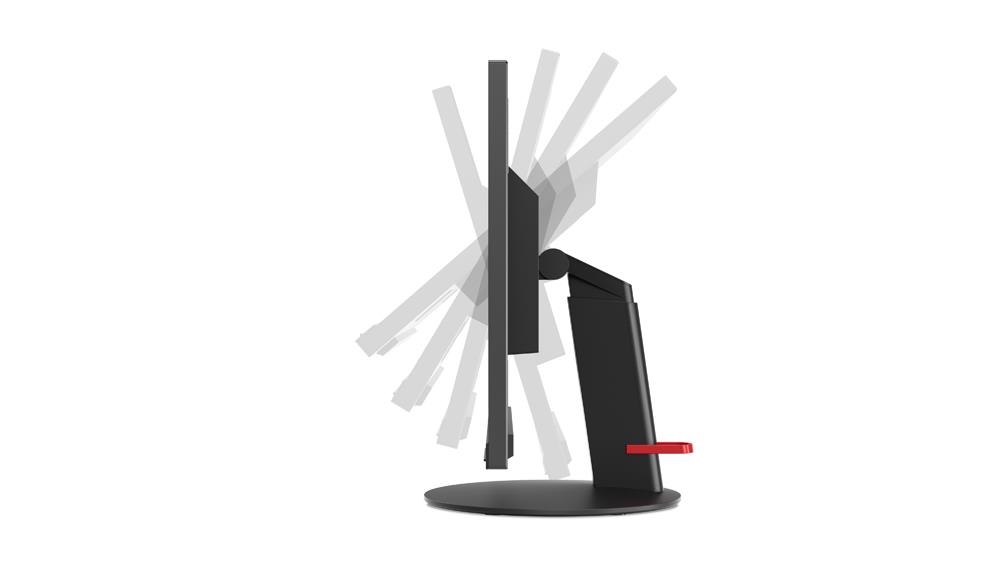

Pivot (Rotation) Yes
Pivot Range -90 to +90 °
Side Bezel Width 2.3 mm


User Controls On screen display with digital user controls, Direct access (buttons on front) for power, menu, input source select and brightness


Warranty 3 Years.


VGA In 1 x 15-pin D-Sub
DisplayPort Out 1 x DisplayPort


Language Selection 8 (English, French, German, Spanish, Italian, Japanese, Simplified Chinese and Russian)
Plug and Play VESA DDC2B/CI

System Requirements

System Requirements Windows 7/10


Electrical Power Consumption 18 W
Electrical Power Consumption Saving 0.3 W
Voltage 100 to 240 VAC
Electrical Frequency 50 to 60 Hz
Power Management Features Energy Star
Power Supply Internal


Operating Temperature 0 to 45 °C
Operating Humidity 10 to 80 %


Form Factor LCD Monitor
Case Colour Black
Pack Quantity 1
Security Locking Mechanics Security Lock Slot
In The Box Monitor with stand, Safety and Warranty Information, 1.8 meter analog signal cable, 1.8 meter DP signal cable, 1.8 meter black power cord
Width 50.12 cm
Depth 25.19 cm
Height 49.19 cm
Weight 4.85 kg


ISPC Code 40463

Key Features

Response time 6 ms
Screen Size Range 22 - 23 in
VESA Mountable Yes
Built-in Speakers No
Hard Glass Coating No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
Touchscreen No
BNC Connection No
TV Tuner No
Panel Technology IPS
3D Ready No
Power Source Mains Powered
LED Backlight Yes
Disk Form Factor 3.5"
Gaming No
Projection Aspect Ratio 16:10
Display Model in Showroom No
DisplayPort Connection Yes
120Hz Refresh Rate No
Screen Type Full HD (1080p)
FreeSync No
144Hz Refresh Rate No
Curved Display No
165Hz Refresh Rate No
200Hz Refresh Rate No
180Hz Refresh Rate No
240Hz Refresh Rate No
Thunderbolt Connection No
HDR Support No
75Hz Refresh Rate No
Built-in USB Hub No
Refresh Rate 60 Hz

Graphics Device

G-Sync No

Item Details

Manufacturer Lenovo
Manufacturer Code 61C3MAT6UK
EAN 0192330486415
Condition New

Warranty Information

Warranty 3 Years.

Manufacturer Information

Manufacturer Lenovo
Manufacturer Code 61C3MAT6UK

Do you have you a question about the Lenovo ThinkVision T23d-10 (22.5 inch) LED Backlit LCD Monitor 1000:1 250cd/m2 (1920x1200) 6ms VGA/HDMI/DisplayPort (Black)?

No reviews have been received for this product yet

PDF Datasheets and Manuals

Document File type File size
Datasheet pdf
