AXIS T91L61 Wall and Pole Mount

AXIS T91L61 Wall and Pole Mount

CCL Code: ACC3152

Discontinued

AXIS T91L61 Wall and Pole Mount

5801-721

Key Features:

  • Built-in IP66 RJ45 connector
  • Suitable for wall and pole mounting
CCL Code: ACC3152

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

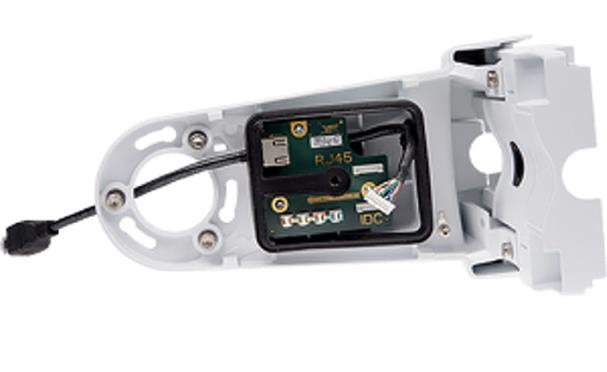

Designed for Axis PTZ and multisensor cameras, AXIS T91L61 Wall-and-Pole Mount can quickly connect power and data to the camera through a built-in Ethernet cable with an IP66 RJ45 connector. The ability to choose between an RJ45 or IDC (insulation-displacement contact) connector makes installation flexible. The included mounting bracket can be simply flipped over for flexible mounting on either walls or poles (separate stainless steel straps required for pole installation). AXIST91L61 is also suitable for corner rmounting with an optional accessory. Thanks to its impact-resistant and outdoor-proven material, it can be used in both indoor and outdoor environments.

Main Features

  • Flexible installation using the IDC connector
  • Built-in IP66 RJ45 connector
  • Suitable for wall and pole mounting
  • Protection against impact, water, dust and corrosion
Specifications

Compatibility

Compatibility AXIS Q60 Series • AXIS Q61 Series • AXIS P55 Series • AXIS P56 Series • AXIS Q37 Series

Mounting

Maximum Weight 30 kg

Compliance

Certifications Approvals: Safety IEC/EN/UL 60950-1, IEC/EN/UL 60950-22 Environment IEC 60721, IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, IP66, NEMA 250 Type 4X, RoHS, WEEE Impact IEC 62252 IK10

Environmental

Operating Temperature -50 to 65 °C
Operating Humidity 10 to 100 %

Physical

In The Box T91L61 Wall and Pole Mount • Installation Guide
Width 28.0 cm
Depth 17.4 cm
Height 15.2 cm
Weight 1.85 kg

Warranty

Warranty 3 year

Key Features

Internal SSD/HDD Mount No

Item Details

Manufacturer Axis
Manufacturer Code 5801-721
EAN 7331021055568
Condition New
Warranty

Warranty Information

Warranty 3 year

Manufacturer Information

Manufacturer Axis
Manufacturer Code 5801-721
Q&A

Do you have you a question about the AXIS T91L61 Wall and Pole Mount?

Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Datasheet pdf
Manual pdf
