Codegen 4U v2 (600mm) Rackmount Server Case - Black

Codegen 4U v2 (600mm) Rackmount Server Case - Black

CCL Code: CAS3920

£168.50 inc VAT

  • Codegen 4U v2 (600mm) Rackmount Server Case - Black
  • Codegen 4U v2 (600mm) Rackmount Server Case - Black
  • Codegen 4U v2 (600mm) Rackmount Server Case - Black
  • Codegen 4U v2 (600mm) Rackmount Server Case - Black
  • Codegen 4U v2 (600mm) Rackmount Server Case - Black
  • Codegen 4U v2 (600mm) Rackmount Server Case - Black
  • Codegen 4U v2 (600mm) Rackmount Server Case - Black

Get 5% off when you buy 5 or more different components using code: BUY5GET5

Codegen 4U v2 (600mm) Rackmount Server Case - Black


£168.50 inc VAT

Available for Free Priority Delivery from Tomorrow

Hurry, only 1 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • PSU not included
  • 3 x 5.25" External Bay(s)
  • 0 x 2.5" Drive(s) Max
  • 8 x 3.5" Drive(s) Max
  • Max MB Size: ATX

Buy now, spread the cost
with PayPal Credit.

- or -

CCL Code: CAS3920

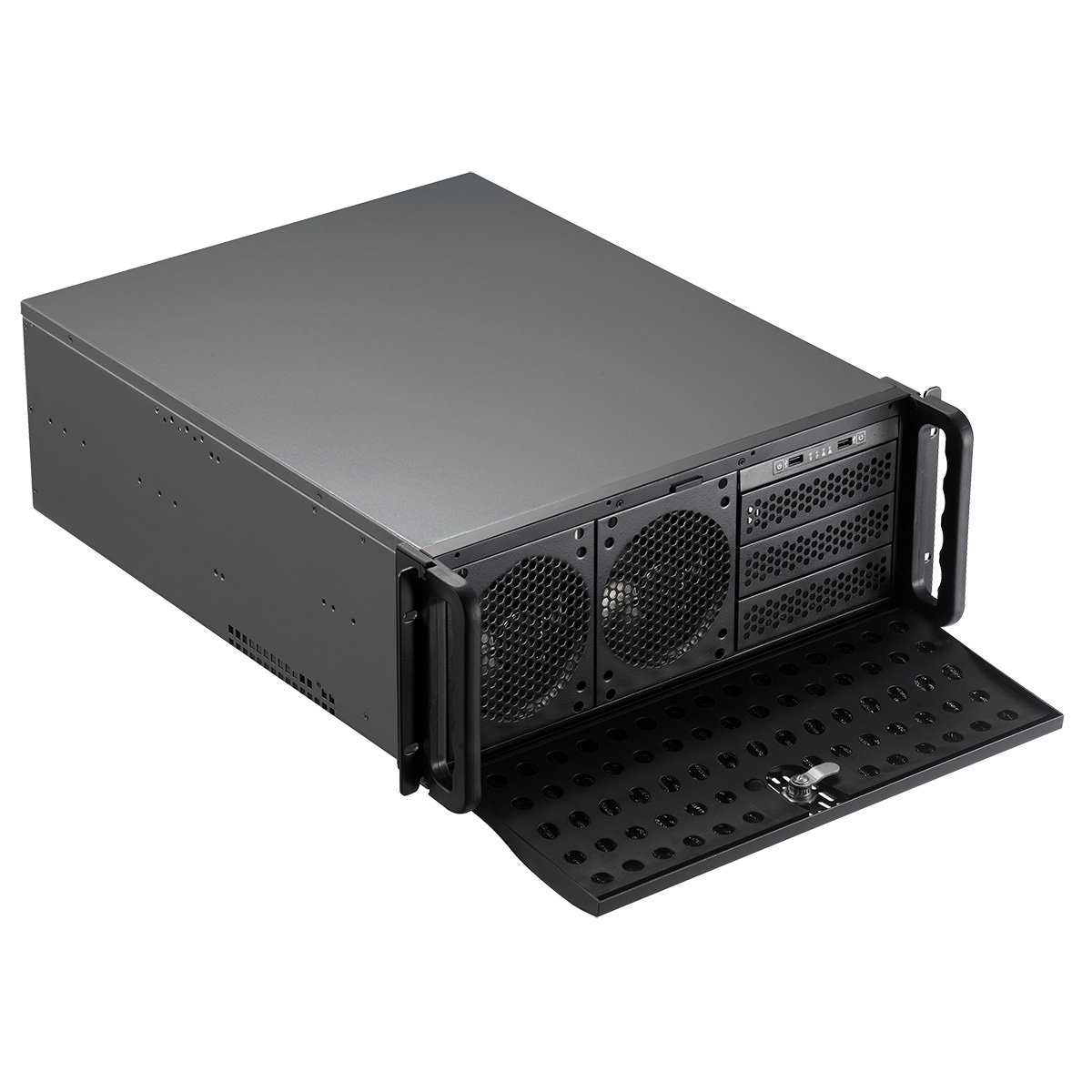

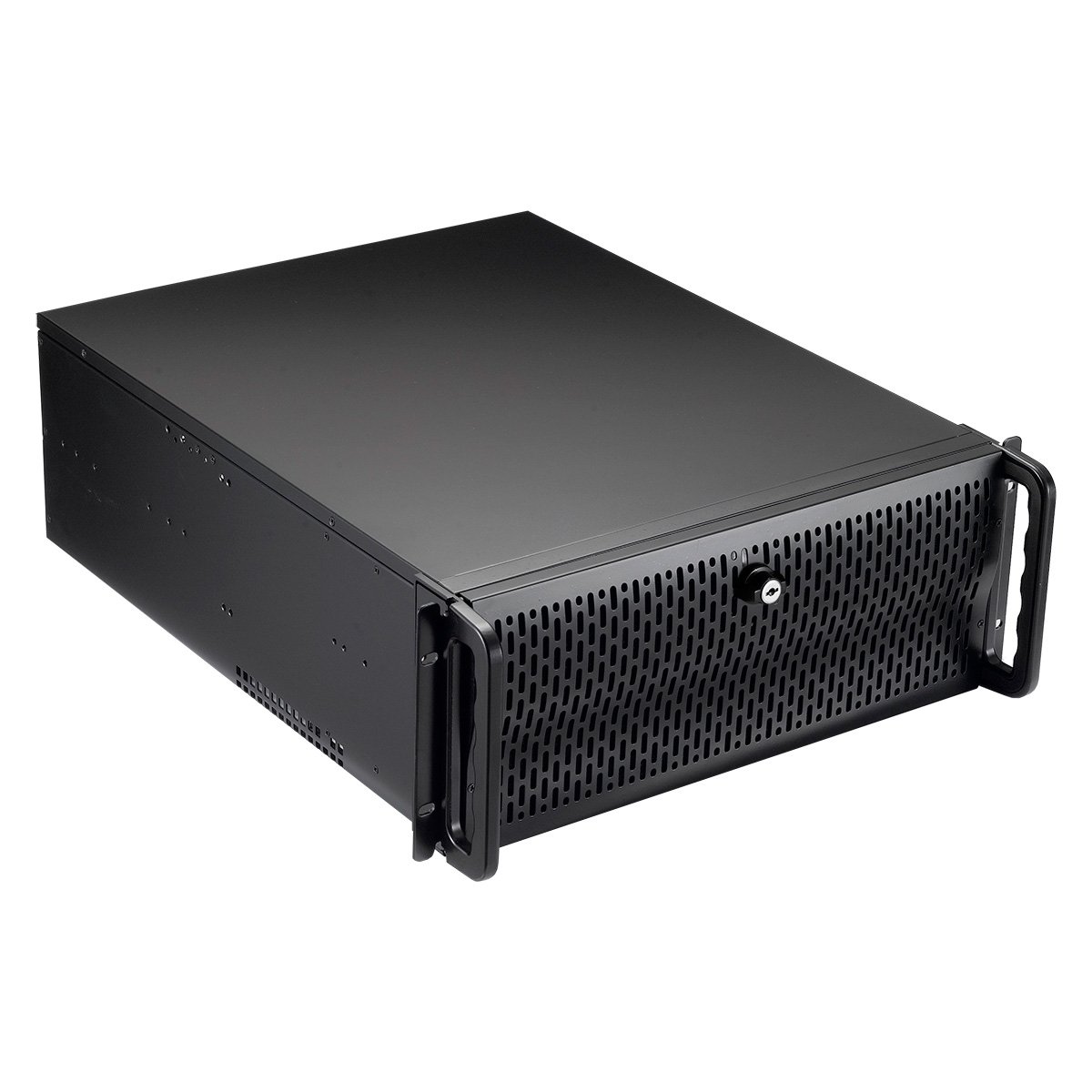

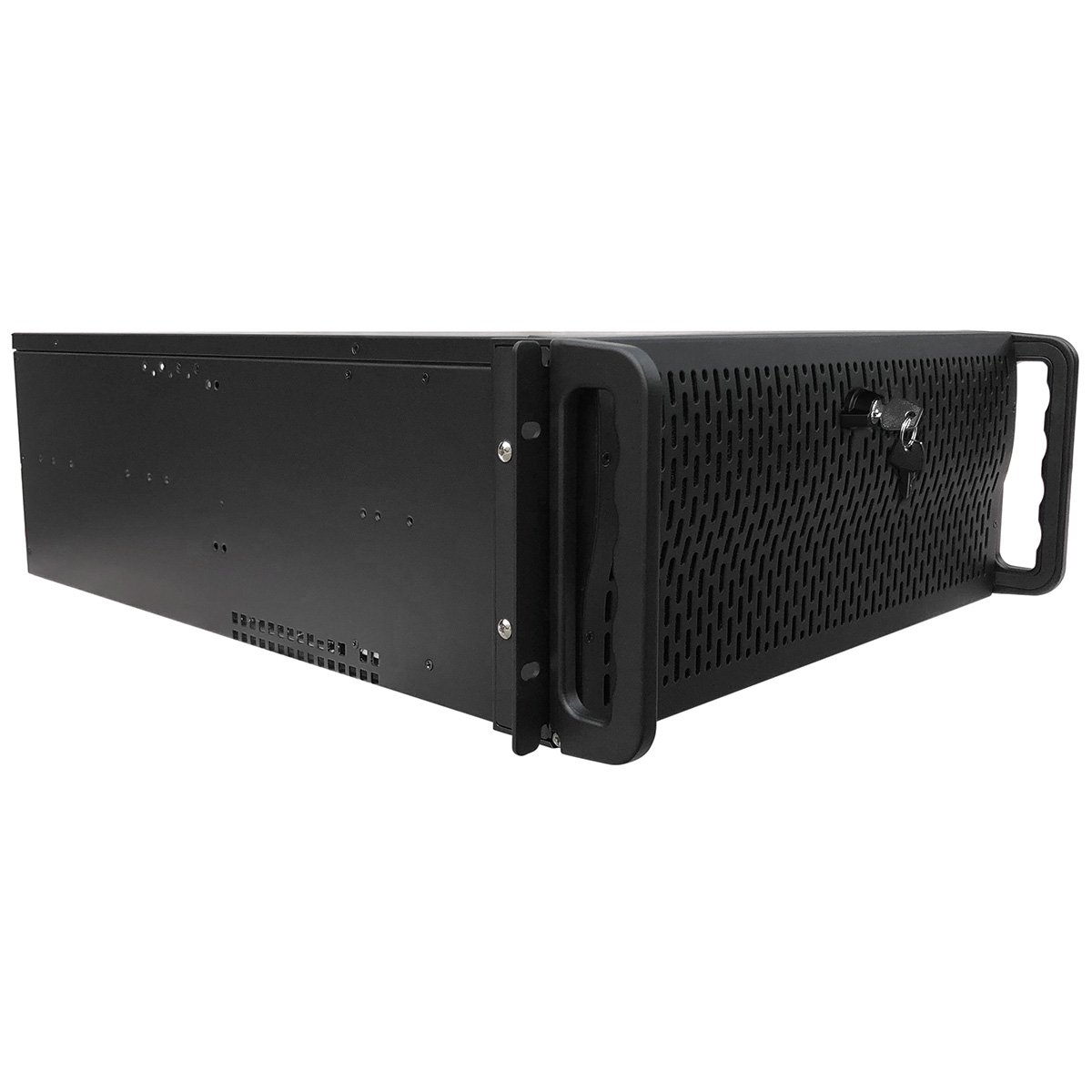

Codegen 4U V2 600mm rackmount is a computer chassis featuring a number of different power form factor and storage device options. The 4U V2 rackmount computer chassis provides the best support for various rackmount systems and different applications. There are several fan options which can deliver an exceptional thermal performance you can rely on. Included is 2 x 120mm fans at the front and 2 x 80mm fans at the back.

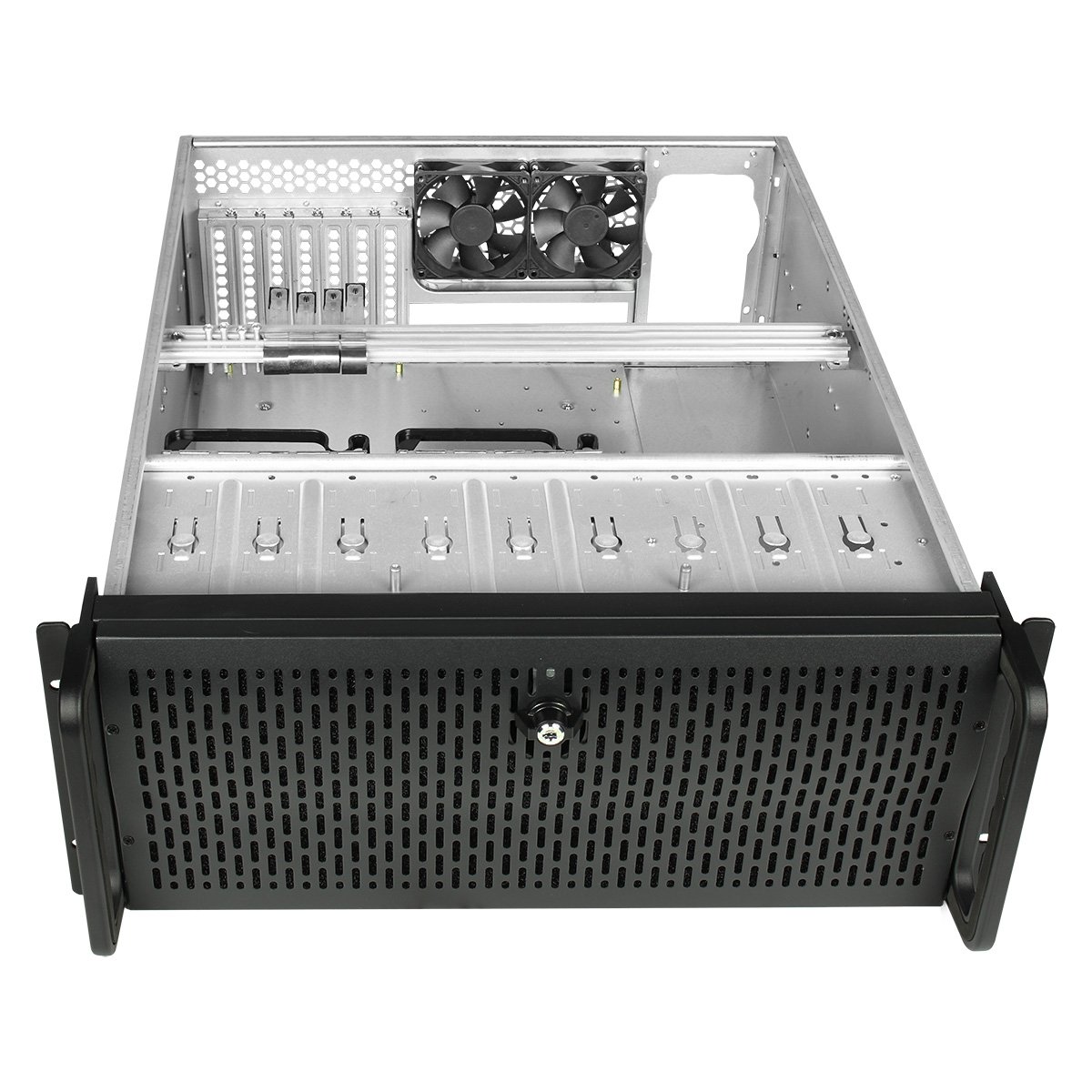

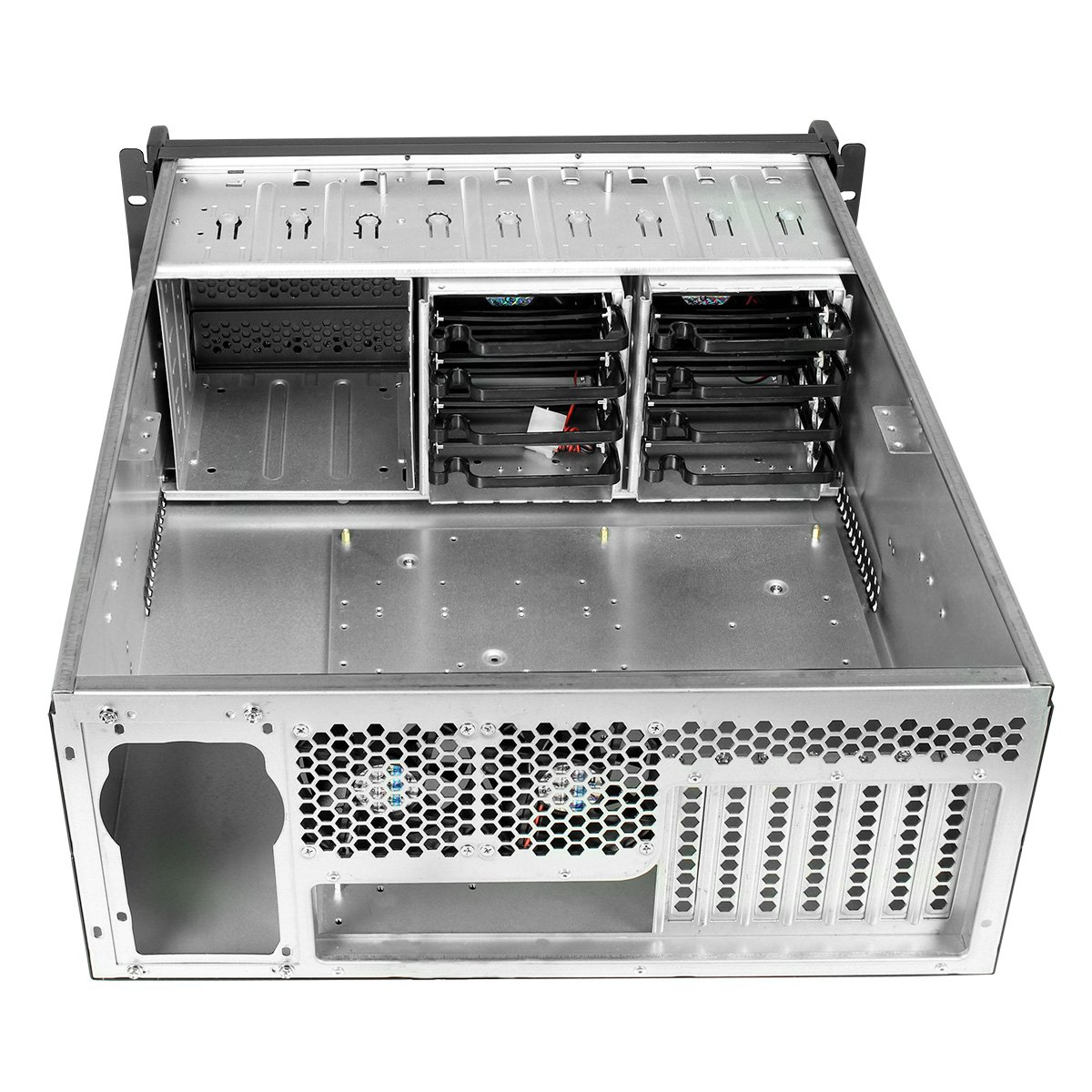

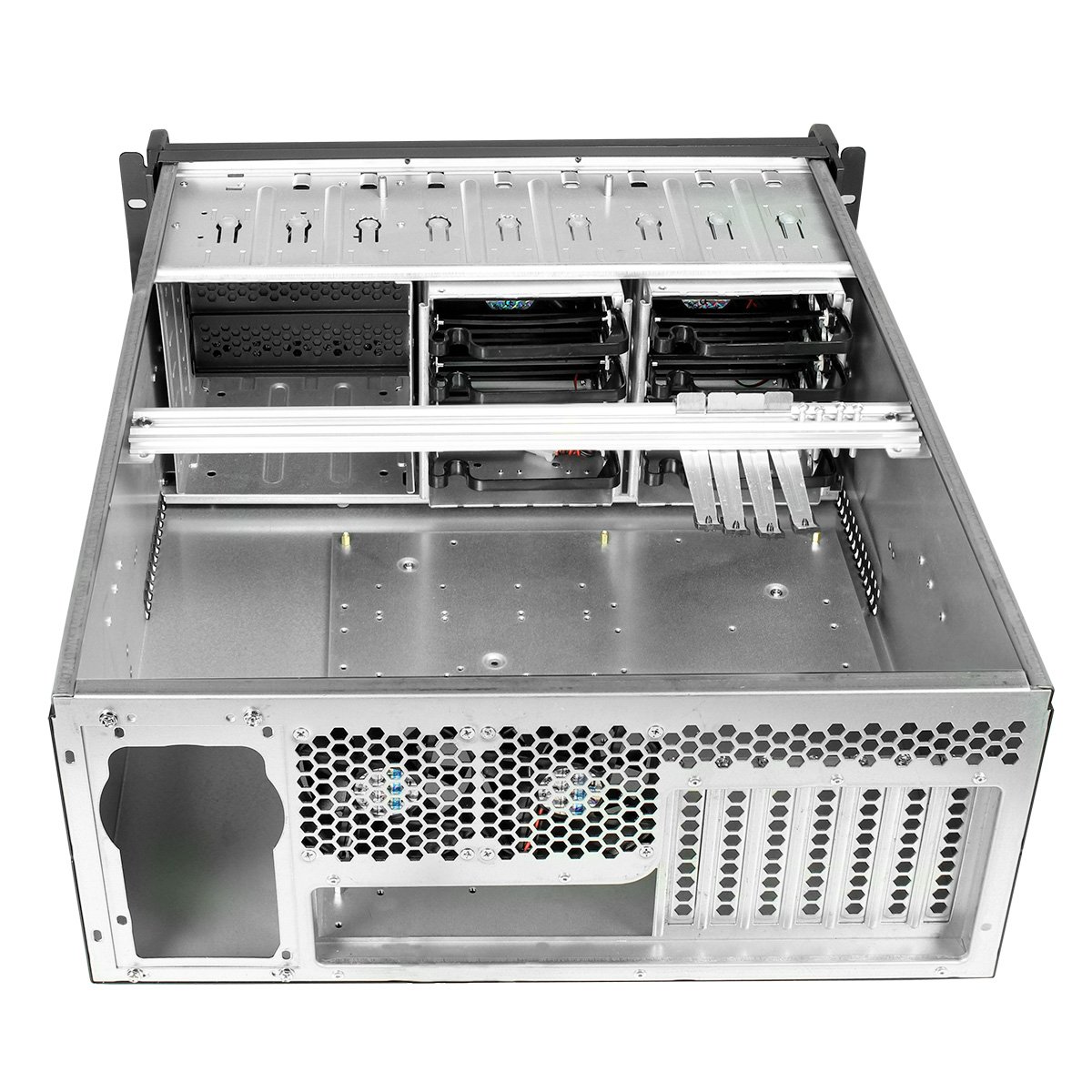

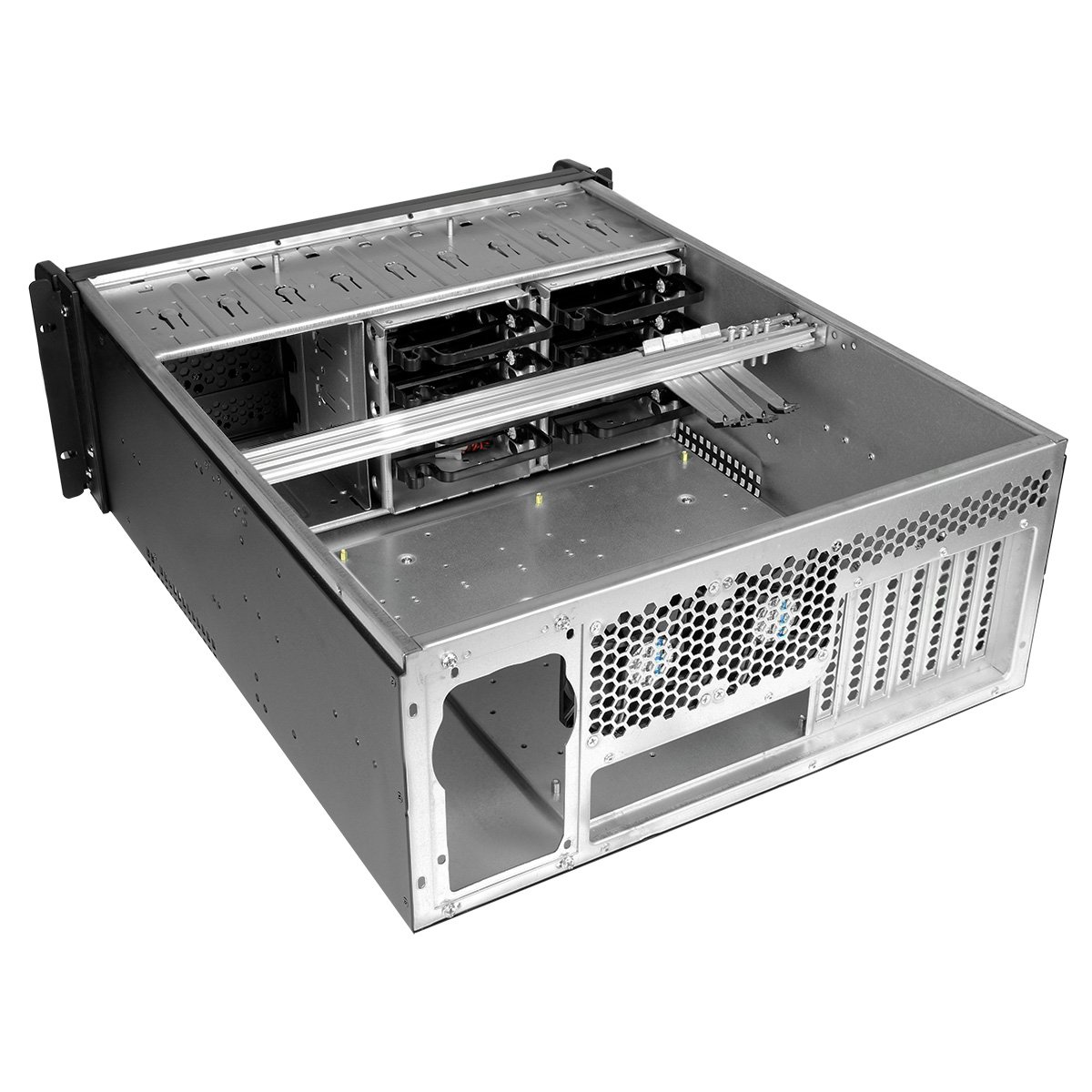

The front door with key lock delivers confident protection against unauthorised access and theft, for a great peace of mind. A spacious interior provides sufficient room to accommodate your powerful hardware, such as ATX motherboards and up to 8 internal 3.5" HDDs, 3 x 5.25" ODDs and seven expansion slots, so users can expand your server system easily. Configure or build your own custom 4U rack server starting with the chassis.

Compatible With the Following Rail Kit

The Codegen Rackmount 600mm V2 is compatible with the following Railkit:

Main Features

  • 4U Rackmount Case - 600mm deep (inc. handles)
  • Server Motherboard Support - Supports an ATX (12" x 9.6") or CEB (12"x 10.5") form factor motherboard and a PS2 power supply.
  • Cooling - With four fans included in the V2 600mm Rackmount it offers great expandability and cooling capacity for your server chassis.
  • HDD Capacity Support - HDD support includes 8 x 3.5" internals and 3 x 5.25" external bays.
  • Added Security - Door of front panel is lockable with Keys provided.
  • LEDs for Server Functions - LEDs to indicate the following: Machine state (Power LED x 1 green), HDD Activity (HDD LED x 2 red)
  • Removable Air Filter - Situated inside the door, can be removed and washable.


Get 5% off components when you buy 5 or more*

For a limited time, buy at least 5 different components from different qualifying categories and get 5% off those items at checkout.

 *Terms & Conditions apply.




Promotional Period: From 2023-09-25 till 2023-10-09, while stocks last.

Terms and Conditions

It can't be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to five or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. If will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the five or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 17th of August, 2023 till 31stof August, 2023.



External Expansion Bays 3 x 5.25"
Internal Expansion Bays 8 x 3.5"


Expansion Slots 7 x Full Height


USB Ports 2 x USB 2.0


Cooling System Front: Supports 2 x 120mm fans (included)
Rear: Supports 2 x 80mm fans (included)
Power Supply ATX Power Supply supported


Form Factor 4U Rackmount Case
Case Colour Black
Material 1mm SGCC
LED Status Indicators Power
2 x Disk Activity
Motherboard Compatibility CEB
In The Box Case
Accessory Pack
Width 485 mm
Depth 565 mm
Height 178 mm
Weight 12.5 kg

Key Features

Firewire No
Max Motherboard Width 244 mm
Max Motherboard Height 305 mm
Main Colour Black
Case Type Rack Server
USB 3.0 Support No
Case Form Factor Rackmount Server
Power Supply Included No
Optimised for Server
80Plus Rated No
PSU Form Factor ATX
Display Model in Showroom No
Illuminated No
L.E.D Fan No LED
Max 3.5" Drives 8
External 5.25" Bay 3
Micro-ATX Yes
Cooler Height 139 mm
Built-in Card Reader No
USB Type-C Support No
Front HDMI No
Side Panel Type Solid
GPU Length 330 mm
Number of Fans 4 fan(s)
RGB LED Controller Included No
LED Strip(s) Included No
Maximum Motherboard Size Supported ATX
RGB Software Type None
Total 2.5" + 3.5" drive bays 8
Power Requirement (auto) 12 W
USB2.0 ports 2
Low profile expansion No
Vinyl Position - Top No
Vinyl Position - Front No
Vinyl Position - Left No
Vinyl Position - Right No
Config Chillblast X No
Max Supported Radiator Length N/A mm


Warranty 1 Year

Item Details

Manufacturer Codegen
Manufacturer Code 4U600V2
EAN 5055492407689
Condition New

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Codegen
Manufacturer Code 4U600V2

Do you have you a question about the Codegen 4U Rackmount 600mm v2 Server Case in Black with Butterfly Lock, 2 x 80mm fans, 2 x 120mm fans?

Q: I do have a customer asking about the CD bays, is there any sort of clips or holes to screw 3 CD readers in there?
Answer by Website User on 18th September 2020
There are screw holes to mount three 5.25" devices. -MR
1 customer found this answer helpful.
Post Answer
Q: Does this come with the fans? And will it fit in any 19" 600mm depth rack?
Answer by Website User on 29th April 2020
It has 2x 120mm fans and should fit any 600mm depth server rack. -MR
3 customers found this answer helpful.
Post Answer
1.0 / 5 2 reviews


June 2021

waste of money doesn't fit into the rack with the rail kit for the case. around 4mm wider when it should be, usage of other rails is not possible because of the way handles are mounted.

Mr Martin

February 2021

My personal review of CCL computers. (Quite happy to take your money Customer care zero) I know this statement sounds a little harsh but let me explain why. I decided to buy my computer server case price 95 from CCL computers they have a very good website and talk about being in business for many years. Anyway let me get to the review. As far as the case goes excellent construction however there were a couple of issues. The first issue is the lock wouldnt lock on the server case. The second issue is that was no pre-drilled hole for one of my mounting points for the motherboard. I contacted CCL computers. I spoke to a gentleman from the sales department. I explained my situation and told him Id been waiting for a response for five days. He then asked me for my ticket number I gave him the ticket number. He tried to look up the ticket number but couldnt find it he then said maybe it was in another account he could not access. He then said maybe they are still dealing with Decembers emails and somebody will get back to me shortly. I said to him its a lot of maybes. I then asked to speak to a manager. I was informed that managers dont take phone calls from customers. So I asked him to speak to somebody that deals with the server cases I was informed that the server case department do not speak to customers. I then asked him who would be willing to speak to me. He then transfer me to presume was a secretary as she didnt know anything about server cases. After giving her my ticket number she told me that somebody was trying to find a lock replacement and somebody would get back to me. I got a one line email saying that somebody was trying to source a lock. I have called today 21 01 2021. Only to be informed that there are no managers available and somebody will get back to me. I bought this server case on 5 January it is now 21 January and I have had nothing but problems including the last couple of days when I start my computer one of the bearings have gone in the fan. I tried to give them ample time to try resolve these problems but they just dont want to seem to deal with customer concerns. Make up your own mind whether to purchase from this company. update 3rd of February 2021. it has now been a month I'm still nobody has got back to me about my complaint absolutely disgusting they ought to be ashamed.
