4U Rackmount Server Case

CCL Code: CAS3448
Manufacturer Code: 4U RACKMOUNT
| Manufacturer: Generic

Key Features:

  • PSU not included
  • 2 x 5.25" External Bay(s)
  • 2 x 2.5", 8 x 3.5" HDD Bay(s)
  • Max MB Size: ATX


inc VAT

6 In Stock Now

Buying in bulk or need help? Email our Business Team.

Delivery Options

Tomorrow via DPD Saturday

Free Delivery by Monday 23rd May

Order within

Collection Options

Monday 23rd May from Local Collection Point

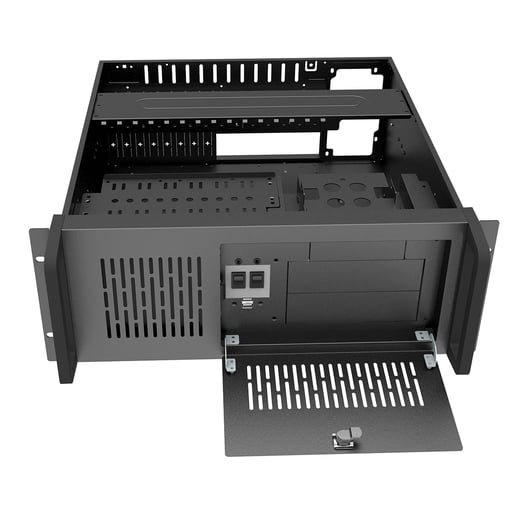

Thsi 4U rackmount chassis is a cost-effective computer chassis featuring plenty storage device options for your server. A pre-installed 120mm front fan delivers an exceptional thermal performance you can rely on.

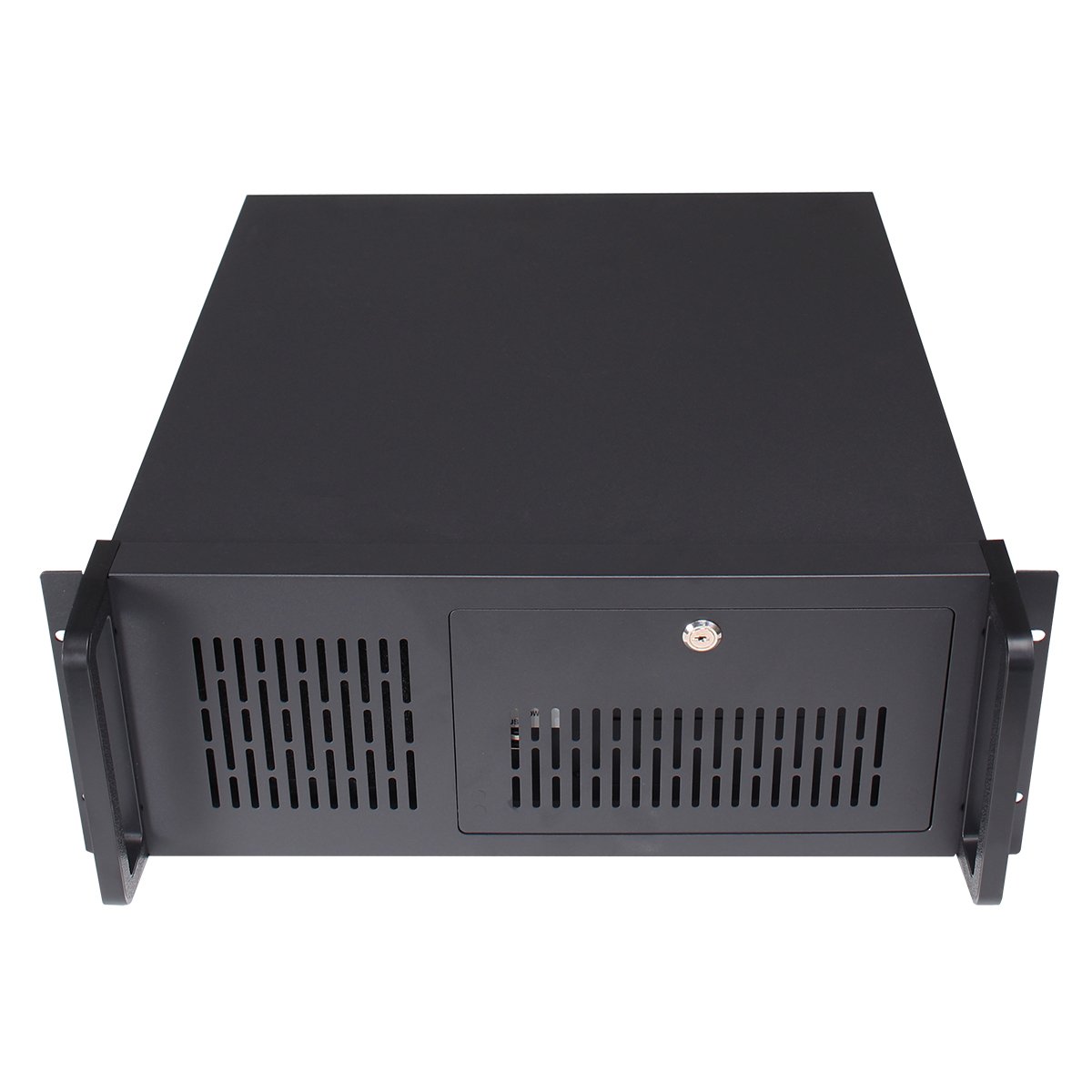

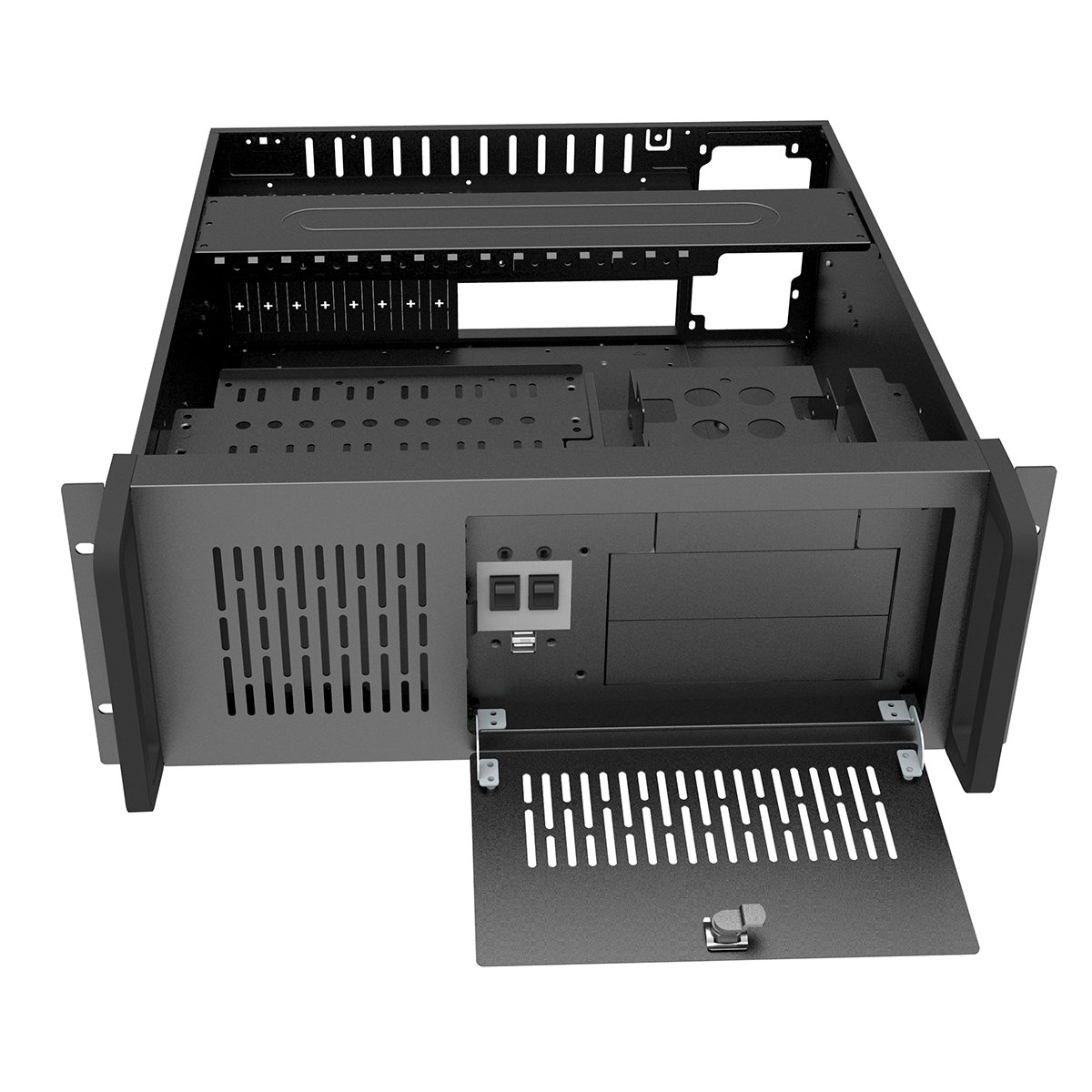

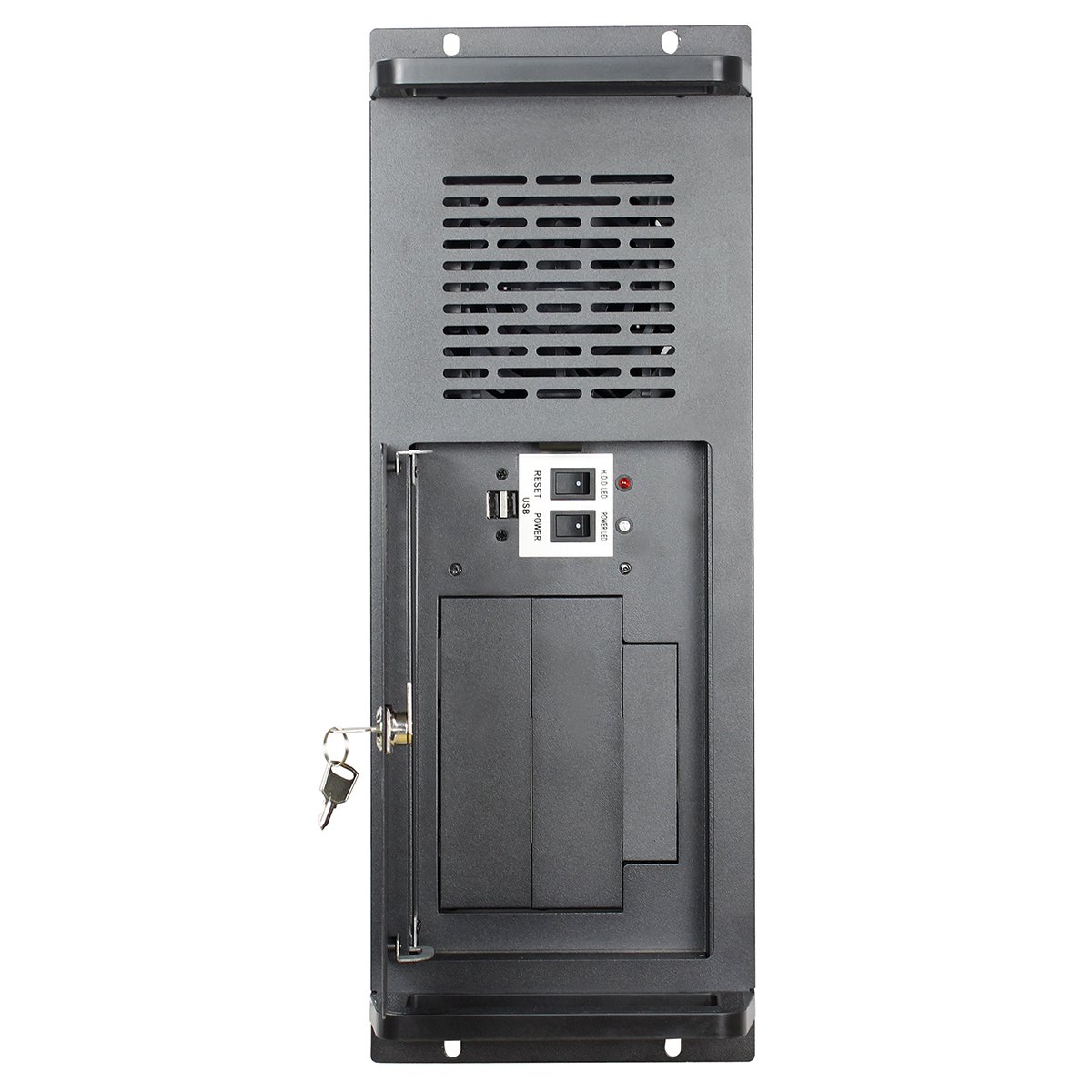

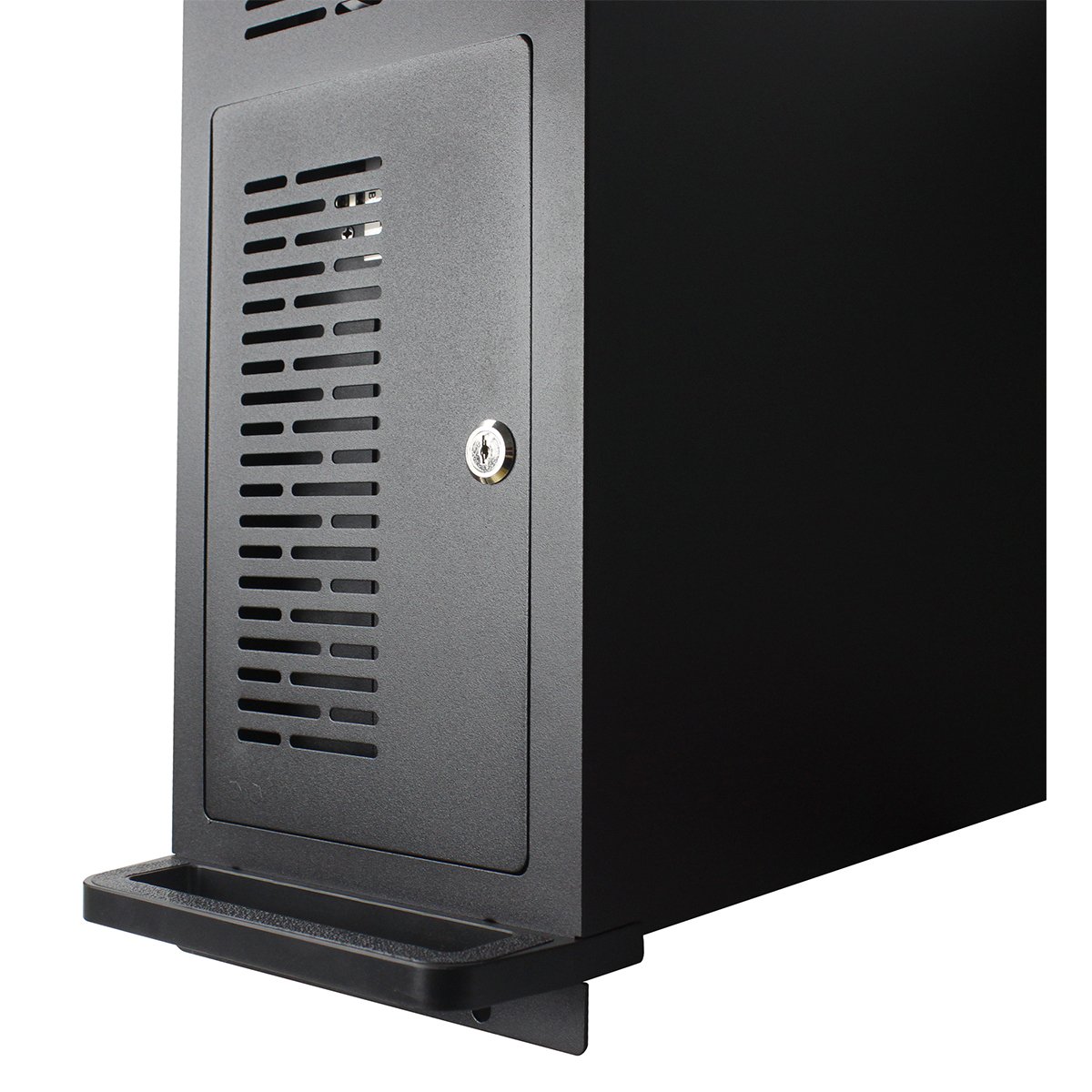

The front door with key lock delivers confident protection against unauthorised access and theft, for great peace of mind. Support for up to eight internal 3.5" HDDs, two x 2.5" HDD and seven expansion slots allows you to expand your server system easily.


  • Max GPU Length: 270mm
  • Max CPU Cooler Height: 115mm


External Expansion Bays 2 x 5.25"
1 x 3.5"
Internal Expansion Bays 2 x 2.5"
8 x 3.5"

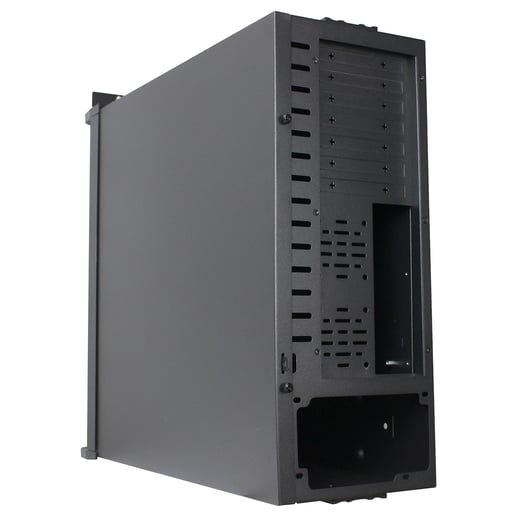

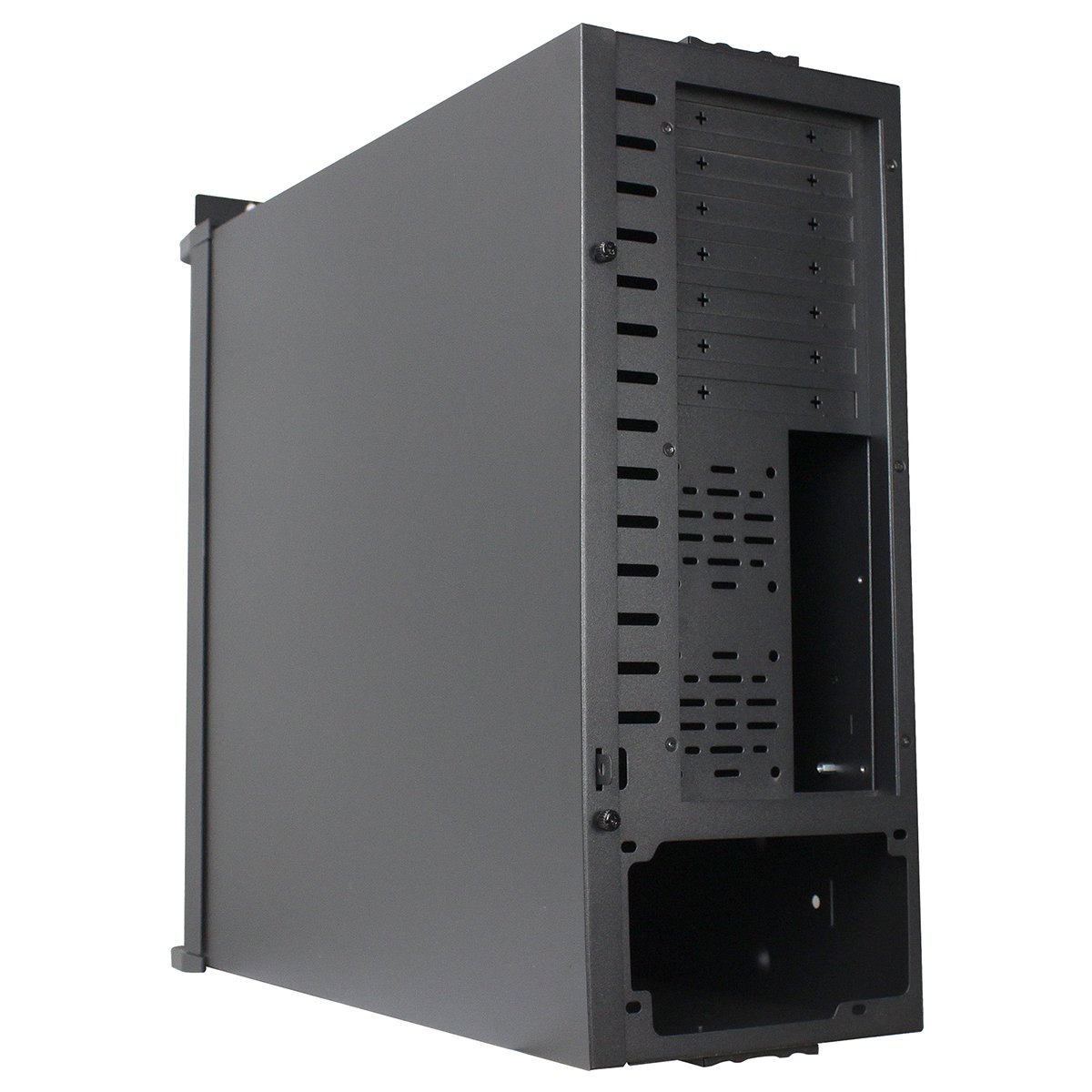

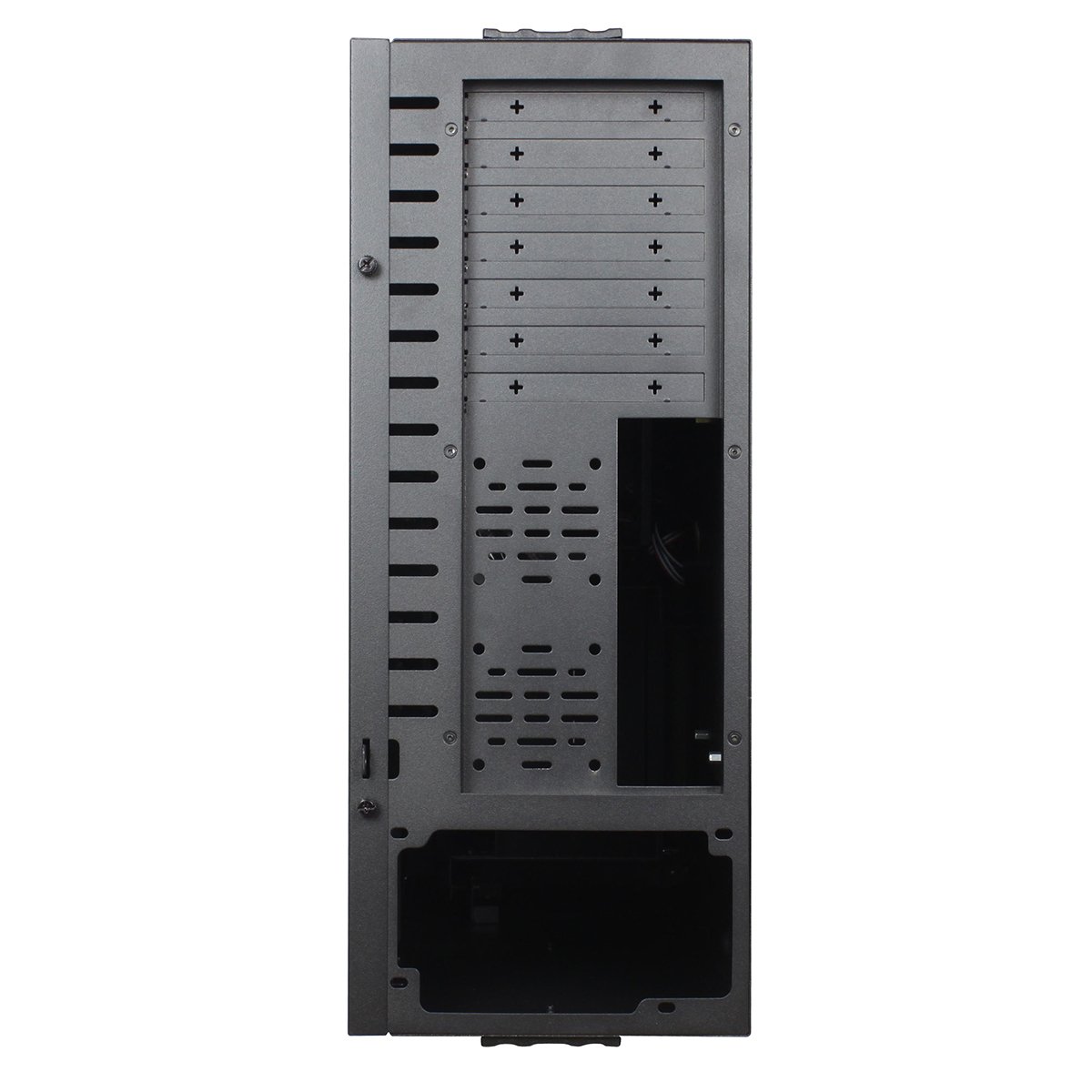

Expansion Slots 7 x Full Height


USB Ports 2 x USB 2.0


Cooling System Front: Supports 1 x 120mm fan (included)
Rear: Supports 2 x 60mm fans
Power Supply ATX Power Supply supported


Form Factor 4U Rackmount Case
Case Colour Black
Material 0.7mm SECC
1.5mm SGCC
Motherboard Compatibility ATX
Micro ATX
In The Box Case
Width 503 mm
Depth 485 mm
Height 172 mm
Weight 8.1 kg

Key Features

Firewire No
Main Colour Black
Case Type Rack Server
USB 3.0 Support No
Case Form Factor Rackmount Server
Power Supply Included No
Optimised for Server
80Plus Rated No
PSU Form Factor ATX
Display Model in Showroom No
L.E.D Fan No LED
Internal 3.5" Bay 8
External 5.25" Bay 2
Internal 2.5" Bay 2
Micro-ATX No
Cooler Height 115 mm
Built-in Card Reader No
USB Type-C Support No
Front HDMI No
Side Panel Type Solid
GPU Length 270 mm
Front Audio Type Separate
Maximum Motherboard Size Supported ATX


Warranty 1 Year

Item Details

Manufacturer Generic
Manufacturer Code 4U RACKMOUNT
EAN 5055492407283
Condition New

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Generic
Manufacturer Code 4U RACKMOUNT
Questions and Answers

Do you have you a question about the Generic 4U Rackmount Server Case (Black), 500mm Depth?

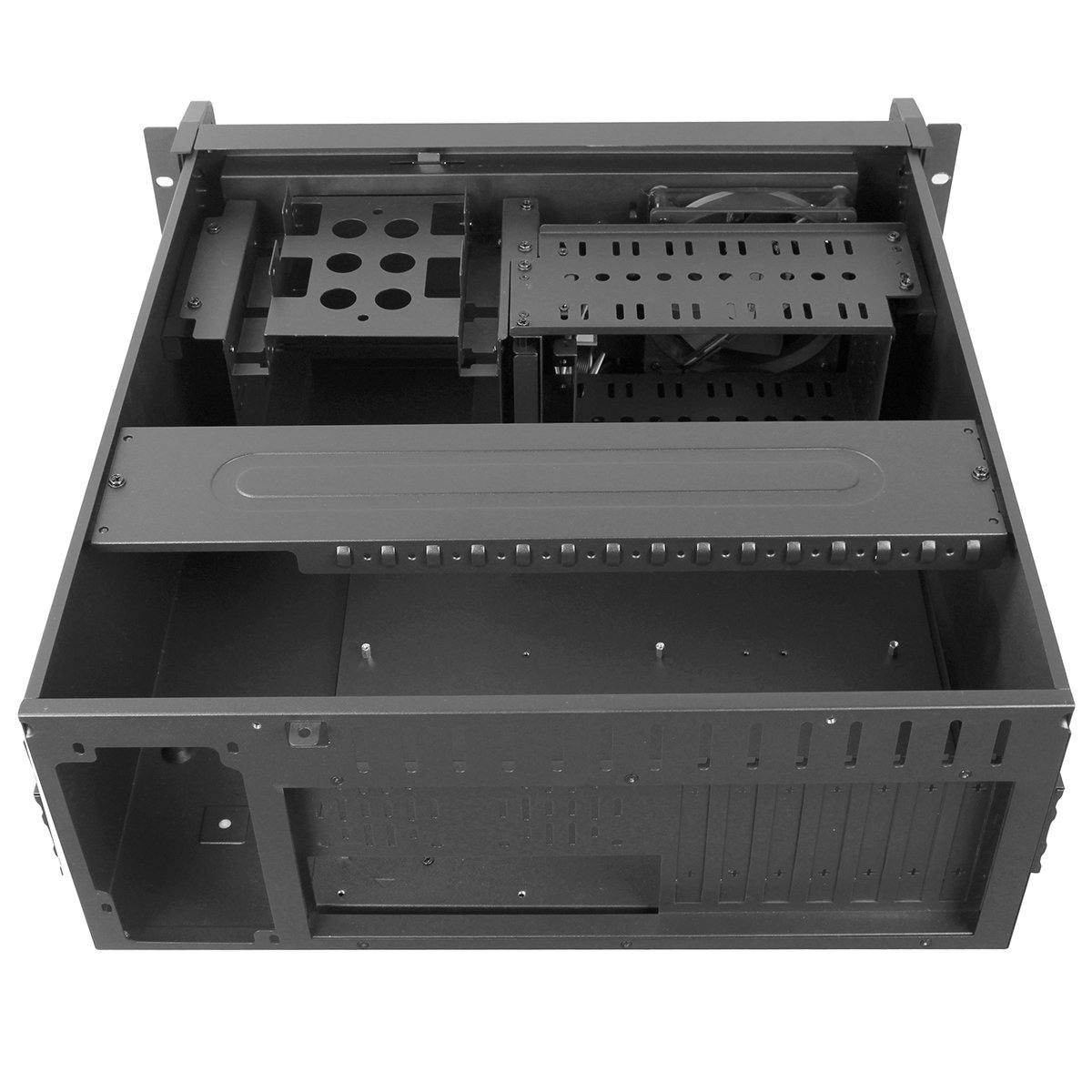

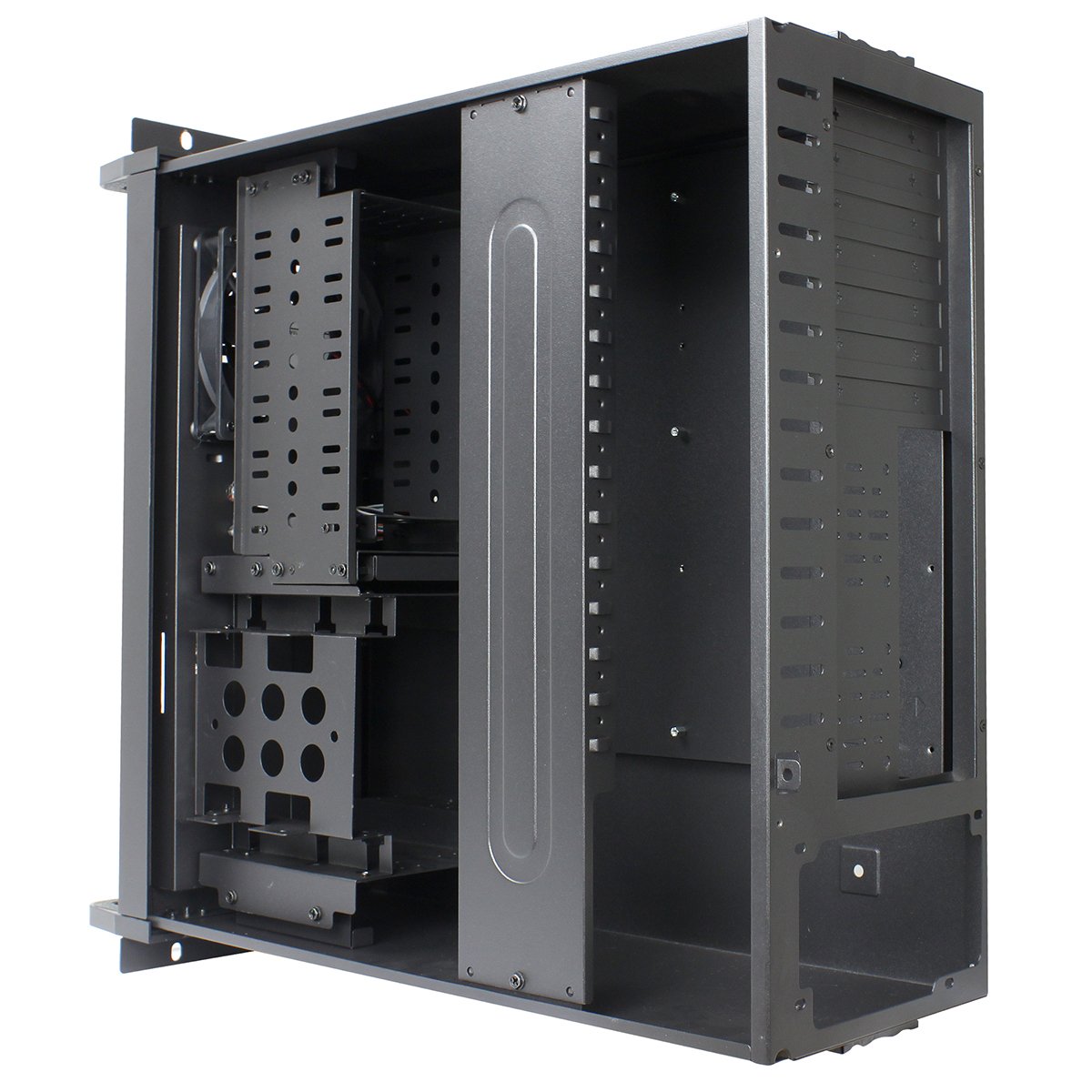

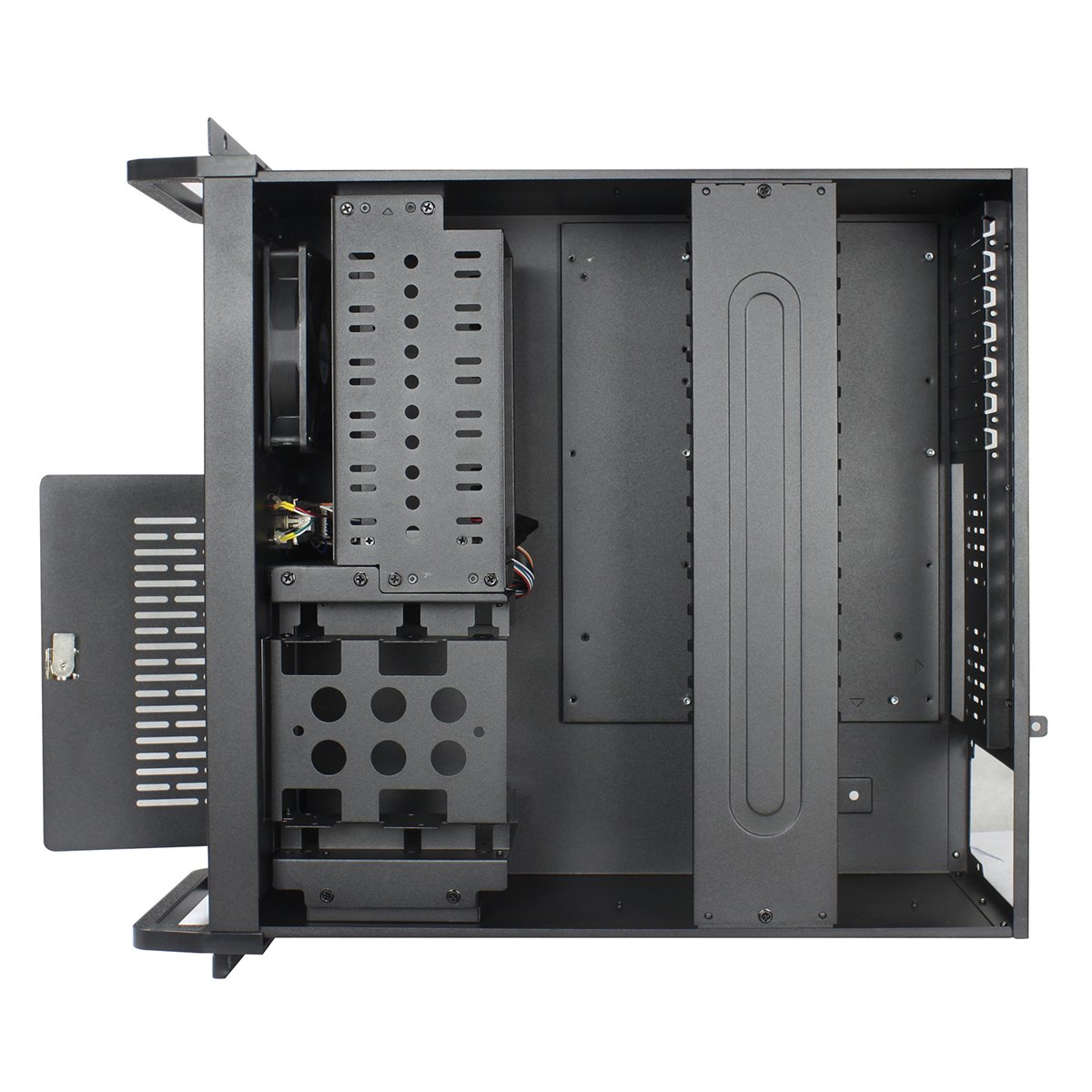

Q: Where do the 3.5" drives mount? I can't work it out from the picture. It looks like about 5 of them upright at the front ... for the other 3 do you have to reuse the 5.25" bays?
Answer by Website User on 22nd September 2021
Just below the bay of 6 there is a sideways bay that supports 2. - Kristian N
0 customers found this answer helpful.
Post Answer
Q: Can this case be used with a set of rails you currently sell?
Answer by Website User on 10th March 2020
I am not 100% sure on this, unfortunately. - Kristian N
0 customers found this answer helpful.
Answer by Tim on 17th March 2021
i used the codegen RK-26 rails. not specifically for this case but the front & middle screws fit without issue. The 3rd final screw (rear of 4u case) will need the server-side rail drilled for this screw. Hope this helps others, i had same question, took a gamble and it worked for me!
1 customer found this answer helpful.
Post Answer
Q: Hey, Can you please provide pictures or instructions on how to mount 2.5" hard drives in this case. Thanks Alex
Post Answer
4.7 / 5 7 reviews


12 hours ago

I bought two clearance versions of this case to save a few pounds and they arrived as good as new. This case is easy to work with, and provides somewhat good airflow for cooling. The cases provide plenty of 3.75" hard drive slots as well as enough room for a DVD drive or two. The only downside that I can think of is that there are no options for cable management, not even some zip-tie mount, so expect to be dealing with nests of cables.


last month

Item was as described and a good sturdy build. The front panel isn't very modern but is functional.


last month

Its a great case for my use pourpse. (bilding a retro machine) its soacious and has enough drive bays to make a decent home or small bussiness server. or even a desceet gaming pc.


April 2021

Well constructed, plenty of options and space inside for components.

karen rhodes

February 2021

Good 4u chassis. only complaint is lack of fans the unit only comes with 1 x 120mm.. You can add 2 x 60mm fans to the rear of the chassis which i recommend you do.. Other than that great unit for the price.. So overall a happy customer.


August 2019

Great sevice


November 2018

Exactly as described and excellent build quality with high quality components. The flexibility of the inside of the case exceeded expectation and it looks great as well
