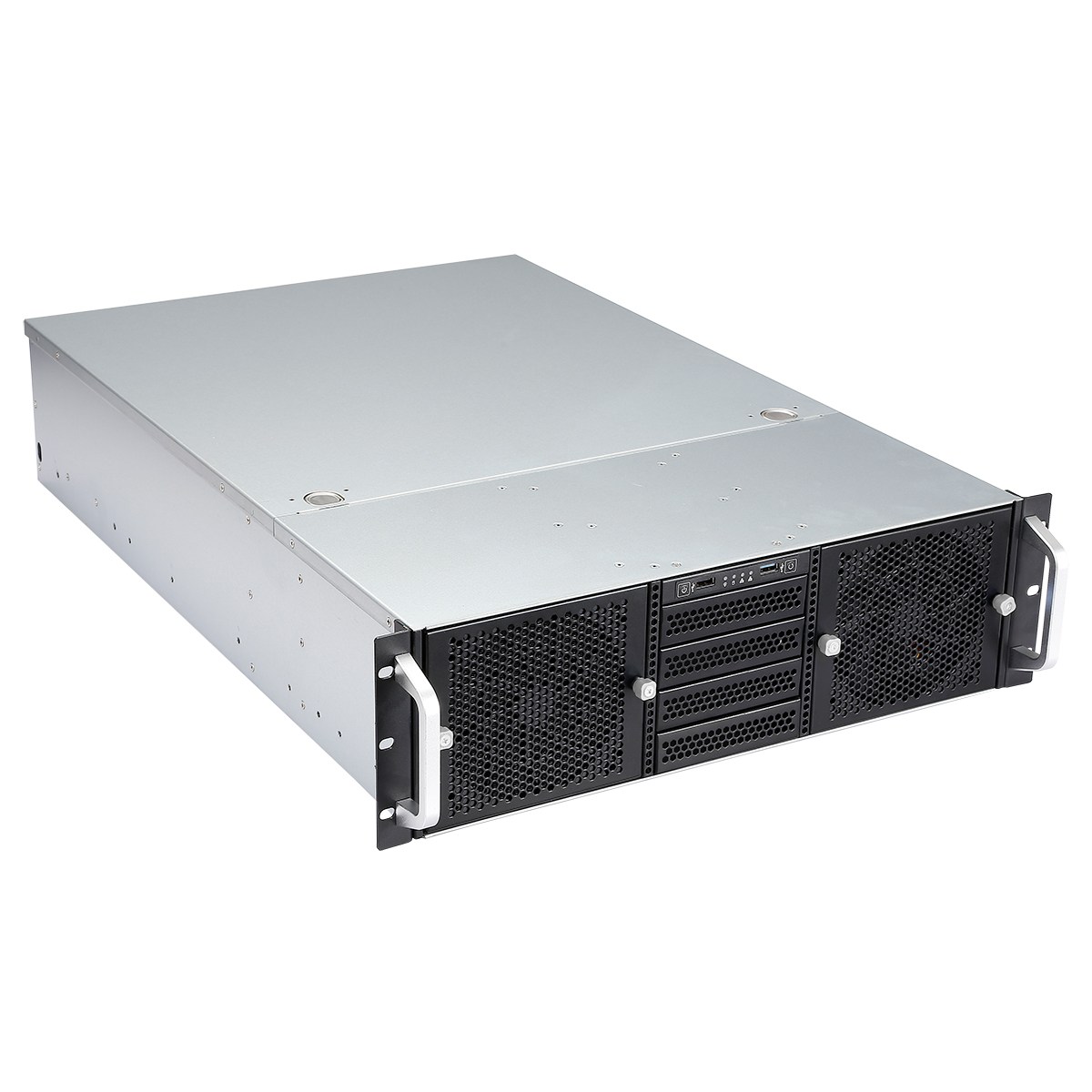

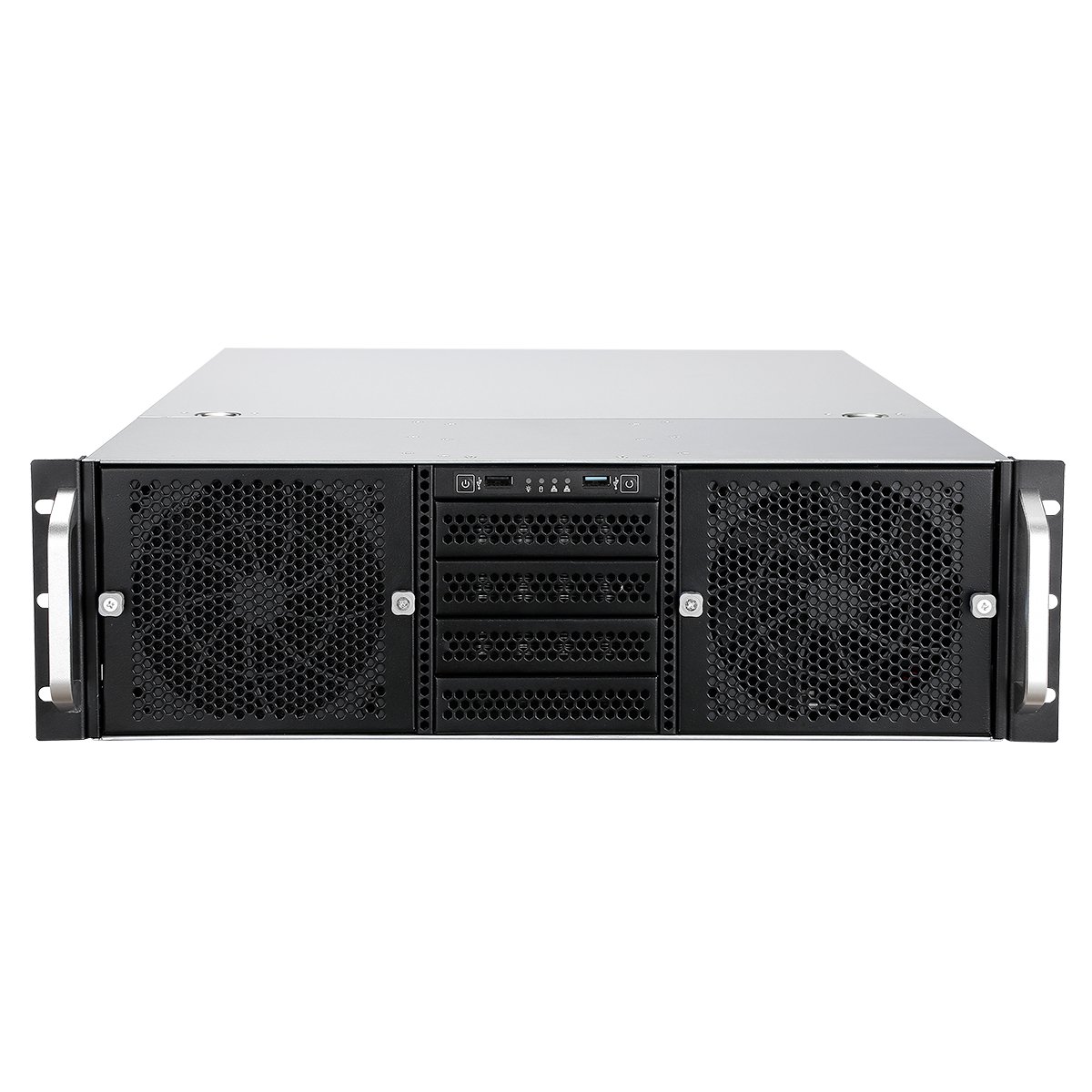

Codegen 3U 650mm Rackmount Server Case - Silver
Codegen 3U 650mm rackmount computer chassis featuring a number of different power form factor and storage device options. The 3U rackmount computer chassis provides the best support for various rackmount systems and different applications. There are several fans, which can deliver an exceptional thermal performance you can rely on. The 650mm rackmount comes with 5 x 120mm PWM fans and 2 x 60mm fans.

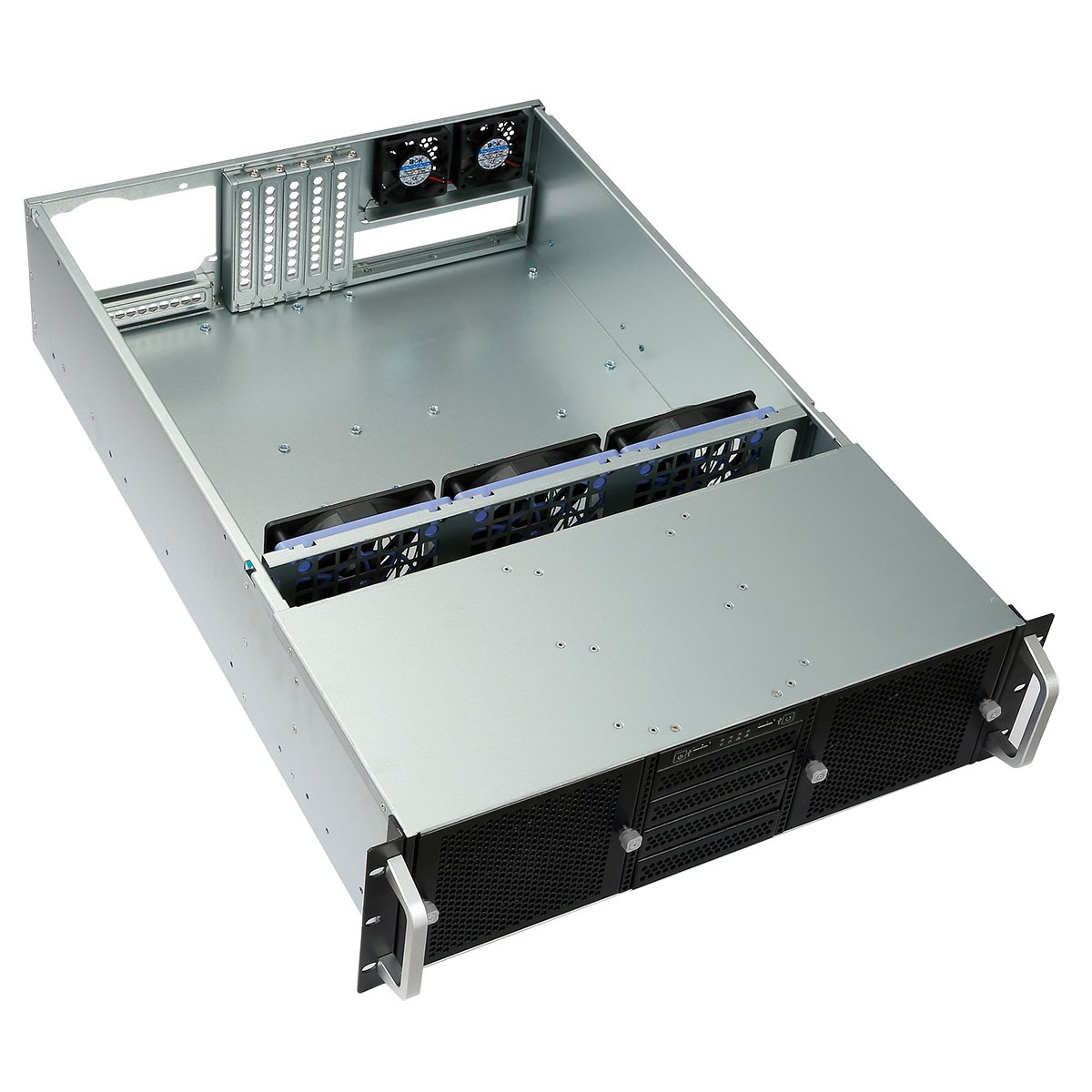

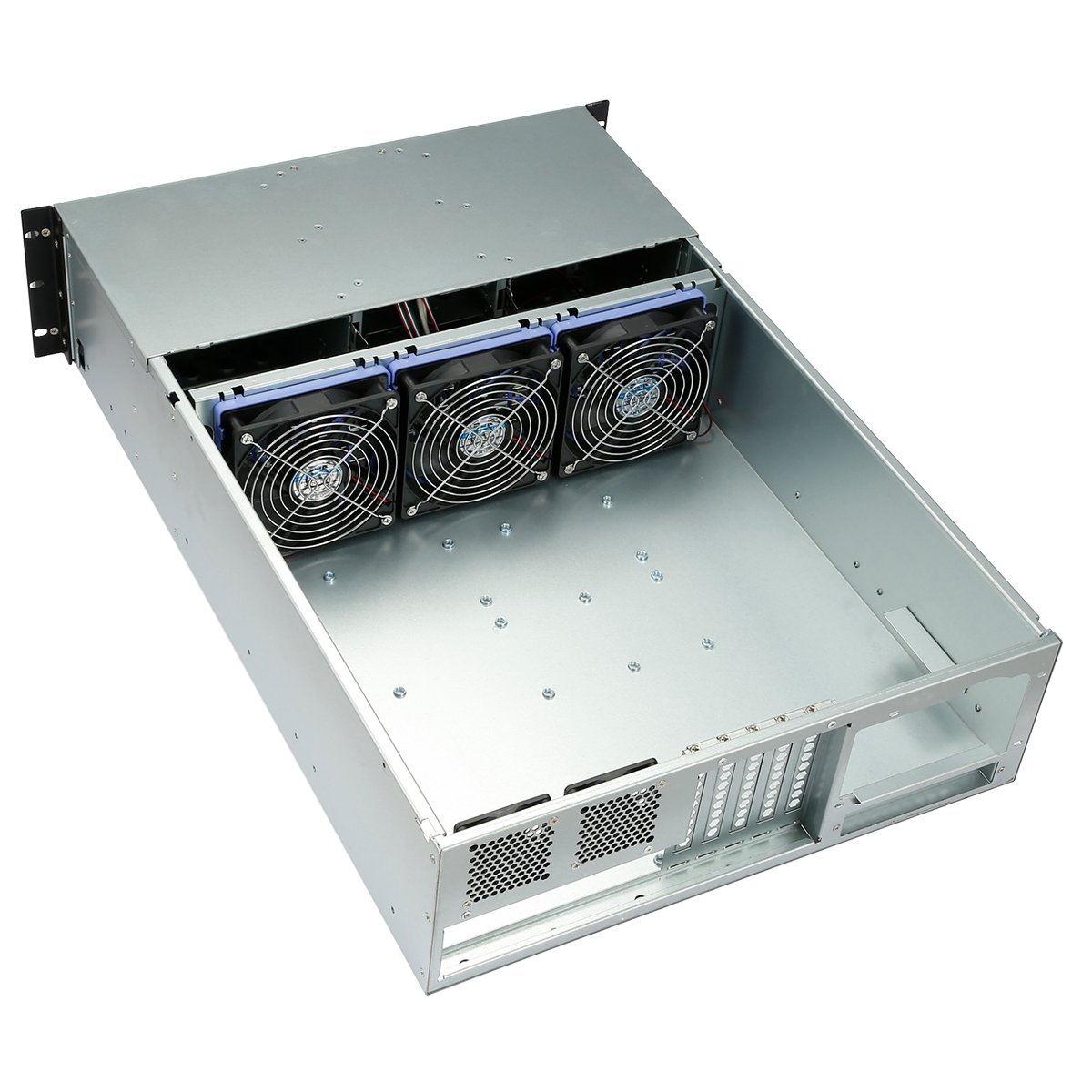

The top panel designed with an optional tool-less access, a quick release mechanism to the internal to install your components. A spacious interior provides sufficient room to accommodate powerful hardware, such as E-ATX motherboards and up to 14 x 3.5" HDDs or 10 x 3.5" HDDs + 4 x 2.5" SSDs and five expansion slots, to accommodate your server systems. Configure or build your own custom 3U rack server starting with the chassis.
The Codegen 3U Rackmount 650mm Deep is compatible with the Codegen Rail Kit For Codegen Rackmount Cases.
Storage
- External Expansion Bays: 4 x 3.5" (shared with 2.5" internal)
- Internal Expansion Bays: 4 x 2.5" (shared with 3.5" external)
- 10 x 3.5"
Expansion
- Expansion Slots: 5 x Full Height
Interfaces/Ports
- USB Ports: 1 x USB 3.0
- 1 x USB 2.0
Electrical
- Cooling System: Front: Supports 2 x 120mm fans (included)
- Rear: Supports 2 x 60mm fans (included)
- Power Supply: ATX Power Supply supported
Physical
- Form Factor: Server Case
Warranty
- Warranty: 1 Year
Physical
- Case Colour: Silver
- Material: 1.0mm SGCC
- Motherboard Compatibility: E-ATX
- ATX
- mATX
- Mini-ITX
- In The Box: Case
- Screw Pack
- Drive Mounting Brackets
- Fan Power Extension Cables
- Manual
- Width: 435 mm
- Depth: 650 mm
- Height: 135 mm
- Weight: 12.2 kg
Identifiers
- Stock Code: CAS5610
- Mfg Code: 3U650
Warranty
- Warranty: 1 Year
