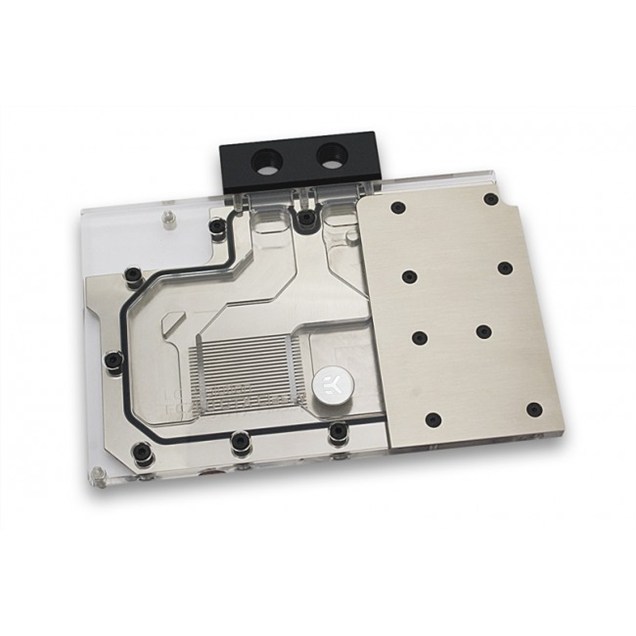

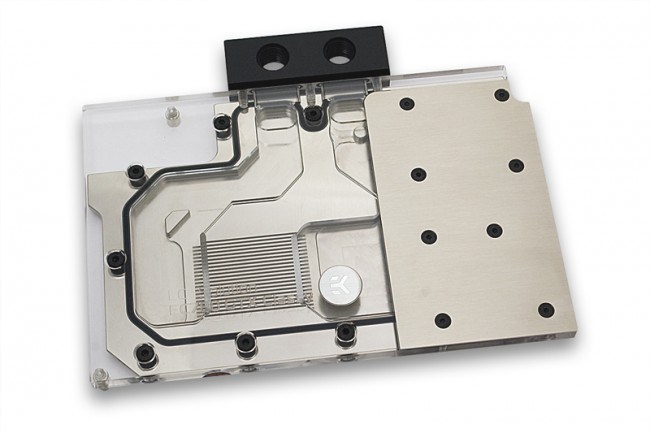

EK-FC780 GTX Classy is a high performance full-cover water block engineered specifically for EVGA design GTX 780 Classy, GTX 780 Ti Classy, GTX 780 Ti Kingpin, and 980 Ti Classified graphics cards.

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC780 GTX Classy water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

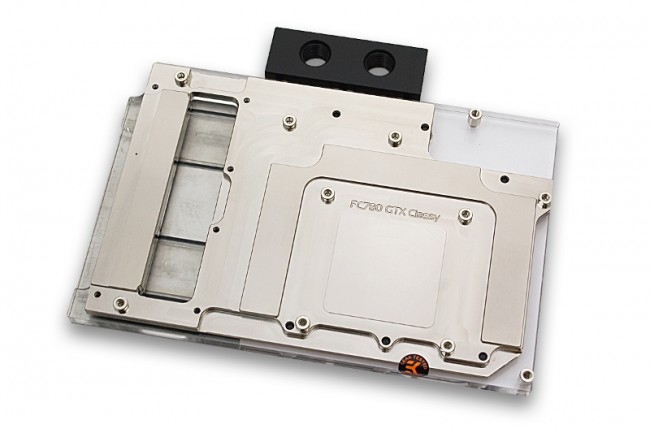

Base is made of nickel plated electrolytic copper while the top is made of quality acrylic glass material. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate (either EK-FC780 GTX Classy Backplate - Black or Rev.2.0) which improves the looks of your graphics cards and also provide some passive cooling to the VRM section.

G1/4" threaded fittings can be used on both sides of the FC terminal. Flow orientation doesn't matter and is thus not prescribed.

Up to four EK-FC780 GTX Classy water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity. Please note that EK-FC Bridge & Link system is not compatible with this water block.

Enclosed:

• EK-FC780 GTX Classy series water block
• mounting mechanism with screw-in brass standoffs

• thermal pads

• thermal grease EK-TIM Ectotherm (1g)

Made in Slovenia - Europe!

PLEASE NOTE:

• Fittings are not included! Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for EK connectors.

• Water block ports does not align with any other EK-FC water block.
