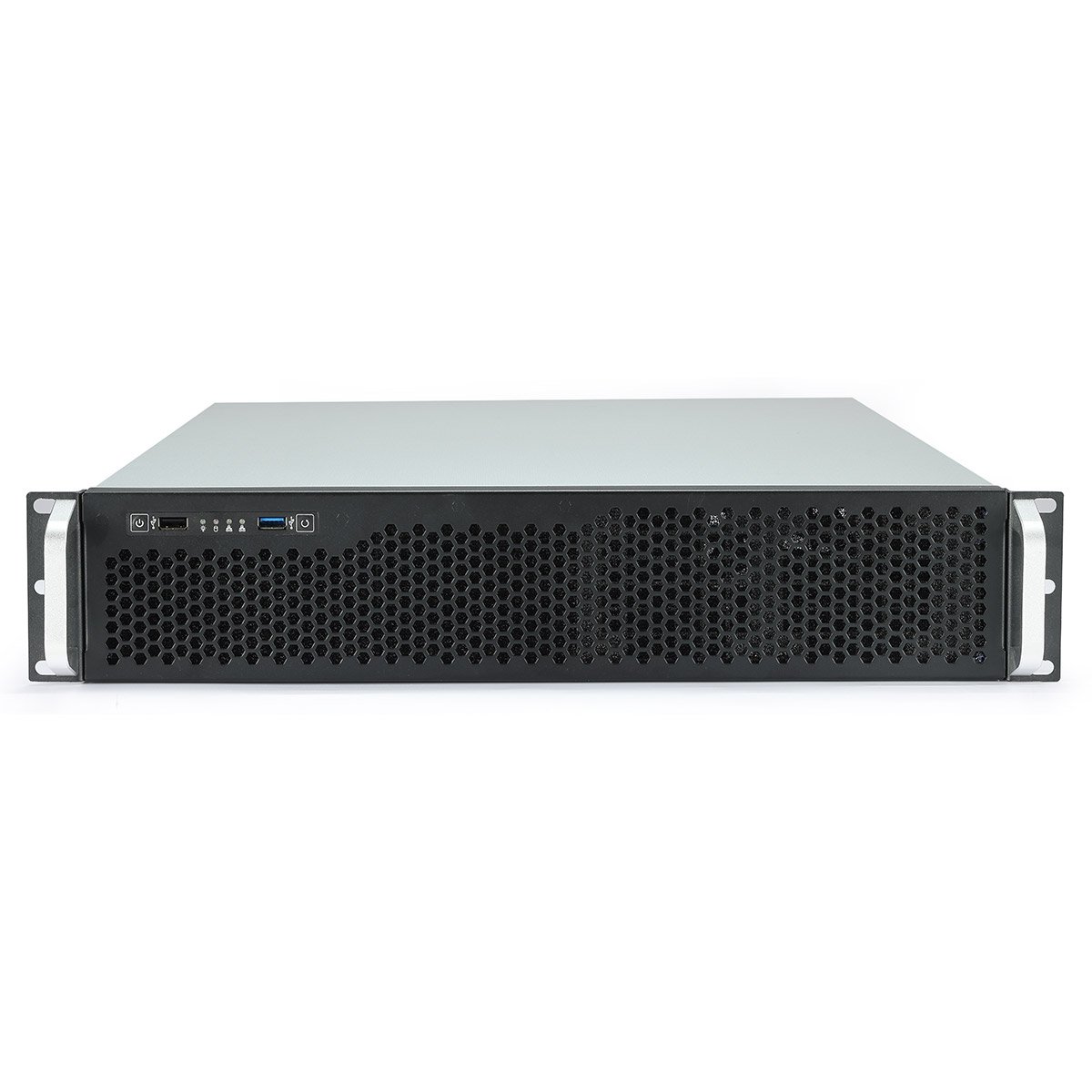

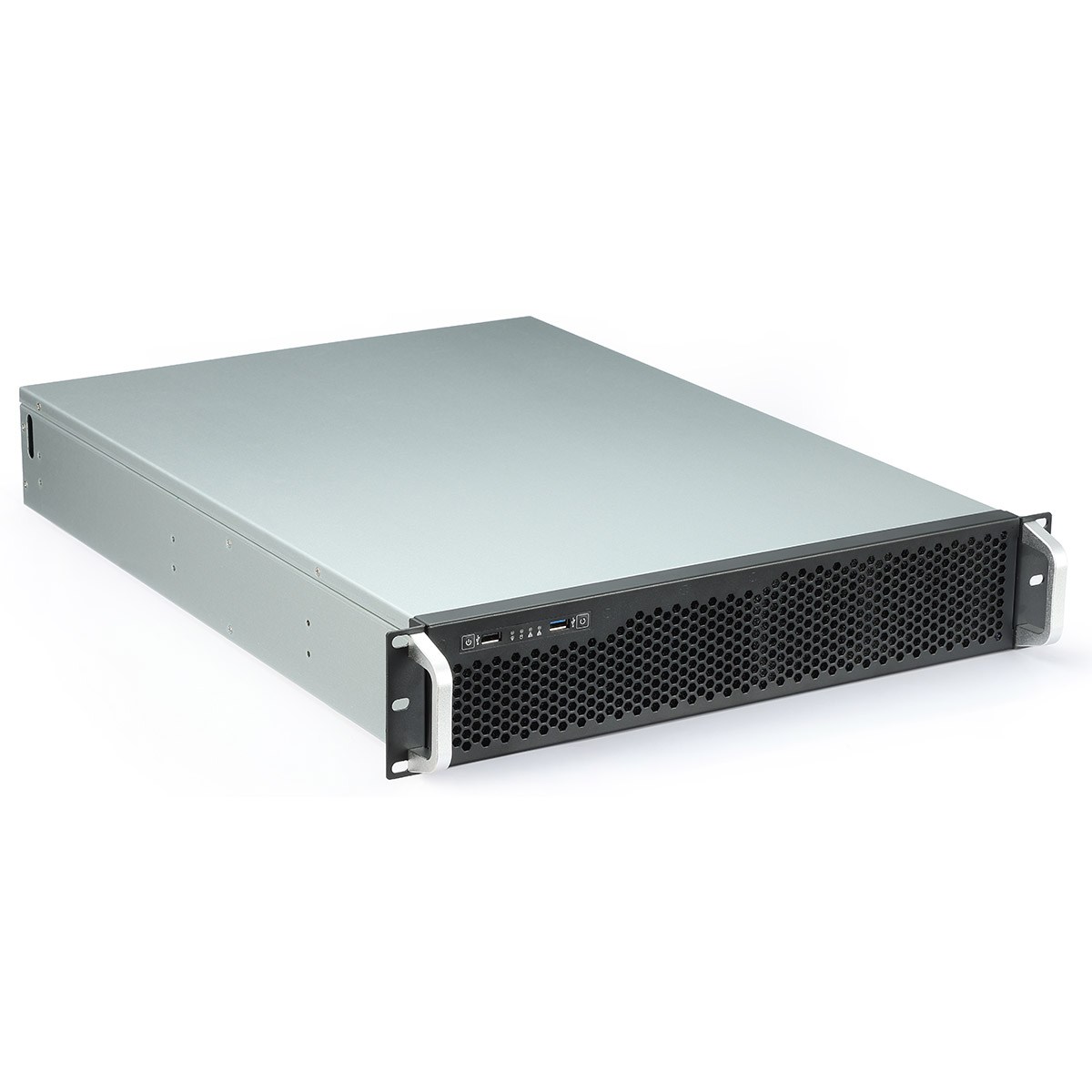

Codegen rackmount server chassis 2U 600mm depth is a stable, safe, high quality, durable 2U chassis designed to be mounted in a standard server rack. Installed with five Hydraulic Bearing fans & three of the pre-installed fans include PWM functionality, which can deliver an exceptional thermal performance you can rely on.

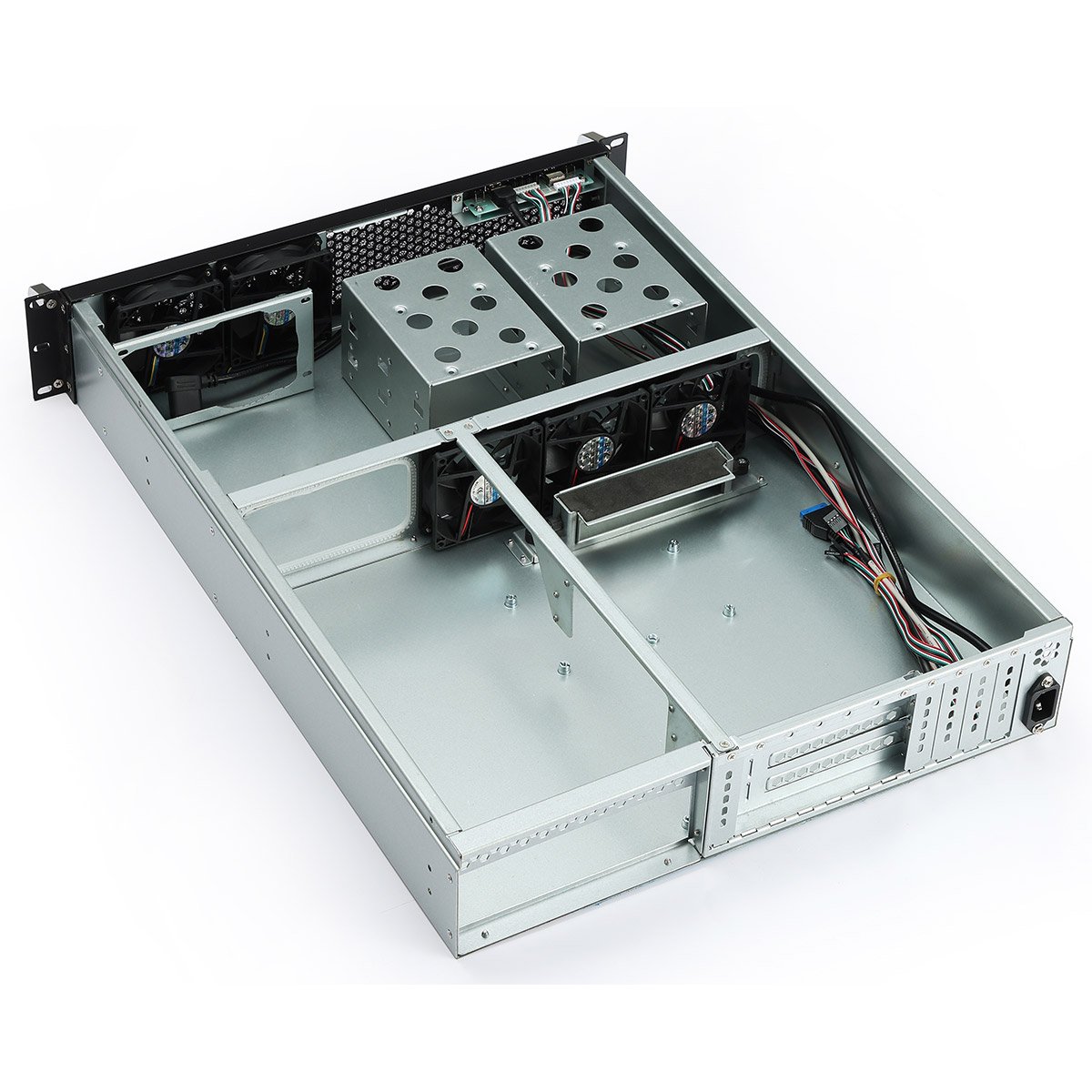

The 600mm rackmount comes with 2 x 80mm HDB fans & 3 x 80mm PWM HDB fans. The interior supports ATX, Micro-ATX and Mini -ITX Motherboards and up to 6 x 3.5” or 4 x 3.5" & 2 x 2.5" and four low profile and three standard PCIe expansion slots, to accommodate your server systems.
The Codegen 2U Rackmount 600mm Deep is compatible with the Codegen Rail Kit For Codegen Rackmount Cases.
Main Features
- 2U Rackmount Case - 600mm deep & 430mm wide (Exc. handles). 2U rackmounts are suitable for mid-size servers and offer a great balance between size & performance. They can be used in backup servers, scale-out infrastructure and high-performance computing.
- Server Motherboard Support - Supports ATX, Micro-ATX and Mini ITX Motherboards.
- Optimal Cooling - Five pre-installed fans are including inside the 2U 600 with 2 x 80mm HDB fans & 3 x 80mm PWM HDB fans are included with automatic speed control of the Motherboard through the 4 Pin PWM fan cable interface, which can determine the speed according to the temperature readings from various parts of the PC. This further helps to keep your system as quiet as possible, using only as much fan power as needed.

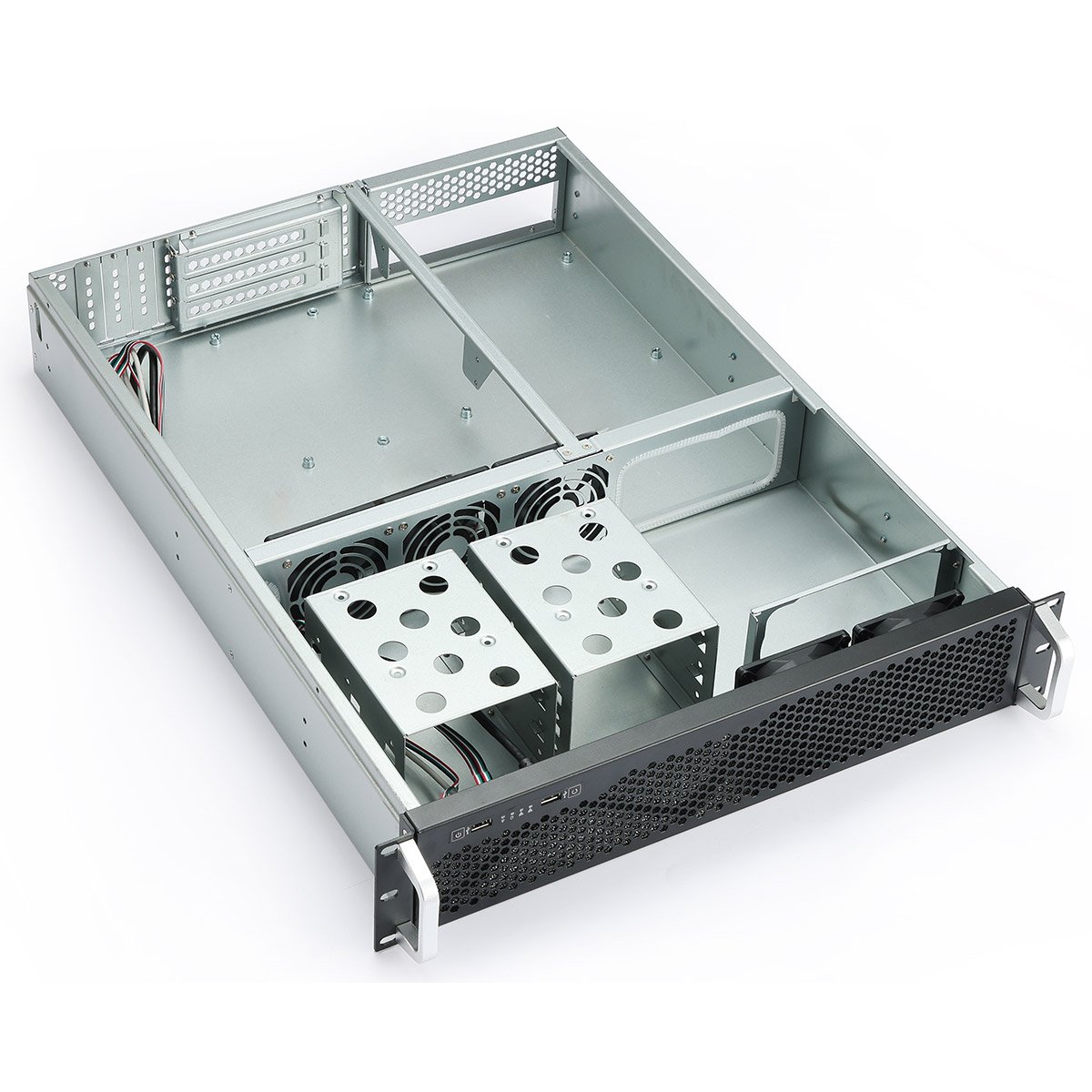

- HDD Capacity Support - Hard drive mounting support options includes up 6 x 3.5" HDDs or 4 x 3.5" HDDs & 2 x 2.5" SSDs.
- Expansion - The 2U 600 includes 7 expansion slots, 3 standard & 4 low-profile expansion slots. Supports one full height GPU both are movable with high flexibility.
- GPU Bracket - 2U 600 designed with an intelligent Graphics card bracket to combat GPU sag and provide additional support.
- GPU's - Supports 1 x low-profile or full-height GPU or change to all low-profile with ATX Motherboard, it can support up to 7 x low-profile GPUs. The 2U includes 6 x PCIe brackets in the accessory box.
- LEDs for Server Functions - LEDs to indicate the following: Machine state (Power LED x 1 green), HDD Activity (HDD LED x 1 red) & Network Interface Controller (LAN NIC LED x 2 yellow).
