Input

• Input Voltage Range: 80-300V @ 0-50% load
• 140-300V @ 50-60%
• 160-300V @ 60-80%
• 190-300V @ 80-100%
• Frequency Range (Input): 40 ~ 70 Hz

Output

• Minimum Transfer Time: 4 ms
• Maximum Transfer Time: 10 ms
• Waveform Type: Pure Sine Wave
• Output Capacity: 3000 VA
• Output Wattage: 2700 W
• Crest Factor: 3:1
• Frequency Range (Output): +/- 0.5 Hz
• Power Factor: 0.9

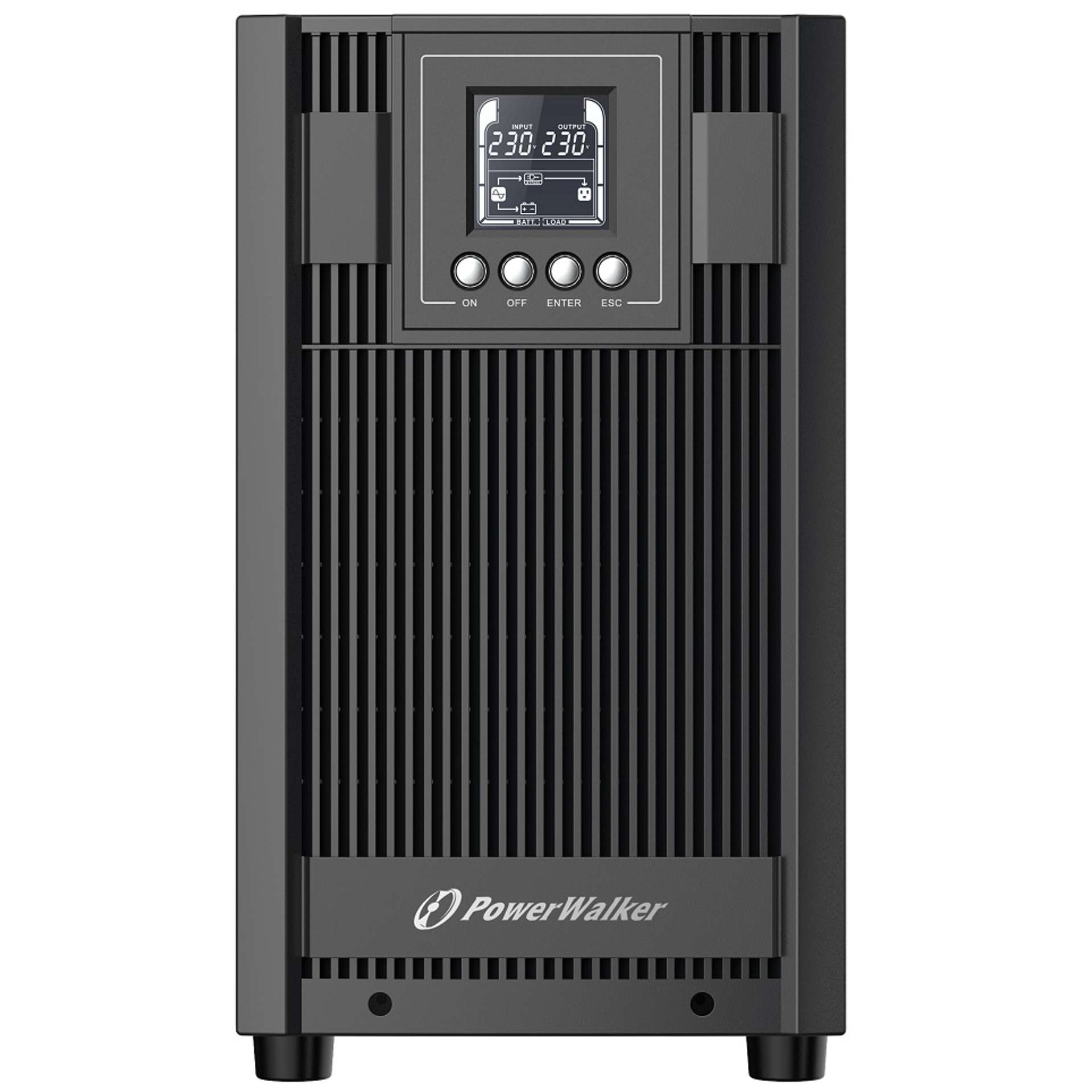

Display/Warnings

• Display Screen: Yes

Battery

• Typical backup time at half load: 13.5 mins
• Typical backup at full load: 3.5 mins
• Typical Recharge Time: 4 hours
• Battery Type: Sealed Lead Acid
• Number of Batteries: 6
• Battery Voltage: 12 V

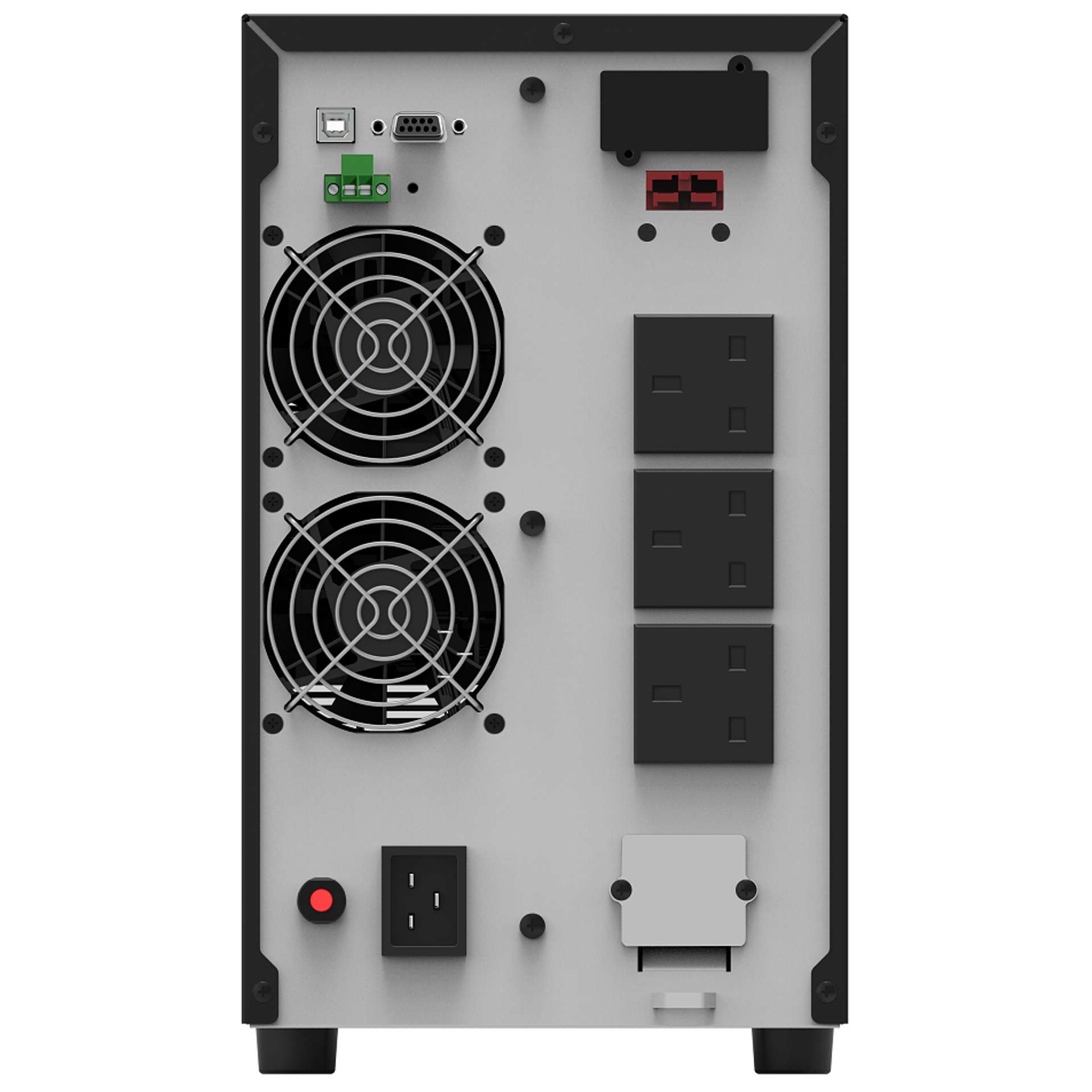

Interfaces/Ports

• Input Connection type: 1 x C20-UK
• Output Connections: 3 x Type G (BS1363)
• Interface Port: 1 x RS-232
• USB Ports: 1 x USB-B 2.0

Environmental

• Operating Temperature: 0 ~ 40 °C
• Operating Humidity: 20 ~ 90 % RH
• Noise Level: < 45 dB

Physical

• Form Factor: UPS
• Case Colour: Black
• In The Box: UPS
• Input Power Cable
• Manual
• USB Cable
• Warranty Card
• Width: 196 mm
• Depth: 416 mm
• Height: 342 mm
• Weight: 25.4 kg

Warranty

• Warranty: 2 Years

Identifiers

• Stock Code: UPS0380
• Mfg Code: 10122188
