Input

• Input Voltage Range: 176-300 VAC or 80-285 VAC in Bypass Mode
• Frequency Range (Input): 40 ~ 70 Hz

Output

• Minimum Transfer Time: 4 ms
• Maximum Transfer Time: 10 ms
• Waveform Type: Pure Sine Wave
• Output Capacity: 2000 VA
• Output Wattage: 1800 W
• Crest Factor: 3:1
• Frequency Range (Output): +/- 0.05 Hz
• Power Factor: 0.9

Display/Warnings

• Display Screen: Yes

Battery

• Typical backup time at half load: 11 mins
• Typical backup at full load: 3.8 mins
• Typical Recharge Time: 4 hours
• Battery Type: Sealed Lead Acid
• Number of Batteries: 4
• Back Up Time (Full load): 12 V

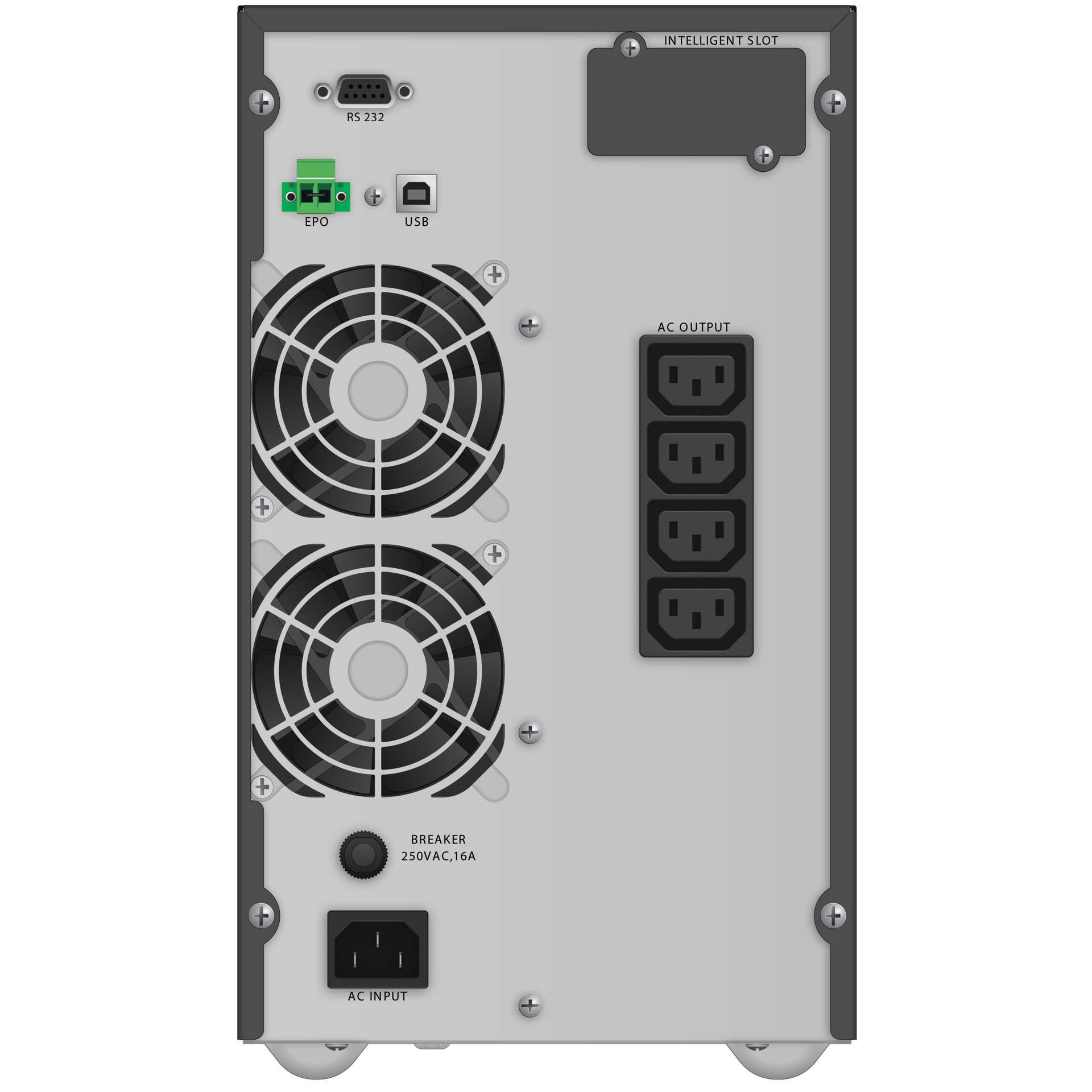

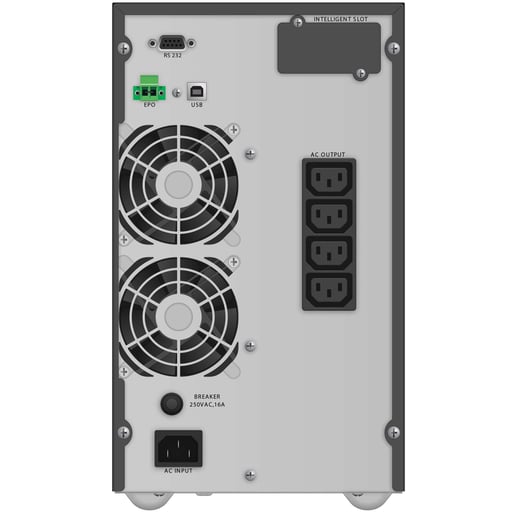

Interfaces/Ports

• Input Connection type: 1 x C14-UK
• Output Connections: 4 x IEC C13
• Interface Port: 1 x RS-2132
• USB Ports: 1 x USB-B 2.0

Environmental

• Operating Temperature: 0 ~ 40 °C
• Operating Humidity: 0 ~ 95 % RH
• Noise Level: < 50 dB

Physical

• Form Factor: UPS
• Case Colour: Black
• In The Box: UPS
• Input Power Cable
• Manual
• 2 x IEC Cables
• USB Cable
• Width: 190 mm
• Depth: 399 mm
• Height: 328 mm
• Weight: 17.2 kg

Warranty

• Warranty: 2 Years

Identifiers

• Stock Code: UPS0377
• Mfg Code: 10122102
