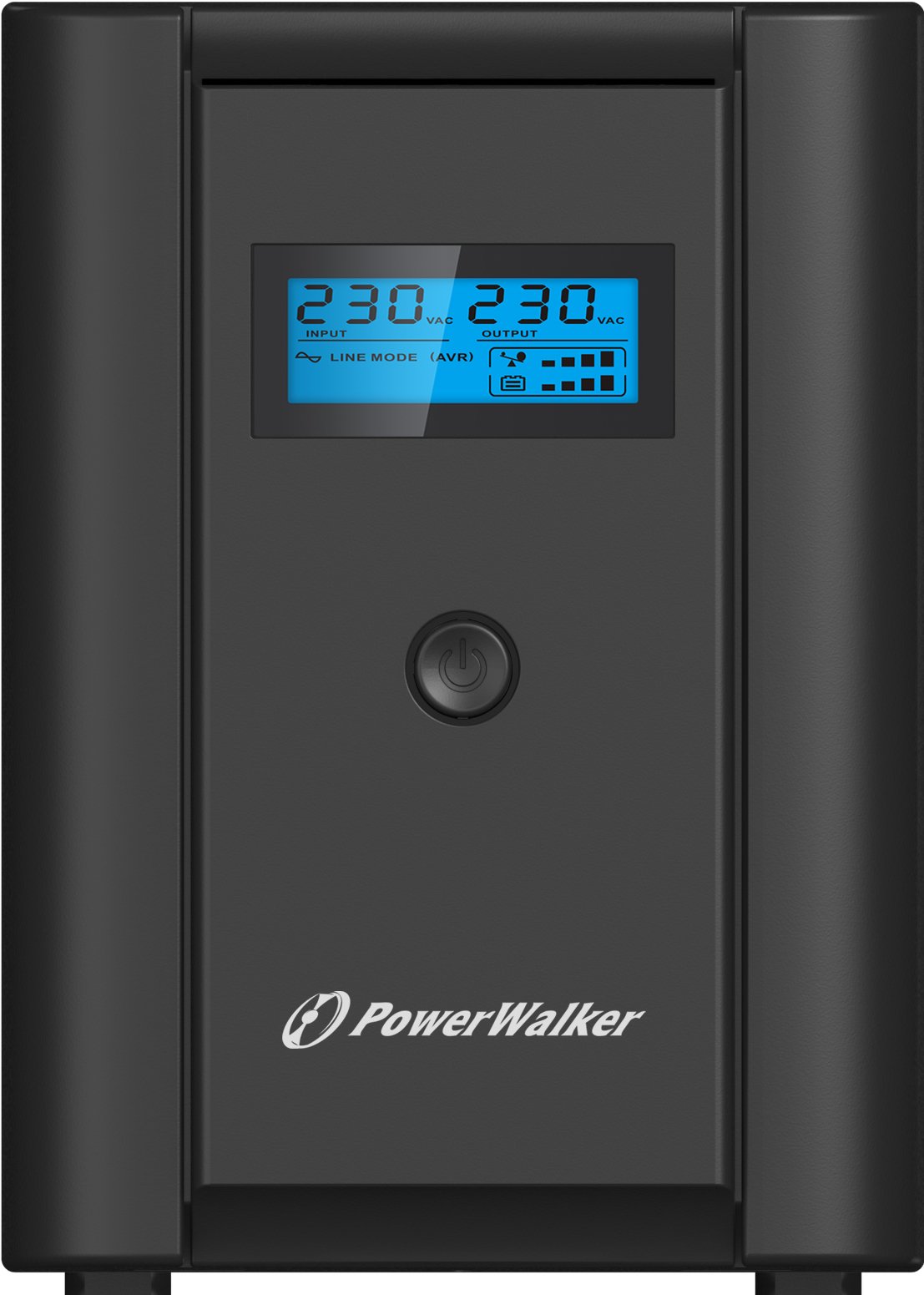

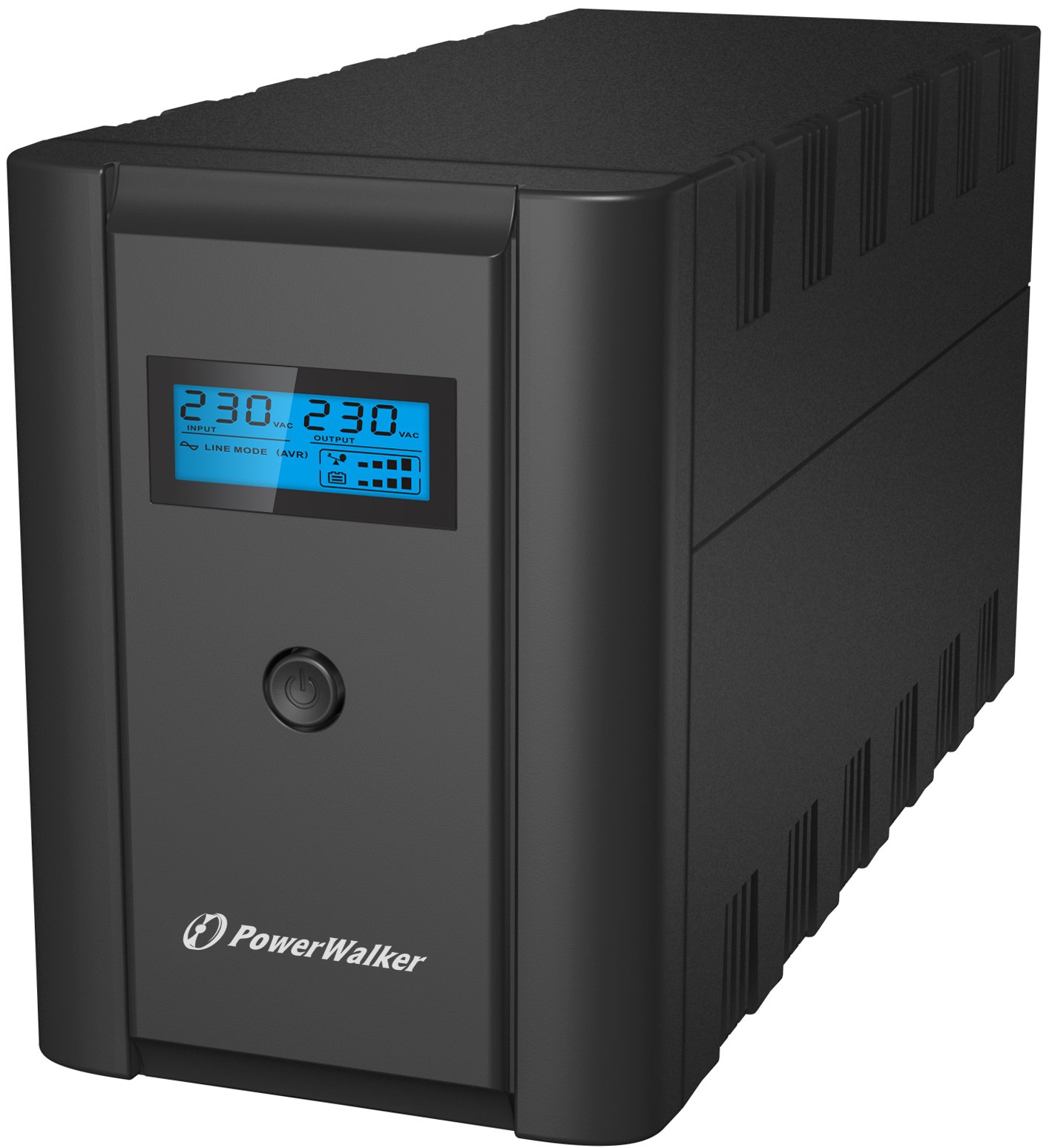

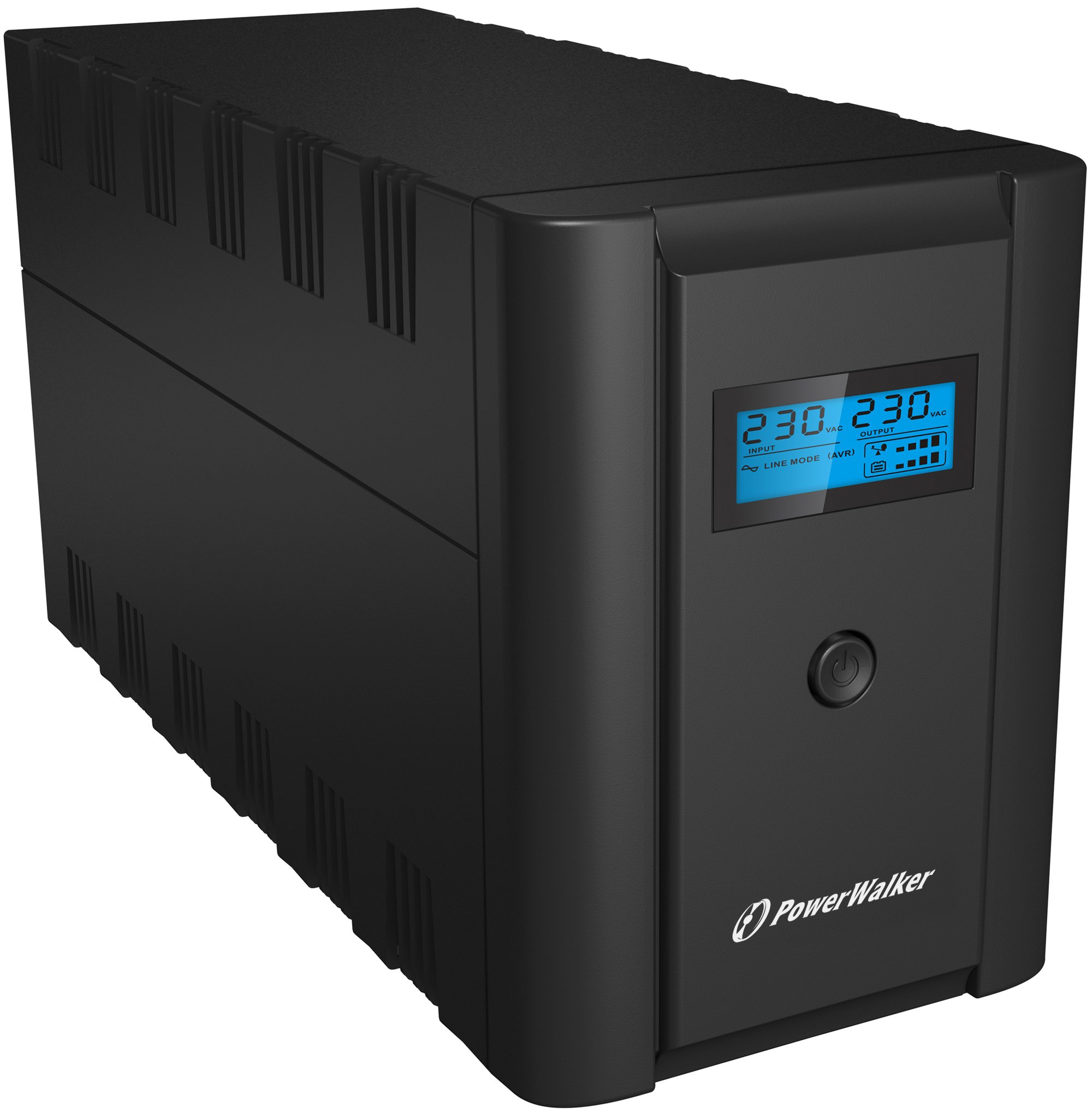

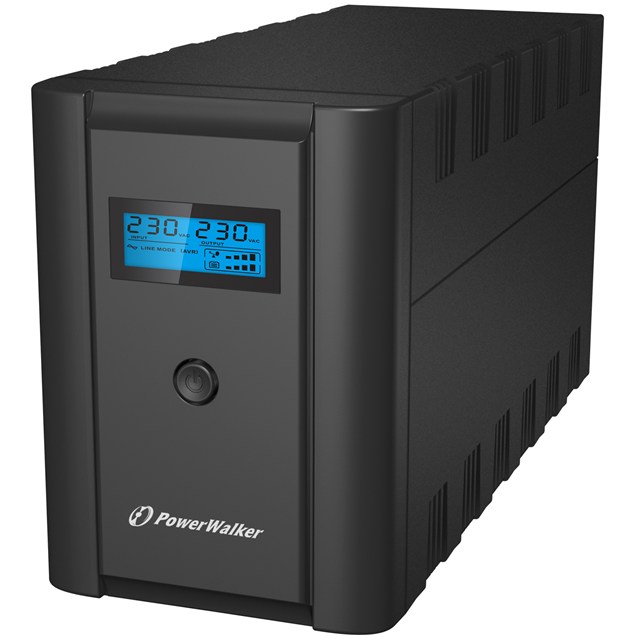

PowerWalker VI SHL Series UPS, 2200VA, 1200W, IEC UK
Available for delivery from Friday 17th July
Click & Collect from Friday 17th July
Order within
You have 0 of these in your basket
The PowerWalker VI SHL series offers comprehensive protection and high power density in a small and affordable package. The integrated AVR function ensures a clean and stable power supply even during mains operation.
In addition, the UPS offers communication options via the USB port, either via software or directly via HID (Human Interface Device).
Input
- Input Voltage Range: 170 ~ 280 VAC
- Frequency Range (Input): 50 ~ 60 Hz
Output
- Minimum Transfer Time: 4 ms
- Maximum Transfer Time: 8 ms
- Output Voltage: 23 0VAC
- Voltage Regulation: ± 10 %
- Frequency Range (Output): ± 1 %
- Power Factor: 0.55
- Overload Capacity: N/A
Display/Warnings
- Display Screen: AVR mode, Battery mode, Load level, Battery capacity, Input voltage, Output voltage, Overload alarm, Fault alarm, and Low battery alarm
Battery
- Typical backup time at half load: 5 minutes
- Typical backup at full load: 30 seconds
- Typical Recharge Time: 4 hours to 90 %
- Battery Voltage (Total): 24 V
- Number of Batteries: 2 batteries
- Battery Voltage: 12 V each
- Battery Capacity: 9 Ah each

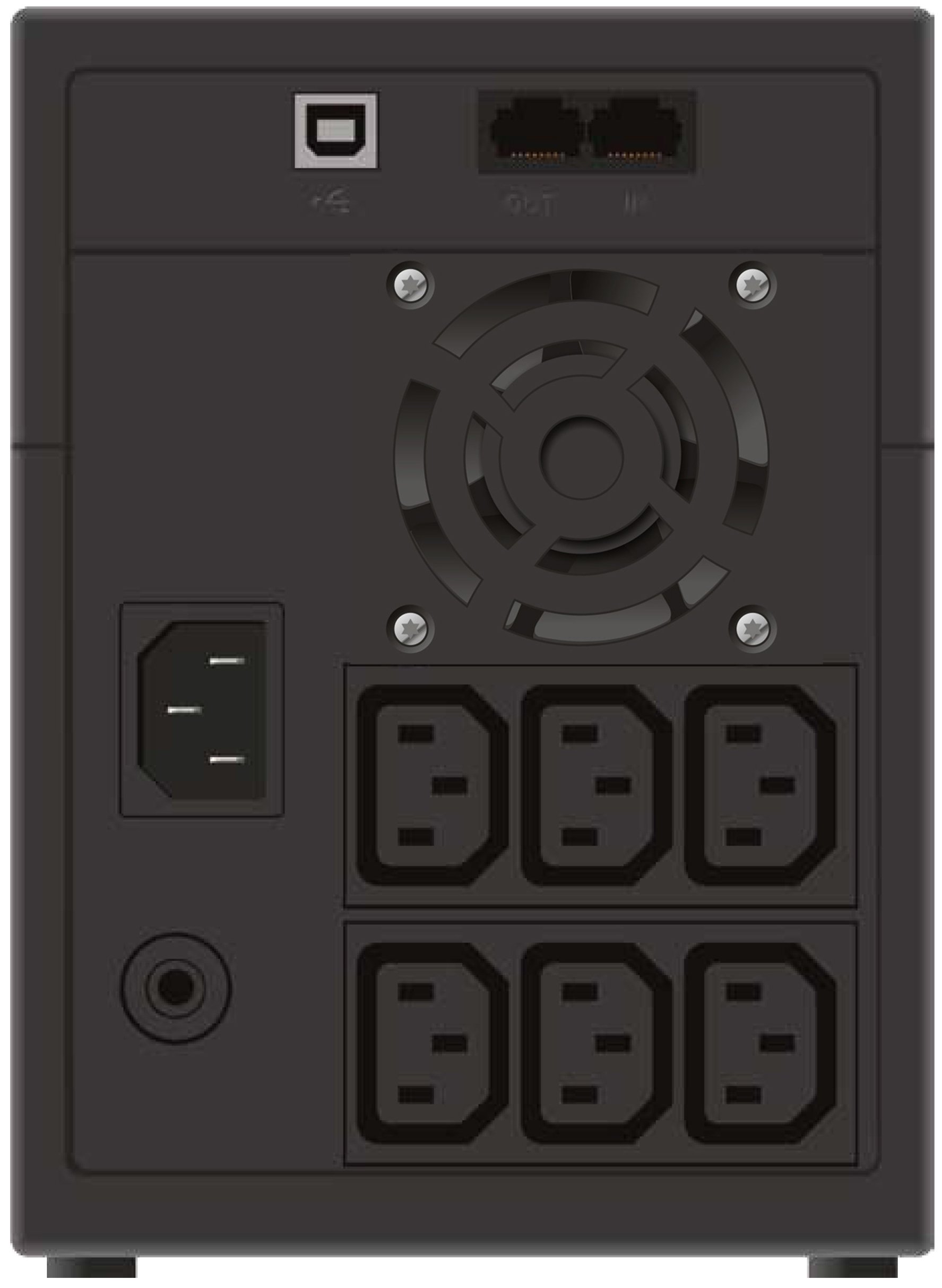

Interfaces/Ports
- Input Connection type: C14-UK
- Output Connections: 6 x IEC C13
- RJ-45 Ports: 1 x RJ-45 In
- 1 x RJ-45 Out
- USB Ports: 1 x USB 2.0 Type-B
Compliance
- Safety: Discharge prevention; Deep discharger; Overcharge; Overload
Environmental
- Operating Temperature: 0 ~ 40 °C
- Operating Humidity: 0 ~ 90 % RH
- Noise Level: < 45 dB
Physical
- Form Factor: UPS
- Case Colour: Black
- Width: 139 mm
- Depth: 364 mm
- Height: 195 mm
- Weight: 10.2 kg
Identifiers
- Stock Code: UPS0334
- Mfg Code: 10121013
