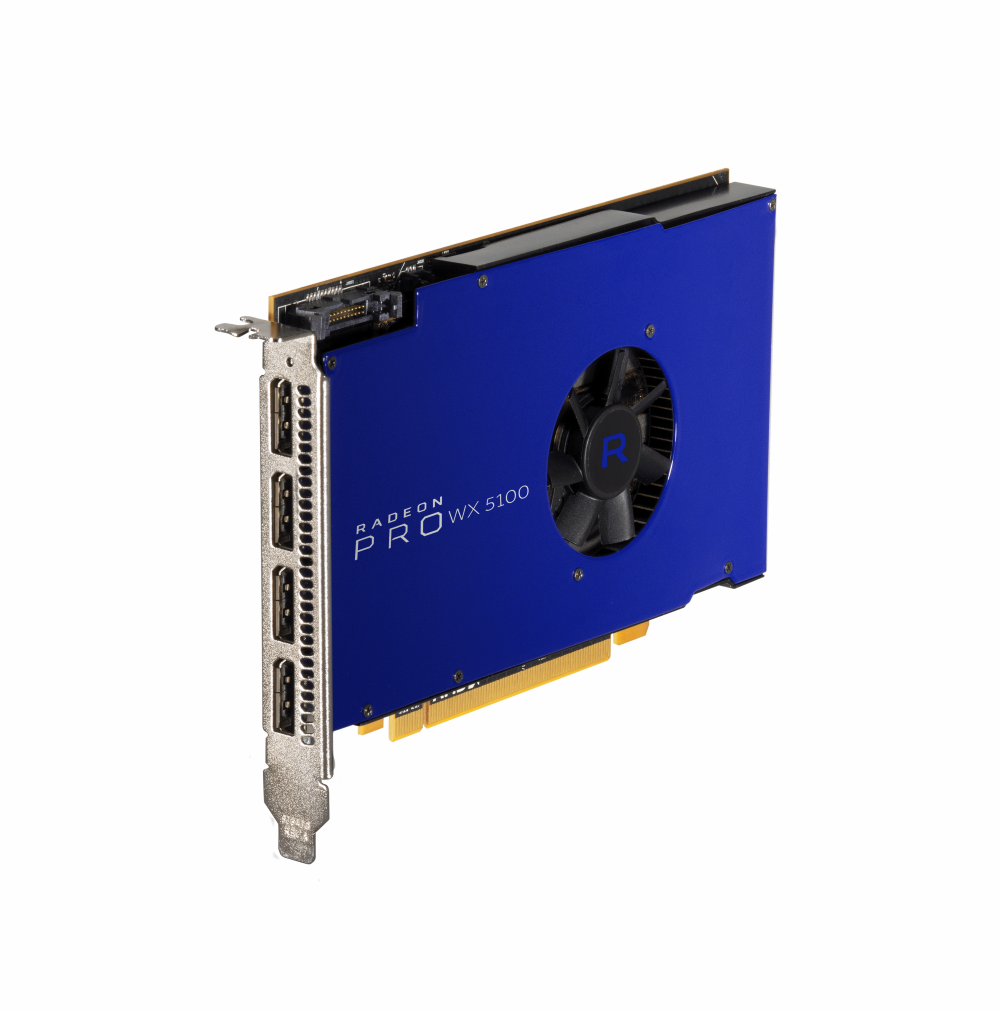

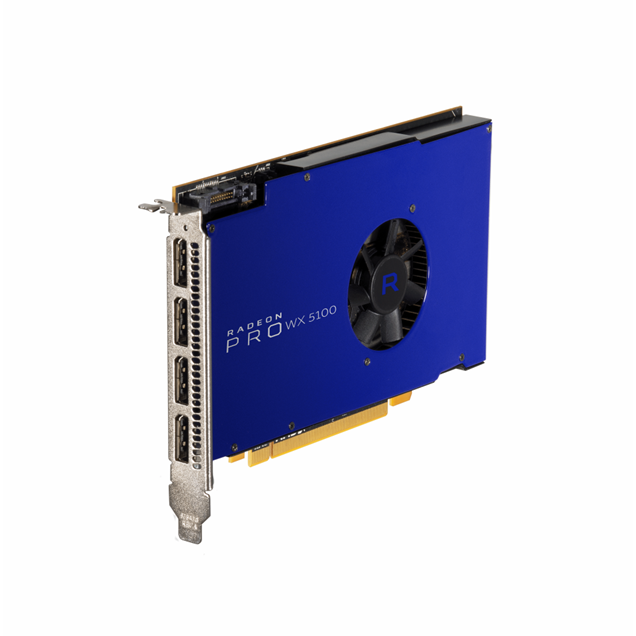

AMD Radeon Pro WX 5100 8GB Professional Graphics Card

AMD Radeon Pro WX 5100 8GB Professional Graphics Card

CCL Code: VGA3684

£346.01 inc VAT

AMD Radeon Pro WX 5100 8GB Professional Graphics Card


£346.01 inc VAT

Available for delivery from Tomorrow

Order within

Buying in bulk? Contact our business team.

Key Features:

  • 8GB Graphics Memory
  • Interface Type - PCI Express
  • Cooler Type - Active Fan
  • Manufacturer - AMD
  • Outputs - DisplayPort

Buy now, spread the cost
with PayPal Credit.

- or -

CCL Code: VGA3684

Radeon™ Pro WX 5100 Workstation Graphics

Ready for the Game Engine Revolution in Your Design Workflow

The Radeon™ Pro WX 5100 workstation graphics card is designed to be ready for the game engine revolution in professional design workflows. Game engines (such as Unity and Unreal) have become more commonplace in today’s immersive computing era, integrating themselves alongside traditional CAD applications like Autodesk, Siemens PLM and SOLIDWORKS.  Bring your designs to life with the new Radeon™ Pro WX 5100, the fastest 75W TDP workstation card in the world.

Performance Meets Efficiency

Based on the latest Polaris GPU architecture, the Radeon Pro WX 5100 features 28 compute units (1792 stream processors) and 8GB of GDDR5 GPU memory with a 256-bit memory interface. It delivers the power and features to unleash your creativity on applications like Siemens NX, where the Radeon Pro WX 5100 delivers up to 41% more performance than its nearest competitor, the NVIDIA Quadro M2000.

Quality You Can See

Immerse yourself in the millions of pixels that are being driven from the Radeon™ Pro WX 5100 graphics card to your 5K display. See enhanced levels of detail and wider, more precise color ranges with 10-bit color and HDR (High Dynamic Range) support.

Quality You Can Trust

Radeon™ Pro WX graphics cards are the embodiment of innovation and design within the Radeon Technologies Group. Great care is taken into crafting each product to ensure quality and reliability are at the highest of standards. We are proud to stand behind our three year limited warranty (see details at and optional seven year extended limited warranty also available (see details and requirements at

Main Features

  • Application Optimizations 8GB GDDR5 GPU Memory
  • 256-Bit Memory Interface
  • Direct Graphics Memory Access (DirectGMA)
  • Four DisplayPort Outputs (Ready For DisplayPort 1.4 HDR)
  • AMD Eyefinity Multidisplay Technology
  • 1792 Stream Processors (28 CUs)
  • 3.9 TFLOPS Peak Single Precision Compute Performance
  • OpenCL, DirectX©, OpenGL, And Vulkan Support
  • 75W TDP Maximum Power Consumption
  • Full-Height/Half-Length Single-Slot Form Factor
  • 3 Year Limited Warranty (see details at
  • Optional 7 Year Extended Limited Warranty (see details and requirements at
  • Support for Microsoft Windows© 10, Windows© 7, And Linux© (64-Bit)
  • FCC, CE, C-Tick, BSMI, KCC, UL, VCCL, RoHS and WEEE Compliance


Chipset Manufacturer AMD
Chipset Model Name Radeon Pro
Chipset Model Number WX 5100


Form Factor Graphics Card (Full Height)
Barcode 0727419416269


Memory Size 8192 MB
Memory Type GDDR5
Memory Width 256 bit
Memory Bandwidth 160 GB/sec


Video Card Bus Type PCI Express
Video Card Bus Version 3.0 x16
DisplayPort 4 x DisplayPort

System Requirements

Operating Systems Supported Windows 7 64-bit • Windows 10 64-bit • Linux 64-bit


Certifications FCC, CE, C-Tick, BSMI, KCC, UL, VCCL, RoHS and WEEE Compliance


Warranty 3 Year

Key Features

Interface Type PCI Express
VGA Connection No
DVI Connection No
HDMI Connection No
Graphics Usability Professional
DisplayPort Connection Yes
Cooler Type Active Fan
Low Profile No
Interface Type PCIe 3.0 x4 NVMe


Graphics Chipset Radeon Pro WX 5100

Item Details

Manufacturer AMD
Manufacturer Code 100-505940
EAN 0727419416269
UPC 727419416269
Condition New

Warranty Information

Warranty 3 Year

Manufacturer Information

Manufacturer AMD
Manufacturer Code 100-505940
