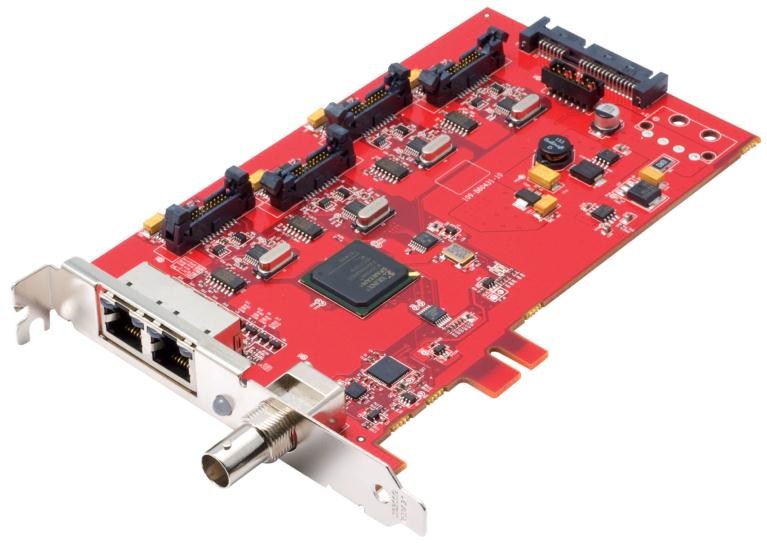

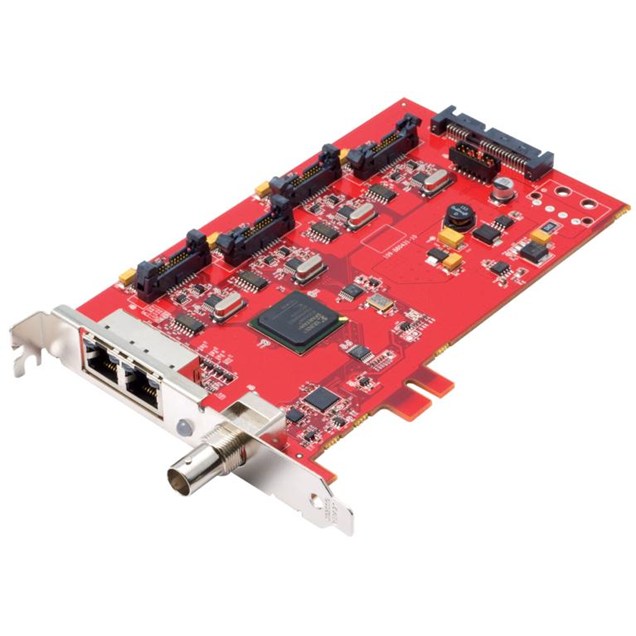

AMD FirePro S400 512MB Professional Graphics Card

AMD FirePro S400 512MB Professional Graphics Card

CCL Code: VGA1747

Was £746.08

SAVE £201

Now only

£544.24 inc VAT

AMD FirePro S400 512MB Professional Graphics Card

100-505590

Was £746.08

SAVE £201

Now only

£544.24 inc VAT

Available for delivery from Thursday 6th April

Buying in bulk? Contact our business team.

Key Features:

  • 512MB Graphics Memory
  • Interface Type - PCI Express
  • Manufacturer - AMD
  • Outputs -

Buy now, spread the cost
with PayPal Credit.

- or -

CCL Code: VGA1747
Overview

The ATI FirePro S400 synchronization module allows high and ultra-high ATI FirePro professional graphics cards to be used in demanding applications that require synchronization to external sources (Genlock) or synchronization of 3D rendering of multiple GPUs in different systems (Framelock). The combination of these capabilities with ATI FirePro professional graphics means that an even wider set of applications can benefit from the award-winning ATI FirePro line. Based on a full hardware-dedicated processor design, the ATI FirePro S400 helps to ensure clock accurate synchronization in virtually all scenarios. The dedicated processor allows up to four attached GPUs to work together to address the users' rendering needs without compromising sync.

Main Features

  • Support for up to 4 GPUs per module
  • Field upgradeable firmware
  • Full hardware synchronization
  • Support for connecting multiple computers and their GPUs together
  • Sync to virtually any video source
  • Serial ATA power connector
Specifications

GPU

Chipset Manufacturer AMD
Chipset Model Name FirePro
Chipset Model Number S400

Physical

Form Factor Single Slot (Low Profile)
In The Box AMD ATI FirePro S400 Synchronization Module • 4 x ribbon cables • Sync module board • Quick Start Guide
Barcode 0727419415071

Memory

Memory Size 512 MB

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version x16
Ethernet Port(s) 2 x RJ-45

System

Video Standards OpenGL

System Requirements

Operating Systems Supported Windows XP, Windows Vista, Windows 7 and Linux • 32-bit and 64-bit versions of OS supported
System Requirements One or more supported GPUs • Workstation with available PCI or PCIe slot • 350-Watt power supply or greater (assumes fully loaded system) • 512MB of system memory

Warranty

Warranty Three year limited product repair/replacement warranty

Key Features

Interface Type PCI Express
VGA Connection No
DVI Connection No
HDMI Connection No
Graphics Usability Professional
DisplayPort Connection No
Direct X Support Direct X 11
Low Profile No
Interface Type PCIe 3.0 x4 NVMe

Graphics

Graphics Chipset AMD FirePro S400

Item Details

Manufacturer AMD
Manufacturer Code 100-505590
EAN 0727419415071
Condition New
Warranty

Warranty Information

Warranty Three year limited product repair/replacement warranty

Manufacturer Information

Manufacturer AMD
Manufacturer Code 100-505590
Q&A

Do you have you a question about the AMD FirePro (S400) 512MB Synchronization Module Professional Graphics Card PCI Express x16 (31004-08-40A)?

Q: Can I use the S400 with FirePro W600 cards?
Answer by Dan on 8th April 2014
I believe this is designed for the FirePro V8750 cards, AMD do not list support with any other models. -Danlevan
0 customers found this answer helpful.
Post Answer
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
AMD ATI FirePro S400 Synchronization Module pdf 1.28MB
