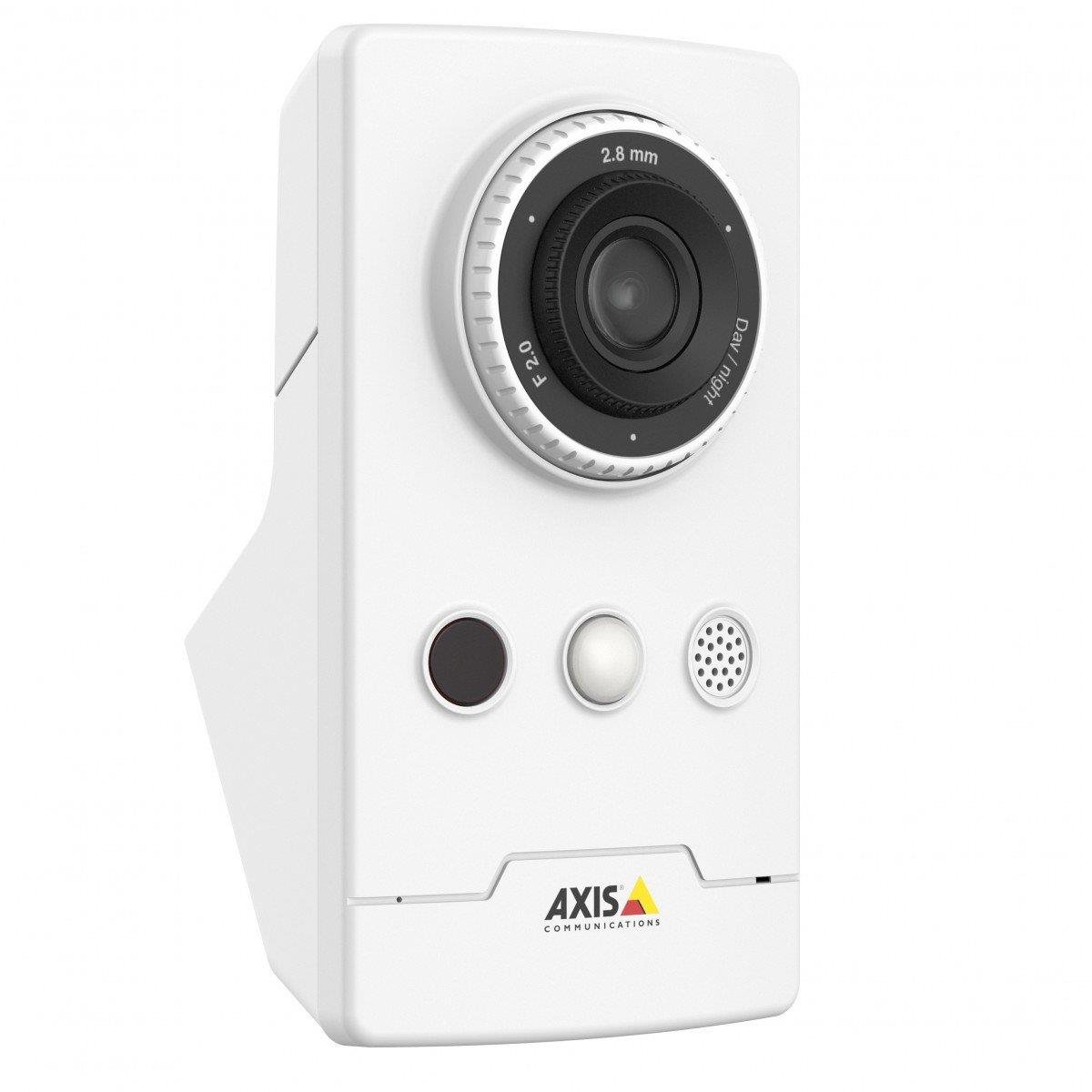

AXIS M1065-LW Network Camera IR Wireless Indoor UK (2.1MP)

AXIS M1065-LW Network Camera IR Wireless Indoor UK (2.1MP)

CCL Code: CAM3060

Sold out

Notify Me

AXIS M1065-LW Network Camera IR Wireless Indoor UK (2.1MP)

0810-003

Key Features:

  • PIR motion sensor
  • Bracket for wall and corner mount
  • IR illumination
CCL Code: CAM3060

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

AXIS M1065-LW features wireless communication and supports microSD card for edge storage. It has a built-in microphone for recording audio, a mini-speaker that can announce pre-recorded messages and a PIR motion sensor for detecting movement even in the dark. The WDR enabled camera offers 1080p resolution at full frame rate, day and night functionality with a mechanical IR cut filter, and IR illumination. It is easy to install with included wall and corner bracket, and has a 110° horizontal field of view.

Main Features

  • Wireless communication and edge storage
  • Built-in microphone and mini-speaker
  • PIR motion sensor
  • Bracket for wall and corner mount
  • IR illumination
Specifications

Camera

Camera Type IP Video
Motion Detection Yes
Day/Night Yes
Still Image Format H.264, MPEG-4, JPEG
IR Illumination Yes
Resolution (Maximum) 1920 x 1080 Pixels
Resolution (Pixels) 1920 x 1080 Pixels
Resolution (Other) 1920x1080 HDTV 1080p to 320x240

Image Device

Effective Pixel Resolution 1920 x 1080 Pixels
Image Sensor Colour CMOS
Image Sensor Size 1/3 Inches
Image Sensor Pixels 2.1 Megapixels

Lens

Aperture F2.0
Optical Zoom 0 x
Varifocal No

Exposure/Balance

Brightness Control Yes
Shutter Speeds 1/32500 to 1/5 Seconds
Min Illumination (with external light) Colour
Min Illumination Value (with external light) 0.25 lux (lx)
Min Illumination (No external light) Black and White
Min Illumination Value (No external light) 0.05 lux (lx)
White Balance Automatic/Manual
Exposure Control Automatic/Manual
Contrast Control Yes

Video

Video Features Multiple, individually configurable streams in H.264 and Motion JPEG • Axis' Zipstream technology in H.264 • Controllable frame rate and bandwidth • VBR/MBR H.264
Frame Rates 25/30 Per Second
Supported Video File Formats H.264, MPEG-4, MJPEG
Video Resolution 1920 x 1080 • 1280 x 1024 • 1280 x 960 • 1280 x 720 • 1024 x 768 • 800 x 600 • 640 x 480 • 320 x 240

Infrared LED

Radiant Distance 10 m
Number of Infra-Red LEDs 1

User Controls

User Controls Controlled via computer network

Sound

Built in Microphone Yes
Audio Capabilities Two-way, half duplex • AAC-LC 8/16 kHz • G.711 PCM 8 kHz • G.726 ADPCM 8 kHz • Configurable bit rate

Memory

Memory Size 512 MB
Memory Type RAM
Flash Memory 256 MB

Interfaces/Ports

RJ-45 Ports 1 x RJ-45
USB Ports 1 x USB Micro Type-B
Removable Flash Memory Media 1 x Micro SD Slot

Network

Network Features 10/100 BASE-TX Ethernet port
Network Protocol IPv4/v6 • HTTP • HTTPS • SSL/TLS • QoS Layer 3 DiffServ • FTP • CIFS/SMB • SMTP • Bonjour • UPnPTM • SNMPv1/v2c/v3 (MIB-II) • DNS • DynDNS • NTP • RTSP • RTP • TCP • UDP • IGMP • RTCP • ICMP • DHCP • ARP • SOCKS
Network Speeds Supported 10/100 MBps

Network Wireless

Wireless Type Radio Frequency
RF Network Standard 802.11ac/n/g/a
Encryption WPA/WPA2-PSK, WPA, WPA2 Enterprise
Frequency Band 2.4 • 5 GHz
Antenna Type 1 x Internal Wi-Fi Antenna

System

User Interface Controlled via computer network
Software Included (may be trial or restricted) AXIS Companion • AXIS Camera Station
Security Password protection • IP address filtering • HTTPS encryption • IEEE 802.1X network access control • Digest authentication • User access log • WPA/WPA2-PSK, WPA, WPA2 Enterprise • WLAN pairing button (Wi-Fi Protected Setup PBC compatible)

Compliance

Certifications EN 55032 Class B • EN 61000-3-2 • EN 61000-3-3 • EN 55024 • EN 61000-6-1 • EN 61000-6-2 • FCC Part 15 Subpart B Class B • ICES-003 Class B • VCCI Class B • RCM AS/NZS CISPR 32 Class B • KN24 • KN-35 • EN 300328 • EN 301489-1 • EN 301489-17 • EN 301893 • FCC Part 15 Subpart C • FCC Part 15 Subpart E • RSS-247 • TELEC
Safety IEC/EN/UL 60950-1, IEC/EN 62471

Environmental

Operating Temperature 0 to 40 °C
Operating Humidity 10 to 85 %

Physical

Form Factor Security Camera
Case Colour White
Pack Quantity 1
In The Box AXIS M1065-LW Network Camera • Power supply • Installation Guide • Mount bracket • Table top stand • Windows decoder 1-user license
Width 6.0 cm
Depth 3.7 cm
Height 10.6 cm
Weight 0.128 kg
Vandal Resistant No
Internal/External Use Internal
Weatherproof No

Warranty

Warranty Axis 3-year warranty

Key Features

Main Colour White

Item Details

Manufacturer Axis
Manufacturer Code 0810-003
EAN Multiple EANs
Condition New
Warranty

Warranty Information

Warranty Axis 3-year warranty

Manufacturer Information

Manufacturer Axis
Manufacturer Code 0810-003
