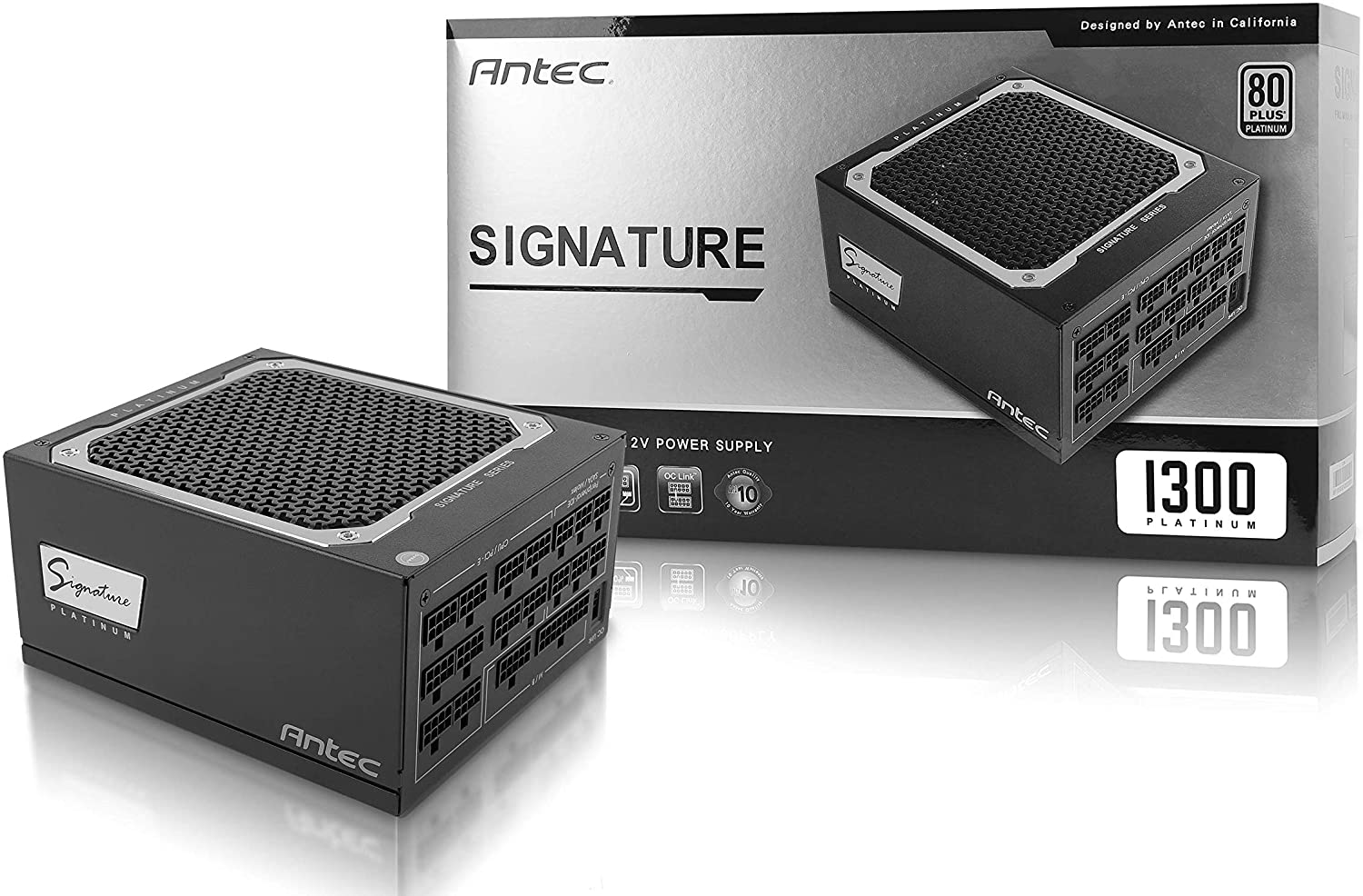

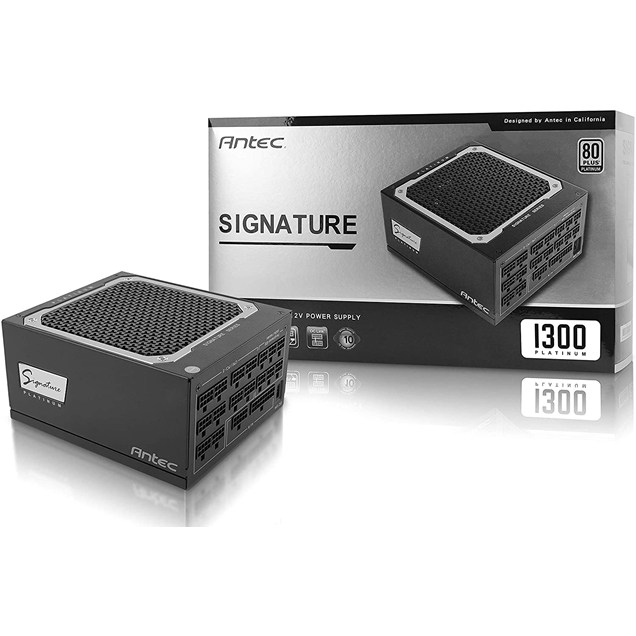

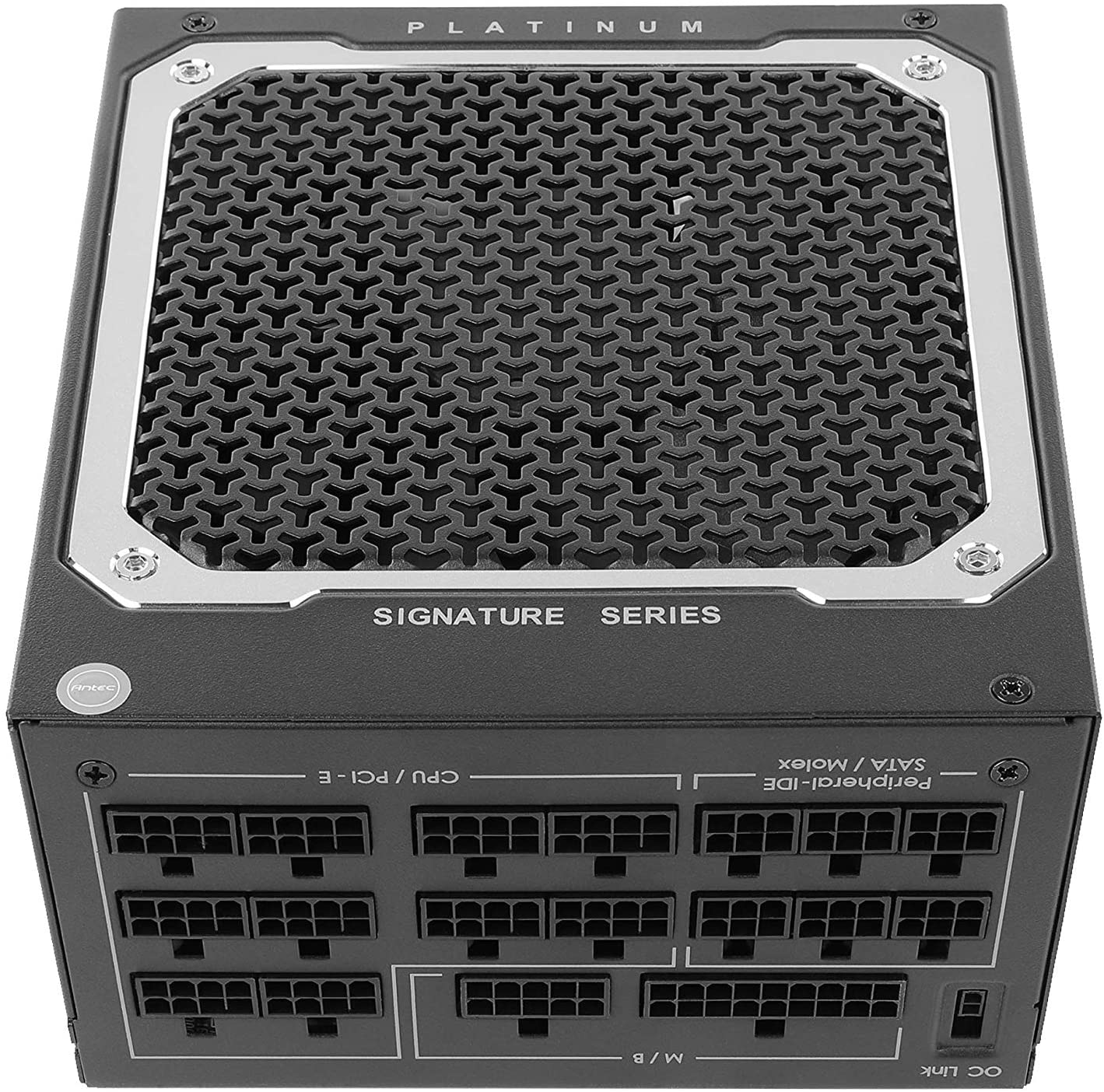

Antec Signature Platinum 1300W Modular PSU

CCL Code: PSU1998
|
Manufacturer Code: 0-761345-11708-1
| Manufacturer: Antec
|
  • Antec Signature Platinum 1300W Modular PSU
  • Antec Signature Platinum 1300W Modular PSU
  • Antec Signature Platinum 1300W Modular PSU
  • Antec Signature Platinum 1300W Modular PSU
  • Antec Signature Platinum 1300W Modular PSU
  • Antec Signature Platinum 1300W Modular PSU
  • Antec Signature Platinum 1300W Modular PSU
  • Antec Signature Platinum 1300W Modular PSU
  • Antec Signature Platinum 1300W Modular PSU

Key Features:

5x Molex Connectors
12x PCIe Connectors (6+2-Pin)
ATX Form Factor
14x SATA Connectors
4+4+8-Pin CPU Power Connector

£205.00

inc VAT

Available for delivery from Tuesday 4th October

5 In Stock Now

Buying in bulk? Contact our business team here.

Overview

Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.

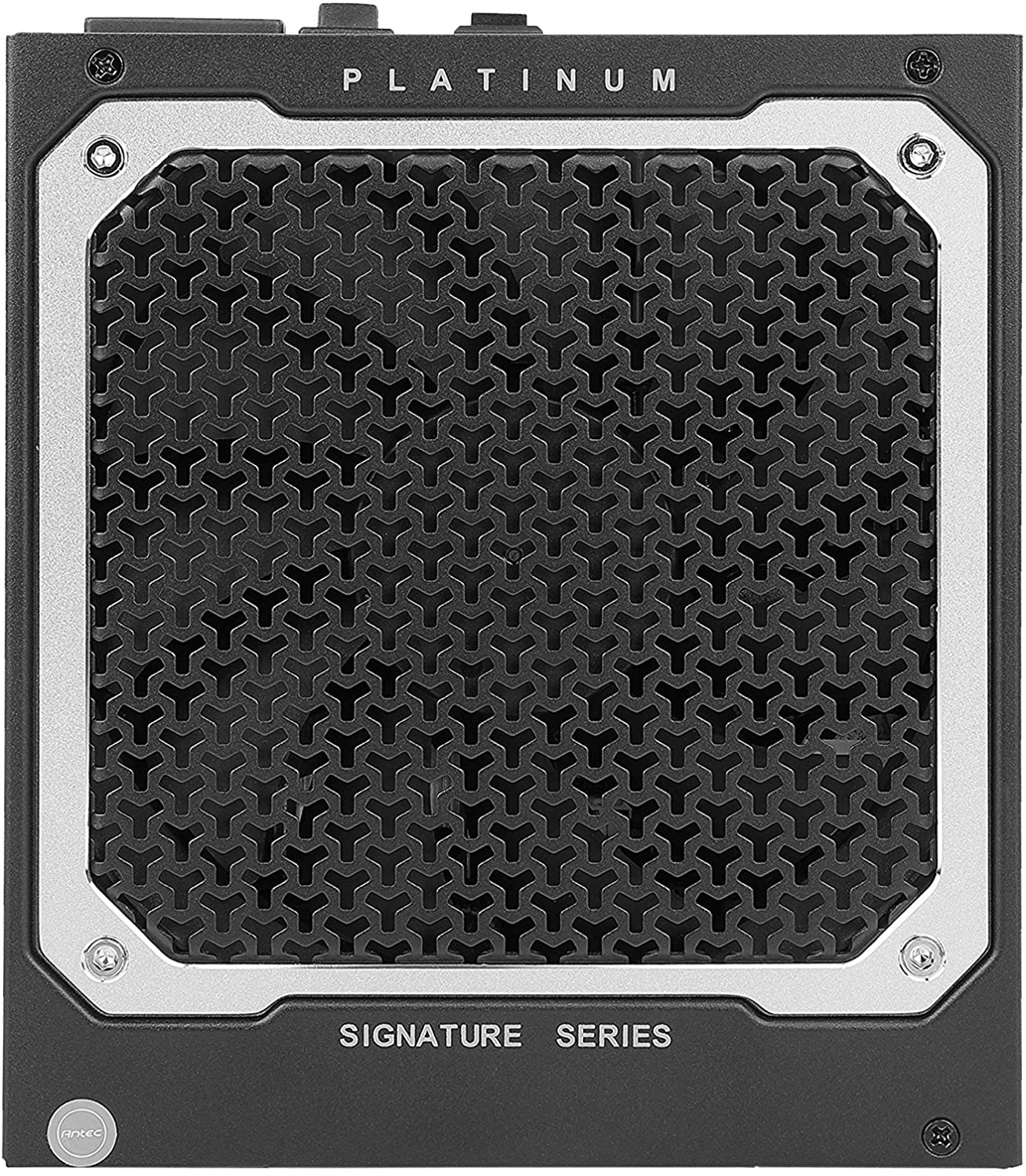

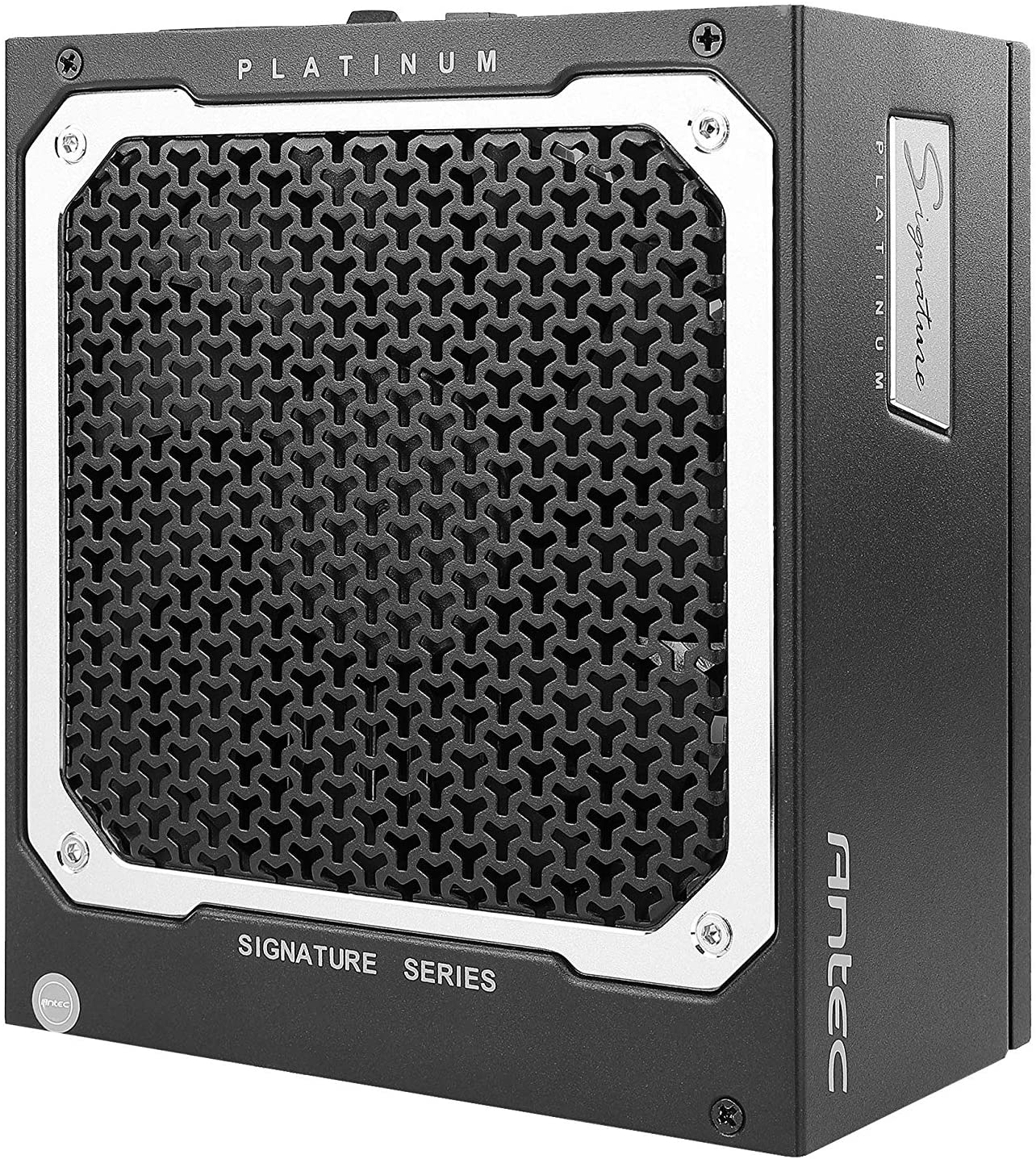

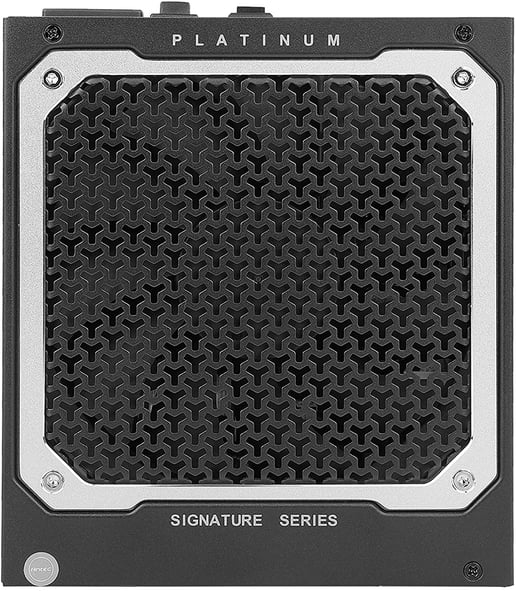

FDB 135mm Silent Fan

Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.

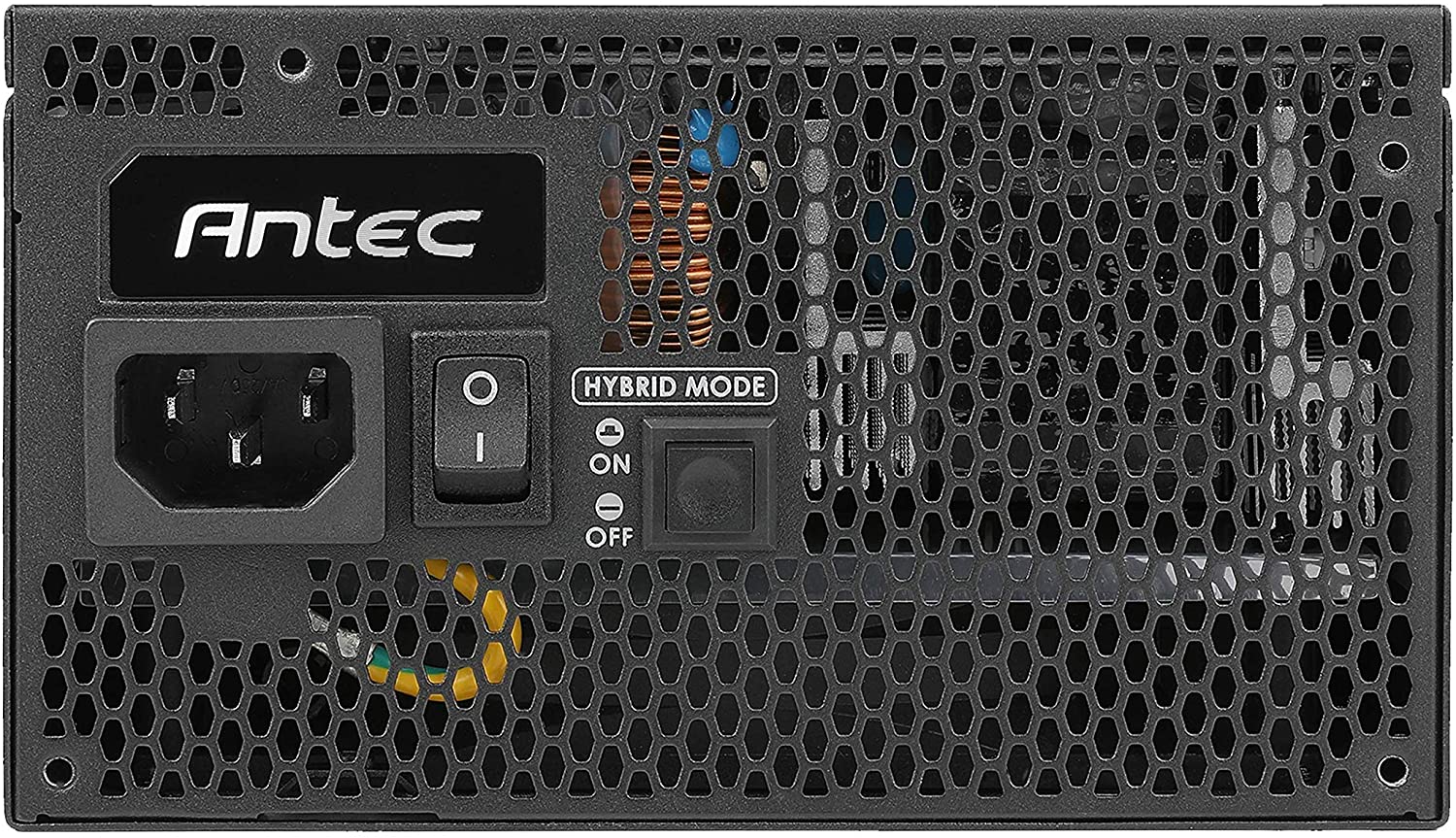

Zero RPM Mode

The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.

100% Top-Grade Japanese Capacitors

Achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance.

PhaseWavetm Design

A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.

OC Link™ Feature

Allows 2 Signature PSUs to work in tandem to power the most demanding systems.

10-year Warranty

This new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

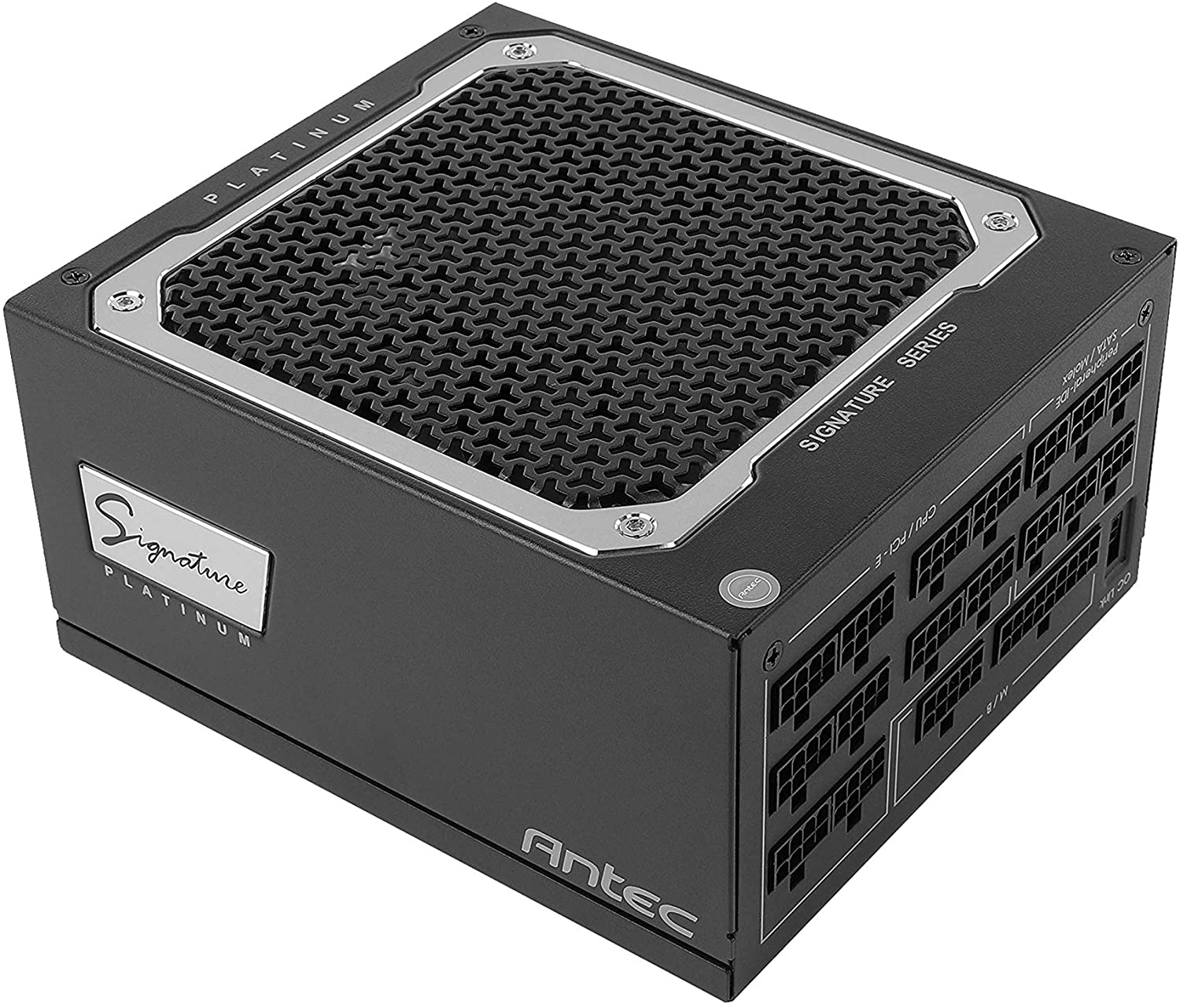

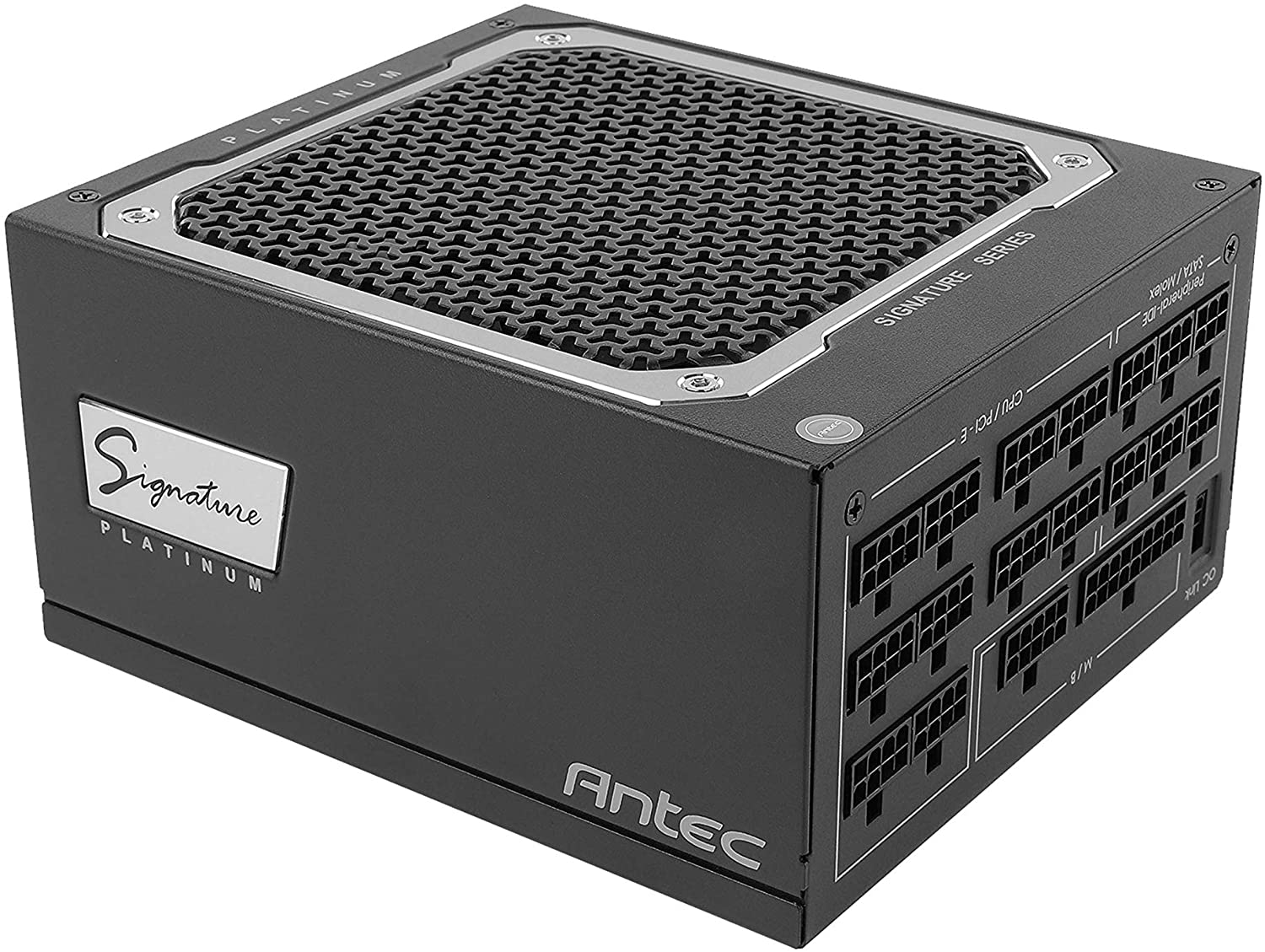

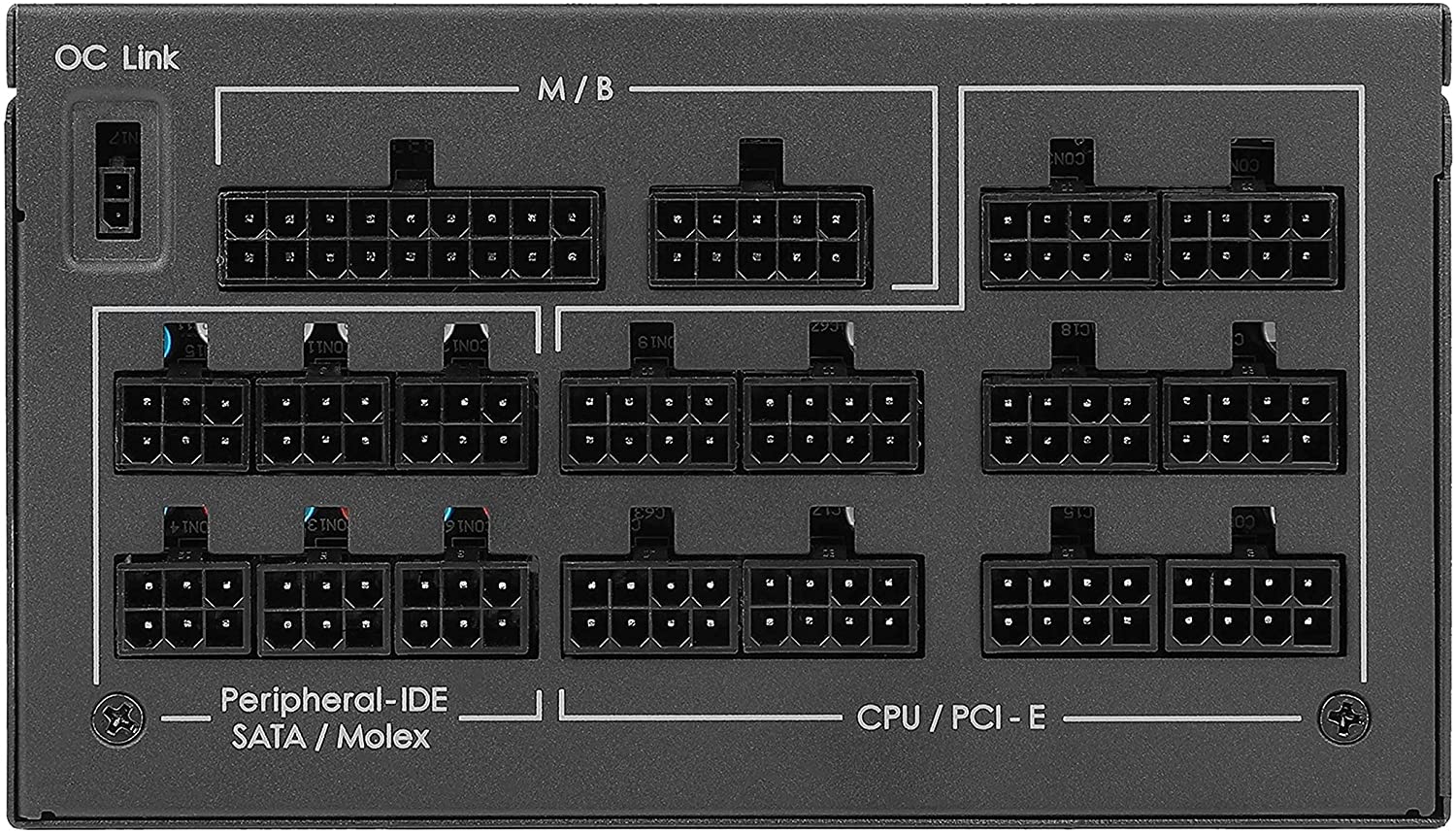

Full Modular Cable Management

Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.

Specifications

Interfaces/Ports

SATA Connectors 14
CPU Connectors 2 x 4+4-pin EPS
PCI Connectors 12 x 6+2-pin PCIe
Motherboard Connectors 1 x 24-pin ATX
Molex Connectors 5
Floppy Connectors 1 x Floppy

Compliance

Standards 80 PLUS Platinum Certified
cTUVus / TUV / CB [IEC62368 Compliant] / CE / FCC / BSMI / 3C / KC / RCM
Safety OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO

Electrical

Voltage 100 ~ 240 V AC
Power 1300 W
Frequency Range 47 ~ 63 Hz
Power Cord Yes

Environmental

Operating Temperature 0 ~ 40 °C

Physical

Form Factor ATX Power Supply Unit
Case Colour Black

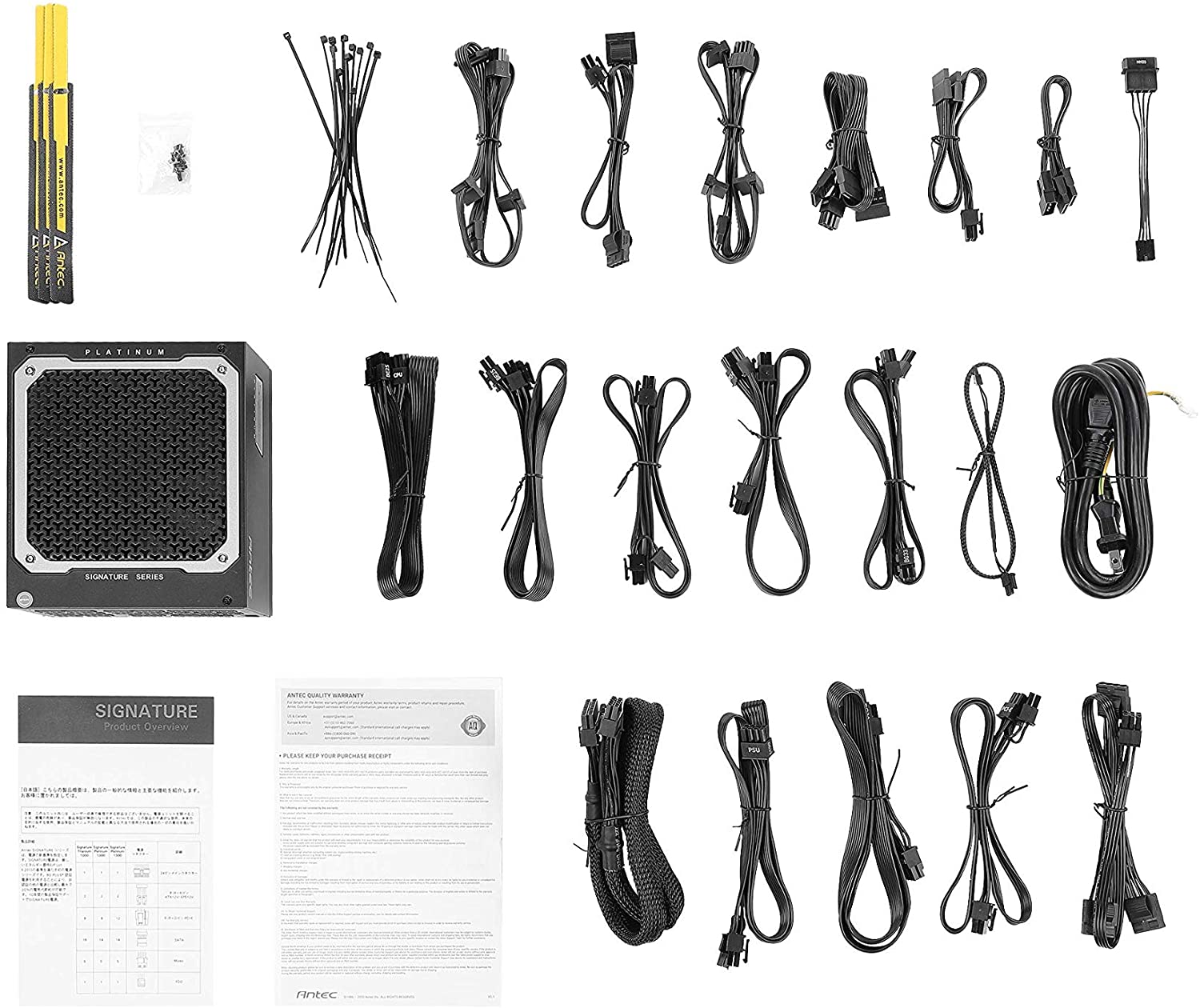

In The Box Power Supply
Modular Cables
4 x Screws
Cable Ties
Velcro Ties
Documentation
Power Cable
Width 150 mm
Depth 170 mm
Height 86 mm
Weight 2.12 kg

Warranty

Warranty 10 Years

Key Features

Modular Cables Modular
80Plus Rated 80 Plus Platinum
PSU Form Factor ATX
PCI-E Connectors 12
Floppy Connector 1
Motherboard Power Connectors 4 + 4-Pin x 2
PCI-E Pin Type 6+2-Pin
PSU Depth 170 mm
CPU Power Pins (male) 16
PCI-E Power Pins (male) 96

Item Details

Manufacturer Antec
Manufacturer Code 0-761345-11708-1
EAN 0761345117081
Condition New
Warranty

Warranty Information

Warranty 10 Years

Manufacturer Information

Manufacturer Antec
Manufacturer Code 0-761345-11708-1
Questions and Answers

Do you have you a question about the Antec Signature 1300W Platinum PSU, ATX, 80 PLUS Platinum Certified, Fully Modular?

Reviews
5.0 / 5 1 review

Nick Hannagan

11 months ago

very nice, stable bit of kit
