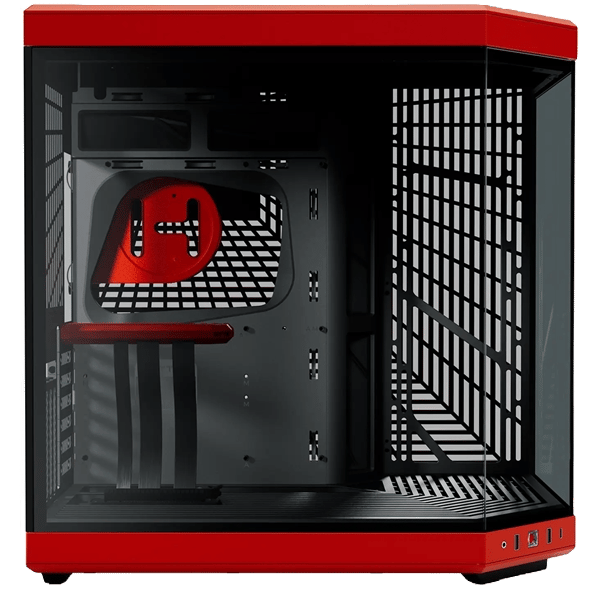

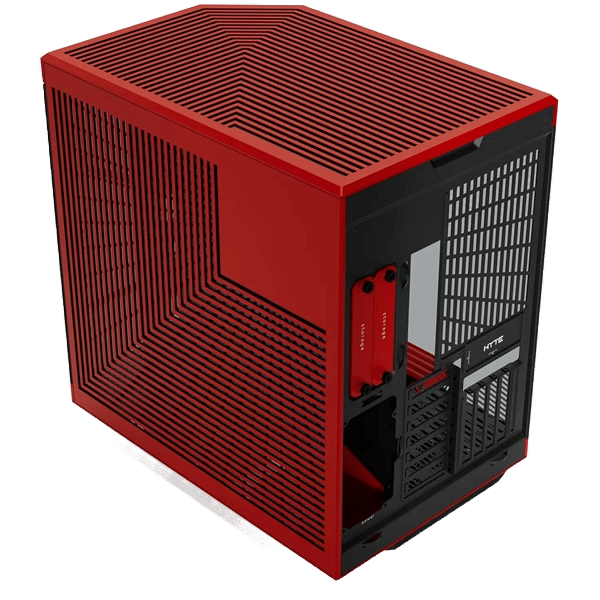

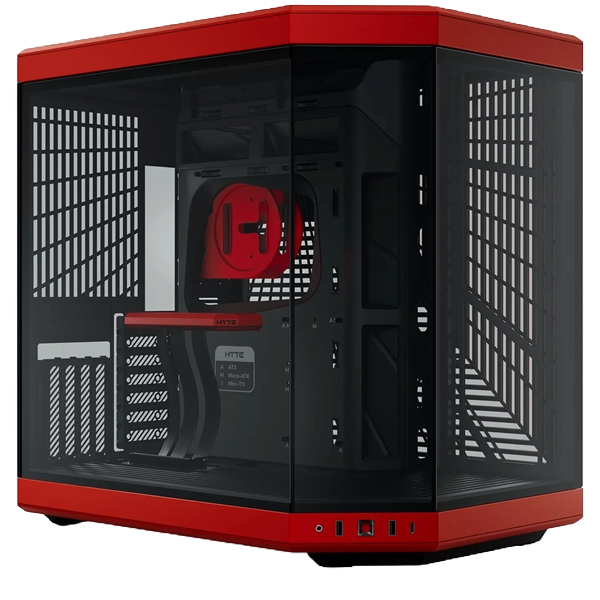

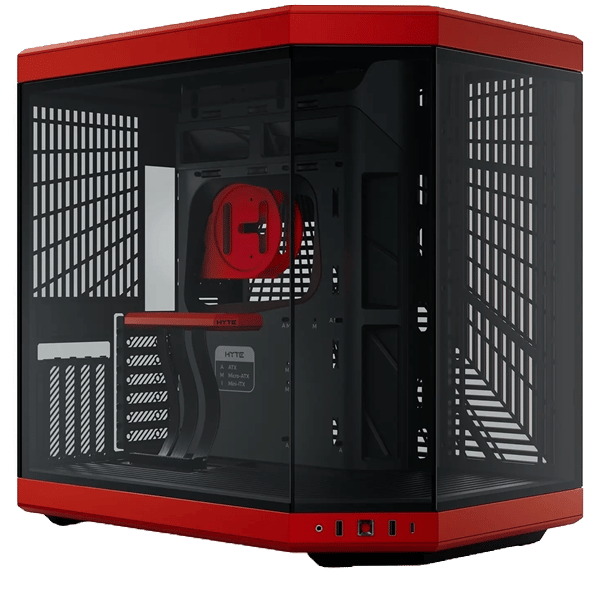

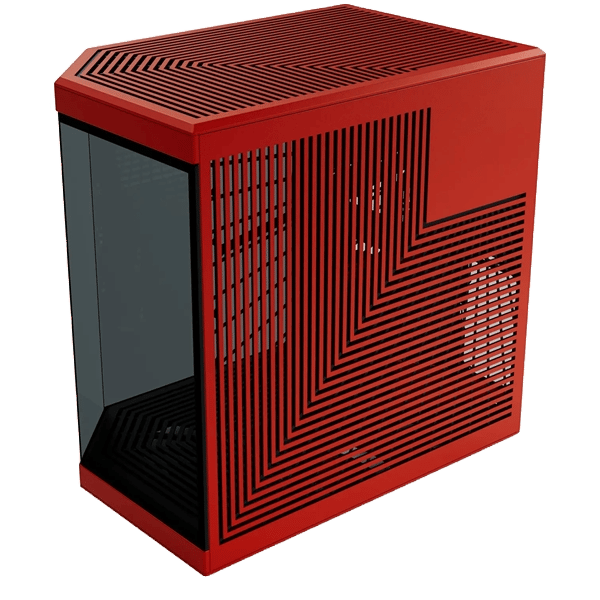

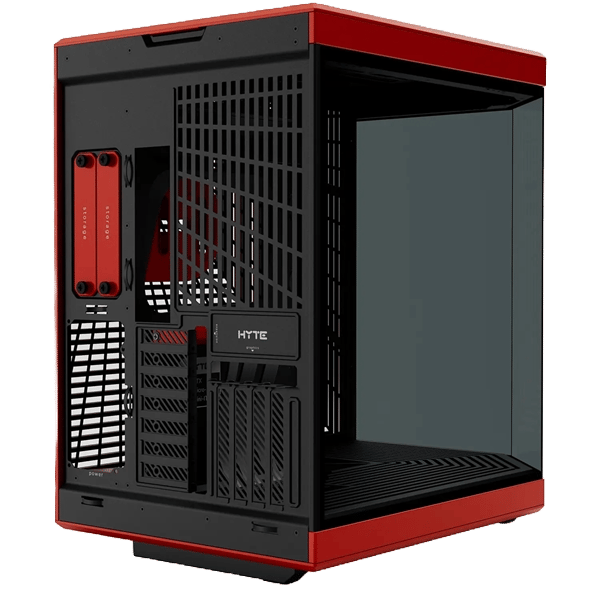

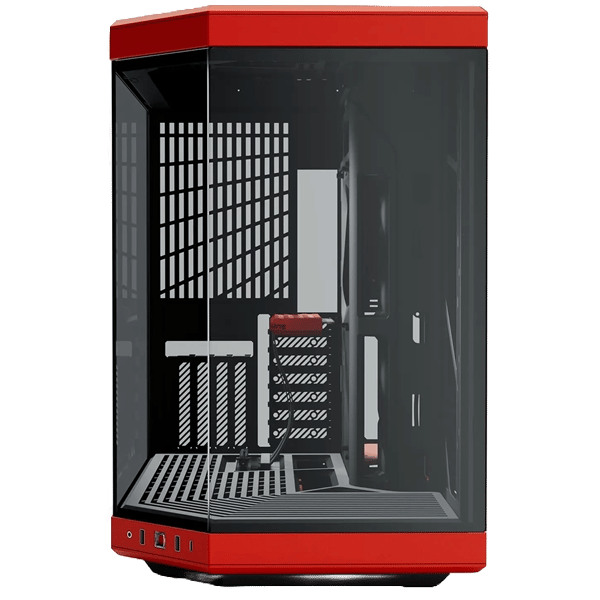

HYTE Y70 Mid Tower Case - Red

HYTE Y70 Mid Tower Case - Red

CCL Code: CAS4939

Sold out

Notify Me

HYTE Y70 Mid Tower Case - Red

CS-HYTE-Y70-BR

Key Features:

  • Max Motherboard Size: E-ATX
  • Tempered Glass Side
  • Front USB Type-C Port
  • 4 x 2.5" / 2 x 3.5" Bay(s)
  • PSU Not Included
CCL Code: CAS4939

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Colour:

Overview

Enhanced In Every Dimension

Y70 is an upgraded dual chamber ATX mid tower modern aesthetic case that delivers next gen gaming experiences with massive 4 slot vertical graphics and unlocks maximum performance via ginormous cooling capacity. All while celebrating your favorite hardware by showing off your PC the way it was meant to be seen.

Massive 4 Slot Vertical Graphics

Y70 grows GPU support to 4 slots with additional airflow space between the edge of the card and the glass. This means you can fit even the largest and most powerful of graphics cards into your build with ease. Additionally, the cold floor cooling down below can house up to a trio of 120mm or duo of 140mm fans up to 32mm thick to direct fresh airflow straight into the GPU.

Included Luxury PCIE 4.0 Riser Cable

Included with the case is a luxury PCIE 4.0 x 16 riser with a color-matched canopy for uninterrupted visual flow that'll make for a painless GPU installation and build process. It also allows for a plethora of half-height PCIE cards to sit behind the throne of the vertical graphics.

Ginormous Cooling Capacity

A spacious interior makes room for up to a 360mm long & 125mm thick radiator on the side and adjustable top bracket that can house another 360mm radiator up to 68mm thick up above. Working together with the cold floor cooling at the bottom and spot for an additional fan at the rear of the case, Y70 has a total capacity of 10 fans in a fully populated chassis. With over 180mm of clearance to the side glass, air and water cooling enthusiasts alike will appreciate the flexibility afforded to them by the chassis to create the most robust cooling configurations possible.

Unified Modern Aesthetic

With 4 unique colorways, Y70 puts your build front and center with a beautifully crafted 3-piece panoramic glass which serves as a window into the heart of your PC. The dual chamber interior layout keeps the front looking great while giving you plenty of space to manage cables in the back, especially with the help of our seamless L-shaped molded rubber grommet, meticulously placed cable routing channels & tie-down points, and reusable Velcro straps. All easily accessible with tool-less top and side panels alongside floating storage sleds that eject from the rear of the case for intuitive drive maintenance.

Specifications

Storage

Internal Expansion Bays 4 x 2.5" or 2 x 3.5"

Expansion

Expansion Slots 7 x Full Height
4 x Half Height

Interfaces/Ports

USB Ports 1 x USB-C 3.1
2 x USB 3.0

Electrical

Cooling System Top: Supports 2 x 140mm or 3 x 120mm fans
Rear: Supports 1 x 140mm or 120mm fan
Bottom: Supports 2 x 140mm or 3 x 120mm fans
Side: Supports 2 x 140mm or 3 x 120mm fans
Power Supply ATX Power Supply supported

Warranty

Warranty 3 Years

Physical

Form Factor Mid Tower Case
Case Colour Black and Red
Motherboard Compatibility E-ATX
ATX
mATX
Mini-ITX
Width 320 mm
Depth 470 mm
Height 470 mm
Weight 15 kg

Key Features

Max Motherboard Width 330 mm
Max Motherboard Height 305 mm
Supports AIO Cooler Yes
Main Colour Red
Case Type Tower
Case Form Factor Mid Tower
Power Supply Included No
80Plus Rated No
PSU Form Factor ATX
Illuminated No
L.E.D Fan No LED
Max 3.5" Drives 2
Max 2.5" Drives 4
ATX Yes
Micro-ATX Yes
ITX Yes
E-ATX Yes
Cooler Height 180 mm
Built-in Card Reader No
USB Type-C Support Yes
Side Panel Type Tempered Glass
GPU Length 422 mm
PSU Depth 235 mm
RGB LED Controller Included No
LED Strip(s) Included No
Maximum Motherboard Size Supported E-ATX
RGB Software Type None
Total 2.5" + 3.5" drive bays 4
USB3.0 ports 2
USB-C ports 1
Low profile expansion No
Max Supported Radiator Length 360 mm

Item Details

Manufacturer HYTE
Manufacturer Code CS-HYTE-Y70-BR
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer HYTE
Manufacturer Code CS-HYTE-Y70-BR
