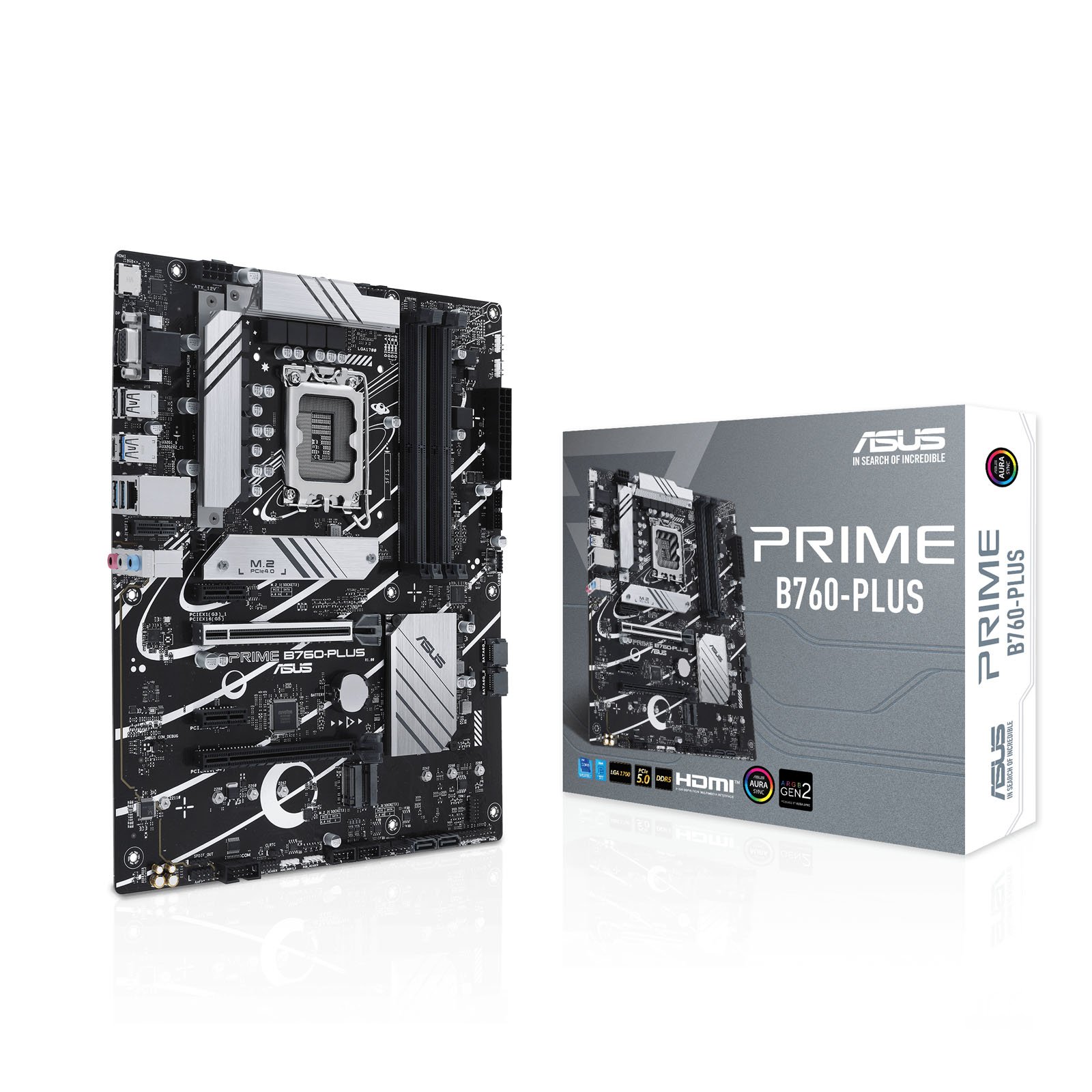

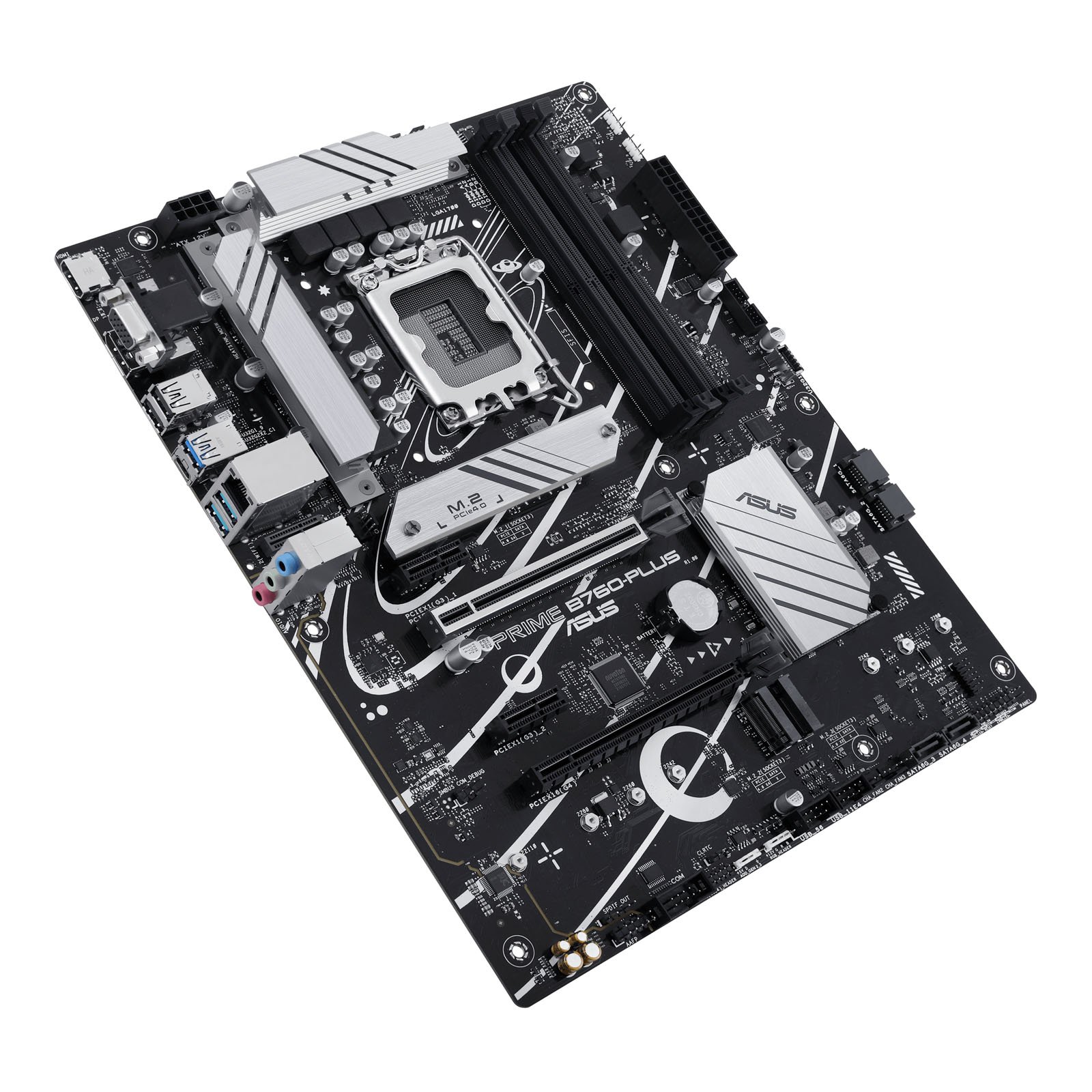

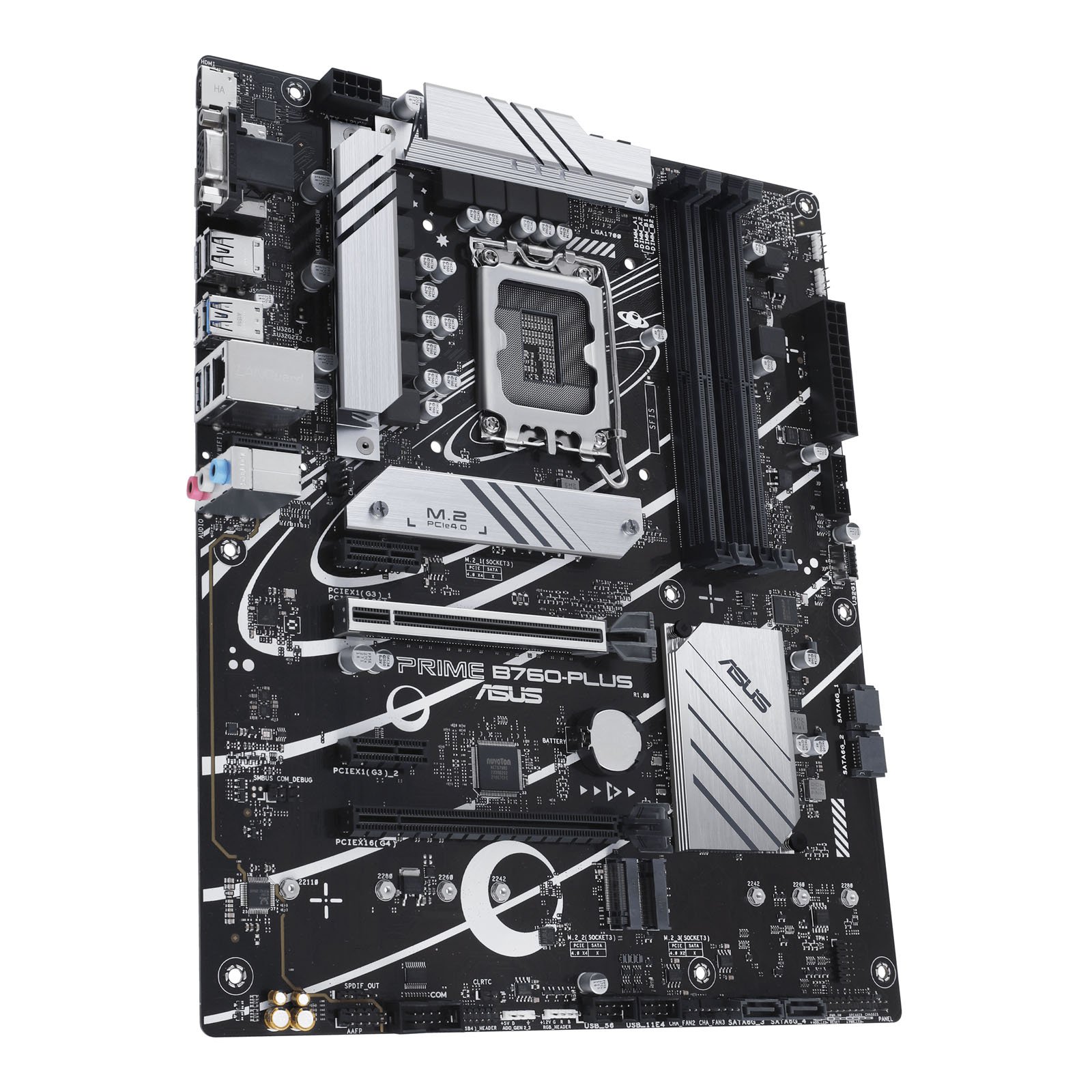

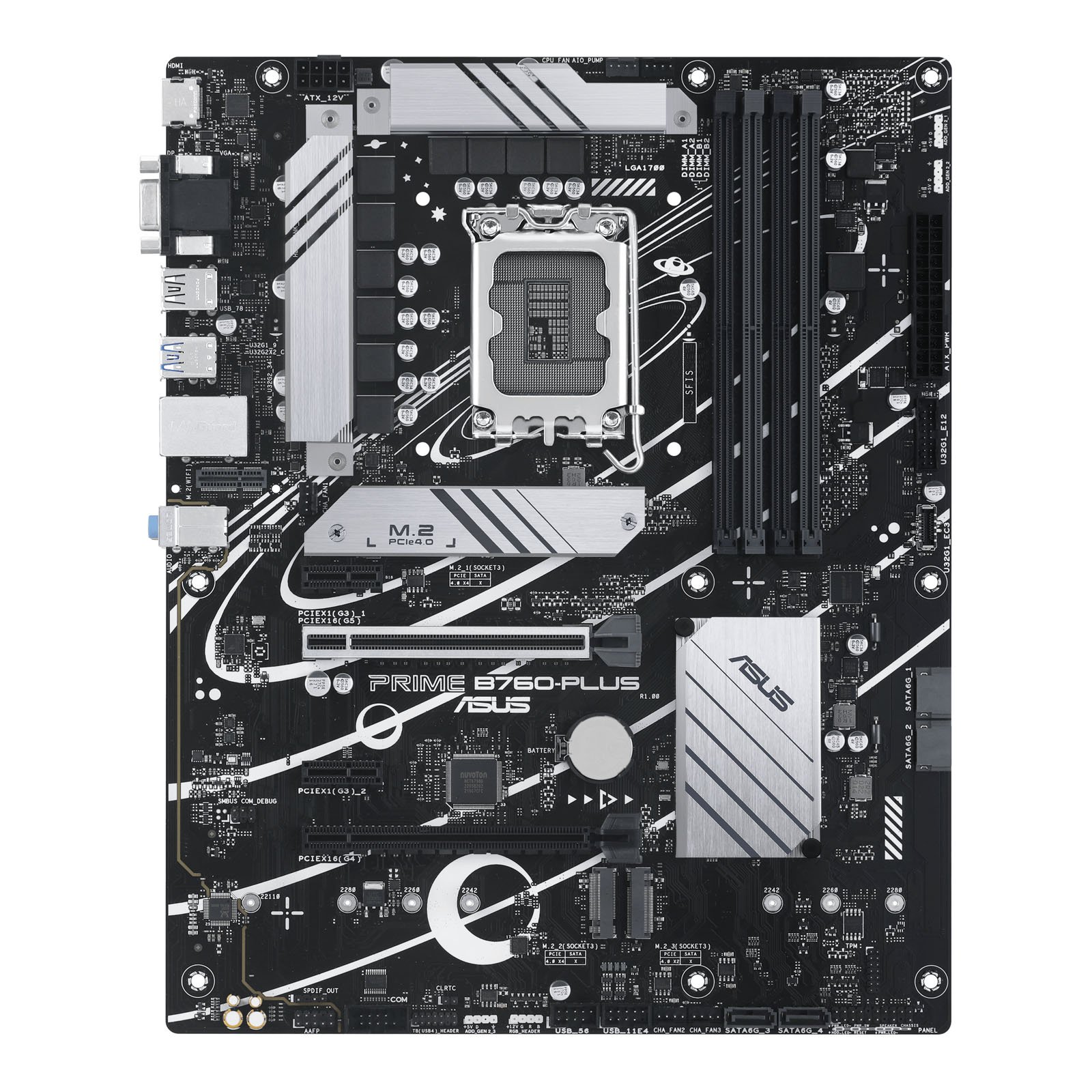

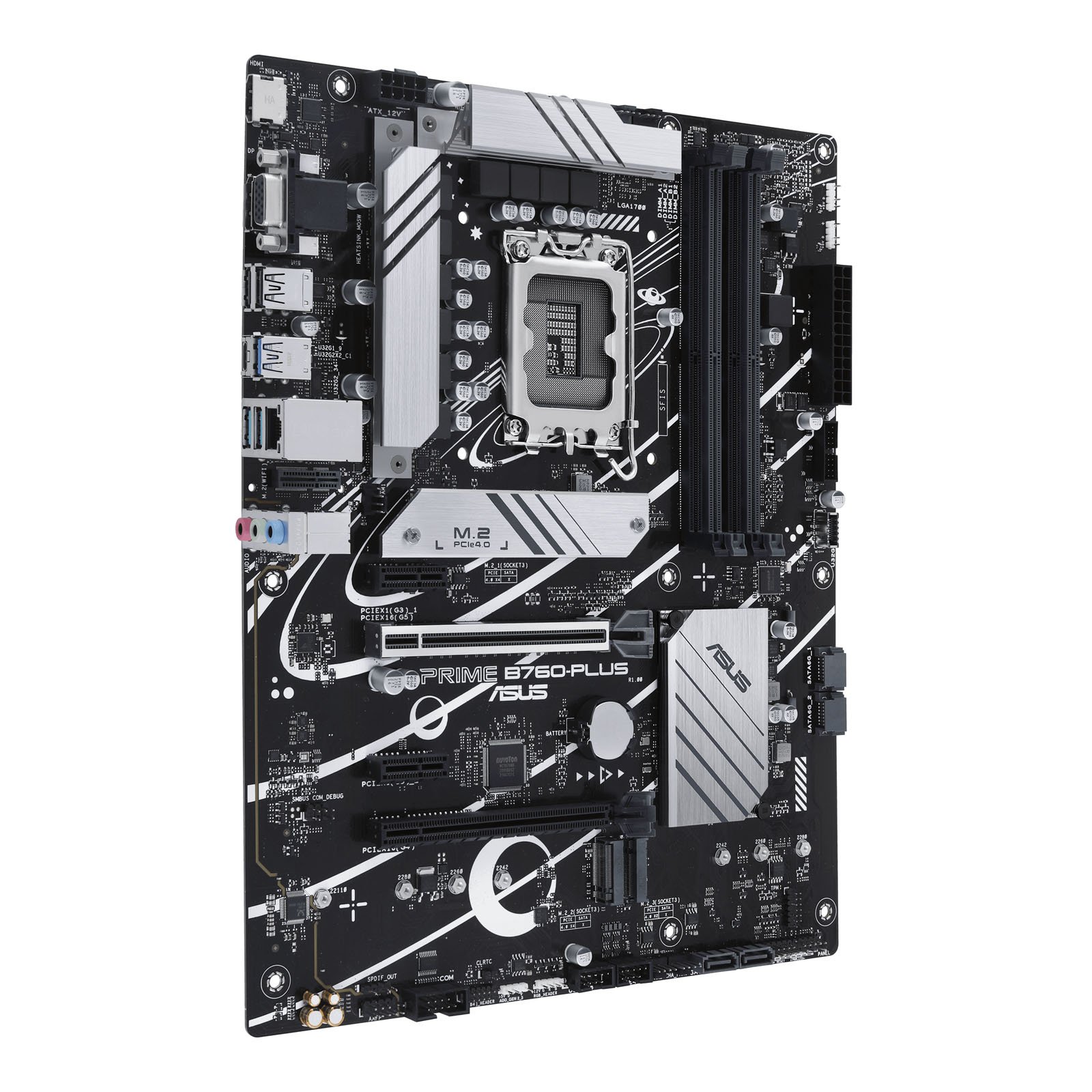

ASUS Prime B760-PLUS ATX Motherboard for Intel LGA1700 CPUs

ASUS Prime B760-PLUS ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3551

£157.99 inc VAT

  • ASUS Prime B760-PLUS ATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime B760-PLUS ATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime B760-PLUS ATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime B760-PLUS ATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime B760-PLUS ATX Motherboard for Intel LGA1700 CPUs
  • ASUS Prime B760-PLUS ATX Motherboard for Intel LGA1700 CPUs

Get 5% off when you buy 3 or more different components*

ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

ASUS Prime B760-PLUS ATX Motherboard for Intel LGA1700 CPUs

90MB1EF0-M0EAY0

ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

£157.99 inc VAT

Available for delivery from Thursday 16th May

Buying in bulk? Contact our business team.

Key Features:

  • Socket 1700
  • Intel B760 Chipset
  • 4 x SATA & 6 x USB Ports
  • DDR5 (max 192GB, 4 slots)
  • VGA, HDMI and Display Port
  • ATX Form Factor
CCL Code: MBD3551
Overview

ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

Main Features

  • Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors
  • Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C and Thunderbolt (USB4) header support
  • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Promotions

Get 5% off components when you buy three or more*

For a limited time, buy at least three different components worth £30 or more from different qualifying categories and get 5% off those items. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power SuppliesCPU Coolers, and Cases.


Promotional Period: From 3rd May 2024 till 7th May 2024.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Some items may not be included, such as new product launches - please check the item to ensure the promotion applies. Minimum value of each item must £30 or greater. Discount will apply to three or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. It will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the three or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period:From 8PM April 27th, 2023 till 2AM April 28th 2023.

Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
64-bit Support Yes
Socket LGA1700

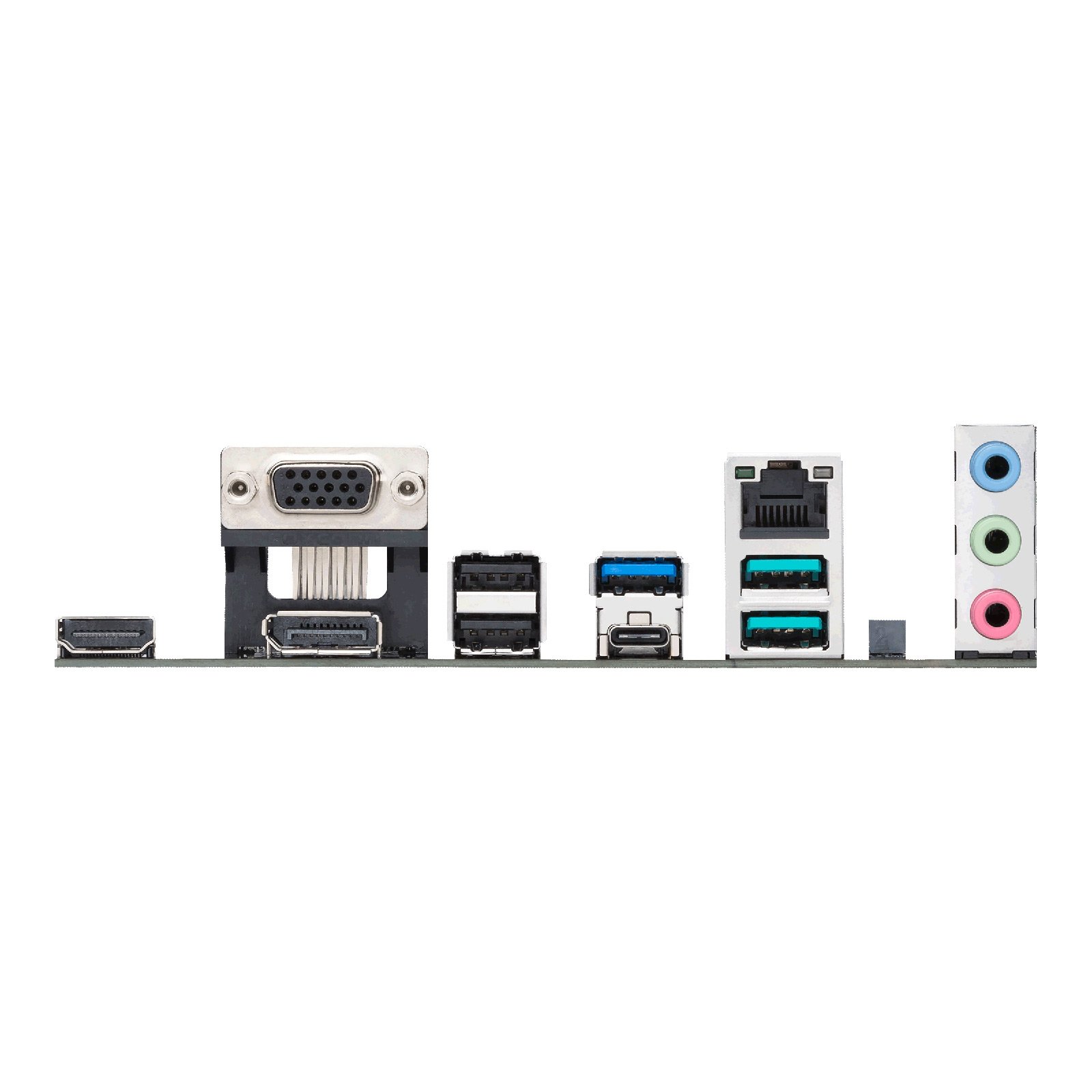

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
2 x USB 3.1
1 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
RJ-45 Ports 1 x RJ-45
Serial ATA Ports 1 x 3.5mm Jack
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x AIO pump header
3 x Chassis fan headers
S/PDIF Connectors 1 x S/PDIF Out header
Thunderbolt Port(s) 1 x Thunderbolt header
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x SPI TPM header
Other Connectors 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 x4)
1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen4 x4)
1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 x2)
3 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header

Memory

Memory Bus Speed Up to 7200+ MHz
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel B760
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard
In The Box Motherboard
2 x SATA Cables
I/O Shield
M.2 Rubber Package
2 x Screw Packages for M.2 SSD
User Guide
Width 305 mm
Length 244 mm

Key Features

Wireless Network No
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model ASUS Prime B760-PLUS
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASUS Aura Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 5600 MHz
Max Memory Speed Supported (overclocked) 7200 MHz
CPU Power Pins (female) 8
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1

Item Details

Manufacturer ASUS
Manufacturer Code 90MB1EF0-M0EAY0
EAN 4711387102985
UPC 197105102989
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASUS
Manufacturer Code 90MB1EF0-M0EAY0
