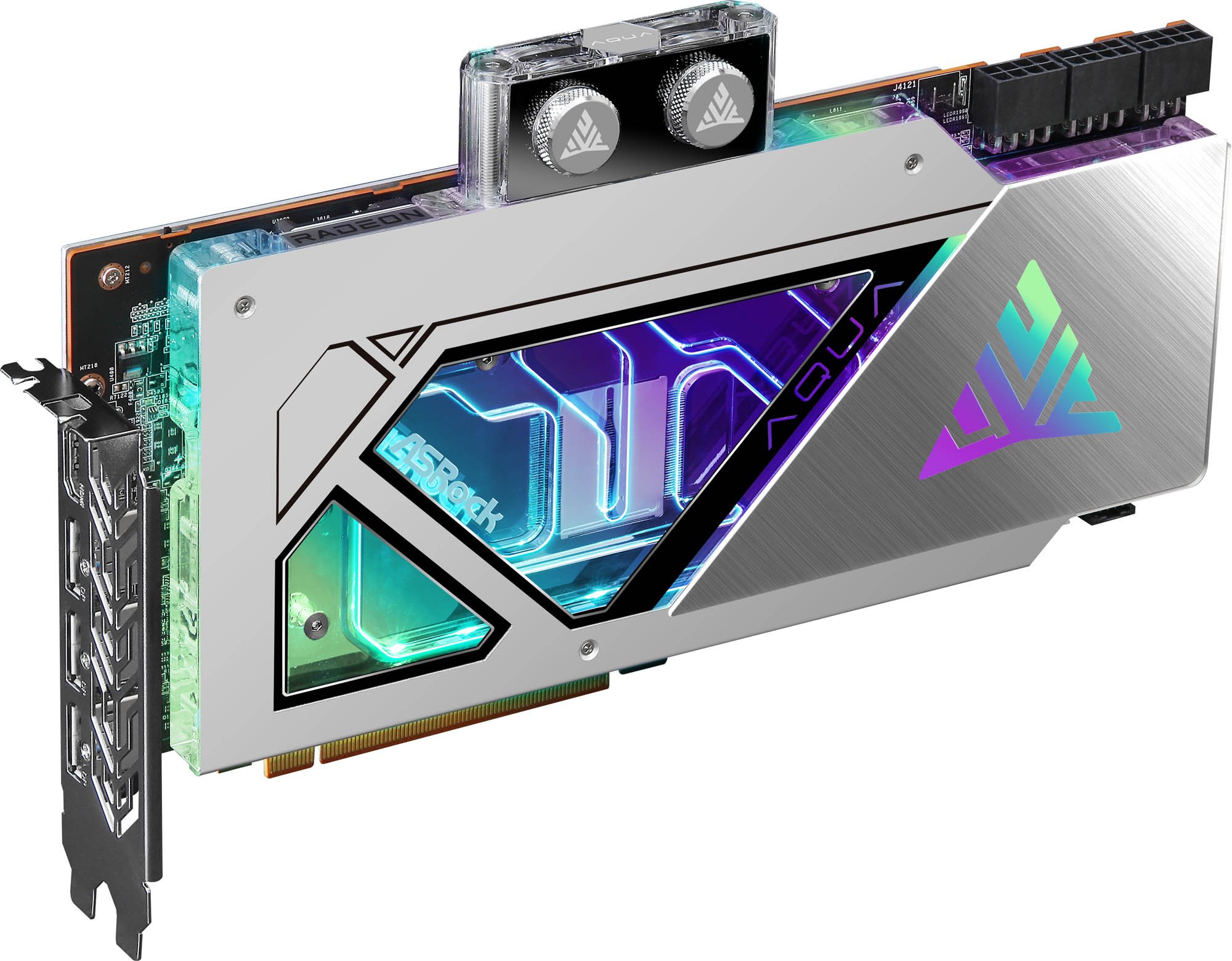

ASRock Radeon RX 7900 XTX AQUA 24GB GDDR6 Graphics Card

ASRock Radeon RX 7900 XTX AQUA 24GB GDDR6 Graphics Card

CCL Code: VGA6647

Sold out

Notify Me
  • ASRock Radeon RX 7900 XTX AQUA 24GB GDDR6 Graphics Card
  • ASRock Radeon RX 7900 XTX AQUA 24GB GDDR6 Graphics Card
  • ASRock Radeon RX 7900 XTX AQUA 24GB GDDR6 Graphics Card
  • ASRock Radeon RX 7900 XTX AQUA 24GB GDDR6 Graphics Card
  • ASRock Radeon RX 7900 XTX AQUA 24GB GDDR6 Graphics Card
  • ASRock Radeon RX 7900 XTX AQUA 24GB GDDR6 Graphics Card

Save 5% when you buy 3 or more eligible different items*

ASRock Radeon RX 7900 XTX AQUA 24GB GDDR6 Graphics Card

90-GA40ZZ-00UANF

Key Features:

  • 24GB GDDR6 Graphics Memory
  • PCI Express 4.0 x16 Interface
  • Cooler Type - Waterblock
  • Outputs - HDMI and Display Port
CCL Code: VGA6647

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

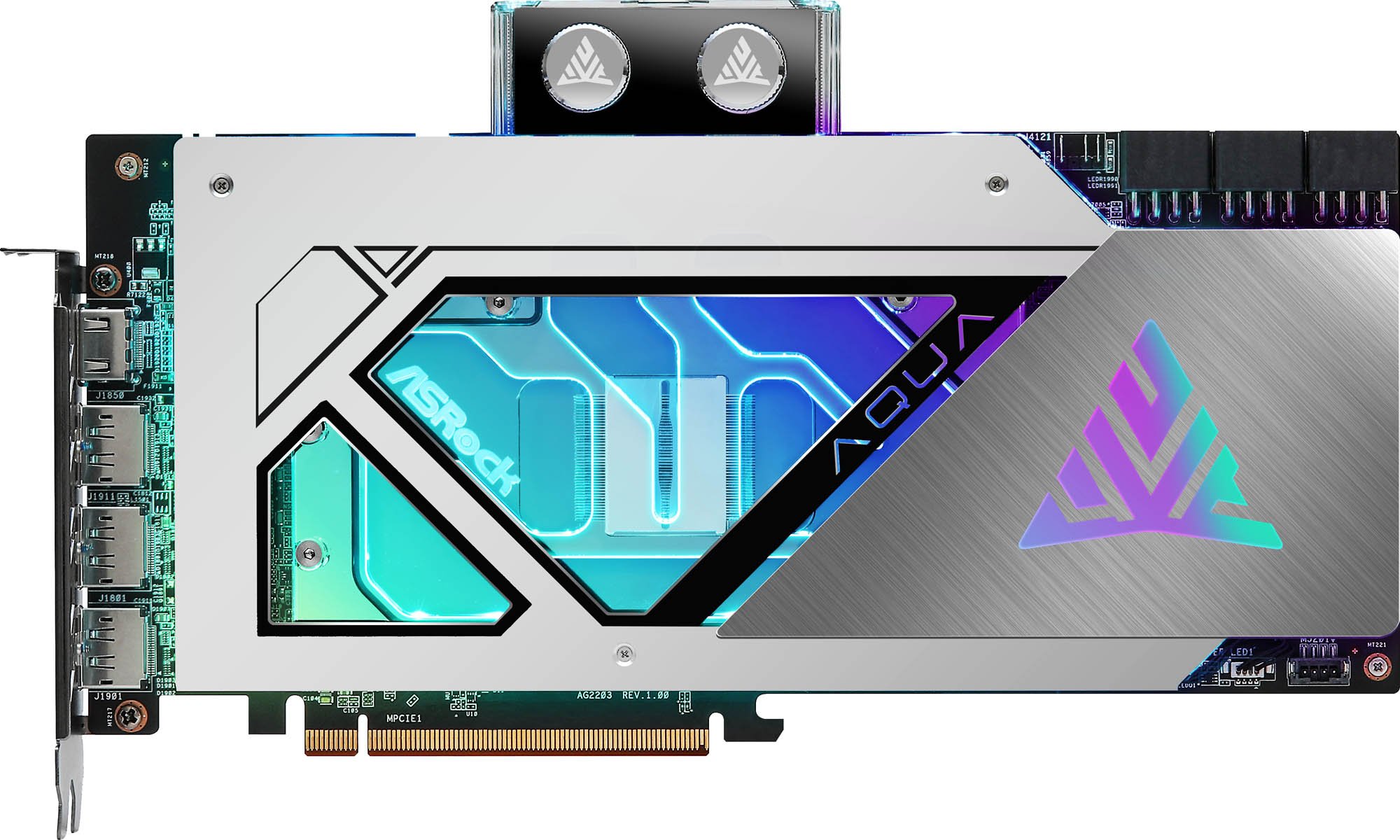

AQUA Liquid Cooling System

Transparent and stylish water block brings effective and quick heat dissipation.

High Purity Cooler Plate

Electroplating Copper Base

AQUA water block is made of high-purity copper with nickel plating for thermal transfer effectively and quickly.

Jet Microchannel Engine

Make Water Flow More Powerful

The 0.3mm jet microchannel enhances the water flow and make heat dissipation more quickly.

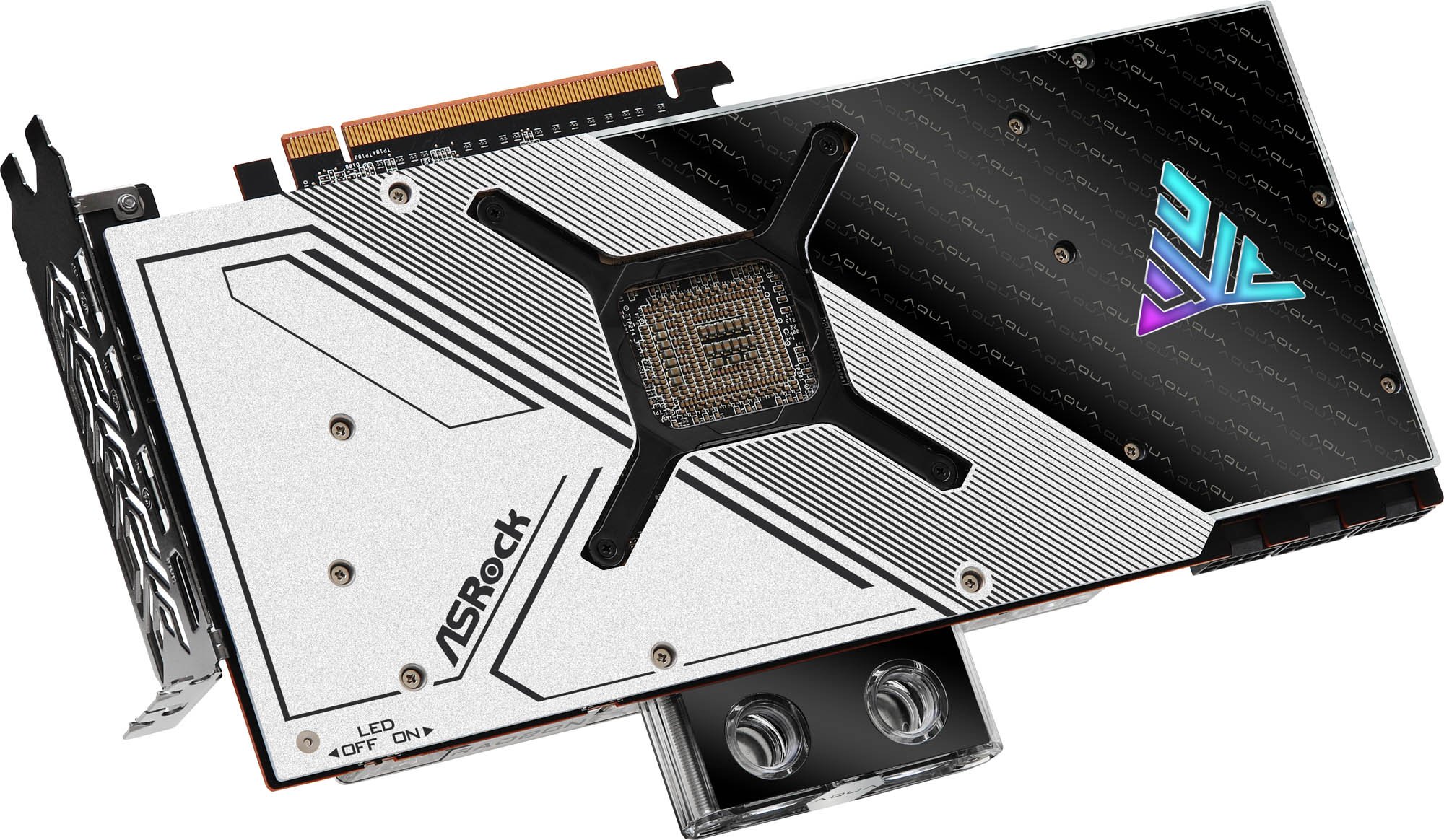

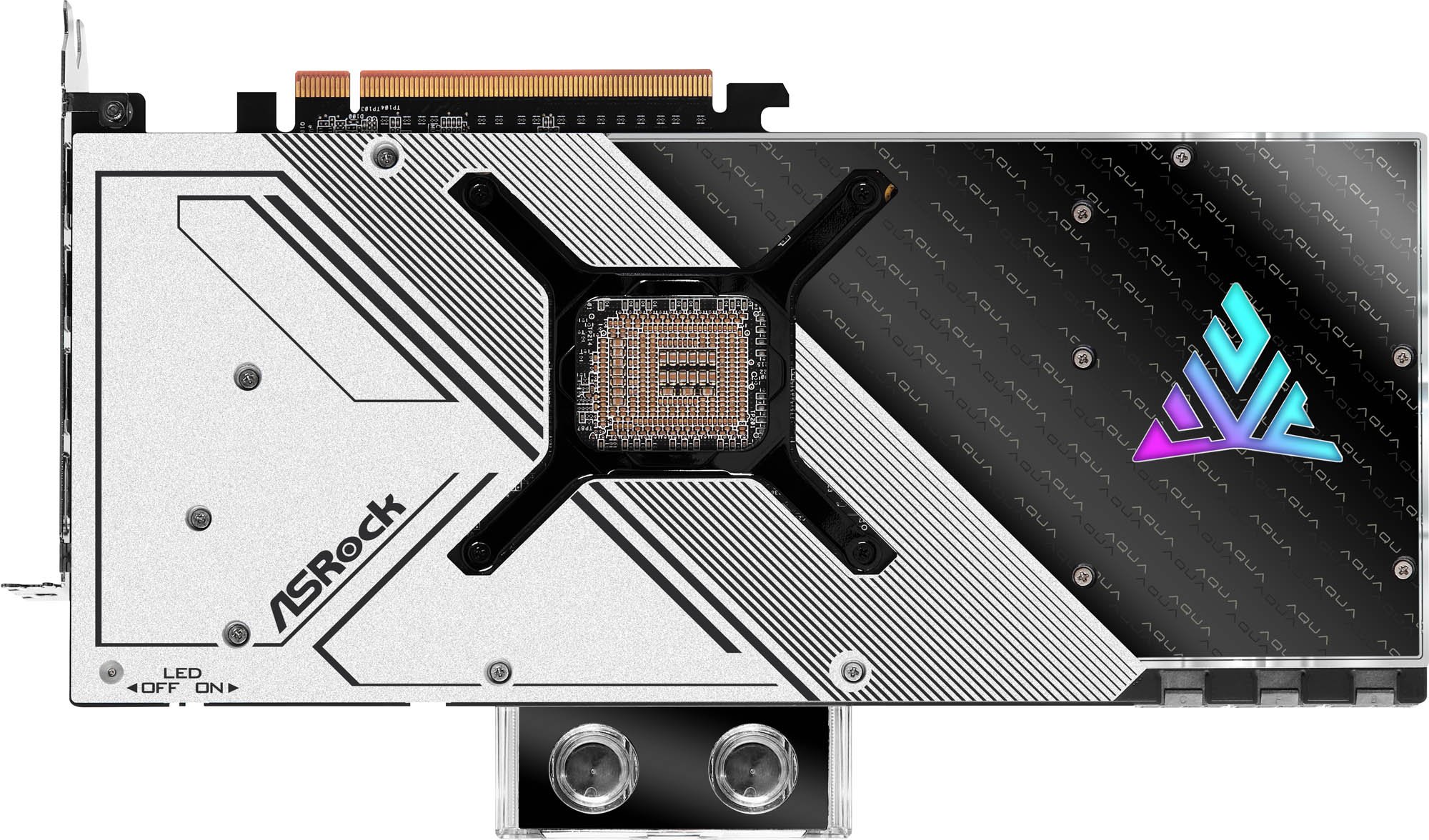

Stylish Acrylic Backplate

Acrylic & Aluminum Collaboration

The collaboration of acrylic and aluminum makes the graphics card more elegant.

Polychrome SYNC

Create your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED On/Off Switch

On or Off? Switch as You Want.

You can switch not only the built-in ARGB LEDs but also the ARGB LEDs equipping with the connected strips/devices at once.

ARGB Pin-header

More ARGB, More Fancy.

With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

22 Power Phase Design

More Power Phase Equipped to Deliver More Sufficient Power.

Featuring 22 power phases with sturdy components to raise maximum current to GPU and memory to offer enhanced performance.

Main Features

  • AQUA Liquid Cooling System
  • High Purity Copper Plate
  • Jet Microchannel Engine
  • Stylish Acrylic Backplate
  • Polychrome SYNC
  • LED On/Off Switch
  • ARGB Pin-header
  • 22 Power Phase Design
  • Super Alloy Graphics Card
Promotions

Get 5% off PC Components, Peripherals and selected Monitors when you buy three or more*

USE CODE: UPGRADE5 at checkout

For a limited time only, buy at least three different PC components or Peripherals from different qualifying categories and get 5% off those items when you use code UPGRADE5 at checkout. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power SuppliesCPU CoolersCases, MonitorsKeyboards, Mice, HeadsetsLaptop Cases and Bags.


Promotional Period: From 3rd May 2024 till 30th May 2024.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one processor, one motherboard and one keyboard). It will not apply to multiples from categories (e.g. three graphics cards).

Discount will be applied to the items in your basket when you enter the promo code UPGRADE5 at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: until till May 30th 2024.

Specifications

GPU

Chipset Manufacturer AMD
Chipset Model Name Radeon RX
Chipset Model Number
Chipset Additional Information AQUA
Boost Chip Clock Up to 2680 MHz
Graphics Core Stream Processors
Number of Cores 6144
Cooling System Waterblock for integration into Loop

Memory

Memory Size 24576 MB
Memory Clock 20 Gbps
Memory Type GDDR6
Memory Width 384 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16

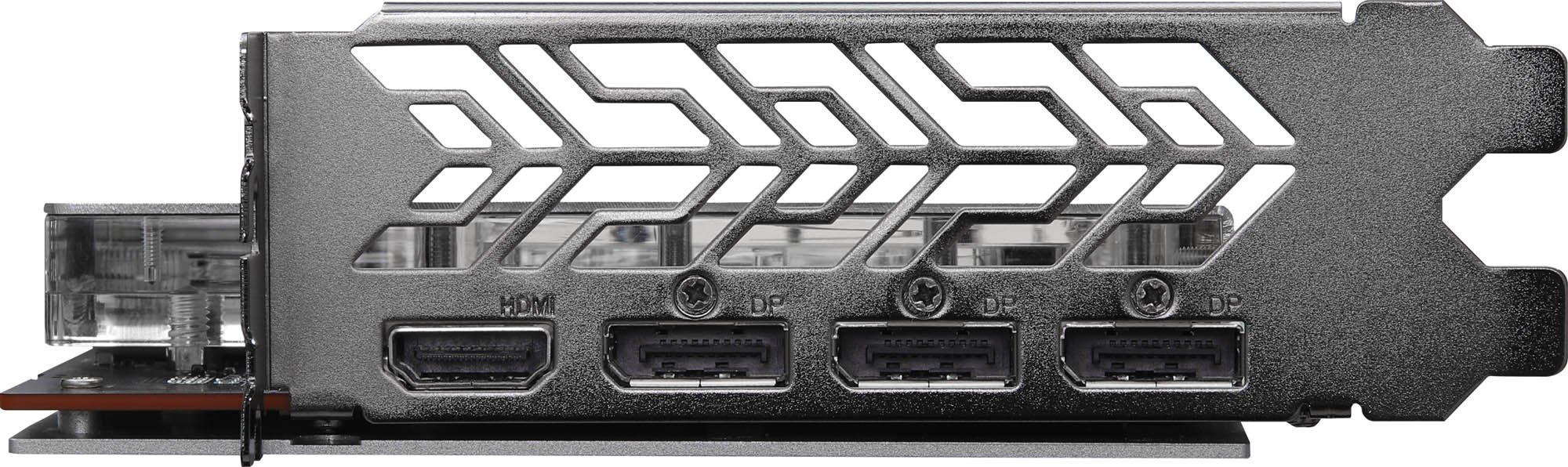

HDMI Port 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 2.1

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot
Recommended 1000W or greater PSU with 3 x 8-pin PCIe connectors
Suitable loop cooling system for integration

Electrical

Power Connector 3 x8-pin PCIe
Recomended Power Supply 1000 W

Physical

Form Factor Graphics Card

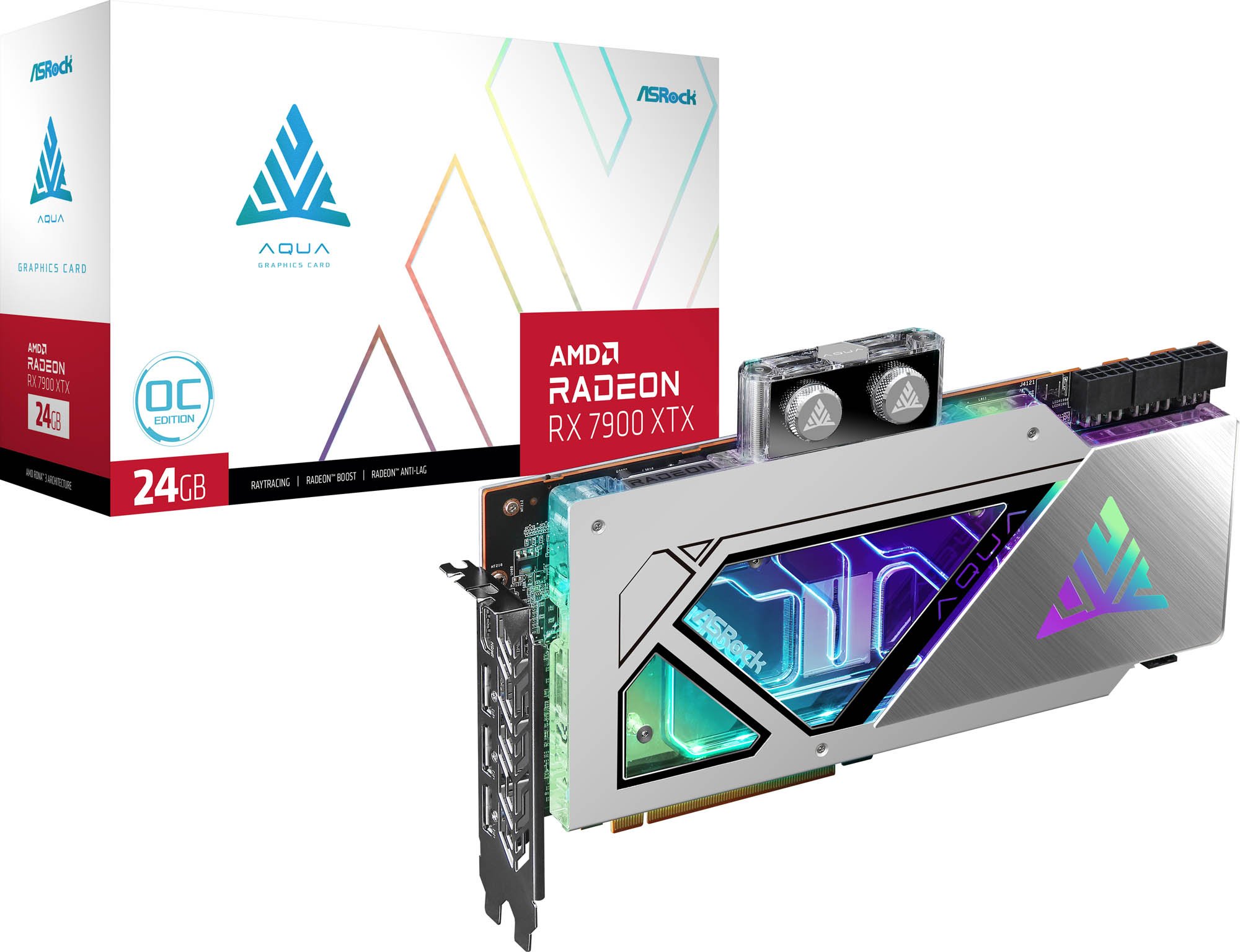

In The Box Graphics Card
Quick Installation Guide
Width 22 mm (2.1 slot)
Depth 275 mm
Height 157 mm
Weight 1.45 kg

Warranty

Warranty 2 Years

Key Features

Interface Type PCI Express 4.0 x16
Graphics Memory Type GDDR6
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Waterblock
Low Profile No
Interface Type
NVIDIA GeForce
AMD Radeon RX 7900 XTX
PCIe Pin Type 3 x 8-Pin
Screen Type
FreeSync Yes
Cooling Technology Waterblock
VR Ready AMD
VR Ready PC
GPU Length 275 mm
Card Width 2
GPU Power (TDP) W
Graphics card count 1
PCI Express Power Pins (female) 24
PCIe Physical Slot required 16

Graphics

Graphics Chipset Radeon RX 7900 XTX

Graphics Device

G-Sync No

Compatibility

Lite Hash Rate

Item Details

Manufacturer ASRock
Manufacturer Code 90-GA40ZZ-00UANF
EAN 4710483941764
Condition New
Warranty

Warranty Information

Warranty 2 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-GA40ZZ-00UANF
Reviews
No reviews have been received for this product yet
