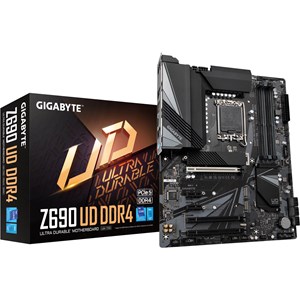

Gigabyte Z690 UD DDR4 Motherboard, ATX, Intel Socket 1700, Z690 Chipset

Gigabyte Z690 UD DDR4 Motherboard, ATX, Intel Socket 1700, Z690 Chipset

CCL Code: MBD3168

Discontinued

Gigabyte Z690 UD DDR4 Motherboard, ATX, Intel Socket 1700, Z690 Chipset

Z690 UD DDR4

Key Features:

Intel® Z690 Motherboard with Direct 16+1+2 Phases Digital VRM Design, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, Rear USB 3.2 Gen 2x2 Type-C®, Q-Flash Plus

CCL Code: MBD3168

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

Gigabyte Z690 UD DDR4 Motherboard, ATX, Intel Socket 1700, Z690 Chipset

Main Features

  • Supports 12th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 16+1+2 Digital VRM Design with 60A Power Stage (maximum current capacity is based on VCORE Phase) and Tantalum Polymer Capacitor
  • Ultra Performance VRM Heatsinks
  • Fast 2.5GbE LAN with Bandwidth Management
  • 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
  • SuperSpeed USB 3.2 Gen 2x2 TYPE-C delivers up to 20Gb/s transfer speeds
  • RGB FUSION 2.0, supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 12th Gen Intel Core Processors
64-bit Support Yes
Socket LGA1700

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
1 x USB 3.1
4 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 6 x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Water Cooling CPU fan header
3 x System fan headers
1 x System fan/Water Cooling pump header
S/PDIF Connectors 1 x S/PDIF Out header
Thunderbolt Port(s) 1 x Thunderbolt AiC header
Serial Connectors 1 x COPM header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 2260/2280/22110 (PCIe Gen4)
2 x M.2 slots, Socket 3, M Key, Type 2260/2280 (PCIe Gen4)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 5333+ MHz (OC)
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Chipset Manufacturer Intel
Northbridge Z690
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x4, x1)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11 / 10 64-bit

System

BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes
SLi/Crossfire Features Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Physical

Form Factor ATX Motherboard
Width 305 mm
Length 244 mm

Key Features

Firewire No
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 305 mm
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 6 port(s)
Number of USB Ports 10 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4-Pin + 8-Pin
Motherboard Chipset Intel Z690
Thunderbolt No
Motherboard Model Gigabyte Z690 UD DDR4
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
Memory Speed 5333 MHz
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Max Memory Speed Supported (Non-overclocked) 3200 MHz
Max Memory Speed Supported (overclocked) 5333 MHz
CPU Power Pins (female) 12
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
Maximum SATA M.2 ports 3
SATA ports 6
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1

Item Details

Manufacturer Gigabyte
Manufacturer Code Z690 UD DDR4
EAN 4719331827854
UPC 889523030103
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code Z690 UD DDR4
