MSI A520M PRO-C DASH AMD Socket AM4 Motherboard

CCL Code: MBD2924
|
Manufacturer Code: A520M PRO-C DASH
| Manufacturer: MSI

Key Features:

  • Socket AM4
  • AMD A520 Chipset
  • 4 x SATA & 6 x USB Ports
  • DDR4 (max 64GB, 2 slots)
  • VGA, HDMI and DVI
  • mATX Form Factor

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

A520M PRO-C DASH
BUSINESS ELEGANCE

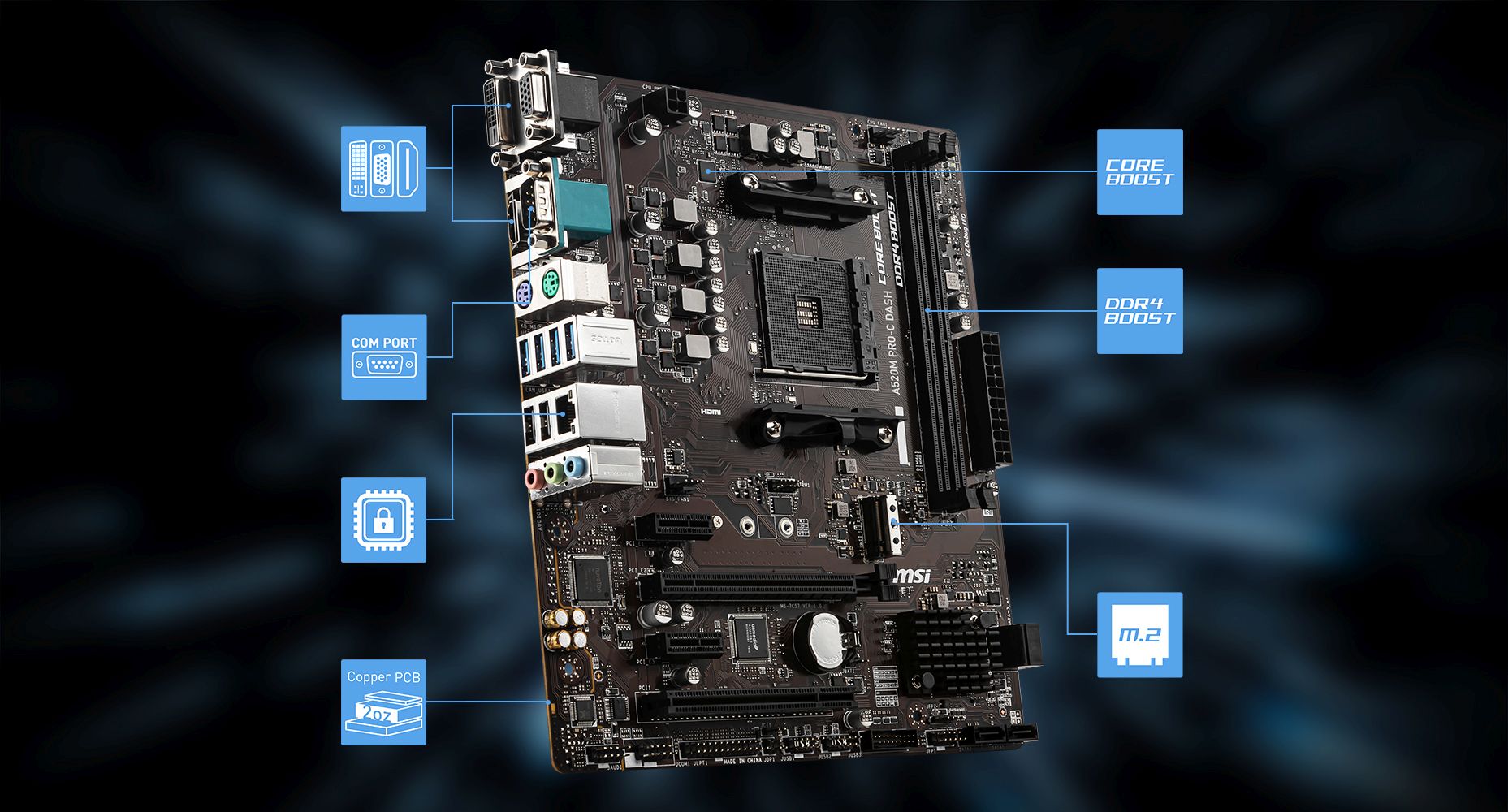

MSI A520M PRO-C DASH overview
MSI 4K & Legacy Video Support 4K & Legacy Video Support
Featuring HDMI, DVI-D and VGA port, supports both digital and legacy display.
MSI COM Port COM Port
Supports industrial automation systems, POS systems and some industrial and consumer products.
MSI Dash LAN Dash LAN
Network solution for secure out-of-band and remote management.
MSI 2oz Thickened Copper PCB 2oz Thickened Copper PCB
An enhanced PCB design improves heat dissipation and performance reliability.
MSI Core Boost Core Boost
With premium layout and digital power design to support more cores and provide better performance.
MSI DDR4 BOOST DDR4 Boost
The fully isolated DDR circuit to deliver pure data signals for the best performance and stability.
MSI Turbo M.2 Turbo M.2
Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

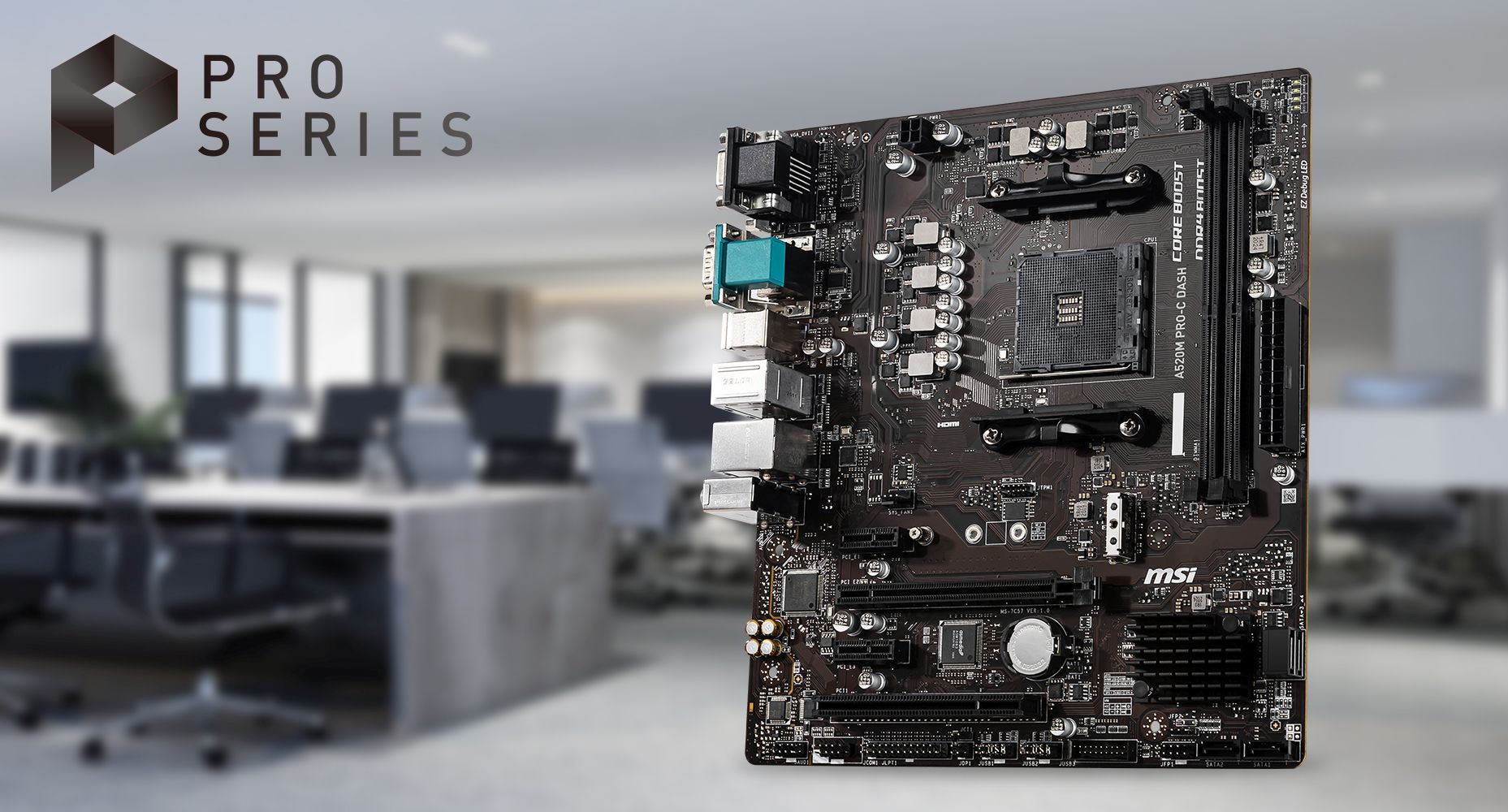

MSI A520M PRO-C DASH
MAKE YOUR PC MORE THAN YOU THINK
PRO Series motherboards combine stable functionality and high quality assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use.

MSI A520M PRO-C DASH NETWORK WITH HIGH SECURITY
NETWORK WITH HIGH SECURITY
A520M PRO-C DASH equips Realtek® 8111EPV Gigabit LAN, a security network solution combines a triple-speed IEEE 802.3 compatible Media Access Controller (MAC) with a triple-speed Ethernet transceiver and PCI Express bus controller. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111EPV offers functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.

MSI A520M PRO-C DASH CORE BOOST
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, but creating the perfect conditions for your CPU overclocking.

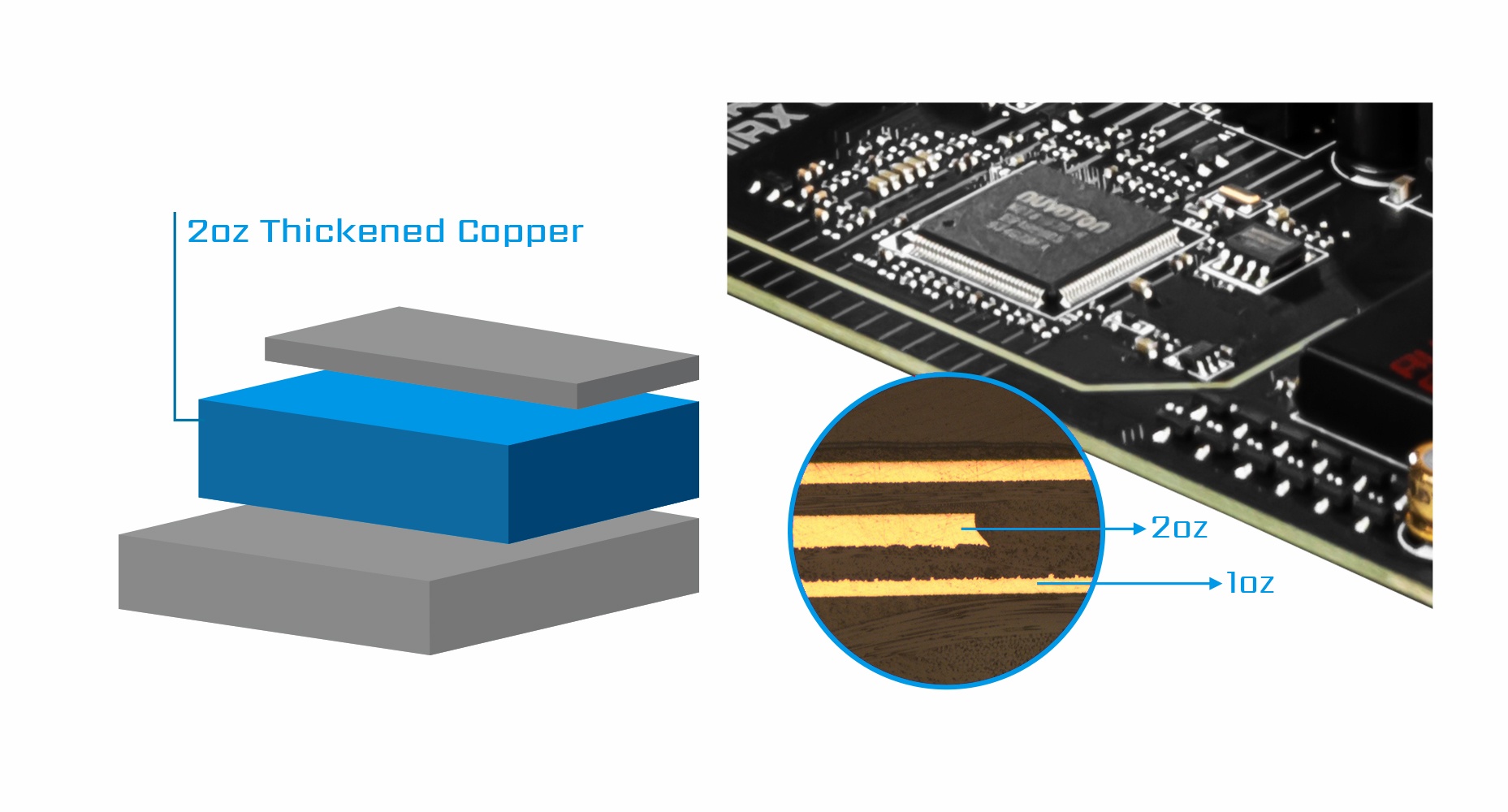

MSI B550 -A PRO PCB WITH 2OZ THICKENED COPPER
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.

MSI A520M PRO-C DASH LIGHTNING GEN4 M.2

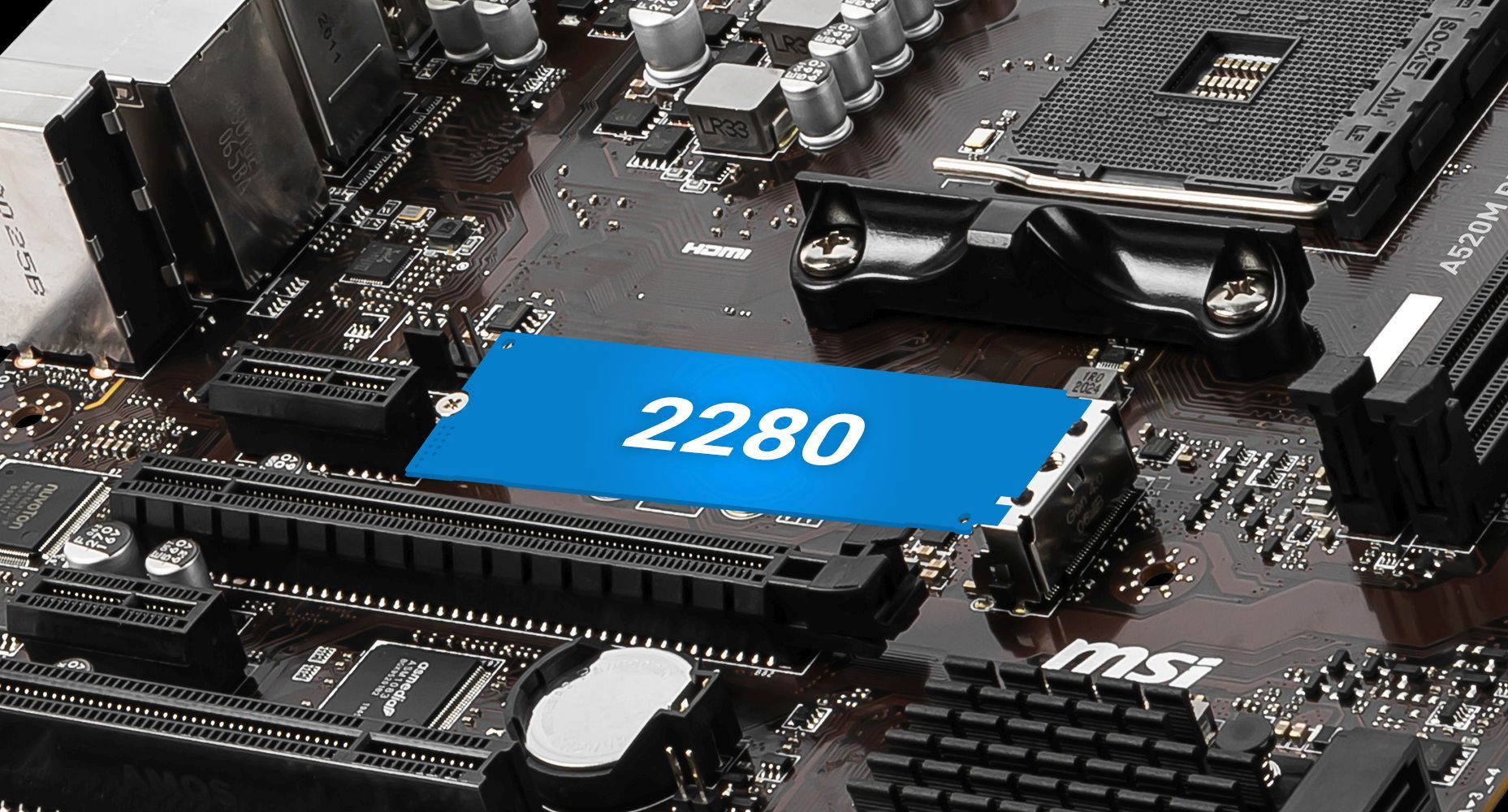

EXTREME STORAGE PERFORMANCE: TURBO M.2
Supporting NVMe devices, delivering speeds up to 32Gb/s per device using Gen3 x4. Enjoy a blazing fast system boot up and insanely quick loading of applications and data.

MSI A520M PRO-C DASH UNMATCHED MEMORY PERFORMANCE

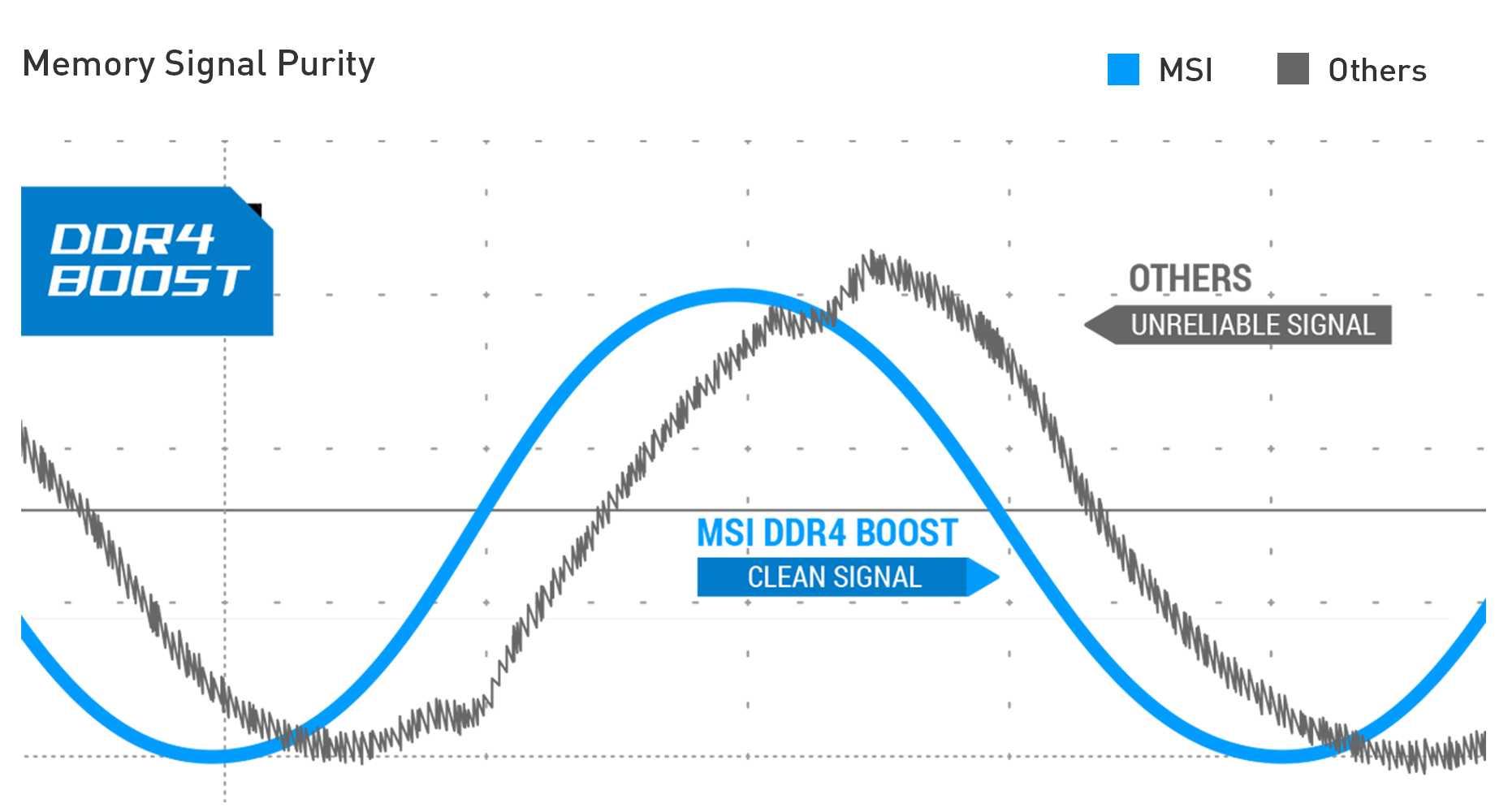

UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system’s memory with more speed, higher overclockability and increased stability. Optimized traces and a fully isolated memory circuitry ensures perfect stability and performance, so you never have to worry about your system crashing.

MSI A520M PRO-C DASH 3 Display

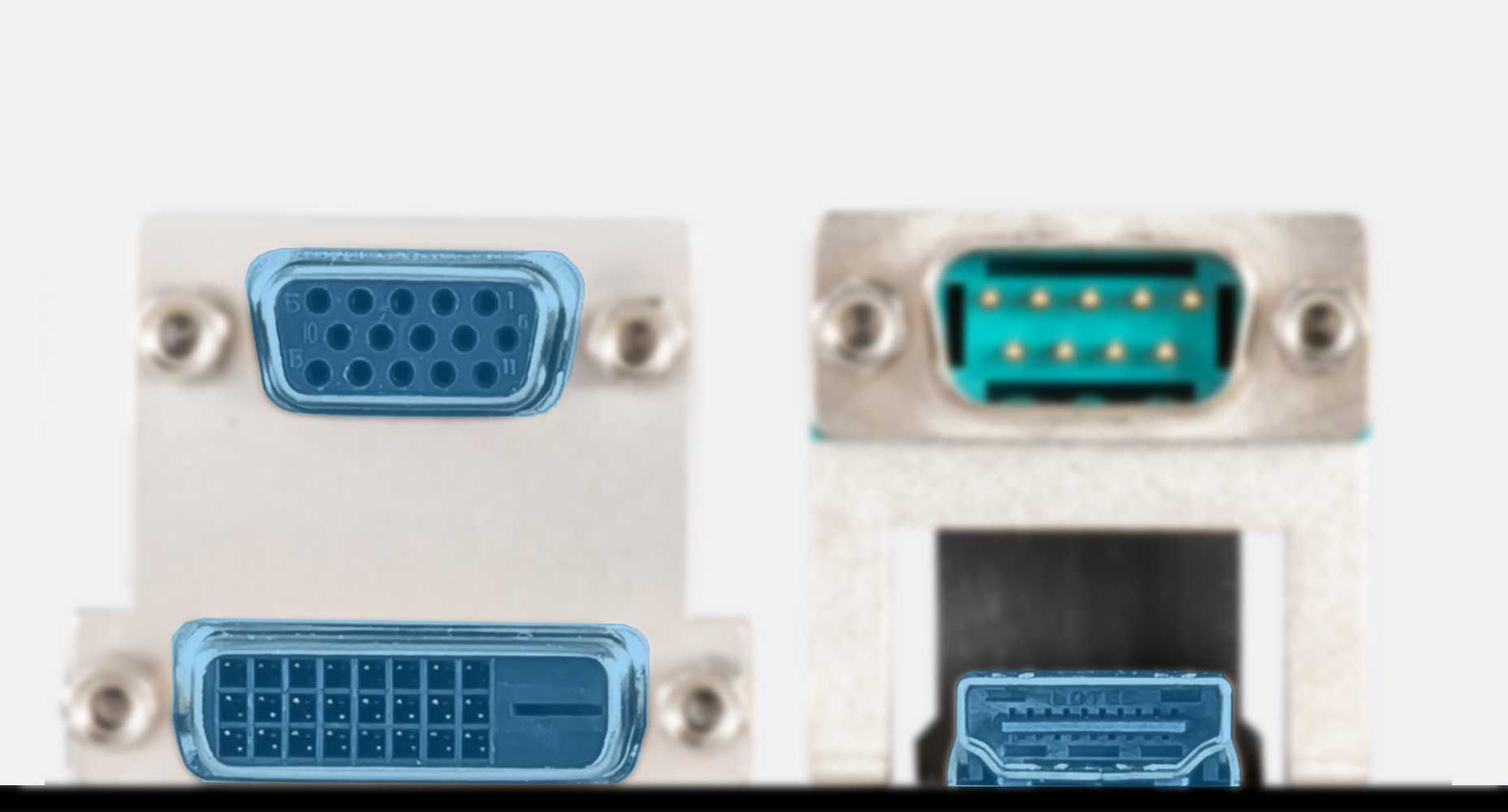

4K & LEGACY VIDEO SUPPORT
This motherboard is equipped with legacy VGA and DVI-D ports, and the HDMI port provides up to 4K UHD resolution, fulfilling all your work needs.

MSI A520M PRO-C DASH Audio Boost
AUDIO BOOST
Like a dedicated sound card Audio Boost offers a HD audio processor, dedicated amplifier and high quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal to locate enemies with pin-point accuracy.


Main Features

  • Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • DASH LAN: supports DMTF's client management standard for secure out-of-band and remote management.
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Stablility: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
  • Reliability: over 7000+ validation hours industrial level test
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
Specifications

CPU

CPU Socket Socket AM4
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors 3rd Gen AMD Ryzen Desktop processors and AMD Ryzen 4000 G-Series Desktop processors
64-bit Support Yes
Socket AM4

Rear Panel I/O Ports

USB Ports 4 x USB 3.0
2 x USB 2.0
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub (VGA)
Serial Ports 1 x COM
Keyboard Port 1 x PS/2
Mouse Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Digital Port 1 x DVI-D
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x System fan header
Parallel Connectors 1 x Parallel header
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 20+4-pin ATX
1 x 4-pin EPS
Other Connectors 1 x M.2, Socket 3, M Key (Type 2242/2260/2280)

Memory

Memory Bus Speed 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4600+ MHz
Memory Type DDR4
Maximum RAM 64 GB
Memory Slot 2 x DIMM

Motherboard

Chipset Manufacturer AMD
Northbridge A520
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Slots 1 slot(s)
Number of PCI Express Slots 1 x PCI Express 3.0 x16
2 x PCI Express 3.0 x1

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek ALC892

Warranty

Warranty 3 Years

Network

Integrated Network Realtek RTL8111EPV
Network Speeds Supported 10/100/1000 Mbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 10 64-bit

System

Jumpers 1 x Clear CMOS

Physical

Form Factor MicroATX Motherboard
In The Box Motherboard
Quick Installation Guide
MSI Case Badge
2 x SATA Cables
Driver DVD
Product Registration Card
I/O Shield
Width 244 mm
Length 220 mm

Key Features

RGB Header Type None
Addressable RGB No
Firewire No
Wireless Network No
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection Yes
HDMI Connection Yes
DisplayPort Connection No
Motherboard Form Factor mATX
Motherboard Power Connectors 4-Pin
Motherboard Chipset AMD A520
Thunderbolt No
Motherboard Model MSI A520M PRO-C DASH
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control None
Memory Speed 4600 MHz
