Cooler Master V1200 1200W Modular 80+ Platinum PSU

CCL Code: PSU0720
Manufacturer Code: RSC00-AFBAG1-UK
Manufacturer: Cooler Master
Cooler Master V1200 1200W Modular 80+ Platinum PSU

Key Features:

  • 9x Molex Connectors
  • 12x SATA Connectors
  • 12x PCIe Connectors (6+2-Pin)
  • Modular Cable System
  • ATX Form Factor


Sorry, this product has been discontinued. We have found some similar products below.

Similar products
Artic Blue 850W Power Supply

Artic Blue 850W Power Supply

Highly Recommended!
Customers who viewed this item also viewed...

1200W Platinum Power Supply - V1200

Cooler Master developed the V-series to re-ascertain its position as the worlds top power supply brand and the reviewers agreed!Based on the highest graded components (DC-DC module design, 100% Japanese capacitors) it features outstanding efficiency, excellent hold up times, voltage stability and ripple suppression. And thanks to high quality FDB fans, V1200 Platinum PSUs are extremely cool and quiet. The V-series uses a fully modular cable system with beautiful all black, extra slim flat-ribbon cables. This makes cable management a breeze and results in elegant looking clean builds with the best possible airflow.

Fully Modular Cable System

Only use the cables you need, no unnecessary cable mess! Building a clean and tidy system with excellent airflow has never been this easy and convenient.

Hybrid Fan Controller

ON / OFF hybrid fan controller - Zero dBA fanless mode silent operation.

V1200 manages to keep the +12V rail within ±1% at all times, even better than Digital PSU

The 12V rail is the most important part of a modern power supply. Both the CPU and graphics cards, the two most important and power hungry components in any computer, are powered by the 12V line. Voltage fluctuations can cause anything from high pitch noises, lowered CPU and VGA overclock capabilities, system instability or even damage components.

135mm FDB Fan Design

Thanks to an elaborate design with microscopic tolerances and a detailed channel design, the bearing core and inner case are constantly separated by a thin film of oil - meaning the two metal parts never actually touch. The channels on the bearing core act as a pump, constantly looping it back to the center, giving it no chance to leak. This results in extremely quiet operation and an extremely long life.

V series DC-DC module design

The 12V goes directly through the custom DC-DC module and convert to 5V & 3.3V without efficiency loss. Compared to regular DC-DC module, the V series custom DC-DC module design results in much lower cross-talk, signal noise and offers notably higher efficiency and voltage stability.

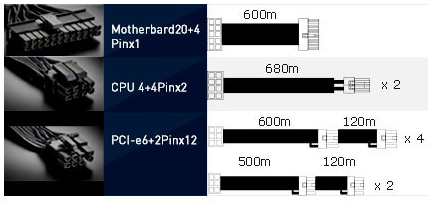

Output Rating


Main Features

  • Fully modular cable design for easy installation and cable management
  • 100% high quality Japanese electrolytic & solid capacitors ensure performance and reliability
  • 135mm FDB silent fan default as hybrid mode, equipped with hybrid fan controller, easily switch mode (auto / hybrid) by the controller
  • Zero dBA fanless mode silent operation
  • 80 PLUS Platinum certified: up to 93% efficiency @ 50% load
  • Powerful single +12V rail, capable of delivering up to 100A
  • Excellent output voltage stability ensures total voltage regulation under 1% (even better than DSP)
  • Twelve PCI-E 6+2pin connectors for 4 way SLI & high end solution builds


SATA Connectors 12
CPU Connectors 2 x 4+4-pin
Motherboard Connectors 1 x 20 + 4-pin
Floppy Connectors 1 x Floppy Connector


Voltage 100 to 240 V AC
Power 1200 W
Power Cord UK Power Cord


Operating Temperature 0 to 40 °C


Form Factor Power Supply Unit
Case Colour Black
Pack Quantity 1
Width 15.0 cm
Depth 19.0 cm
Height 8.6 cm


Warranty 7 years

Key Features

Modular Cables Semi-Modular
80Plus Rated 80 Plus Platinum
PSU Form Factor ATX
Molex connectors 9
PCI-E Connectors 12
Floppy Connector 1
Motherboard Power Connectors 4 + 4-Pin x 2
PCI-E Pin Type 6+2-Pin
PSU Depth 190 mm
ETA Efficiency Cert. Not Rated
Lambda Noise Cert. Not Rated

Item Details

Manufacturer Cooler Master
Manufacturer Code RSC00-AFBAG1-UK
EAN 4719512046531
UPC 884102025518
Condition New

Warranty Information

Warranty 7 years

Manufacturer Information

Manufacturer Cooler Master
Manufacturer Code RSC00-AFBAG1-UK

Do you have you a question about the Cooler Master Vanguard V 1200W 80plus Platinum Power Supply Unit Fully Modular with 100% Japanese Capacitor, Silent 135mm FCB Fan and UK Cable?
