Montech Century 650W Modular Power Supply 80 Plus Gold

Montech Century 650W Modular Power Supply 80 Plus Gold

CCL Code: PSU2059

Discontinued

Montech Century 650W Modular Power Supply 80 Plus Gold

P007

Key Features:

  • 3x Molex Connectors
  • 8x SATA Connectors
  • 4x PCIe Connectors (6+2-Pin)
  • 4+4+8-Pin CPU Power Connector
  • ATX Form Factor
CCL Code: PSU2059

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

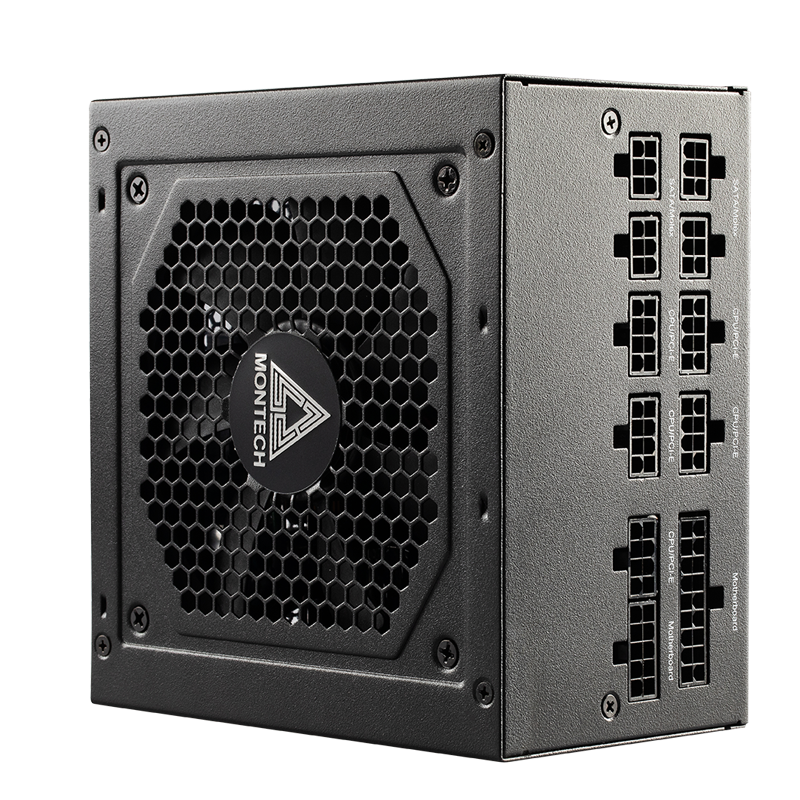

The Montech Century 650 Power Supply

Montech CENTURY 650 GOLD

POWER UP WITHOUT ANY NOISE

The Century series brings a premium power supply unit in 550, 650, 850 wattage. It offers 80 Plus Gold efficiency rating, full modular cables, premium FDB fan, 100% Japanese high-quality capacitors.

And it features superior full bridge LLC resonant converter together with DC-DC circuitry, put this product on the mountain top for gold power supply.

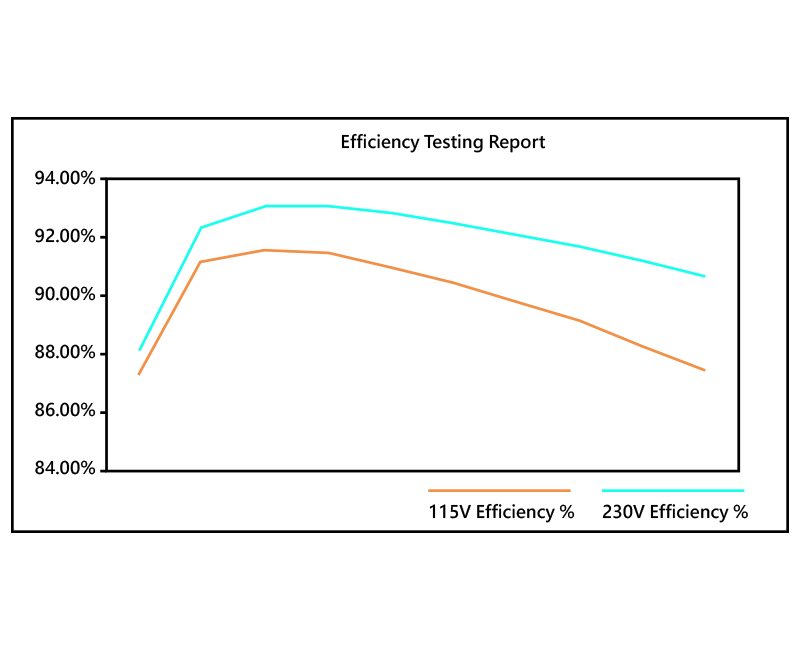

Efficiency Testing chart.

HIGH EFFICIENCY AND LOWER OPERATING COSTS

Century series is certified 80 PLUS® Gold, saving you energy and ensuring a minimum of 90% efficiency at 50% load, generating less heat. Also, the series has been optimised with all generations of Intel's processors to maximize energy saving.

MODERN CIRCUIT LAYOUT DELIVERS SUPERIOR PERFORMANCE

Century series uses a full bridge LLC resonant converter framework together with DC-DC circuity, plus 100% Japanese capacitors and all high-quality components.

The Century Series power supply is reliable for safety and stable voltage outputs, with better performance and higher efficiency.

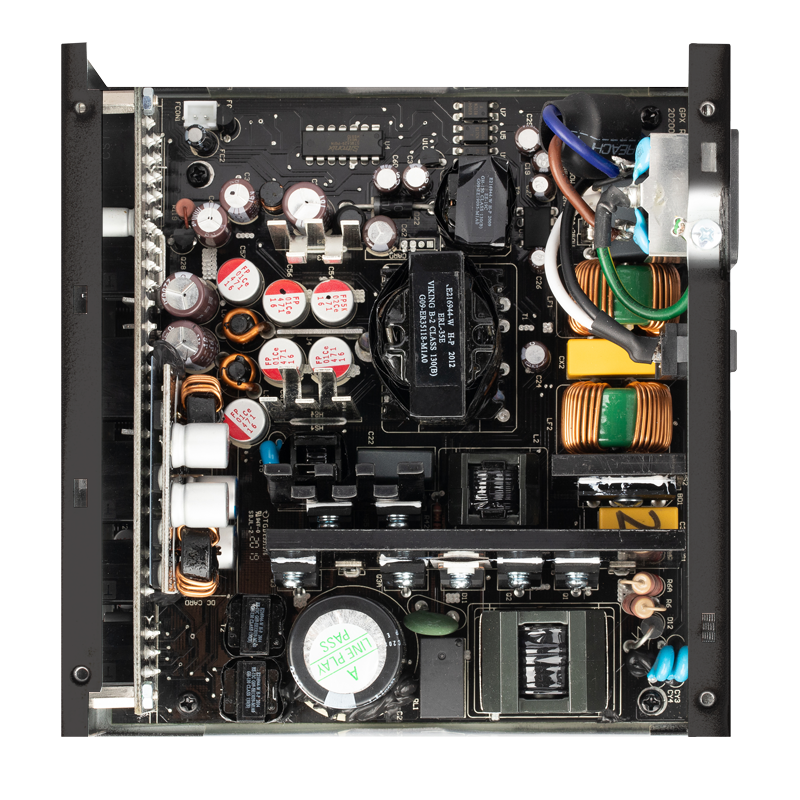

View of the internal circuitry from above.

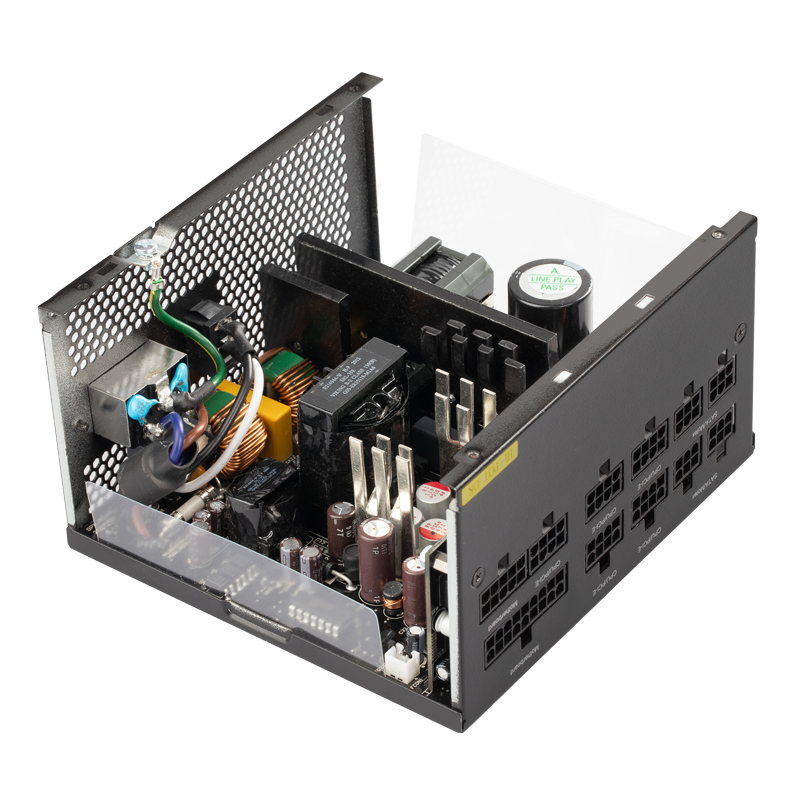

View of the internal circuitry from an angle.

DURABLE AND SECURE

Century series adopts 100% Japanese industrial-level electronic capacitors for high durability, achieving tight voltage and low ripple noise to enhance performance.

Moreover, its durable in high temperature and under high pressure, effectively increasing the lifespan of computer components.

SILENT OPERATION AND LONGER LIFESPAN

The advantage of using Fluid Dynamic Bearing (FDB) in the fan is to enhance the impact absorbance effects of oil. It generates less noise and heat than most other bearings. And, it can effectively reduce friction and vibration due to the lubrication of the bearing surface. You get more reliable performance and a considerably longer lifespan.

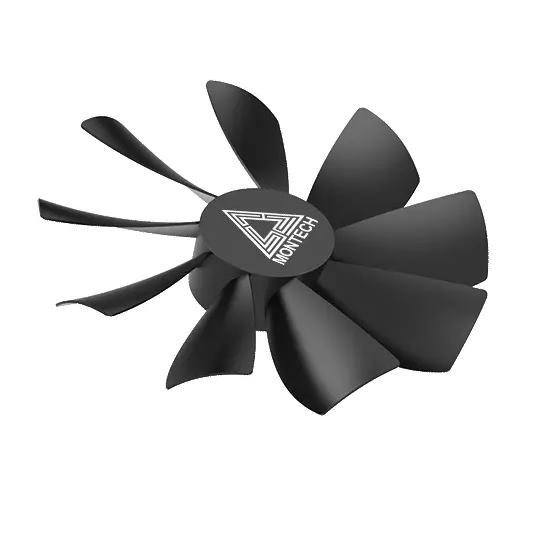

Spinning fan.
View of the internal connectors.

USER FRIENDLY CABLING

The Fully modular cable set allows users to only attach the cables they need, reducing cable clutter and increasing airflow.

Cables

The modular cables are longer than your average power supply, making cable management even easier.

20+4 pin ATX x 1
4+4 pin EPS x 2
6+2 pin PCIe x 4
SATA x 8
Molex x 3
Floppy x 1

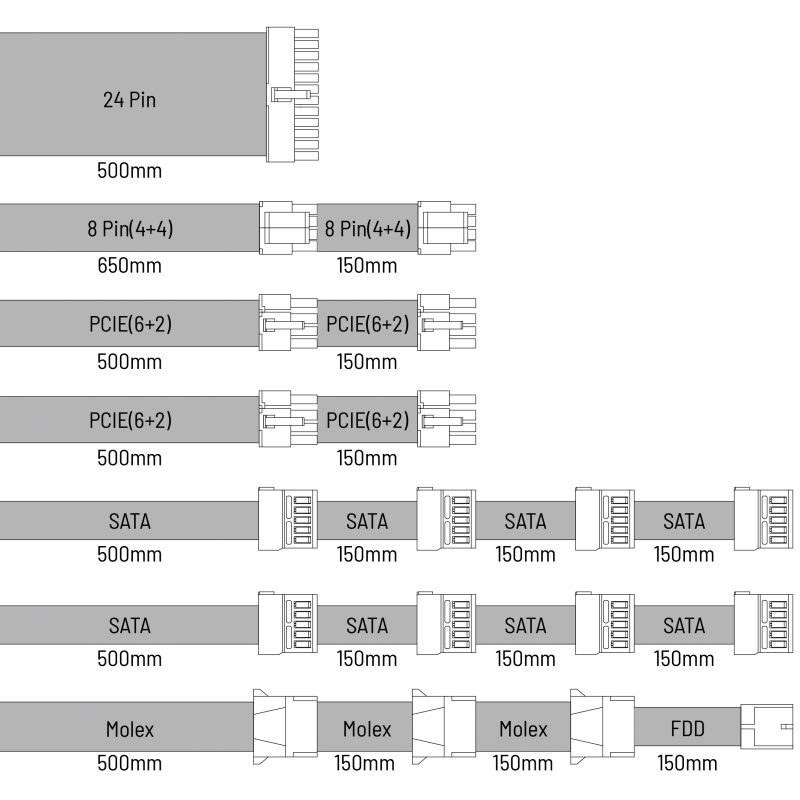

Cable layout.

Main Features

  • 80 plus Gold certified, with 91% efficiency or higher under typical loads
  • Fully modular to reduce clutter and improve airflow
  • 100% high quality Japanese 105 degrees C capacitors, full-bridge LLC resonant converter and DC-DC technology
  • Fluid Dynamic Bearing premium fan enhanced quiet operation and increased lifespan
  • Heavy-duty protections, including OCP, OVP, UVP, OPP, SCP, and OTP
  • 5 year limited Warranty and exceptional Montech Customer Support
Specifications

Interfaces/Ports

SATA Connectors 8
CPU Connectors 2 x 4+4-pin EPS
PCI Connectors 4 x 6+2-pin PCIe
Motherboard Connectors 1 x 24-pin ATX
Molex Connectors 3
Floppy Connectors 1 x FDD

Compliance

ATX Spec
Standards 80 PLUS Gold Certified
cTUVus / TUV / CB / CE / RoHS / FCC
Safety OCP/OVP/UVP/OPP/SCP/OTP

Electrical

Voltage 100 ~ 240 V AC
Power 650 W
Frequency Range 50 ~ 60 Hz
Power Cord No

Environmental

Operating Temperature 0 ~ 45 °C

Physical

Form Factor ATX Power Supply
Case Colour Black
In The Box Power Supply
Screws
Modular Cables
Width 150 mm
Depth 140 mm
Height 86 mm

Warranty

Warranty 5 Years

Key Features

Modular Cables Modular
80Plus Rated 80 Plus Gold
PSU Form Factor ATX
PCI-E Connectors 4
Floppy Connector 1
Motherboard Power Connectors 4 + 4-Pin x 2
PCI-E Pin Type 6+2-Pin
PSU Depth 140 mm
ETA Efficiency Cert. Silver
Lambda Noise Cert. Standard++
CPU Power Pins (female)
PCI Express Power Pins (female)
CPU Power Pins (male) 16
PCI-E Power Pins (male) 32
PCI-E 16-pin Connector No
Config Business Yes
Config Enterprise Yes
Config Gaming Yes
Config Home Office Yes
Config Lifestyle Yes
Config Professionals Yes
Config Students Yes

Item Details

Manufacturer Montech
Manufacturer Code P007
EAN 4710562740615
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Montech
Manufacturer Code P007
