Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0

CCL Code: CAS3403
|
Manufacturer Code: MCM-H500M-IHNN-S00
| Manufacturer: Cooler Master
|
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0
  • Cooler Master MasterCase H500M Mid Tower Gaming Case - Black USB 3.0

Key Features:

PSU not included
8 x 2.5" Drive(s) Max
Max MB Size: E-ATX
0 x 5.25" External Bay(s)
2 x 3.5" Drive(s) Max
Tempered Glass

£217.21

inc VAT

Available for delivery from Tomorrow

Hurry, only 2 left!

Free Priority Delivery!

Buying in bulk? Contact our business team here.

Overview

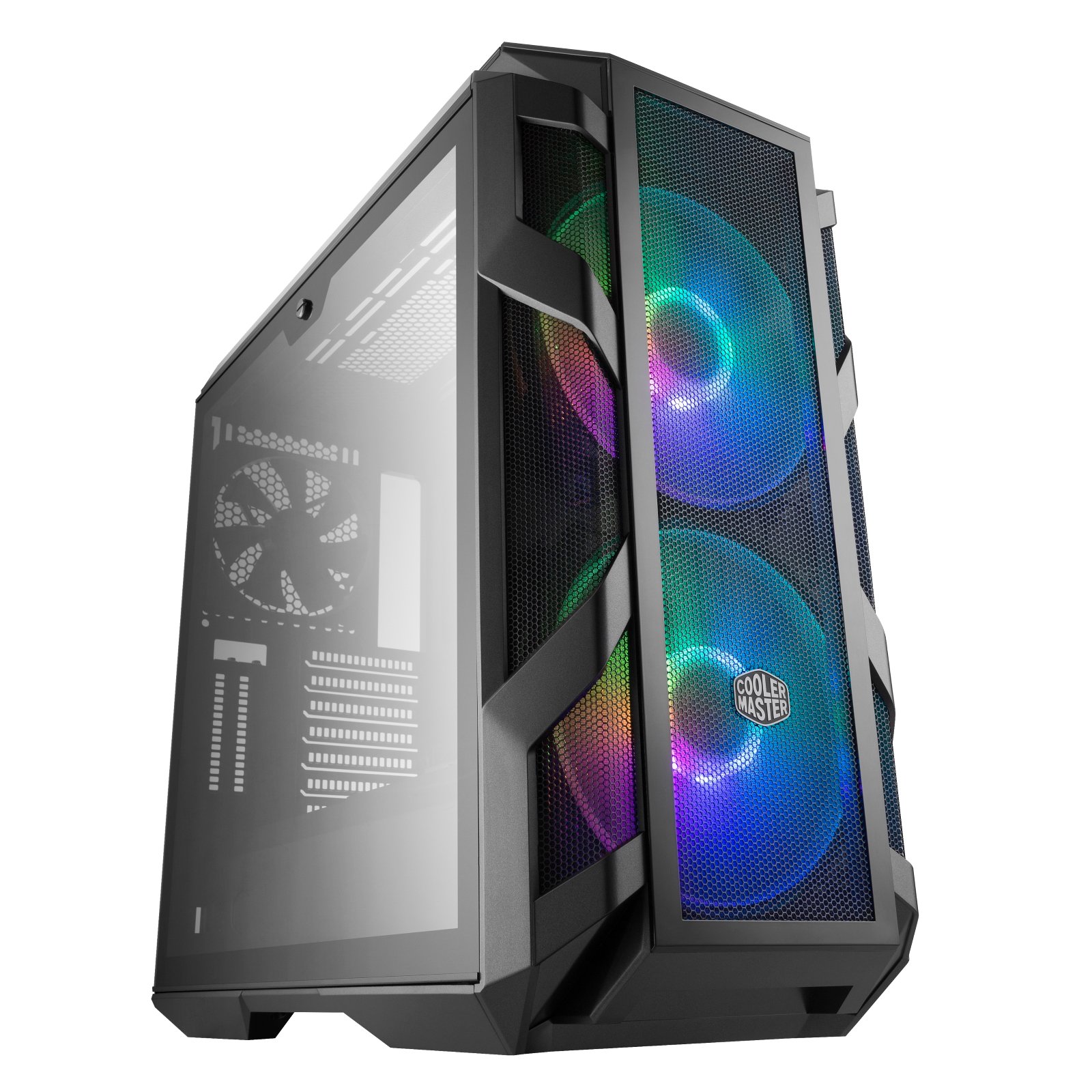

The MasterCase H500M, form and function you can raise your glass to. Four panels of tempered glass offer a comprehensive system view, complimented by two 200mm addressable RGB fans. Cycling of lighting color and mode is made possible by an addressable RGB controller.

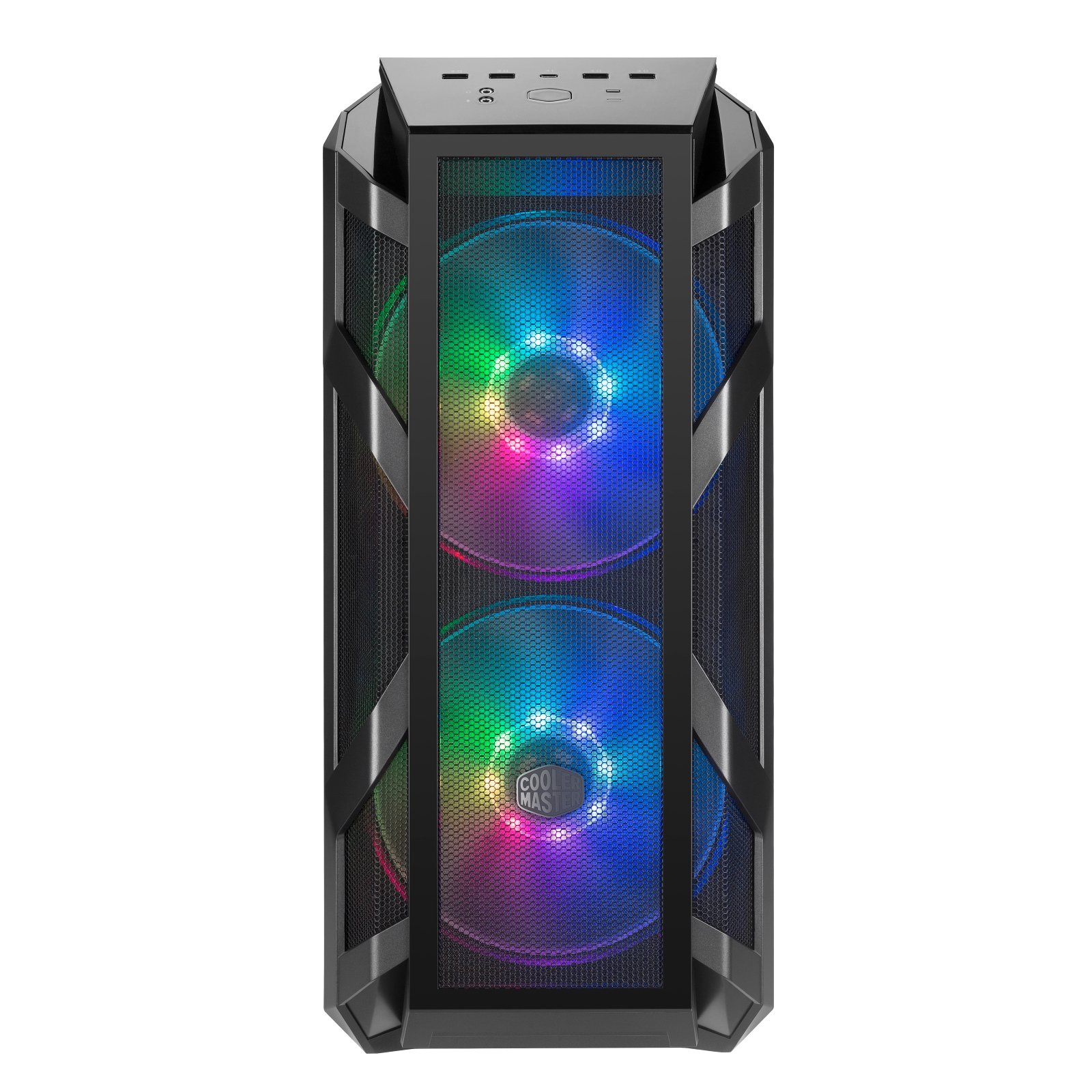

Both the front mesh panel and glass accessory are included to offer a choice between maximum airflow and aesthetics. Each of the front panel options compliment the industrial design of the H500M in their own method.

The covers on the frame and PSU shroud offer extra customization while keeping builds clean from cables. The top panel is compatible with two optional 200mm fans accompanied by a 360mm radiator to ensure options for high performance cooling components.

Clearances

  • Max GPU Length: 412mm
  • Max CPU Cooler Height: 190mm
  • Max PSU Depth: 200mm

Main Features

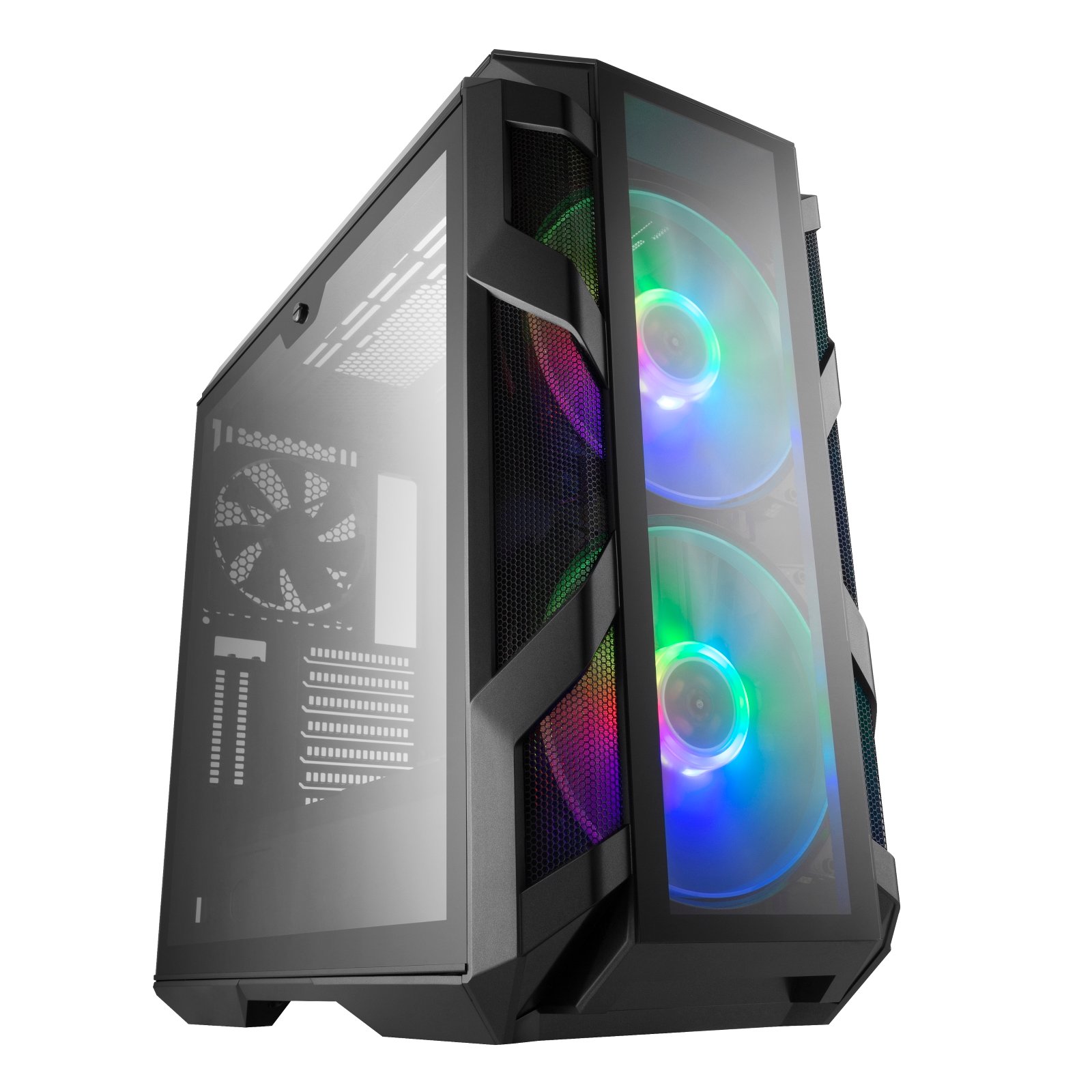

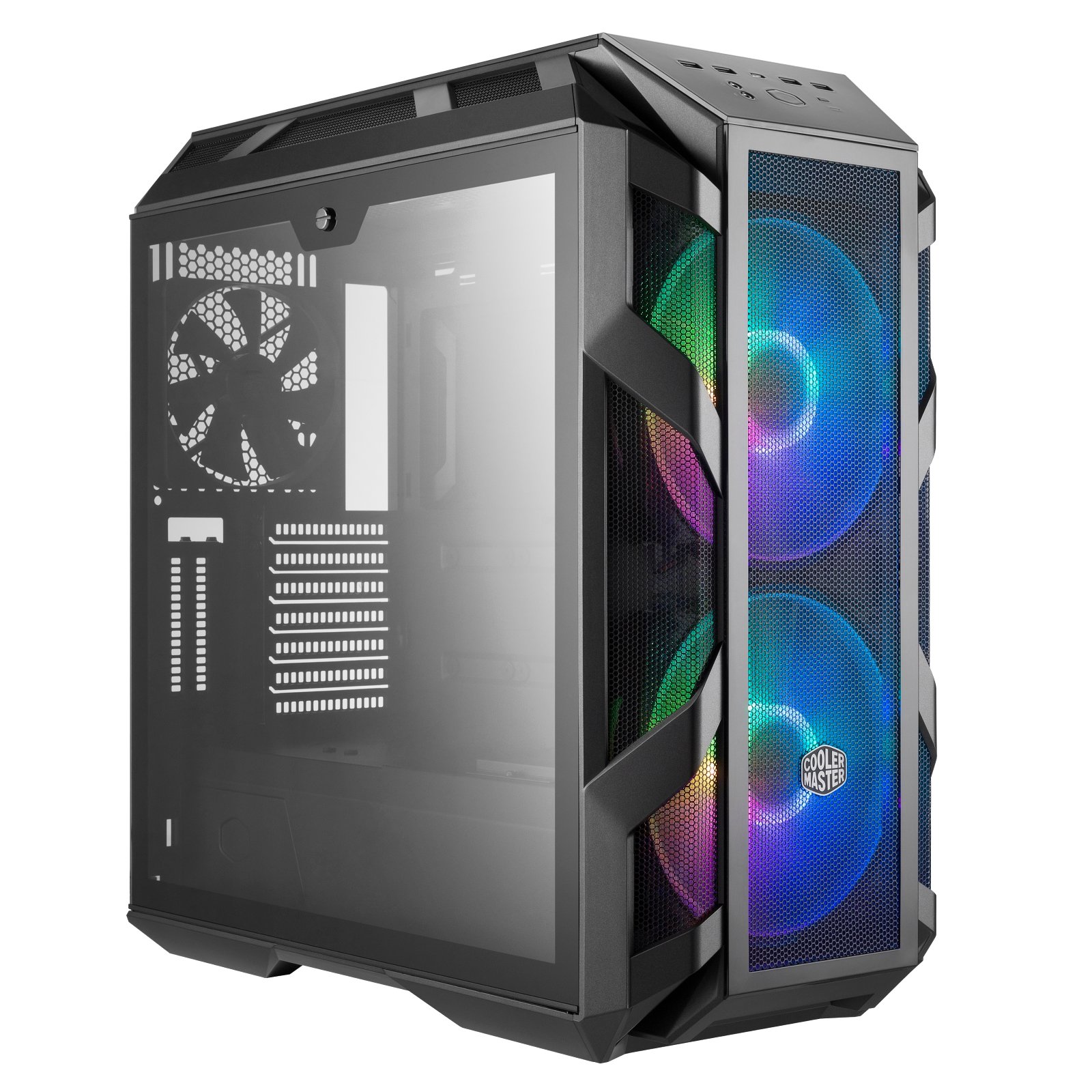

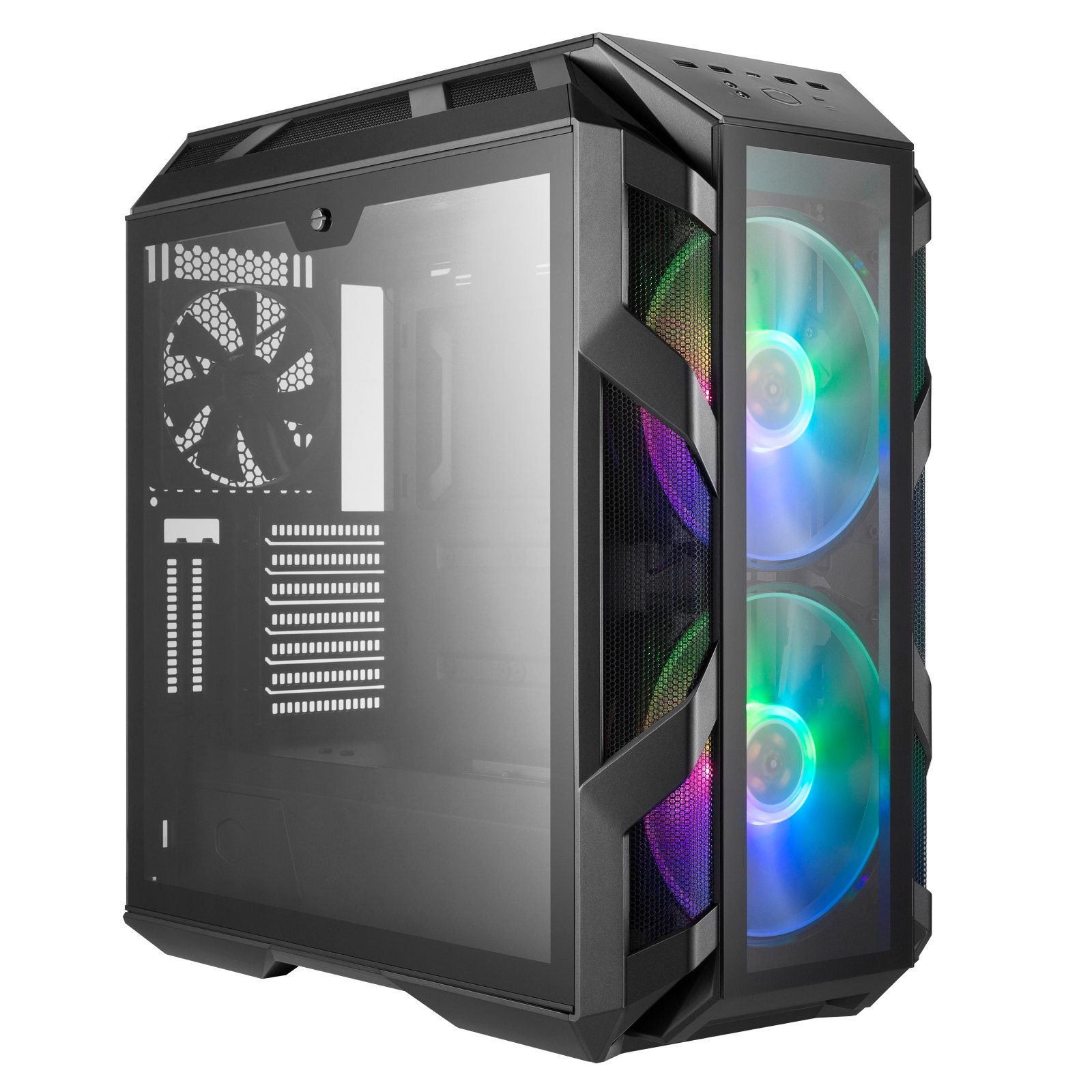

  • Mesh & Glass Options Included - Choose between the mesh front panel for optimized airflow or the glass option for a balance of aesthetics and performance with the included accessory.

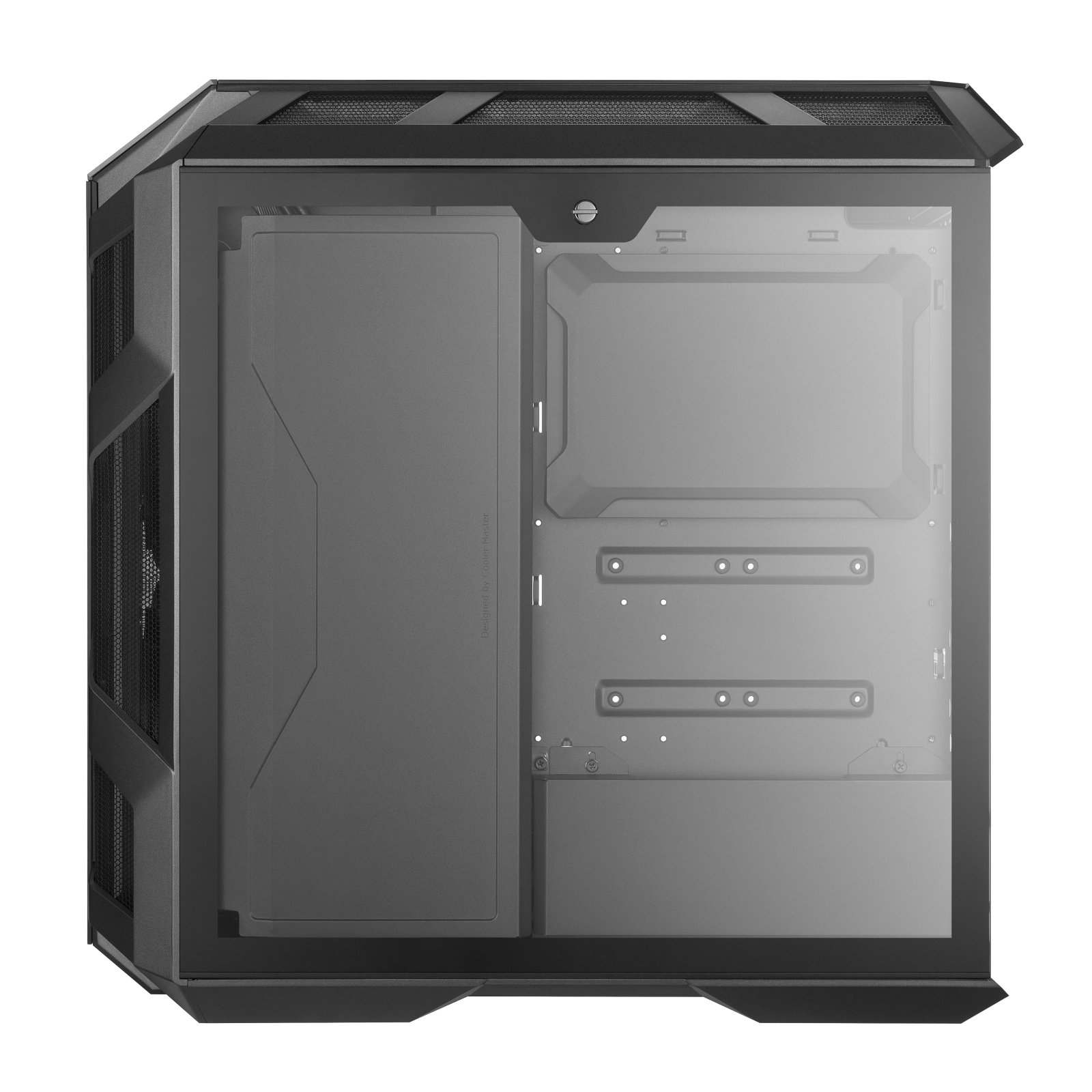

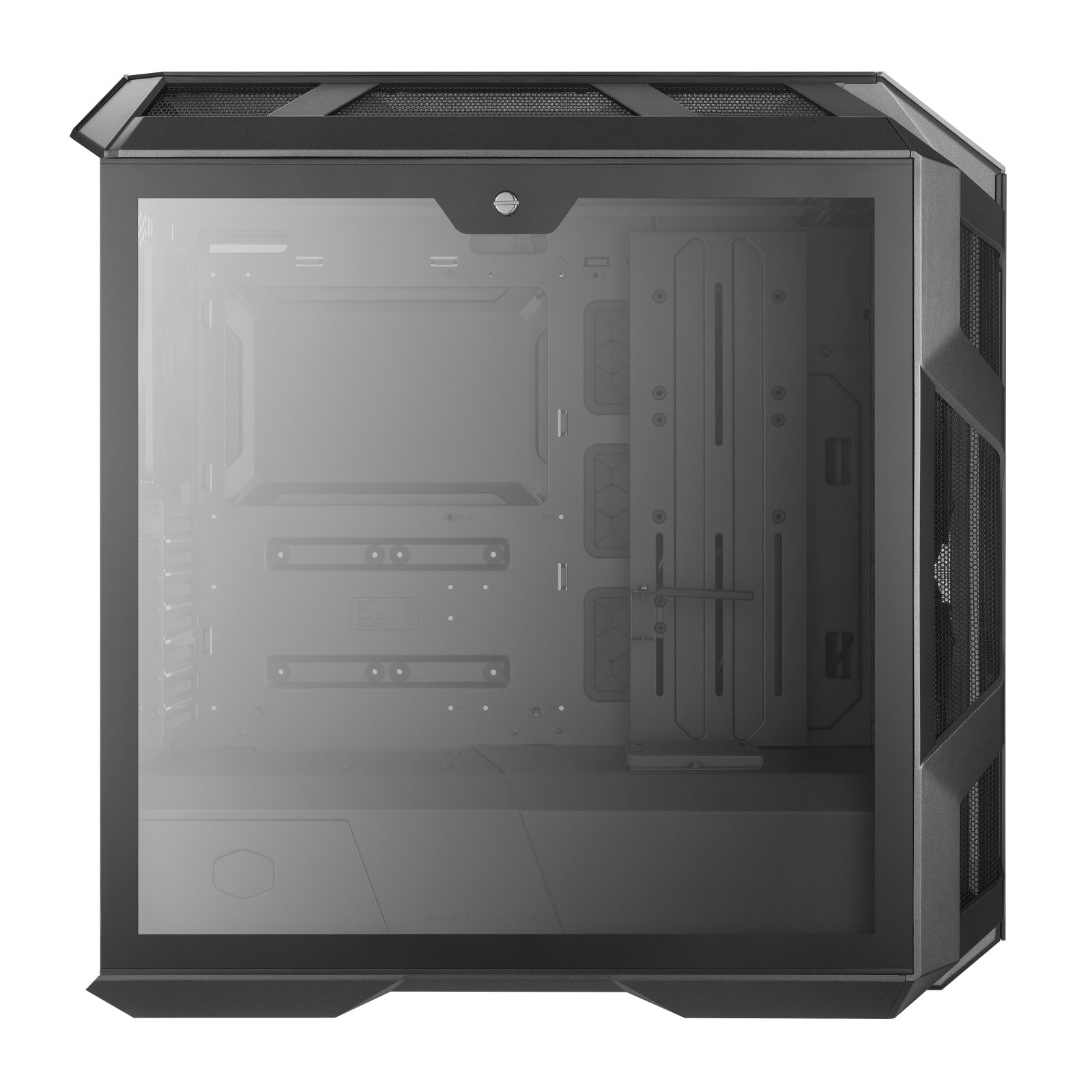

  • Four Tempered Glass Panels - Edge-to-edge glass side panels on both sides, a glass top panel, and a glass front panel offer a clear and comprehensive system view.
  • Two 200mm Addressable RGB Fans & Controller - Move air stylishly and quietly with two addressable RGB Fans controlled by an included addressable RGB controller.

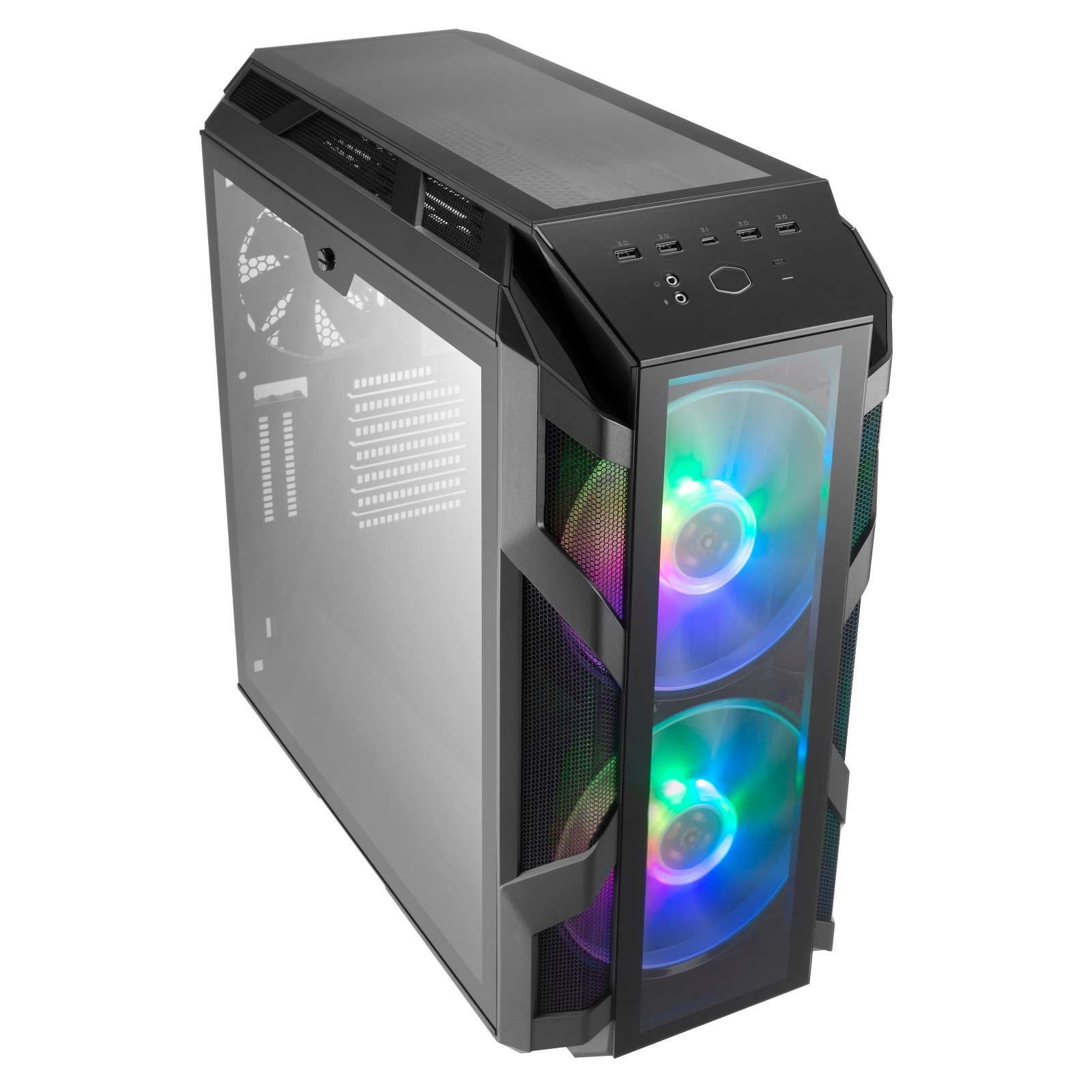

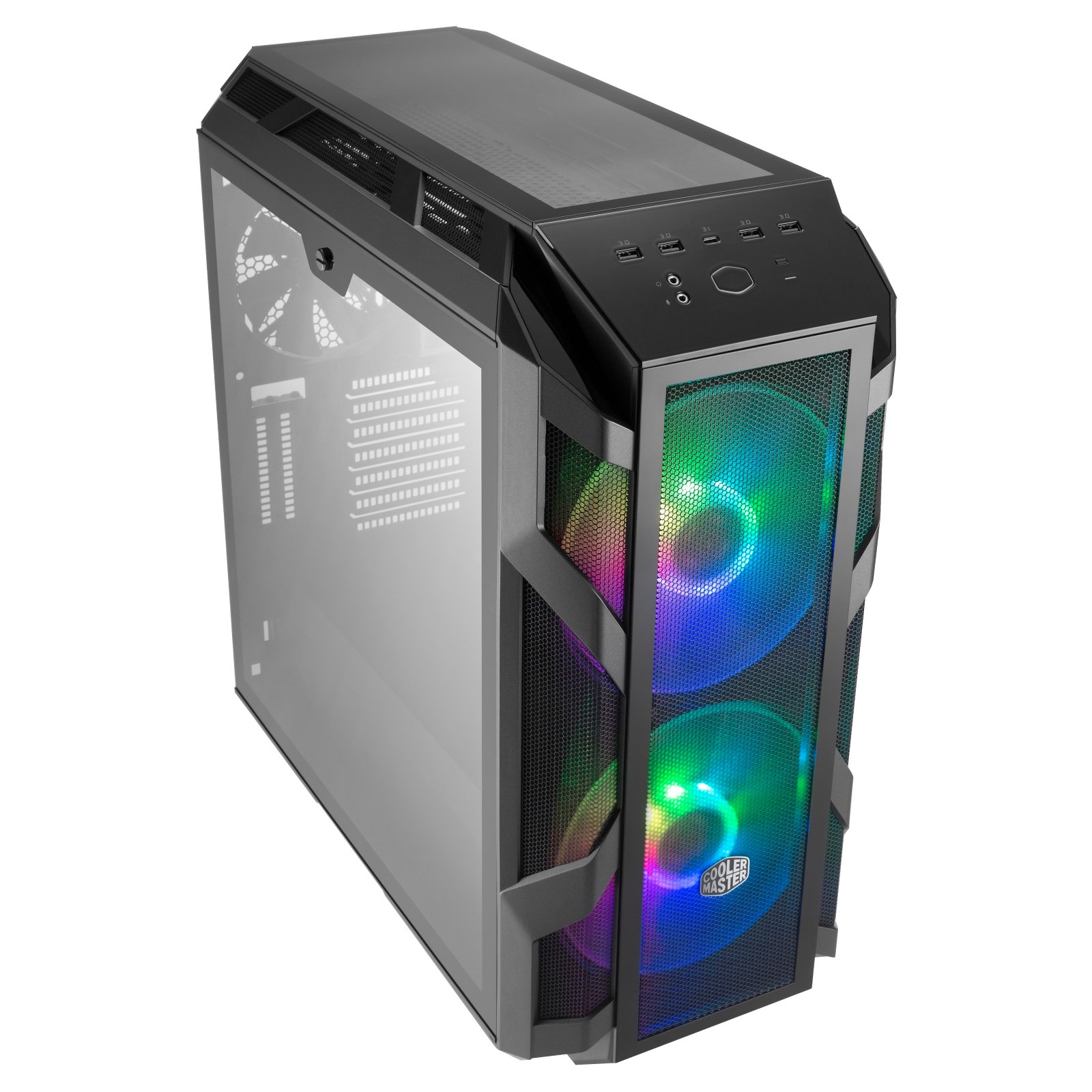

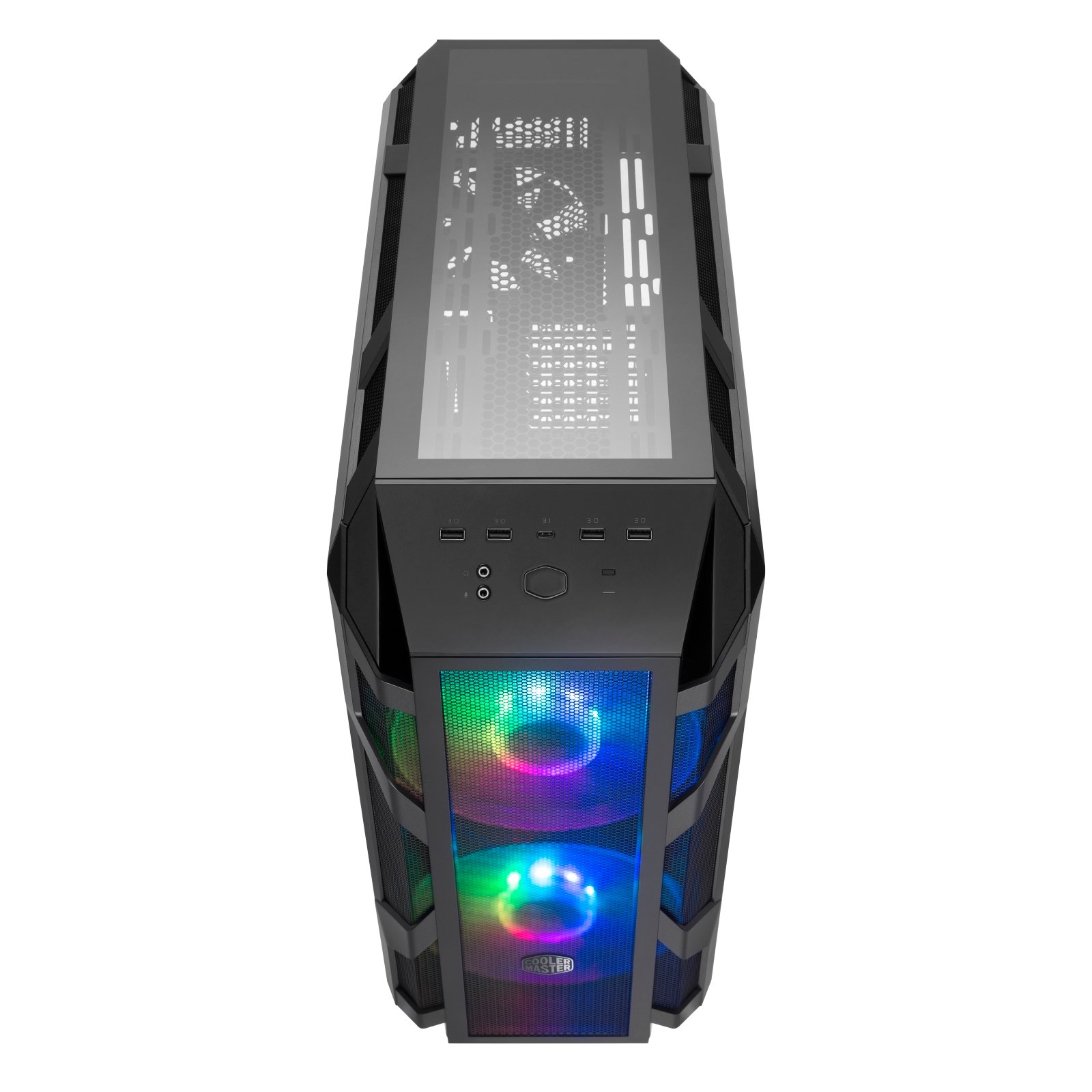

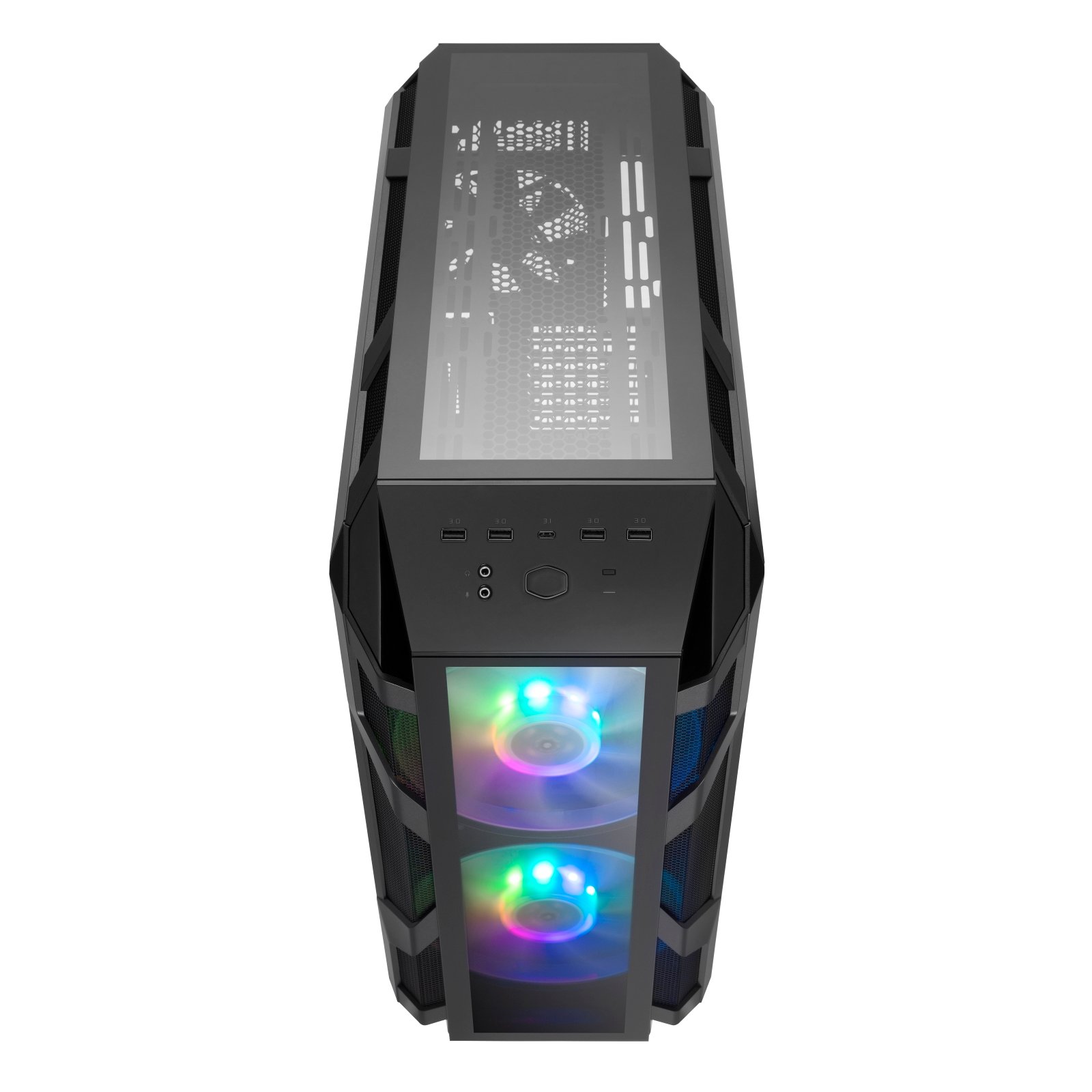

  • Rich Connectivity - The I/O panel comes with a USB 3.1 (Gen 2) Type-C port, and four additional USB 3.0 ports. The included addressable RGB controller manages the lighting of the system.

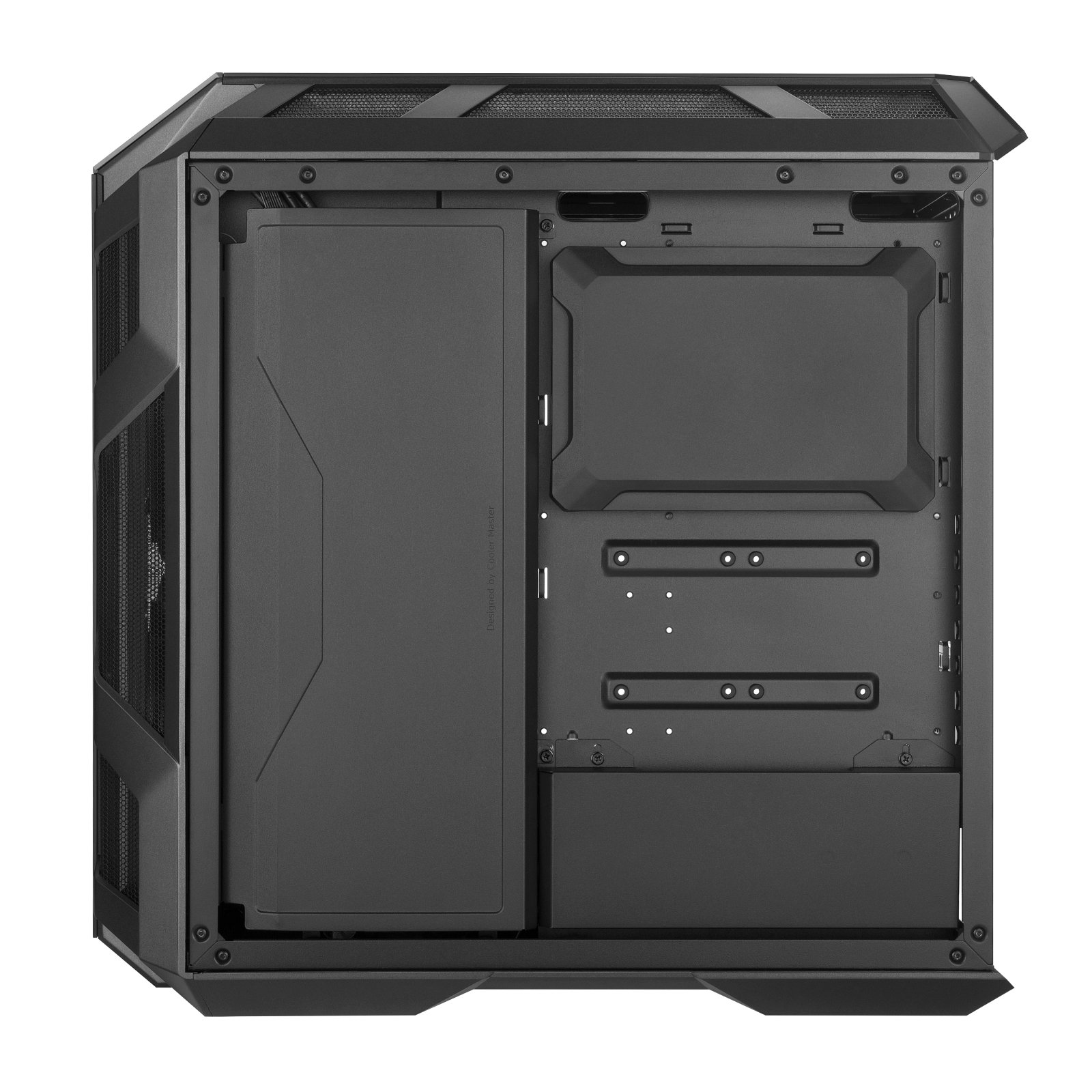

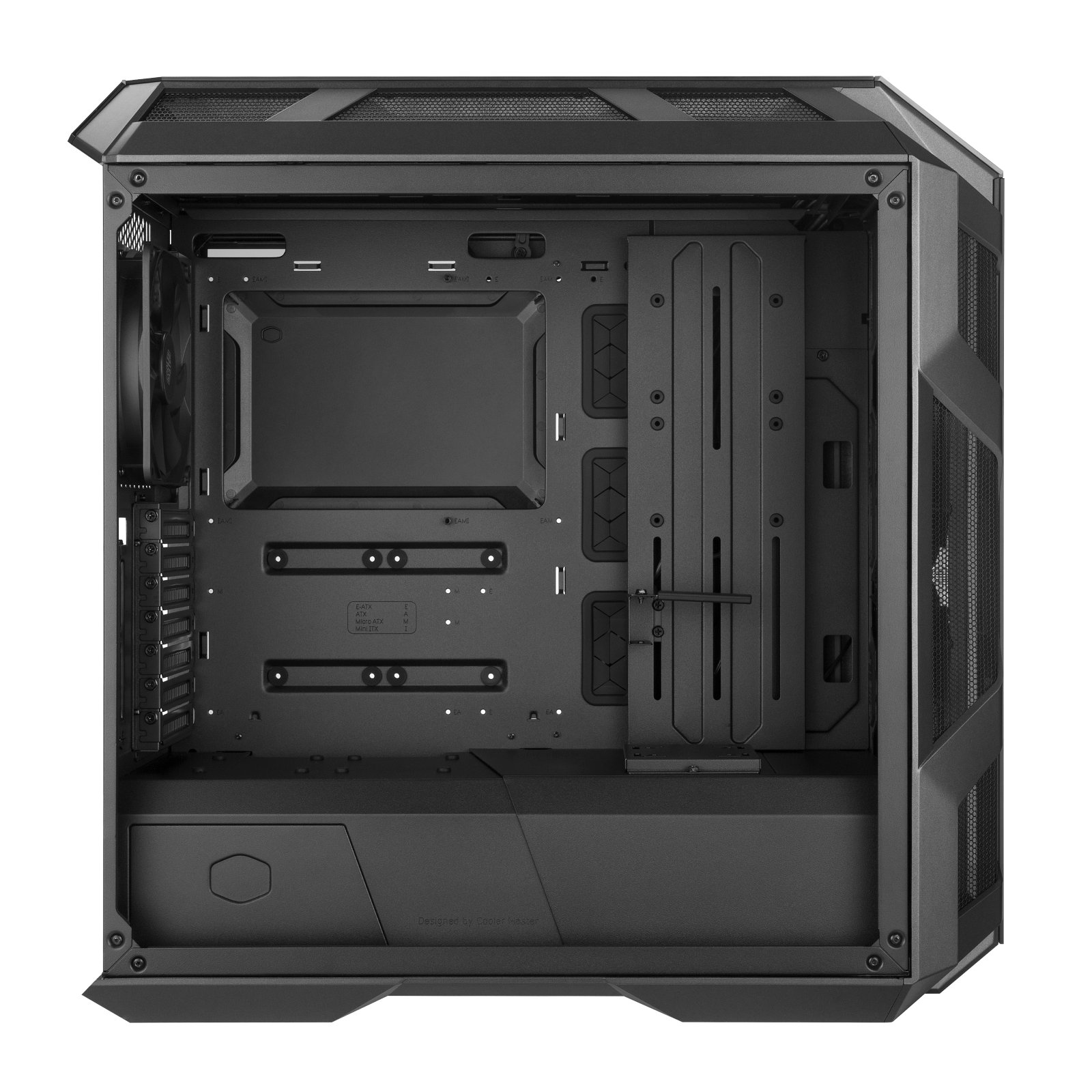

  • Covers For Clean Building - A total of 9 covers take clean building to the next level with a PSU cut out cover that provides the option of showing off your PSU or leaving it out of sight.

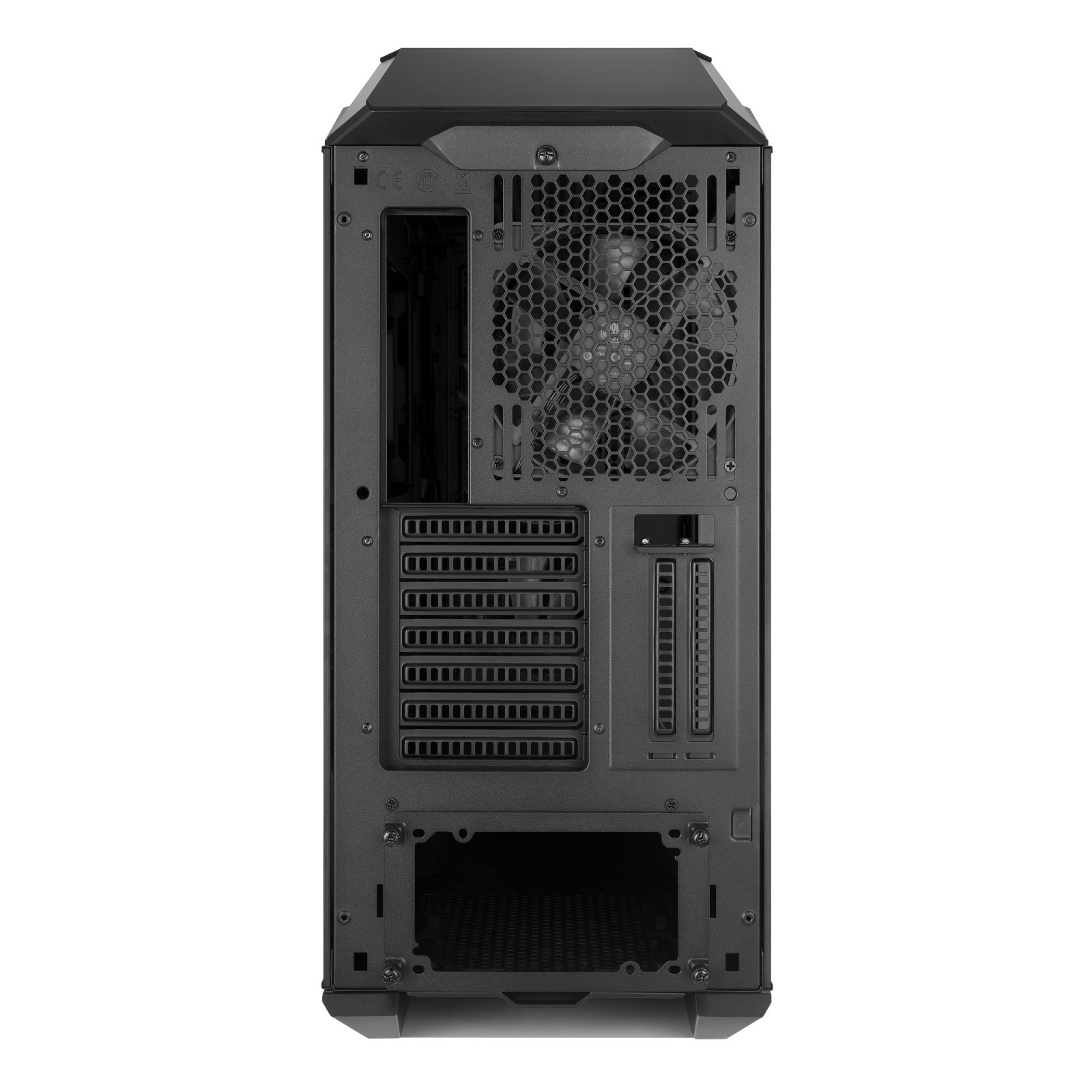

  • Show Off Your Graphics Card - Two additional PCI slots at the rear enable you to show off your graphics cards in the vertical position.
  • Adjustable GFX Support Arm - Relieve the stress of weight and reinforce larger, longer graphics cards with an included adjustable graphics card support arm.
  • 200mm Radiator Support - The front panel is compatible with up to a 360mm radiator, including support for one 200mm sized radiator. The top bracket supports up to a 360mm radiator along with 200mm fans.
Specifications

Storage

Internal Expansion Bays 6 x 2.5"
2 x 3.5"

Expansion

Expansion Slots 7 +2 x Full Height

Interfaces/Ports

USB Ports 1 x USB 3.1 Type-C
4 x USB 3.0
Headphone Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Electrical

Cooling System Front: Supports 3 x 120mm/140mm or 2 x 200mm fans (2 x 200mm RGB LED fans included)
Top: Supports 3 x 120mm or 2 x 140mm/200mm fans
Rear: Supports 1 x 120mm/140mm fan (140mm fan included)
Power Supply ATX Power Supply supported

Physical

Form Factor Mid Tower Case
Case Colour Iron Grey
Material Steel Mesh
Glass
Steel
Tempered Glass
Motherboard Compatibility E-ATX (12" x 10.7")
ATX
MicroATX
Mini-ITX
Width 248 mm
Depth 544 mm
Height 546 mm
Weight 14.2 kg

Key Features

Firewire No
Main Colour Black
Case Type Tower
USB 3.0 Support Yes
Case Form Factor Mid Tower
Power Supply Included No
Optimised for Gaming
80Plus Rated No
PSU Form Factor ATX
Display Model in Showroom No
e-SATA No
L.E.D Fan RGB
Max 3.5" Drives 2
Max 2.5" Drives 8
ATX Yes
Micro-ATX No
ITX No
E-ATX Yes
XL-ATX No
Cooler Height 190 mm
Built-in Card Reader No
USB Type-C Support Yes
Front HDMI No
Side Panel Type Tempered Glass
GPU Length 412 mm
PSU Depth 200 mm
Front Audio Type Separate
Maximum Motherboard Size Supported E-ATX
Total 2.5" + 3.5" drive bays 8
Power Requirement (auto) 3 W
USB3.0 ports 4
USB-C ports 1
Low profile expansion No

Warranty

Warranty 1 Year

Item Details

Manufacturer Cooler Master
Manufacturer Code MCM-H500M-IHNN-S00
EAN 4719512072165
UPC 884102044663
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Cooler Master
Manufacturer Code MCM-H500M-IHNN-S00
Questions and Answers

Do you have you a question about the Cooler Master MasterCase H500M RGB ATX Chassis (Black)?

Q: Can the Coolermaster H500M case be bought as part of customising a new gaming PC please? If you can are you able to offer a matching Coolermaster 360 AIO addressable cooler? I cant see it as an option when I select Intel I7 with a 3080 GPU? Thanks for your help.
Post Answer
Reviews
4.3 / 5 3 reviews

Muhammad Awais Nasir

October 2020

First thing first, HDD compartment is worst thing in this case. You have to remove front and rear glass panels, then remove cable management cover, then remove PSU Shroud. Also, the HDD brackets are too flimsy. SSD Mounting Support on PSU Shroud is not ideal if you have ATX mobo. Pre-installed Fans are not PWM. Bought separately PWM fans. Front USB 3 Type A ports seems faulty, one of them works off each connection; port 2 and 4. I did check my mobo manually and it supports 2 ports off each connection. All USB ports are enabled in BIOS. The ARGB fan hub only supports 3A in total. Also, the included USB cable to connect hub to the mobo is very thick and is extremly hard to attach to mobo. It may just rip out the micro usb port off the hub if you are not careful enough. Considering the amount paid for this case, it should not have above Cons.

June

June 2020

Love it ,its just what i wanted

Michael

December 2019

Fast delivery
